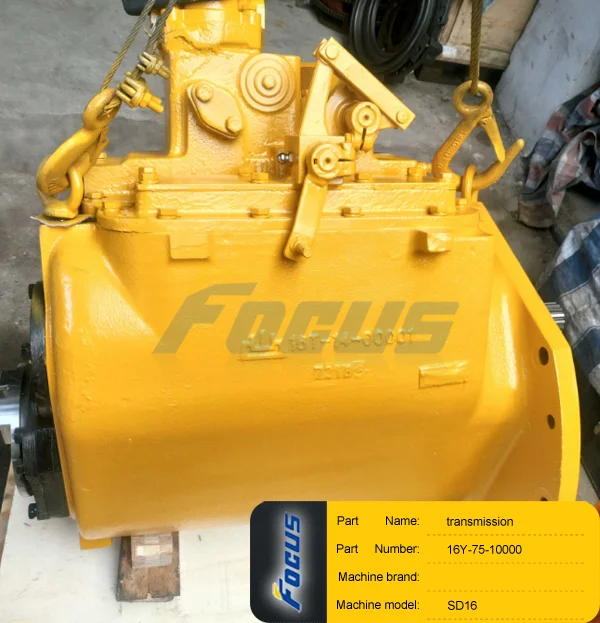

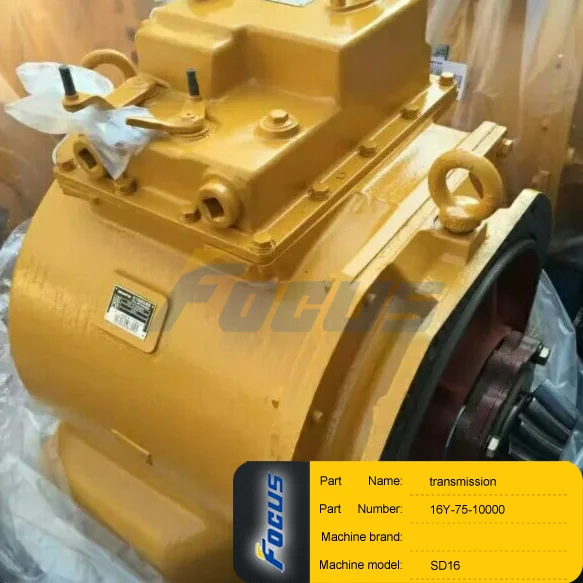

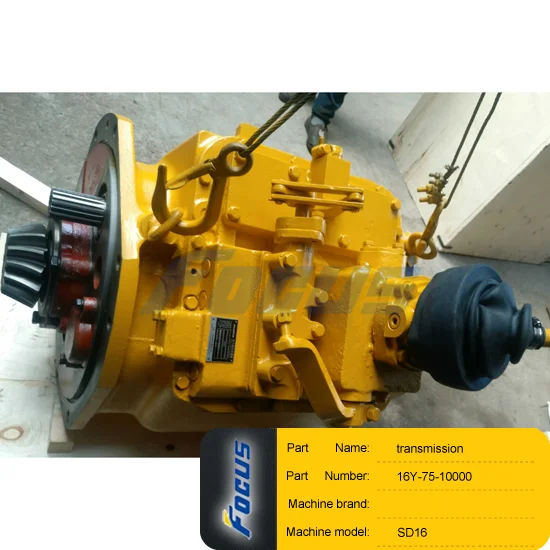

Shantui SD16 SD16L Transmission Gear Box Assembly 16Y 15 00000

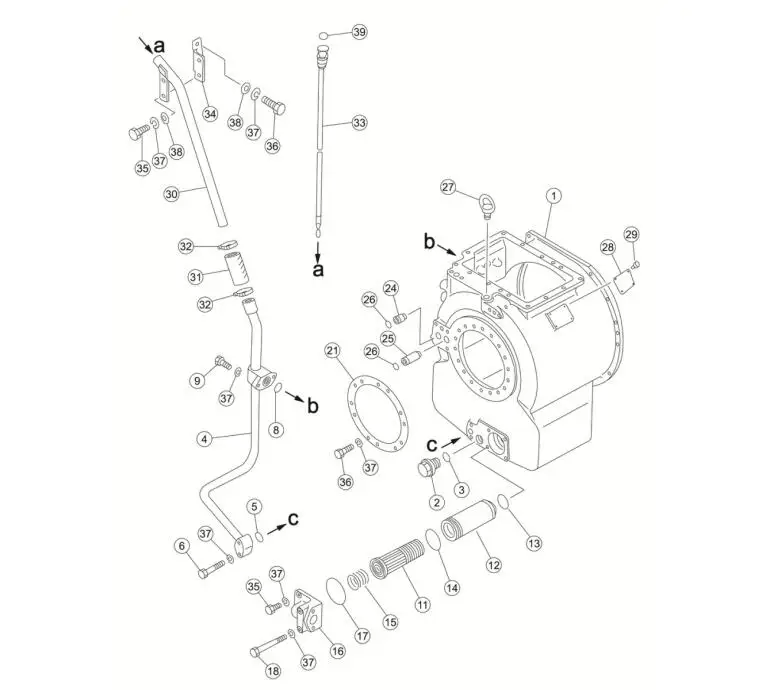

ITEM

PART NO.

PART NAME

Q'TY

0

16Y-15-00000

TRANSMISSION CASE

1

1

16Y-15-00001

BOX BODY

1

2

07044-13620

PLUG

1

3

07002-13634

O-RING

1

4

16Y-15-02100

OIL TUBE

1

5

07000-13028

O-RING

1

6

01010-81060

BOLT

2

8

07000-13035

O-RING

1

9

01010-81030

BOLT

2

11

16Y-15-07000

FILTER ELEMENT

1

12

16Y-15-08000

FILTER CLEANER CASING

1

13

07000-13045

O-RING

1

14

07000-12075

O-RING

1

15

16Y-15-00087

SPRING

1

16

16Y-15-00086

COVER

1

17

07000-12090

O-RING

1

18

01010-81090

BOLT

2

21

16Y-15-00005

PLATE

1

24

16Y-15-00021

SLEEVE

1

25

16Y-15-00020

SLEEVE

1
