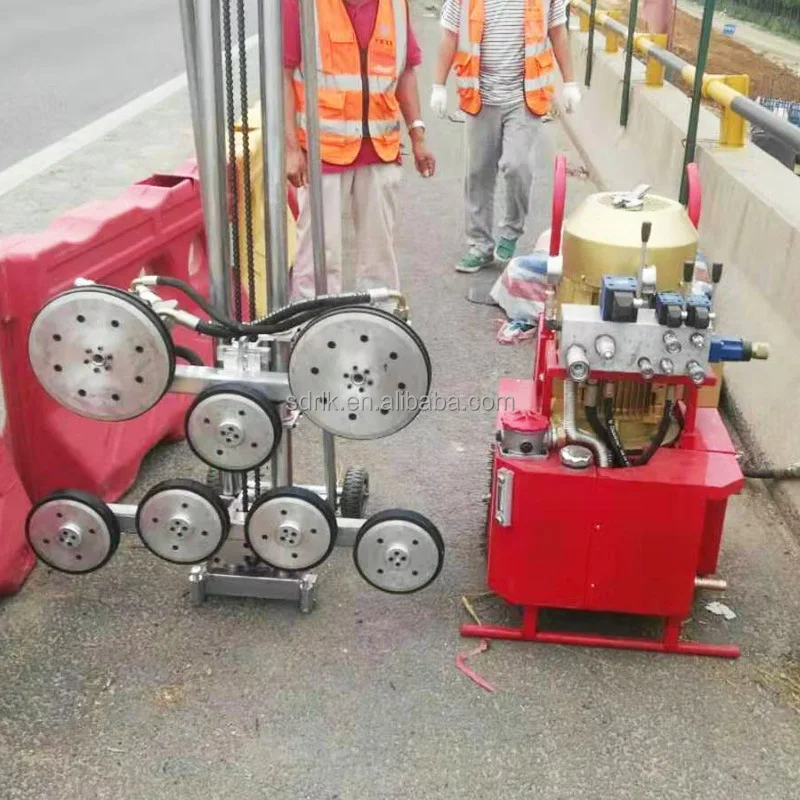

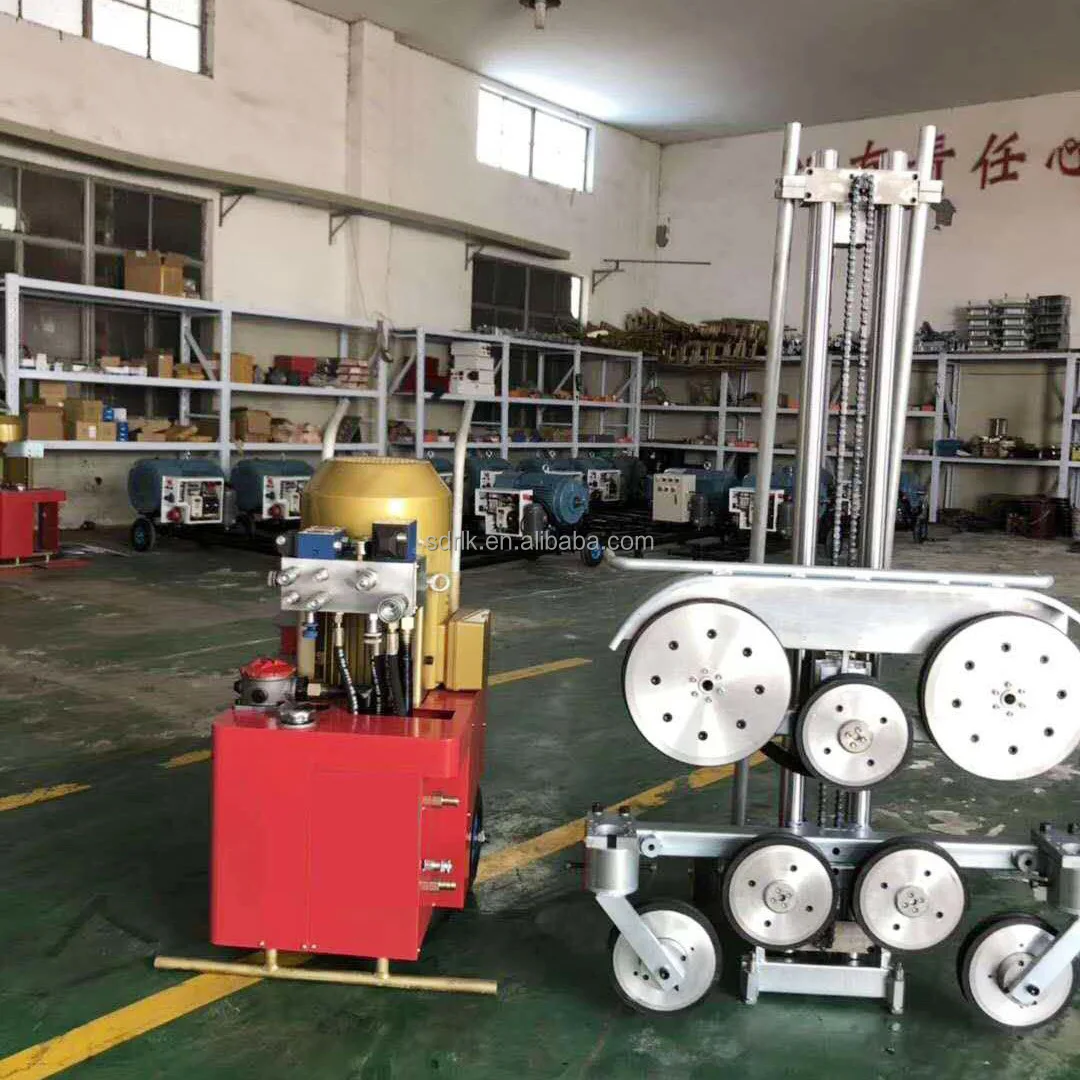

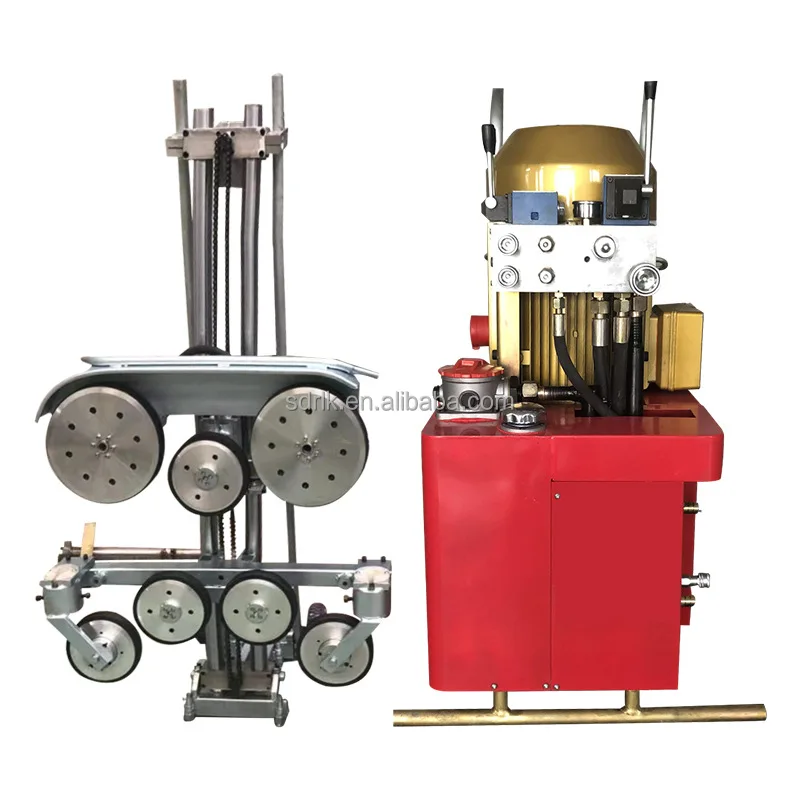

Electric Motor Concrete Hydraulic Diamond Wire Granite Bridge Wire Rope Saw Cutting Machine

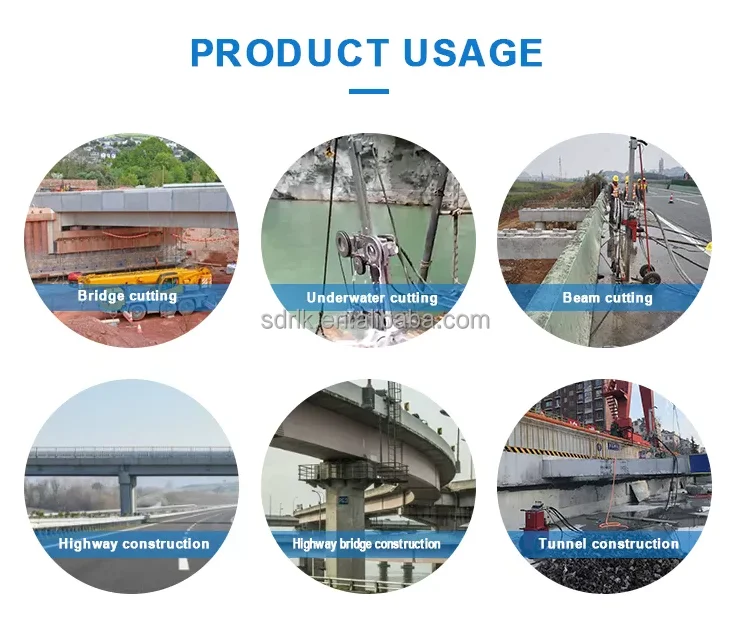

The diamond wire saw machine is used to cut concrete and rock walls and beams in the construction of bridges, roads, and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams, and mining rocks.

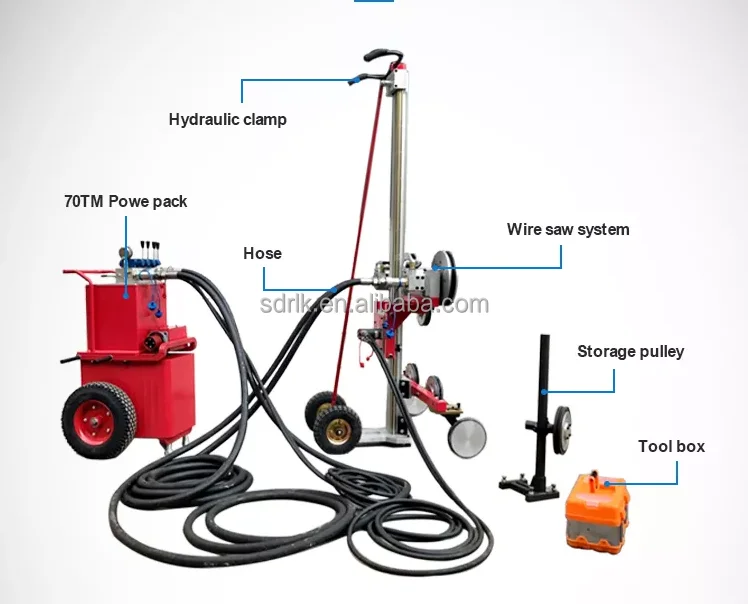

Technical Parameters:

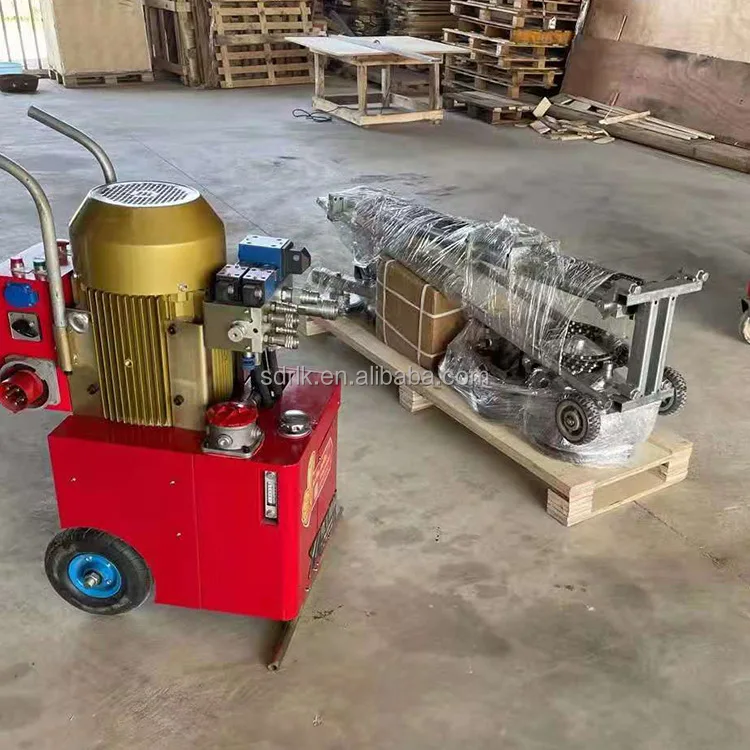

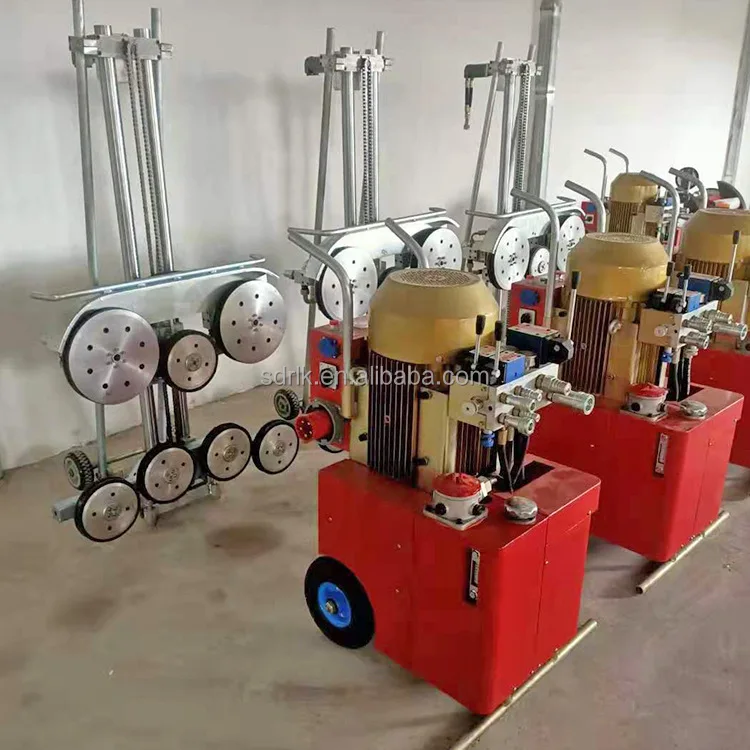

Hydraulic Pump | RK25 | Motor Power | 25kw |
Voltage | 220V/380V, 50Hz | Motor Type | HM-80, 2 Cylinders |
Rotation | 1300r/min | Working Pressure | 15-20Mpa |
Weight | 170kg | Size | 720*650*1050mm |

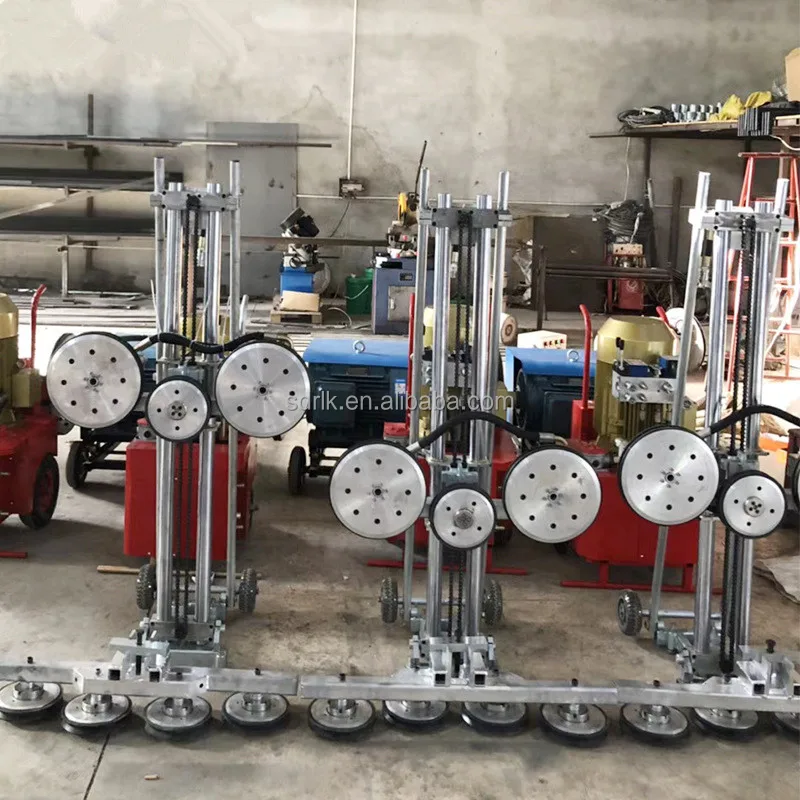

Frame & Wheels | Aluminum | Wheels | 10 |
Weight | 75kg | Size | 90*90*1700mm |

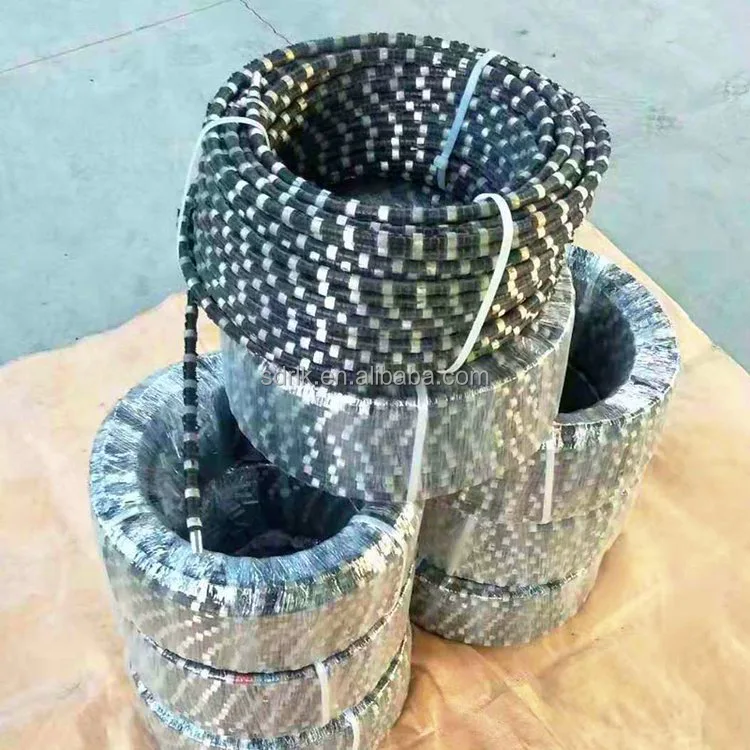

Diamond Wire Saw | Diamond Wire | Specification | φ11.5mm 40beads/m |
Cutting speed | 3~5m2/h | Wire life | 2~3m2/m |
