DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine
- Category: Machine Tools Accessories >>>
- Supplier: Dezhou Sailvin Mechatech Co. Ltd
Share on (1600593258403):
Product Overview
Description
Product Description
Specification
DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine we produce
We produce DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine, with material of 65Mn and the hardness is HRC44-48. The clamping range is full and completed in stock.On the other hand, we also make completed ER collet set and tool holder set with collets, any products you need, please contact with us.
Model | Quantity(Pcs) | Dimension |
ER8 | 9 | 1-5mm(1,1.5,2,2.5,3,3.5,4,4.5,5mm) |
ER11 | 13 | 1-7mm(1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7mm) |
ER16 | 10 | 1-10mm(1,2,3,4,5,6,7,8,9,10mm) |
ER20 | 6 | 3-13mm(3,4,6,8,10,13mm) |
12 | 2-13mm(3,4,5,6,7,8,9,10,11,12,13mm) | |
ER25 | 7 | 4-16mm(4,6,8,10,12,14,16mm) |
15 | 2-16m(2,3,4,5,6,7,8,9,10,11,12,13,14,15,16mm) | |
ER32 | 6 | 6-20mm(6,8,10,12,16,20mm) |
11 | 4-20mm(4,5,6,8,10,12,14,15,16,18,20mm) | |
18 | 3-20mm(3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20mm) | |
ER40 | 7 | 6-25mm(6,8,10,12,16,20,25mm) |
15 | 4-26mm(4,5,6,8,10,12,14,15,16,18,20,22,24,25,26mm) | |
24 | 3-26mm(3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26mm) |
Assembling Collet
Insert groove of collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the directionof the arrow until it clicks in place. Screw nut with collet onto tool holder. We recommend tightening the nut with a torquewrench.
Disassembling Collet
After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.
Packing & Delivery
Single DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine Package
DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine are packed by the film first, which guarantee the safe and anti rusting function
On the other hand, ER collets can also be sold as a set.

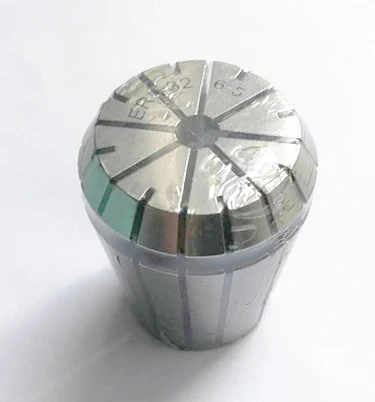

Single DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine packed by film
Single DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine is heat sealed by the film, aims at protecting the ER collet and prevent rusting when store up or shipment progress.
Each DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine should be packed by the film.

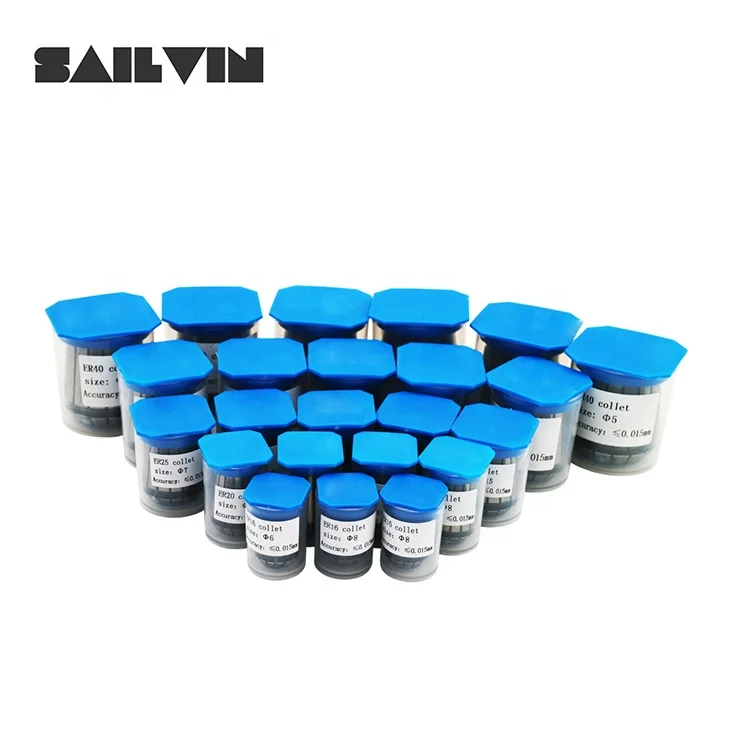

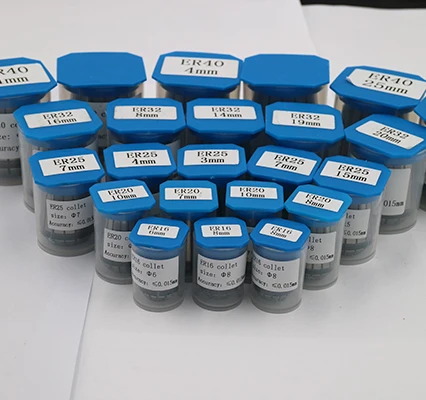

Single DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine packed by plastic box
Independent package of plastic box can protect material.

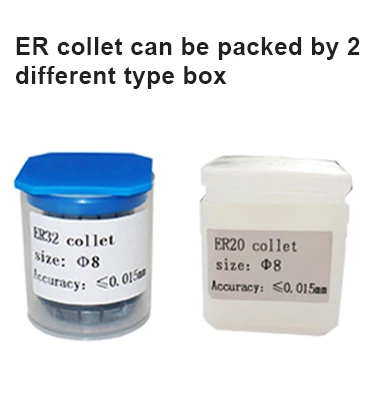

We can pack independent ER collet by 2 type box. When order, please concerns the package and we will proceed according to confirmation
ER Collet Set Package Information

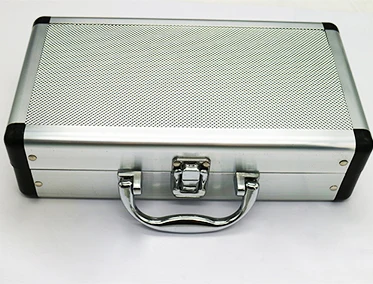

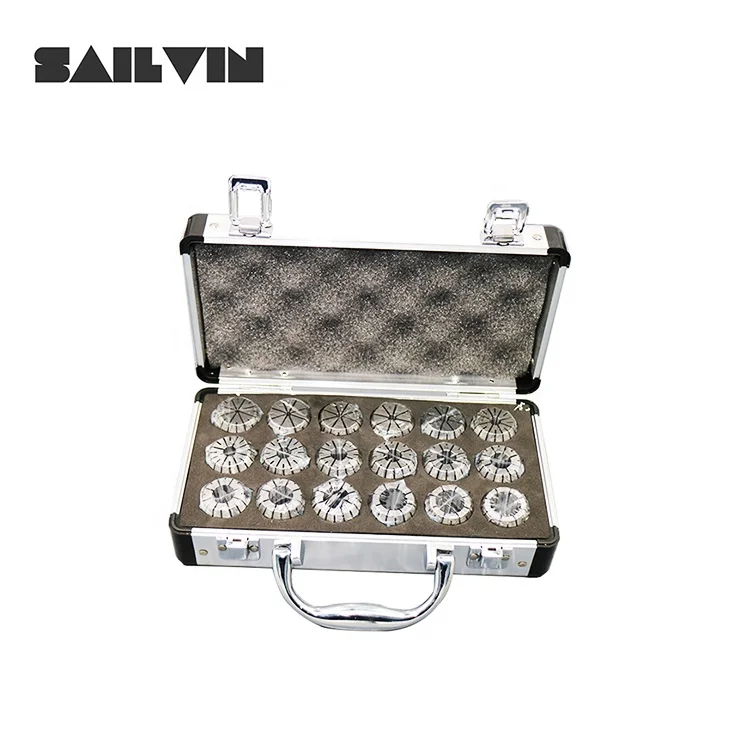

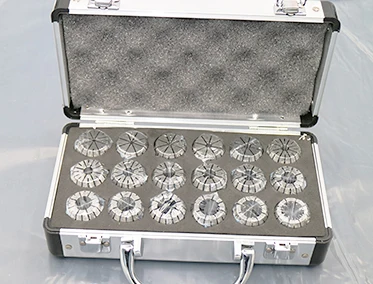

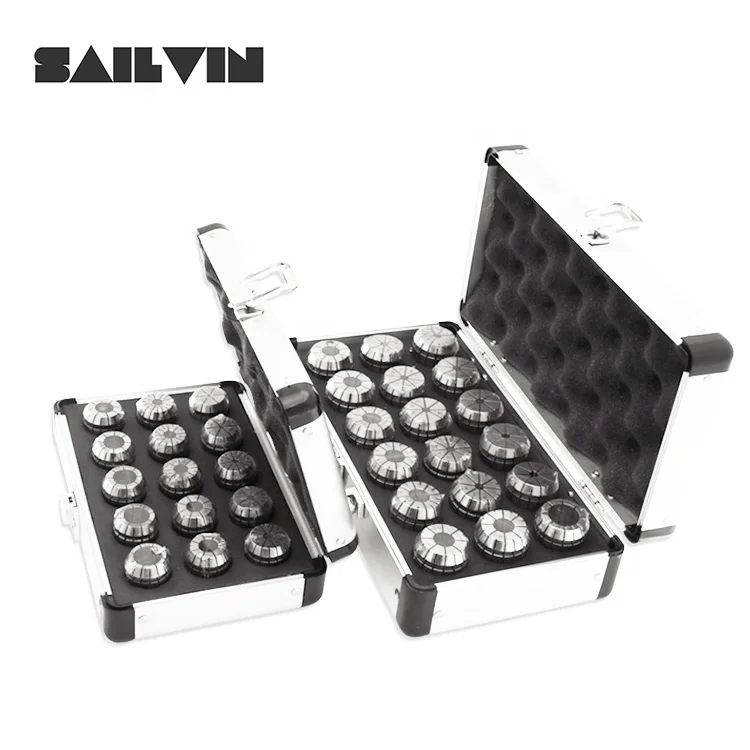

In general ER collets are packed as a set by the aluminum plastic box, with features of beauty, safe and long time store. The ordinary ER collet set is showed as below:
ER8 collet set-1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5mm, totally 9 pieces
ER11 collet set: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm, totally 13 pieces
ER16 collet set: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10mm, totally 10 pieces
ER20 collet set: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm, totally 12 pieces
ER25 collet set: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16mm, totally 15 pieces
ER32 collet set: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20mm, totally 18 pieces
ER40 collet set: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26mm, totally 24 pieces
DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine Delivery

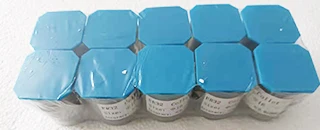

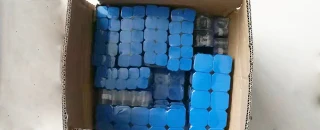

1, 10 pieces independent packed DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine are
packed as a batch by film.
2, DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine batches are packed by carbon box.

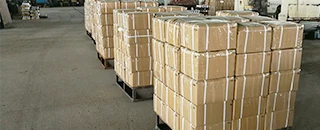

3, Carbon boxes DIN6499B Standard ER25 Collet ER20 Collet Set ER Collet for Drilling Machine are packed by pallet, which
is for shipment by sea or by air.
Company Profile
DEZHOU SAILVIN MECHATECH CO., LTD. is a competitive private enterprise engages in production，sales and testing of machine tool parts, mainly in collets, tool holders and related accessories with a wide range of products and complete specification. Collets including ER collets, 5C collets, R8 collets, sealed collets, pull back collets, tapping collets, etc; Tool holders including BT type, ISO type, CAT type, DIN69871 type, DIN2080 type, NBT type and HSK series. Additionally we also make other accessories as precision vises, pull studs, clamping nuts, spanners, etc. Products are exported to Europe, America, East Asia, Southeast Asia, and have won the trust of customers.
We fully develop domestic and international business and has independent import and export licenses, which can guarantee the products quality. While ensuring high-quality service to customers, we try our best to persevere in quality control and keep improving our service standards. We will persist in innovation, promote the development of the industry, strive to enhance market value, move Made in China to Create in China.
We fully develop domestic and international business and has independent import and export licenses, which can guarantee the products quality. While ensuring high-quality service to customers, we try our best to persevere in quality control and keep improving our service standards. We will persist in innovation, promote the development of the industry, strive to enhance market value, move Made in China to Create in China.
Advanced workshop machines which guarantee the output quality
Advanced collets machines, lathe machines, grooving machine which with high precision, semi and fully automatic operation that ensure products quality.
Advanced testing machines to guarantee the qualification rate
We have advanced machines to measure products 3D, precision, accuracy, etc, aims at supply the highest cost performance products to all customers.
1, Trilinear coordinates measuring instrument is to measure size of tools, distance, angles, diameters, etc.
2, Precised testing machine is to guarantee the precision of tool holders, collets, etc.
3, Haimer balancing machine will guarantee the stability

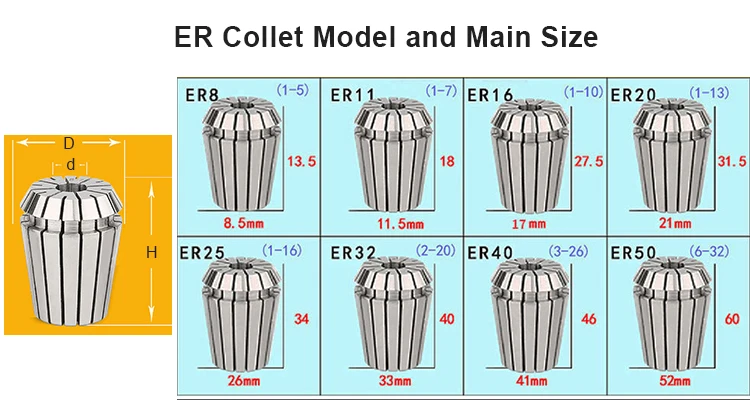

All size of ER collets we make is listed as below

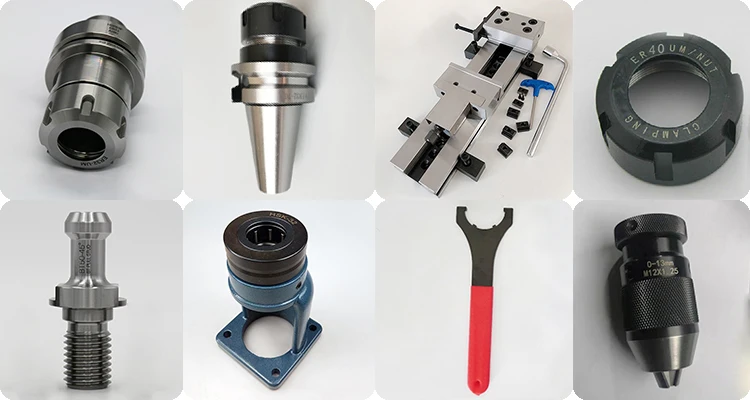

Other machine tool accessories products we also produce
We also produce tool holders, vises, clamping nuts, pull studs and other related products. We list as following, if any products you are interested in, please click the image, that will share you the related products (items) link.
FAQ
Q: Are you manufacturer or Trader?
A: We are specialized in production of machine accessories, including collets, tool holders, vises, drill chucks and
A: We are specialized in production of machine accessories, including collets, tool holders, vises, drill chucks and
related accessories. We are authorized in exporting and importing business with international business team.
Q: How can you guarantee your products quality?
A: We have professional engineers who engaged in this industry more than 10 years. Meanwhile we produce products
by advanced machines which will guarantee the production processing. Also we pay much attention in testing and
QA, aims to ensure to supply qualified products.
Q: How to execute your after sales service?
A: After checking and finalize that problems are caused with products defects, we will replace products. If for usage
problem, we can provide online training and service.
Q: What is your MOQ?
A: For better acknowledge to our products, we can supply sample for testing.
Q: What is your leadtime?
A: It depends on products model and quantity. We will try our best to ship as soon as possible.
