Automatic Sink Rolling Wheel Grinding Machine, Sink Automatic Seam Welding

Product Overview

Description

Automatic Sink Rolling Wheel Grinding Machine, Sink Automatic Seam Welding

Description

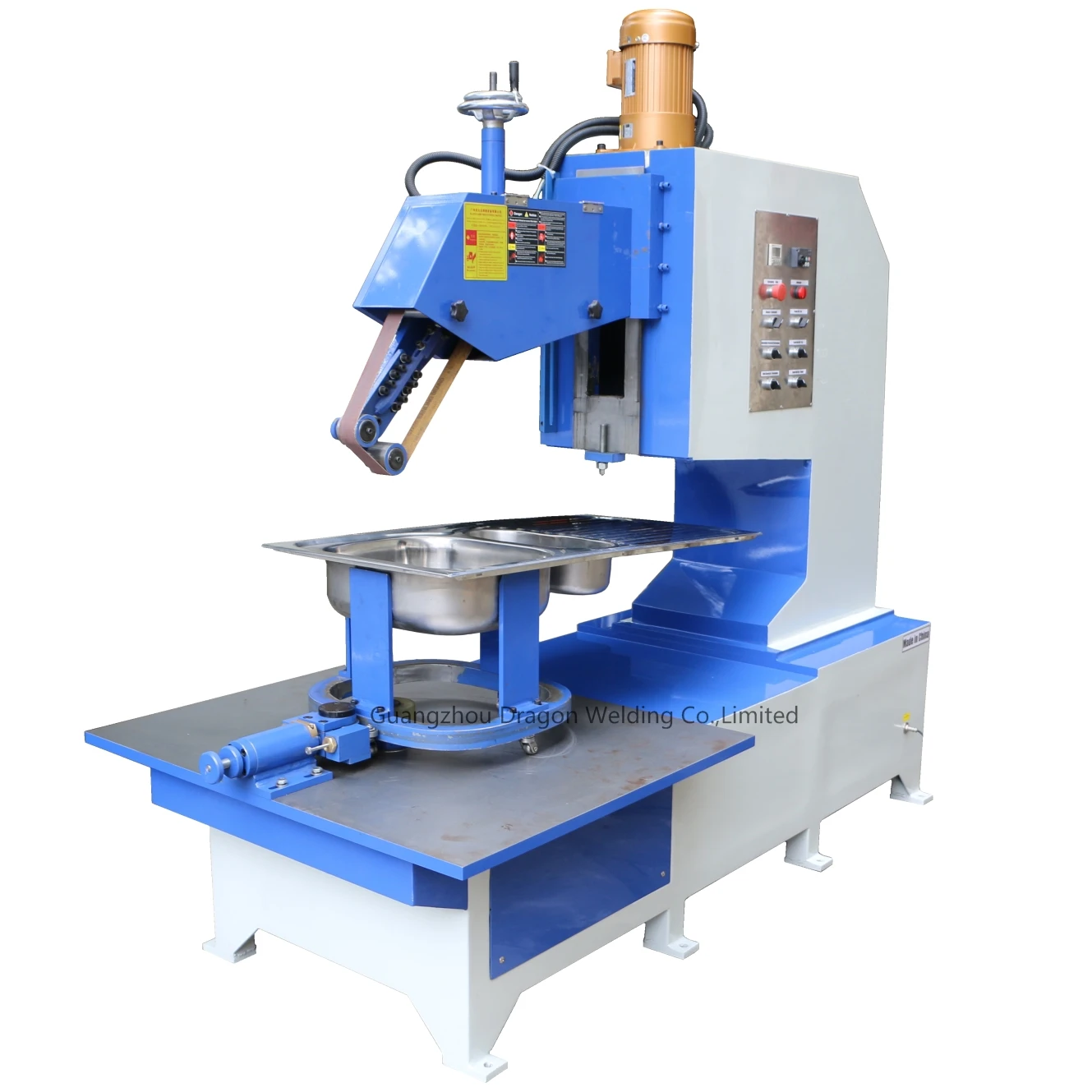

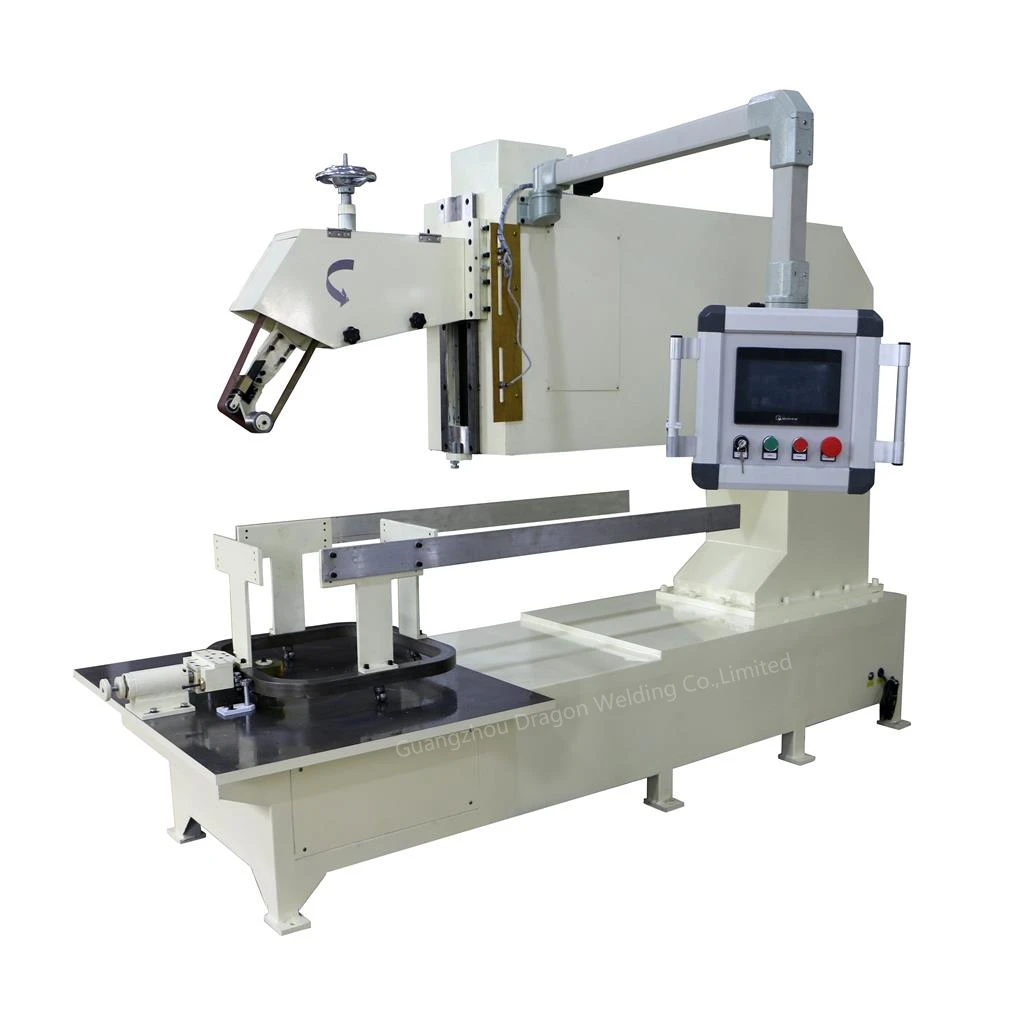

It can design for two types:Semi-automatic type and Servo type.

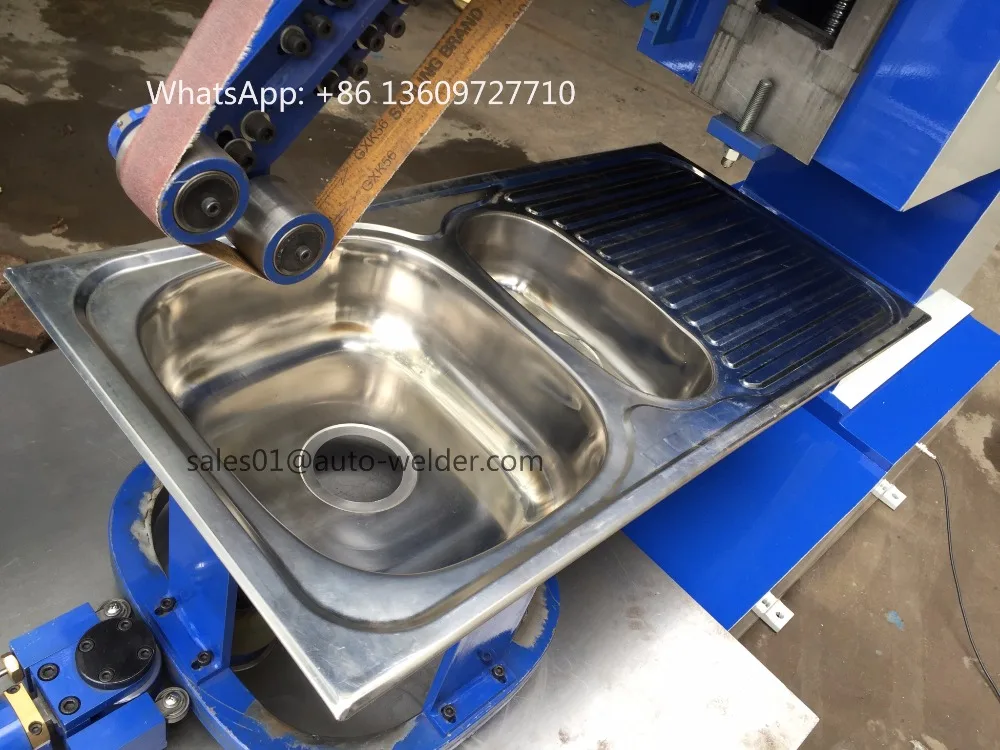

This Equipment is specially designed for Grinding the edge of Stainless Steel Sink after seam welding.









Main Features:

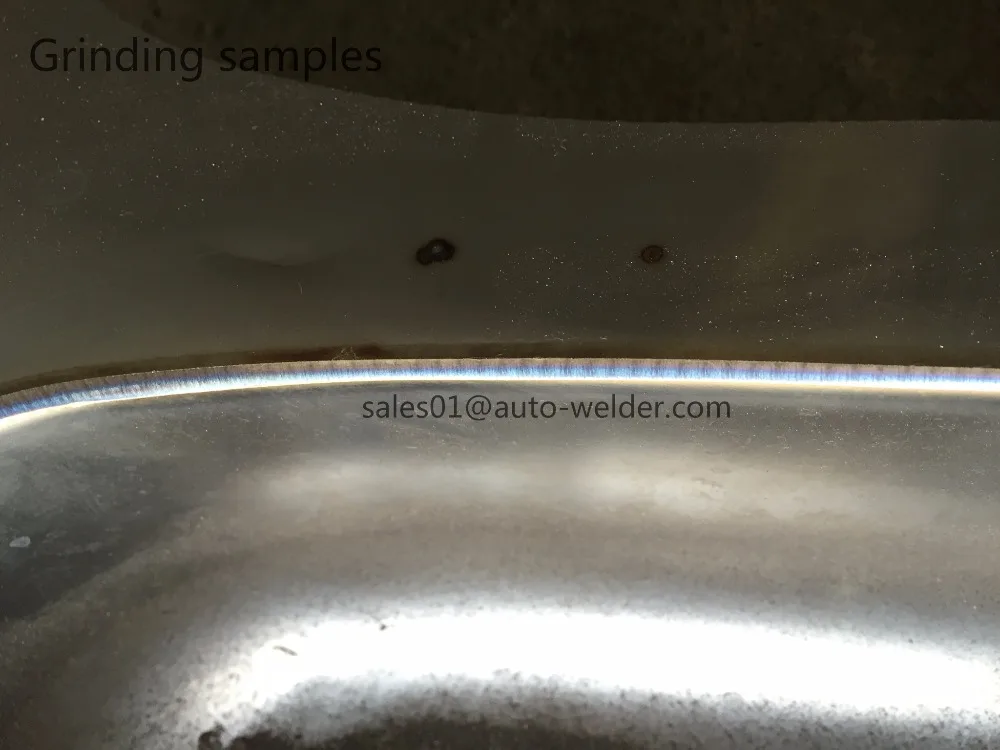

This Equipment is specially designed for Grinding the edge of Stainless Steel Sink after seam welding.When it work,the workpiece turn around by the even speed,and the polishing strip will seam welding track automatically until it is finished completely,by this way the workpice will be polished equably and beautifully,you cannot find the seam welding track clearly.

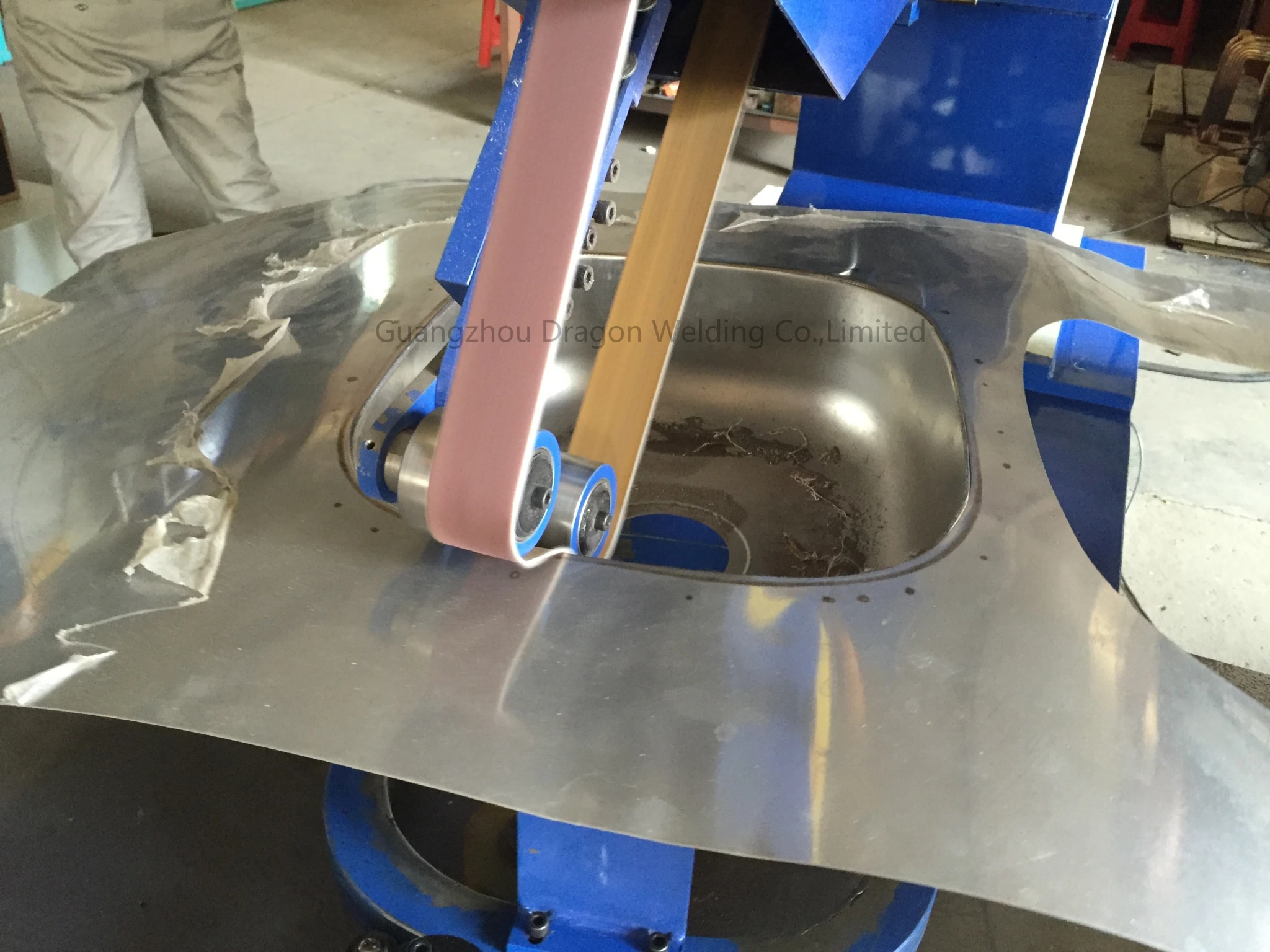

It is specially design for a variety of shapes, such as circular, the circular angle with rectangular, oval-shaped round- arc angle, such as grinding equipment (need for special profile modeling), by rotating motor drive abrasive band moving,high-speed abrasive band grinding workpiece directly ,at the same time the workpiece automatically profile modeling move according to the polish location to achieve the purpose of polishing.

Mould can be changed (The dimension of the mould be designed according to the inside frame of the workpiece)



Main Technical Parameters

Main Technical Parameters

1.Power supply: 380V/50Hz;

2.The range of the processed workpiece:370mm*420mm;

3.The dimension of the machine(length1950mm width800mm height 2050mm):

4.The input power:1.5KW

5.The speed of the abrasive band:9m/s

6.The speed of the workpiece:0.7-3.6m/s







Application

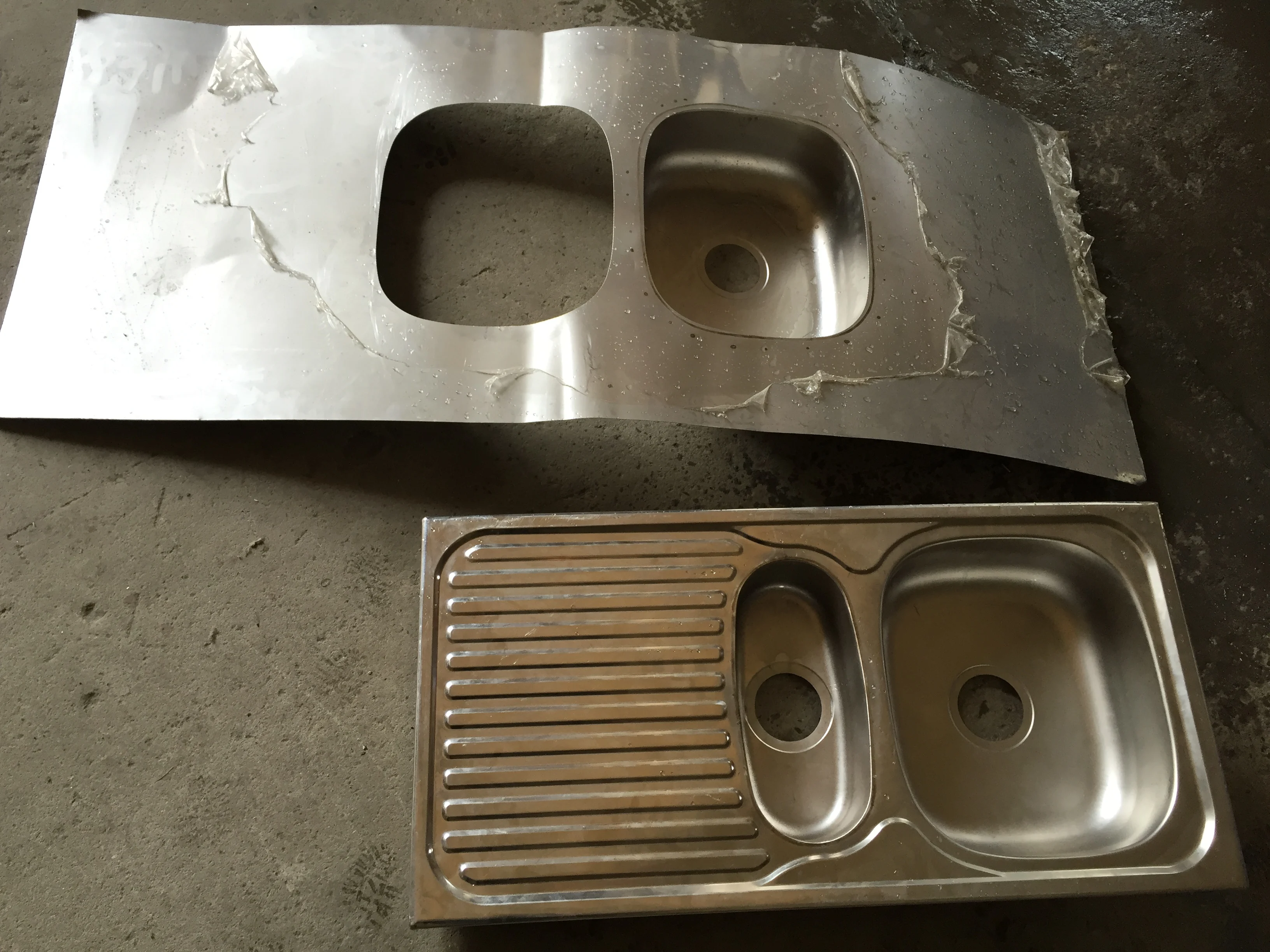

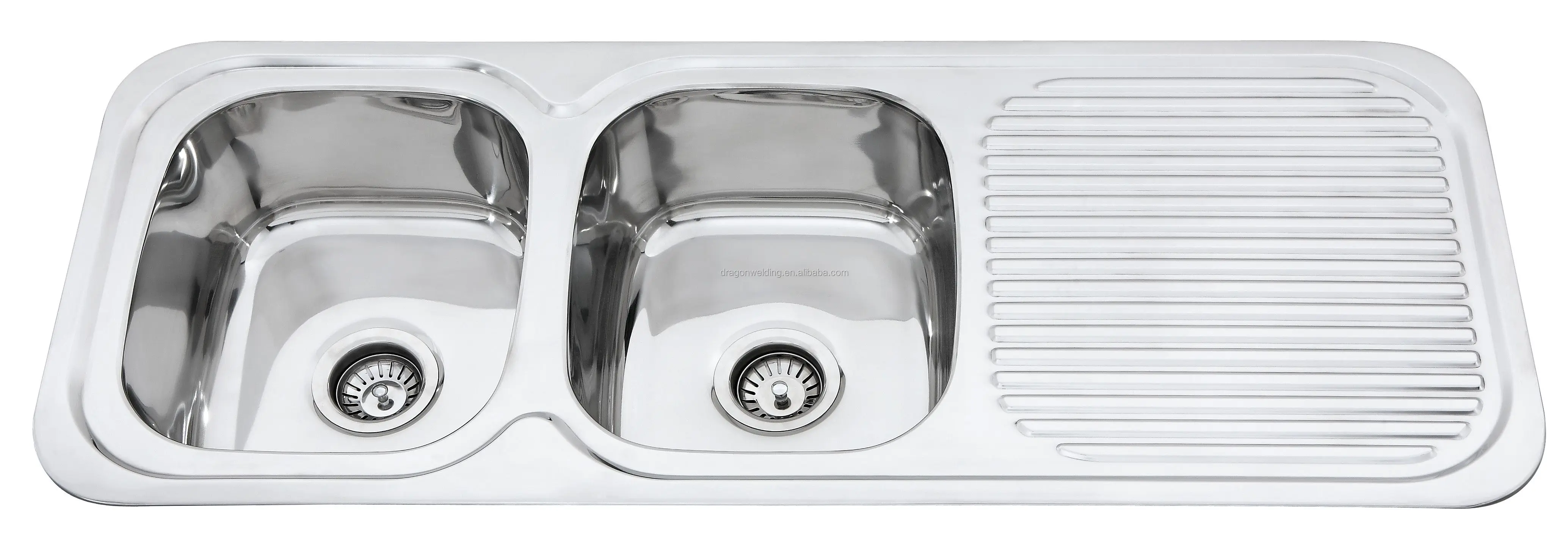

Used for grinding the welded seam of the sink.Suitable for welding the sink within the range of 1200mmx600mm x400mm and R>30

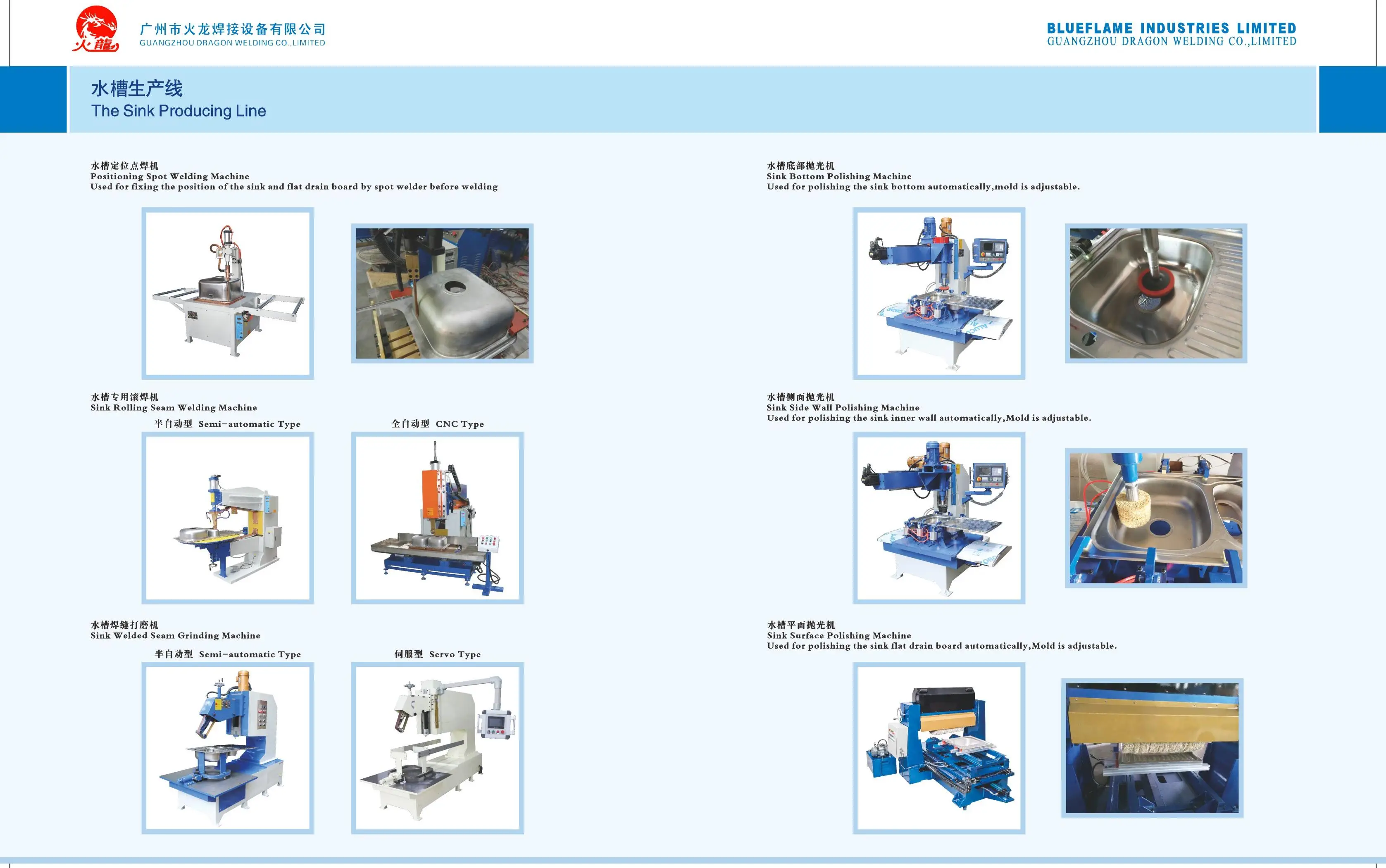

We have sink producing line
