Factory direct supply knife edge polish polisher

Product Overview

Description

     knife edge polish polisher

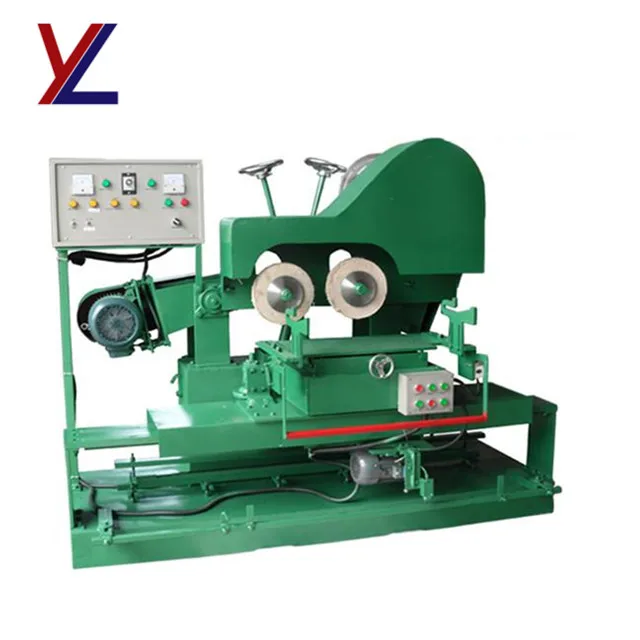

-------------------------- About the Edge Grinding Machine -----------------------



This edge grinding machine is mainly for edge polishing of cutlery neck area (Or connection R area).With double polishing heads,this machine improves the polishing result and production speed.



Basic Parameter Of Machine



Motor of buff drive	4KW
Motor of Crosswise swing	0.37kw
Motor of drifting in and out	0.37KW
Motor of buff opening and closing	0.4KW
Industry Voltage	380V,  3 PHASE, 50HZ
Main Shaft(Hexagon)	Rotate Speed: 1800 RPM/MIN
Grinding Time	0-3 Min
Size	1600MM*1400MM*1200MM(L*W*H)
Weight	500KG







---------------------------------------- Machine Details ------------------------------------------

It is mainly use in polishing the arc parts between the spoon and the handly.(mirror finish polishing with the sisal wheel)







It is application to metal/aluminum/copper/brass/zinc/allyoc/stainless steel work piece arc parts grinding/ dinnerware edge /neck part grinding.

• Advantage:

1. Easy adjustment. (Only with 6 control button to finish all the operate step! And it can adjust the grinding time according your products. ) This machine is easy for operation ,control and maintenance;reliable and stable in conditions,durable and cost-saving.



2. With high efficient production .

It will spend from 30 seconds to 3 minutes to finish 100-200 piece cutlery grinding. .





3. .This machine is controlled by mechanical transmission system.It can move left-right automatically,swing forwards and backwards at same time while grinding.Also,the upper and lower pressure can be slightly adjusted manually.



• Buffing abrasive for the automatic polishing machine

1. First Step :Matt Grinding.

Match abrasive wheel: flap wheel + sanding compound/red polishing wax.





2. Second: Middle polishing comes with slight mirror effect.

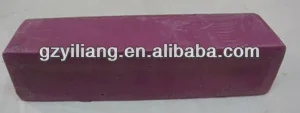

Match grinding wheel : Cloth sisal wheel / sisal wheel/ treated sisal wheel + purple polishing compound.



1. All the wooden box packages are satisfy for exporting.



2. We support FOB Price, CIF Price, DDP service.



1. We made the tray (clamp) for you according to your products.

2. We can support the polishig technology guidance when you need any help .









We Guangzhou Yi-Liang Polishing Trading Co.Ltd. arequalified manufacturer and trader of all kinds of industrial polishing and grinding machine and Abrasives(sanding belt--buffing wheel--metal polishing wheel--jewelry grinding wheel--working glove--polishing compound--flap wheel, etc.)

• Experience:with 6 years polishing experience and technique, involved in Dinner ware Polishing Production Line, Hinge production line, Alloy and hardware polishing production Line, Cast tube machinery, Furniture Polishing, etc.


• Customization:All specification can be customized as your request.


• Belief: customers grow with us & maximizing your productivity at lowest cost


• Certification:Verified By Onsite Checked of Alibaba.com

knife edge polish polisher
