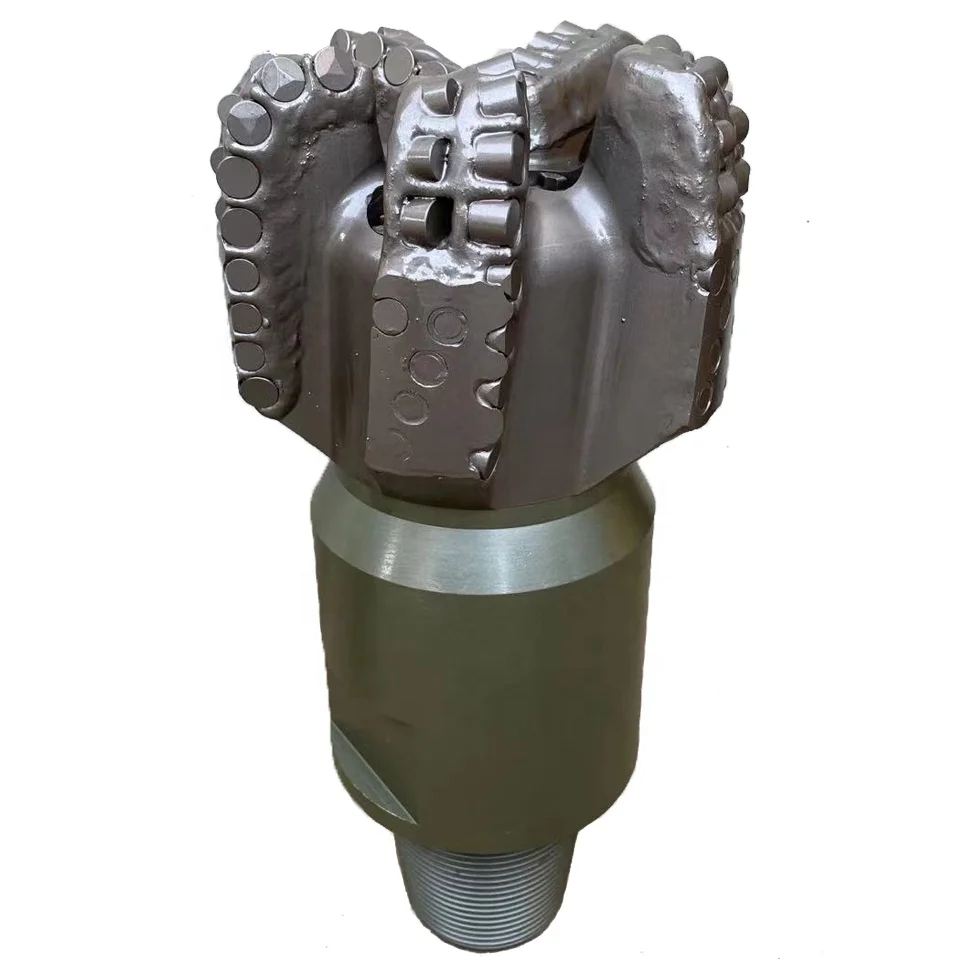

  • PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling
PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling

PDC bit Factory Direct Supply Rock Drill Bits 10 5/8 inch steel Body 5 Blades PDC Bit for Oil Well drilling

Share on (1600593786396):


Price:$2,148.00 - $2,306.00

Quantity:


Product Overview

Description



Hard rock oil well drilling bits


Product Overview


Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years. Fixed-head bits rotate as one piece and contain no separately moving parts. When fixed-head bits use PDC cutters, they are commonly called PDC bits. The popularity of bits using PDC cutters has grown steadily,and they are nearly as common as roller-cone bits in many drilling applications.






Introduction of PDC drill bit
♦ Steel body with hardening tungsten carbide surface(WC),make the drill bit both high strength and very strong abrasion
resistance.
♦ Dedicated PDC cutter can improve the life and shield the risk of complex formation drill not passed.
♦ Raw materials: Alloy steel with a special treatment, achieve better mechanical properties (Rp0, 2: 1200MPa; Rm: 1100 MPa)
♦ Low torque spiral design and software designed tooth reduce the cutting edge wear & increase life
♦ (no repair life up to 8300 M/pc).
♦ The unique parabolic crown-shaped design and tooth balance design keeps smooth drilling under high speed.
♦ (Speeds up to 30~40m/h.)
♦ The scientific drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.
♦ Authoritative API standard and ISO certification, quality and service will be better ensured.




PRODUCT SPECIFICATIONS


Bit Type
6”
8-1/2”
8-1/2”
12-1/4”
Bit Type
17-1/2” GM1606T
IADC Code
M423
M432

M332
M323
M432 M332
IADC Code
M323
Blade
5
6
8
6
Blade
6
Cutter Size (mm)
Φ13MM
Φ16MM
Φ13MM
Φ16MM
Cutter Size (mm)
Φ16MM；Φ13MM
Nozzle Qty/Type
5
13.2
9.6
30.78
Cutter Qty
Φ16×58；Φ13×81
Nozzle Qty/Type
3NZ
6NZ
4NZ
6NZ
Nozzle Qty/Type
8NZ
Gauge Length
1.5”
2.2”
2”
2.5”
Gauge Length (mm)
110
Connection
3-1/2” API REG
4-1/2” API REG
4-1/2” API REG
6-5/8” API REG
Connection
7-5/8” API REG
Make up Torque(KN.m)
10.4~11.4
24.1~26.5
24.1~26.5
51.7~56.9
N.W./ G.W.(KG)
338/388
Rotary Speed(rpm）
60-260
60-260
60-260
60-260
Nozzle Size (inch)
10/32
Weight on Bit(KN)
8-50
20-100
20-100
30-140
Rotary Speed(Rpm)
60-260
Max.WOB(KN)
90
130
130
180
Weight On Bit(KN)
30-200
Flow Rate（lps)
10-30
22-35
22-35
38-70
Max.WOB (KN)
240
Flow Rate（lps)
45-80
Above are regular sizes for your reference. Size can be customized as per your requirement.

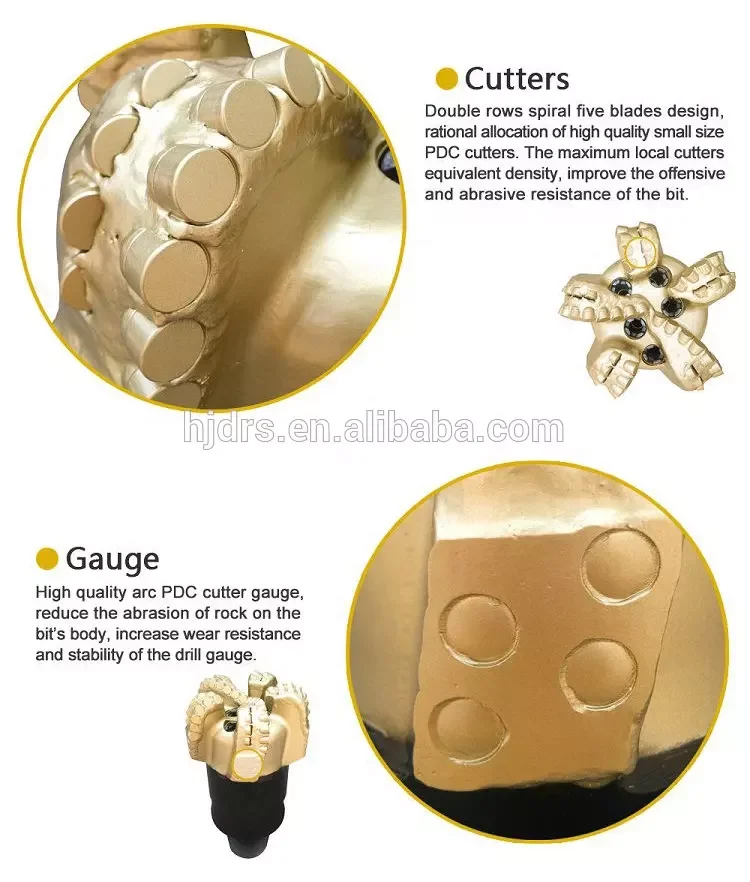

pdc oil cutters

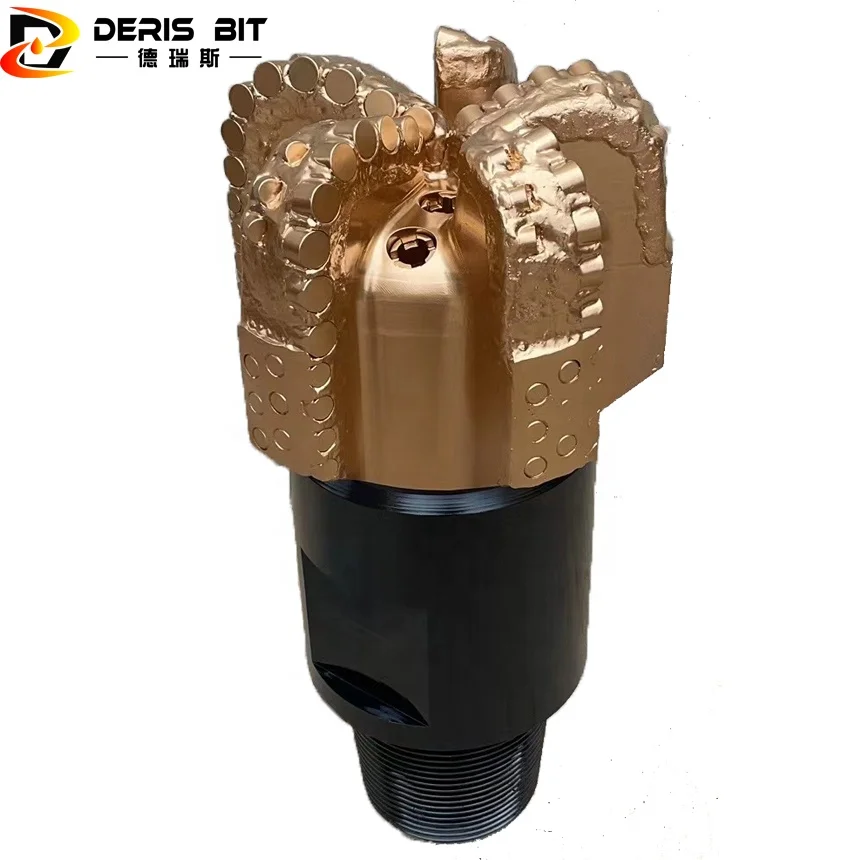

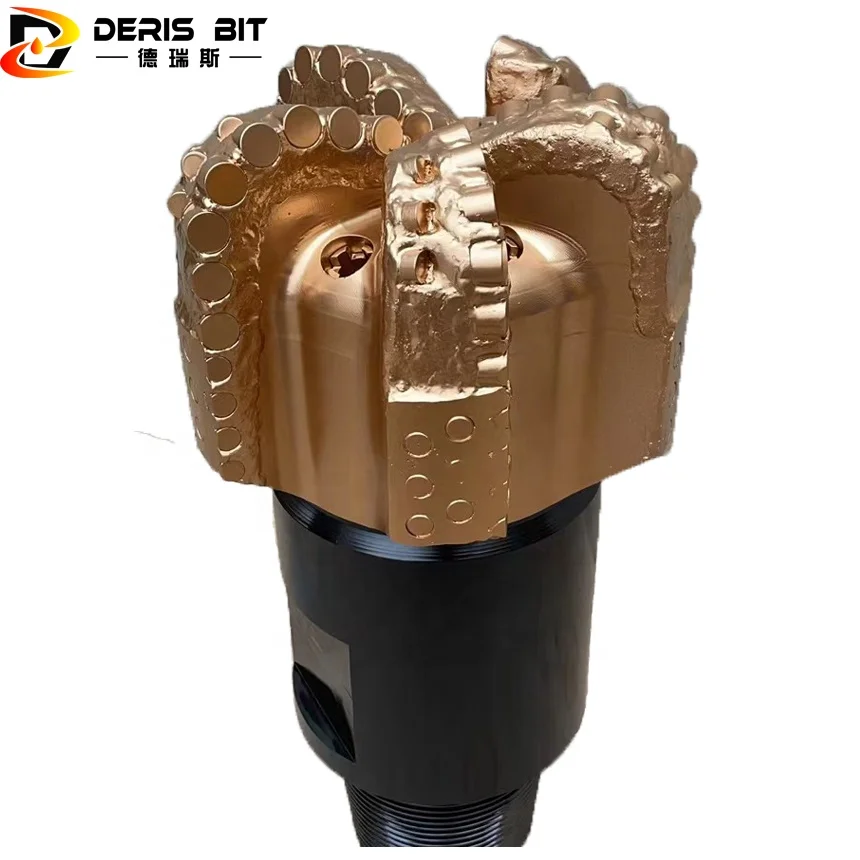

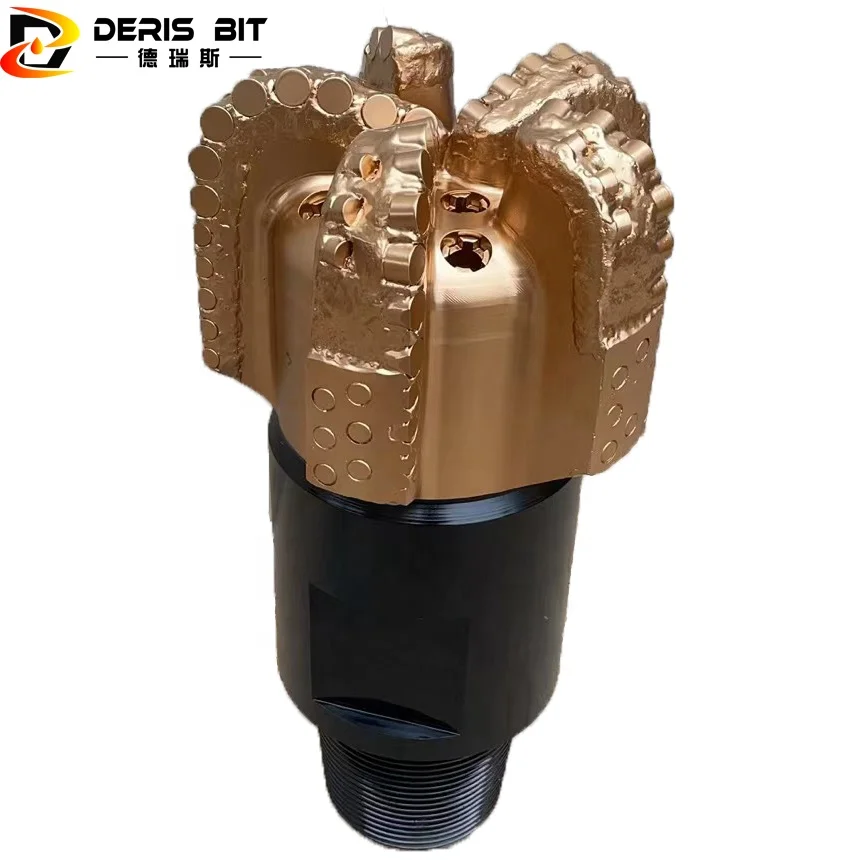

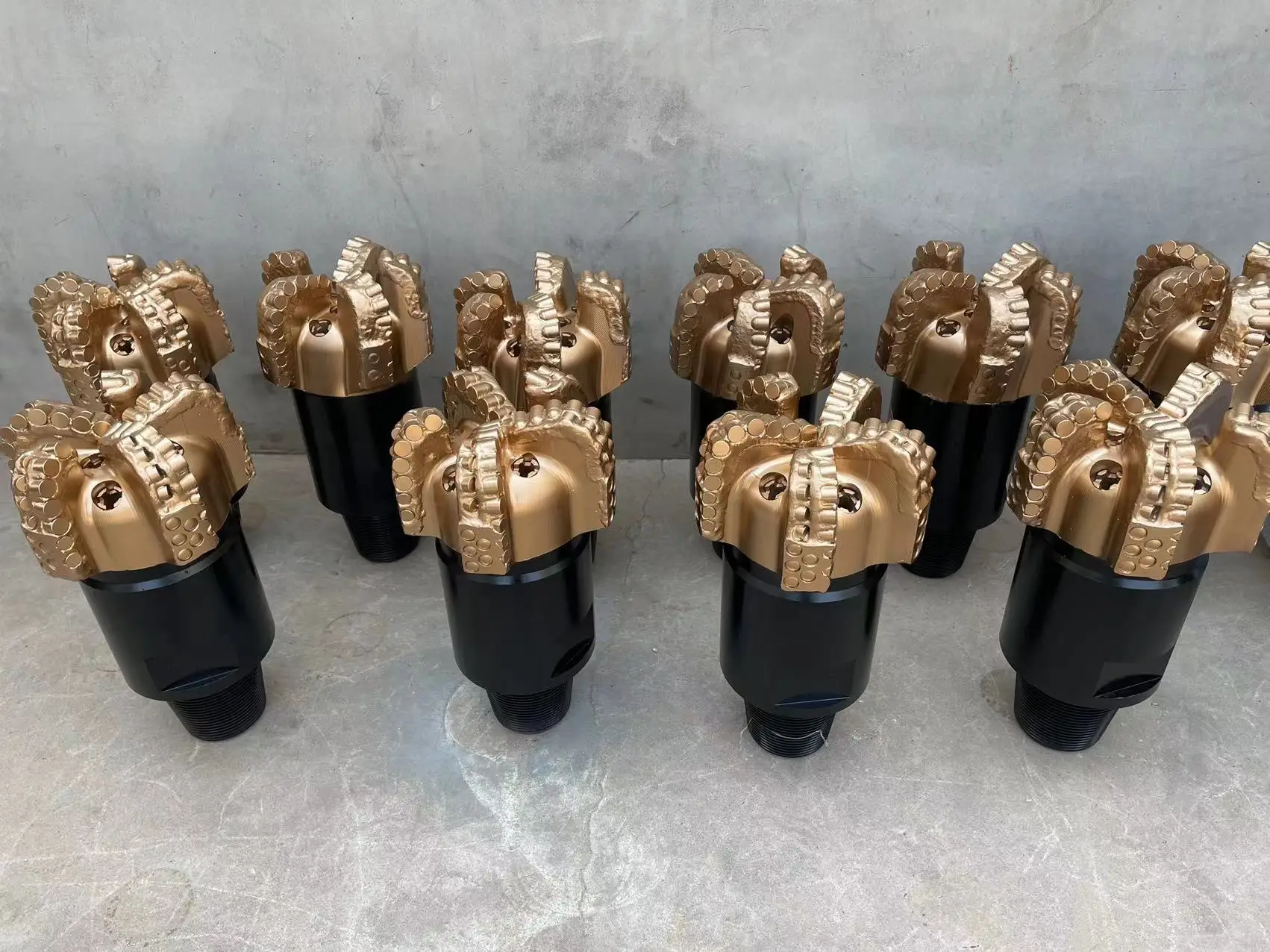

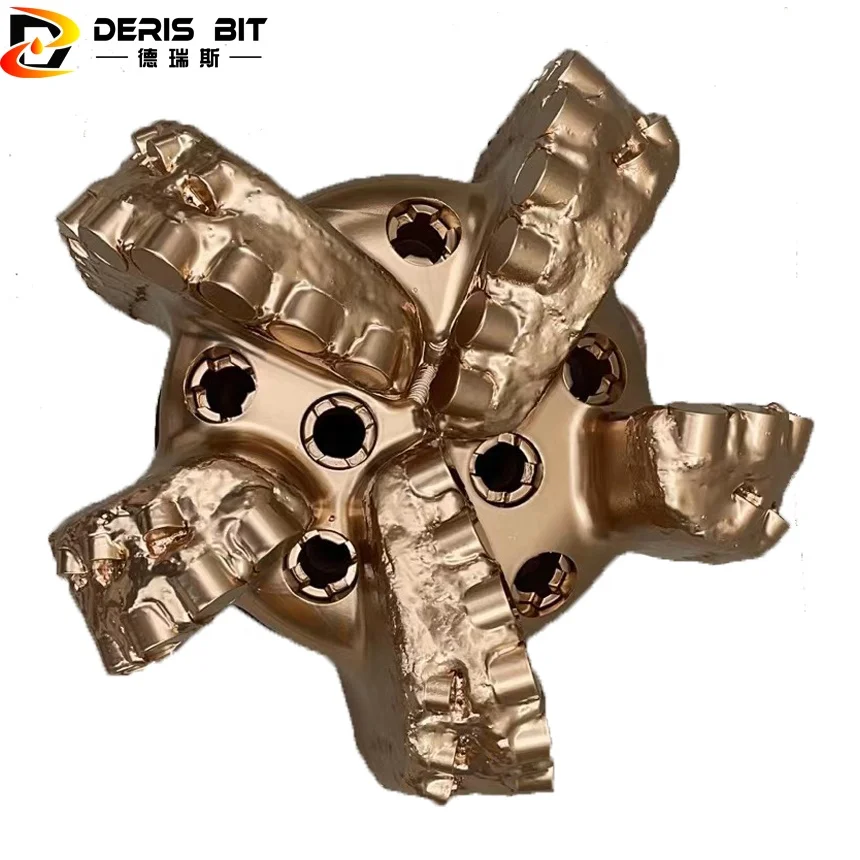

5 blades PDC bit

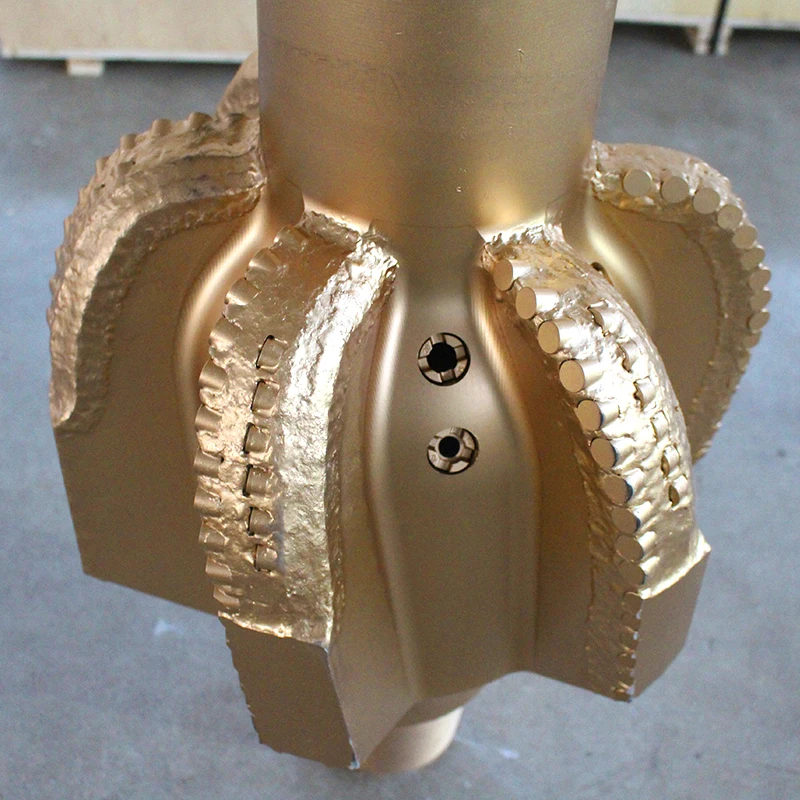

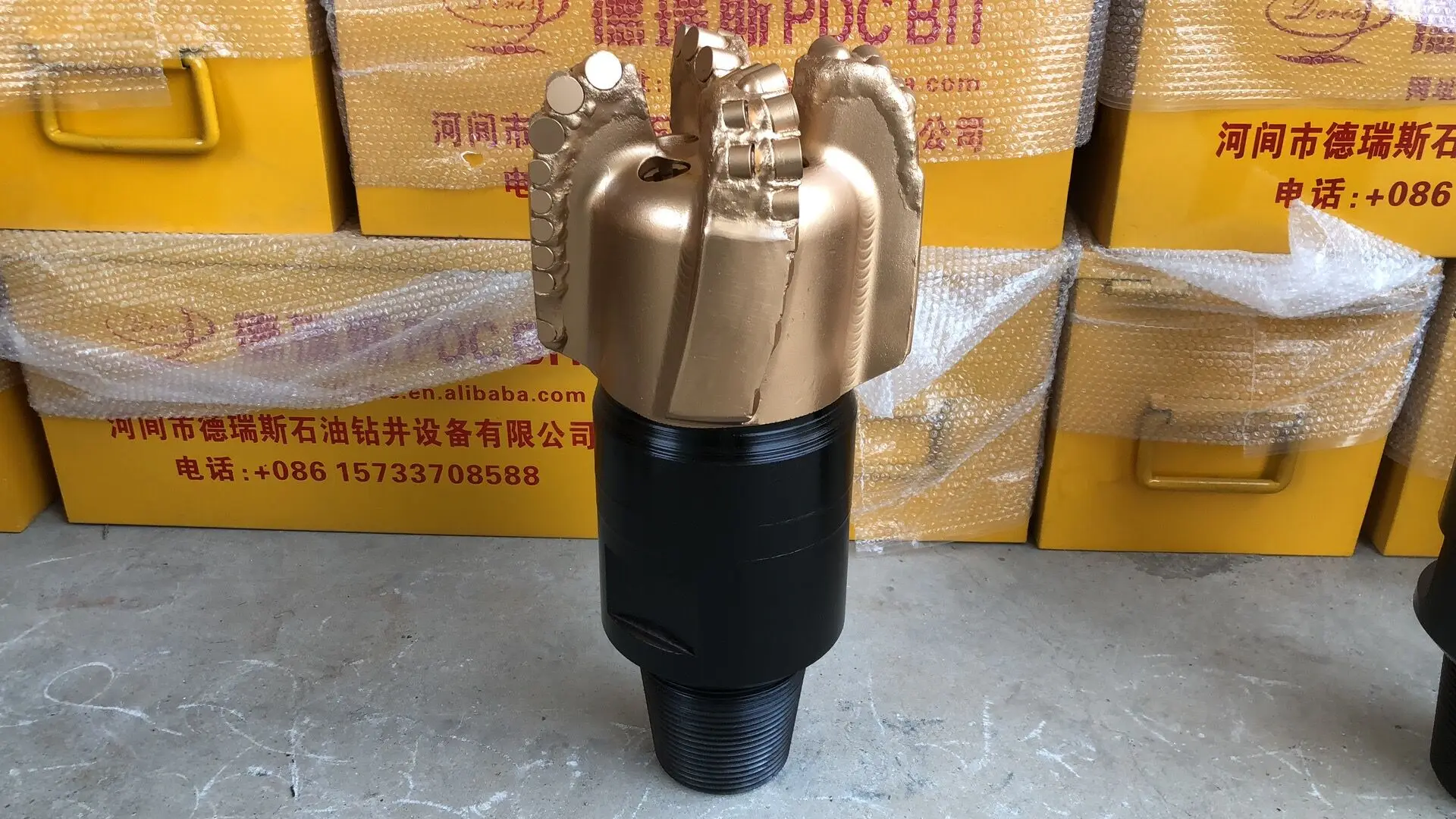

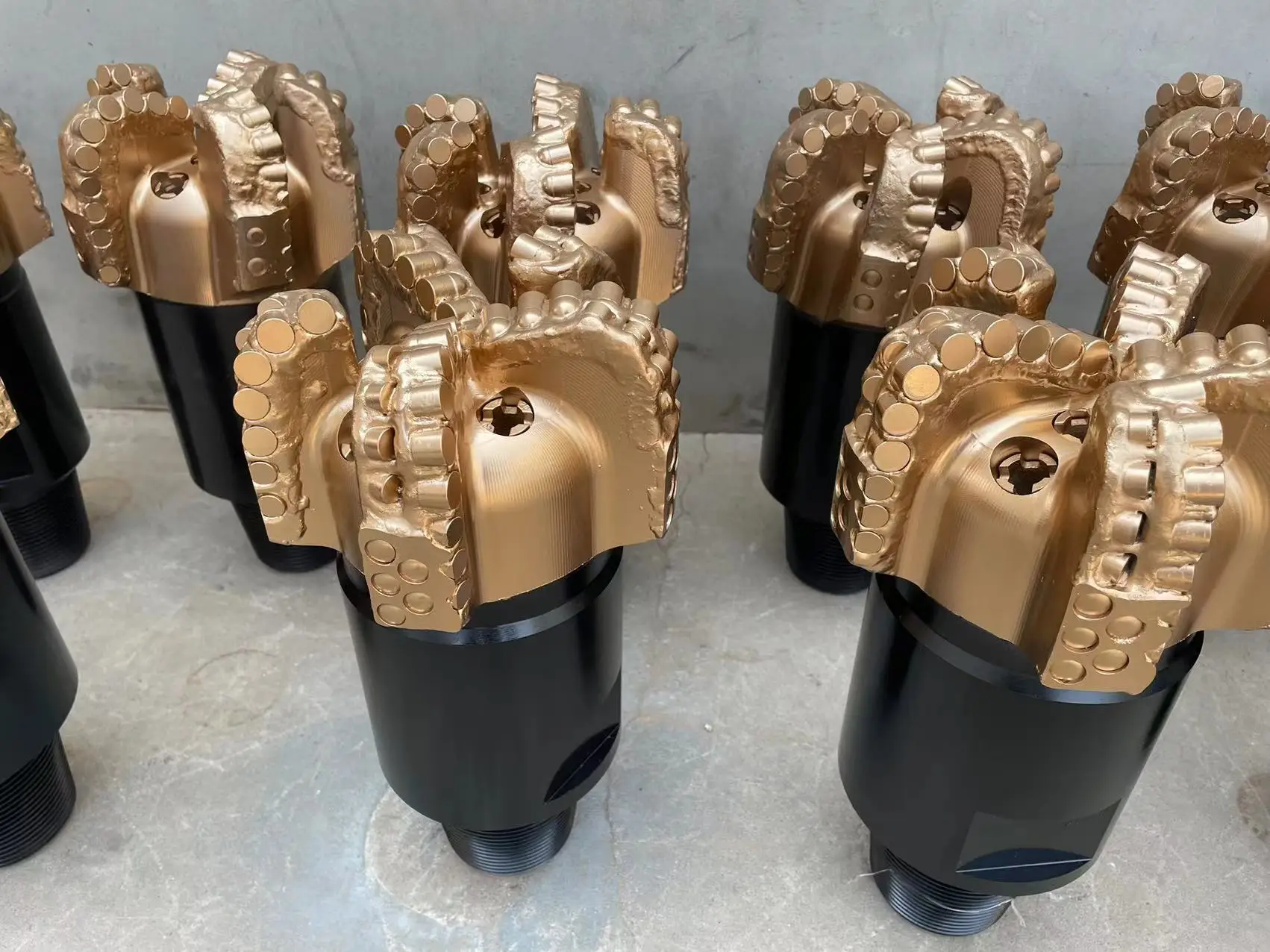

PDC bit








Successful Project


♦Tools to get sources of energy underground.
♦Tools to get the water underground.
♦Tools to install pipelines underground with No-Dig.
♦Tools to pile foundation hole for constructions.


Project in India
Project in Russia


SIMILAR PRODUCTS

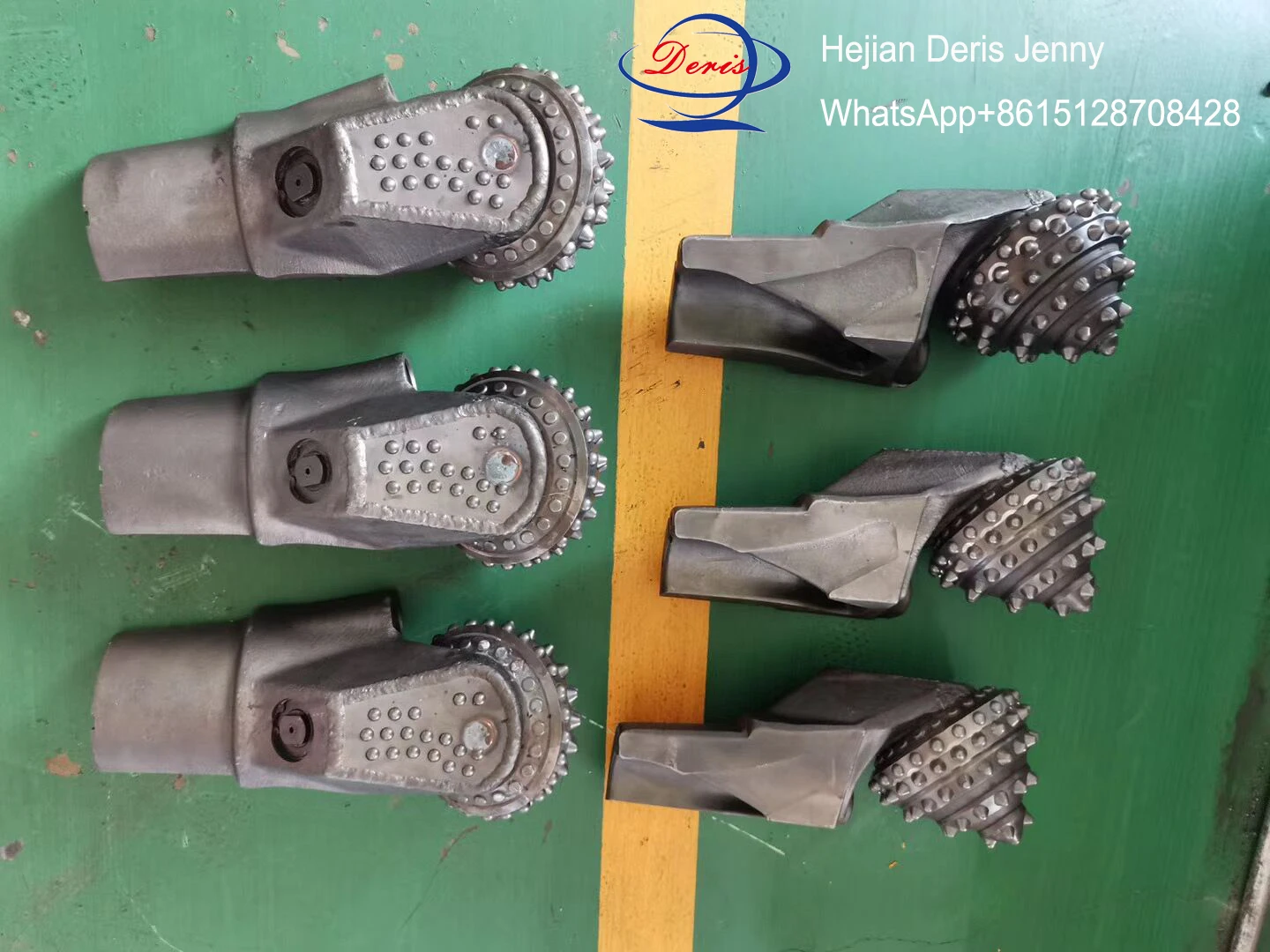

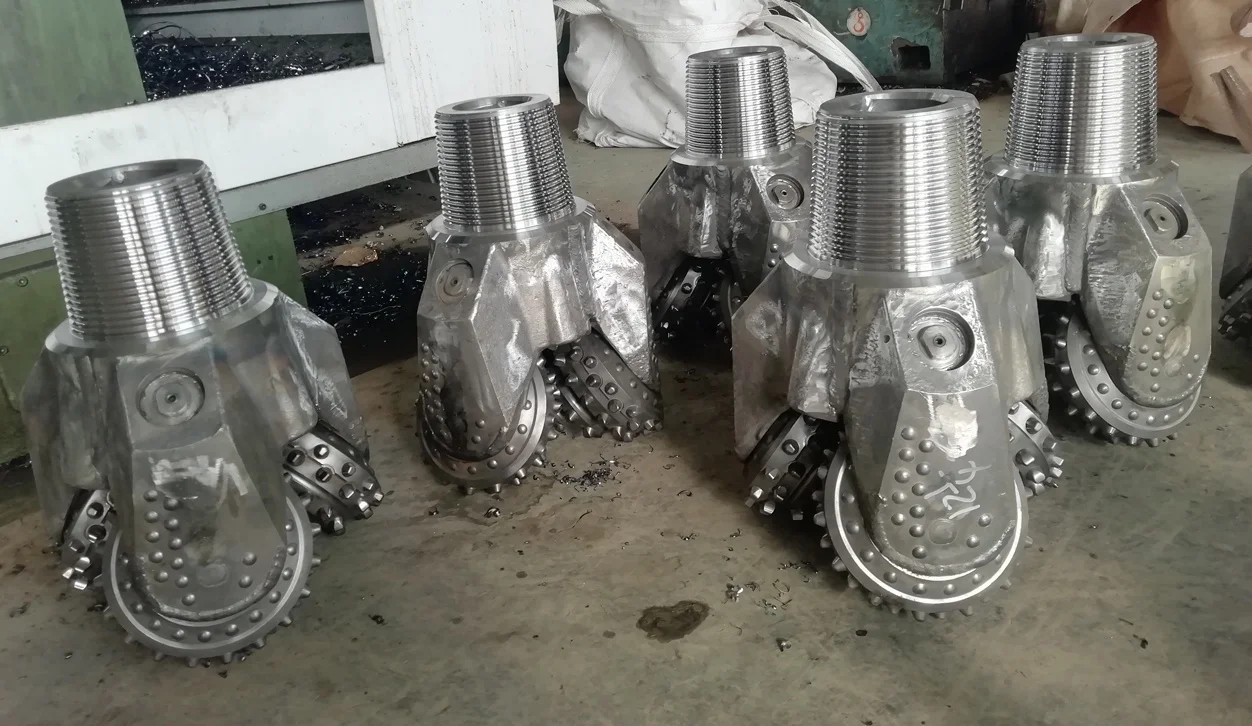

Roller cones

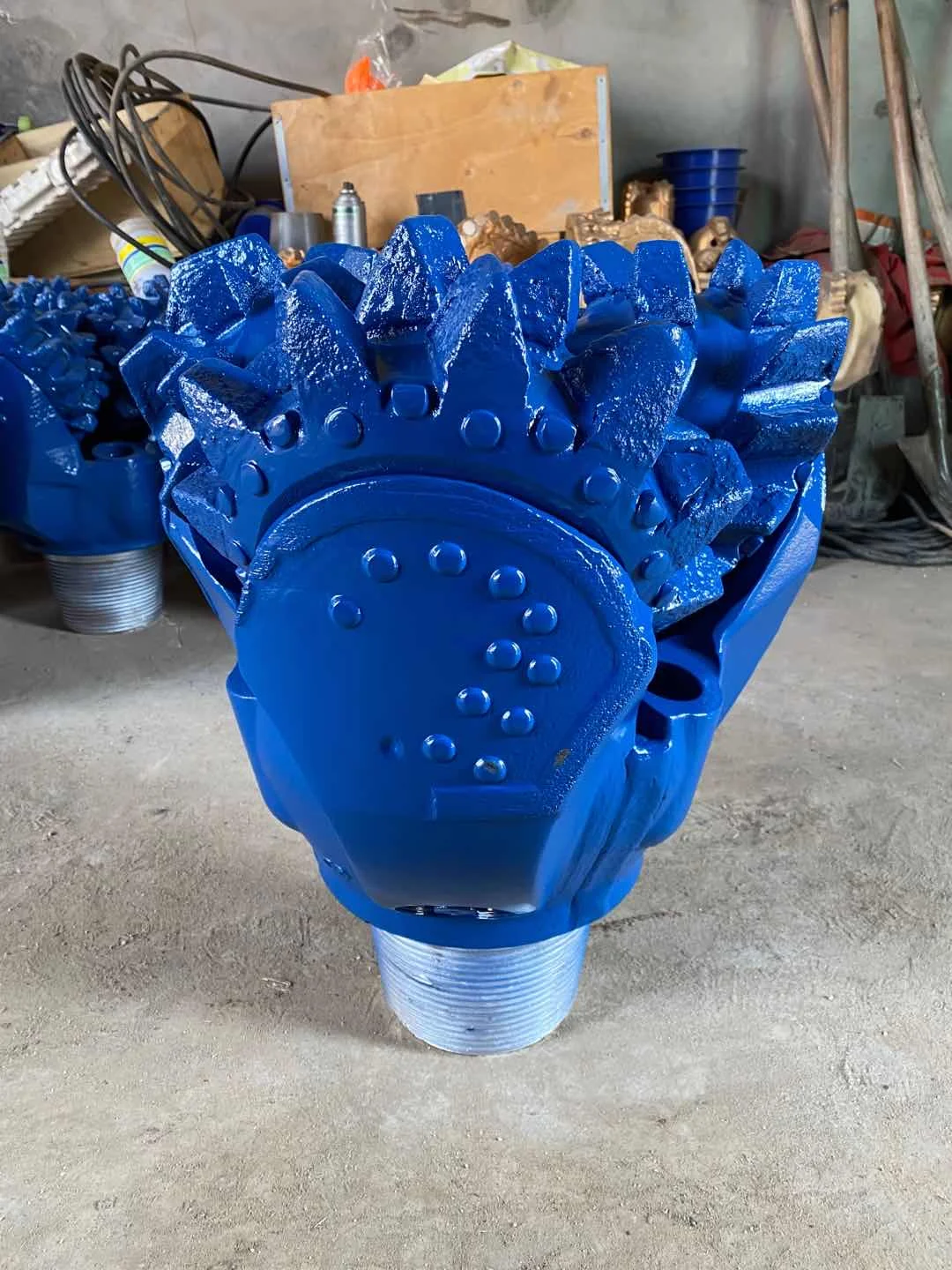

Tricone bit

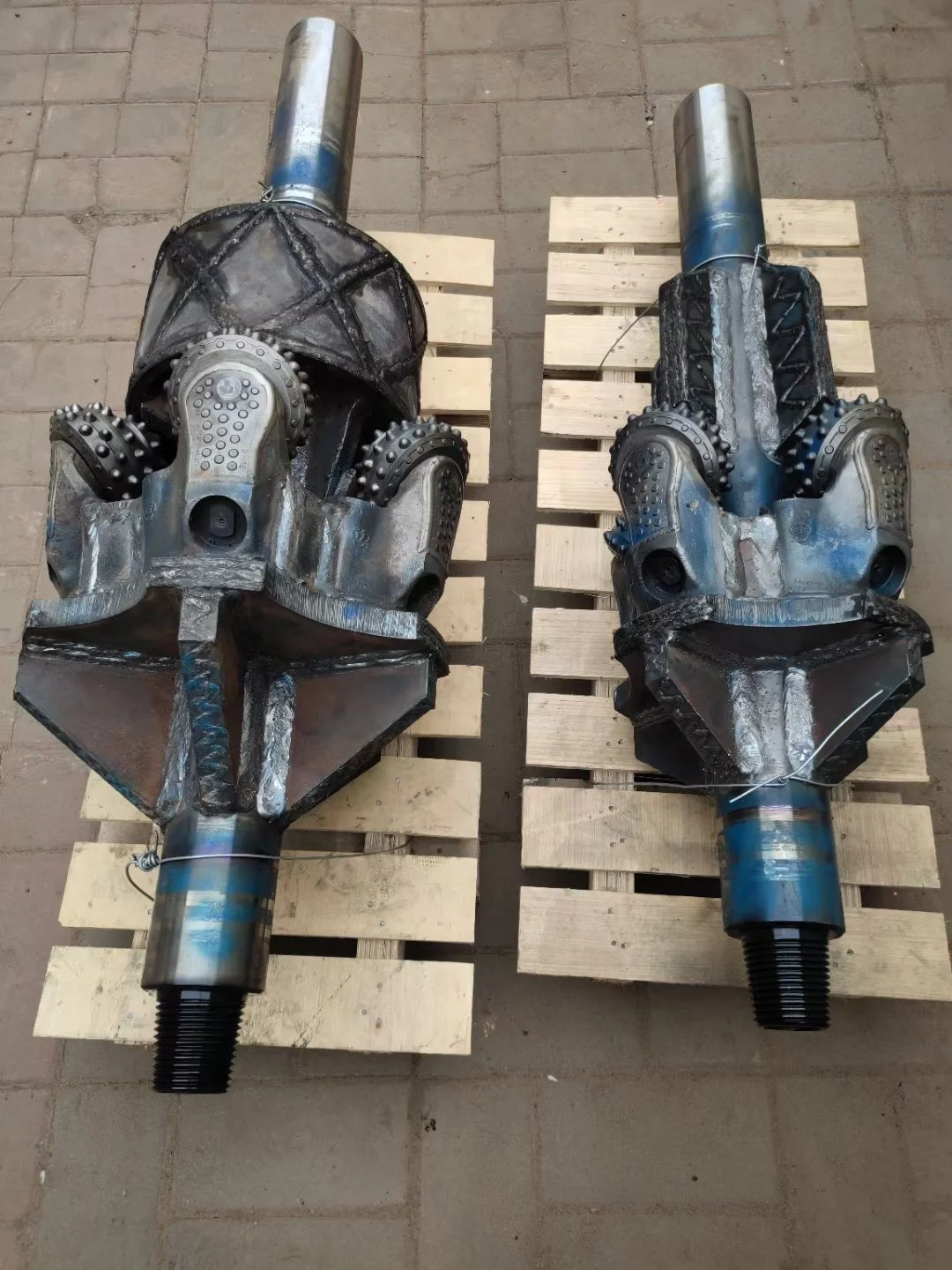

HDD PDC hole opener


COMPANY


Hejian Deris Petroleum drilling equipment Co., Ltd
♦Advanced technology&Equipment, International standard.

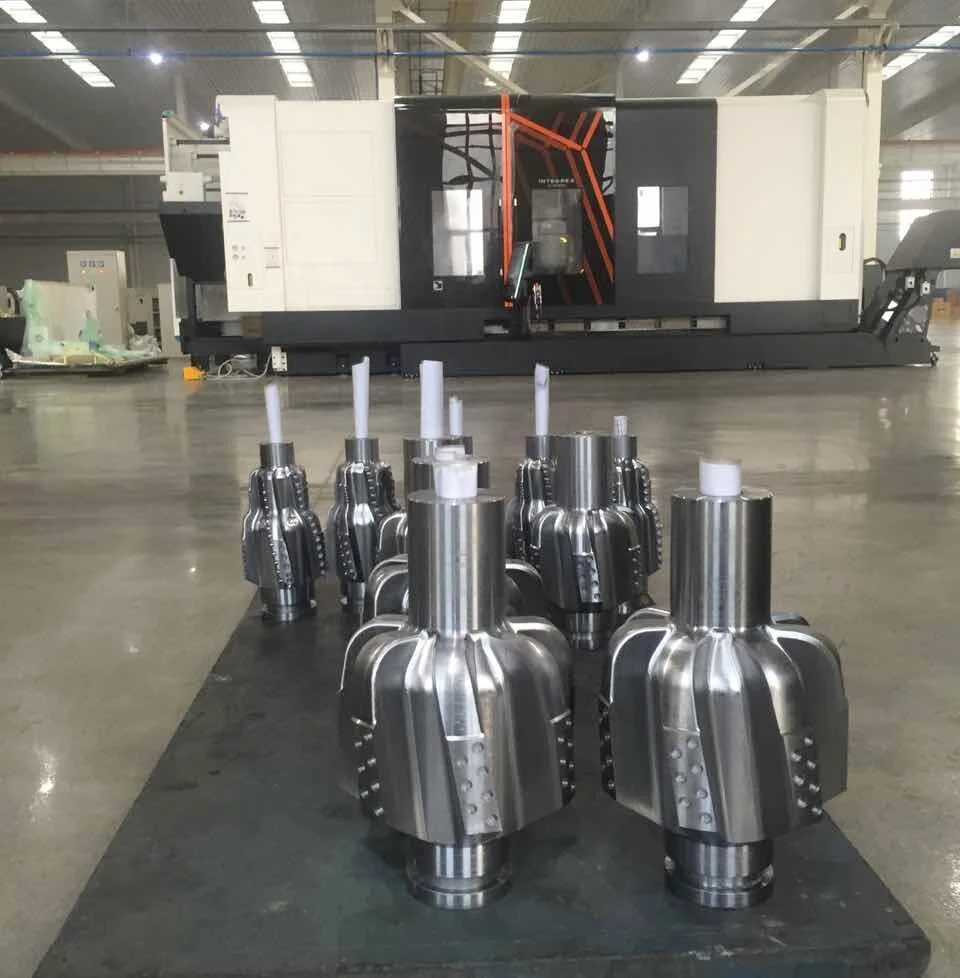

♦R&D center for rock drilling tools, high precision CNC machines, API&ISO Certified.
♦10+ Years & 30 Countries service experience.
♦Optimized solutions for various of requirement.
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park,close to Tianjin Port, Beijing Airport, convenient transportation
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills,
hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team has been established. .

Any inquiry please ask us






FAQ


Q: Guarantee and Warranty of Quality:
A: We are ISO certified factory, we have one integral set of system to control quality in production and make after-sale service.
Q: Can I visit your factory online?
A: Yes, we can show our workshop, warehouse, offices online by WeChat, Whatsapp or Skype.
Q: Do you have stock ?
A:The normal size such as 6" 7 7/8" 8 1/2" , 9 1/2" , 12 1/4" 17 1/2" in stock , other size produce 3~5 business .
Q : Payment term
T/T ,Trade Assurance ,Western Union, etc


Contact

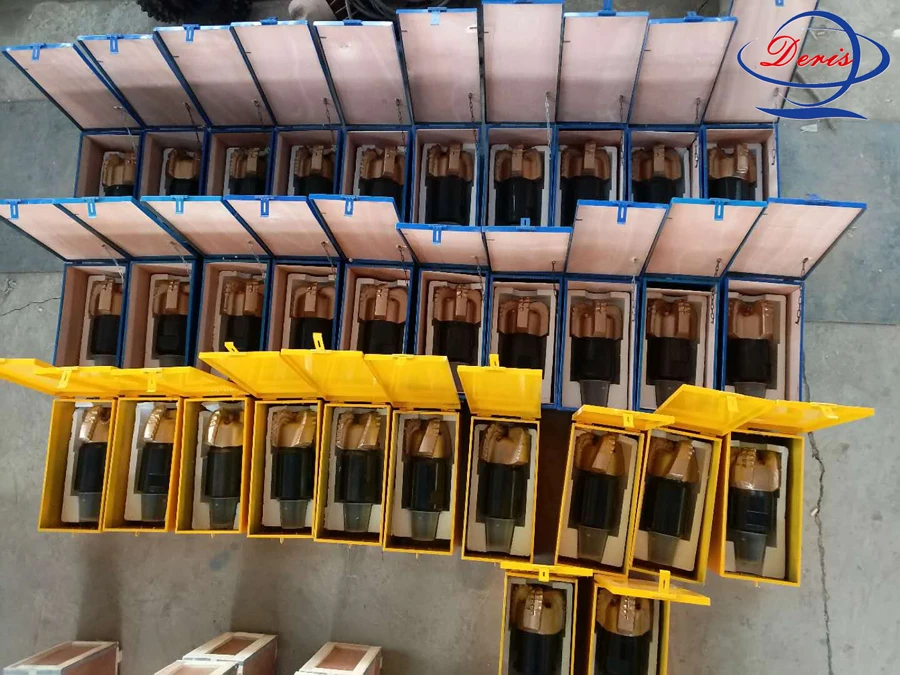

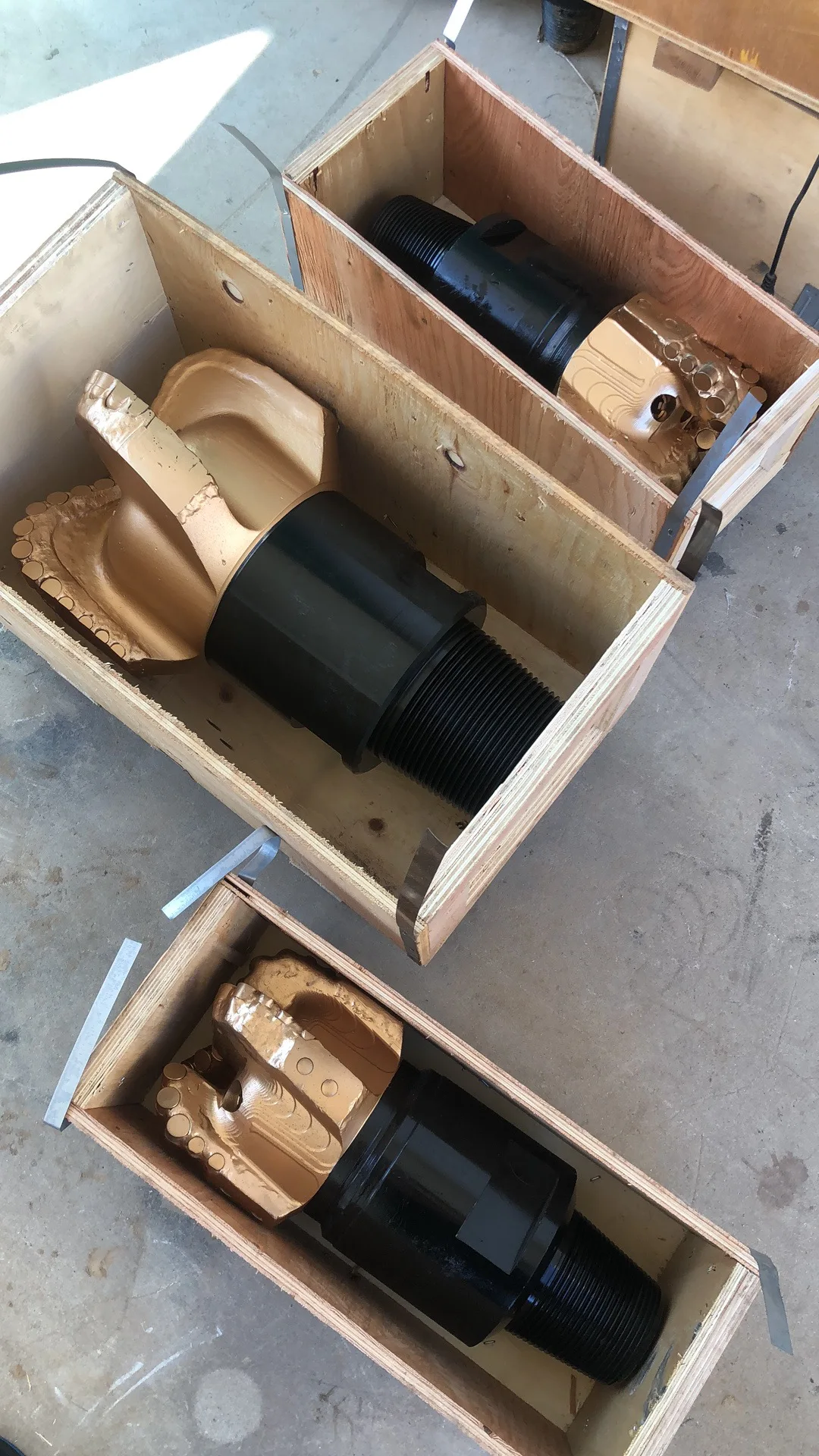

Packing and Shiping
