Большой мощный двигатель дизельный генератор мягкий стартер

Product Overview

Description

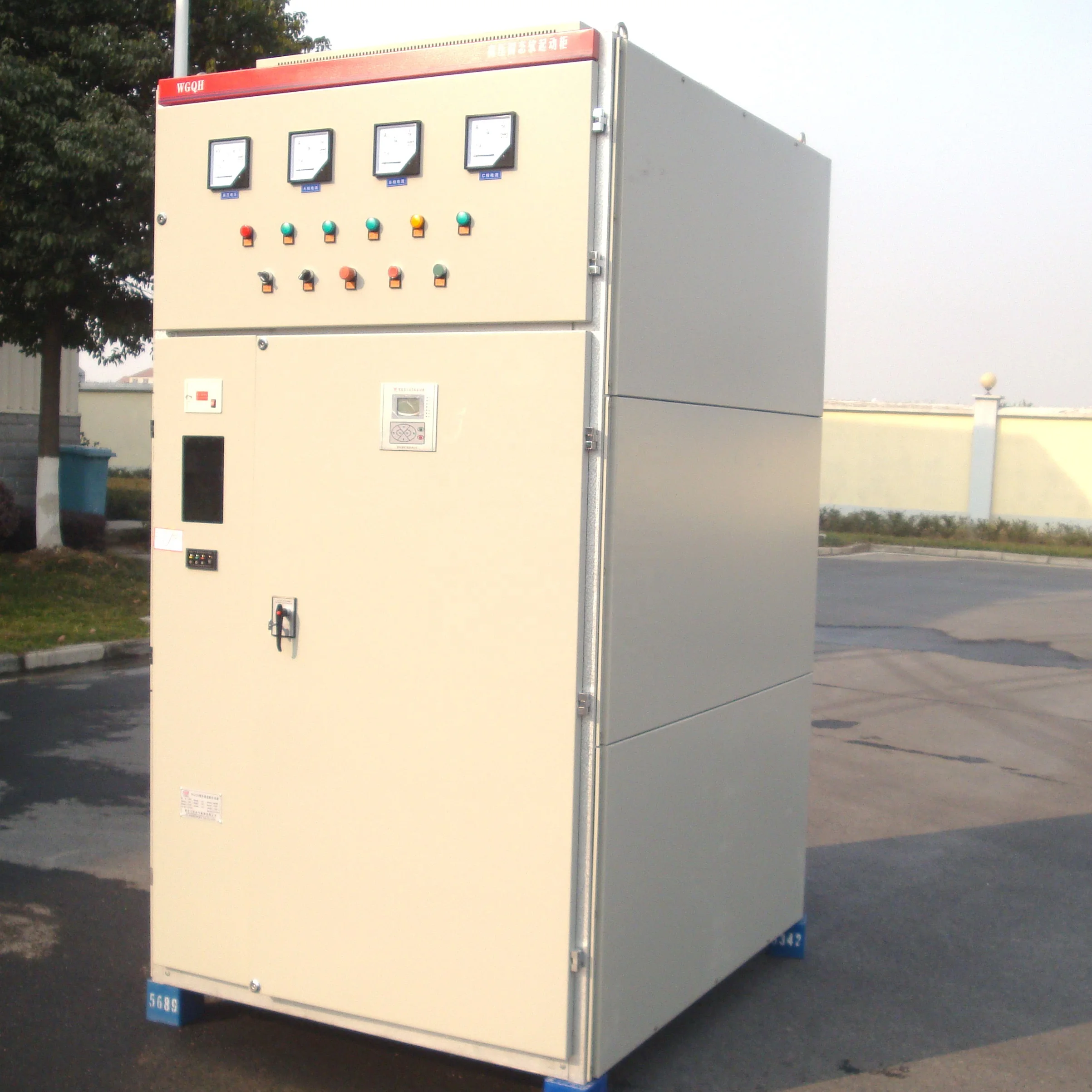

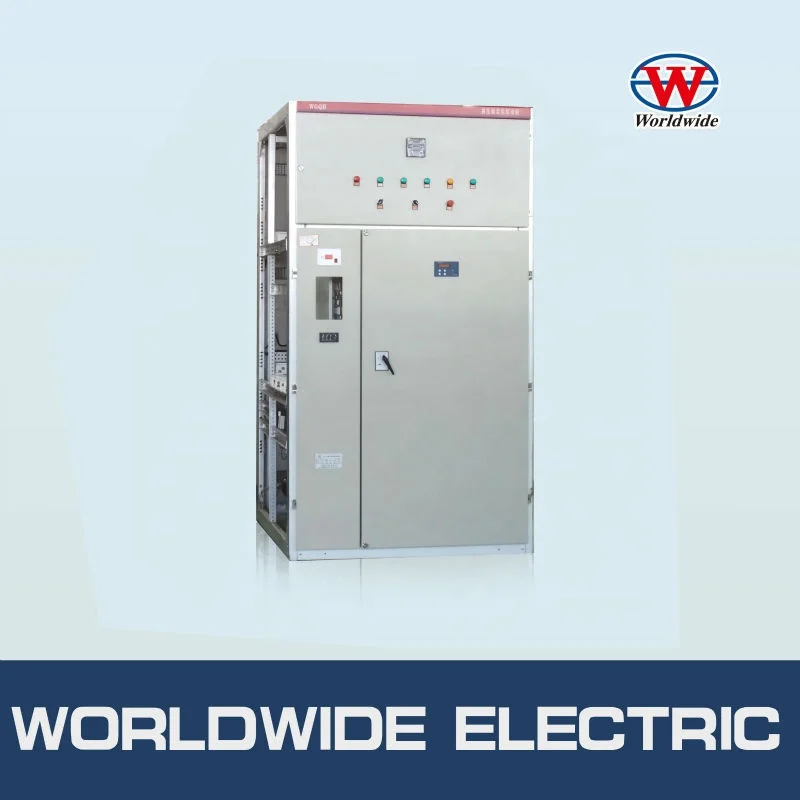

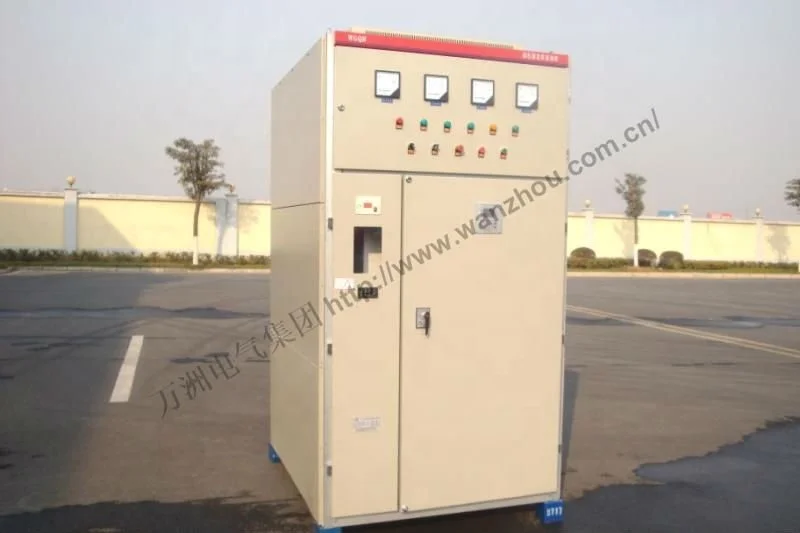

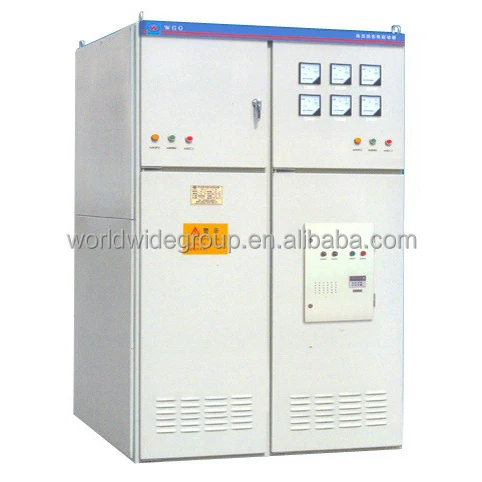

Big power motor Diesel generator soft starter



high voltage intelligent cage type motor starter

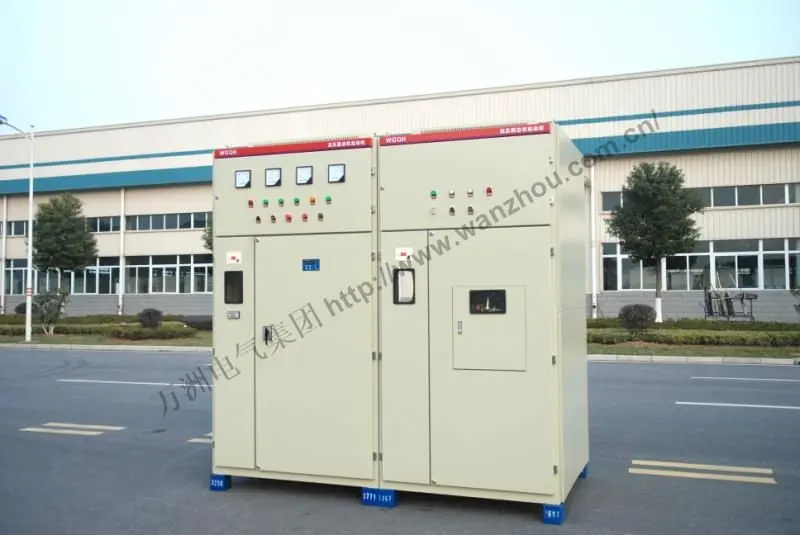

I Type: WGQH



II  Application

high voltage intelligent cage type motor soft starter is suitable for 10kV or less then 10kV cage type motors. It adopts DSP controlling techniquie, SCR series or parallel to monitor and protect the motor. Compared with the traditional starting mode, it can set the starting torque, starting current, starting time, stop time and also connect with microcomputer and PLC to control the grid. It is widely used in fan, water pump, ball mill, crane, crusher etc. Very popular in cement, metallurgy, mining, oil producton, chemical industry, water treatment, petrochemical industry etc.



III Features

• Adopts imported thyristor and professional insulating materials, which is suitable for motor characteristics.


• High reliable: the main circuit is component structure, modular installation. With multiple over-voltage protection, reliable enough.


• Perfectly isolation of different currents: the system adopts high anti-interference digital trigger and CT isolation transmission, avoid the mutual interference between strong and weak electricity.


• Unique fault check and adjust system, it can pass the test results to control circuits quickly, alarm and take measures to prevent the fault to expand.


• Working efficiency of High Voltage Soft Starter is as high as 97%, much more competitive in the market.


• Multiple protections, over-current, short-circuit, limit current, over-voltage, over-load, missing phase etc.


• Special design of heat emission can cooling the thyristor quickly


• Many starting methods:soft start, double-voltage slope starting, kick start etc.


• Small size, low power consumption, high sensitivity, easy to install etc..

IV Working conditions

Temperature	-40 ~ +50 degrees centigrade
Humidity	< = 90%
Altitude	<= 2000m
Working voltage	The highest working voltage should be not more than 110% of rated voltage
Frequency	50/60 Hz



V Type instruction

No	Type	Rated voltage(kv)	Rated current(A)	Motor power(kW)	Size(L*W*Hmm)
1	WGQH-6/750	6	75	750	2300*1300*1560
2	WGQH-6/1000		120	1000	2300*1300*1560
3	WGQH-6/1400		150	1400	2300*1300*1560
4	WGQH-6/2000		200	2000	2300*1300*1560
5	WGQH-6/2200		250	2200	2300*1660*1560
6	WGQH-6/2700		300	2700	2300*2500*1560
7	WGQH-6/3750		400	3750	2300*2500*1560
8	WGQH-6/5600		600	5600	2300*2500*1560
9	WGQH-10/800	10	50	800	2300*1300*1560
10	WGQH-10/1500		110	1500	2300*1300*1560
11	WGQH-10/3000		200	3000	2300*1300*1560
12	WGQH-10/5700		300	5700	2300*1660*1560
13	WGQH-10/11000		600	11000	2300*2500*1560



VI Order notice

  The following parameters should be provided when make an order:

1. Motor rated power, rated voltage, load and working conditions


2. All the parameters on the motor nameplate


3. If any special requirements, pls note in advance





VII WE ARE LOOKING FOR AGENT ALL OVER THE WORLD!
