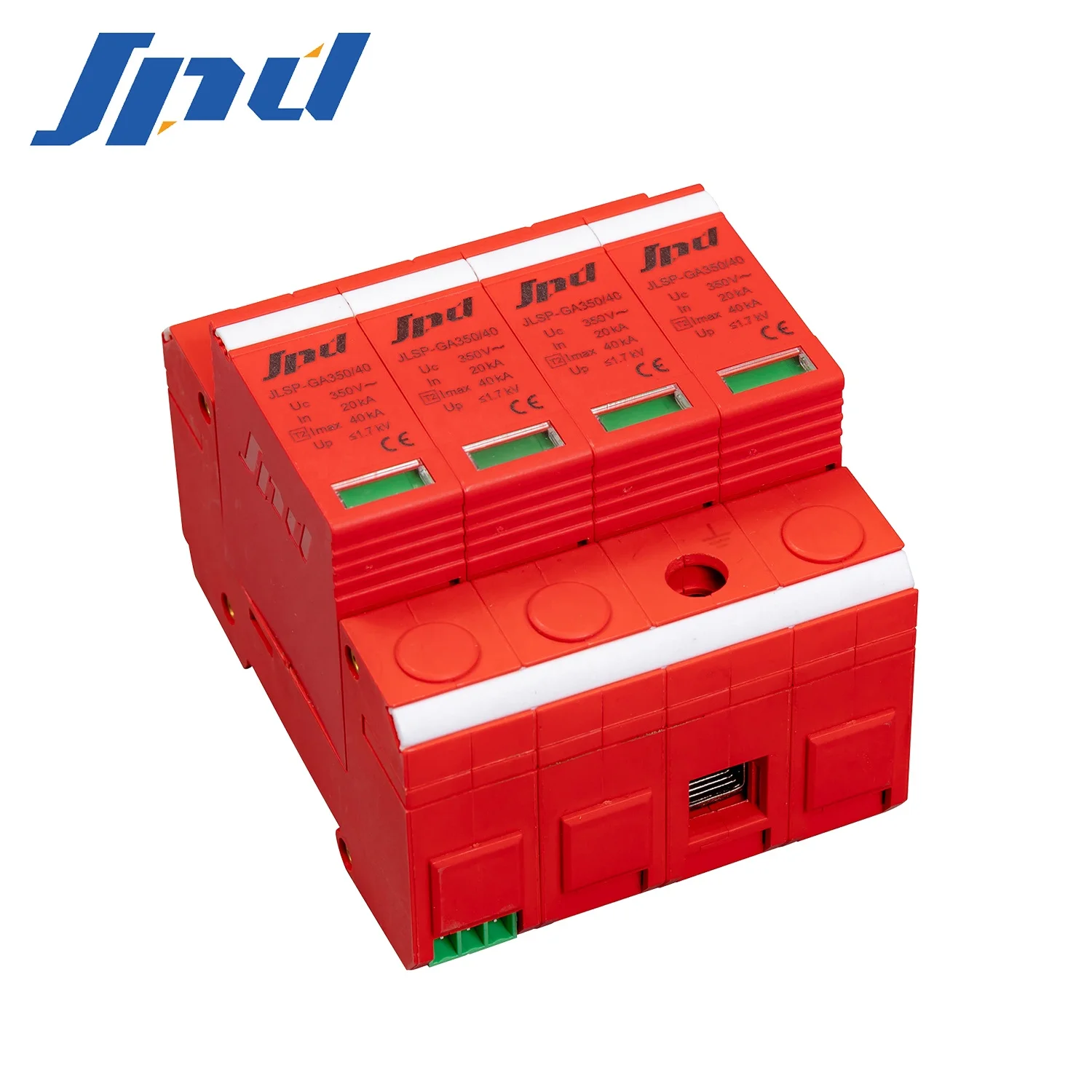

JLSP GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD
JLSP-GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD

JLSP GA350/40/4P Jinli type 2 surge protection device ac surge arrestor 40kA ac SPD

Share on (1600598300136):


Price:$11.58 - $12.60

Quantity:


Product Overview

Description



Company Information


-_01_02_03_04





Product Description



















































































































































Model





JLSP-GA350/40JLSP-GA350/80JLSP-GA350/100




IEC Classification





Class IIClass IIClass II




AC Network Un (50/60Hz)(V)






230/400(TN/TT/IT)



230/400(TN/TT/IT)



230/400(TN/TT/IT)






Max. continuous operationg voltage Uc (V)





350350350




Nornimal discharge current In (kA)





204060




Max. discharge current(8/20us) Imax (kA)





4080100




Voltage protection level Up (kV)





≤1.7≤2.0≤2.3




Max. backup fuse (A)





100 (gG)100 (gG)100 (gG)




Response time tA





≤25ns≤25ns≤25ns




Capacity of withstand short circuit





25kA25kA25kA




Operating temperature





-40°C∼+85°C-40°C∼+85°C-40°C∼+85°C




Relative humidity





≤95%(25°C)≤95%(25°C)≤95%(25°C)




Max. cross-sectional area of wire





16mm2 multi-strand cord25mm2 multi-strand cord35mm2 multi-strand cord




Dimensions (1P) (W*L*H) (mm)





18X90X6227x90x6236x90x65




Mounting





DIN Rail 35mmDIN Rail 35mmDIN Rail 35mm




Protection rating





IP 20IP 20IP 20




Housing material





PBTPA66PA66




Flame retardant rating





UL 94V-0UL 94V-0UL 94V-0




Capacity of remote signaling contact





250VAC/0.5A   30VDC/3A250VAC/0.5A   30VDC/3A250VAC/0.5A   30VDC/3A




Max.cross-sectional area of wire for remote signaling contact





1.5mm2  multi-strand cord/single cord1.5mm2  multi-strand cord/single cord1.5mm2  multi-strand cord/single cord




Status indicator





Normal: Green   Malfunction: RedNormal: Transparent   Malfunction: RedNormal: Transparent   Malfunction: Red




Standards compliance





EN50539-11  IEC61643-31  GB/T 18802.31EN50539-11  IEC61643-31  GB/T 18802.31EN50539-11  IEC61643-31  GB/T 18802.31
