Baiway OEM TK15H 100V 100A Universal LCD Car Battery monitor voltage Capacity Indicator battery Coulometer meter tester
- Category: Battery Testers >>>
- Supplier: Yangzhou Sinowi Electronic Co. Ltd.
Share on (1600599005922):
Product Overview
Description
Product Description
Product Name | TK15H 100A Battery monitor |
measuring range | 8-120V 0-150A |
Function | Check battery power, current, capacity and voltage |
Package | One set, size 15*15*5cm, weight 400g |

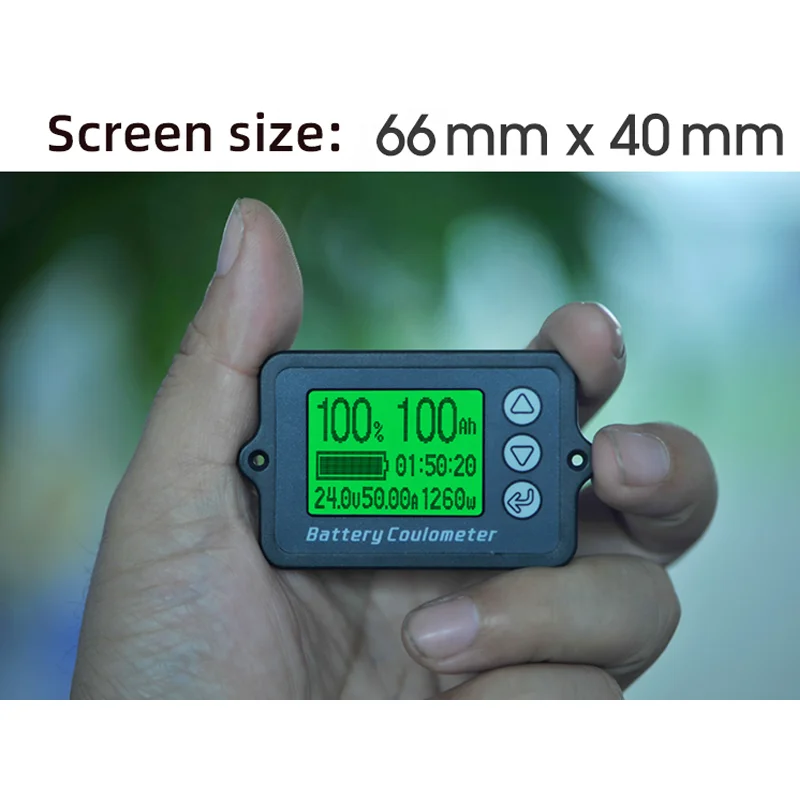

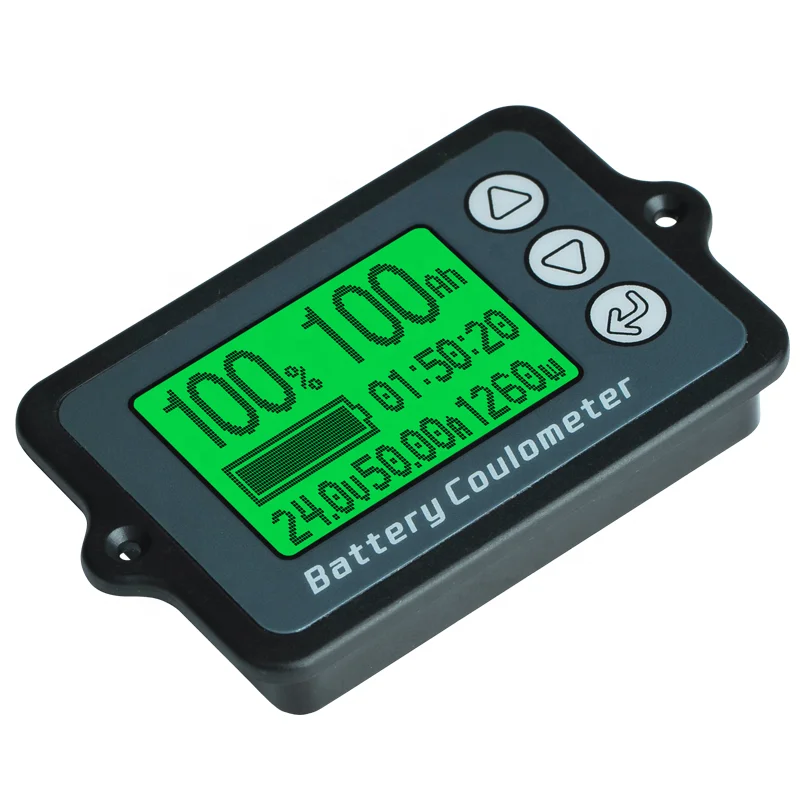

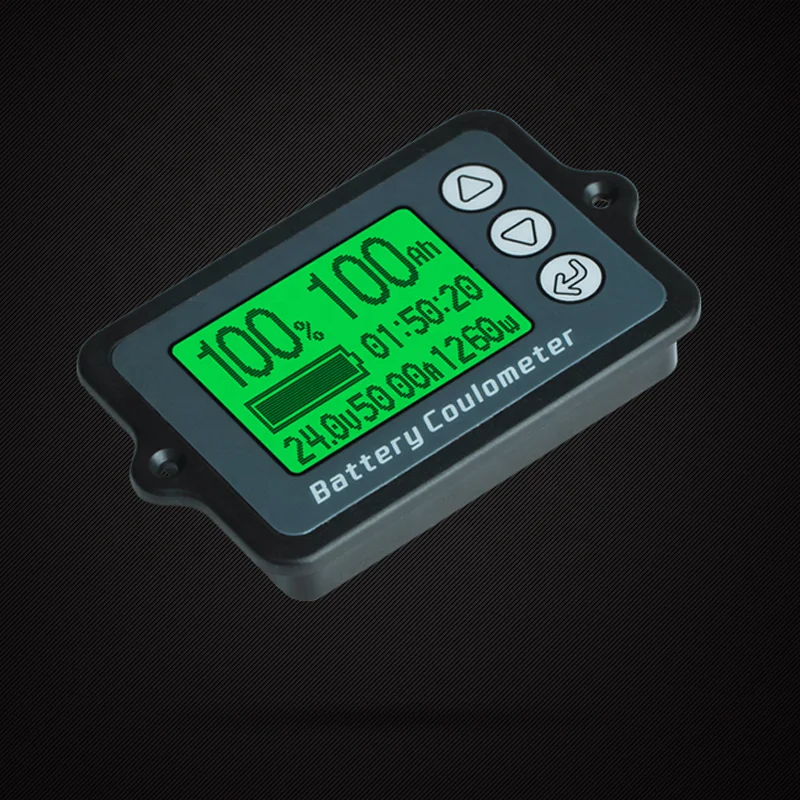

TK15H Battery monitor (100V100A)
●This product is a high-precision battery power meter （also called Coulometer） based on current acquisition type. It can accurately detect the voltage, current, power, real capacity and remaining time of the battery pack. The working status of the
battery is obtained accurately at any time.
battery is obtained accurately at any time.
●This product is suitable for electric vehicles, emergency power supplies, energy
storage power supplies, measuring equipment, medical equipment, various instruments and so on.
storage power supplies, measuring equipment, medical equipment, various instruments and so on.
Details Images
Every detail of a good product is very beautifully designed

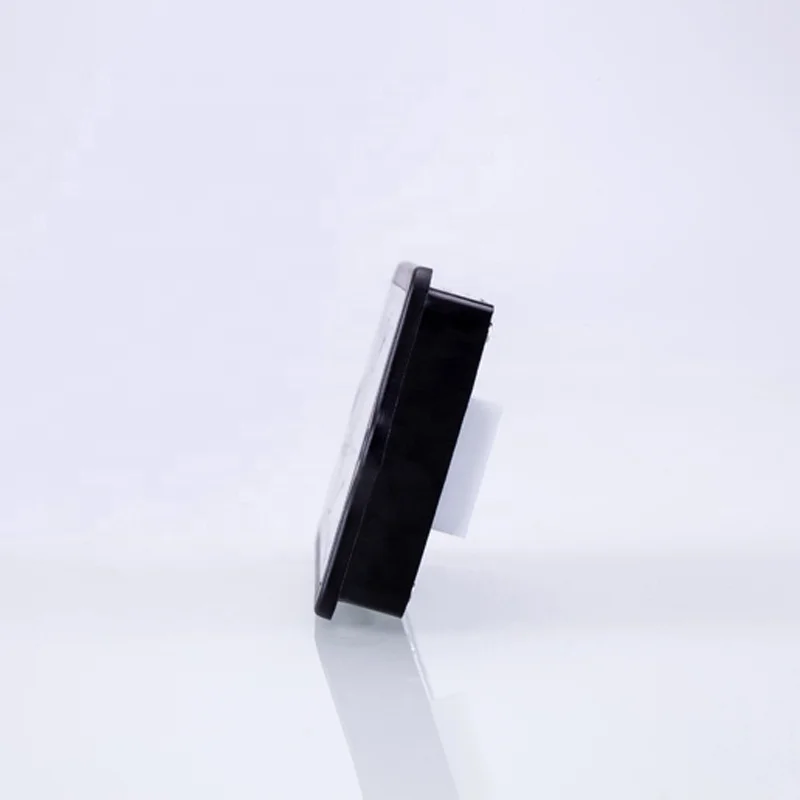

Screw hole design, more reliable installation

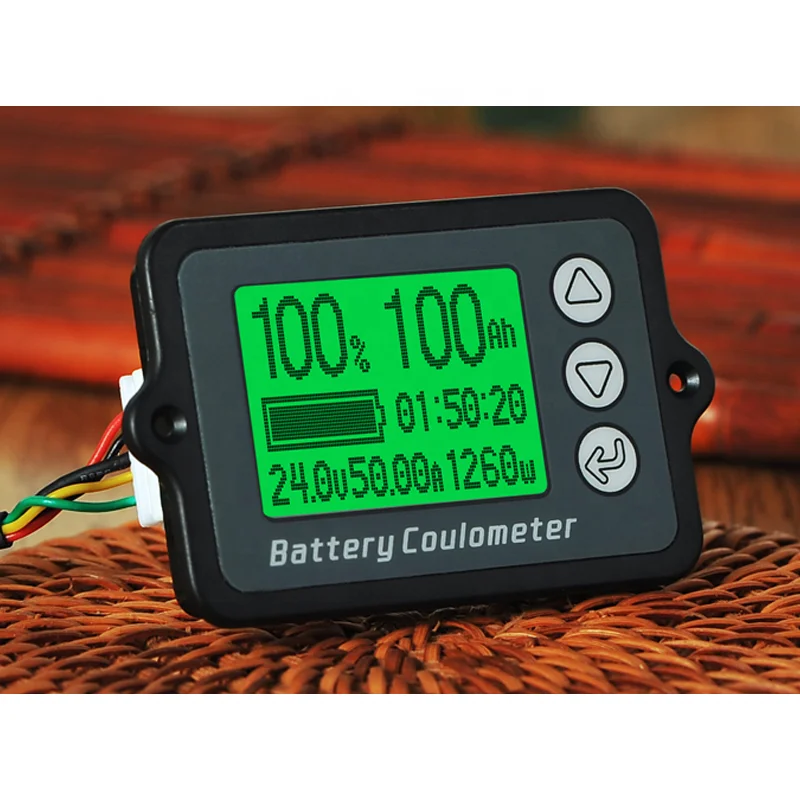

The line connecting the display and the sampler is a five-core shielded line
The accessories on the sampler are all made of pure copper
Product Usage
Wiring Diagram.
1. First, connect the sampler in series with the negative circuit of the battery pack. B- on sampler connects to B-of battery pack, and P- connects to P-/C- of charging and discharging.
2. Then take a piece of 0.3-0.75 mm2 red wire, one end connects to B+of the battery pack, and the other end connects to any B+ binding post on the sampler.
3. Finally, connect one end of the shielded wire to the sampler socket, and the other end connects to the TR16 socket. After confirmation, it can work when being electrified.(Connection diagram is schematic diagram, not isometric diagram).
4. Connection Principle: Ensure that all current shall pass through sampler!
