Product Overview

Description

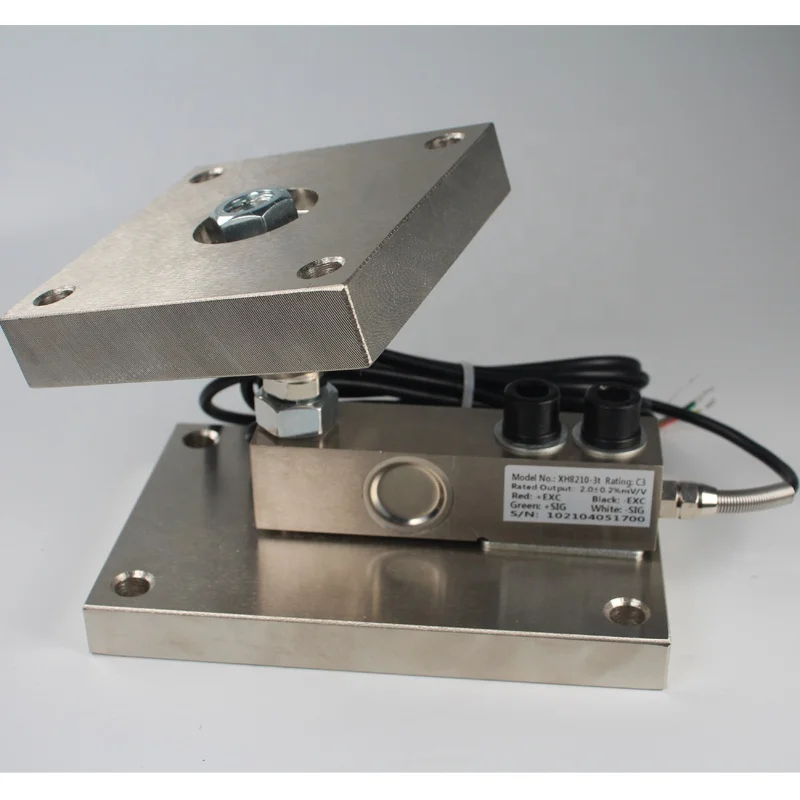

Relay output Poultry Hopper Weight Scale Sensor mounting Load Cell Module for Silo Scale Weighing 4~20mA

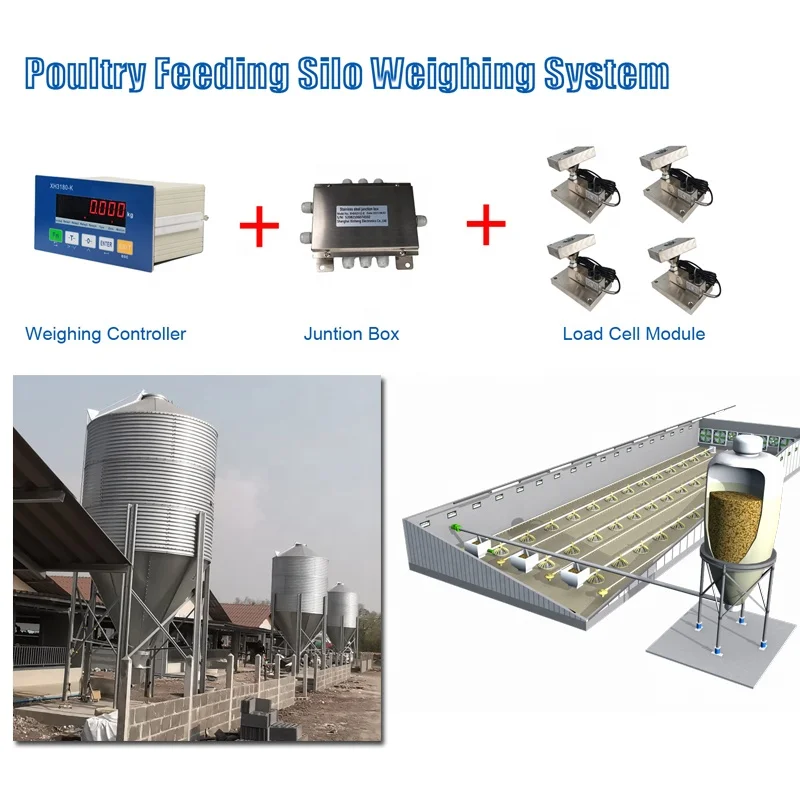

Great support for silos, hoppers, tanks etc. weighing function.

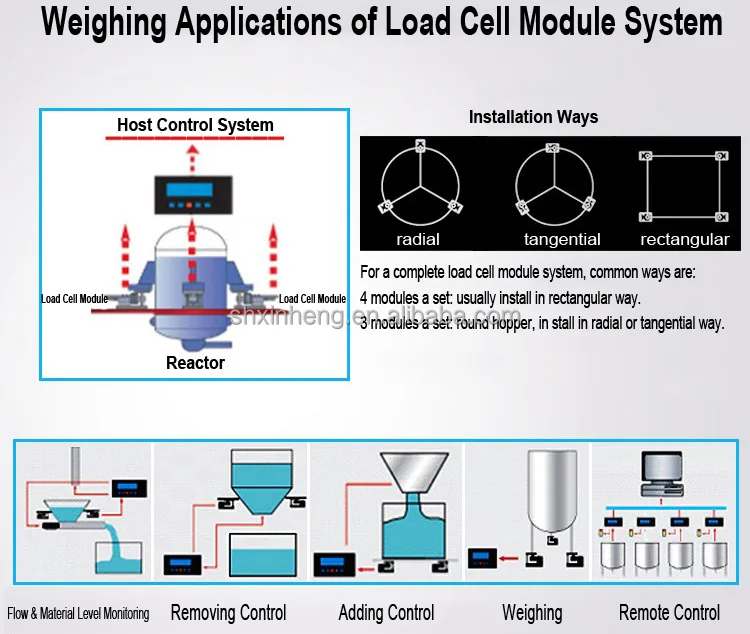

load cell silo scale (3).jpgsilo scale.jpgmounting silo scale.jpg

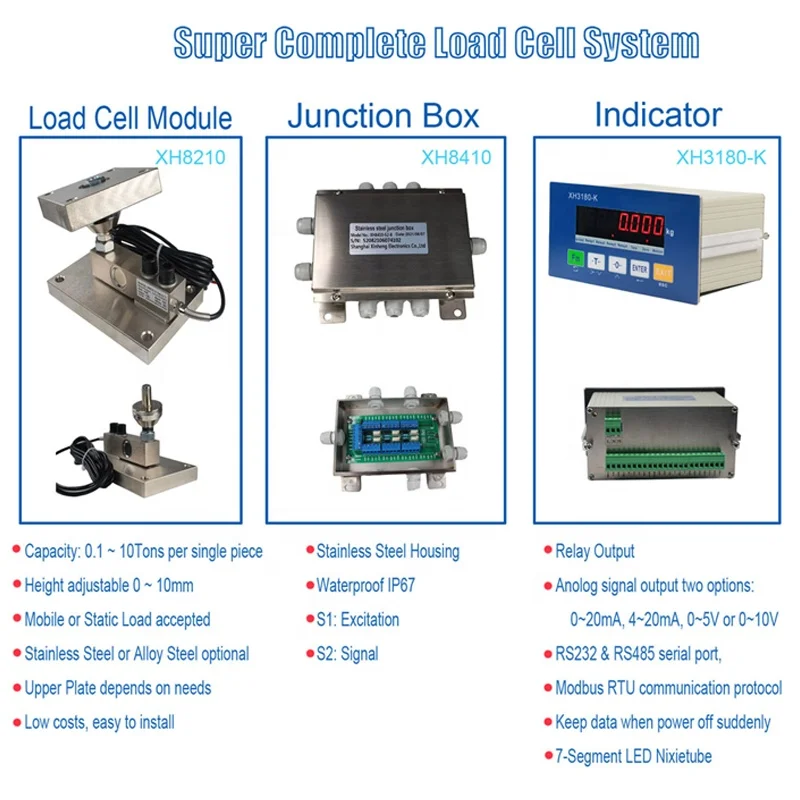

1 ~ 10T silo and metering tank weighing module Weighing sensor suite quality assurance and high cost performance


Rated Capacity: 0.1t ~ 10t


Material: carbon steel nicke palted or stainless steel


combination mode: 3 or more load cell modules are combined into a weighing system


Application for: tanks, hoppers, platforms etc.


XH8210 series weighing modules can be used for both dynamic and static loads, and the installation height can be adjustable.


Load cell equipped with upper and lower mounting plate, pressure column, anti-overturning bolt to form dynamic and static load dual-purpose weighing module. It also solves the problem of weighing error caused by improper installation, horizontal limit and anti-overturning of the carrier.


Quick and conveninet installation debugging, widely used in various reactors, hopper & silos weighing, matering warehouse etc.

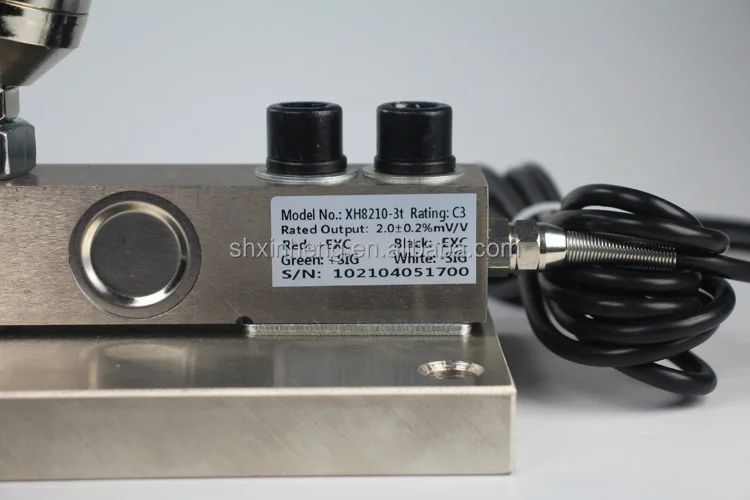

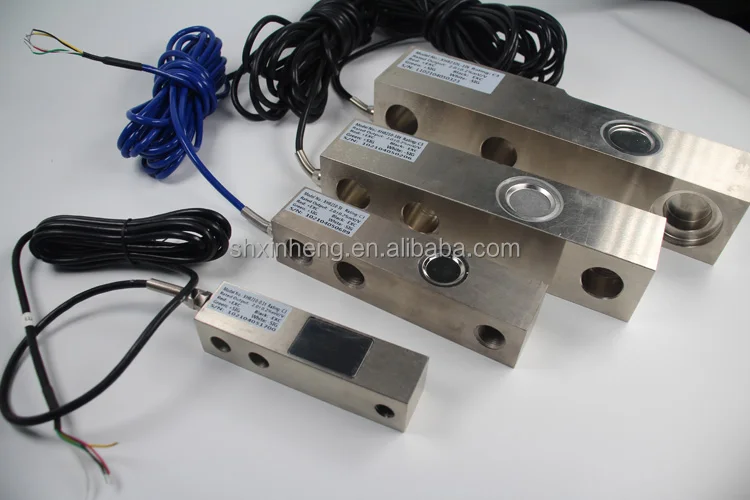

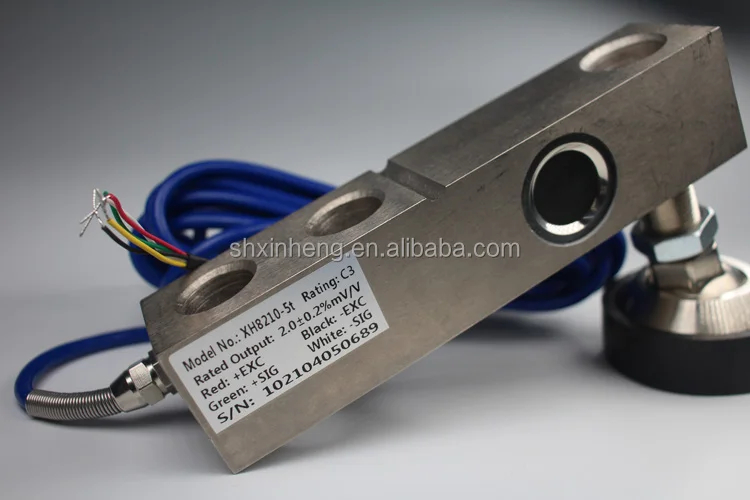

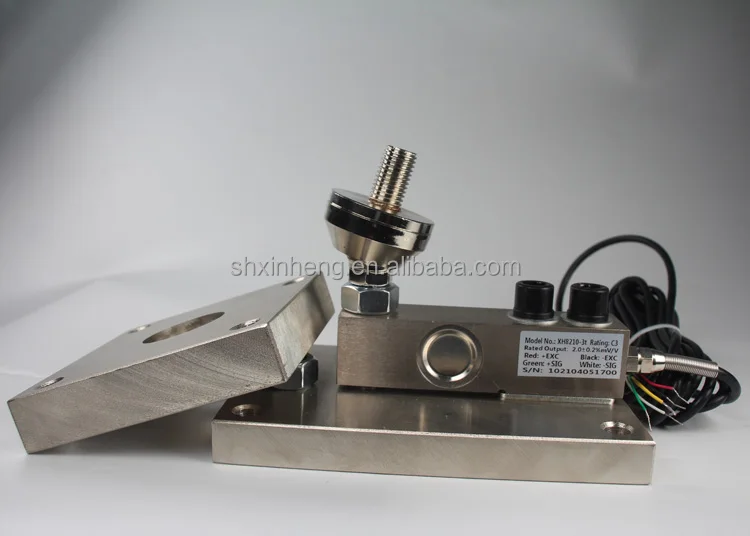

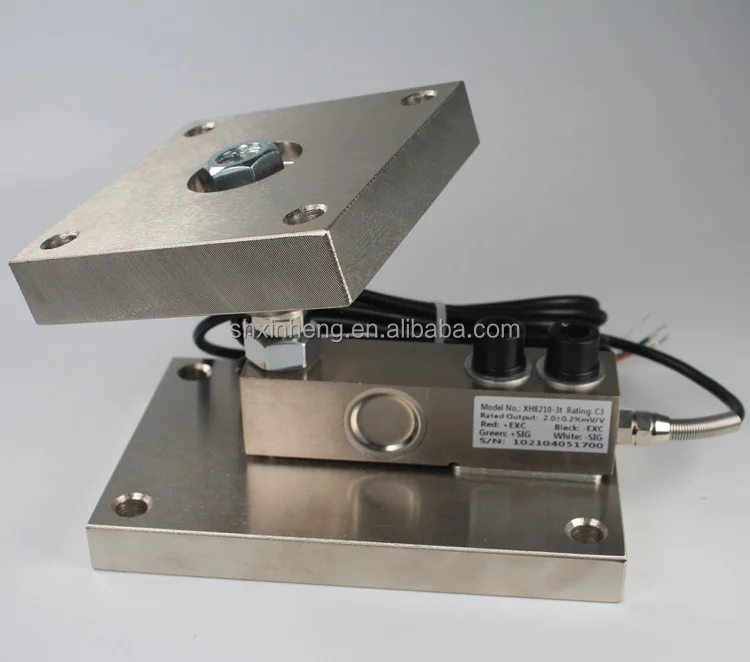

load cell scale sensor (3).JPGload cell scale sensor (4).JPGload cell scale sensor (5).JPGload cell scale sensor (2).JPGload cell scale sensor (1).JPG

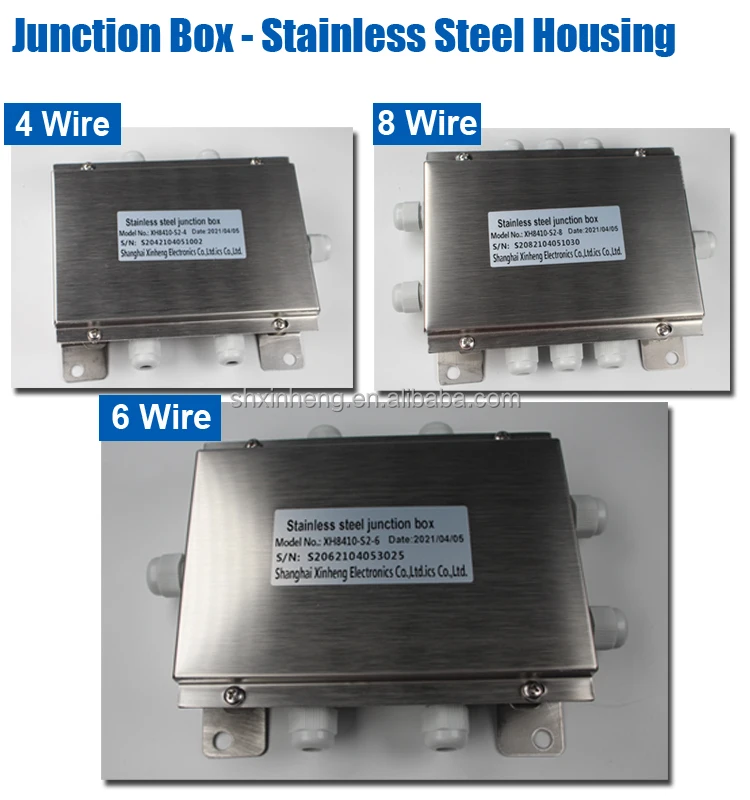

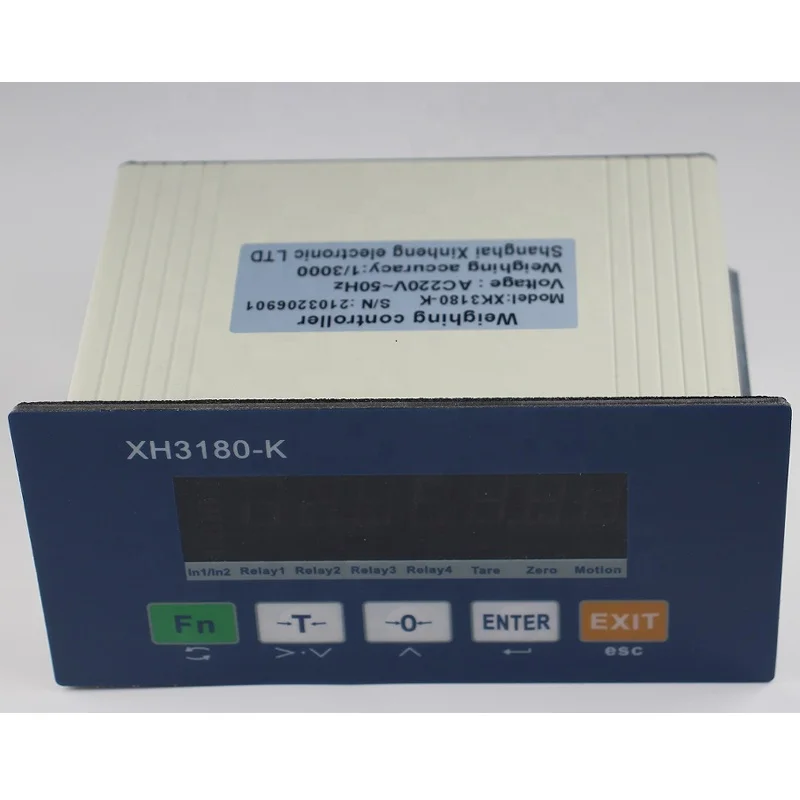

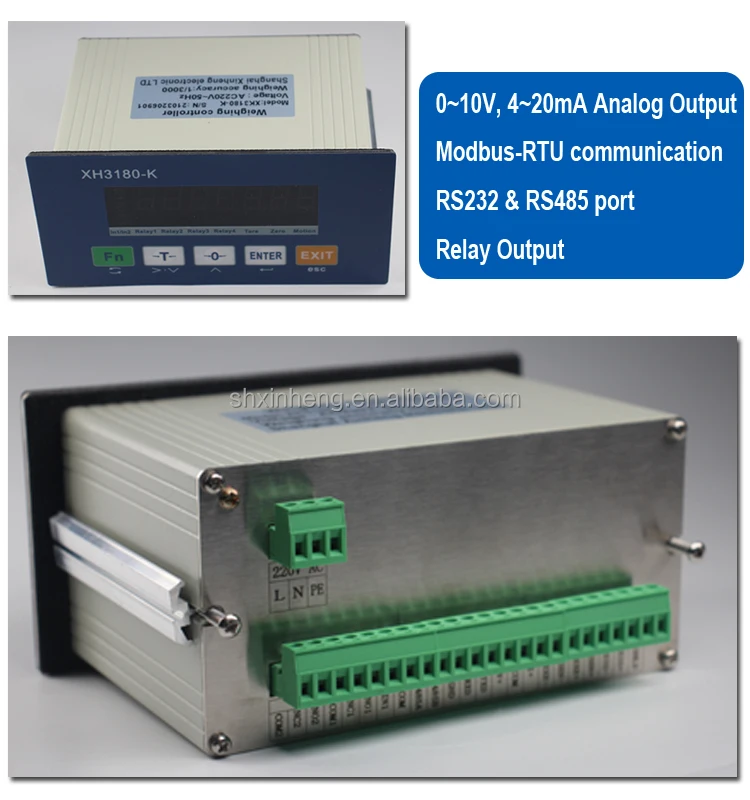

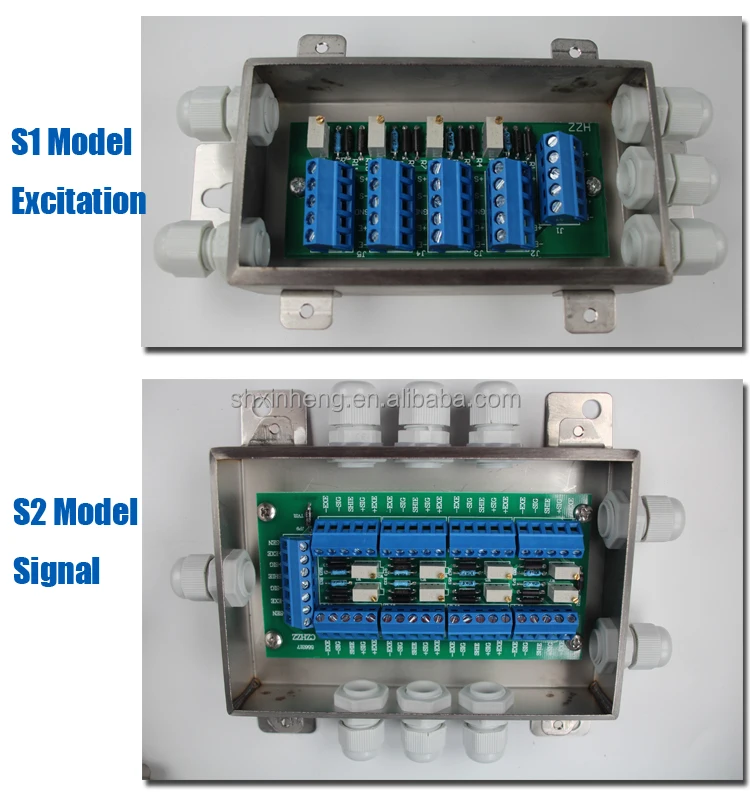

signal junction box 1.jpgsignal junction box 2.jpgWeight Controller.jpg

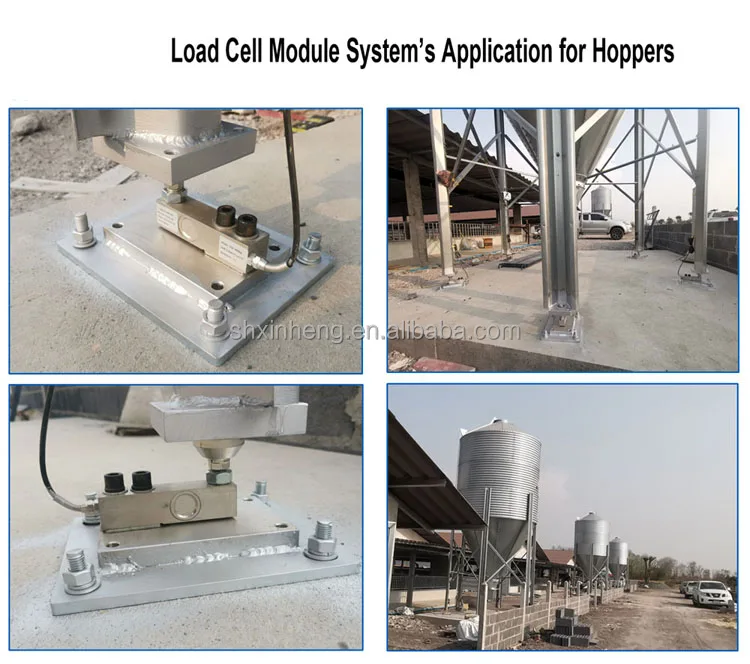

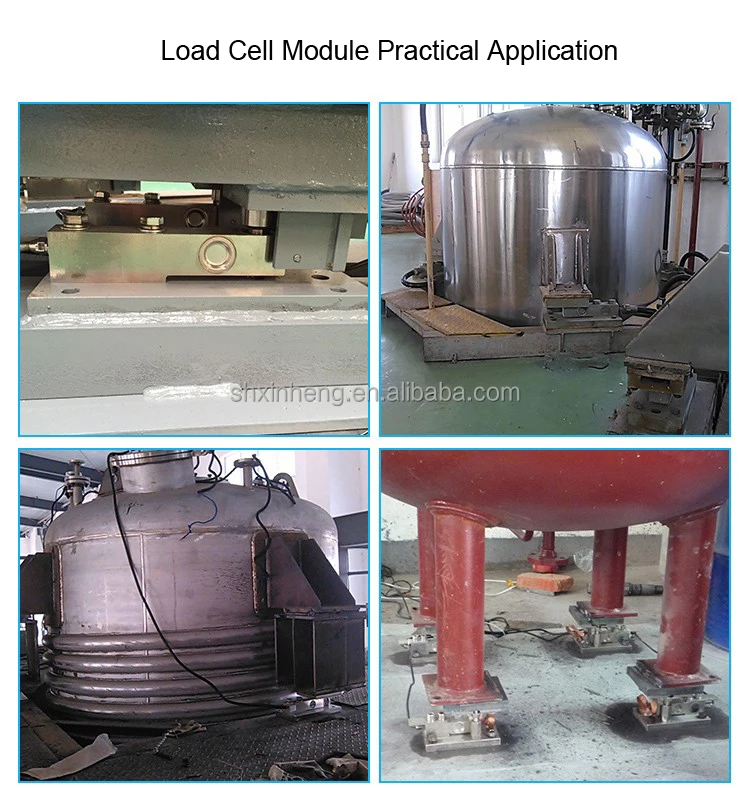

load cell silo scale (1).jpgload cell silo scale (2).jpg












































Self aligning weighing mount transducer

The weighing mount transducer, together with the SB load cell family,


 are an ideal solution for process control, batch weighing, silo/hoppers and belt scale applications.


FEATURES:
Hardened components at all load bearing surfaces
Rocker pin load introduction
Stainless steel construction or mild steel nickle plated construction
Built-in horizontal movement control and lift-off protection
Load (re)placement after installation of the mount
Self aligning weighing mount transducer
1.stainless steel or mild steel with nickle plated
2. 0.5 to 10T

3. OIML C3





1 ~ 10T silo and metering tank weighing module Weighing sensor suite quality assurance and high cost performance
