Mining truck 6 wheel 200psi 11.8mm 12mm external tpms wireless tire pressure monitoring system for big otr truck tire
- Category: Tire Gauges >>>
- Supplier: Dongguan Tiremagic Electronic Technology Co. Ltd.
Share on (1600599710654):
Product Overview
Description
Mining truck 6 wheel 200psi 11.8mm 12mm external tpms wireless tire pressure monitoring system for big otr truck tire
Product Technical Parameters

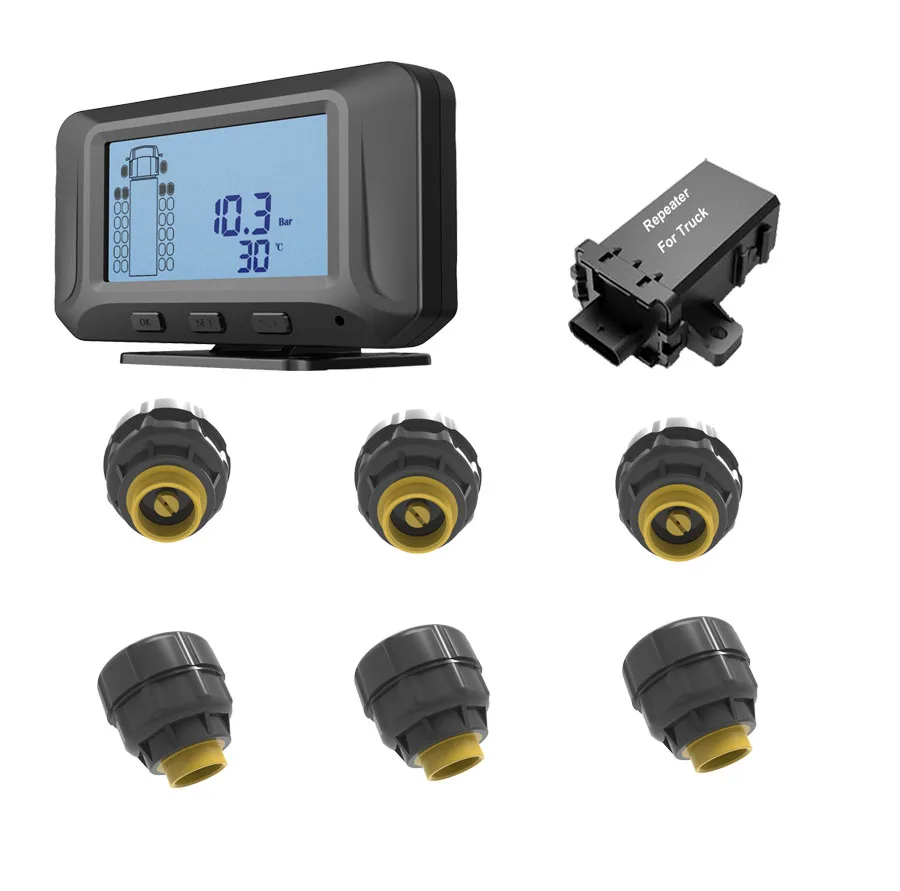

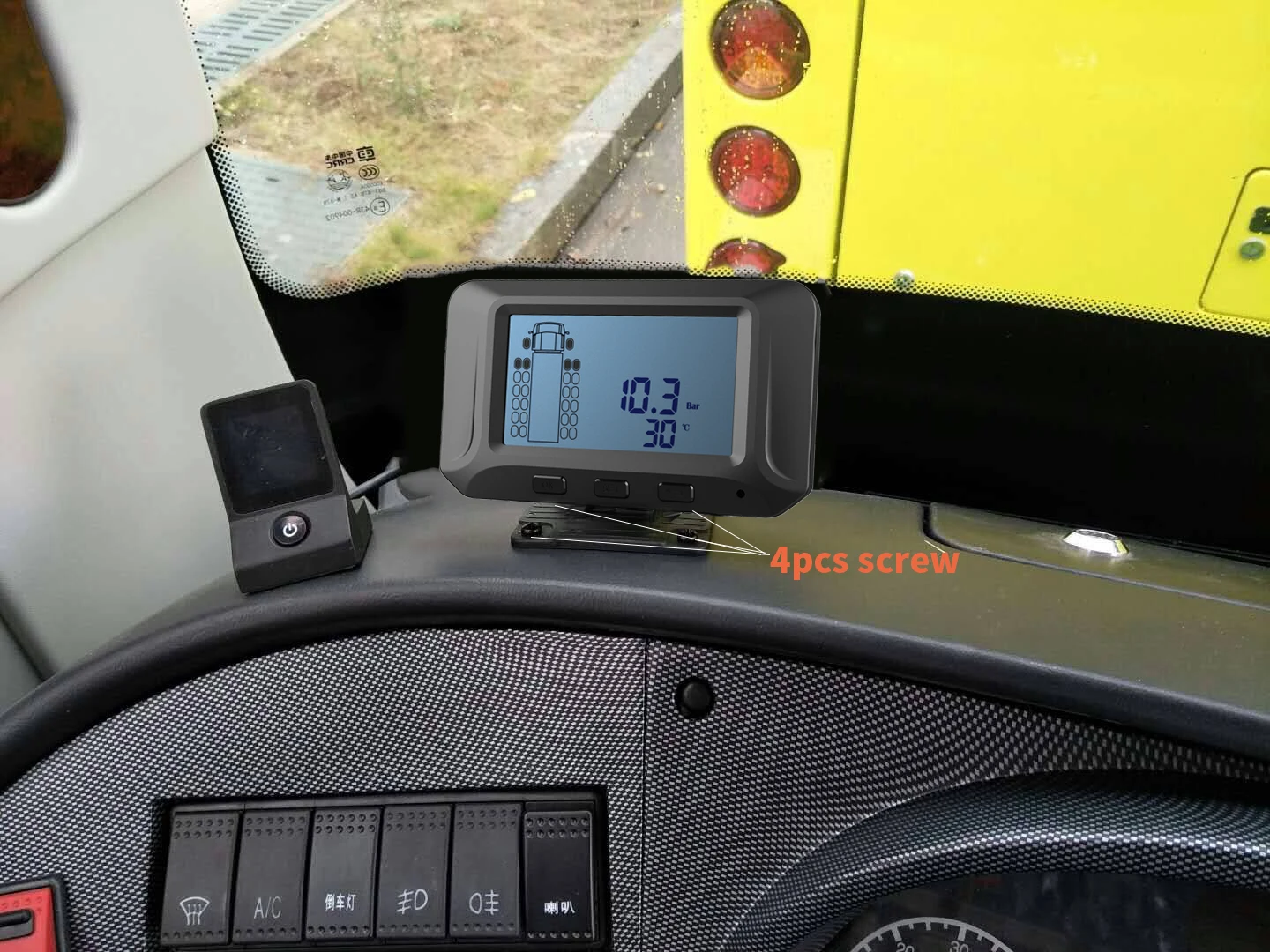

1. Monitor (Model: TD21)
NO. | Item | Technical Parameters |

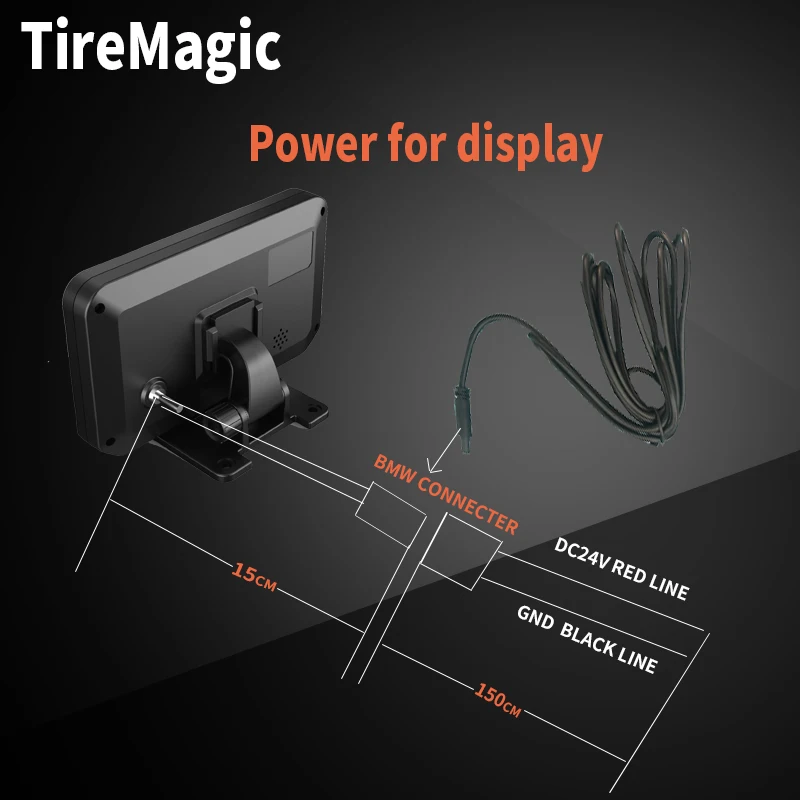

1 | Working Voltage | DC 12V~DC 32V |
2 | Working Current | Less 20 mA |
3 | Working Temperature | -40℃ ~ 85℃ |
4 | Working Frequency | 433.92 Hz±30KHZ |
5 | Screen size | 2.6-inch |
2. Repeater (Model:RP04)
No. | Item | Technical Parameters |
1 | Working Voltage | DC 12V~DC 32V |
2 | Working Frequency | 433.92 MHz±30KHZ |
3 | Working Temperature | -40℃ ~ 125℃ |
4 | Waterproof | IP67 (Without power line) |

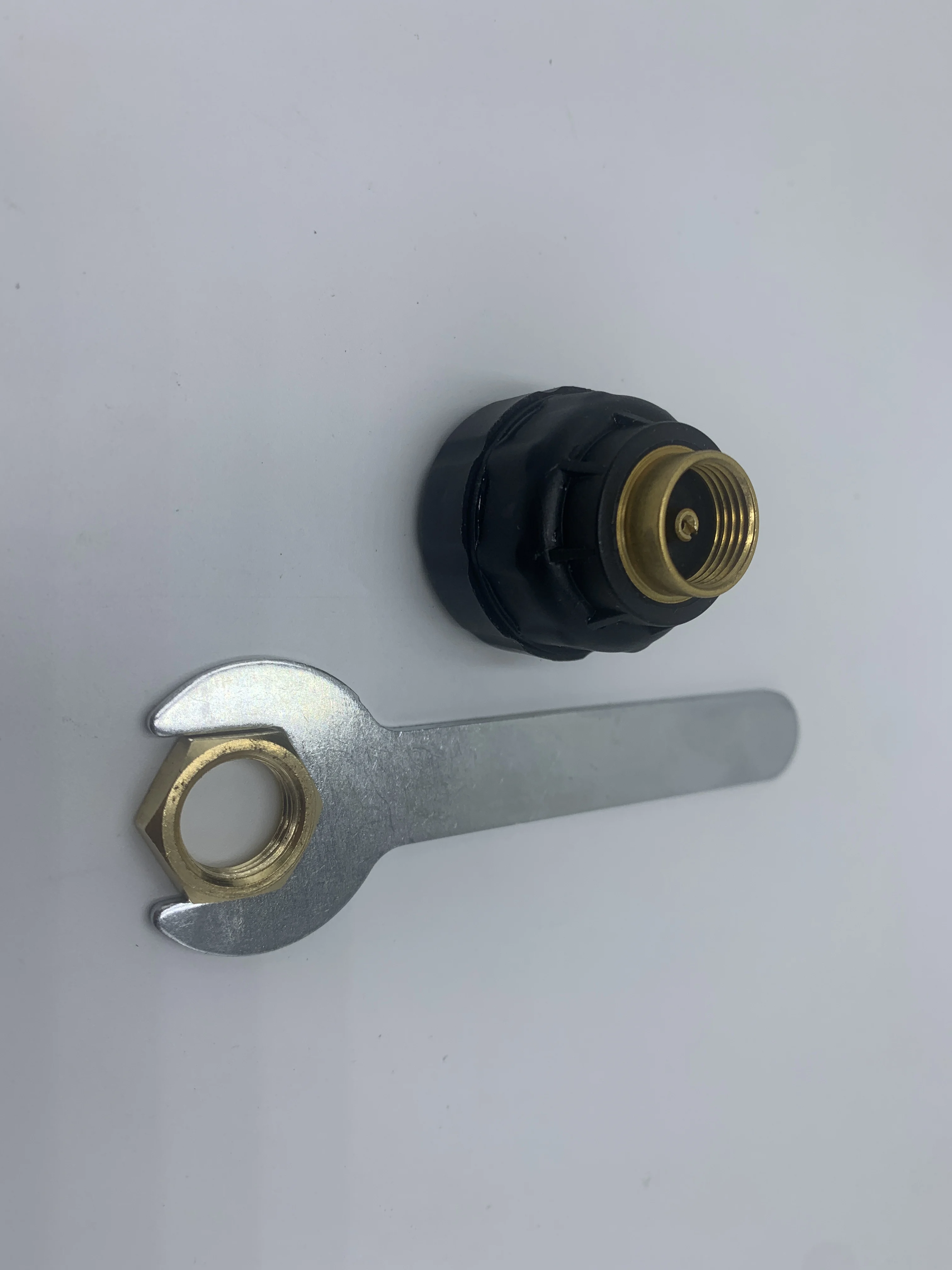

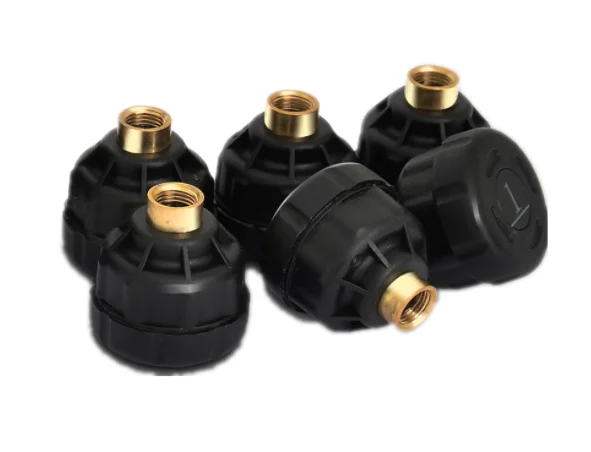

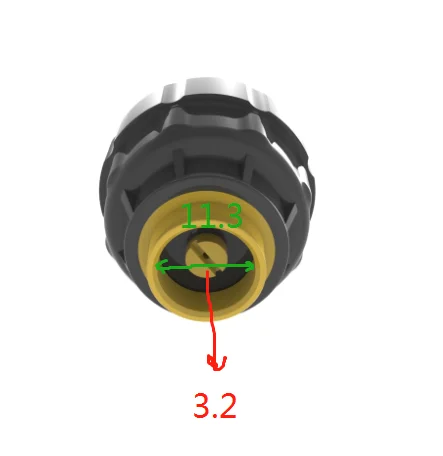

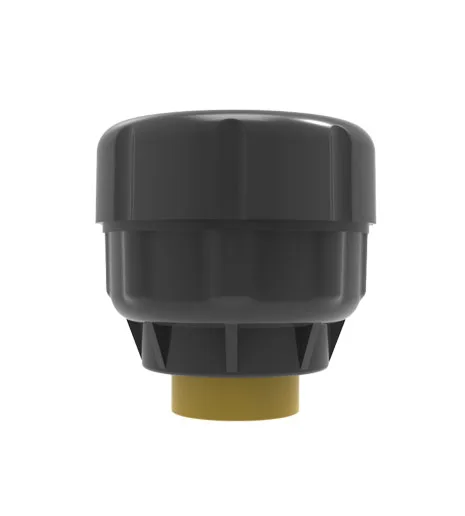

3. External Sensor T04SW FOR otr big 12MM valve CR2050 battery sensor
No. | Item | Technical Parameters |
1 | Sensor battery | CR2050(480mAh) |
2 | Suitable | 12v1 valve |
6 | Pressure measurement range | 0-1400kpa(0~203PSI) |
8 | Working Frequency | 433.92 MHz±30KHZ |
11 | Temperature measurement range | -40℃~125℃ |
14 | Sensor battery lifespan | 4 to 5 years(Battery cann't be replaced) |

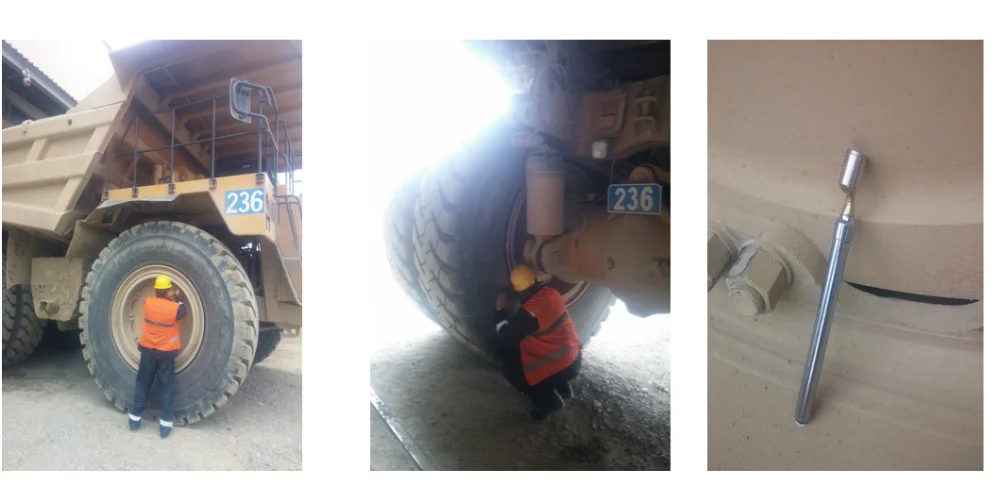

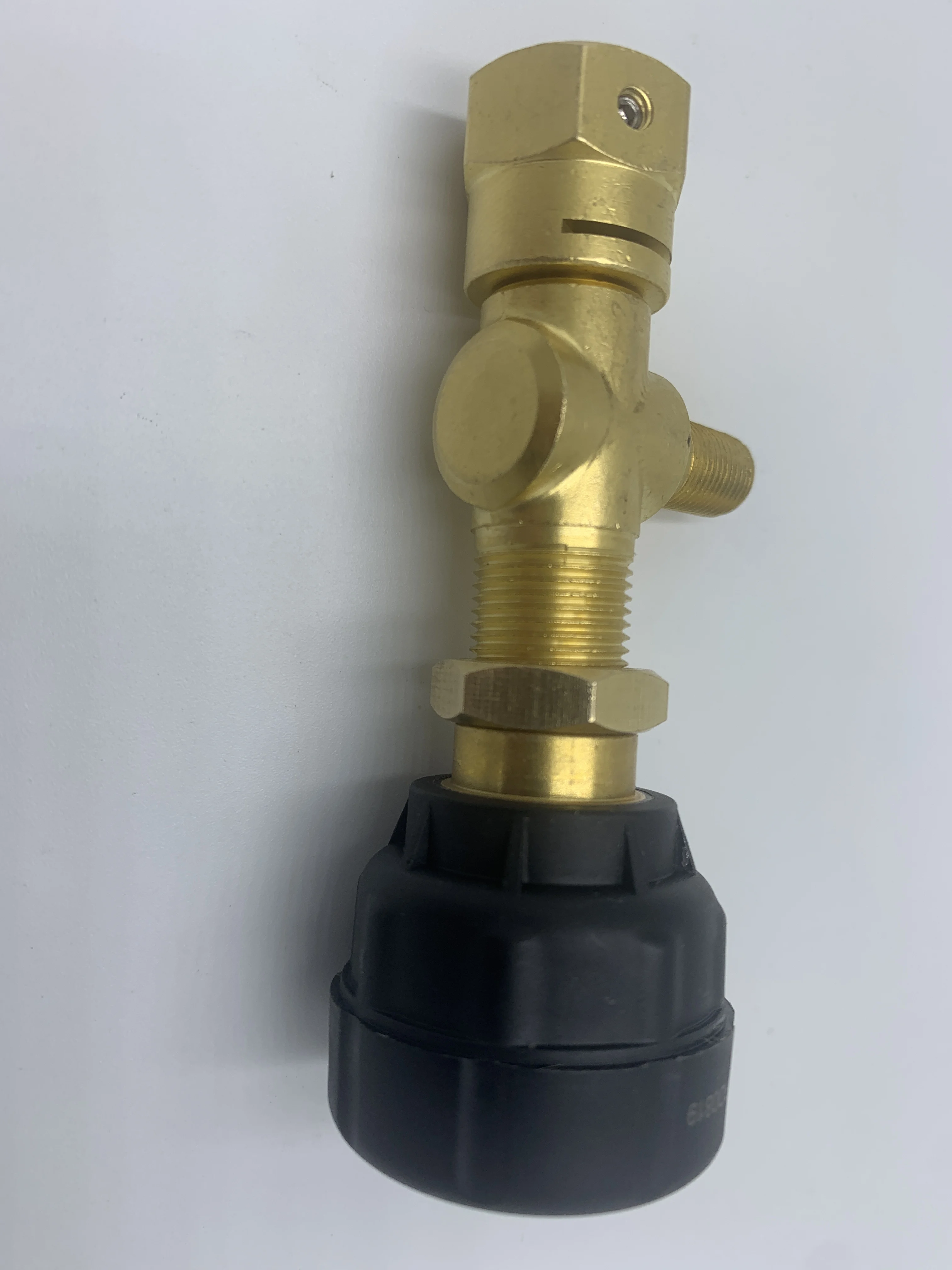

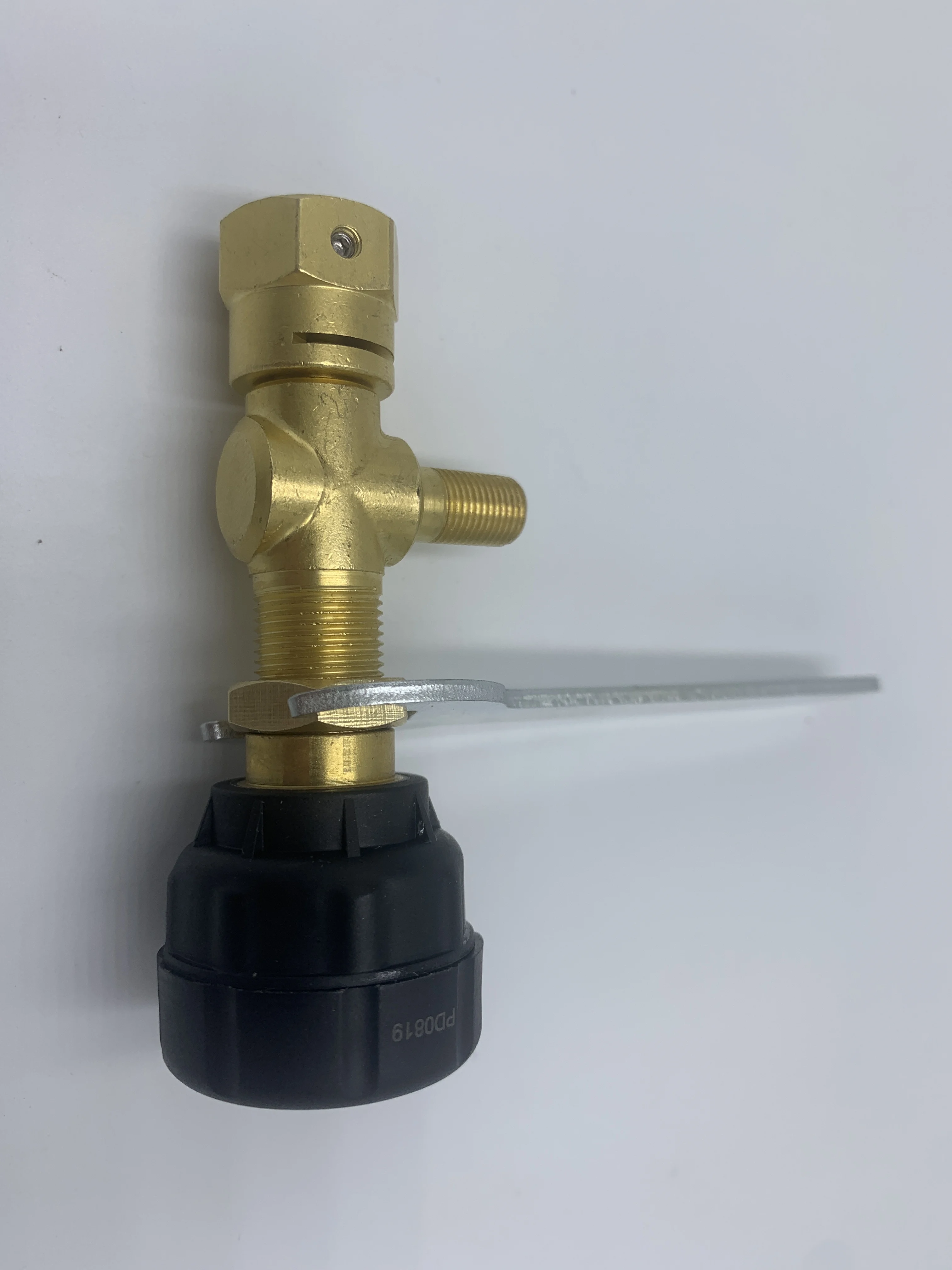

Support this tire with 12mm valve:
Certifications
Certifications
Packing & Delivery
Packing & Delivery
Delivery
we can complete your sample order within 2 days, Use the mode of transportation you like
FAQ
FAQ
1),Why do we choose tiremgaic tpms?
A,We have more than 14 years experience of TPMS R&D and Manufactory, and we can ODM for you.
B,We have all type TPMS products, such as: TPMS for car, for truck, for otr truck ,internal and external sensor, OE sensor ect...
2),What's the application rang for you TPMS products?
Our TPMS can be supported all car or truck, pasenger car, Truck, Otr Truck, long vehicle, BUS, ect.
3),What's your MOQ? Can you support sample order?
Yes, we can support the sample order, and our MOQ is: 50sets
4),What are you shipping ways?
Air or sea shipment, and we can ship according to your request.
