tire pressure monitoring system 12 sensors TPMS for trucks trailers (1600740870853)

Share on:

Price in USD:Details


Product Overview


22 wheel tires truck tire pressure monitoring external digital truck bus tyre monitor pressure sensor tpms





1. What are the advantages of TPMS ?


Reduce Driving Risks


Improve Fuel Economy


Prolong lifetime of the tires


2. Features:

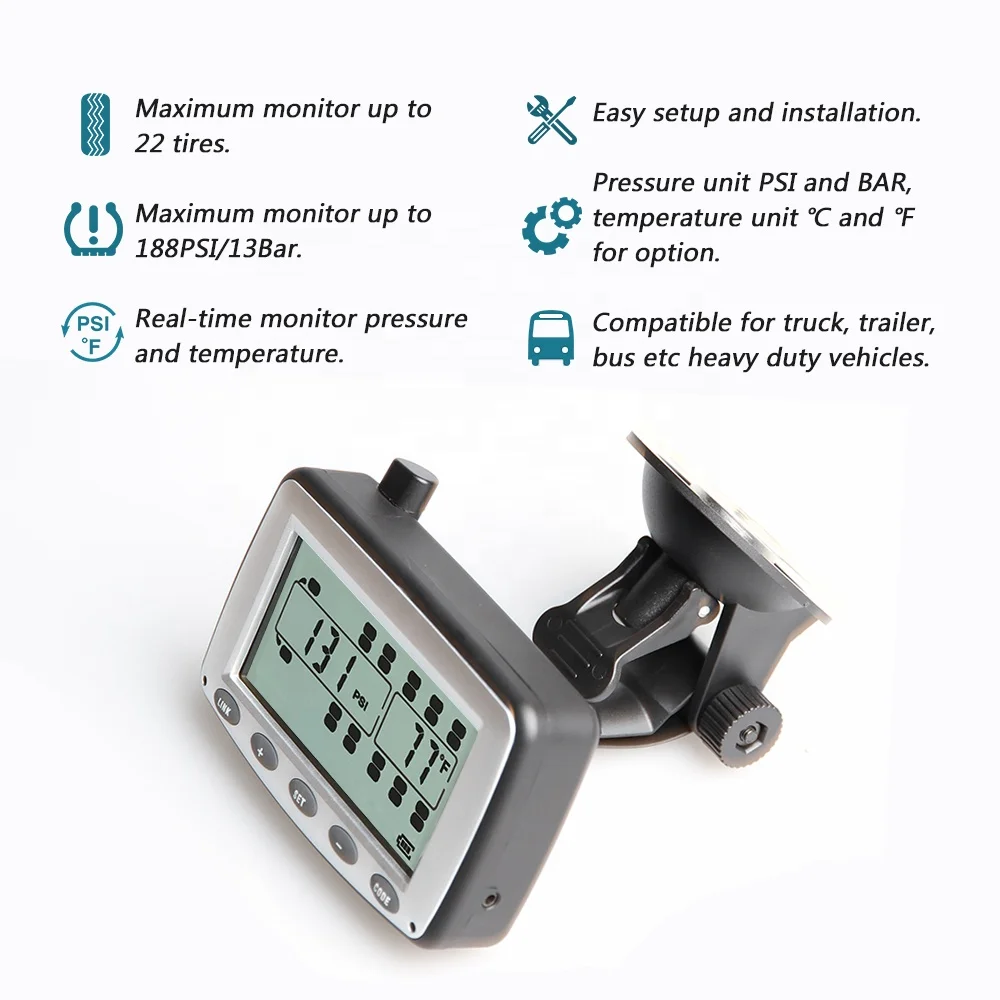

Monitor Features:


1,Reliable and easy to install.

2,Large LCD screen.

3,Built-in rechargeable lithium battery.

4,Vibration awakening.

5,Automatical backlight.

6,Configurable high/low pressure warnings.

7,Configurable high temperature warnings.

8,Visible and audible alerts.

9,Selectable pressure units ( BAR, PSI ).

10,Temperature unit selectable (℃, ℉)

11,Monitors up to 22 tires maximum.

12,Long range between monitor and sensors.

13,Individual configuration of axle high/low pressure warnings.

14,Awake sensor to program ID code.


Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .



3. Specifications:

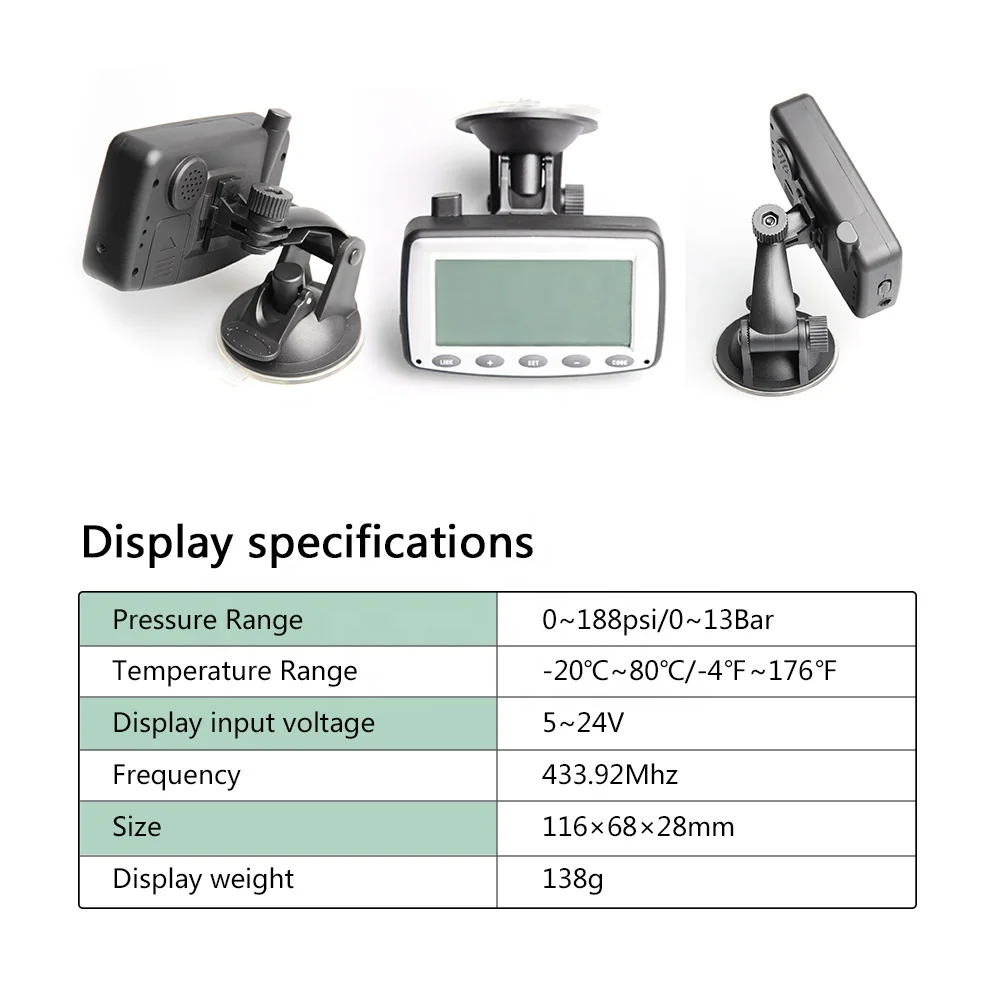

Monitor specifications:


Operational Temperature

-20 to +80° C

Storage Temperature

-30 to +85° C

Charge Input Voltage

DC 8 to 30 V




116(L) x68 (W) x 25(H) mm


138 g

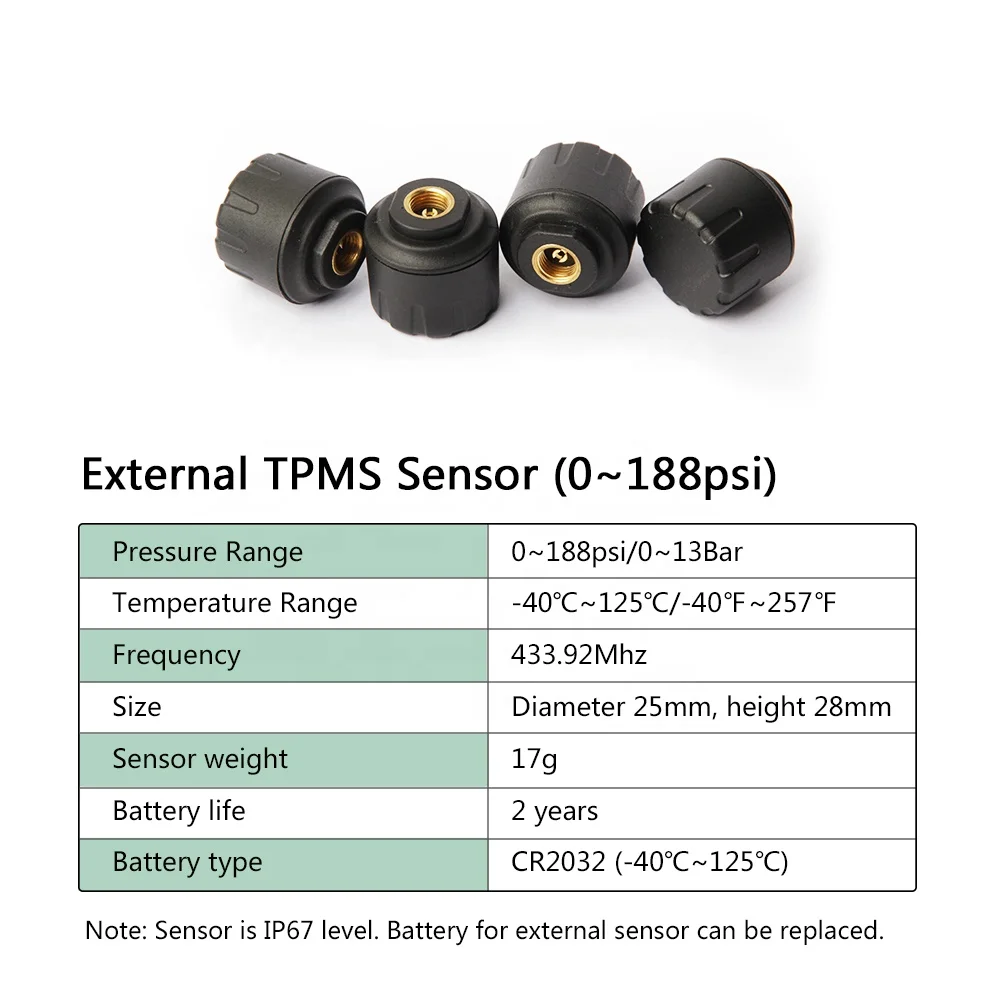

External Sensor Specifications:


Pressure range:

0 to 13 bar, 0 to 188 psi

Pressure sensitivity:

± 0.1 bar or 1.5psi

Temperature sensitivity:

± 3℃

Transmission frequency:


Battery life:

2 years

Operating temperature:

-40 to +85° C


28 grams


Diameter:24 mm, Height: 29 mm


4. Our Facilities:

 facility picture


5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent



6. Cooperate with us, you will gain:


0EM or ODM service


Professional Research & Development Engineer


Competitive Price & Professional sales team


2-4 weeks leadtime
