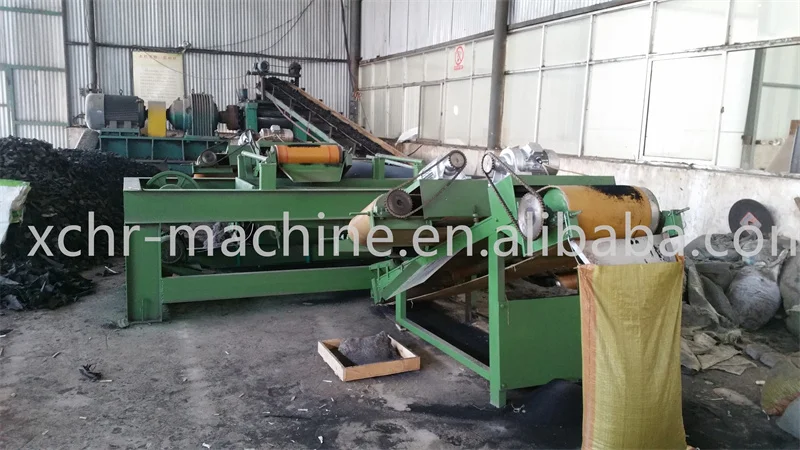

Full Automatic Tyre Rubber Production Line
Scrap Used Car Truck Tires Shredder Cutting Recycling Machines

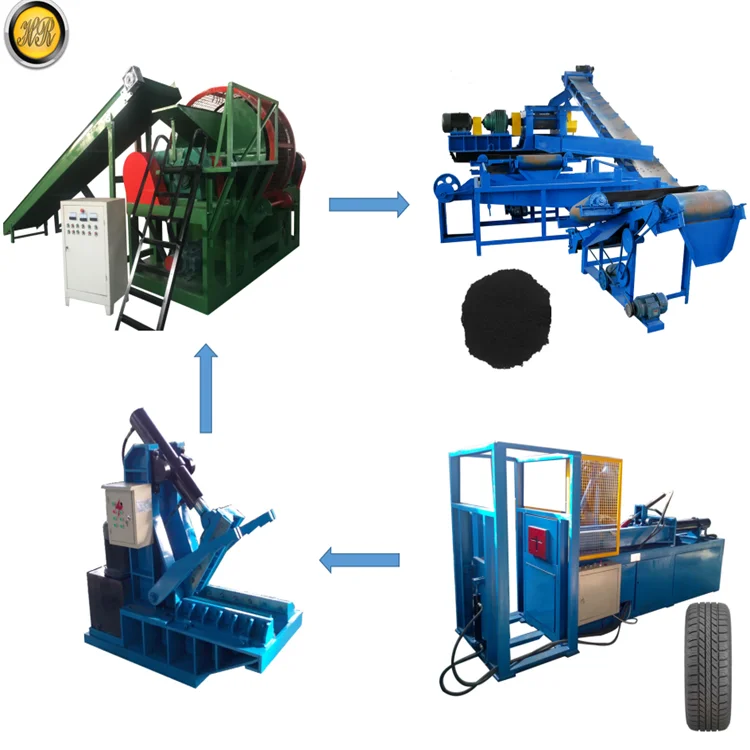

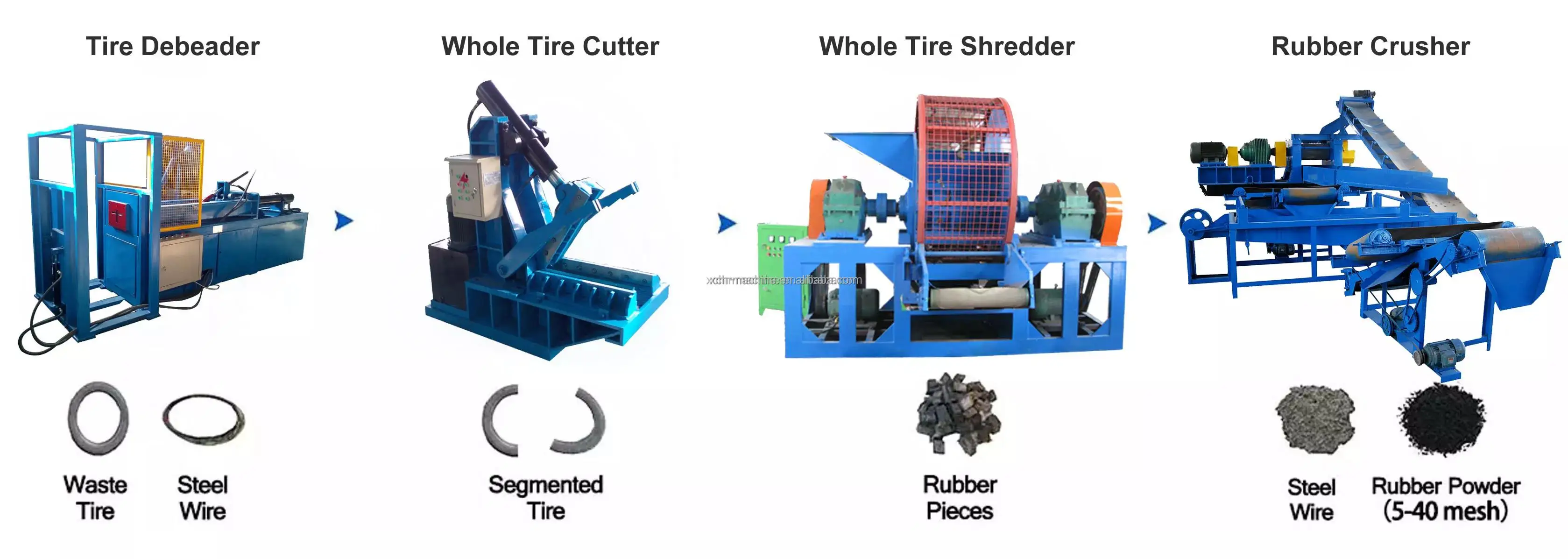

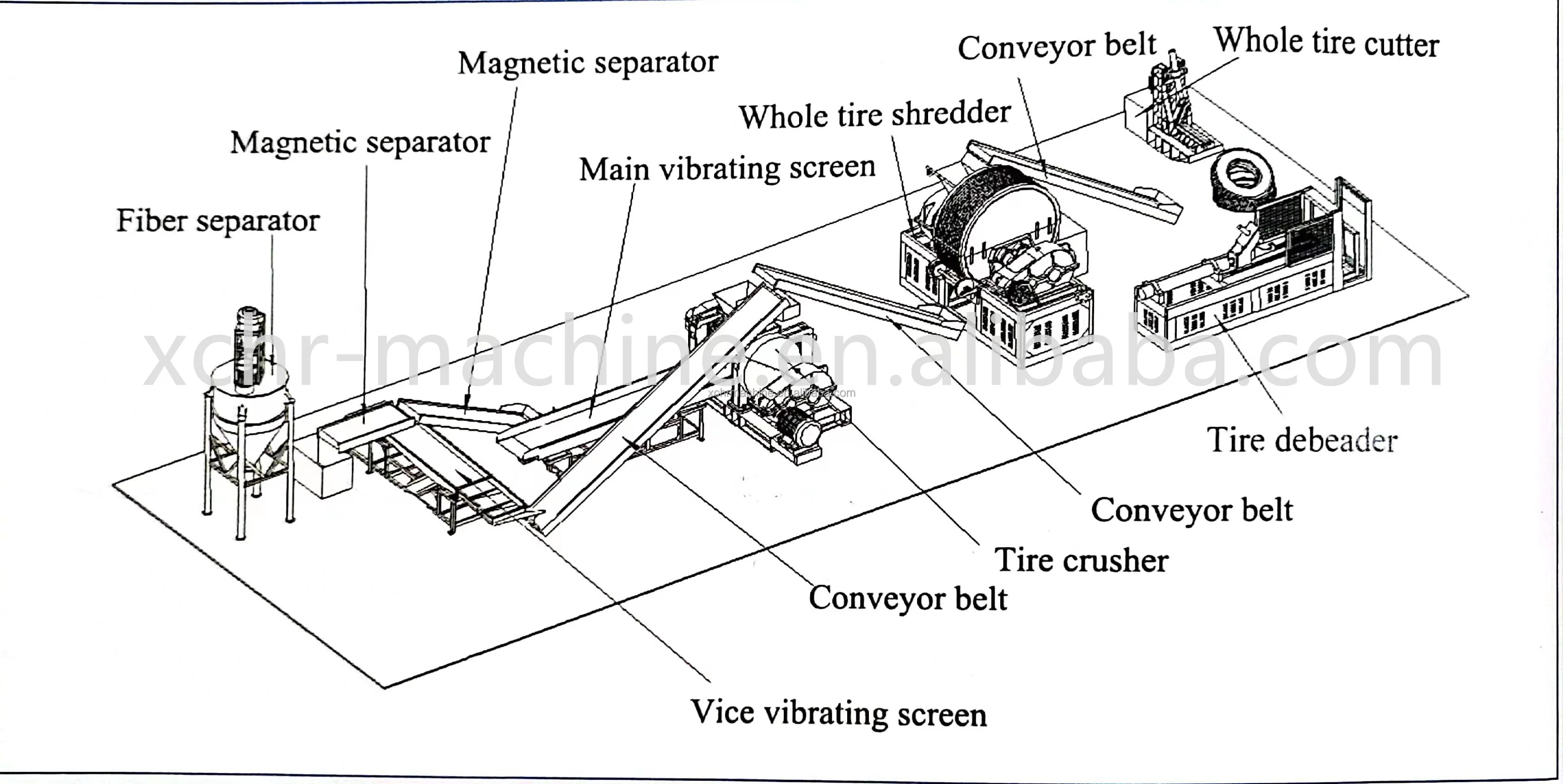

The Working Process:
Step 1:Tire Debeader- Draw steel wire from the tire ring by Tire wire drawing machine.
Step 2: Whole tire cutter - If the diameter of tire is bigger than 900 mm, can choose to use tire cutting
machine to cut the tire to several pieces.

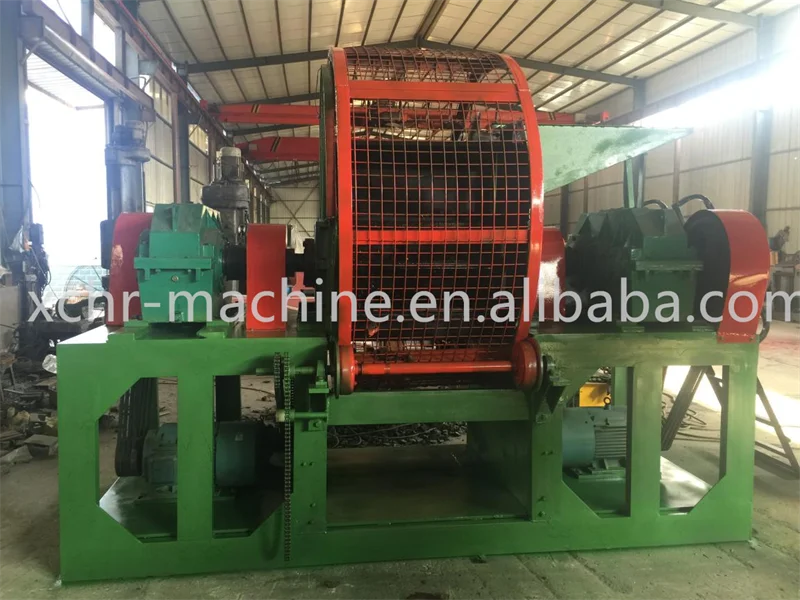

Step 3 :Tire shredder- Put the small tires or pieces into tire shredder to make tire blocks.
Step 4: Rubber crusher set- Put the tire blocks to the tire crusher to make rubber powder.
Step 4: Rubber crusher set- Put the tire blocks to the tire crusher to make rubber powder.
PRODUCT SPECIFICATIONS
The following are some of our product models,
we can customize products according to your needs, please contact us for more details.
Sally Li: whatsapp/wechat: 008615638769216
Product name | TD-1200 Tire wire drawing machine | |
Model | TD-1200 | |
Feed size of tire(mm) | ≤φ1300 | |
Power(KW) | 11 | |
Overall dimensions(m) | 4.1*0.9*1.7 | |
Equipment weight (T) | 1.8 | |
Function: Used to draw the steel loops from the tire bead. | ||
Name | TC-1200Tire cutting machine | |
Feed size of tire(mm) | ≤φ1300 | |
Capacity(tires/h) | 30-40 | |
Power(KW) | 5.5/7.5 | |
Overall dimensions(m) | 1.8*0.9*1.85 | |
Equipment weight (T) | 1.5 | |
Function: Used to cut big tires to tree pieces or smaller pieces. | ||
Name | TS-800 Tire shredder | |
Output(per hour) | 1-3ton | |
Feed size of tire(mm) | ≤φ900 | |
Output size(mm) | ≤50*50 | |
Power(KW) | 22/30*2+4+1.5 | |
Speed(r/min) | 15 | |
Equipment weight | 9T | |
Function: Used for cutting whole tire to 50*50mm rubber block. (Including 2 conveyor belts) | ||
Product Name | Rubber powder crusher set XKP-350 | |
Diameter of front roll | 300 mm (groove) | |
Diameter of back roll | 300 mm (groove) | |
Drum working length | 500mm | |
Front roll liner speed | 26.2m/min | |
Roll ratio | 1:2.5 | |
Max roller spacing | 10mm | |
Motor power | 30KW/37KW | |
Weight | 6T | |
L*W*H | 3.5*1.6*1.5m | |
Function: This machine is mainly used to crush waste rubber products and natural rubber. | ||

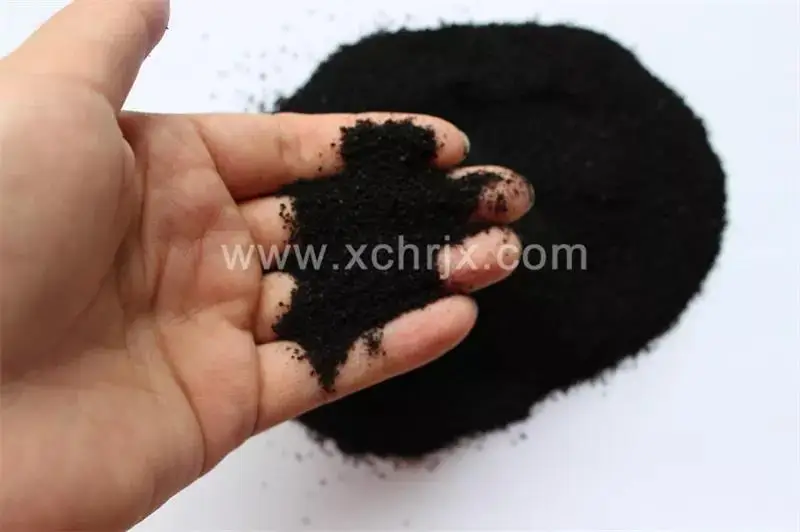

Finished Rubber Power: This line crush the rubber blocks into 5-40 mesh rubber powder.
Successful case

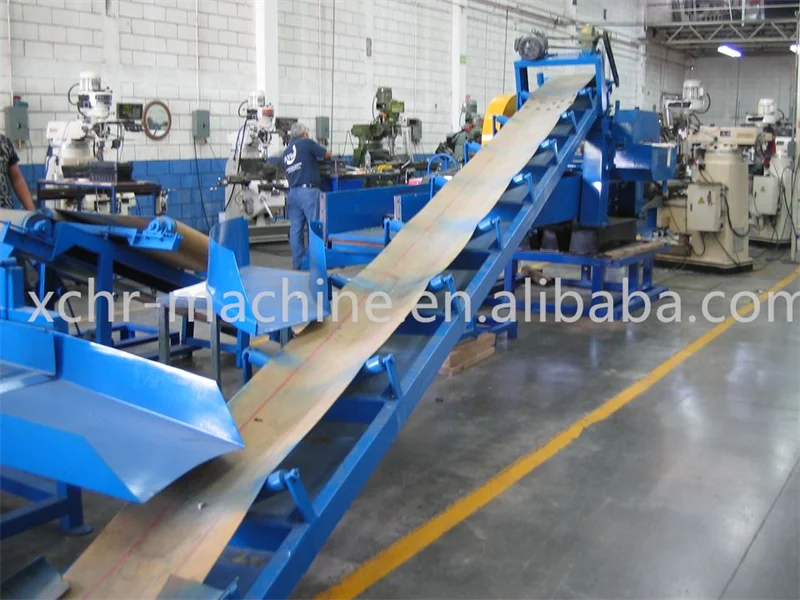

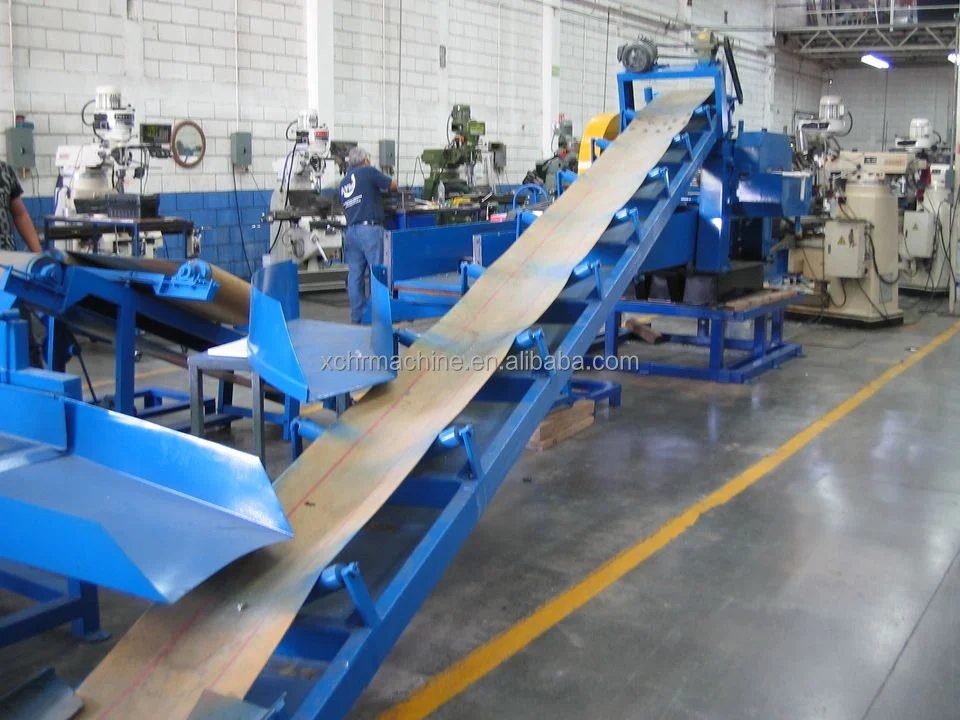

Full automatic production line customized for our Mexico Customer
Customized semi-automatic production line
for Jordan customer
Customized semi-automatic production line
for Thailand customer
Customized for our America Customer
Customized for our Algeria Customer
Loading and Shipping Pictures
SIMILAR PRODUCTS
FAQ
Q1: Are you manufacturer or trader?
A1: We are machinery manufacturer with over 20 years experience.
Q2: Do you offer customize service?
A2: Yes, we can customize machine according to your demands.
Q3: How many years warranty can you offer?
A3: We offer 2 years warranty.
Q4: Can you ship your machine to my country?
A4: Yes, if you don't have shipping agent , we can ship machines to your nearest sea port.
Q5: What payment term do you accept?
A5: TT, L/C, Alibaba assurance order, D/P, Paypal, Western Union and so on.
Q2: Do you offer customize service?
A2: Yes, we can customize machine according to your demands.
Q3: How many years warranty can you offer?
A3: We offer 2 years warranty.
Q4: Can you ship your machine to my country?
A4: Yes, if you don't have shipping agent , we can ship machines to your nearest sea port.
Q5: What payment term do you accept?
A5: TT, L/C, Alibaba assurance order, D/P, Paypal, Western Union and so on.
If you have other questions, pls contact us directly. We will offer you our best service.
