Product Overview
Description
Product Description

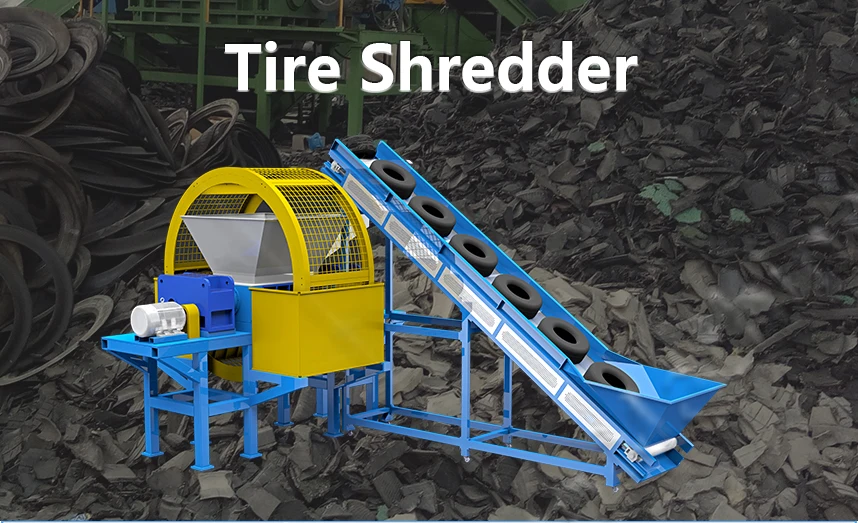

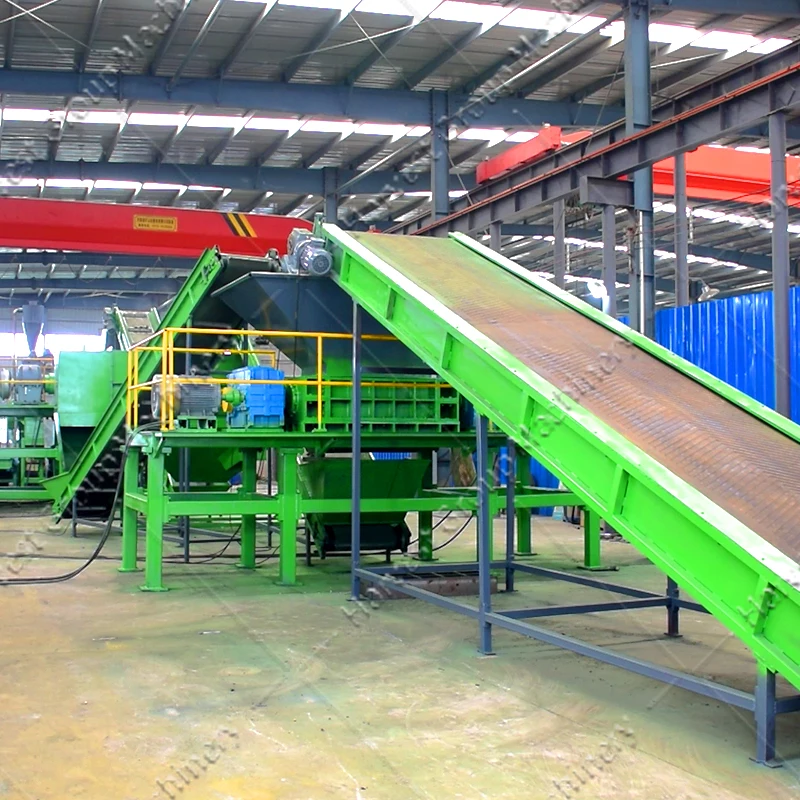

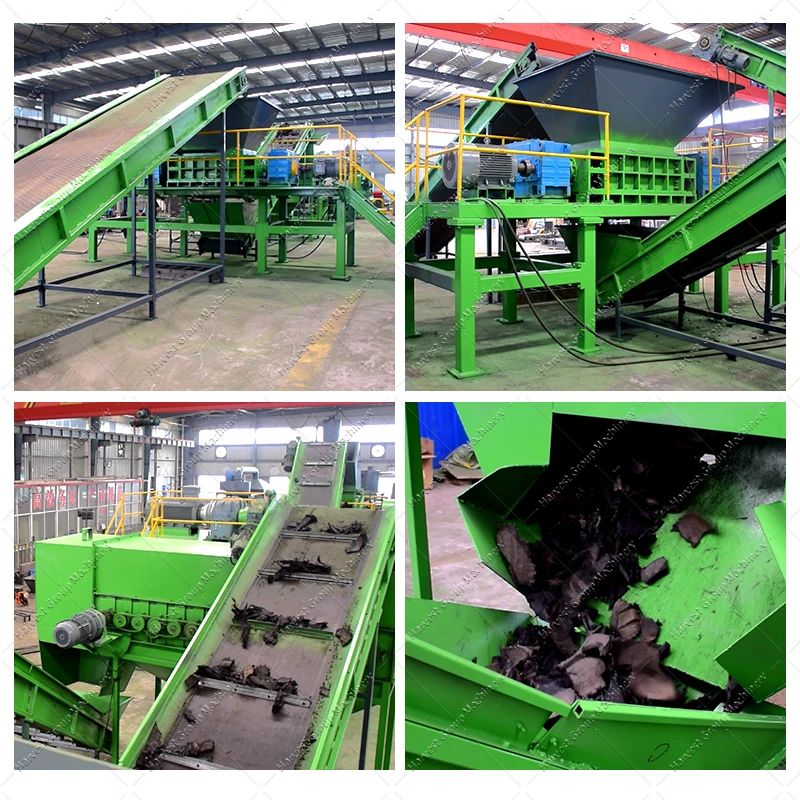

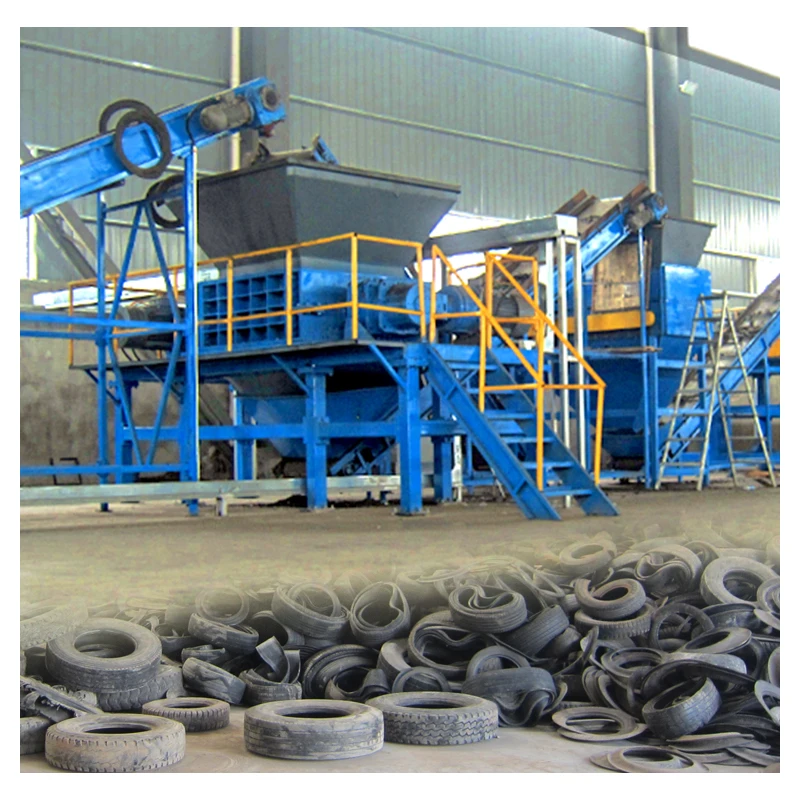

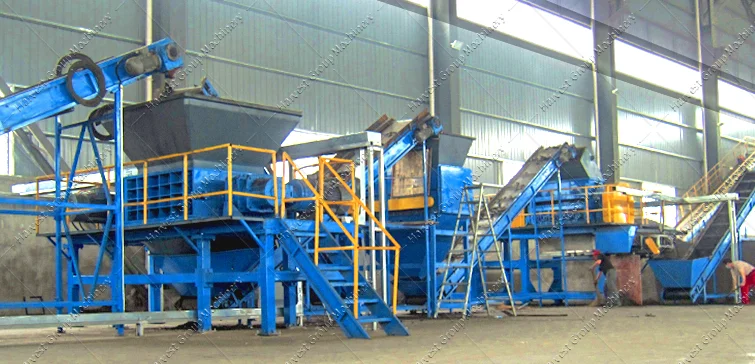

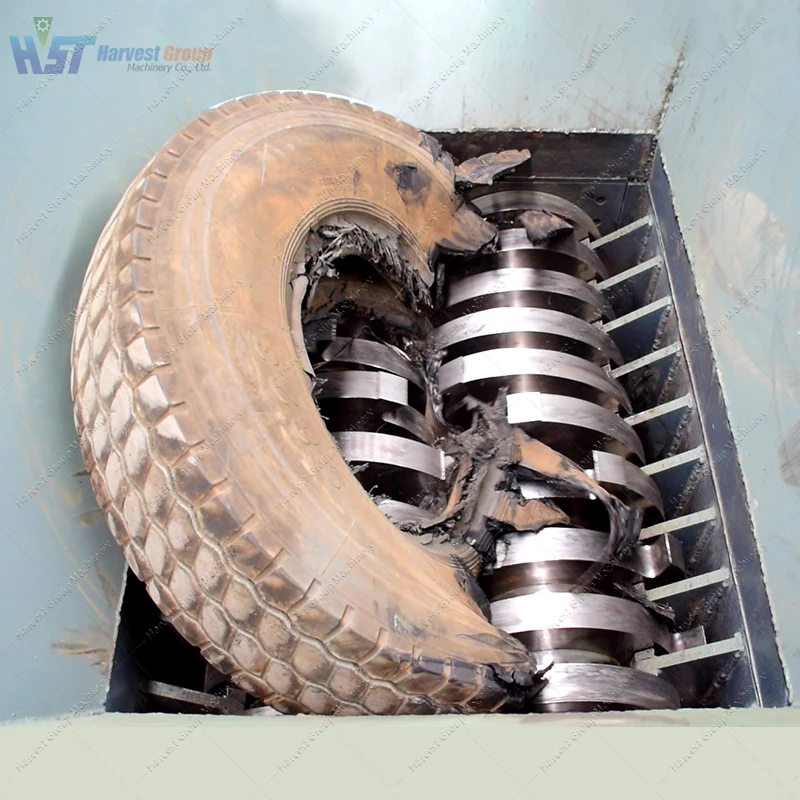

HVST double shaft shredder is specially designed for tire chips size separation. The shredded chips from prime shredder will drop on the rotary screen, and small chips will fall on the conveying belt, the big chips will be feed in the shredder for shredding and recycling again. The final chips will be around 50~60mm.
Technical Parameter
Model | Input size | Output size | Capacity | Motor | Weight |
TS-800 | 800mm | 50*50mm | 1-2t/h | 2*22kw | 8t |
TS-1200 | 1200mm | 60*60mm | 3-5t/h | 2*37kw | 14t |
TS-1600 | 1600mm | 50-150mm | 6-8t/h | 2*45kw | 18t |
TS-1800 | 1800mm | 50-150mm | 7-10t/h | 2*55kw | 23t |
Details Images
Planetary Reducer
PLC Control cabinet
PLC control system
①. Overloading automatic reversal function.
②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.
②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.
The Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.
Rasper | LK-R315 | LK-R132 | LK-R90 | LK-R75 | LK-R75 | LK-R45 | |||||
Motor | Siemens | Siemens | Siemens | Siemens | Siemens | Siemens | |||||
Power | 315Kw | 132KW | 90Kw | 75Kw | 55Kw | 45Kw | |||||
voltage | As per request | As per request | As per request | As per request | As per request | As per request | |||||
Cutting chamber | 697*1562 | 742*1200 | 550*1000 | 550*800 | 450*800 | 450*600 | |||||
Equipment dimensions | 6217*2168 *3561 | 2010*2562 *4110 | 2095*2180 *4105 | 1995*1980 *4105 | 1720*1730 *2316 | 1400*1200 *2260 | |||||
Hopper opening | 1726*877 *906 | 1412*902 *1410 | 1182*700 *1255 | 982*700 *1255 | 922*580 *916 | 722*580 *916 | |||||
Equipment weight | 2400Kg | 600 | ≤ 150 | 3-20 | 50-80 | 37*2 | |||||
Capacity | 3-6T/H | 1.5-3T/H | 1-1.5T/H | 700kg-1T/H | 500-700kg/H | 300-500kg/H | |||||
Final product | 10-30mm | ||||||||||
Customize your solution
If you need rubber granule with a mesh size <20, please choose our
RUBBER GRANULE PRODUCTION LINE
Rubber Granule Sze: 1-5 mm

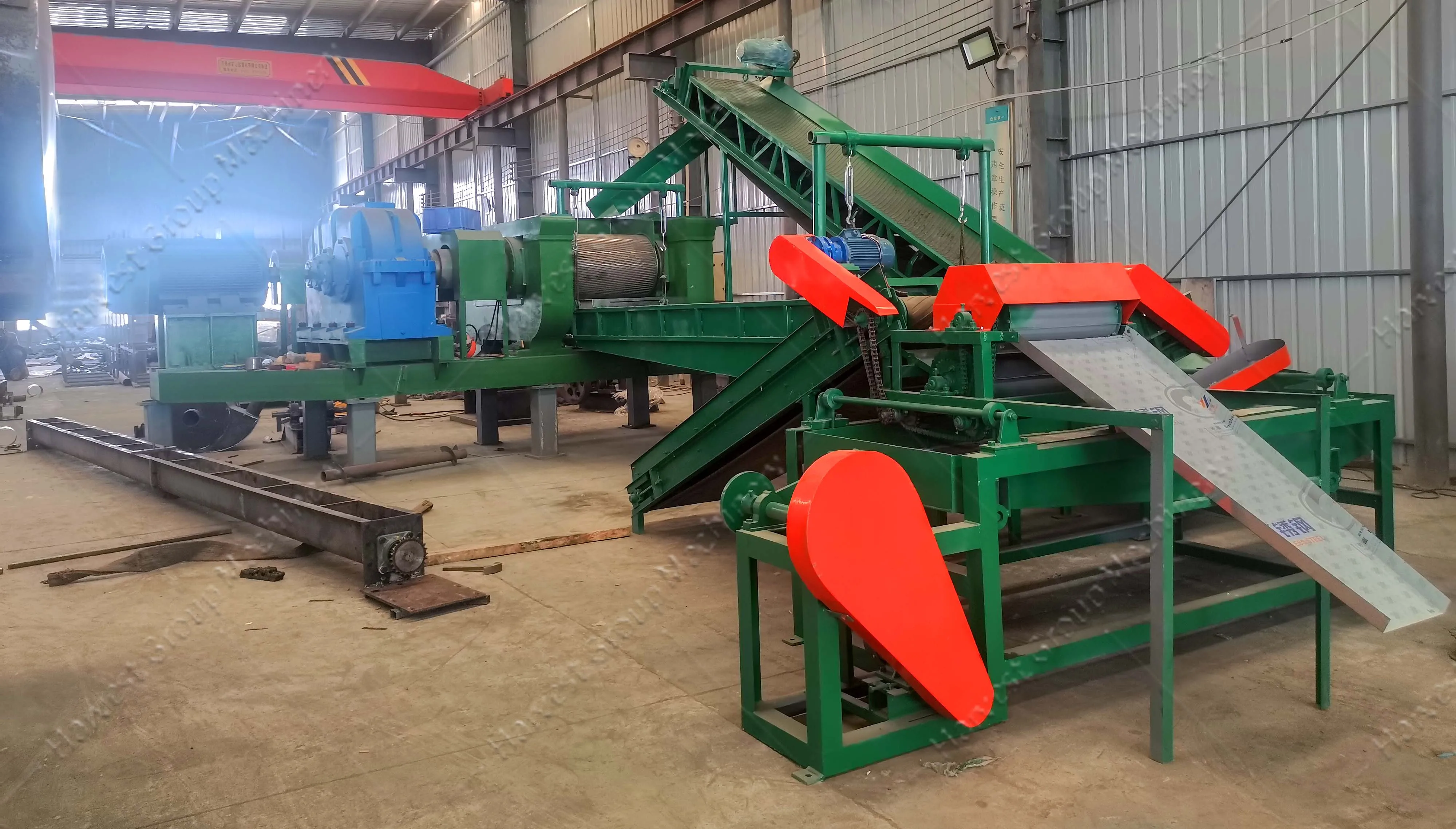

Crush tire blocks(3-5cm) into 1-6mm rubber granules and separate the steel wire and nylon fiber from the rubber granule to get pure finished products. It can produce 1-2mm 2-4mm 4-5mm three different size granules at the same time.
If you need rubber powder with a mesh size ≥20, please choose our

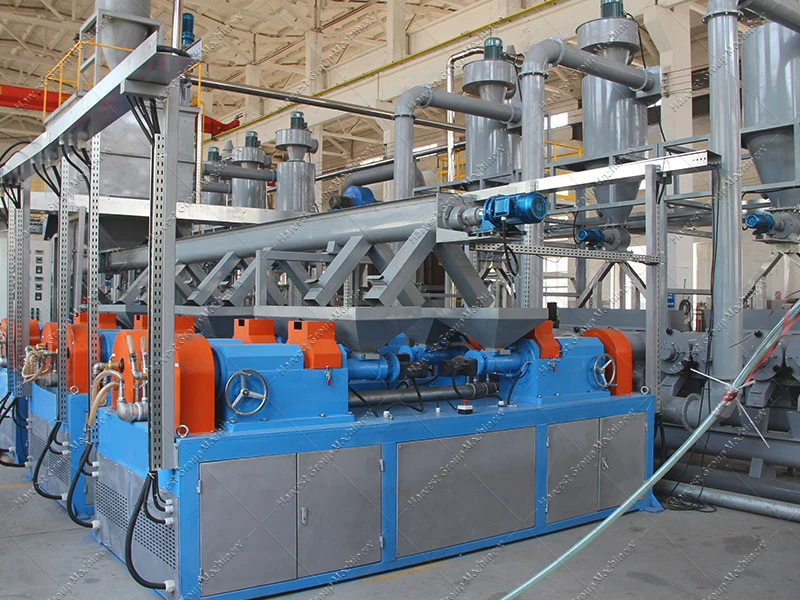

RUBBER POWDER PRODUCTION LINE
Rubber Powder Size: 20-40 Mesh(Normally)
Crush tire blocks(3-5cm) into rubber powder and separate steel wire and nylon fiber from rubber powder to get pure finished products.
If you need rubber powder with a mesh size 20-120 mesh
the Fine Grinder System is needed.
Rubber Powder Size: 20-120 Mesh (According to customer requirements)
The fine grinder is applied to crush rubber powder or rubber granule into more smaller size and it can reach 120 mesh.
Application of rubber particles and rubber powder
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
Our Services
1. Provide the floor space and size required for recycling machine.
2. Provide the complete recycling line layout and its CAD drawing.
3. Install & Training: ①. We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training ②. We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer
4. Global inspection service: Our company provides a free inspection service within one year from the end of installation.
5. Repair service: If the abnormal damage occurs during the warranty period, the engineer maintenance fee will be paid.
5. Repair service: If the abnormal damage occurs during the warranty period, the engineer maintenance fee will be paid.
