New Design Portable ev charger 40a emergency J1772 ev charger ocpp 1.6
- Category: Auto Electronics >>>
- Supplier: Foshan Maxgreen New Energy Technology Ltd.
Share on (1600601899271):
Product Overview
Description
Products Description
Product name | New Design Portable ev charger 40a emergency J1772 ev charger ocpp 1.6 | ||||||
Input Voltage | 240V | ||||||
Output Current | 40A | ||||||
Max Output Power | 9.6kW | ||||||
Output Voltage | 100V-250Vac Single Phase | ||||||
Input Frequency | 50Hz or 60Hz | ||||||
Flame retardance | UL94: 5VA | ||||||
Charging Adapter | SAE J1772 | ||||||
Handle&Control BoX Materia | PC+ PBT. Copper, silver-plated | ||||||
Cbale Material | Copper + TPE | ||||||
Total Length | 22ft (6.6 meters) with charging handle installed | ||||||
Impact Resistance | Able to withstand 3.3ft (1 meter) free fall drop and 4,409 lbs (2.000kg) vehicle crush test without critical damage | ||||||
LED Indicator | Red/green/blue | ||||||
LCD dispaly | 1.3 inch OLED Screen | ||||||
Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) | ||||||
Working Humidity | 5% ~ 95% | ||||||
Control BoxEnclosure Type | NEMA 4 (IP66) | ||||||
Safety Standard | UL 2594,UL 2231-1,UL 2231-2,CSA-C22.2 No.280,CSA-C22.2 No.281.1,CSA-C22.2 No.281.2 | ||||||
Package Dimensions | 505 x 460 x 185mm | ||||||
Gross Weight | 8.3kg | ||||||
Communication | Hot spot | ||||||
Warranty | 2-year | ||||||

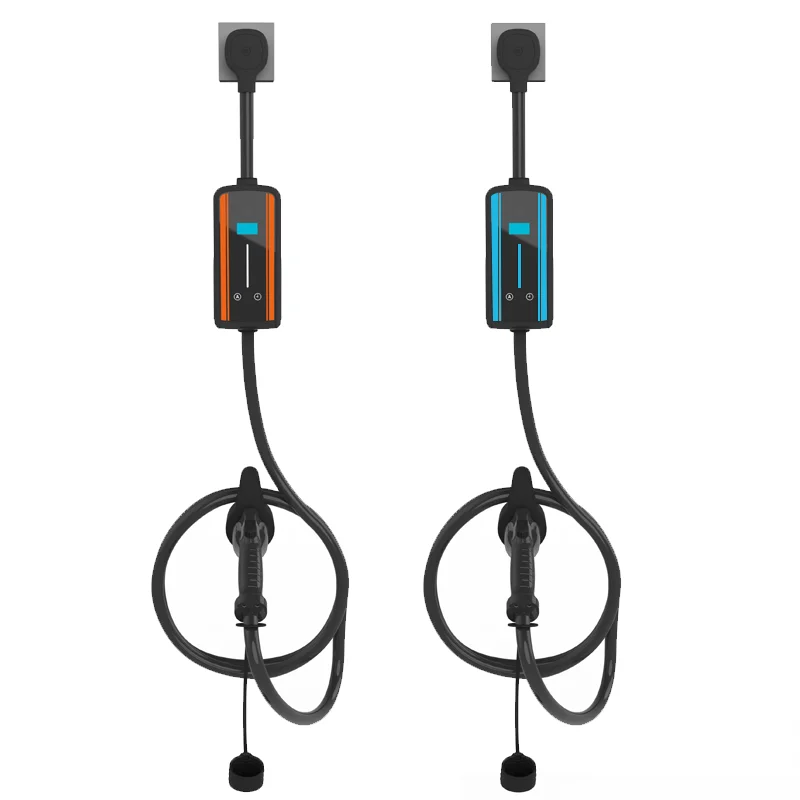

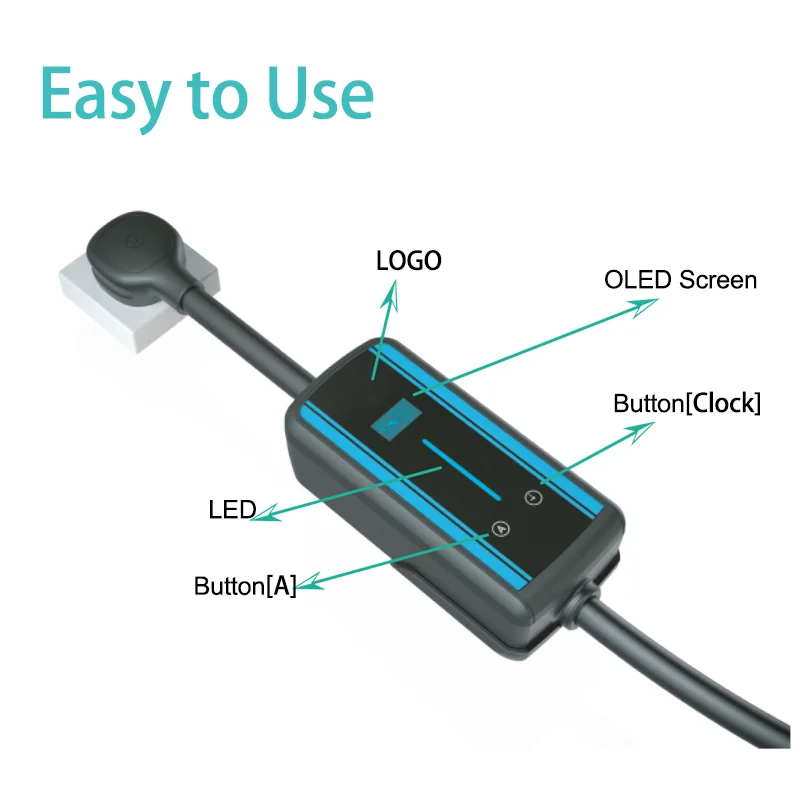

Details Images

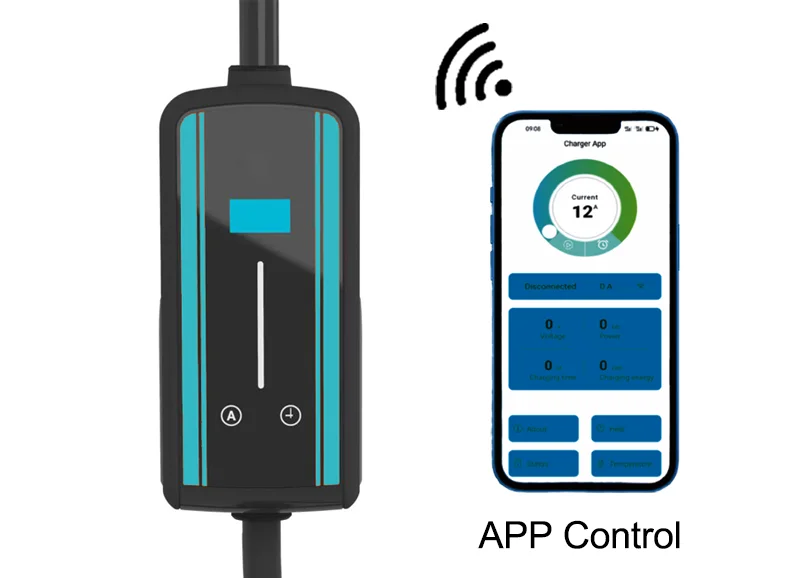

Smart APP Control.
After connecting to the charging station's hotspot It can control when the charger starts or stops from your cell phone, with the functions of charging current setting, delayed charging setting, charging post status monitoring, remote software update, and multi-language selection.

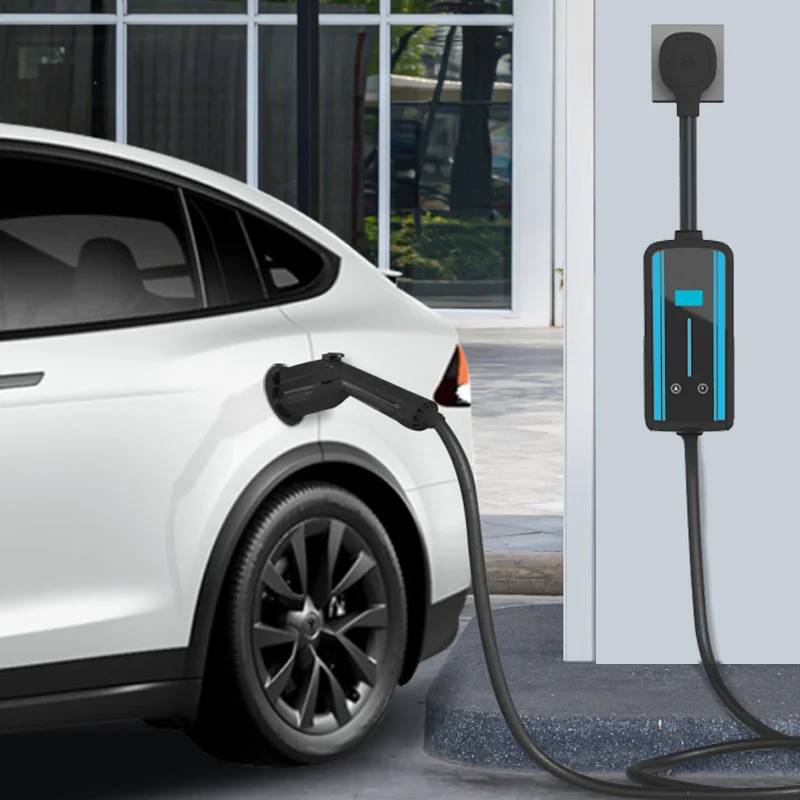

Product Application
