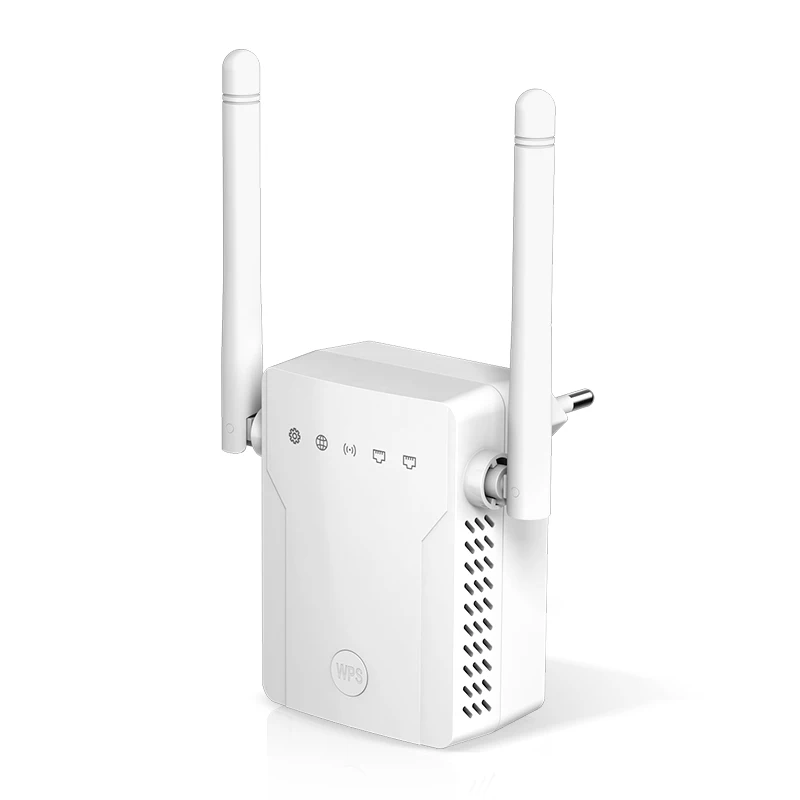

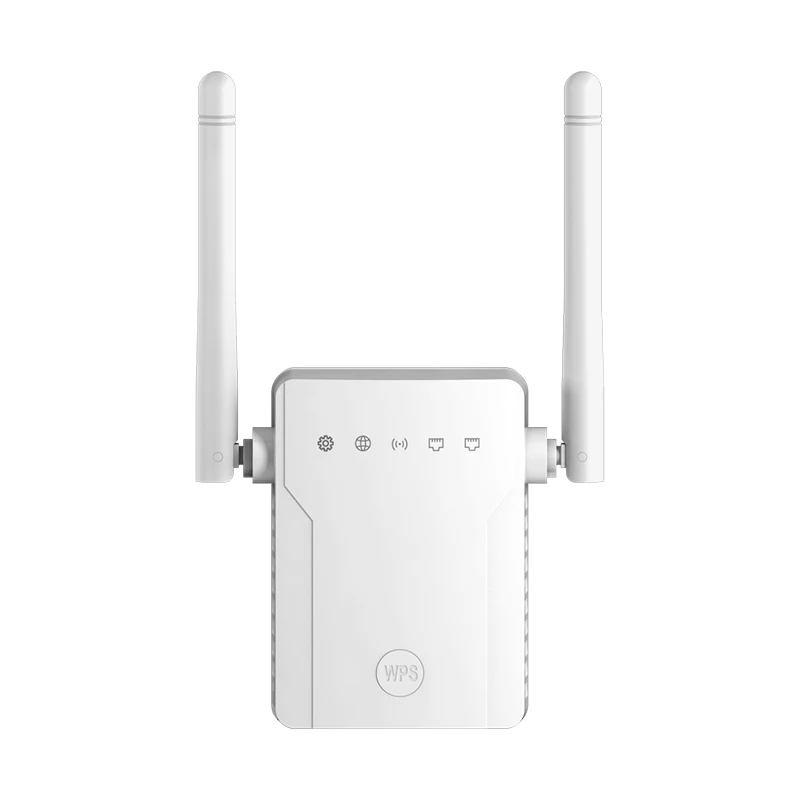

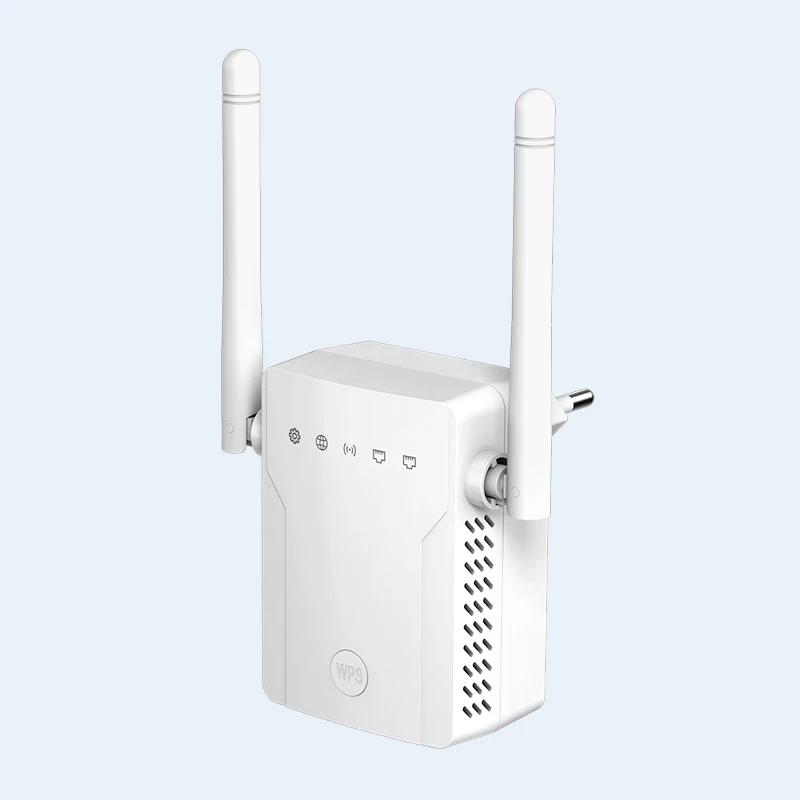

EDUP repeater boster 300mbps Dual RJ45 Port Wifi Range Extender Repetidor Wifi Repeater Booster

Hardware Features

Product  Name

300Mbps WI-FI Range Extender

Chipset

MT7628KN

Ram

8MB

SPI FLASH

2MB

Standard

IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Interface

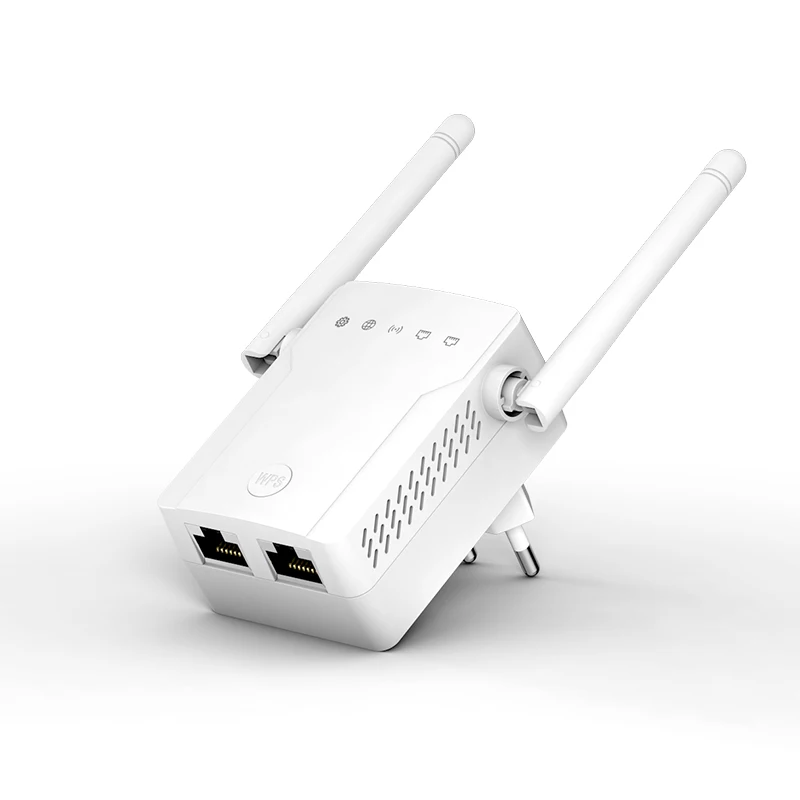

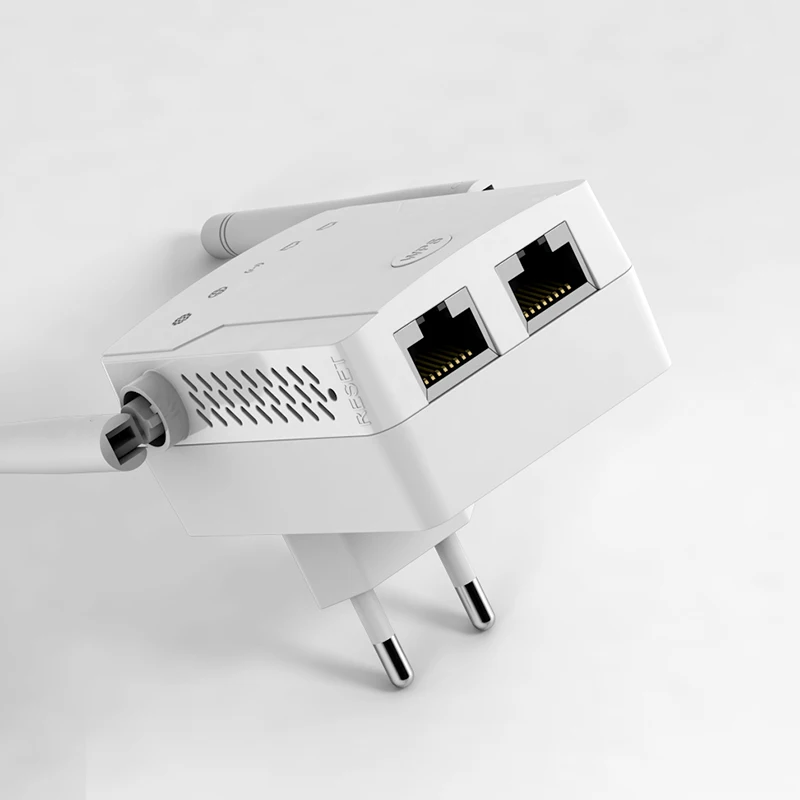

2*RJ45

Button

1*RST, 1*WPS

LED Indicator  Antenna

POWER:power-on keeps on,System startup finished 5S

flashes once,Upgrade flash

SIGNAL:Signal light keeps on extended successful,Signal

light flashing too far from the router/main AP,Signal light put out Extended failure.

WPS:Start WPS flashing

Power Consumption

<5W

Dimensions (L x W x H)

120*70*33mm

Wireless Features

Frequency Band

2.4GHz

Signal Rate

2.4GHz: Up to 300Mbps

EIRP

- 2.4GHz < 20dBm

Transmit power

802.11b: 18dBm+2dbm

802.11g: 17dBm+2dbm

802.11n: 16dBm+2dbm

Reception Sensitivity

11b 11M:-90dBm@8% PER

11g 54M:-74dBm@10% PER

11n  54M: -68dBm@10% PER

11n HT20 MCS7:-65dBm@10% PER

11n HT40 MCS7:-62dBm@10% PER

System Requirements

 -  Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS,

-  NetWare®,      UNIX® or Linux.

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

     - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

     - Operating Humidity: 10%~90% non-condensing

     - Storage Humidity: 5%~90% non-condensing
