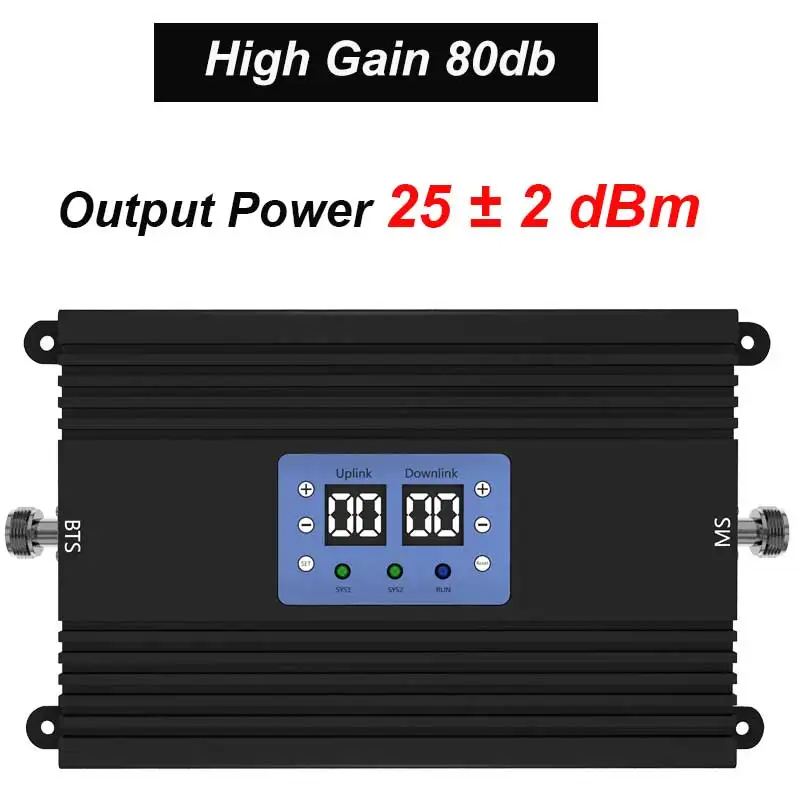

gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set
gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set

gsm pcs aws 3g 4g lte repeater 850 1900 1700/2100 MHz Tri band mobile signal booster 25dBm 80db full set

Share on:


Price:$105.00 - $136.00
Price in USD:Details

Quantity:


Product Overview

Description









We Are Professional




 Specification
Parameter data
Uplink
Downlink

Frequency Range
824-849 MHz
869-894 MHz
1710-1755 MHz

2110-2155 MHz
Output Power
20 ±2dBm
 25 ±2dBm
Gain
75 ±2dB
80 ±2dB
Ripple in Band
≤ 4dB
Spurious

  Emission
9KHz~1GHz
≤-36dBm
1GHz~12.75GHz
≤-30dBm
Noise Figure @ max. gain
 ≤ 6 dB
VSWR
≤ 1.4
MTBF
> 50000 hours
Power Supply
    AC:100~240V, 50/ 60Hz
                DC:5V 3A
Power Comsumption
< 10W
Impedance
50 ohm
Mechanical Specification
RF Connector
 N-Female N
Cooling
Heatsink Convection cooling
Heatsink Convection cooling
Weight
< 2Kg
Operating Temperature
-10°C ~ 55°C
