Product Overview

Description




2022 New Arrival V Process Equipment/ V process molding line/V process casting equipment


Name: V Process Equipment/ V process molding line/V process casting equipment
Model: VF-Customized




V-Process casting is a kind of dry sand casting molding machine without the use of adhesive, based on the pressure produced by the vacuum pump to make a vacuum sealed condition. It has the advantages of environmental protection, energy saving and high efficiency.
It is the best choice for rapid prototyping, mainly suitable for the production of cast iron, cast steel, non-ferrous metal castings, So far, V process has been successfully applied in the construction machinery counter weight, petroleum machinery(including crank, reduction case, counterweight), sanitation ware,belt pulley, swing bolster, axle, brake drum, piano plane, manhole cover, high manganese steel lining board.
Xinke Machinery has the world's leading V-process technology, we will provide a one-stop solution for your casting project from concept to full production.


Main Specification of 2022 new arrival V Process Equipment/ V process molding line/V process casting equipment


Internal size of molding box (mm)
Molding efficiency (mold/h)
 Annual output
 Sand processing capacity(t/h)
Products
2000*1400*320/360mm
8-10
1000
5
Rear axde,brake drum,counter weight
1200*1200*250/300mm
5-7
1000
5
Wear resistant seel castings, steel gratings
1200*1200*400/450mm
45
90
90
1200*1200*600/600mm
550
1200
1200
1600*1250*500/300mm
6
1000
5-10
Single piece and small batch of castings
2800*2000*350/350mm
1750*1600*650/450mm
5-10
1000
5-10
Gray iron castings, counter weight for forklifts,loaders etc
1000*630*150/150mm
10-15
600-1000
5
Stainless steel castings, such as acid resist pump impeller
1000*800*150/150mm
2000*1600*360/310mm
10
30000
35-40
Rear axde for trucks
3100*1900*450/450mm
20
50000
50
Steel castings for railway parts, bottom bolster, side frame
3100*1900*350/550mm

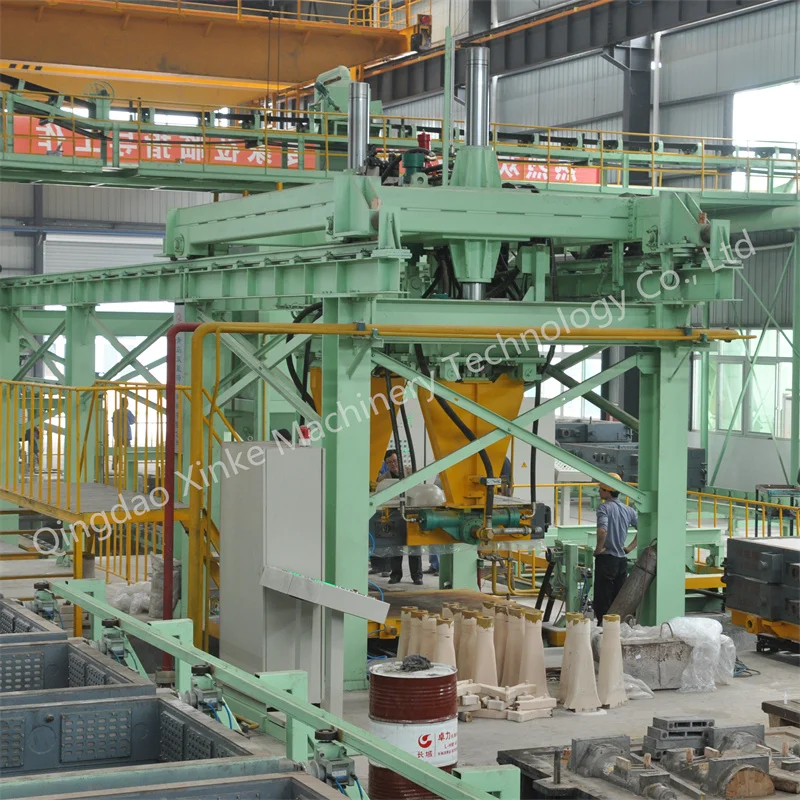

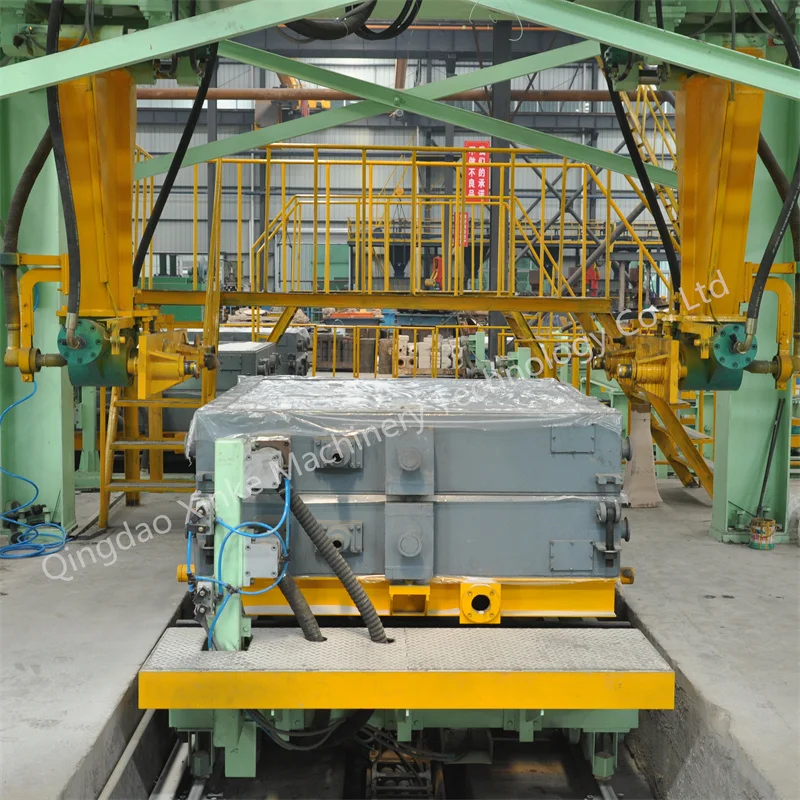

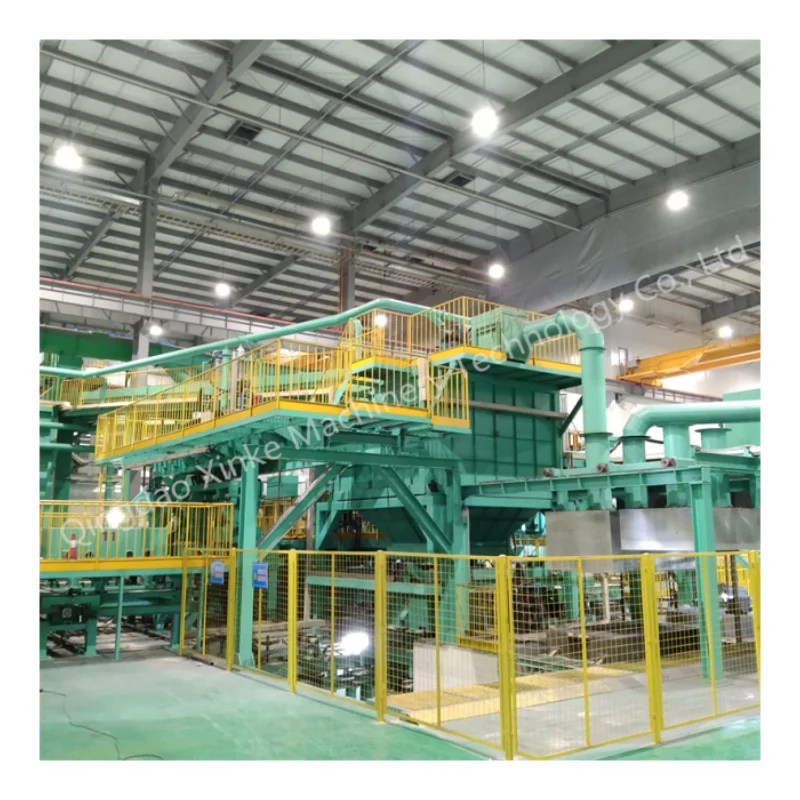

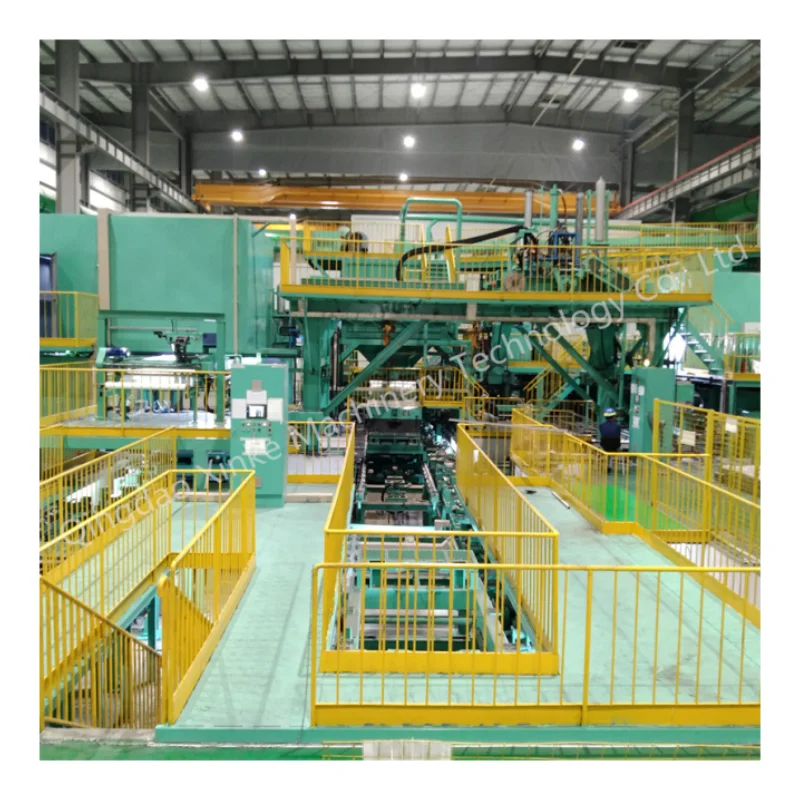

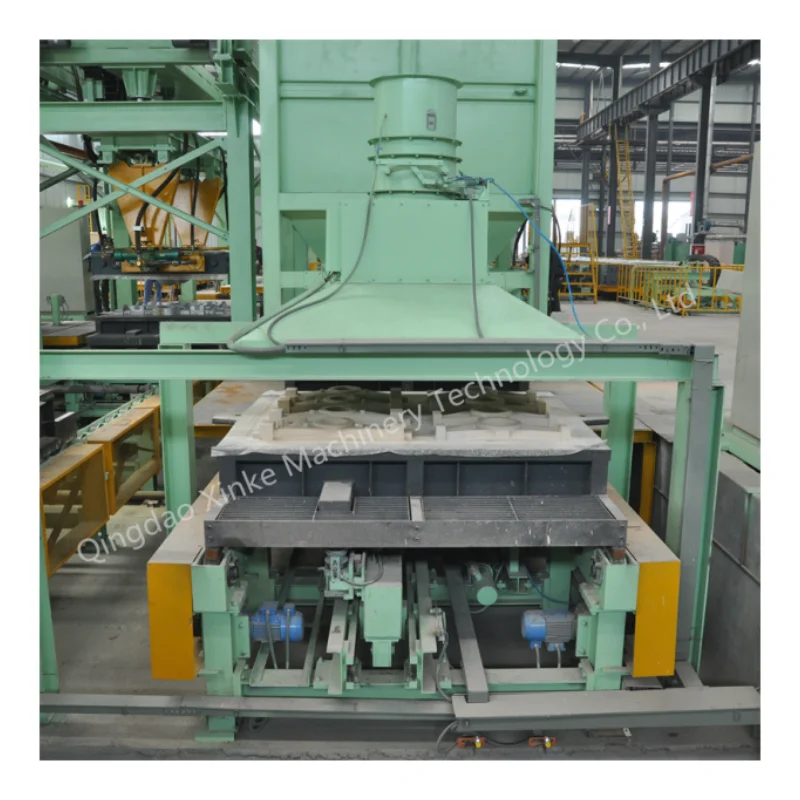

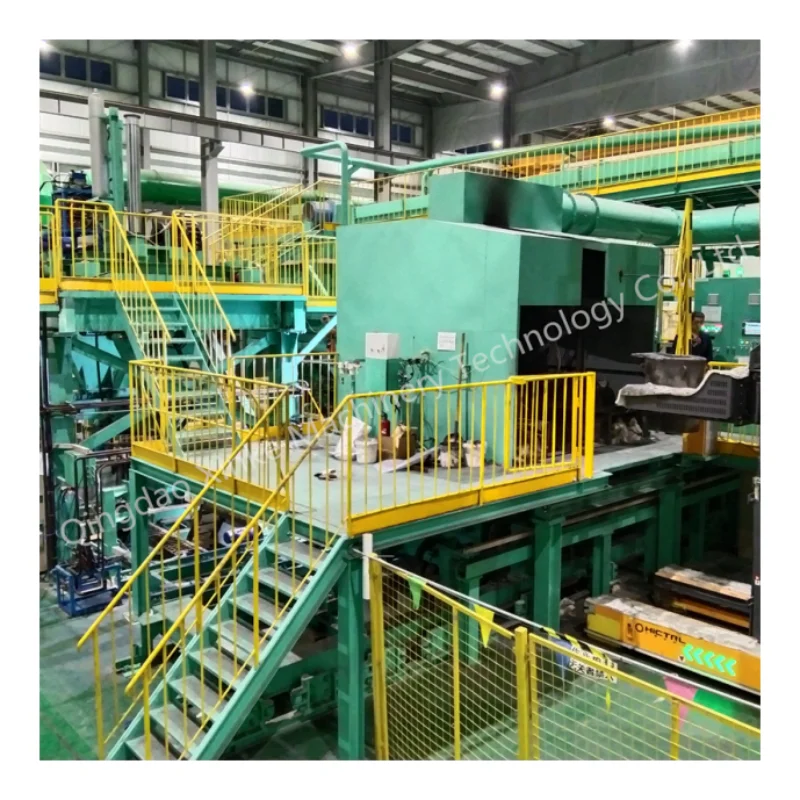

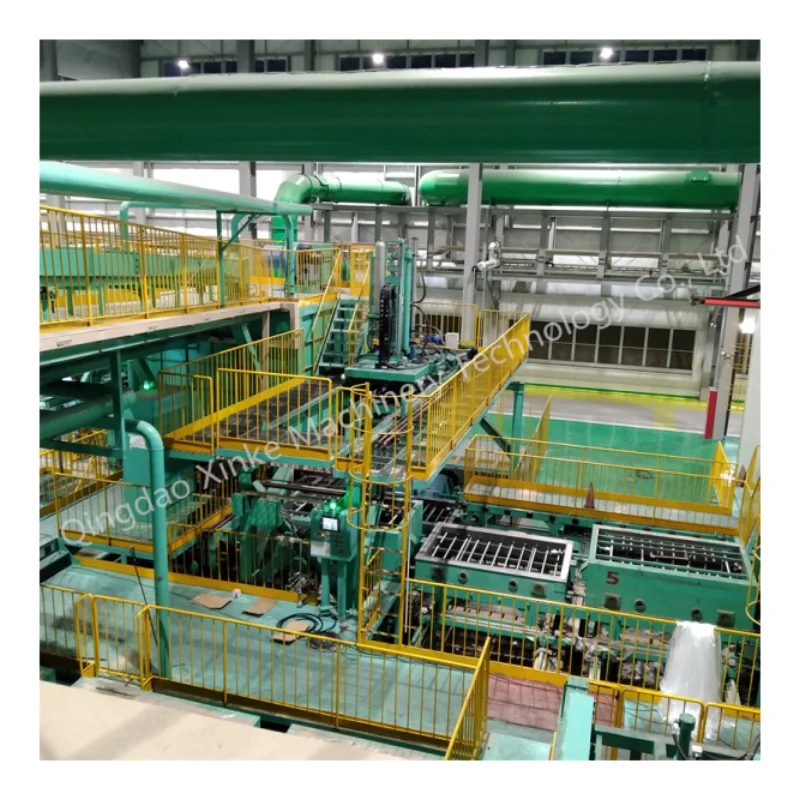

Photographing in Client's factory of V Process Equipment/ V process molding line/V process casting equipment








Rust Removal System for V Process Equipment/ V process molding line/V process casting equipment




Vacuum Pump of V Process Equipment/ V process molding line/V process casting equipment




Installation of V Process Equipment/ V process molding line/V process casting equipment




Casting of V Process Equipment/ V process molding line/V process casting equipment




Production Process of V Process Equipment/ V process molding line/V process casting equipment


















1.How many days do you need to produce this machine?
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
