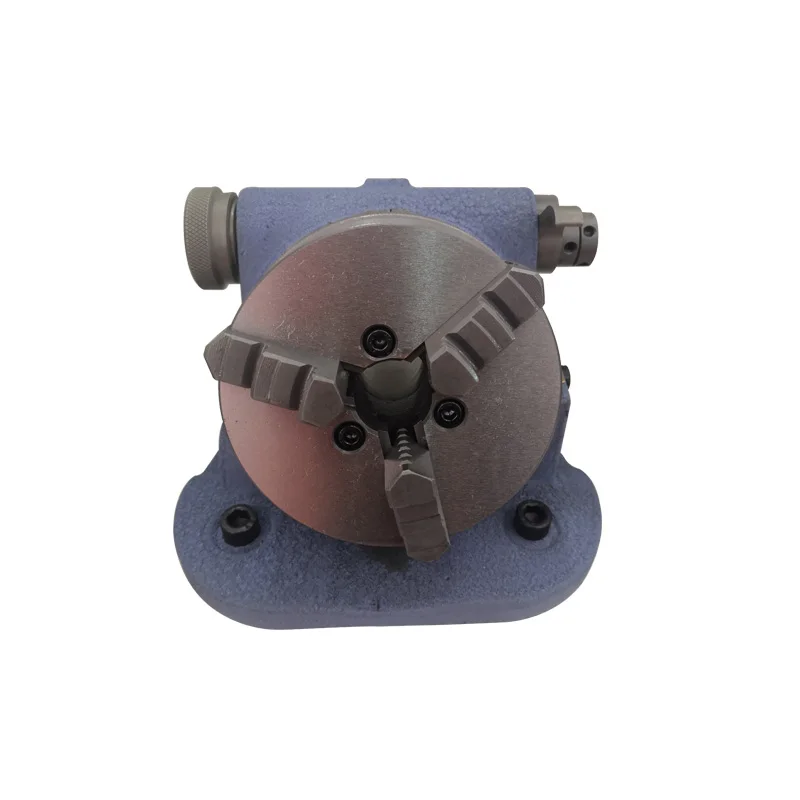

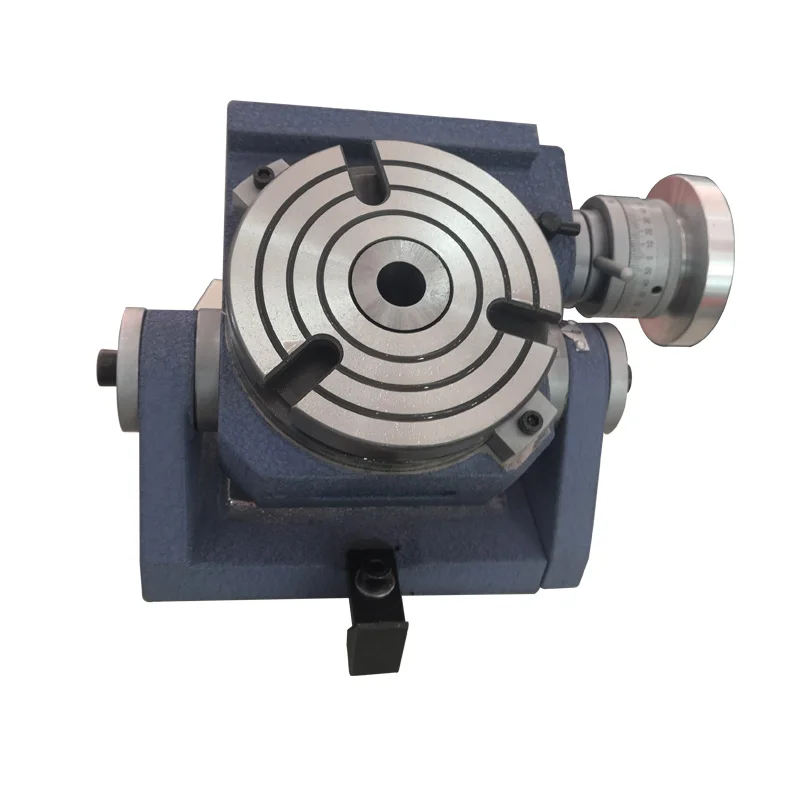

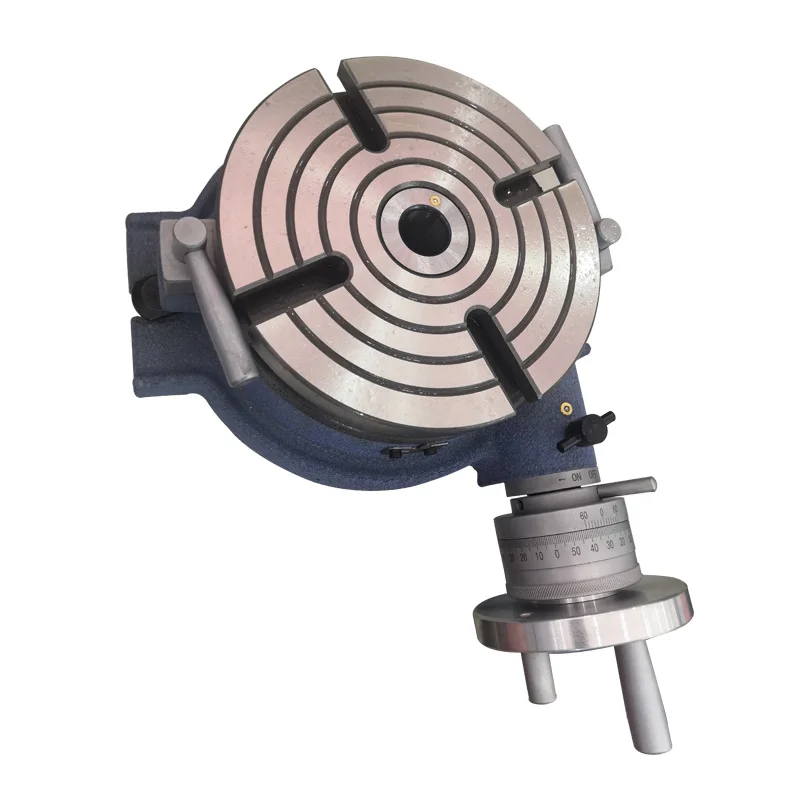

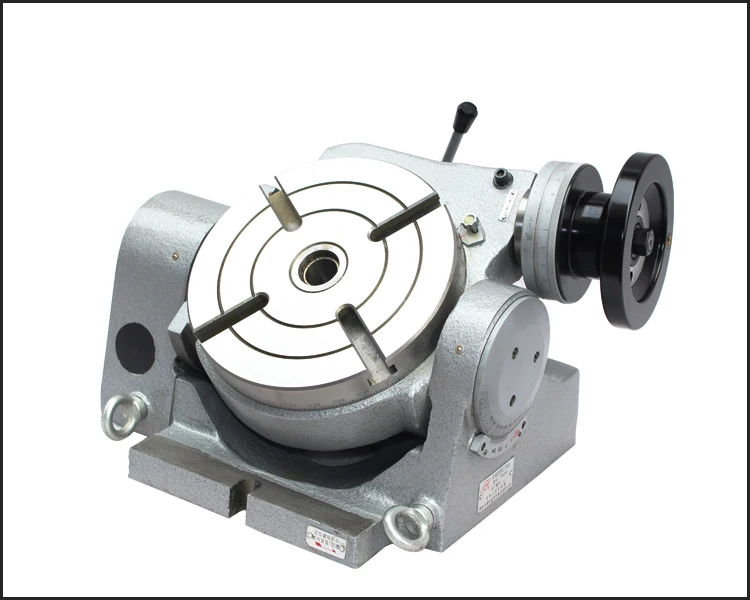

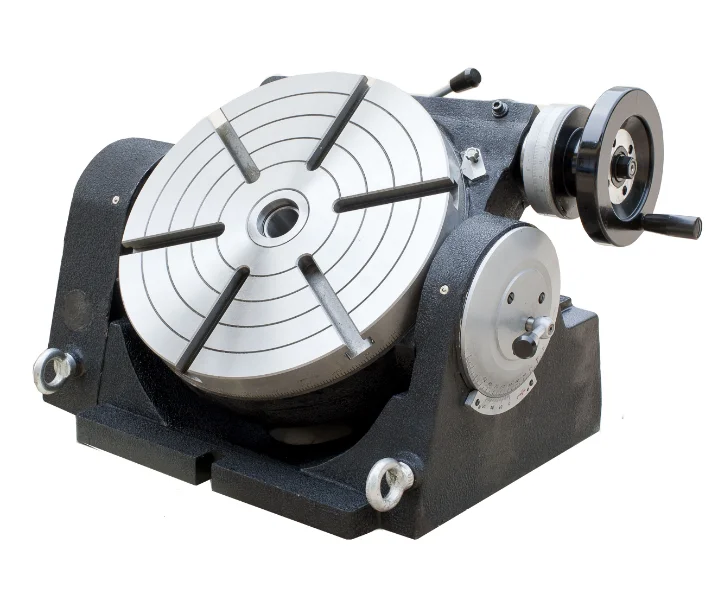

HT TOOLS Tilting rotary table for milling machine tsk250 universal tilting rotary table
- Category: Table >>>
- Supplier: Dezhou Haotian Imp & Exp Co. Ltd.
Share on (1600611483435):
Product Overview
Description
HT-TOOLS
Other Machine tool accessories Vertical and horizontal turning work rotary table TSK tilting rotary table
We can provide NON-Standard Custom

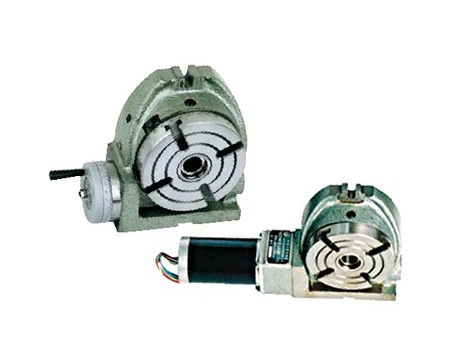

| VERTICAL OR HORIZONTAL TURNING WORKTABLE | |||||
| *This unit is one of the main accessory that be used on milling machine, it can be finished the following work: | |||||
| 1.Round cutting the curved surface cutting of workpiece. | |||||
| 2.The cutting of the surface that have an angle to the point base. | |||||
| 3.When the table surface vertical working with the tail-stock, it can work drilling with indexing or milling to the workpiece complicated. It can be used on driller, miller, and inserting machine to finish one or any more working abouve. The workpiece can be clamped by the fixture or at firsthand. | |||||
| Order No. | Model | ||||
| 12-118-001 | TK13100 | ||||
| 12-118-002 | T13100 | ||||
| 12-118-003 | T13160 | ||||
| 12-118-004 | T13200 | ||||
| 12-118-005 | T13250 | ||||
| Model | TK13100 | T13100 | T13160 | T13200 | T13250 |
| Parallelism of center line of spindle | 0.03mm | 0.03mm | 0.02mm | 0.025mm | 0.025mm |
| Parallelism of worktable surface | 0.02mm | 0.02mm | 0.015mm | 0.02mm | 0.02mm |
| Run-out of worktable surface | 0.015mm | 0.015mm | 0.015mm | 0.02mm | 0.02mm |
| Parallelism of worktable surface to base surface | 0.025mm | 0.025mm | 0.015mm | 0.02mm | 0.02mm |
| Dividing accuracy of worktable | 90" | 90" | 90" | 90" | 90" |
| Diameter of worktable | 100mm | 100mm | 160mm | 200mm | 250mm |
| Run-out of center line of spindle | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Height of center(vertical) | 70mm | 70mm | 140mm | 150mm | 170mm |
| Transmission type | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 |
| Work hole taper | MS2 | MS2 | MS2 | MS3 | MS3 |
our products:
1.Are you factory or Trade Company?
We are Industry and trade integration.
2.Could you supply samples?
Yes, we can supply.
3.Where do you export?
The whole world.
4.Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5.What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
8. What’s your payment way?
T/T, Pay pal, Western Union and so on.
9. What’s your delivery time?
5-20 days after order confirmed
