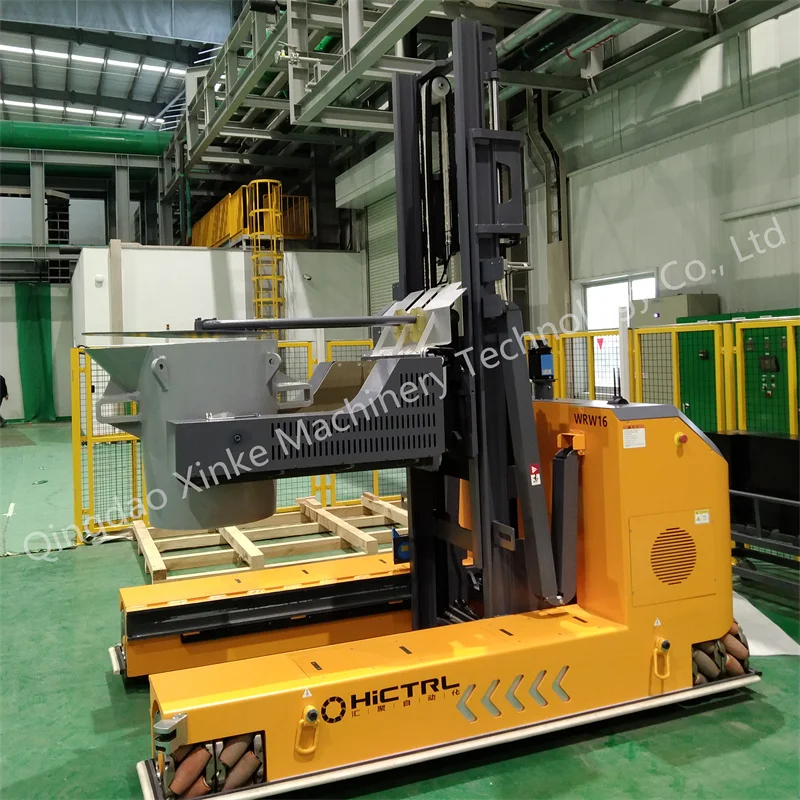

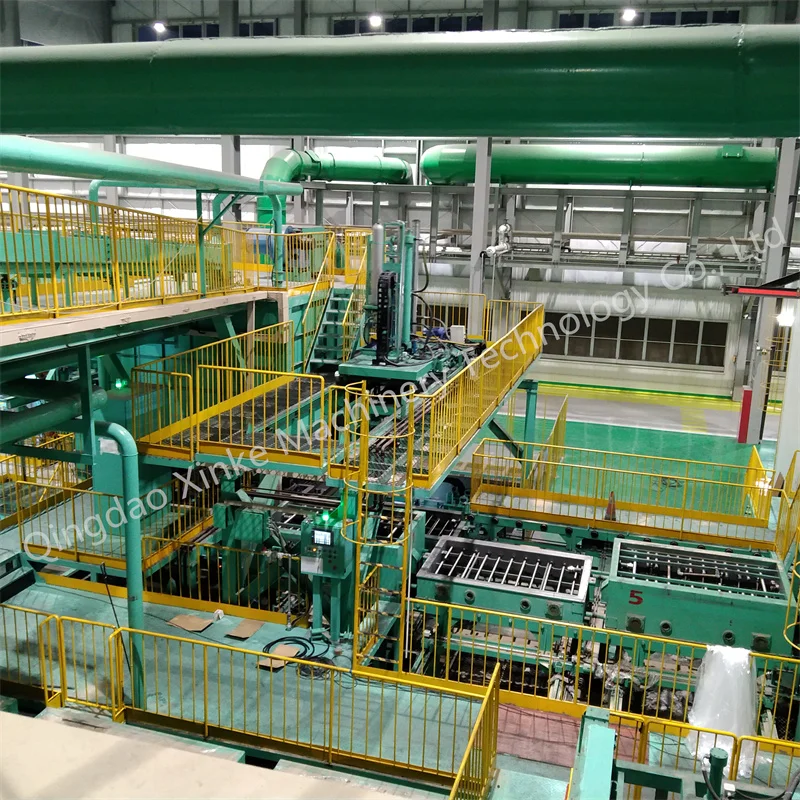

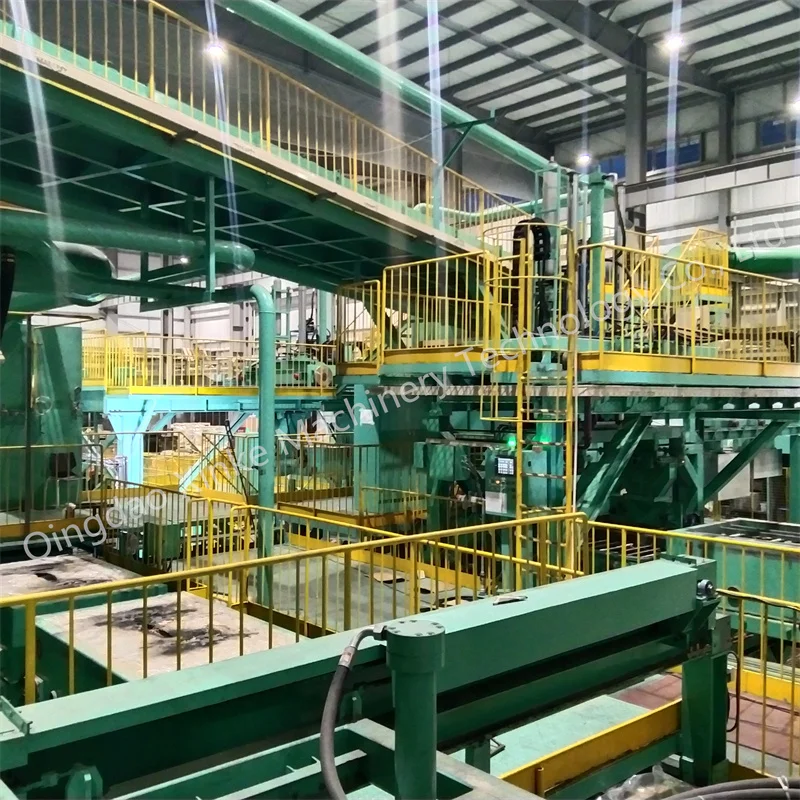

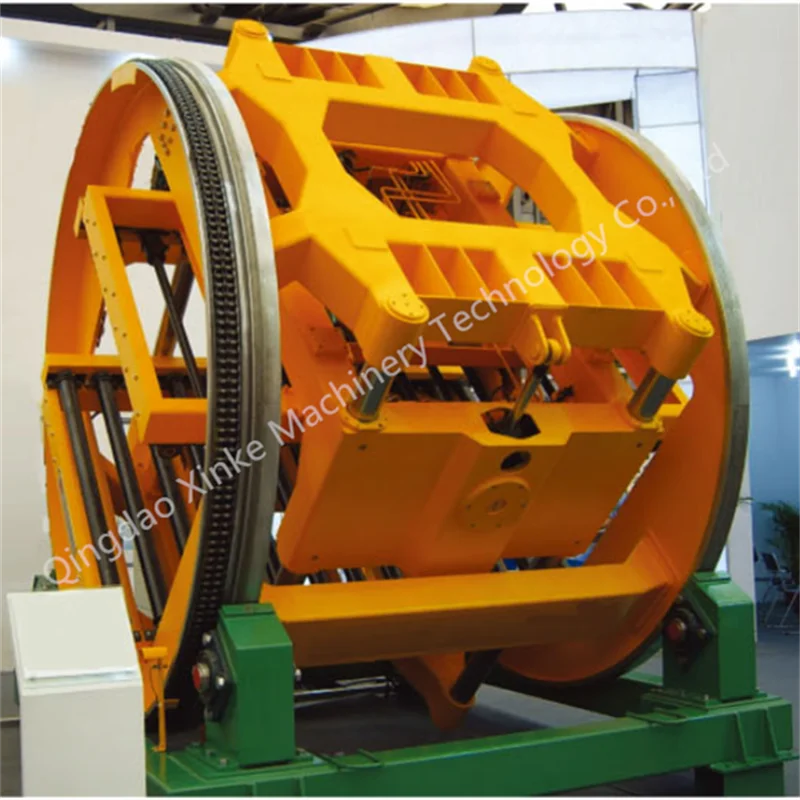

Green foundry V process casting foundry molding machine
Name: V process casting foundry molding machine
Model: VF-Customized
V-Process casting molding line is the best choice for rapid prototyping, mainly suitable for the production of cast iron, cast steel, non-ferrous metal castings, So far, V process has been successfully applied in the construction machinery counter weight, petroleum machinery(including crank, reduction case, counterweight), sanitation ware,belt pulley, swing bolster, axle, brake drum, piano plane, manhole cover, high manganese steel lining board.
Xinke Machinery has the world's leading V-process technology, we will provide a one-stop solution for your casting project from concept to full production.
Xinke Machinery has the world's leading V-process technology, we will provide a one-stop solution for your casting project from concept to full production.
Main Specification of V process casting foundry molding machine
Internal size of molding box (mm) | Molding efficiency (mold/h) | Annual output | Sand processing capacity(t/h) | Products |
2000*1400*320/360mm | 8-10 | 1000 | 5 | Rear axde,brake drum,counter weight |
1200*1200*250/300mm | 5-7 | 1000 | 5 | Wear resistant seel castings, steel gratings |
1200*1200*400/450mm | 45 | 90 | 90 | |
1200*1200*600/600mm | 550 | 1200 | 1200 | |
1600*1250*500/300mm | 6 | 1000 | 5-10 | Single piece and small batch of castings |
2800*2000*350/350mm | ||||
1750*1600*650/450mm | 5-10 | 1000 | 5-10 | Gray iron castings, counter weight for forklifts,loaders etc |
1000*630*150/150mm | 10-15 | 600-1000 | 5 | Stainless steel castings, such as acid resist pump impeller |
1000*800*150/150mm | ||||
2000*1600*360/310mm | 10 | 30000 | 35-40 | Rear axde for trucks |
3100*1900*450/450mm | 20 | 50000 | 50 | Steel castings for railway parts, bottom bolster, side frame |
3100*1900*350/550mm |

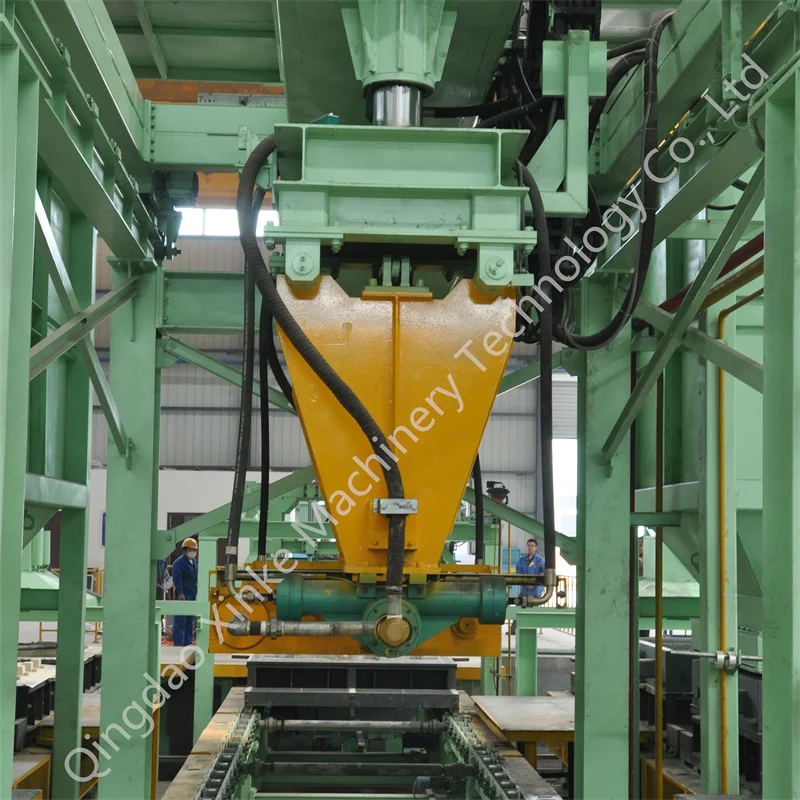

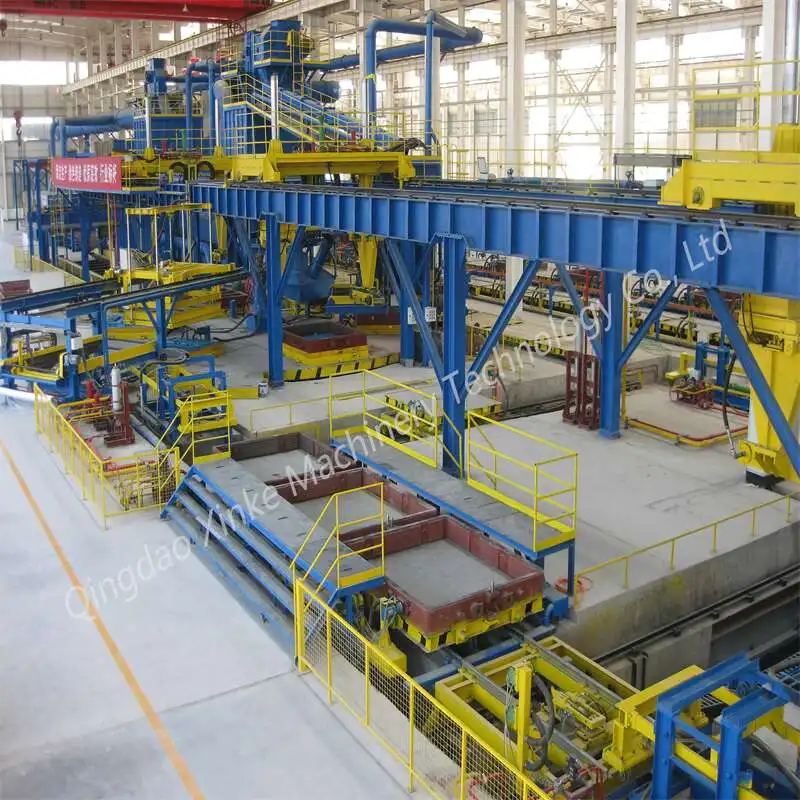

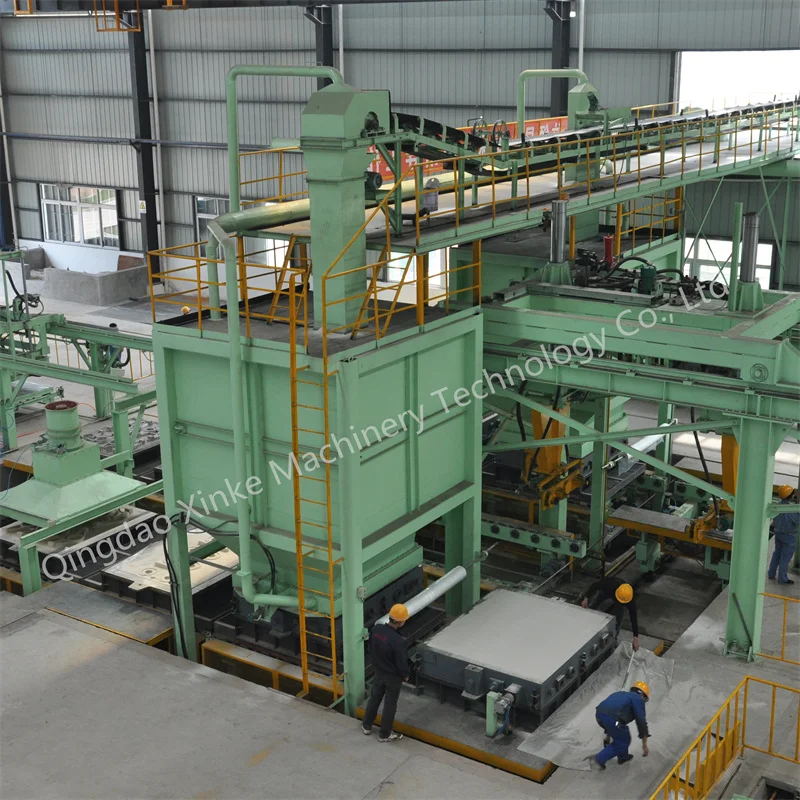

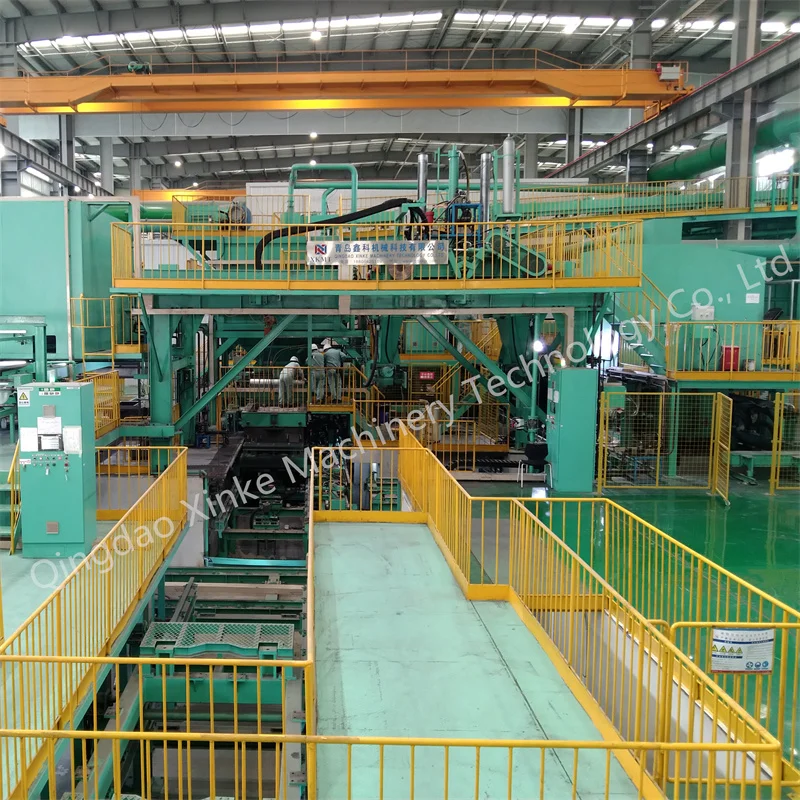

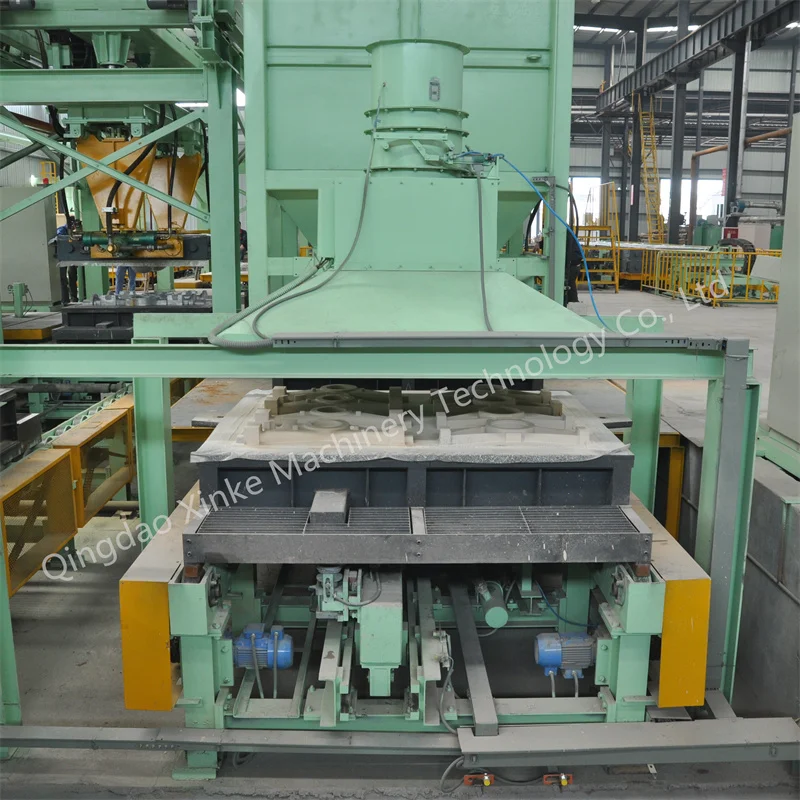

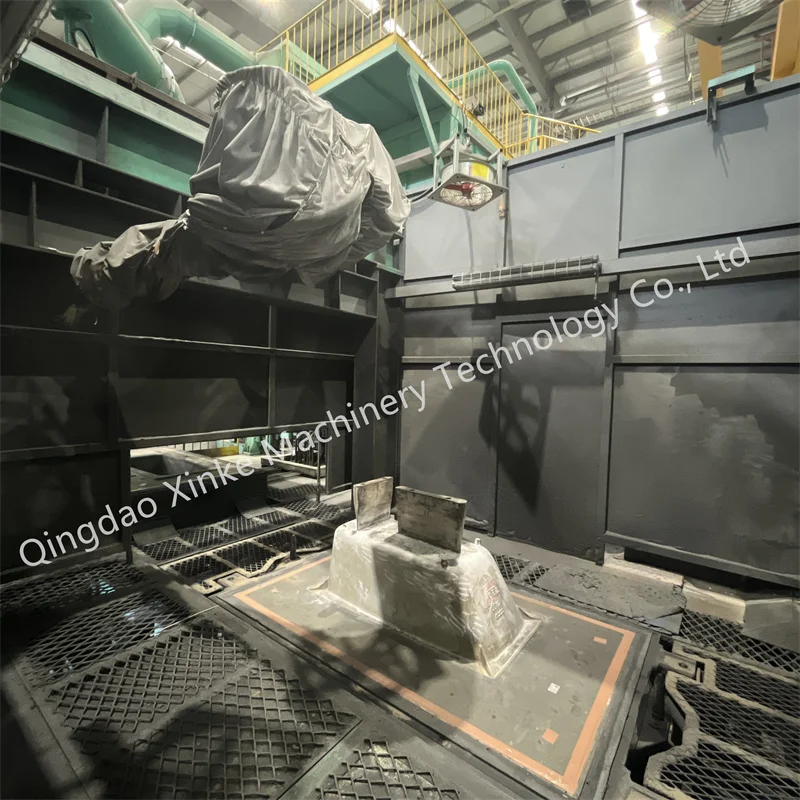

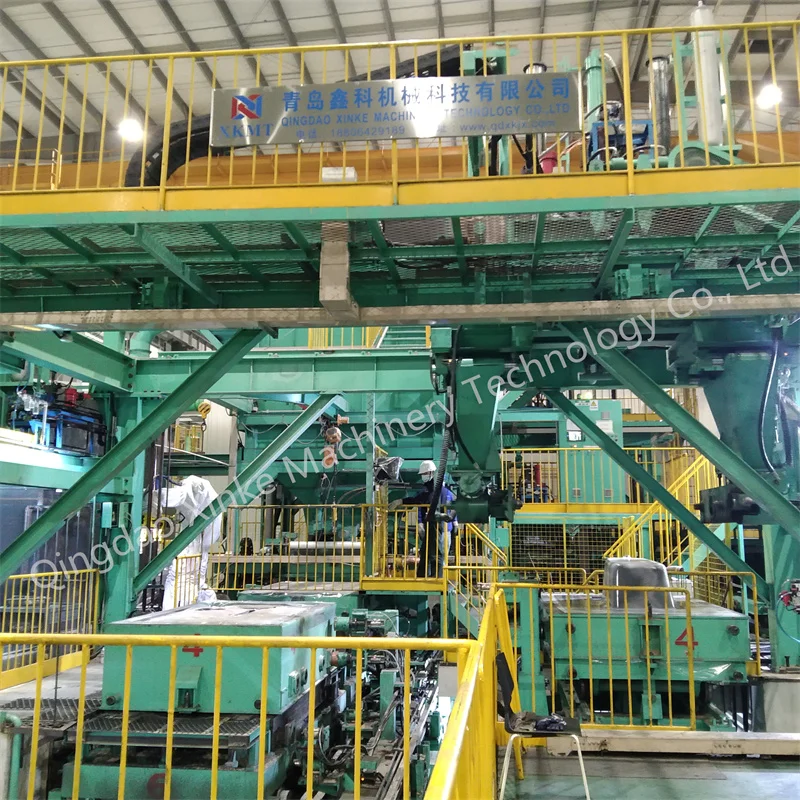

Photographing in Client's factory of V process casting foundry molding machine

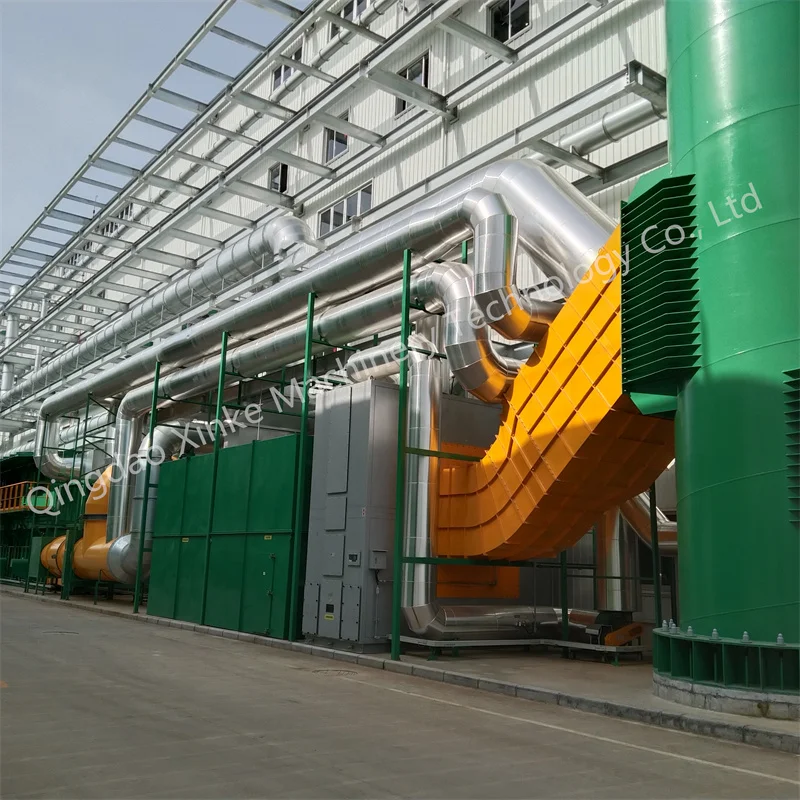

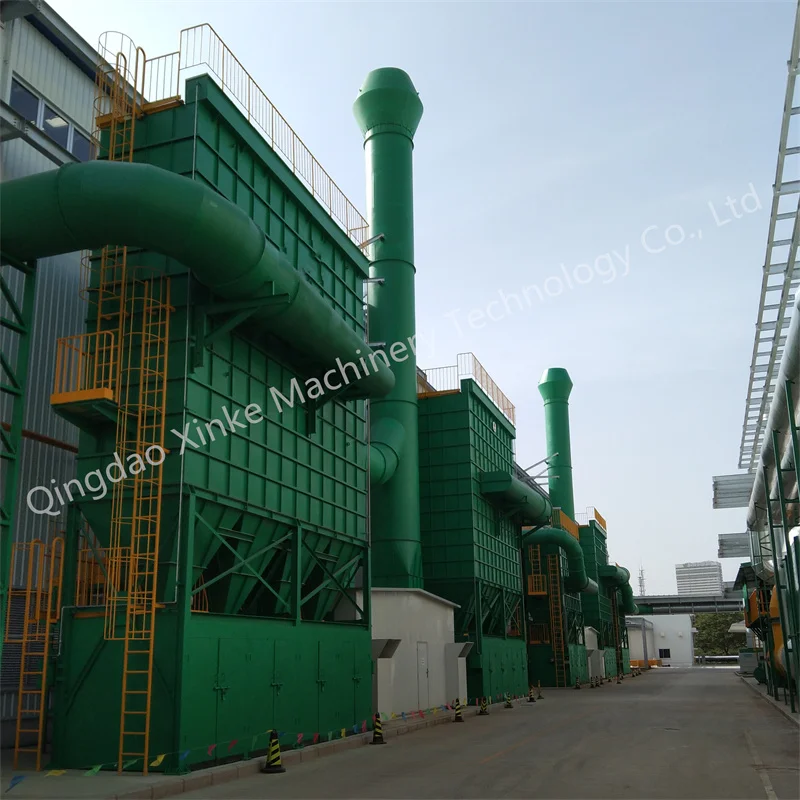

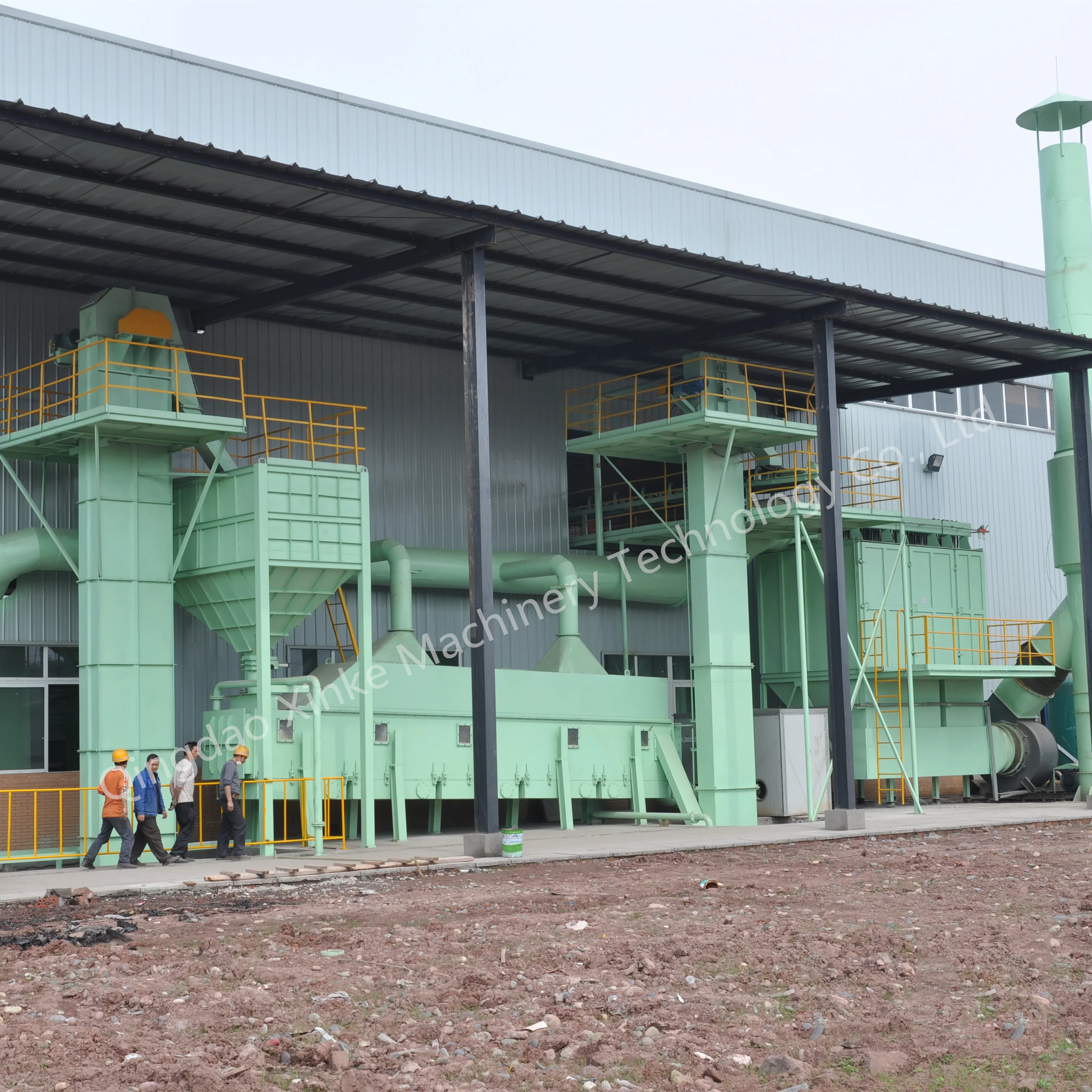

Rust Removal System for V process casting foundry molding machine

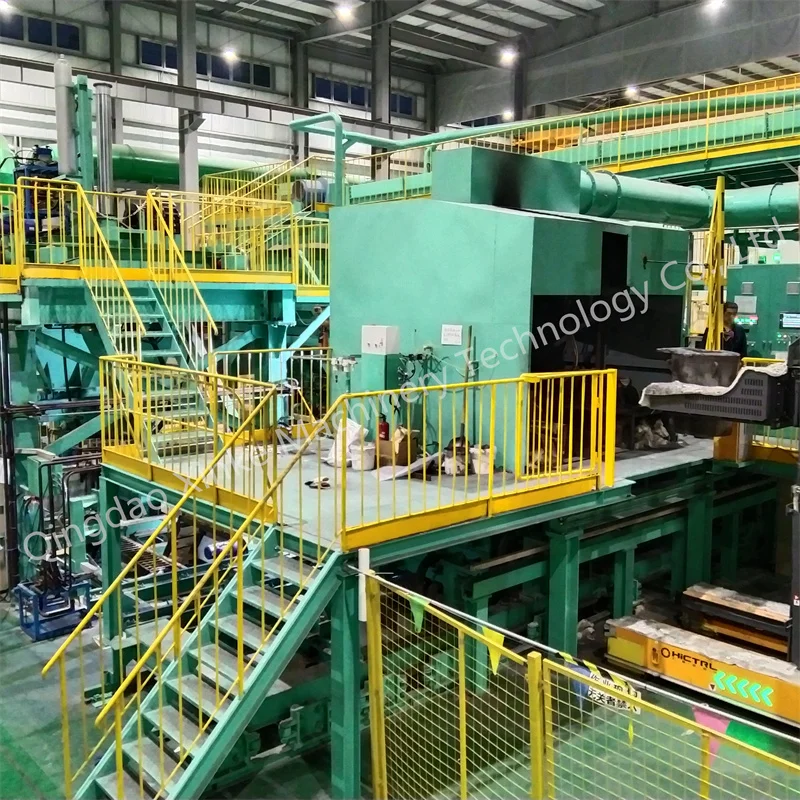

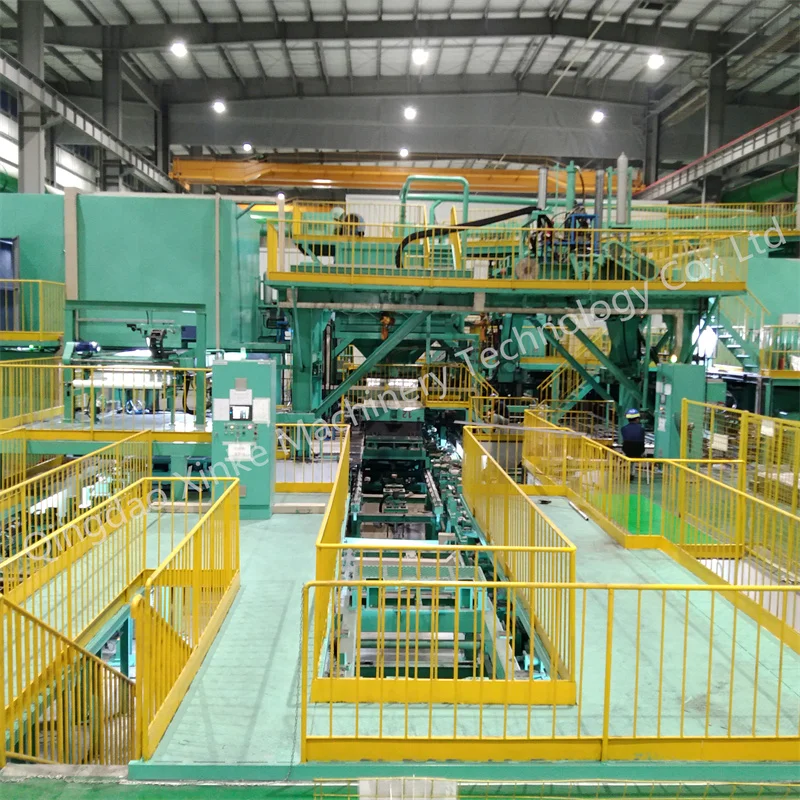

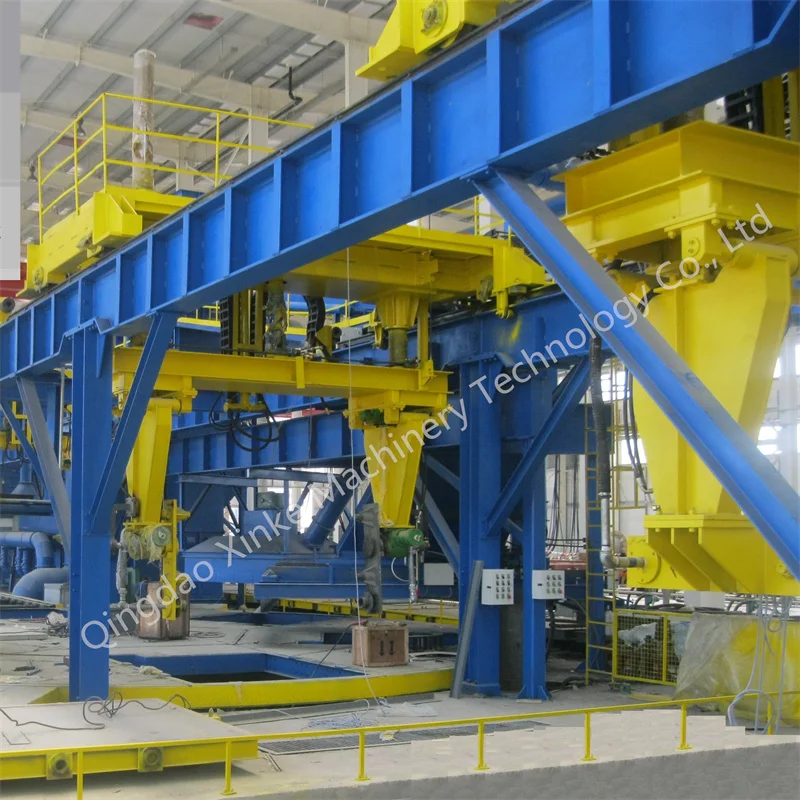

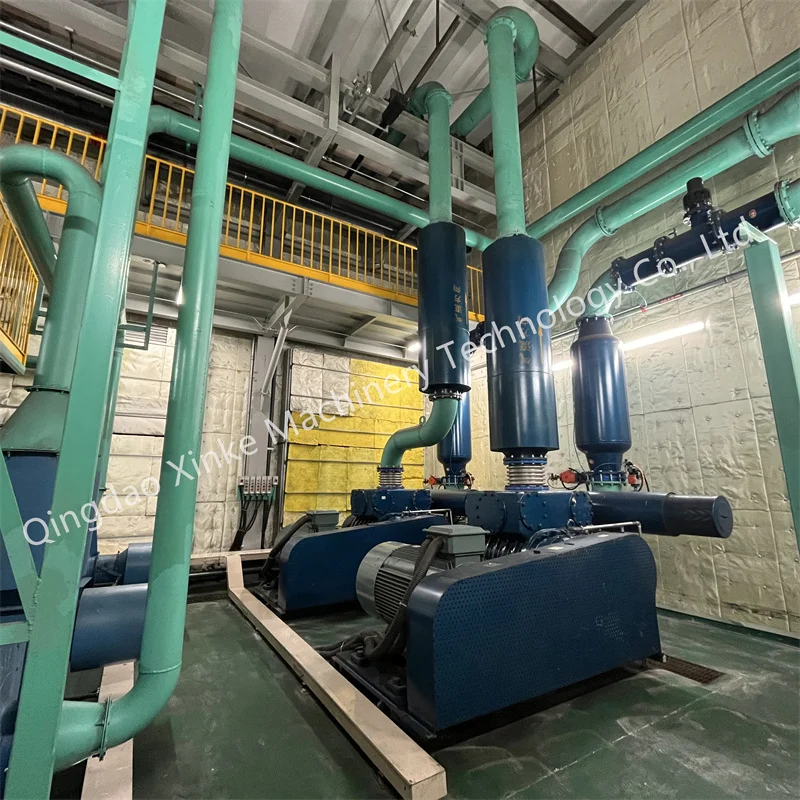

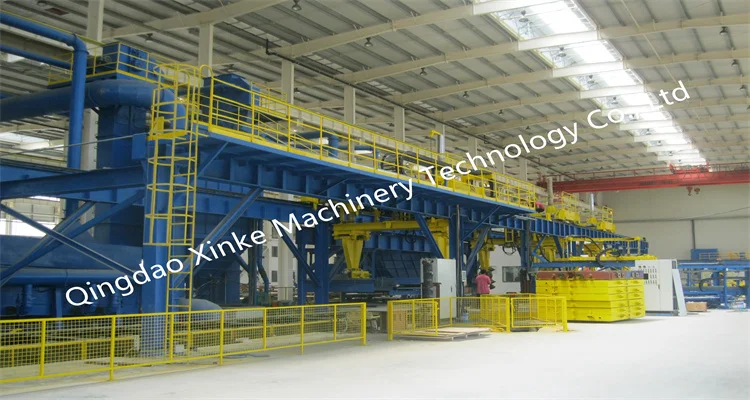

Installation of V process casting foundry molding machine

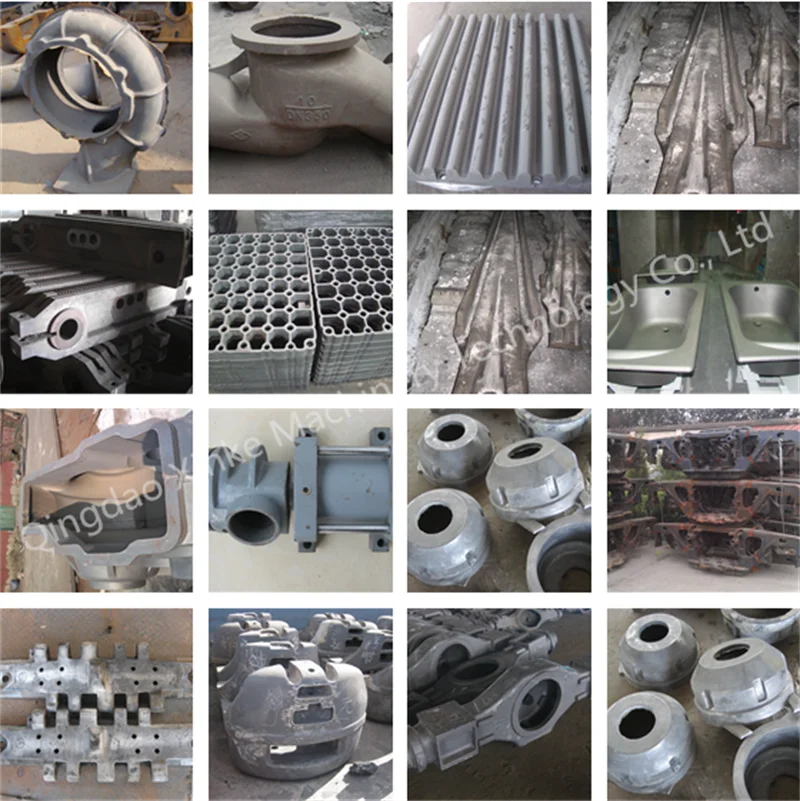

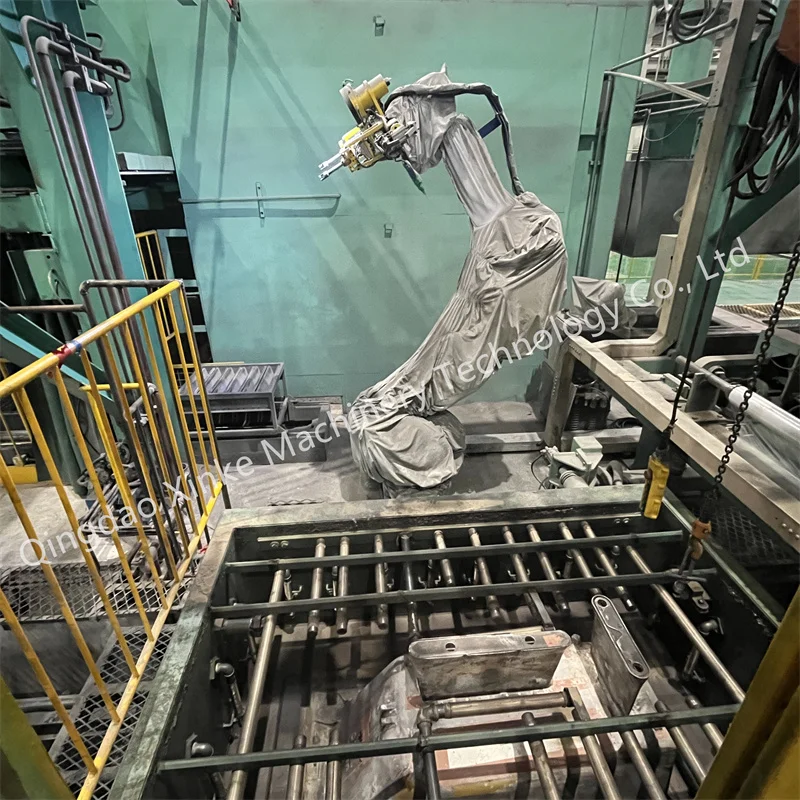

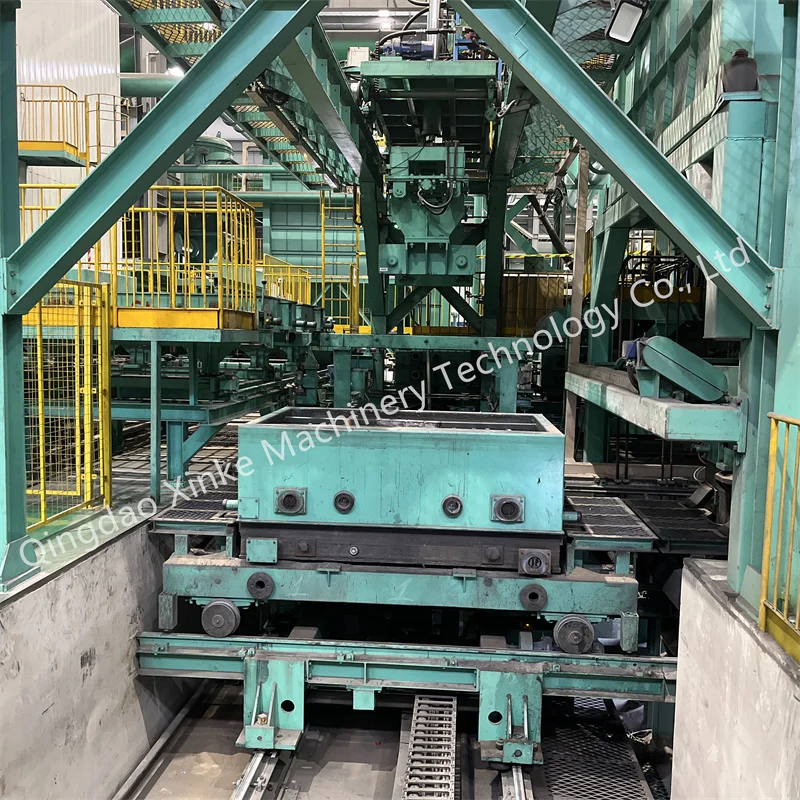

Casting of V process casting foundry molding machine
Production Process of V process casting foundry molding machine

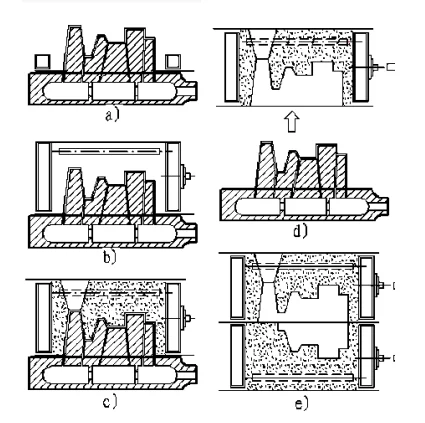

a) Pattern provided with vents in starting position. The EVA film is softened byheating before use. Heated and softened film is adsorbed to pattern by vacuum suction to complete film forming. Spray coating agent to the pattern covered by film, and dry the coating agent.
b) The flask equipped with suction tubes and suction windows is set onto the vacuum box with the pattern.
c) Fine-grained, clay free silica sand is filled into the mould and becomes compacted by vibration.
d) After setting the covering film the air is sucked out of the sand and the mould consolidated thereby. For mould stripping the vacuum at the pattern is reversed by a slight excess pressure.
e) Before, during and after pouring the mould itself re-mains connected to the vacuum net.
f) For casting take-out the mould is separated from the vacuum.Sand and casting are falling without additional force off the flask.
e) Before, during and after pouring the mould itself re-mains connected to the vacuum net.
f) For casting take-out the mould is separated from the vacuum.Sand and casting are falling without additional force off the flask.
