Automatic Feeding System for Extruder and Mixer Automatic Feeding System of Extruder and Mixer/Plastic Mixer/PVC Mixer
- Category: Plastic Raw Material Machinery >>>
- Supplier: Zhangjiagang Samsara Machinery Co. Ltd.
Share on (1600611795361):
Product Overview
Description
Products Description
Samsara Feeding system for extruder
Zhangjiagang samsara machinery co.,ltd.
Product DescriptionApplication&Features:
For large scale PVC Floor production factory, Advanced automatic weighing compounding conveying system is essential,traditional mixing method is that people weigh and batch material manually, then move the mixed material to extruder also manually, this old way just fit for the small factory, and has many defects:
1. Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. the weighing precision is not assured.
2. Labour intensity is large, human cost is high from long term view
3. Chemical raw material harms the worker's health.
samsara good at solving problems which exist in bulk solids conveying ,storage,dosing,and weighing,mixing and screening.Meanwhile,offering optimal solutions and proposals of the whole project.Eventually,we will provide you with an ideal project which acts according to your demands.
In order to solve these problems, our company design this WPC automatic mixing, weighing ,conveying system which the computer can automatically control weighing and batching, and feeding to extruder. This mixing system consist of automatic weighing, after weighing, convey the material in to the mixer unit, than use the air-operation pipe line transport the mixed material to extruder. The advantage of PVC mixing system:
1. Automatic weighing controlled by computer, that improves the accuracy and efficiency of burdening, and reduces the chemical damage to worker.
2. The air-operation pipe line transportation reduces the cost of worker, and increase the production efficiency, and all the material is in the closed pipe, so avoid dust to pollute the factory.
Mixer Unit
Applications:
1.Energy saving,environmentally-friendly materials' conveying,automatic weighing and batching,mixing.
2.Mixing,stirring,drying,coloring of plastics, rubber and chemicals for daily used.
3.Used in producing plastic board,PVC flooring,pipe,profile and degradation plastics.
Description:
It is used in mixing,stirring,drying coloring of plastics,rubber and chemicals for daily use.It is an ideal advance equipment of producing plastic board,PVC flooring,pipe,profile and degradation plastics.
We digest and absorb foreign advanced technology in making mixer,which adopts the vacuum mixing principle.The electric components all adopt PLC controlling,which has character of high automation,quick mixing,the blade is precisely cast of stainless steel and treated bydynamic and static balancing. Especially, the blade of cooling machine adopt the advanced spiral stirring structure,which avoid dead angle,and with the feature of quick cooling,thoroughly discharging and high efficient.
1.Energy saving,environmentally-friendly materials' conveying,automatic weighing and batching,mixing.
2.Mixing,stirring,drying,coloring of plastics, rubber and chemicals for daily used.
3.Used in producing plastic board,PVC flooring,pipe,profile and degradation plastics.
Description:
It is used in mixing,stirring,drying coloring of plastics,rubber and chemicals for daily use.It is an ideal advance equipment of producing plastic board,PVC flooring,pipe,profile and degradation plastics.
We digest and absorb foreign advanced technology in making mixer,which adopts the vacuum mixing principle.The electric components all adopt PLC controlling,which has character of high automation,quick mixing,the blade is precisely cast of stainless steel and treated bydynamic and static balancing. Especially, the blade of cooling machine adopt the advanced spiral stirring structure,which avoid dead angle,and with the feature of quick cooling,thoroughly discharging and high efficient.
Model | Hot mixer(L) | Cooling mixer(L) | Power(Kw) | Output(Kg/h) |
SRL-Z 100/200 | 100 | 200 | 14-22 | 200 |
SRL-Z 200/500 | 200 | 500 | 30-42 | 360 |
SRL-Z 300/600 | 300 | 600 | 40-55 | 480 |
SRL-Z 500/1000 | 500 | 1000 | 55-75 | 720 |
SRL-Z 800/1600 | 800 | 1600 | 83-110 | 1200 |
SRL-W 500/1600 | 500 | 1000 | 55-75 | 720 |
SRL-W 800/2500 | 800 | 2500 | 83-110 | 1200 |
SRL-W 1000/3000 | 1000 | 3000 | 110-160 | 1800 |
SRL-W 1500/4500 | 1500 | 4500 | 132-200 | 2600 |
SRL-W 2000/6000 | 2000 | 6000 | 250-315 | 3600 |

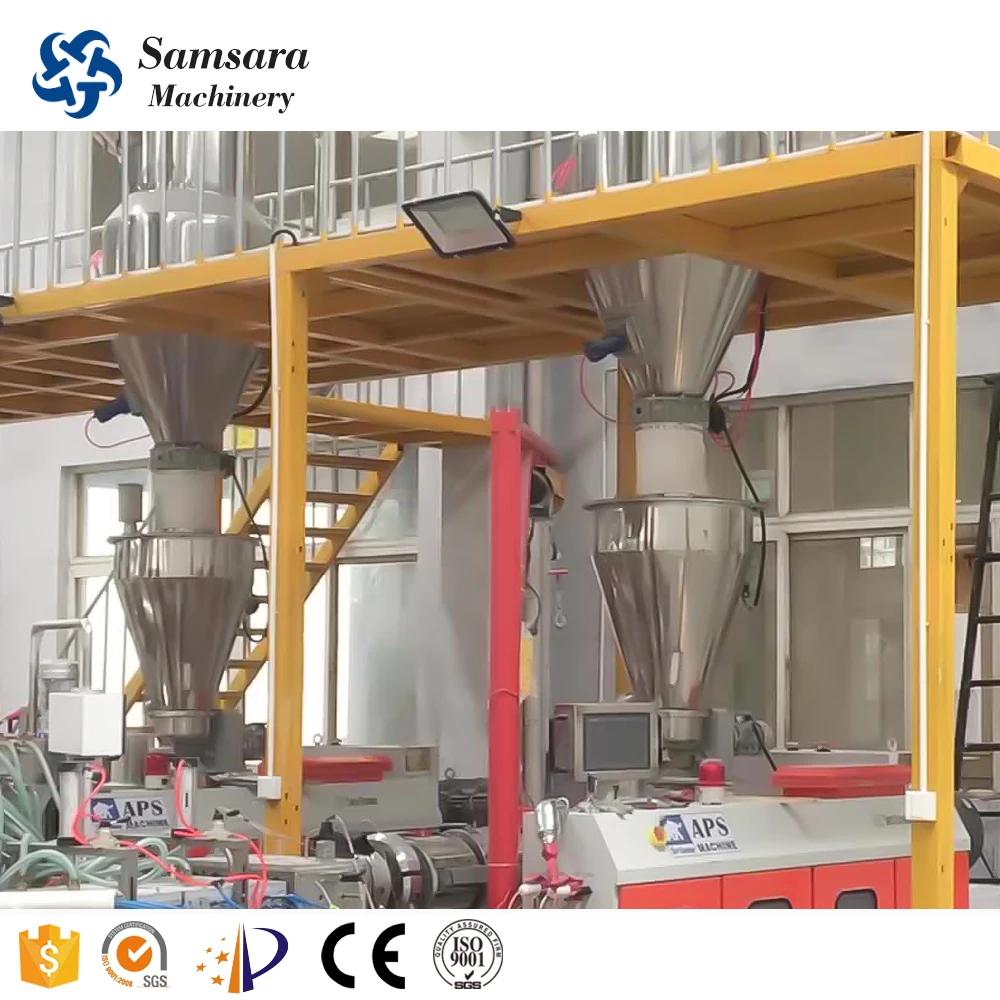

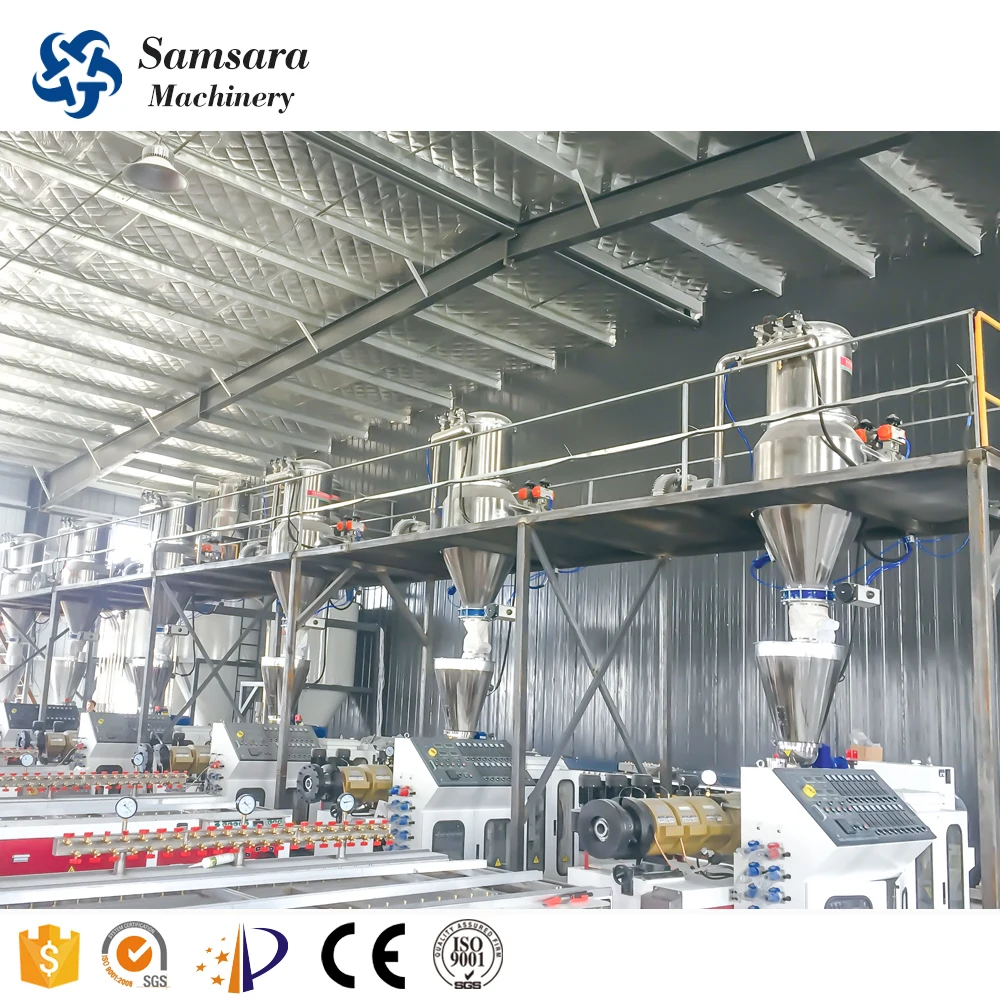

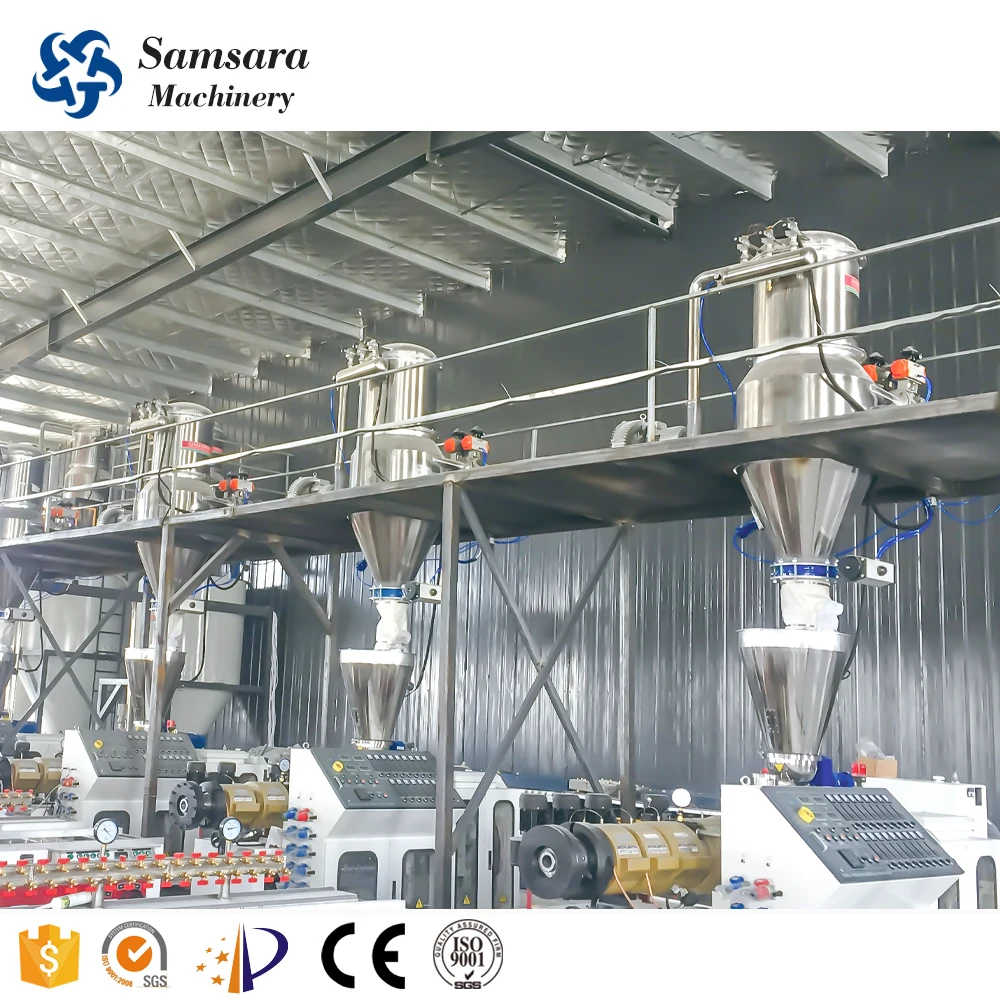

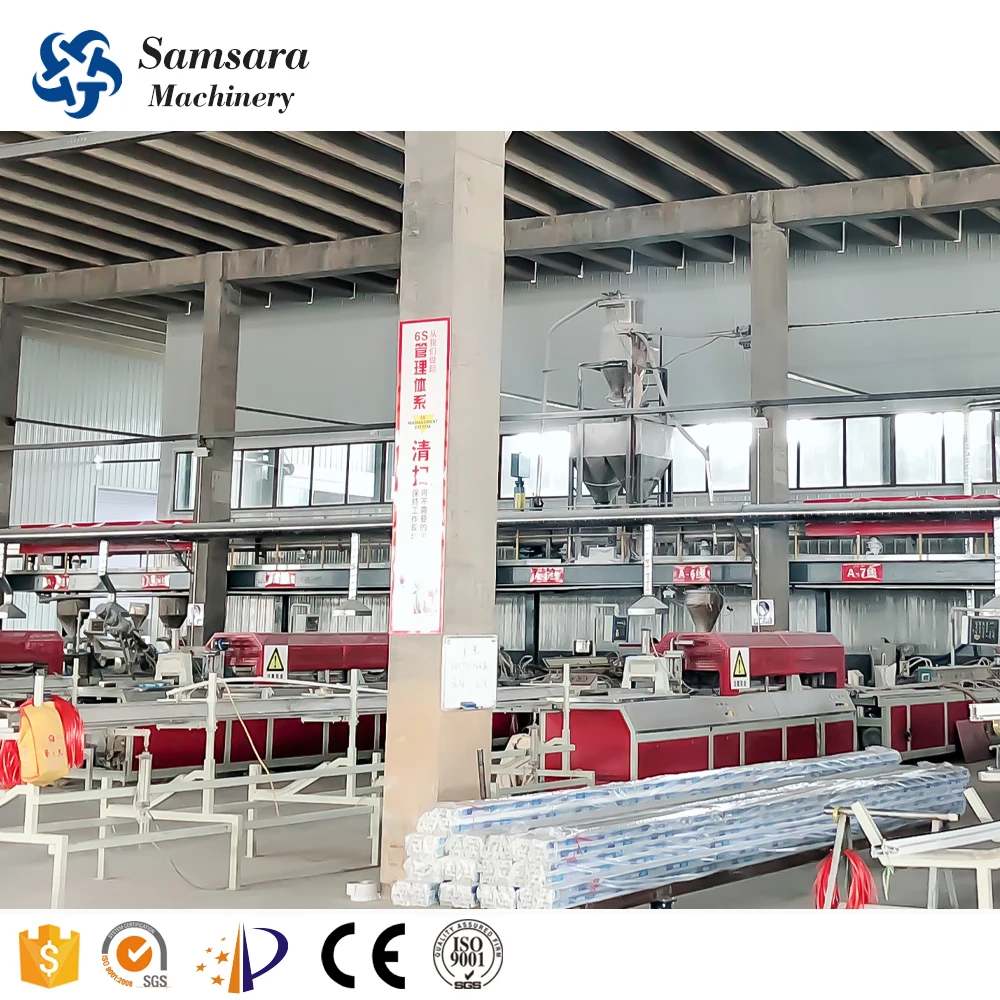

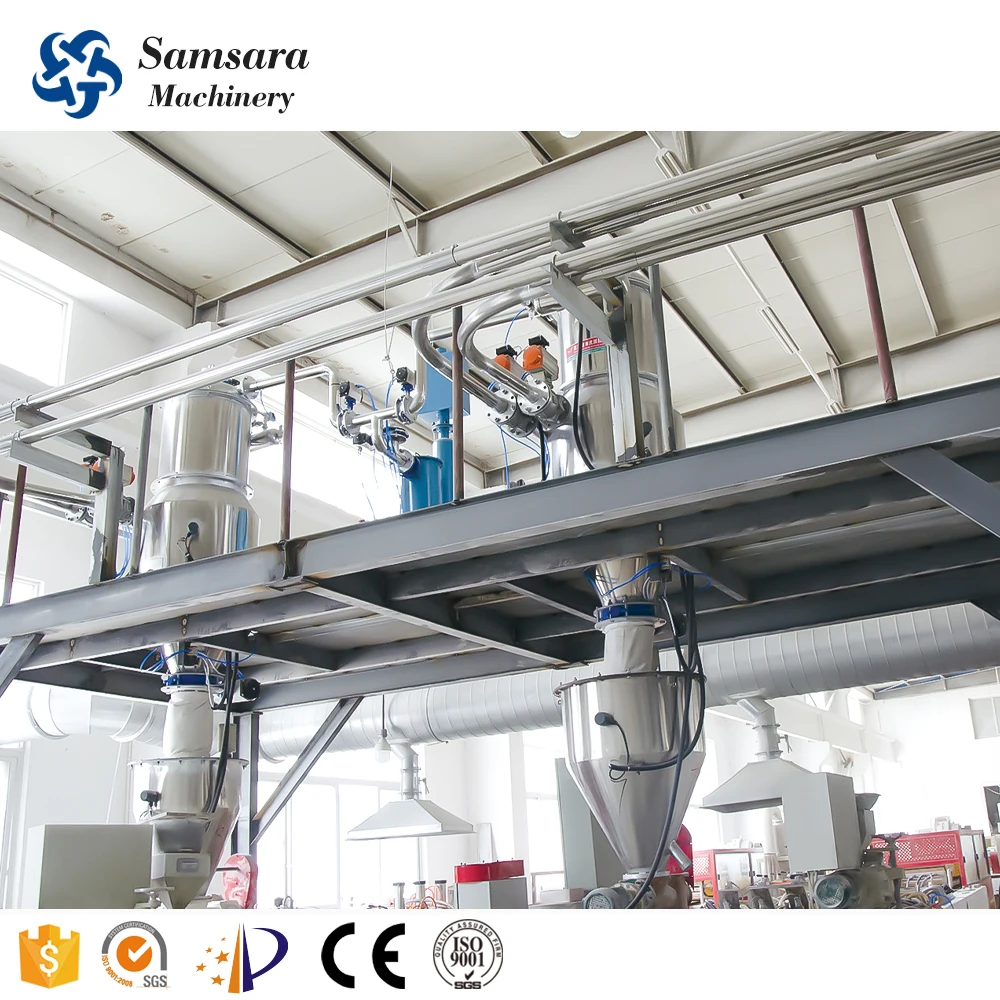

Field Installation
Product packaging
Product Application
Company Profile
samsara machinery
Zhangjiagang samsara machinery co.,ltd. is a professional designer and manufacturer of materials' handling system. We provide a turnkey solution for energy-saving and environmentally-friendly materials' conveying, automatic weighing and batching, mixing, stor-age and computer control systems. The main products are: large raw material storage silos, feeding station, tubular chain conveyor,pneumatic conveying system, screw conveying system, automatic weighing system, mixing unit, industry dust collectors, and crush-ing machines, mills and a variety of auxiliary equipment.
Our technology and equipment are widely used in the plastics, rubber, pharmaceutical, food and chemical industries to help improv-ing process levels, automation and the production environment, reduce the labor cost and power cost at the same time. We always adhere to technological innovation, high-standard production process, excellent pre-sales and after-sales service and full technology support, so that you can always take a step ahead in the market competition.
We are very near to Shanghai and Ningbo port where has a big advantage on sea logistics.
Our technology and equipment are widely used in the plastics, rubber, pharmaceutical, food and chemical industries to help improv-ing process levels, automation and the production environment, reduce the labor cost and power cost at the same time. We always adhere to technological innovation, high-standard production process, excellent pre-sales and after-sales service and full technology support, so that you can always take a step ahead in the market competition.
We are very near to Shanghai and Ningbo port where has a big advantage on sea logistics.
Certifications
FAQ
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price is reasonable with stable machine quality .
Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.
After-sales service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality
We guarantee the goods are made of best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in the contract. Quality guarantee period is within 12 months from B/L date.
Installation, Debugging and Training
We will dispatch our engineers to instruct the installation and debugging. Cost will be beared on buyer’s side (round way flight tickets, accommodation fees and salary in buyer country). The buyer should provide his site assistance for the installation and debugging. The engineers will also train your workers for about 3 days.
