YEROO advertising LED screen pylon for gas station
US $2000-$2500
Ультратонкий 49 дюймов 1080P TFT ЖК дисплей горизонтальный вертикальный экран наружный IP55 рекламный дисплей 3000NIT Digital Signage и дисплей
- Category: Outdoor Advertising >>>
- Supplier: Shenzhen Outdoor Special Display Equipment Co. Ltd.
Share on (1600612943226):
Product Overview
Description
Product Description
49 Inch Outdoor IP65 Waterproof High Brightness Advertising LCD Digital Signage
Size: 49"
Resolurtion: 1920*1080
Luminance: 2000cd/m2~3000cd/m2
Viewing angle；89/89/89/89
Main baord: Android / Windows
Interface: HDMI/ USB/ VGA……
IP65/ Waterproof/ Industrial LCD
High Brightness/ Anti-theft and anti-piracy
Sceen Parameter | Model | TX490M-M02 | |||
Backlight type | Direct down LED backlight | ||||
Active area | 1077.6*607.6mm | ||||
Resolution | 1920*1080 | ||||
Color | 16.7M | ||||
Pixel pitch | 0.630×0.630 mm (H×V) | ||||
Brightness | 2000-3000cd/㎡ | ||||
Contrast ratio | 5000:1 | ||||
Viewing angle | ±178° | ||||
Response time | 6 (Typ.)(G to G) ms | ||||
Dimming mode | Automatic Adjustment / Main Board Adjustment | ||||
Heat Dissipation Parameters | Heat dissipation | Air Cooling | |||
Operating temperature | ‘-10℃~50℃ | ||||
Heat dissipation power | 100W | ||||
Speed control | Auto-adjustment | ||||
Protection grade | IP55 | ||||
Dust filter | Primary filter | ||||
Additional Heating | 150W/PTC heater option | ||||
Shell parameters | Main structure, Back door, Base material | SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM | |||
Protective glass | 5mm Tempered Glass | ||||
Waterproof and anti-theft | Waterproof sealing strip/ Anti-theft lock for connecting rod | ||||
Painted color | Outdoor white corrugated, Outdoor gray, Outdoor black corrugated | ||||
Mainboard Optional | Display Motherboards (Codename M) | 2*HDMI-IN(4K@60Hz), USB2.0*1(for upgrading and playing USB disk content) | |||
Android motherboards ( Codename A ) | CPU RK3288 Cortex-A17 quad-core up to 1.6GHz DDR DDR-III 2GB (4GB optional) Storage Default standard 8GB EMMC NAND chip (supports up to 128GB) LVDS 30-pin industry-standard dual LVDS interface, support VESA/JEITA format, up to 1080P output support EDP 20-pin general-purpose four-channel EDP interface, up to support 1080P output HDMI output HDMI 2.0 standard display interface, up to support 2016P output HDMI input HDMI 1.4a standard input interface, up to support 1080P input Line Output Support standard left and right channel line output (row pin interface) Amplifier output 8 ohm-6W dual audio amplifier output | ||||
Touch Optional | Nano Touch | 10-point, metal grid nano-touch | |||
Packaging Dimensions Weight | Dimension of whole Machine(mm) | 2050.1*687*93.8mm (L*W*T)（Base 500mm） | |||
Dimensions of package(mm) | |||||
Gross weight | |||||
Net weight | 49kg | ||||
Machine life | ＞50000 Hrs | ||||
Attachment | |||||
Power Supply | Power Input | AC 100V~240V | |||
Maximum power consumption | ≦220W | ||||
Standby power | <5W | ||||
High Definition Image Quality.
1920*1080,FHD, clear and delicate picture, vivid colors.
High Brightness LCD Display
The maximum brightness of the monitor is about 2000cd/m2~3000cd/m2, and the content on the screen can be clearly seen under direct sunlight outdoors.
Ultra-thin Body Design.
The display is only 85.5mm thick, ultra-thin, stylish and beautiful.
Details Images

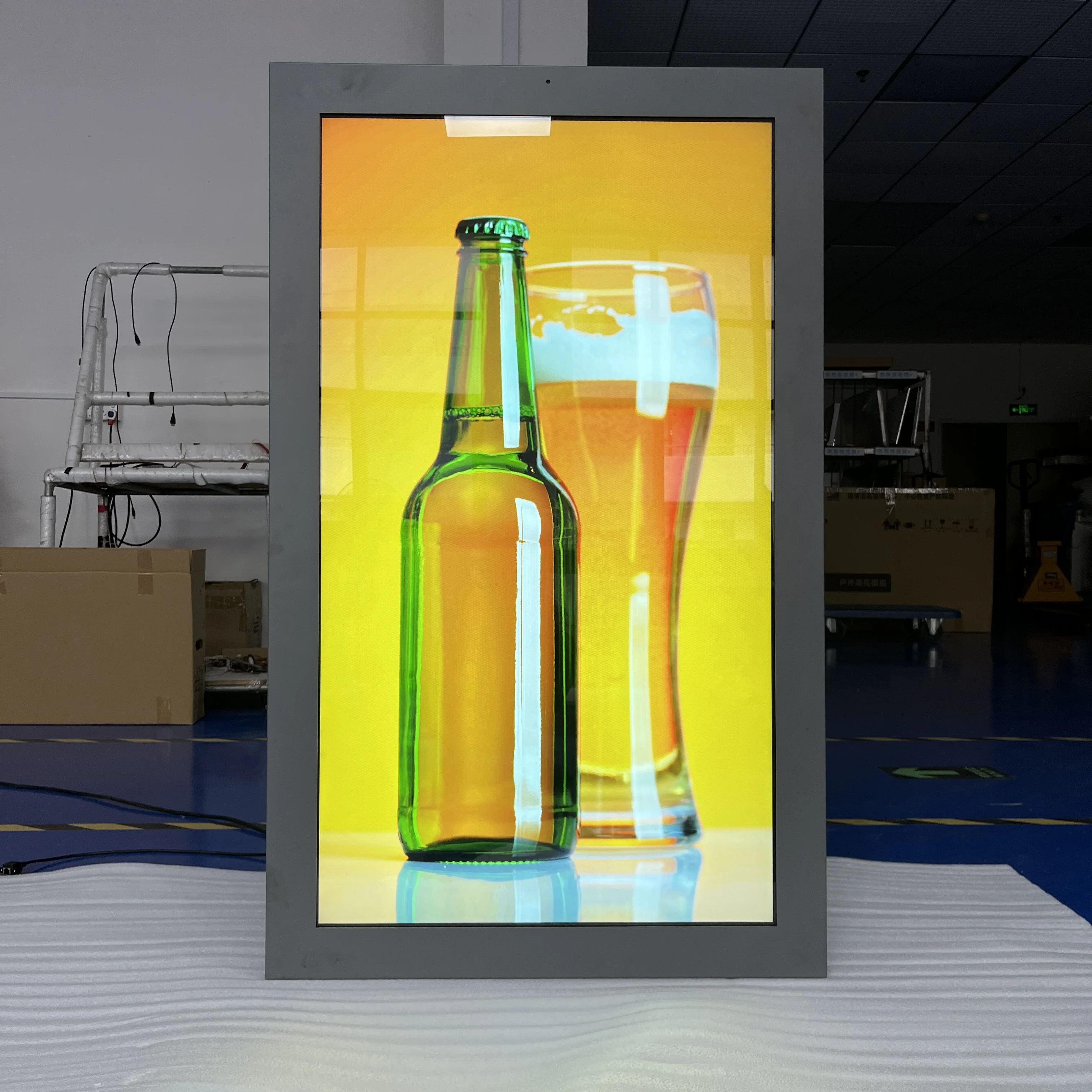

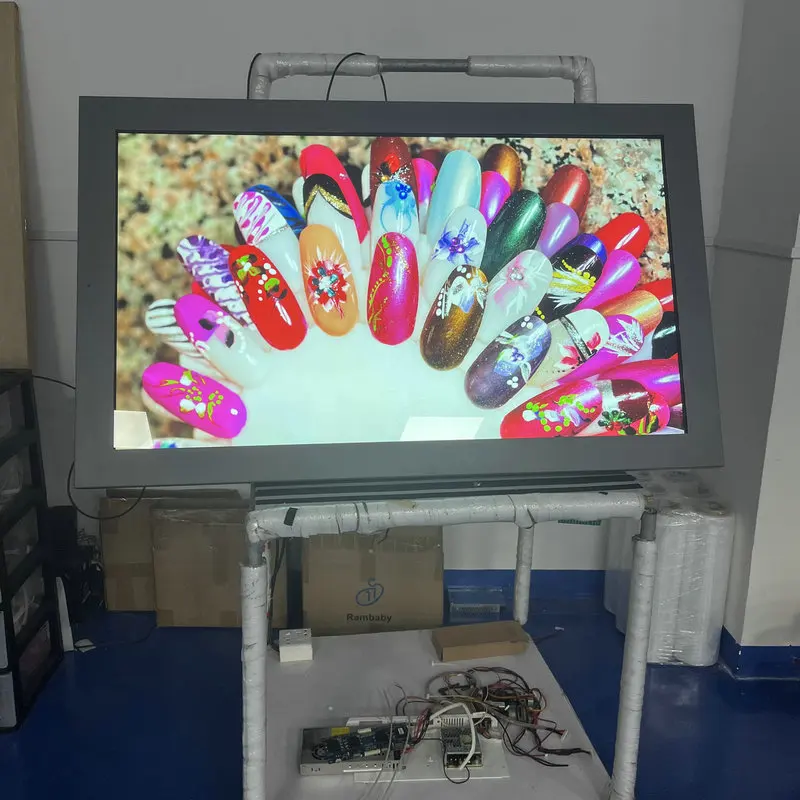

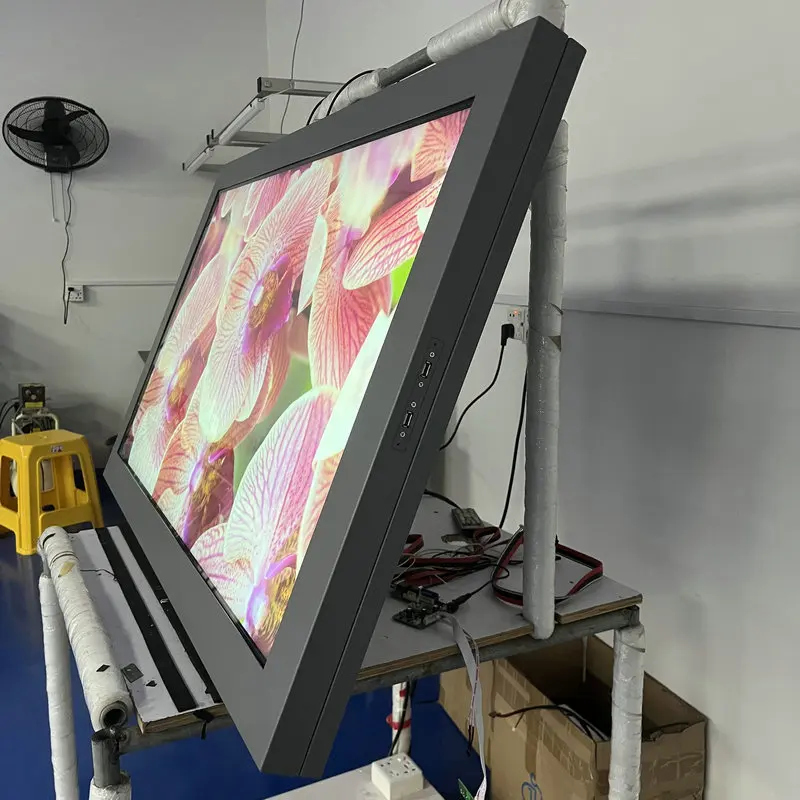

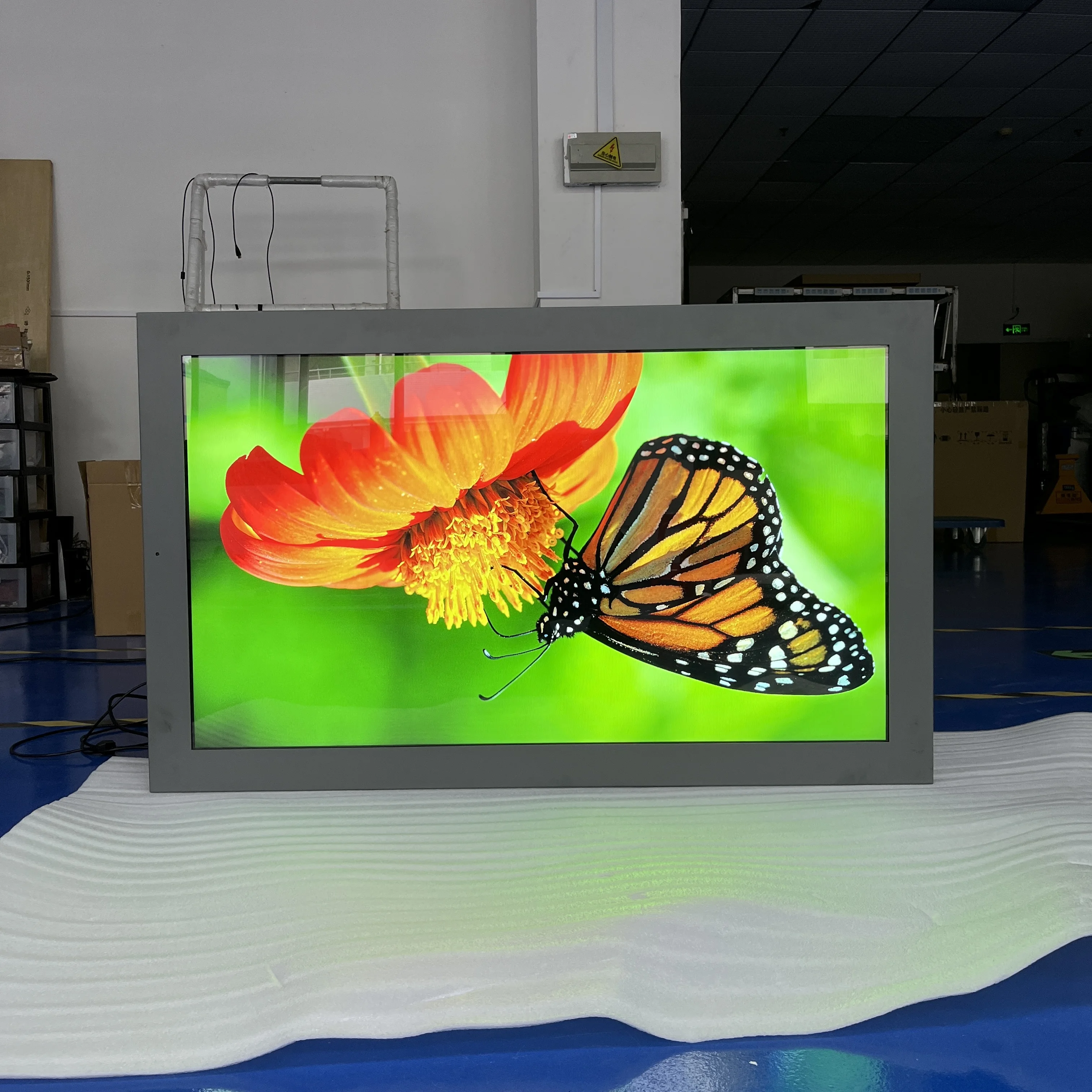

The Front

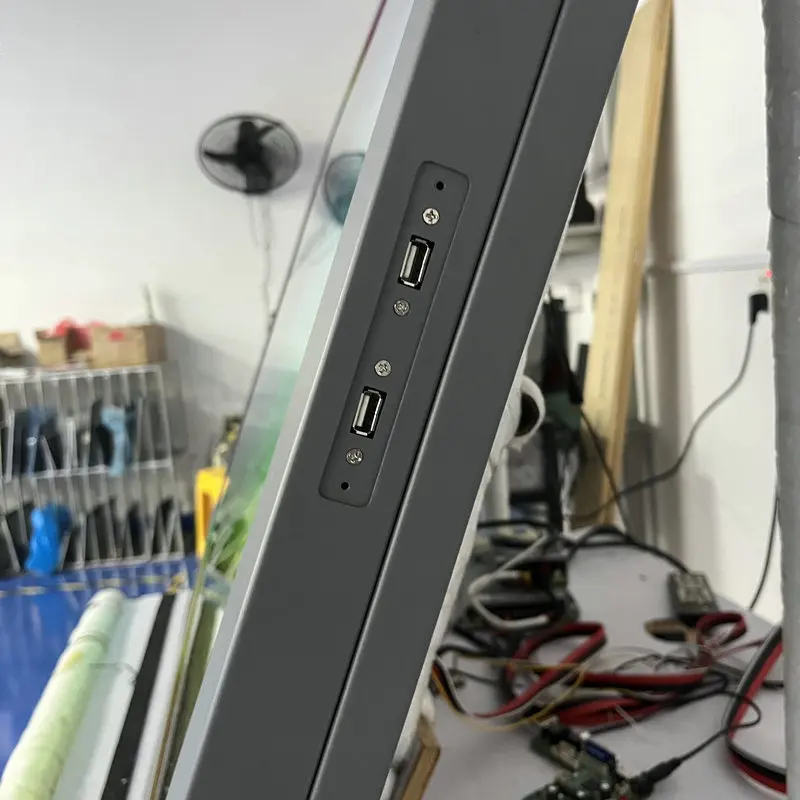

The Interface

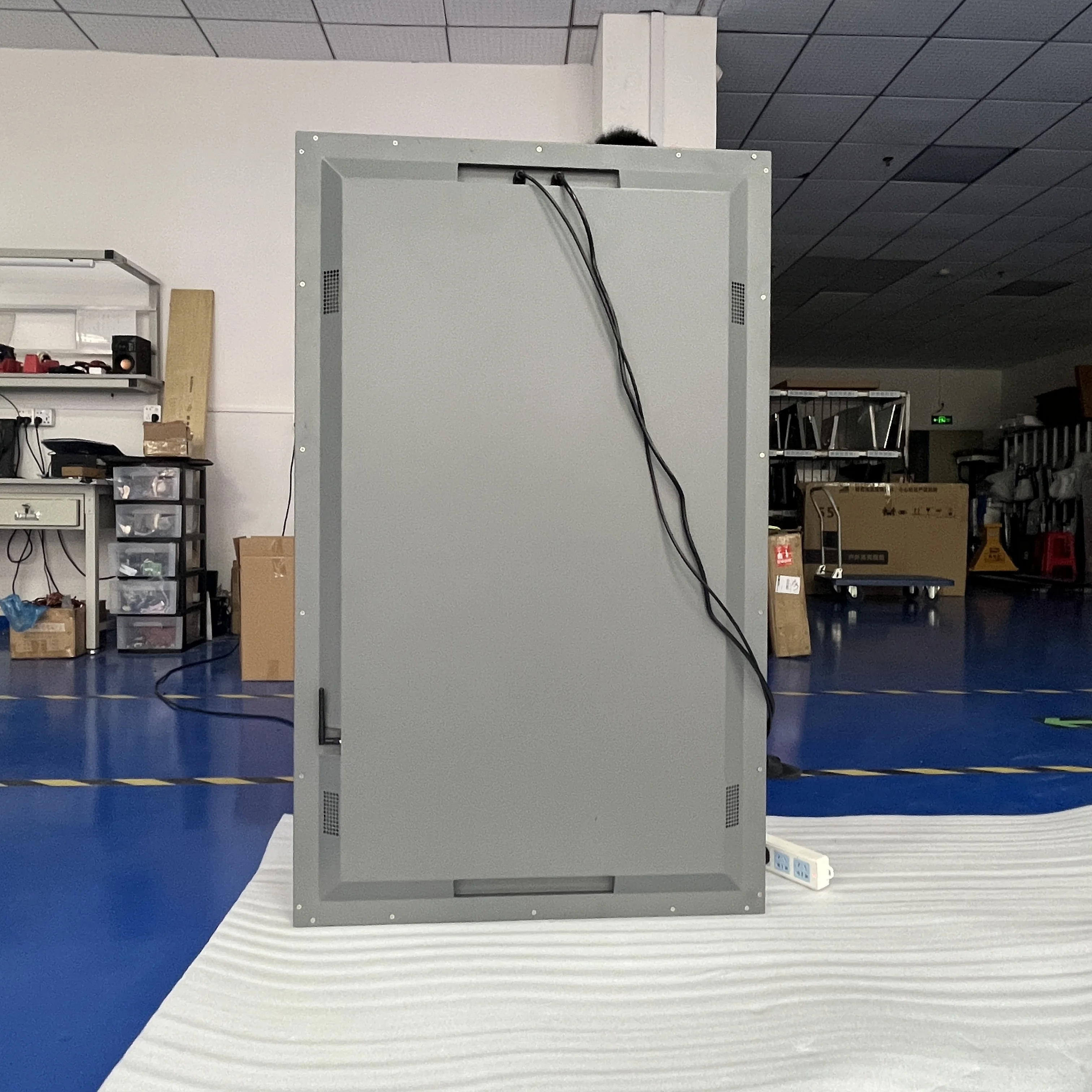

The Back
Related Products
Packing&Shipping
- Versatile packaging solutions for all shapes and sizes with our packagings boxes - Multiple options for sea, land, and air shipping for your convenience
- Trustworthy and secure wooden crate packaging for extra protection of your goods
- Professional packing services to ensure your items are properly secured and ready for transport
- Trustworthy and secure wooden crate packaging for extra protection of your goods
- Professional packing services to ensure your items are properly secured and ready for transport
Company Introduction
FAQ
1.Q: Are you a factory?
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
