Standard Duty Double Eye Single Weave Closed Mesh Standard Duty Cable Support Grips Cable Grip Socks
- Category: Cable Clips >>>
- Supplier: Jiangsu Maxdao Technology Limited
Share on (1600613435806):
Product Overview
Description
Product Description
Standard Duty Support Grip--closed mesh,double eye
* Standard closed mesh support grips are designed for loads up to 600lbs. and vertical runs of no more than 100ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable,metal rods and tubing.
* Support Grips will hold more than one cable.
* Wire mesh is produced from high quality, non-magnetic, tin coated bronze which provides superior corrosion resistance.
* Absorbs additional strain from vibration, expansion, contraction and flexing.
* Double eye for use when cable is vertical and extends without bending.
* Single eye for use when cable is vertical and for applications where cable bends.
* Support Grips will hold more than one cable.
* Wire mesh is produced from high quality, non-magnetic, tin coated bronze which provides superior corrosion resistance.
* Absorbs additional strain from vibration, expansion, contraction and flexing.
* Double eye for use when cable is vertical and extends without bending.
* Single eye for use when cable is vertical and for applications where cable bends.
Specification
Part Number | Cable Diameter | Bale Length | Mesh Length | Approx Break Strength |
DEHG050P | 0.50-0.61"(12.7-15.5mm) | 4"(101.6mm) | 11"(279.4mm) | 770 lbs. |
DEHG062P | 0.62-0.74"(15.7-18.8mm) | 4"(101.6mm) | 11"(279.4mm) | 1150 lbs. |
DEHG075P | 0.75-0.99"(19.1-25.1mm) | 4"(101.6mm) | 14"(355.6mm) | 1320 lbs. |
DEHG100P | 1.00-1.24"(25.4-31.5mm) | 5"(127.0mm) | 15"(381.0mm) | 1920 lbs. |
DEHG125P | 1.25-1.49"(31.8-37.8mm) | 5"(127.0mm) | 16"(406.4mm) | 1920 lbs. |
DEHG150P | 1.50-1.74"(38.1-44.2mm) | 6"(152.4mm) | 18"(457.2mm) | 1920 lbs. |
DEHG175P | 1.75-1.99"(44.5-50.5mm) | 6"(152.4mm) | 20"(508.0mm) | 3150 lbs. |
DEHG200P | 2.00-2.49"(50.8-63.2mm) | 6"(152.4mm) | 22"(558.8mm) | 3360 lbs. |
DEHG250P | 2.50-2.99"(63.5-75.9mm) | 6"(152.4mm) | 24"(609.6mm) | 3360 lbs. |
DEHG300P | 3.00-3.49"(76.2-88.6mm) | 8"(203.2mm) | 26"(660.4mm) | 5280 lbs. |
DEHG350P | 3.50-3.99"(88.9-101.3mm) | 8"(203.2mm) | 28"(711.2mm) | 5280 lbs. |
Product Certificates

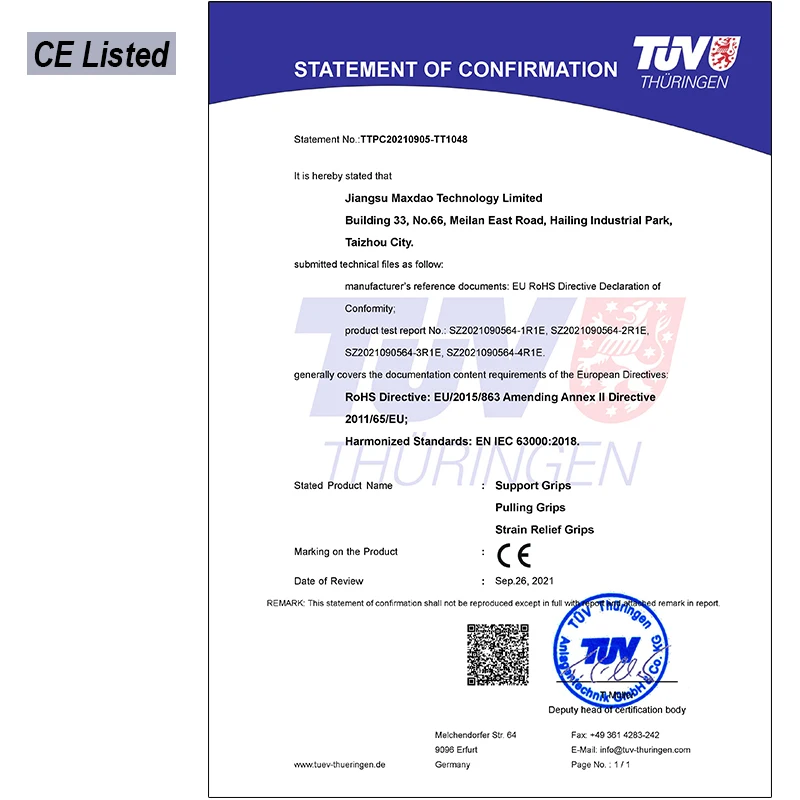

CE
RoHS
Recommend Products
Company Profile
Build A Better World
Maxdao designs and manufactures telecom & electrical components to build a better world.

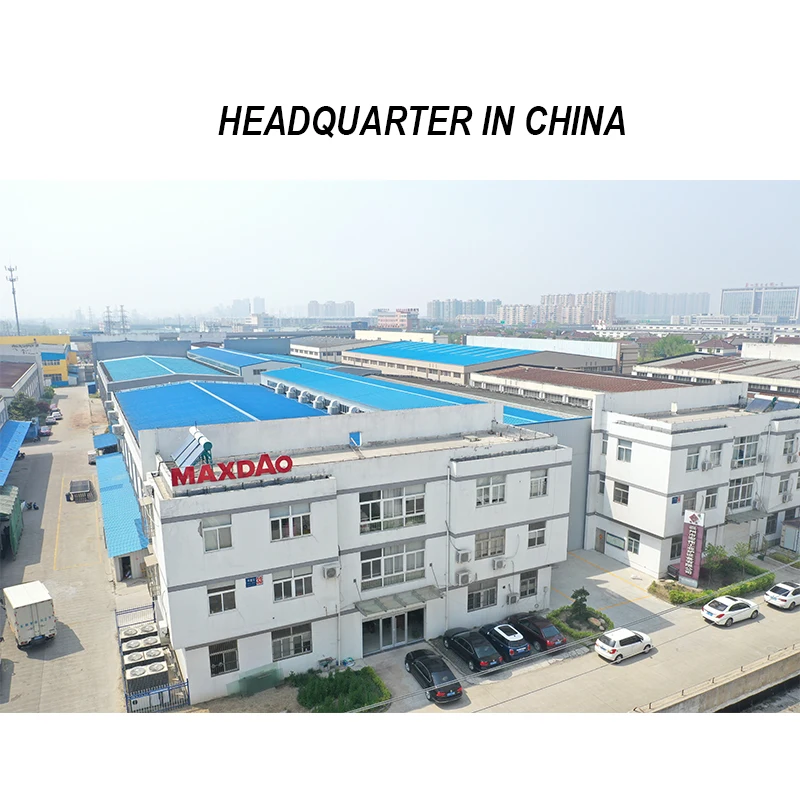

HEADQUARTER IN CHINA
33 Hailing Industrial Zone, Taizhou, Jiangsu 225300, China

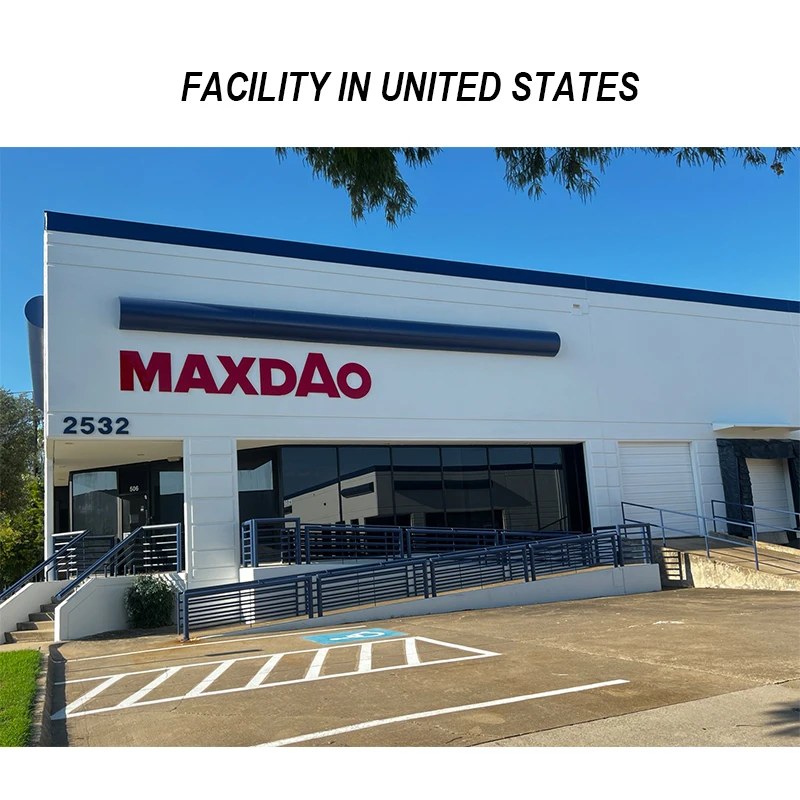

FACILITY IN UNITED STATES
2532 Summit Ave #506, Plano, TX 75074, USA
Workshop & Production Equipments
Maxdao design, manufacture, test the product in our self-owned 6000 square meters workshop.
100+ employees focus on their respective positions. 50+ sets of professional production equipment.

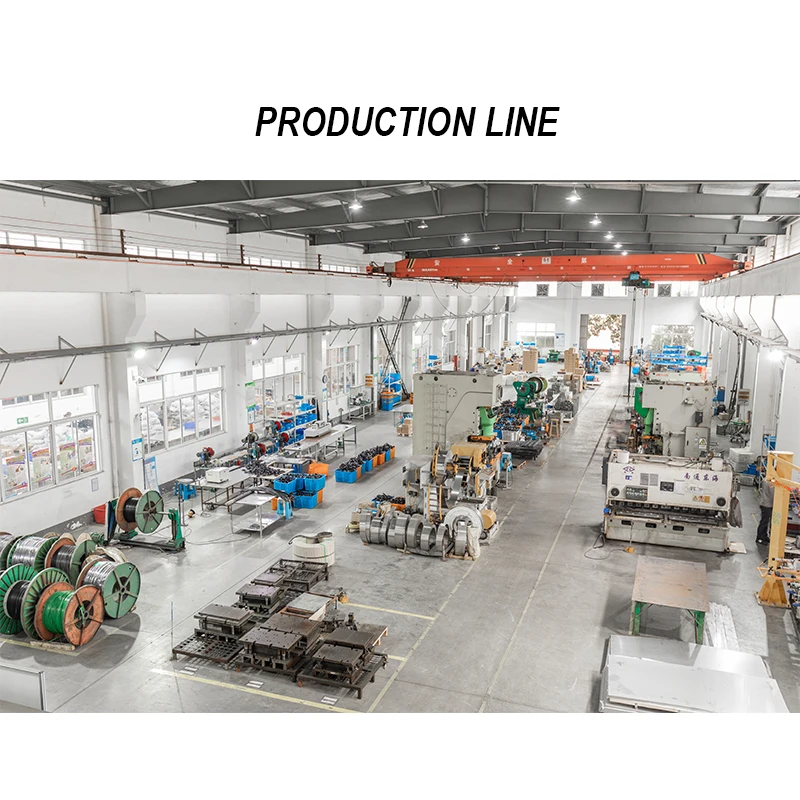

Production Line

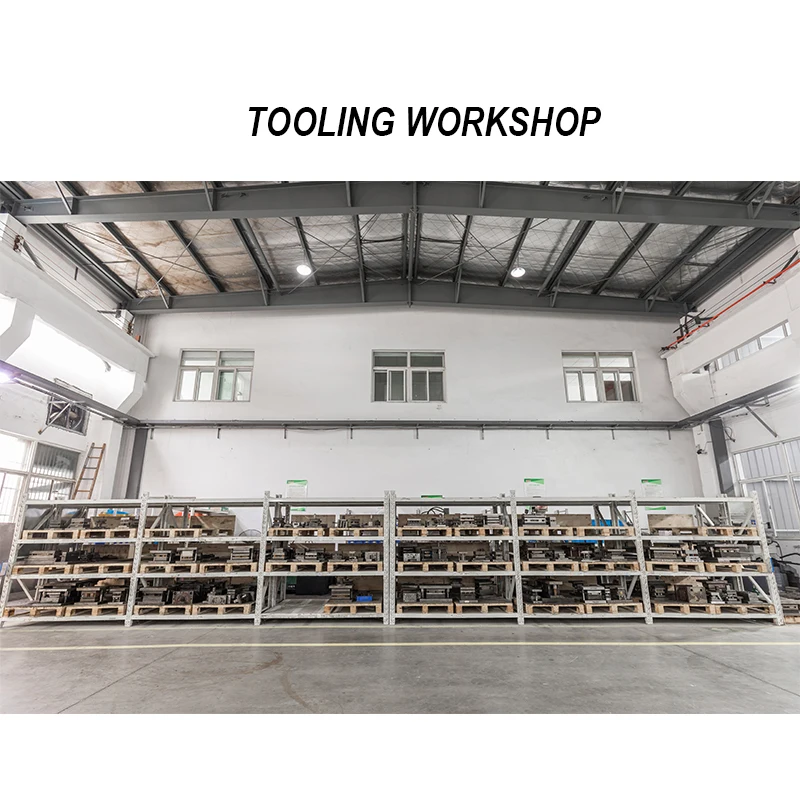

Tooling Workshop
Temperature & Humility Controlled Warehouse
R&D Offifice
Automatic Pressing Machine
Automatic Wire Cutting Machine
CNC
Automatic Cable Cutting & Stripping Machine
Testing Equipments
10+ Testing Equipments. 100+ Test Reports.
3D Printer
Salt Spray Test
Pulling Test
UV Test
High/Low-Temprature Test
Vibration Test
Certifications
13+ Patents. 6+ UL & CE Certificates. 3+ ISO Certificates.
Patents
ISO9001/ISO14001/ISO45001
UL/CE/RoHS/SGS
