high precision electroplating and sintering diamond roller wheel rotary dresser

Product Overview

Description

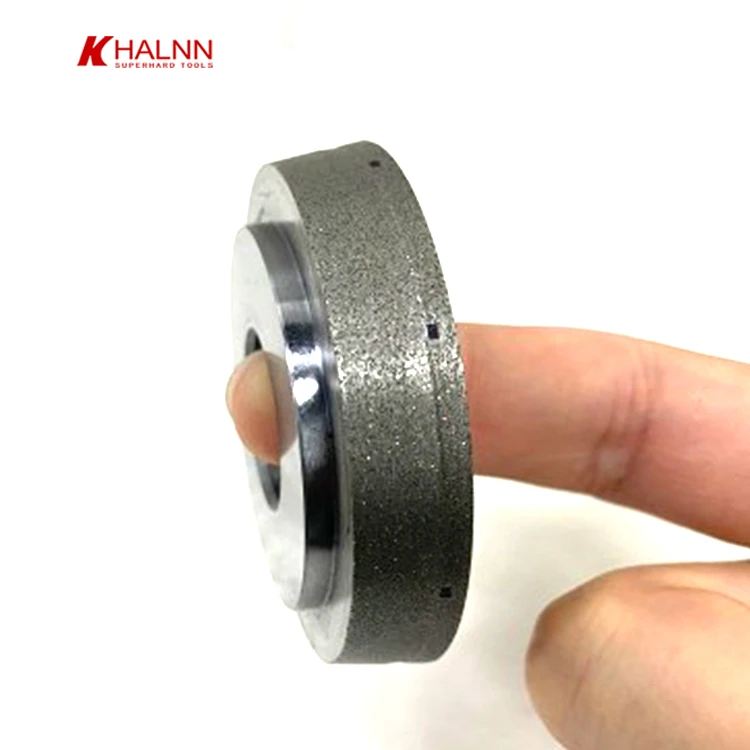

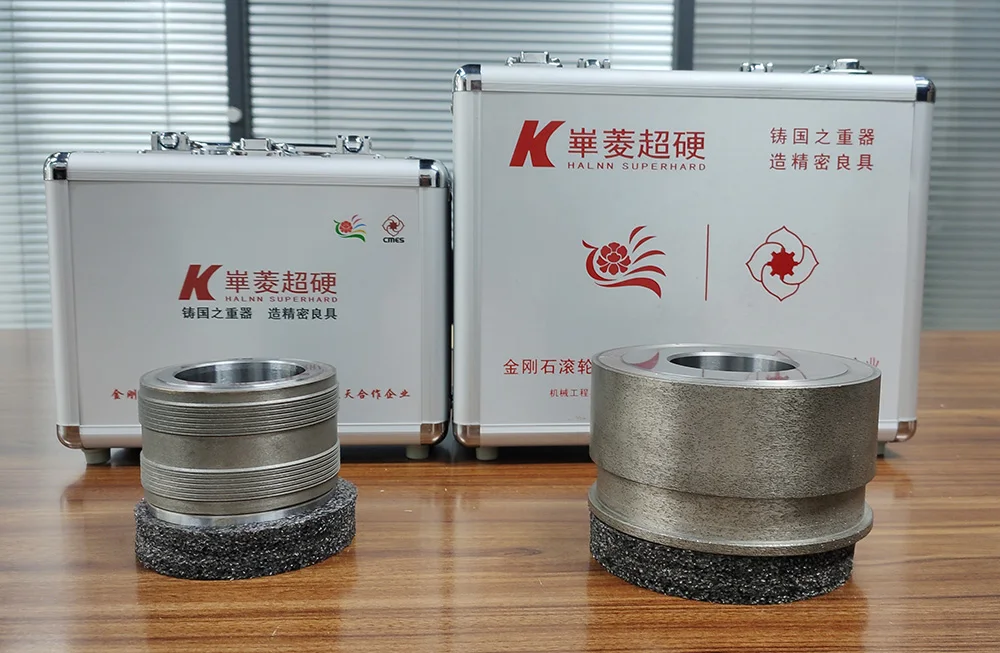

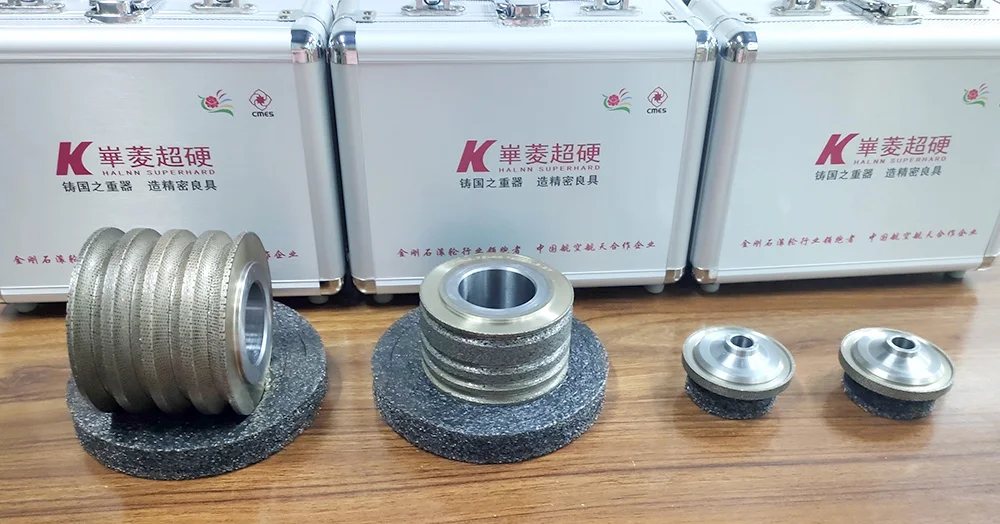

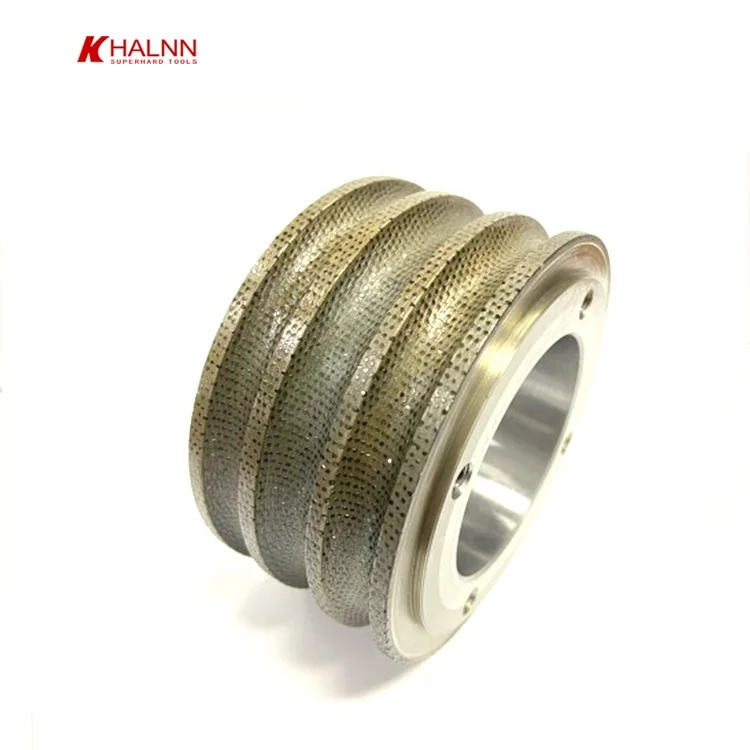

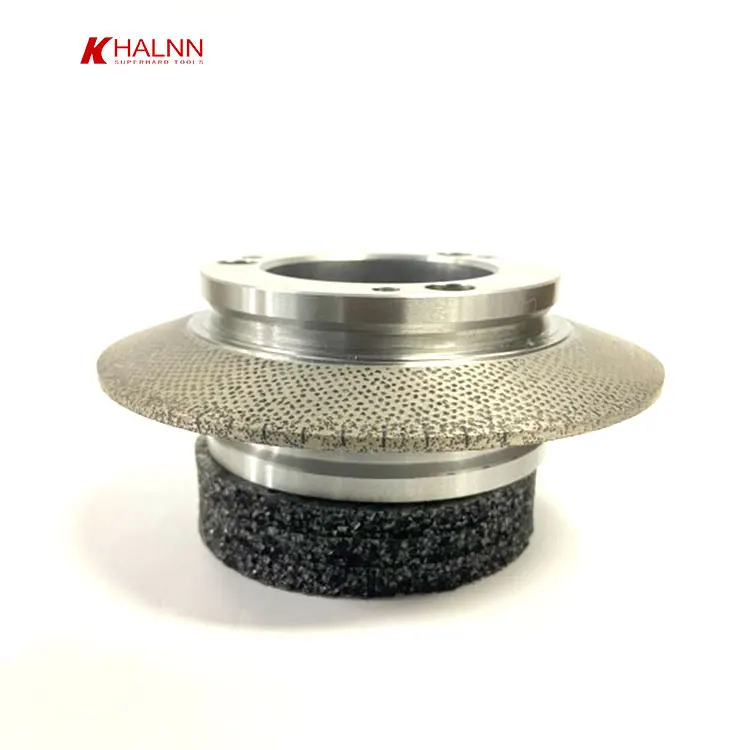

 high precision electroplating and sintering diamond roller wheel rotary dresser

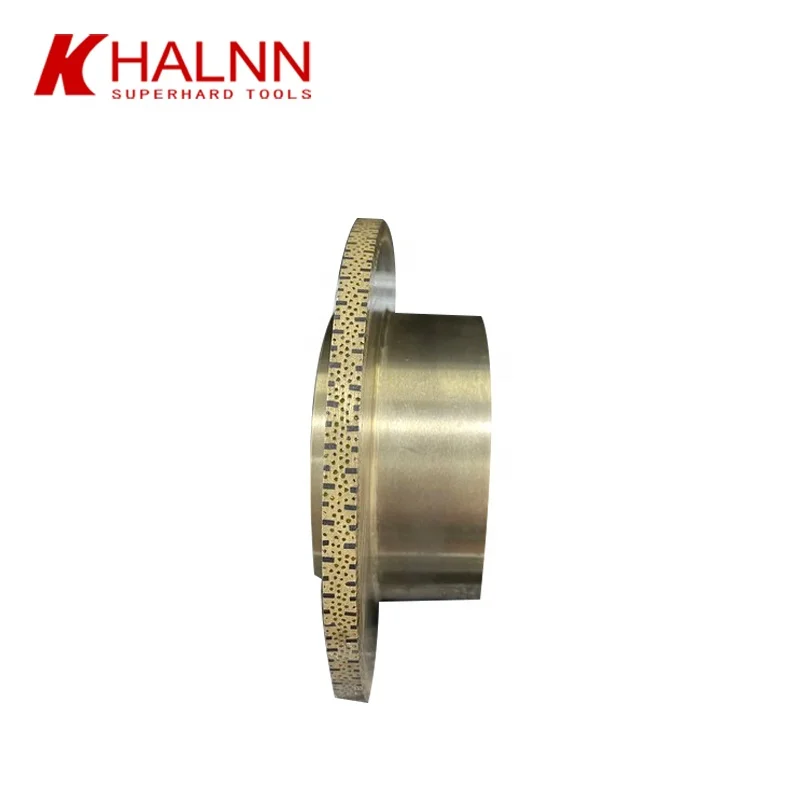

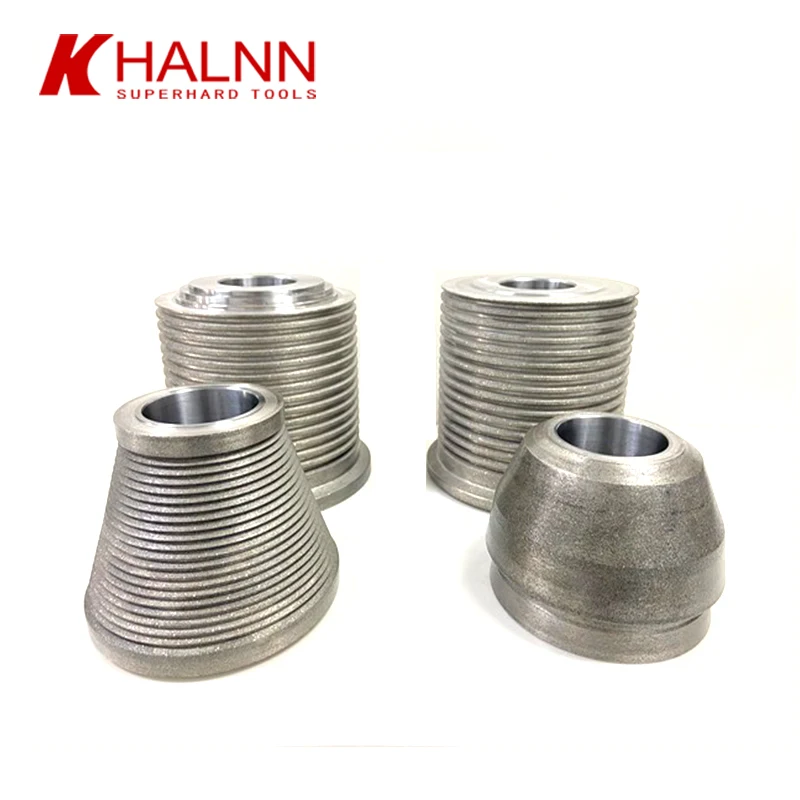

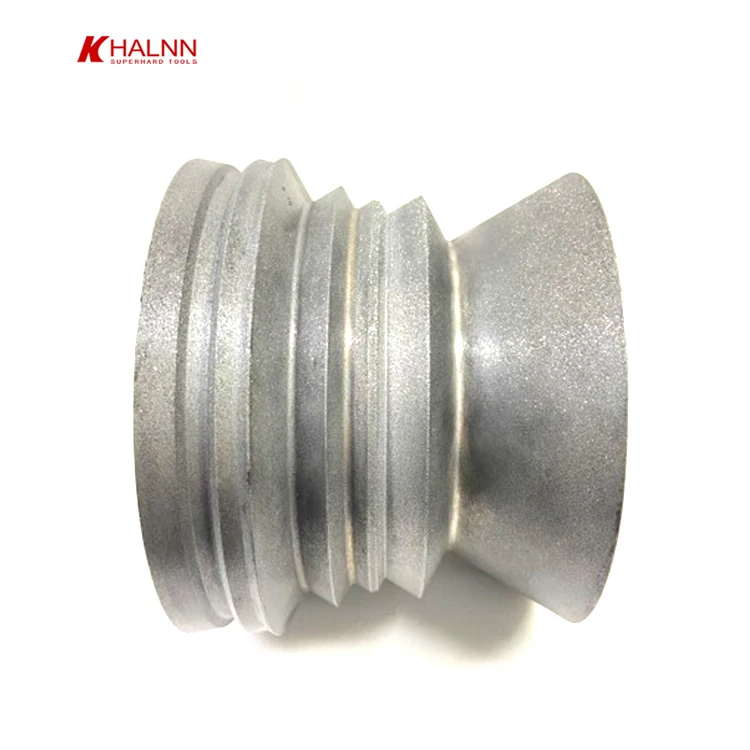

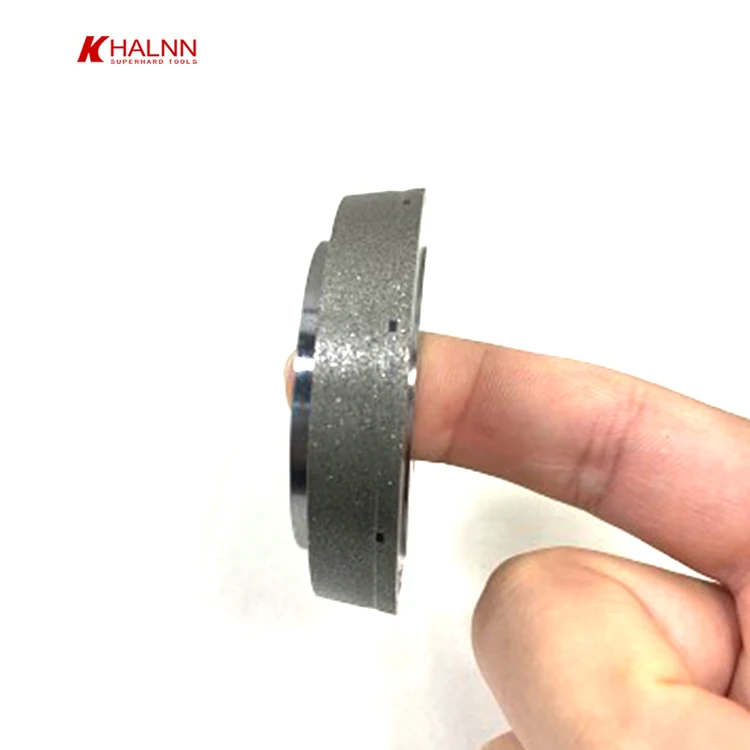

The electroplated diamond rotary dresser is made of high strength diamond, which makes the diamond content on the working surface very high and little impurity. This kind of roller can achieve high precision without trimming.Which can be divided into two kinds: the outer plating method and the inner plating method.



    Special diamond roller for bearing industry

Many people know that the diamond pen is used to trim the grinding wheel. They do not know that the bearing diamond roller dresser can also trim the grinding wheel, and how to use it is not clear. This experience will introduce how the bearing diamond roller dresser trims the grinding wheel.

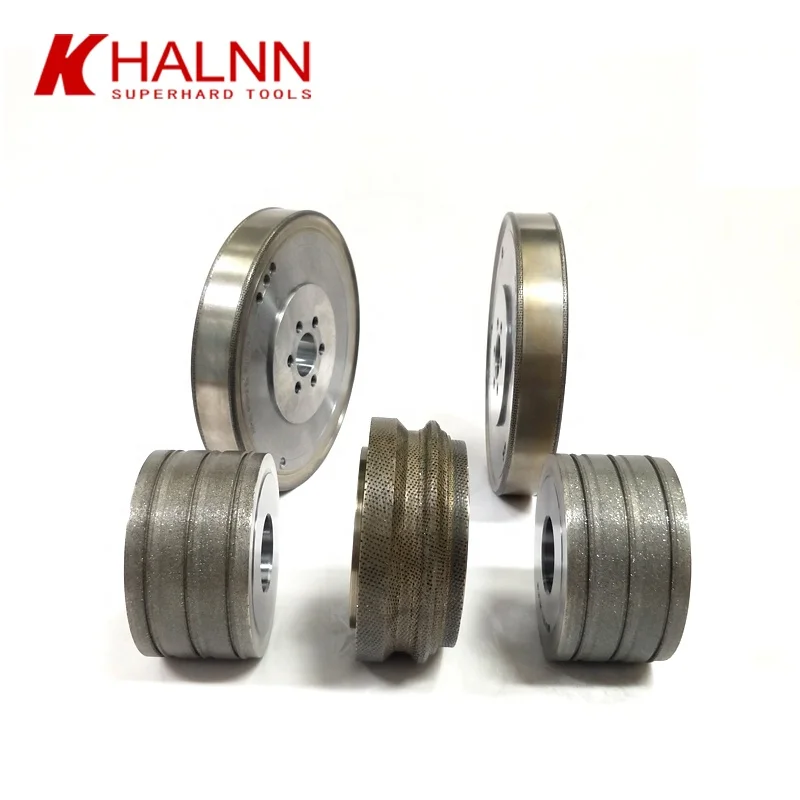

The so-called diamond roller is a grinding wheel dressing tool with high efficiency, high service life and low cost, which embeds a large number of diamond particles on the surface of steel roller by means of electroplating or powder metallurgy and is used in special machine tools and gear grinding machines for mass forming grinding.

Step 1: definition of bearing diamond roller dresser

The so-called bearing diamond roller dresser is a high-efficiency, high-life and low-cost grinding wheel dresser that embeds a large number of diamond particles on the surface of steel rollers by electroplating or powder metallurgy and is used for mass forming grinding.

Rotating at a certain speed (so as to reduce the relative speed between the roller and the grinding wheel) will grind and roll the surface of the high-speed rotating grinding wheel, so that the grinding wheel can obtain a sharp working surface consistent with the roller profile.

The bearing diamond roller dresser can effectively replace the single crystal diamond pen to trim the grinding wheel, its production efficiency is greatly improved, and the surface quality and precision of the machined parts are higher.

Step 2: advantages of bearing diamond roller dresser over diamond pen

The structure of diamond pen is generally composed of diamond and handle body. It looks like a "pen", so people like to call it "diamond pen". The main working part is the pen tip. If you have any consultation, you can contact

The hNT bearing diamond roller dresser is a non-standard customized product. It is a roller similar to the grinding wheel designed and manufactured according to the contour shape, size and required accuracy of the processed parts. It has low technical requirements for the operators, good consistency of the processed product accuracy, stable quality, and easy to realize grinding automation.
