Light Duty Closed Mesh Locking Bale Service Drop Support Grips Close Weave Cable Grip Pre Laced Hoisting Grip Installation

Share on (1600613614494):


Price:

Quantity:


Product Overview

Description



Product Description




Service Drop Support Grip--closed mesh,locking bale
* Service drop grips provide support for utility distribution lines from service pole to building or from pole to pole.
* They are woven from tinned-bronze wire to provide superior corrosion resistance and are available in single eye and Locking Bale configurations.
* They can also be used for cable TV and fiber optic cable support.
* Single eye for use when cable is vertical and for applications where cable bends.
* Locking bale attachment fits around beam or pipe and can be locked in place.


Specification


Part Number
Cable Diameter
Bale Length
Mesh Length
Approx Break Strength
LSHG06
0.22-0.32"(5.6-8.1mm)
10"(254.0mm)
4"(101.6mm)
290 lbs.
LSHG09
0.30-0.43"(7.6-10.1mm)
11"(279.4mm)
5"(127.0mm)
500 lbs.
LSHG12
0.41-0.56"(10.4-14.2mm)
12"(304.8mm)
5"(127.0mm)
500 lbs.
LSHG16
0.53-0.73"(13.4-18.5mm)
14"(355.6mm)
8"(203.2mm)
790 lbs.
LSHG22
0.70-0.97"(17.8-24.6mm)
14"(355.6mm)
9"(228.6mm)
1020 lbs.
LSHG25
0.94-1.25"(23.8-31.8mm)
16"(406.4mm)
11"(279.4mm)
1020 lbs.


Product Certificates


CE
RoHS


Recommend Products


Pulling Grips
Strain Relief Grips
Whipchecks


Company Profile


Build A Better World
Maxdao designs and manufactures telecom & electrical components to build a better world.

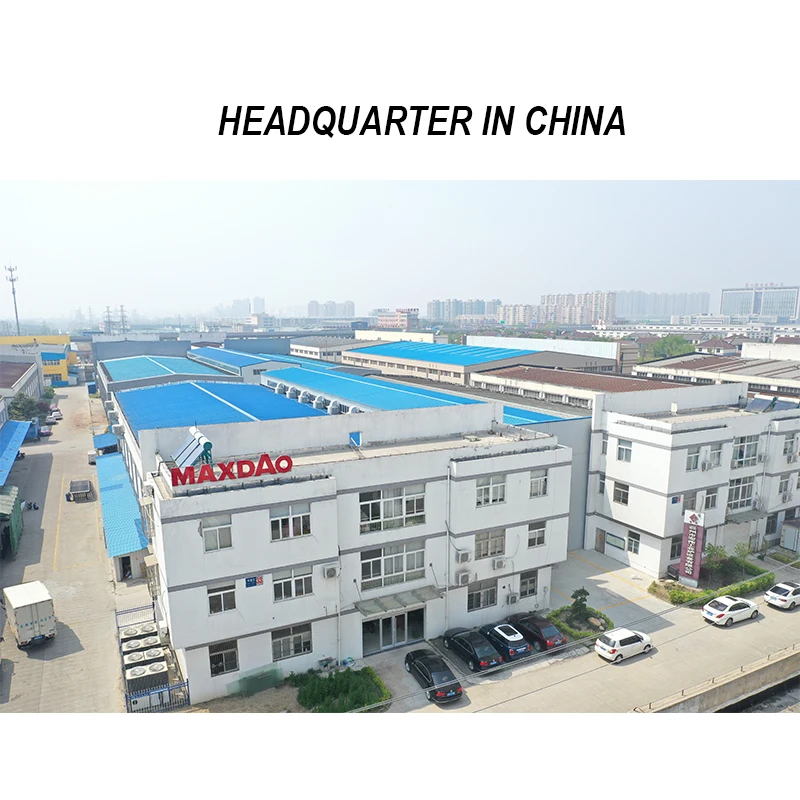

HEADQUARTER IN CHINA
33 Hailing Industrial Zone, Taizhou, Jiangsu 225300, China

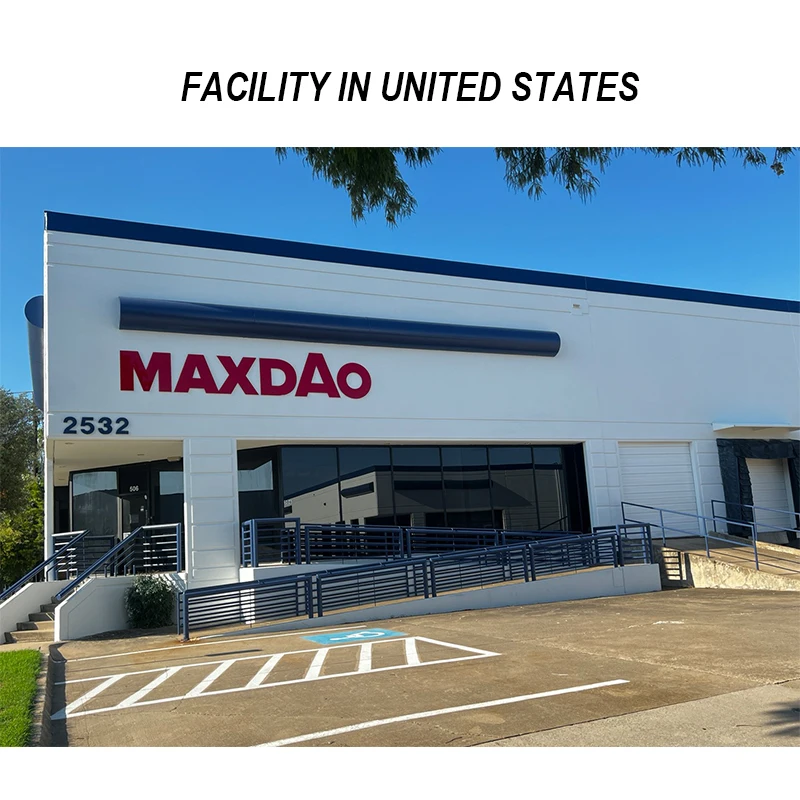

FACILITY IN UNITED STATES
2532 Summit Ave #506, Plano, TX 75074, USA


Workshop & Production Equipments
Maxdao design, manufacture, test the product in our self-owned 6000 square meters workshop.
100+ employees focus on their respective positions. 50+ sets of professional production equipment.

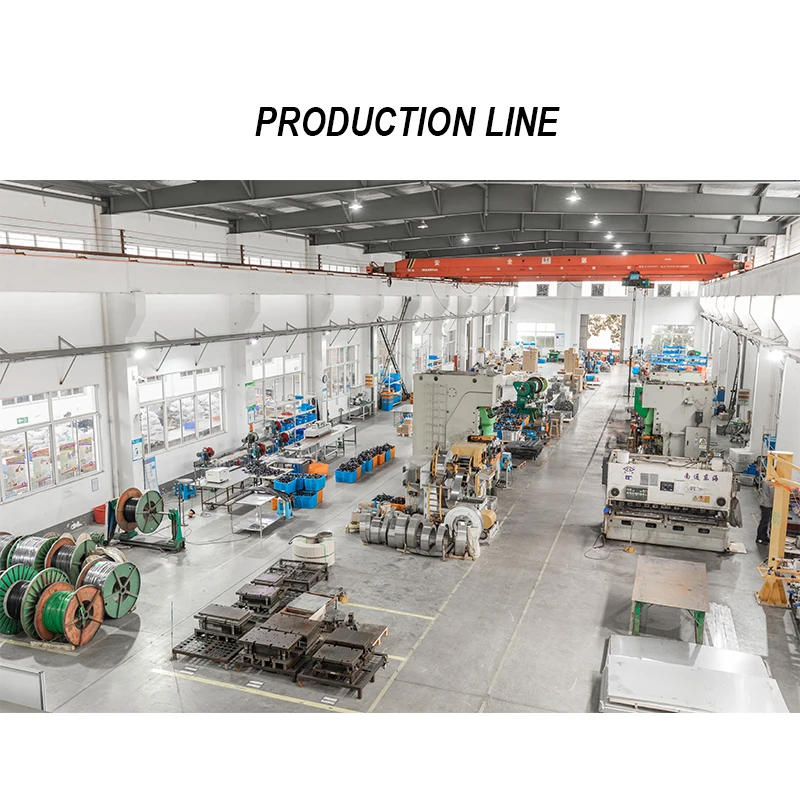

Production Line

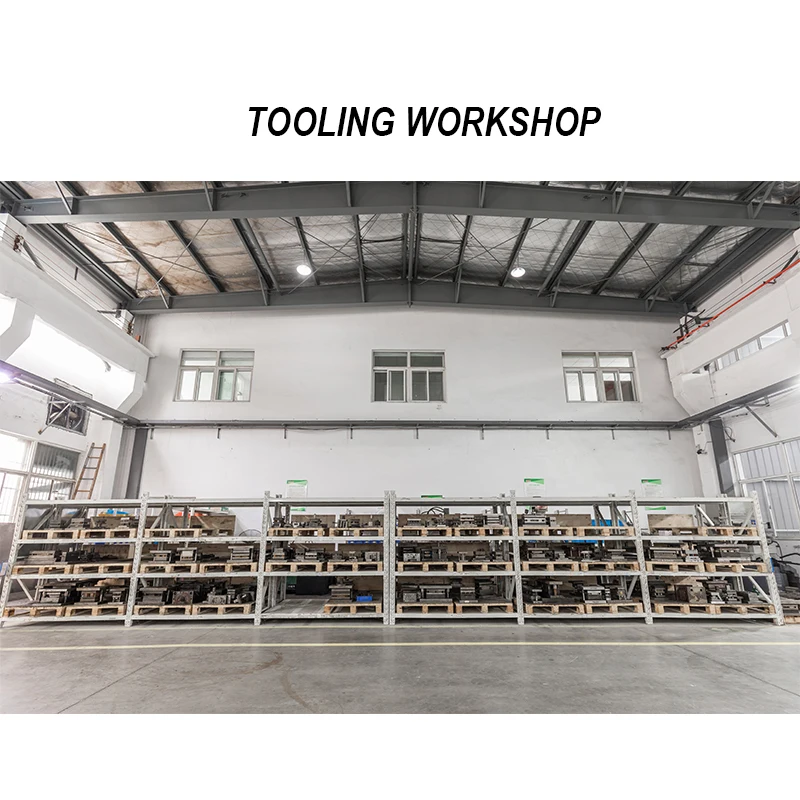

Tooling Workshop


Temperature & Humility Controlled Warehouse
R&D Offifice


Automatic Pressing Machine
Automatic Wire Cutting Machine


CNC
Automatic Cable Cutting & Stripping Machine


Testing Equipments
10+ Testing Equipments. 100+ Test Reports.


3D Printer
Salt Spray Test


Pulling Test
UV Test


High/Low-Temprature Test
Vibration Test

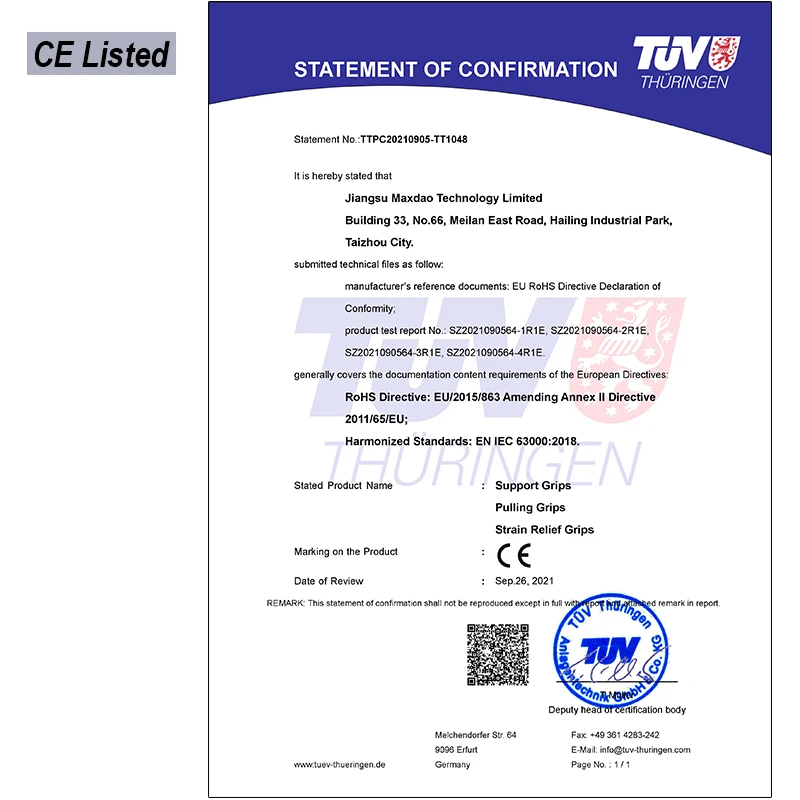

Certifications
13+ Patents. 6+ UL & CE Certificates. 3+ ISO Certificates.




Patents




ISO9001/ISO14001/ISO45001




UL/CE/RoHS/SGS
