250KG/H Single Screw PVC Plastic Pelletizing Machine Line
250KG/H Single Screw PVC Plastic Pelletizing Machine Line
250KG/H Single Screw PVC Plastic Pelletizing Machine Line
250KG/H Single Screw PVC Plastic Pelletizing Machine Line

250KG/H Single Screw PVC Plastic Pelletizing Machine Line

Share on (1600613618407):


Price:$35,000.00

Quantity:


Product Overview

Description



Product Description


Air cooling plastic palletizing is an indispensable process in plastic industry (PVC, TPR, modified materials etc). The mainframe adds heat and pressure on materials to make them in flowing state. After that, materials will be cut after extrusion through the mould head, and go into the air cooling system directly to be cooled and formed; consequently the finished granules are even and smooth.



The whole production line:

Raw Materials or Recycle Materials (Raw Materials +Additives) – Extruder Mainframe (Plasticizing, Extruding into Consecutive Columned Strips) – Cutter (Cutting, Sends Out By Air Machine) – Whirlwind Cooler (Cooling, Forming And Dedusting) – Air Machine –Whirlwind Cooler (Further Cooling, Forming And Dedusting) – Blender (Mixing, Dispersing And Adding) – Finished Products


Technical Parameter


                                               SJΦ120 PVC Pelletizing (Hot Cutting) Granule Line
No.
Item
Description
Specification
1

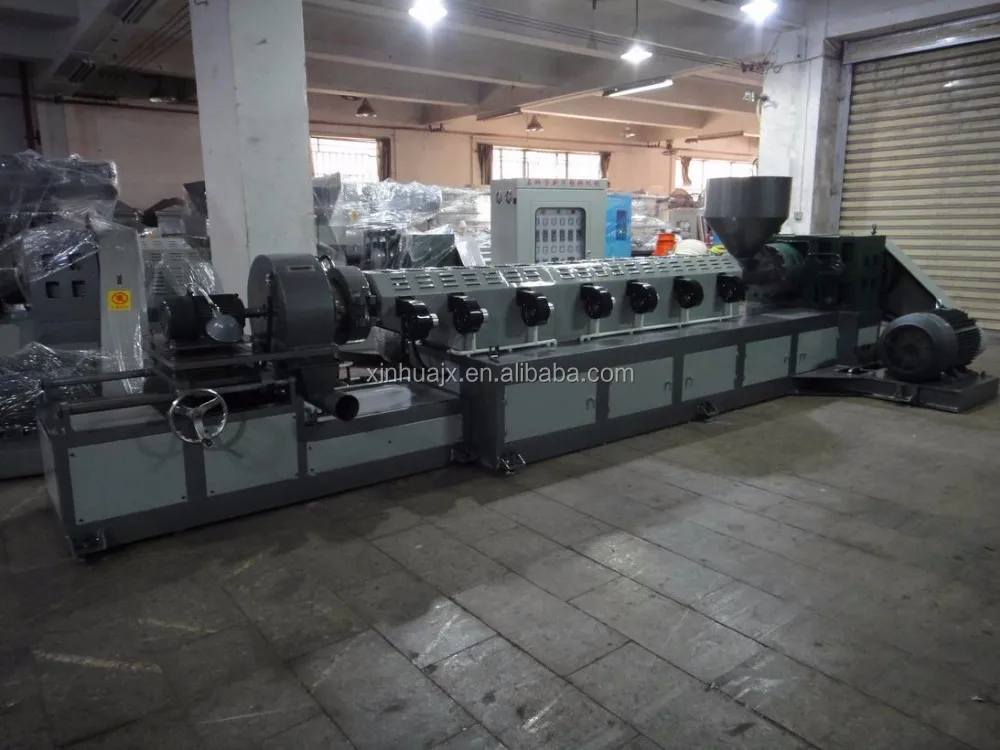

Main extruder
Screw  dia
Φ120mm
Screw Speed
0-50r/min
Main motor power
45-4kw (with inverter)
Cutter motor power
2.2-4kw (with inverter)
Heat power
16kw
Gear box
oil bath lubrication,hardened gear reducer
Cutting system
air cooling
Auto thermo control
10 zones
Screw/barrel material
38CrMoAIA nitriding
 Barrel cooling system
air cooling
Granule diameter
3-5mm
Output
250kg/h
Overall dimension (L*W*H)
4550*1200*1720mm
Weight
2000kg
2

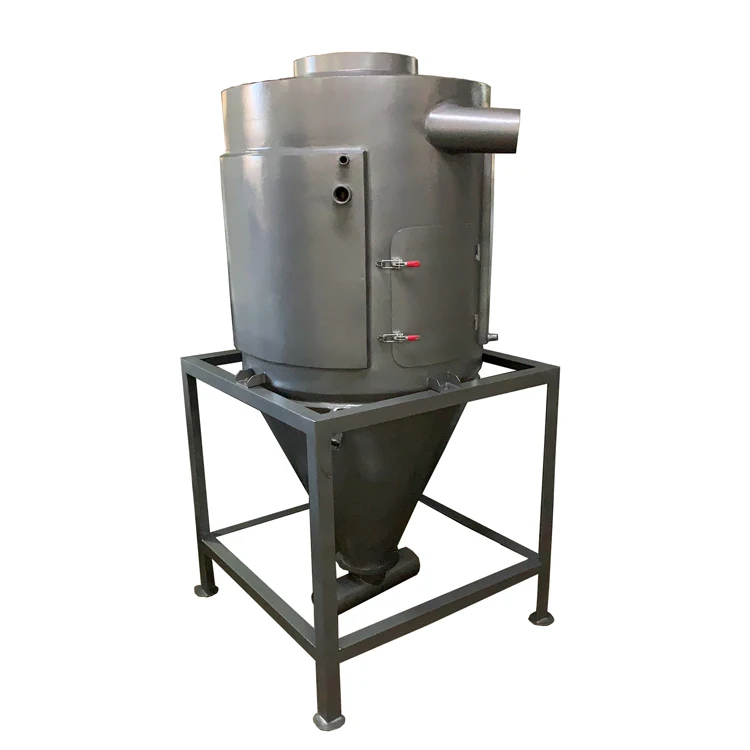

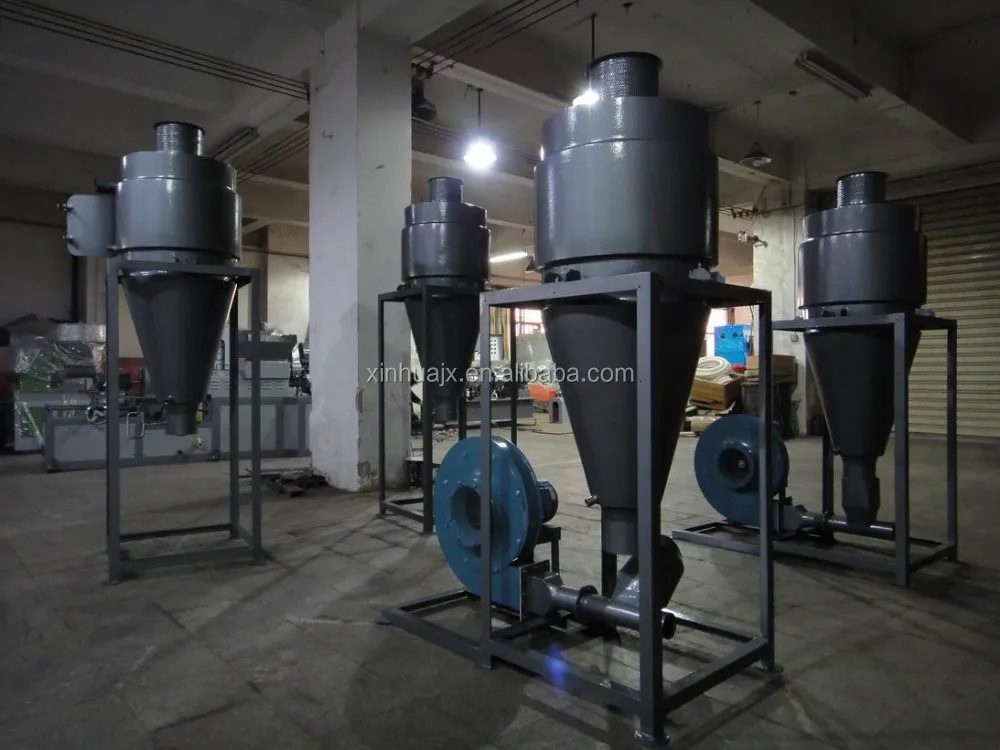

Whirlwind cooler
Cooling tank diameter
Φ750*3sets
material
Stainless steel
3

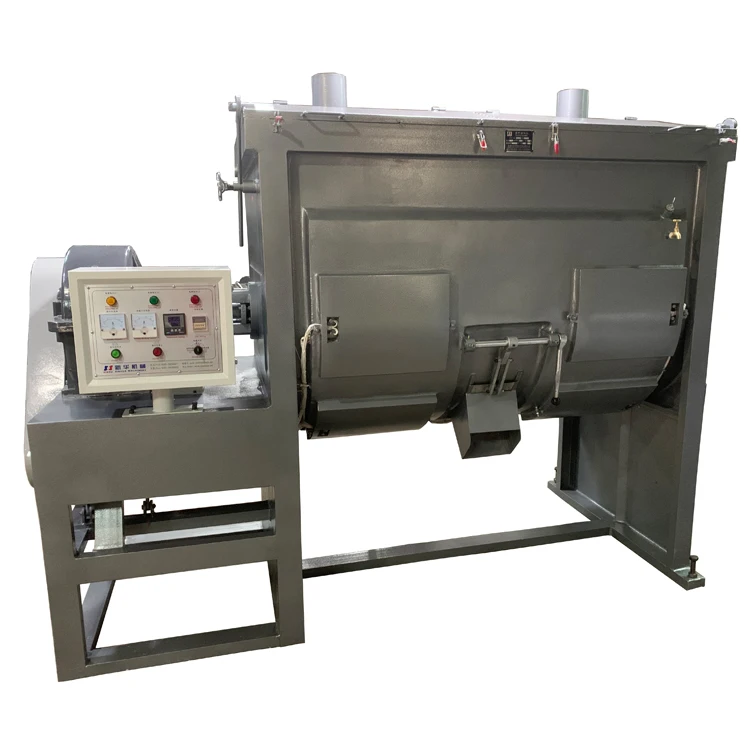

Blender
Capacity
500L
Spindle speed
12r/min
Motor power
7.5kw
Heating power
10kw
4
Air machine
Motor power
3kw
Screw speed
2880r/min
5
Air machine
Motor power
4kw
Screw speed
2880r/min


Product Show






Packing & Delivery


Packaging
Size
7.0*2300*2300
Weight
3.2T



Packaging Details

For the full container, it's usually nude packing. (with pe film)

Wooden packing is also acceptable.


Company Show




Certifications




Exhibition




Why Choose Us


1, XINHUA MACHINERY are a customer-oriented enterprise.
2, Professional techinicians can help abroad installation and training.
3, Multiple patents have been obtained.
4, Solutions offered to meet your requirements.
5, 12 months guarantee of the machine can be offered.
6, Soon reply after getting your inquiry.
