1200*600*6mm Underfloor Insulation XPS Tile Backer Board
US $1.00-$30.00

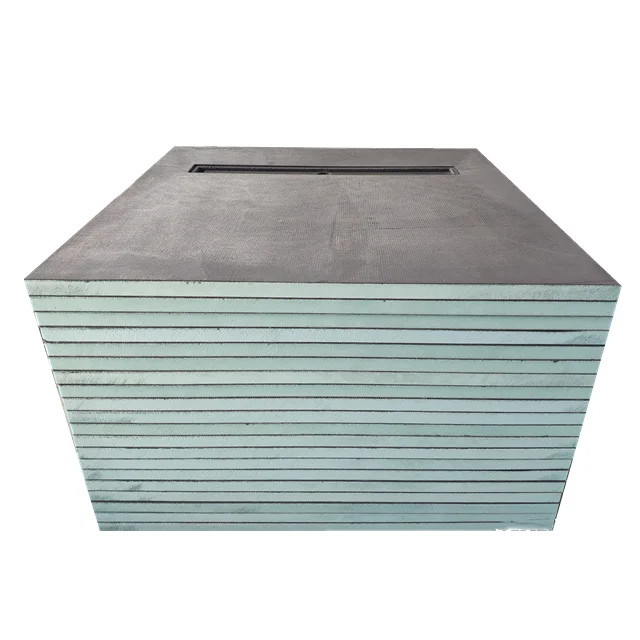

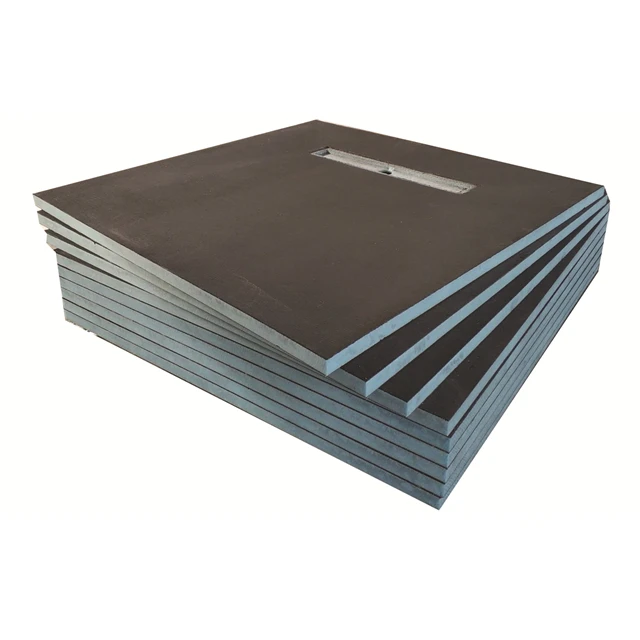

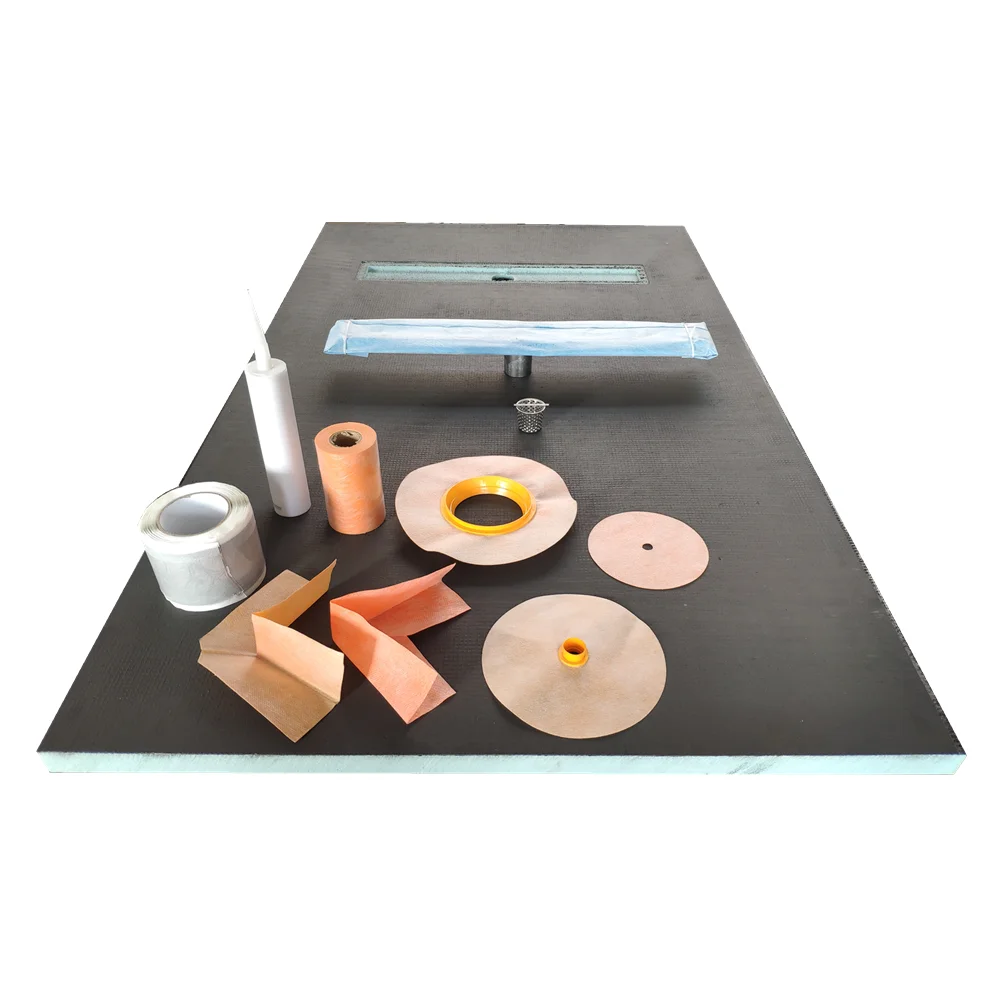

XPS FOAM PERIMETER LINEAR DRAIN SHOWER TRAY, PRE FABRICATED SHOWER PAN, THERMAL INSULATION LIGHTWEIGHT, WET BATHROOM
- Category: >>>
- Supplier: Shandong Blosam New Material Co. Ltd.
Share on (1600614415977):
Product Overview
Description
Product Description

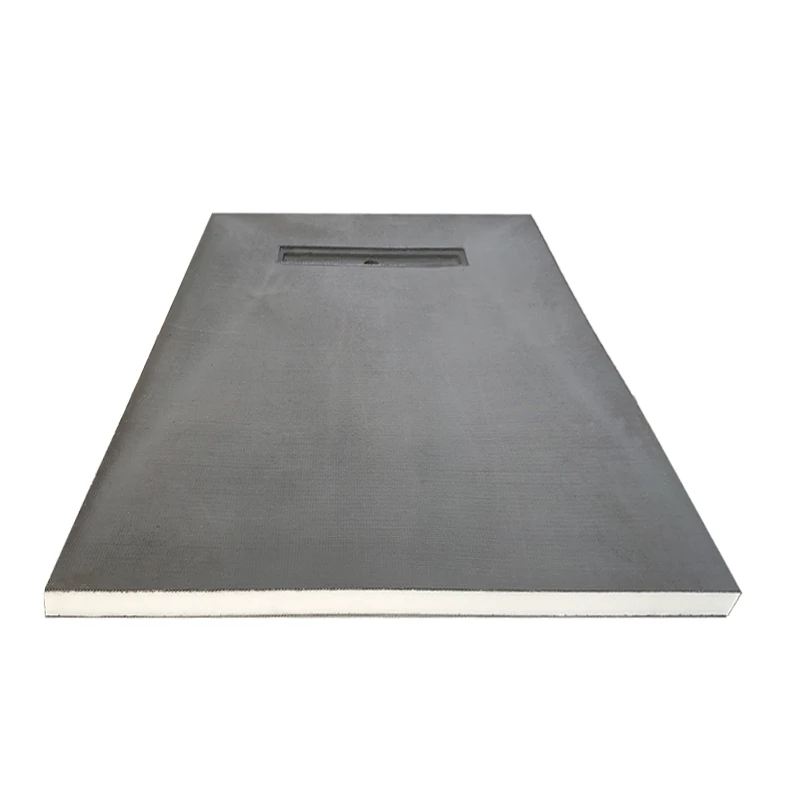

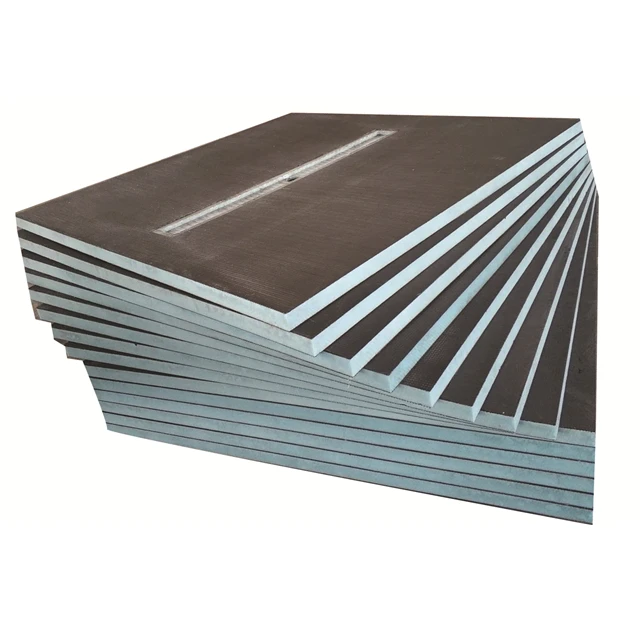

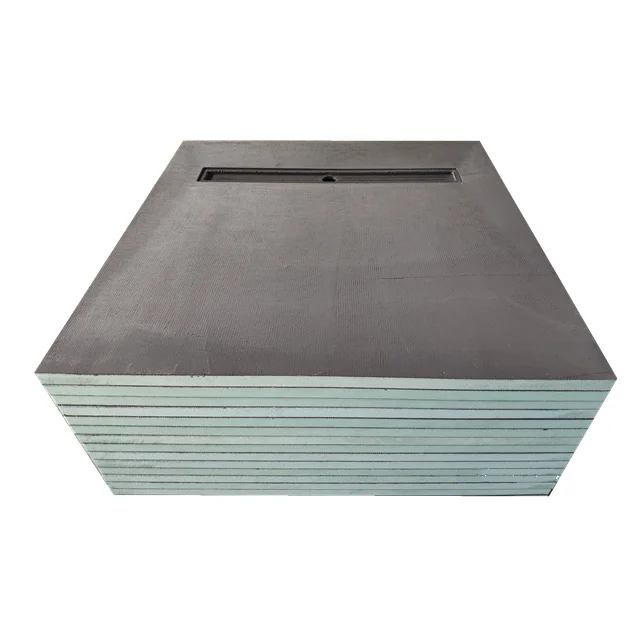

SHOWER TRAY / SHOWER BASE / SHOWER PAN
Blosam shower tray (also known as shower base and shower pan)
Blosam shower tray (also known as shower base and shower pan)
Material and Structure

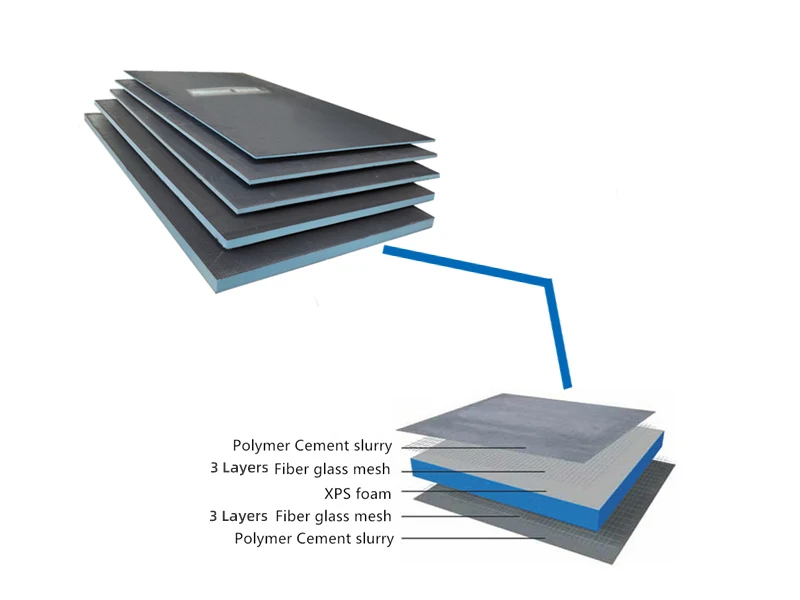

* Blosam shower tray boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising glass fiber mesh embedded in a polymer cement mortar.
* By the way, we use 3 layers fiberglass mesh on each side to increase the strength. It can make the shower tray very stable for standing on it. Besides,coating with the polymer cement mortar make it very solid and rigid.

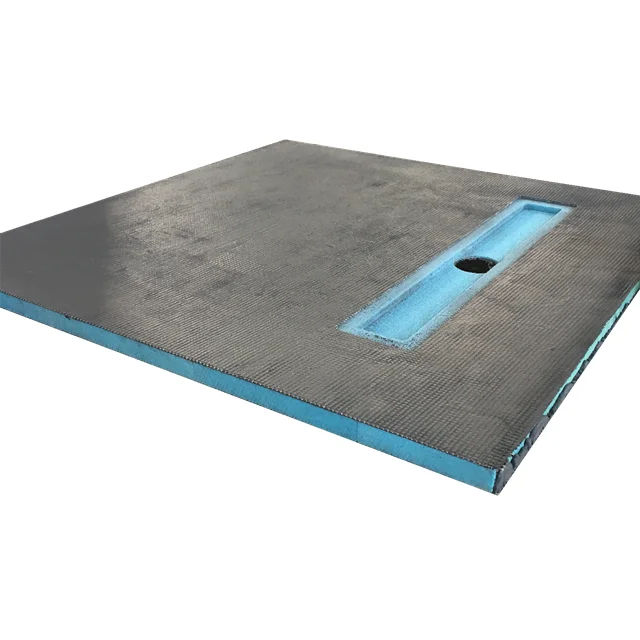

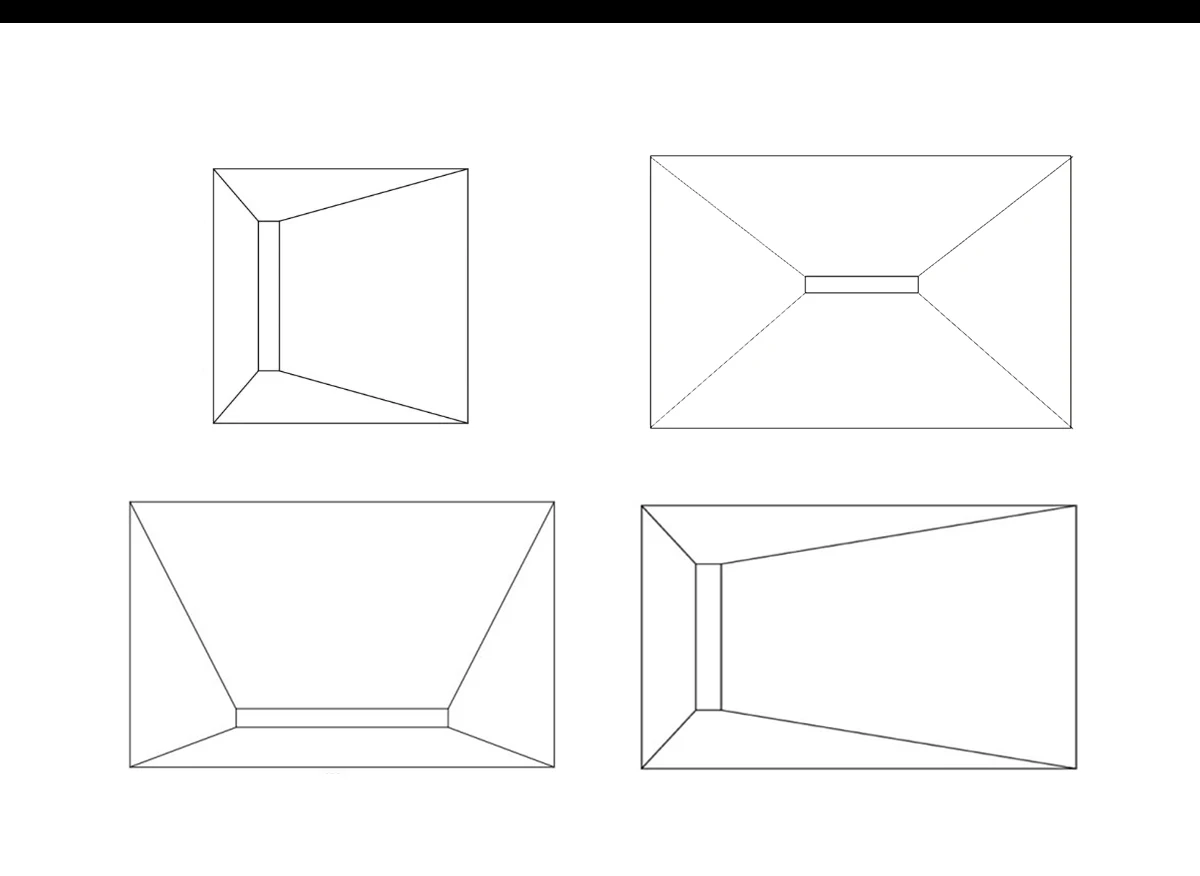

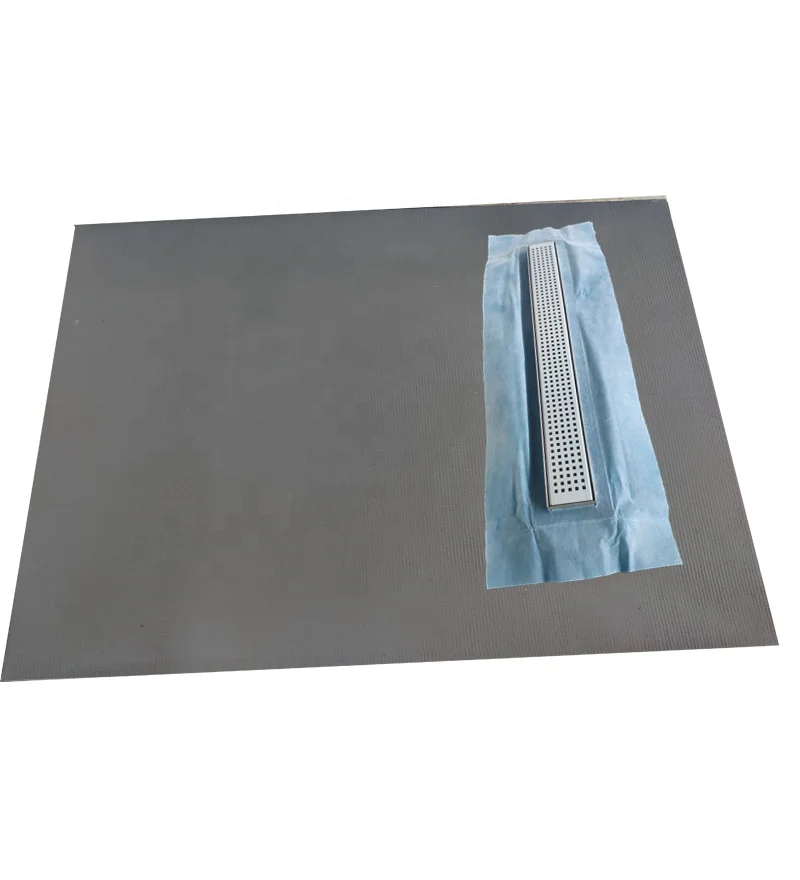

* What’s more, Blosam shower tray has the preformed slope to the drain outlet. The small slope makes big different. It allowed waters flowing along the slope towards the shower drain outlet.
* Blosam shower tray boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising glass fiber mesh embedded in a polymer cement mortar.
* By the way, we use 3 layers fiberglass mesh on each side to increase the strength. It can make the shower tray very stable for standing on it. Besides,coating with the polymer cement mortar make it very solid and rigid.
* What’s more, Blosam shower tray has the preformed slope to the drain outlet. The small slope makes big different. It allowed waters flowing along the slope towards the shower drain outlet.
Feature
1. 100% waterproof, made of HCFC-FREE XPS foam
2. High-rigidity and durability
3. Close bond to any tiling walls or floors

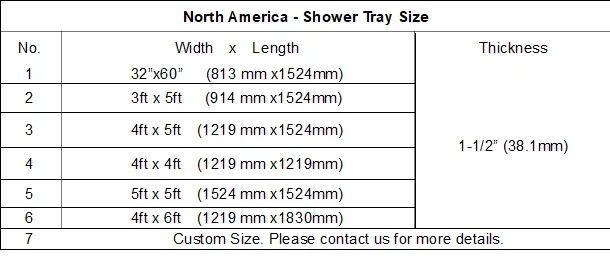

4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
1. 100% waterproof, made of HCFC-FREE XPS foam
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
Outstanding Characteristics
☑ High density and high mechanical strength. Excellent load bearing capacity.
☑ The long-term water absorption is low, almost completely non-absorbent.
☑ Effectively isolate water vapor because of small vapor permeability coefficient.
☑ Excellent thermal insulation effect by small thermal conductivity
☑ Excellent thermal insulation performance under long-term high humidity or water immersion environment. Very suitable for shower room or bathroom.
☑ High density and high mechanical strength. Excellent load bearing capacity.
☑ The long-term water absorption is low, almost completely non-absorbent.
☑ Effectively isolate water vapor because of small vapor permeability coefficient.
☑ Excellent thermal insulation effect by small thermal conductivity
☑ Excellent thermal insulation performance under long-term high humidity or water immersion environment. Very suitable for shower room or bathroom.
Technical Data | Underfloor Insulation Cement Coated Shower Tray |
Property | Ratings |
Density | 36kg/m³ |
Thermal Conductivity | 《0.035 w/ (m*k) |
Compressive strength (10% deflection) | Minimum of 0.25 N/m㎡ |
Flextural strength | 2.05N |
Water absorbtion(2-day immersion) | 《1% |
Water absorbtion(Capillary) | Zero |
Water vapor diffusion resistivity (∪) | 110-225u |
Water vapour permeability | 0.028ng/pa.m.s |

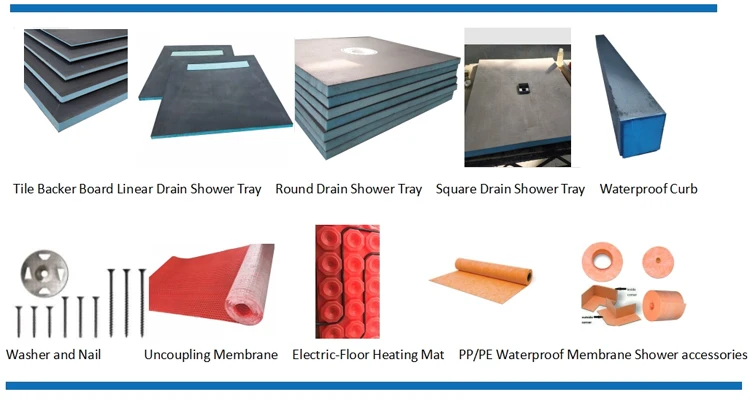

Related Products

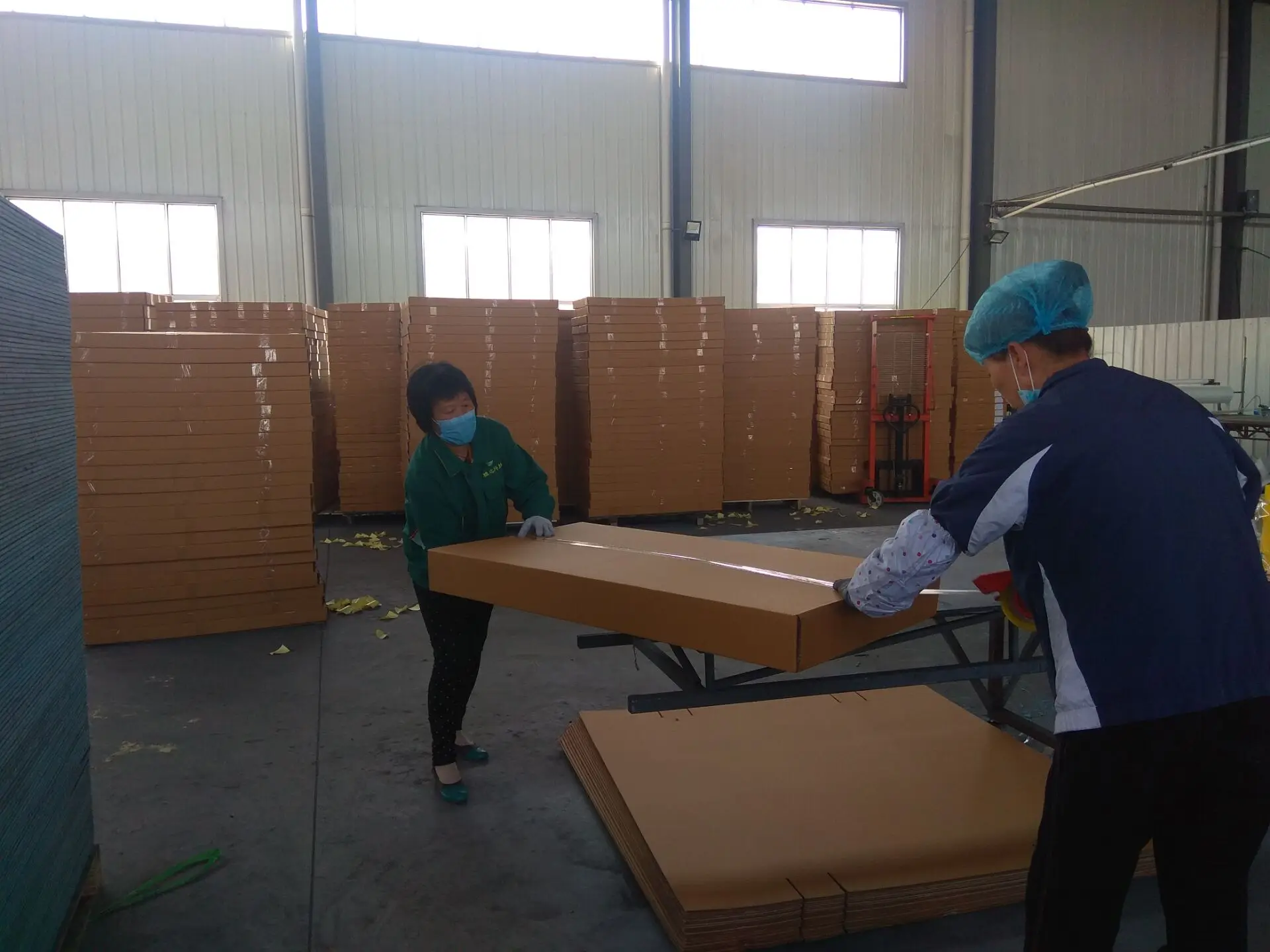

Product packaging
FAQ
Underfloor Heating Insulation Cement Coated Tile Backer Board 6mm
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
1. Could you develop some certain product with tile backer board and shower tray for us?
Answer: Yes, we have strong R&D Capability, we are welcome you to discuss the new idea with us.
2. Do you have any product certification for your tile backer board and shower tray ?
Answer: Our Shower system have certain CE Certification, also our certain product tested in USA with good performance in TCNA and
IAPMO. If you need the SINTEF OR SONAP, we could apply the certification together.
3. How is your production time ?
Answer: Normally it take 15-25 days and it vary according to the product quantity.
4. How many countries and areas have your product shipped?
Answer: We have shopped our shower system to United States, United Kingdom, Ireland, Canada, Russia, Netherland, Nigeria, Sweden,
Republic of Lithuania etc.
5. Do you provide OEM/ODM service?
Answer: Yes, we could produce the product with private labeled.
ATTENTION
Fixing
Choose a way to fix our boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid
concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel
frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
