better than expanded polystyrene foam board xps board

better than expanded polystyrene foam board xps board

Category: XPS Boards >>>
Supplier: Zhejiang Shield Energy-Saving Insulation Materials Co. Ltd.

Price:

Quantity:

Product Overview

Description

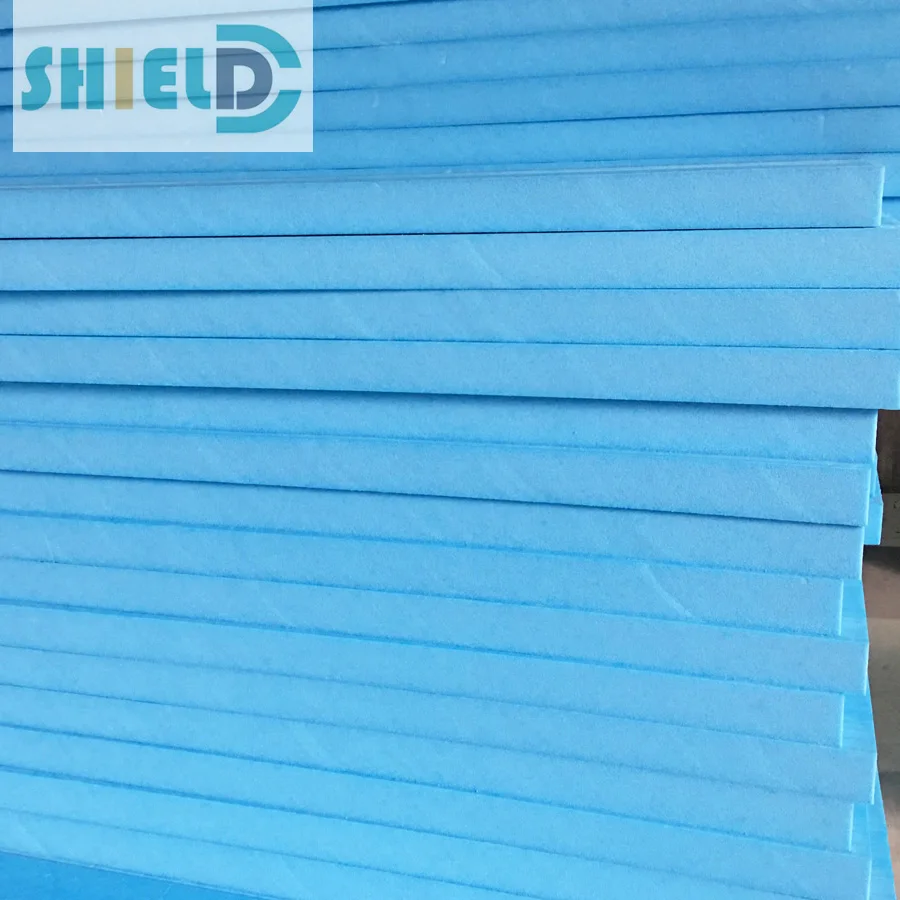

Extruded polystyrene (XPS) insulation board

wedi quality xps foam board building construction material is made from polystyrene resin and small amount of additives through heating and extruding system. It is a rigid foam with honeycomb structure. Owing to its 100% closed cell structure, it is highly moisture resistant and waterproof. xps foam board are widely used in wall insulation, inverted roof insulation, construction of concrete roof and structure of roof, flooring insulation, cold room construction, ground frost control under express highway, low temperature storage facilities, parking platform, airport runway, as core material of sandwich panels and other areas of moisture-proof inexpensive decoration industry material.

Main Characteristics

1.High Compressive Strength
2.Water-resistant
3.Excellent Thermal Insulation
4.Dimensional Stable
5.Light Weight
6.Resistant to deformation
7.Recyclable
8.Long Service Life
9.Anti-microbial Corrosion, Anti-chemical corrosion, Anti-aging
10.Green environmental protection, energy-saving, non-toxicity

Certificate

CE / ITS/ SGS / ISO9001 / ISO14001

Technical Data Sheet

Density	Kg⁄M³	35-50
Thermal conductivity,90 days ,10°c	W⁄MK	0.028-0.030
Compressive strength at 10% deformation	Kpa	150⁄200⁄300⁄400⁄500⁄600⁄700
Water Vapor Permeability	Ng/<m.s.Pa>	≤3.0
Water absorption	Vol- %	≤1.0
Dimensional Stability	%	≤1.0
Working temperature	°c	–50°c to 75°c

Size

Thickness	Width	Length
6–10mm	600mm	1200mm
10–20mm	600–1200mm	1200-2400mm
20–40mm	600–1320mm	1200-11700mm
45–60mm	600–1200mm	1200-11700mm
70–140mm	600mm	1200-11700mm
