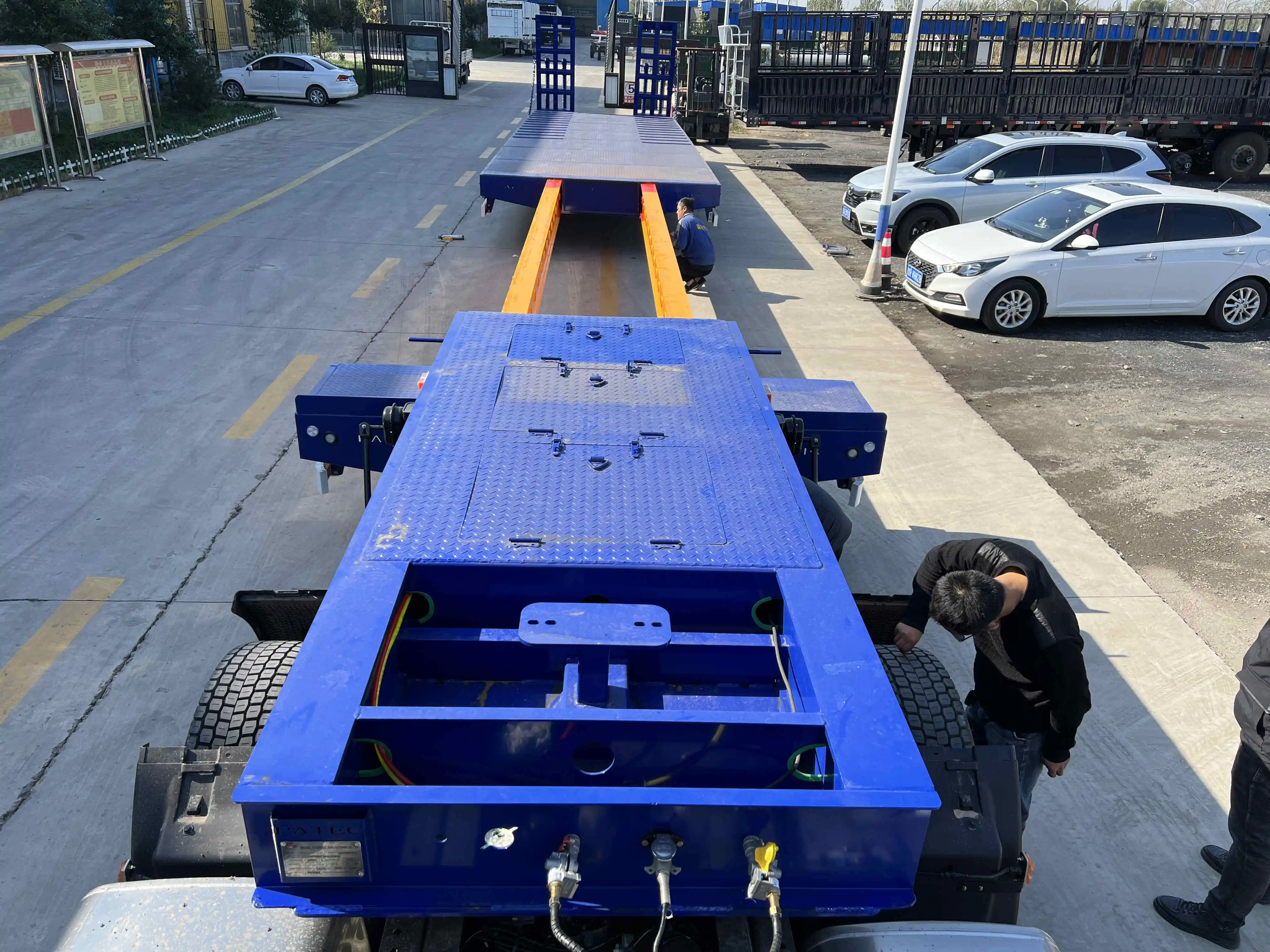

Hydraulic Extendable 80 Tons 4Axles Low Loader Heavy Duty Excavator Transport Step Drop Deck Lowboy
- Category: >>>
- Supplier: Jianxing Green Cattle International(Shandong) Co. Ltd.
Share on (1600614489015):
Product Overview
Description
General | ||||||
Overall Dimension | 11960mm*3000mm*1750mm | |||||
Flatbed Dimension | 8000mm*3000mm | |||||
Tare Weight | 10630kg | Pay Load | 80ton | |||
King Pin Setting | 450mm | Rear Overhang | 1870mm | |||
Wheel base | 7650mm+1305mm+1305mm | Loading Surface Height | 1320mm | |||
Track | 2160mm | |||||
Running Gear | ||||||
Suspension | 4-axle 10-pcs leaf spring suspension with equalizer beam | |||||
Tires | 311.00-20, 11.00R20,12.00-20,12.00R20 16units | |||||
Axles | FUWA, BPW axle, 13T capacity | |||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
Under Frame | ||||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||||
Cross Beam | Mild Alloy Q235, 16# channel beam | |||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||||
Flatbed Floor | Checkered sheet, thickness 4mm | |||||
Rear Ladders | Spring power-assisted | |||||
Electrical & Paint | ||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
Wiring | 24V, 6 lines | |||||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||||
Paint | Sand blasting before painting, color upon request | |||||
Product Show

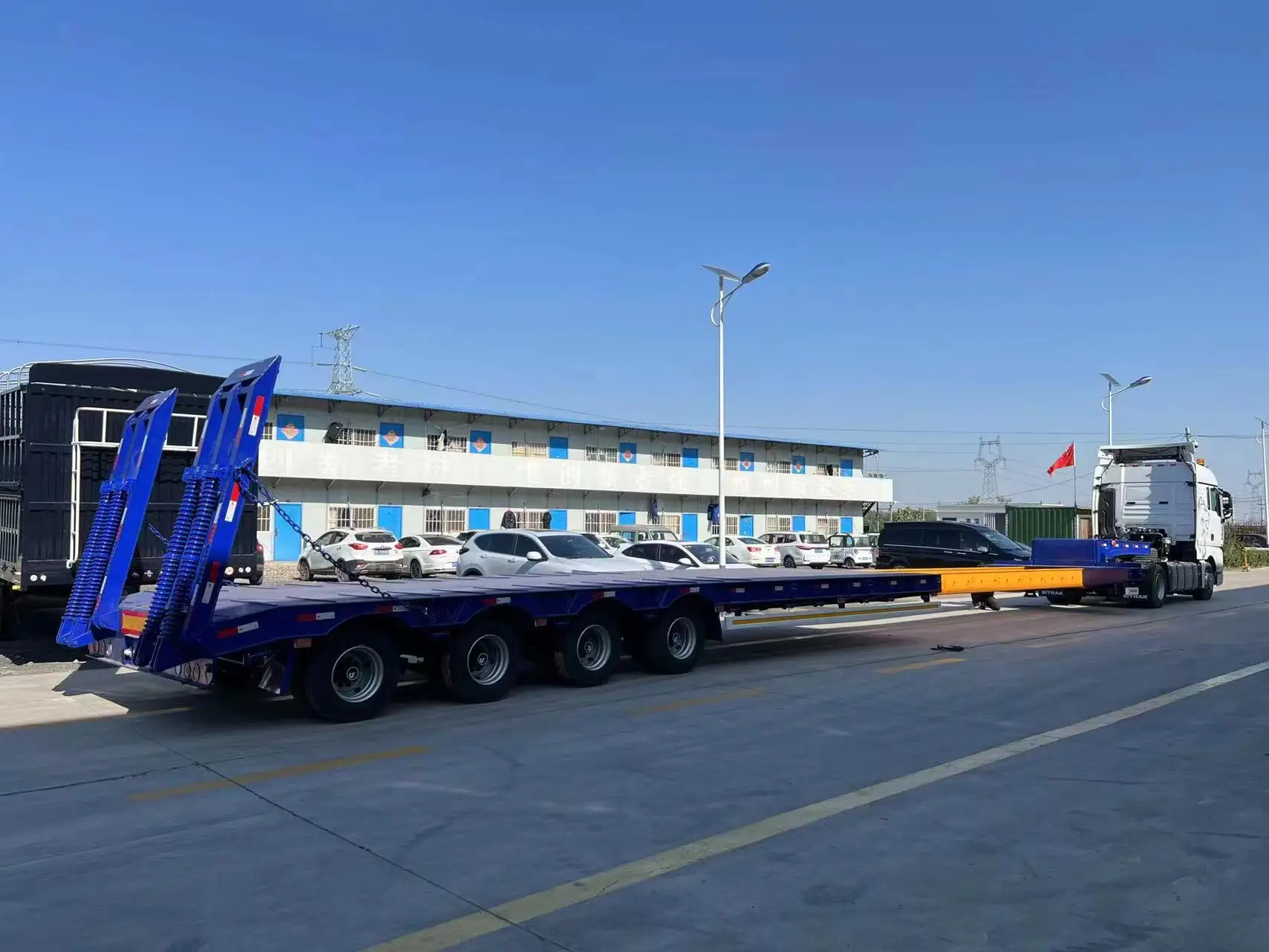

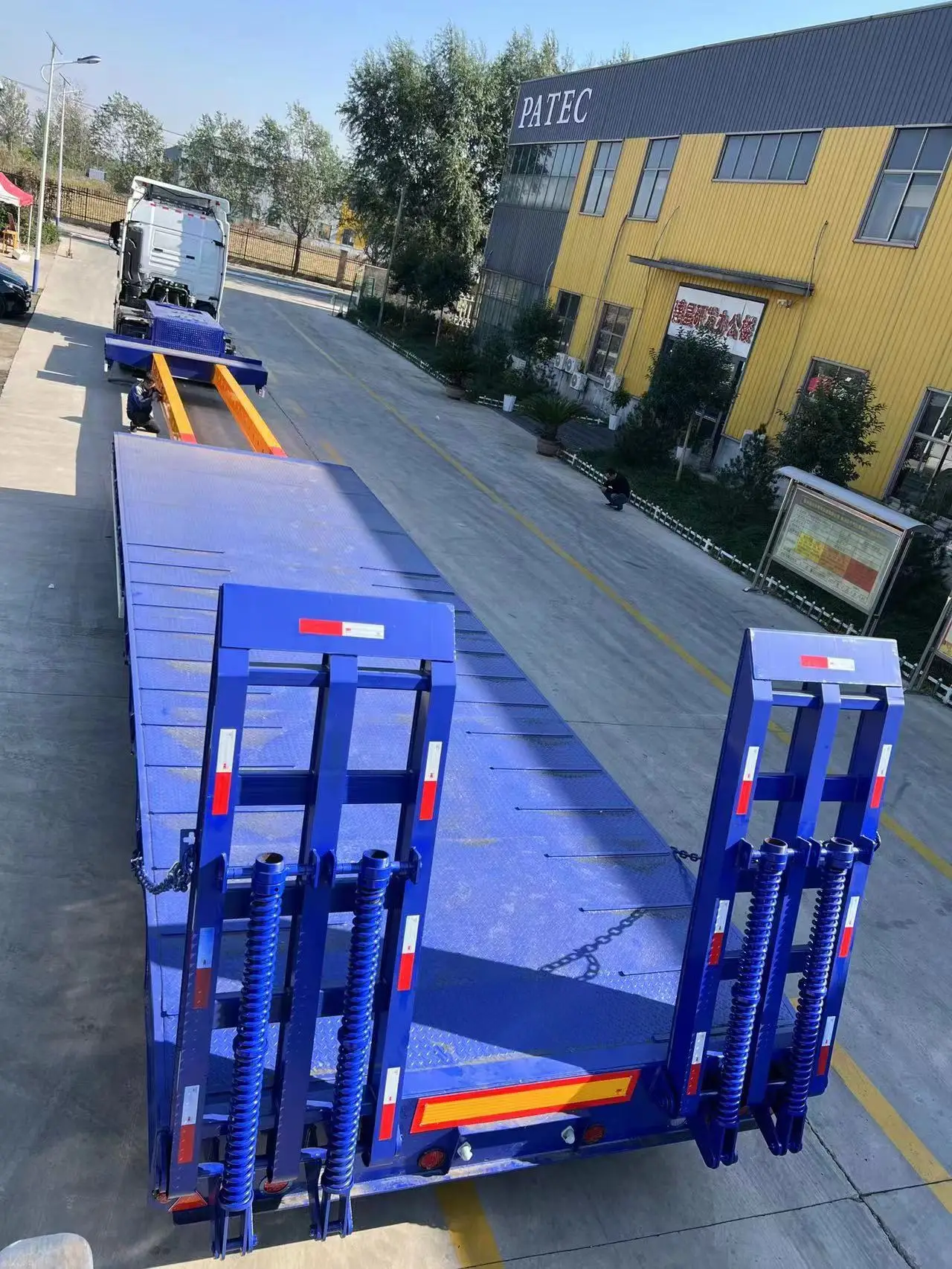

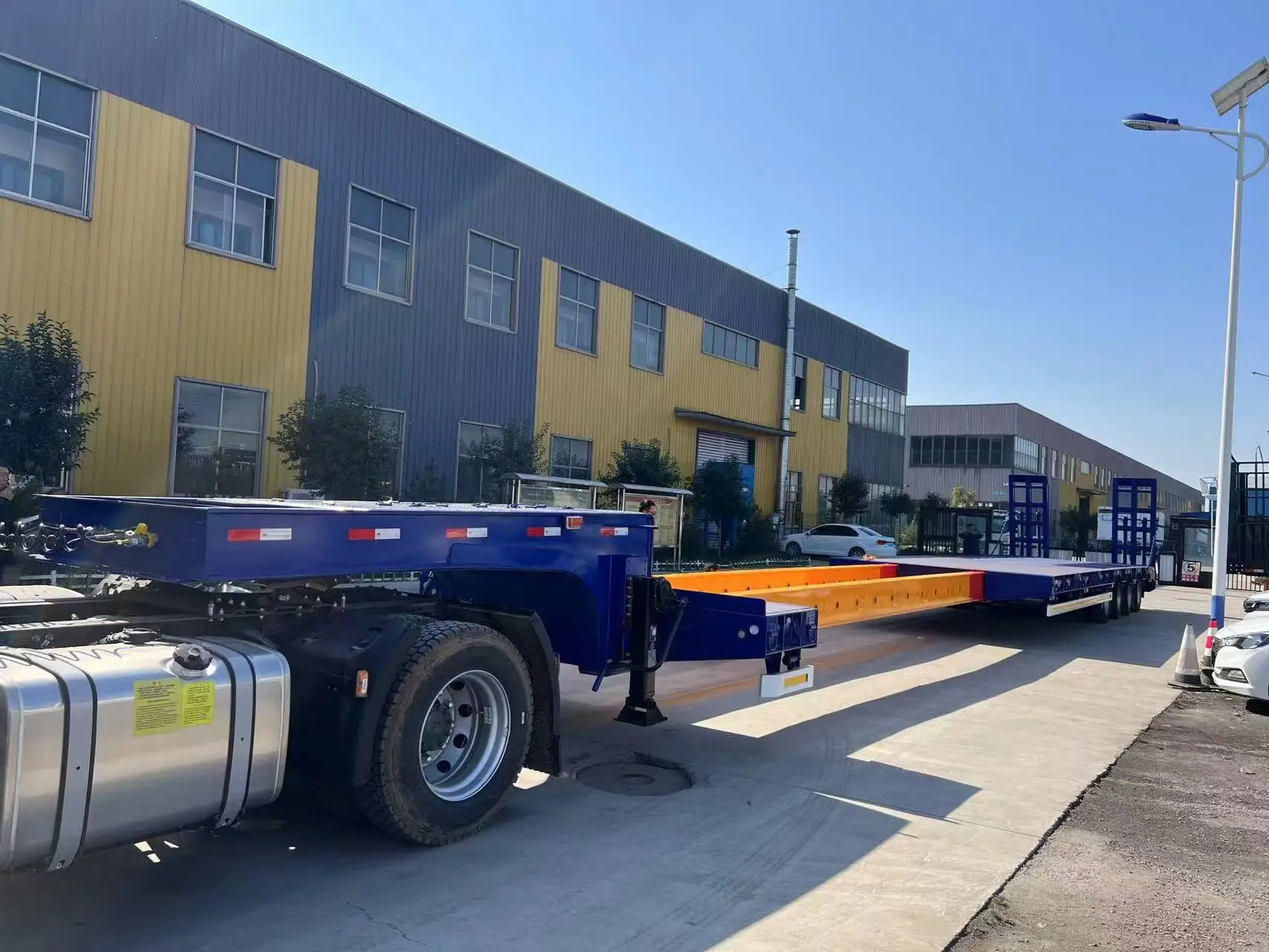

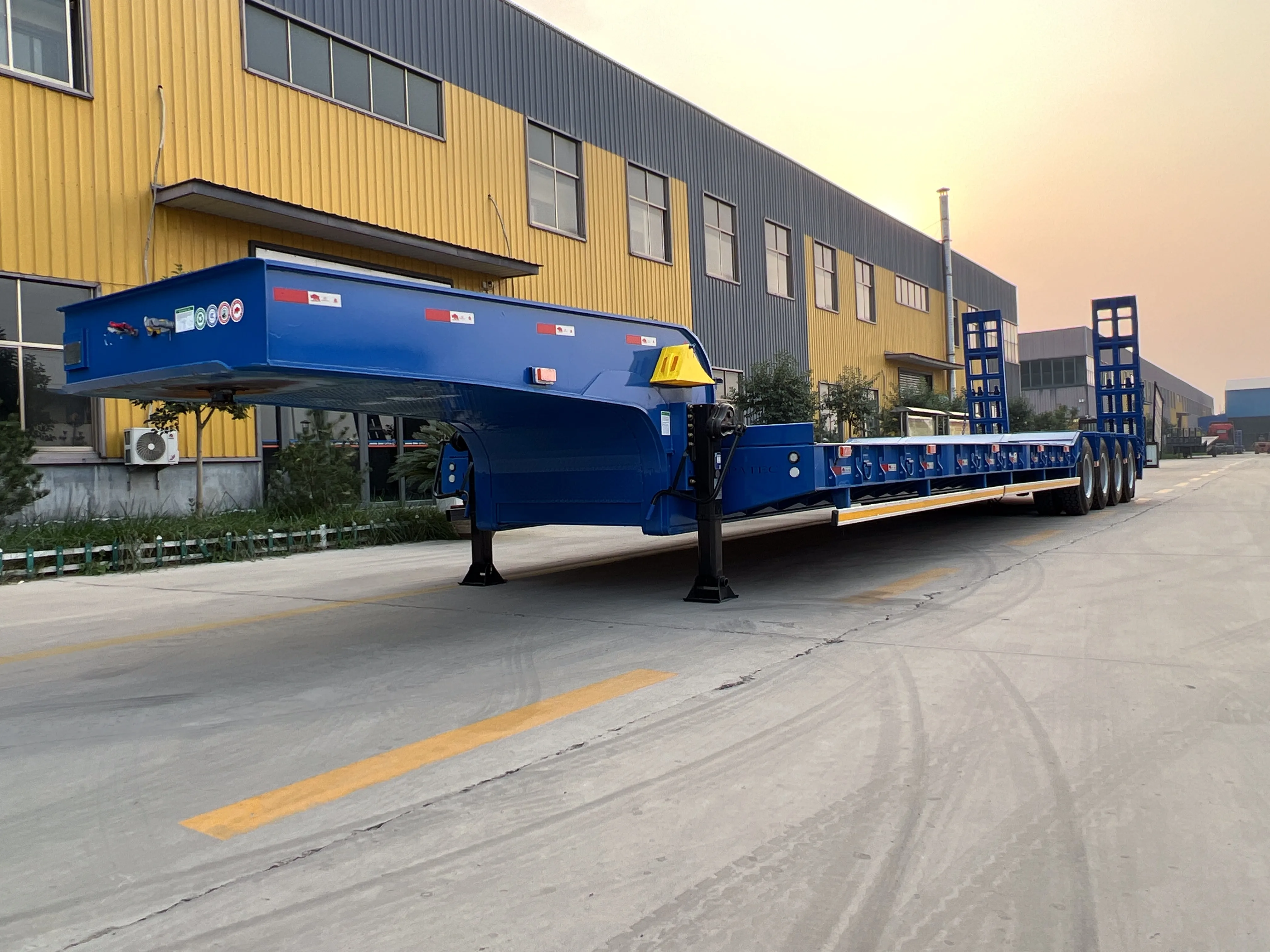

4 Axles Low-bed Semi-trailer
Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
Tell me your demand, we recommend suitable trailer professionally. Make business easy!
Details Images
Main Beam
Suspension
Axle

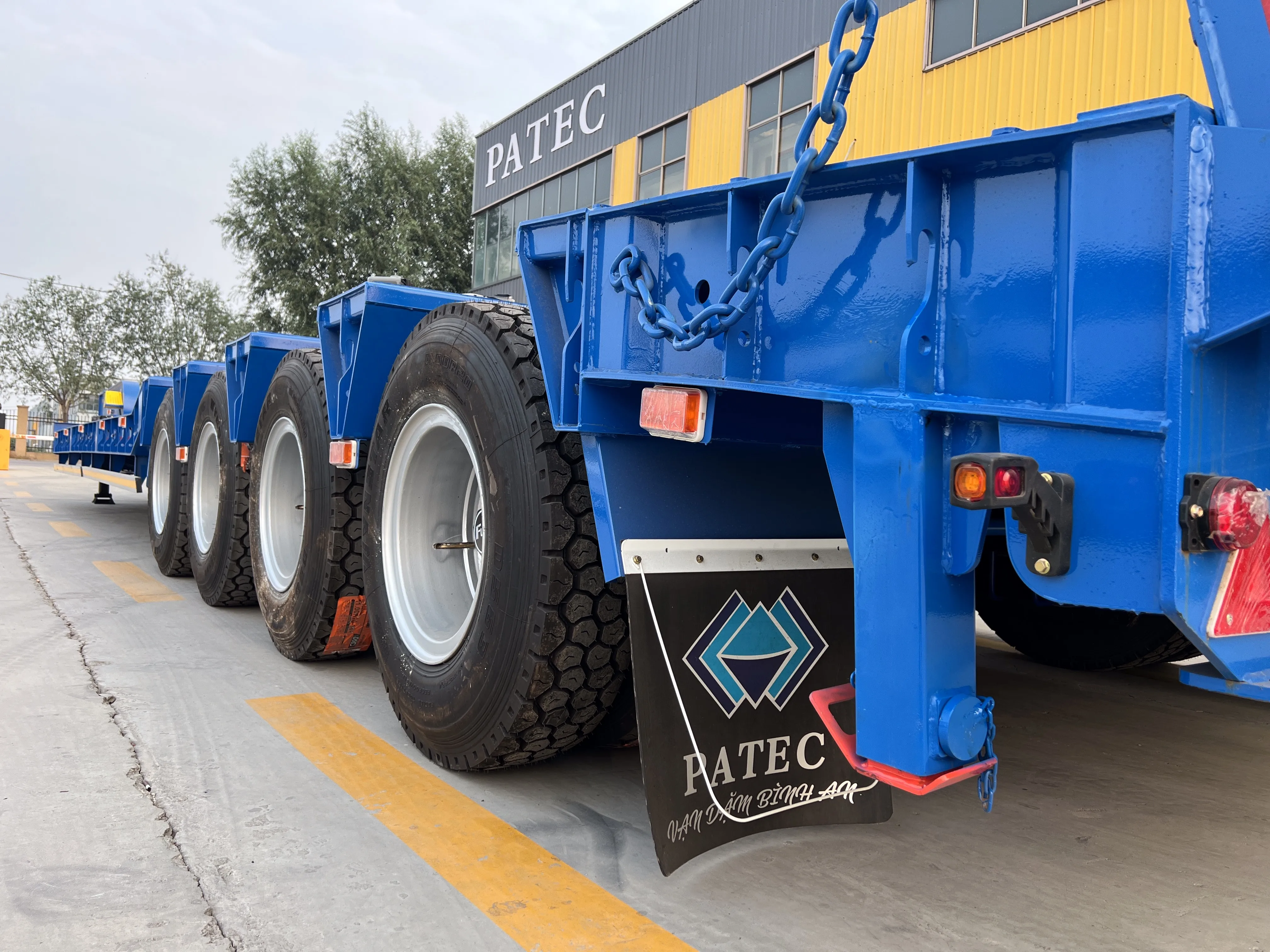

Tire
King Pin
Landing Gear
Main Products

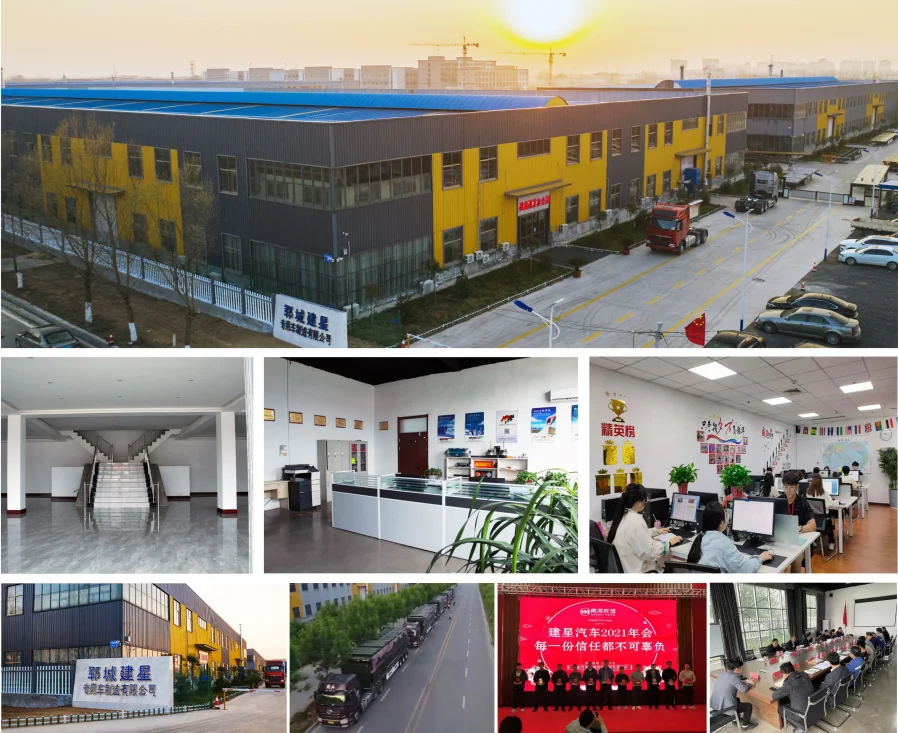

Company Profile
Jianxing Green Cattle International Co. Ltd, a professional customizable manufacturer of semi-trailers.After nearly 20 years of development, our factory has now become a manufacturer trading company.
Our factory mainly produces and sells skeleton semi-trailers, flatbed semi-trailers, and low flatbed semi-trailers, with more than 40 kinds of products. Our factory has dozens of senior technicians and several senior managers to escort the production process. In the product process, we have an advanced spray-baking integrated process to create products with beautiful appearance and first-class quality. We have our own quality inspection department, product quality can be guaranteed.Our company has been certified by the third-party authoritative organization SGS, and the company's products are exported to Southeast Asia, Central Asia, the Middle East, Africa and other parts of the world. We have our own overseas after-sales service department to solve your after-sales service problems, so that you can buy without worried.
Welcome customers from all over the world to visit and cooperate！
Our company is led by a professional manager who have been in the same industry for more than 15 years. So we have a perfect training mechanism, perfect foreign trade process, reasonable risk aversion rules, rich foreign trade business experience. The company' s philosophy is concentric share with win-win, grateful for you and the service attitude is every trust must not be disappointed. Welcome partners from all over the world to visit and negotiate business with us.
Our company is led by a professional manager who have been in the same industry for more than 15 years. So we have a perfect training mechanism, perfect foreign trade process, reasonable risk aversion rules, rich foreign trade business experience. The company' s philosophy is concentric share with win-win, grateful for you and the service attitude is every trust must not be disappointed. Welcome partners from all over the world to visit and negotiate business with us.

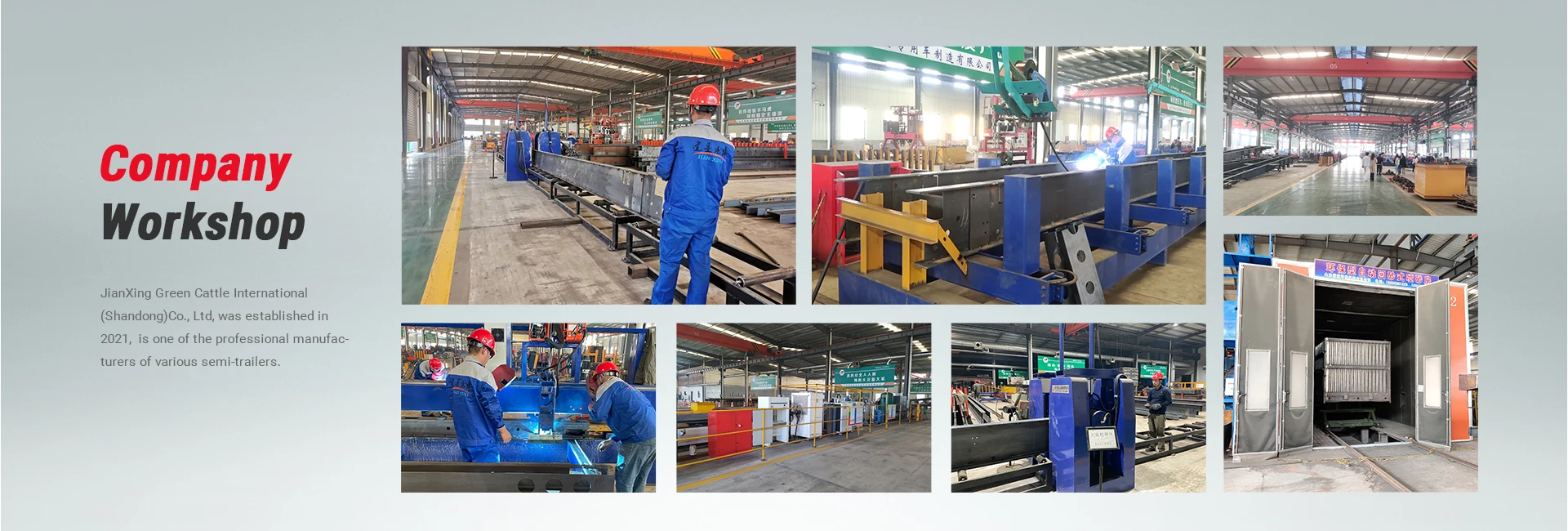

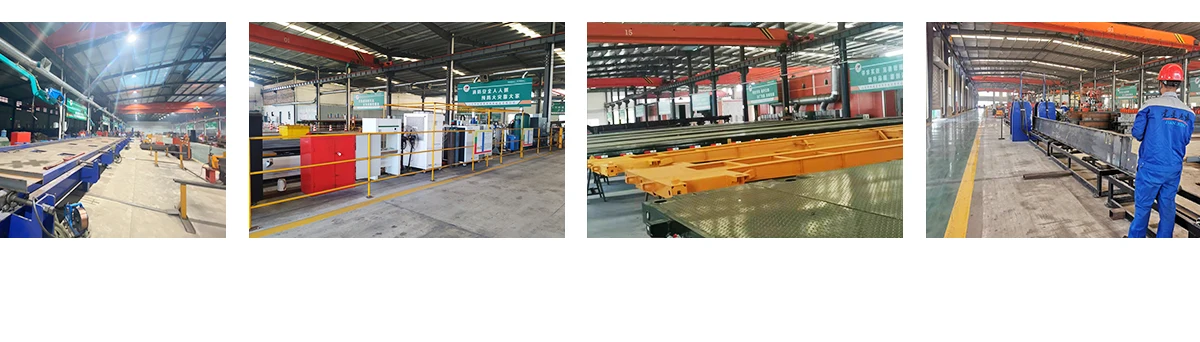

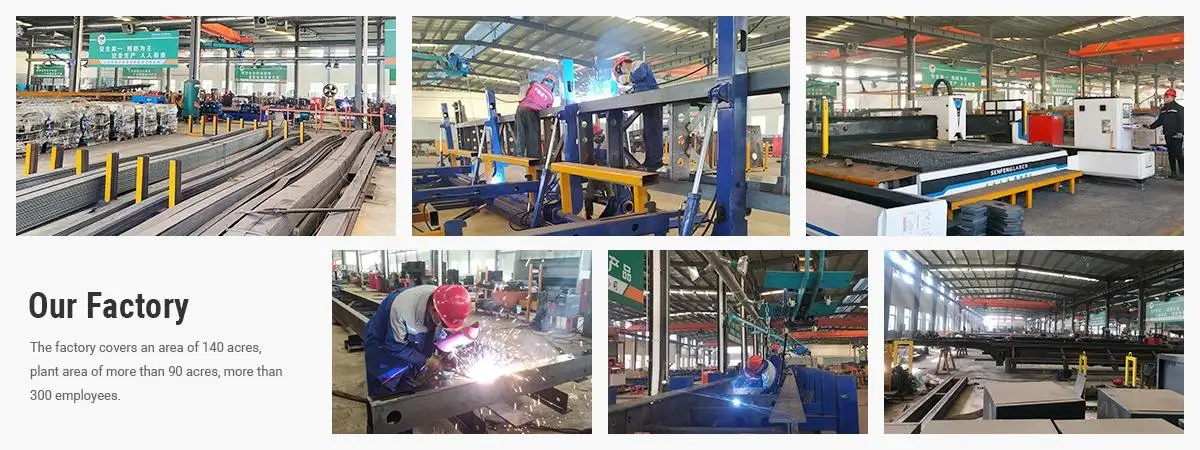

Our Factory
Product packaging
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
3 sets stacked, and the whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ
Certification
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believeyou?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement. 6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
