Heat resistant asbestos Graphite Square Packing with Lubricated for sealing

Product Overview

Description

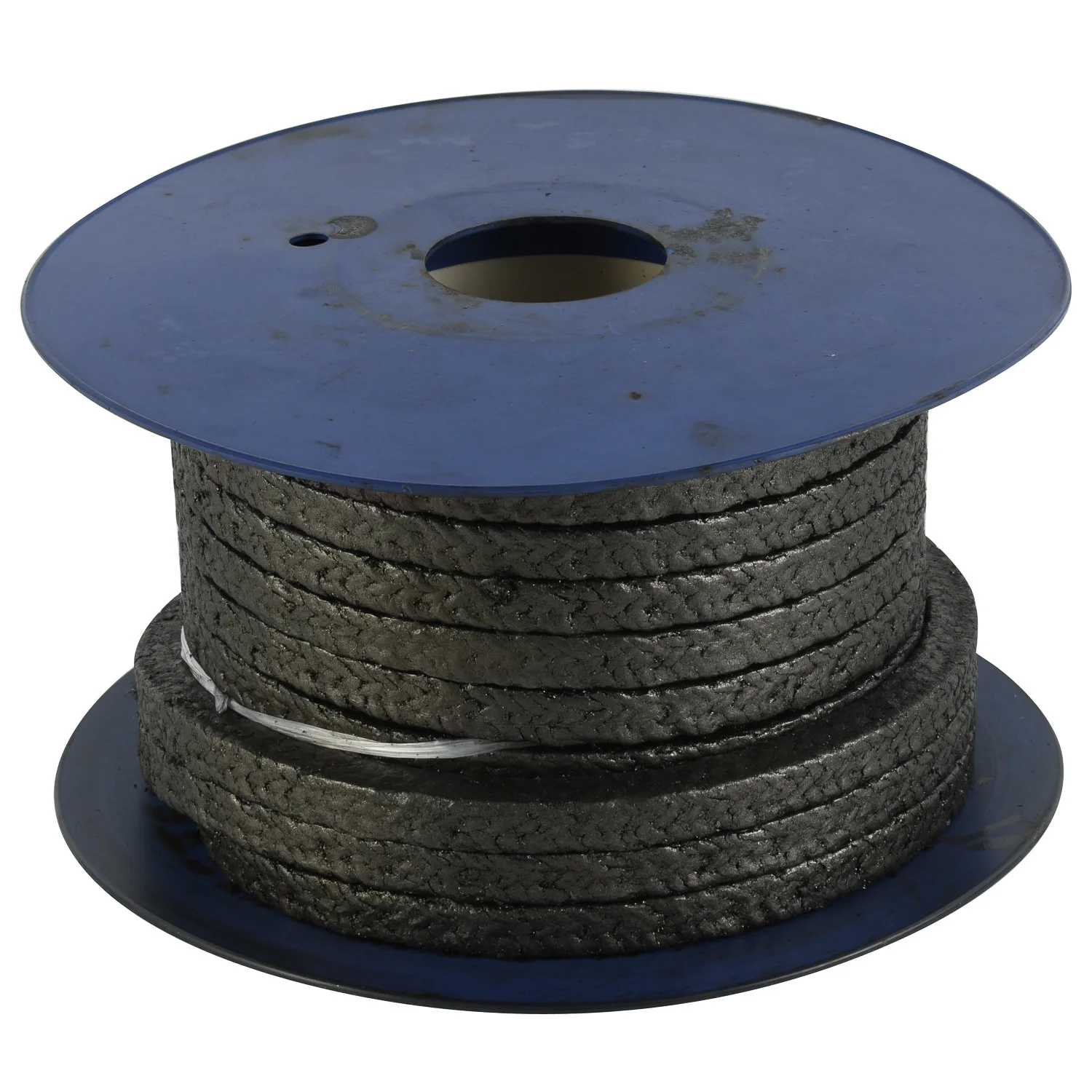

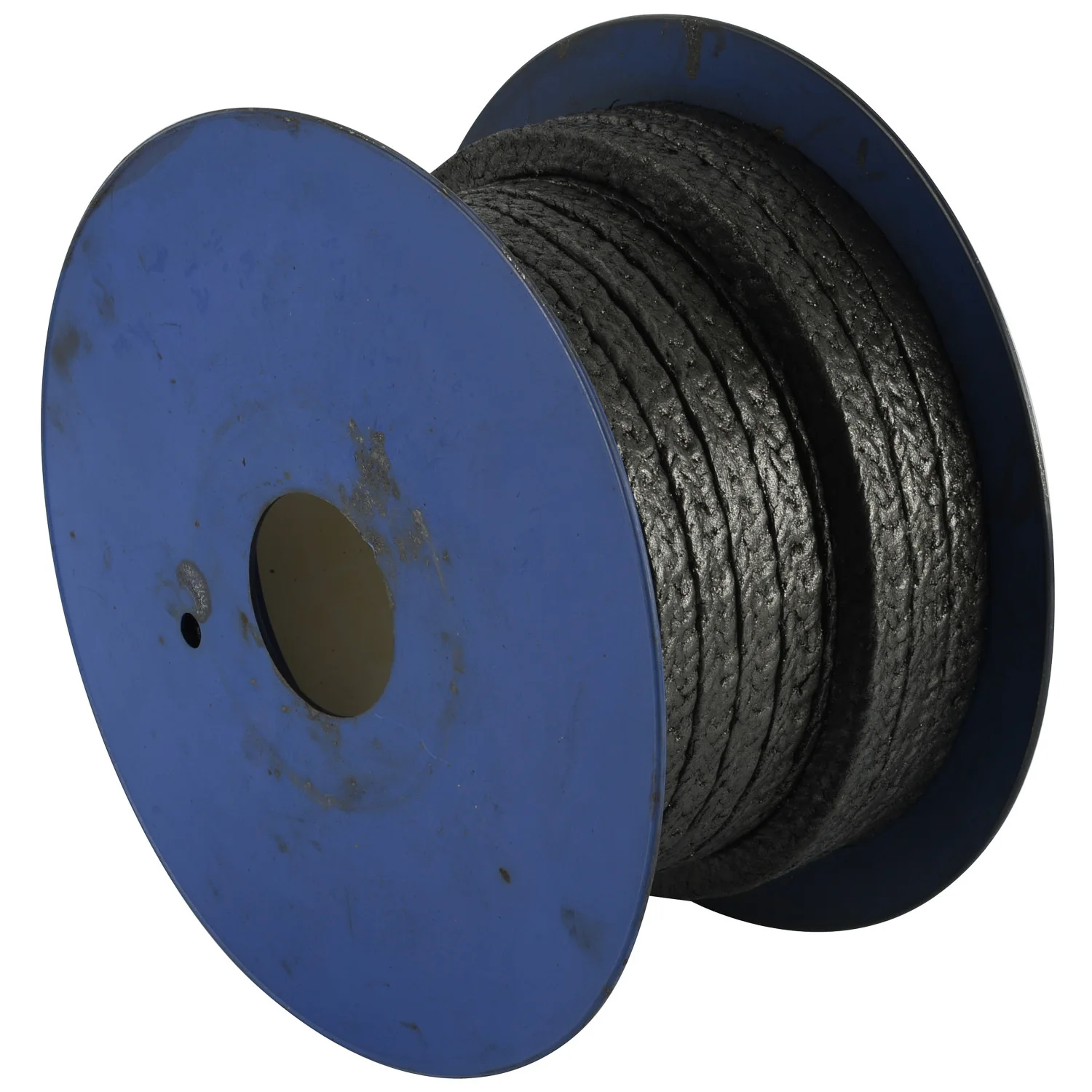

 Rock wool Packing,Lubricated & Graphited



Features:
1) This is a kind of packing material made by rock wool yarns, treated with lubricant
and graphite
2) Used in pumps and valves. The working mediums are steam, air industrial water,
and petrol oil
3) The packing with metallic (copper wire, stainless wire) also available

Specifications:
1) Pressure: 2MPa in centrifugal pumps, 2MPa in piston pumps, 15MPa in valves
2) Temperature: <300°C
3) Linear speed: 4m/s in centrifugal pumps, 1.5m/s in piston pumps, 2.5m/s in valves
4) PH range: 4 - 10
5) Thickness: 3.0 - 50mm



Temperature	<300°C
PH range	4 - 10
Thickness	3.0 - 50mm

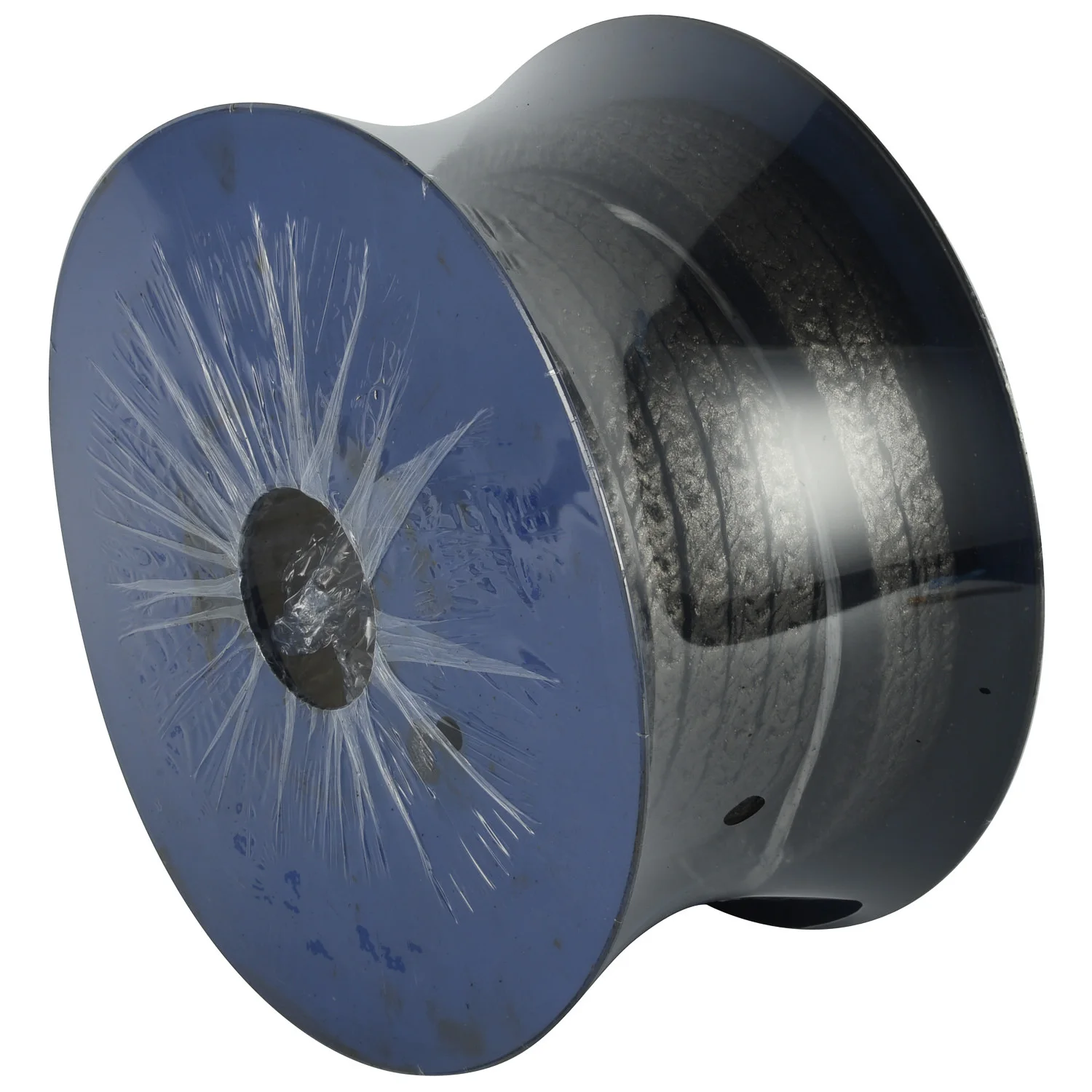

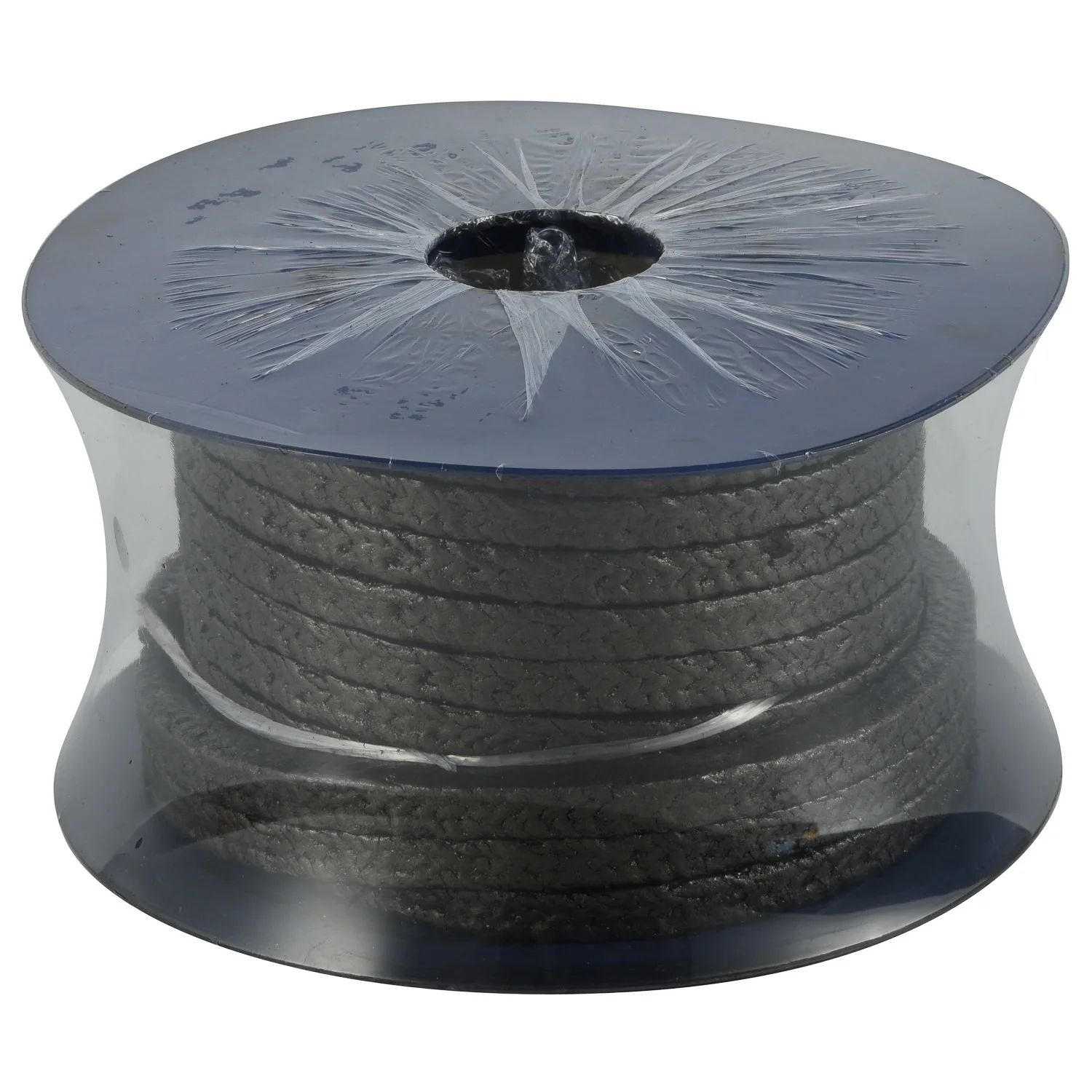

Packing:
Carton
N.W.: 20kg
