Single Eye Heavy Duty Pulling Grips For Overhead Cabling Wire Pulling Sock
- Category: Cable Clips >>>
- Supplier: Jiangsu Maxdao Technology Limited
Share on (1600614959199):
Product Overview
Description
Product Description
Heavy Duty Pullling Grip--single eye
* Pulling Grips have either single or double eye for attaching to the pulling rope.
* The correct pulling grips eases low and high voltage cable pulling into ducts, trenches and conduits.
* Provide an efficient method for cable installation and support within their load carrying capacity.
* The correct pulling grips eases low and high voltage cable pulling into ducts, trenches and conduits.
* Provide an efficient method for cable installation and support within their load carrying capacity.
Specification
Part Number | Cable Diameter | Eye Diameter | Mesh Length | Approx Break Strength |
CS0613 | 0.25-0.52"(6.3-13.2mm) | 3"(76.2mm) | 9.0"(228.6mm) | 1680 lbs. |
CS1319 | 0.53-0.74"(13.4-18.8mm) | 3"(76.2mm) | 14"(355.6mm) | 2240 lbs. |
CS1925 | 0.75-0.99"(19.0-25.1mm) | 4"(101.6mm) | 16"(406.4mm) | 5600 lbs. |
CS2538 | 1.00-1.49"(25.4-37.8mm) | 6"(152.4mm) | 18"(457.2mm) | 7840 lbs. |
CS3850 | 1.50-1.99"(38.1-50.5mm) | 8"(203.2mm) | 21"(533.4mm) | 11200 lbs. |
CS5063 | 2.00-2.49"(50.8-63.2mm) | 10"(254.0mm) | 24"(609.6mm) | 11200 lbs. |
CS6389 | 2.50-3.49"(63.5-88.6mm) | 12"(304.8mm) | 27"(685.8mm) | 13440 lbs. |
CS89115 | 3.5-4.50"(89.0-114.3mm) | 12"(304.8mm) | 27"(685.8mm) | 15680 lbs. |

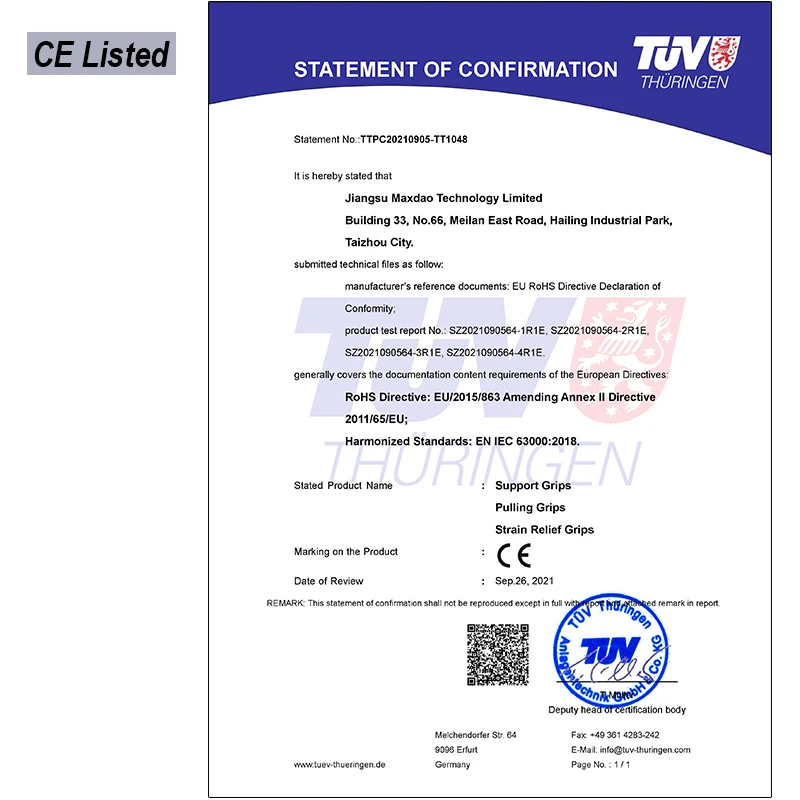

Product Certificates
CE
RoHS
Recommend Products
Company Profile
Build A Better World
Maxdao designs and manufactures telecom & electrical components to build a better world.

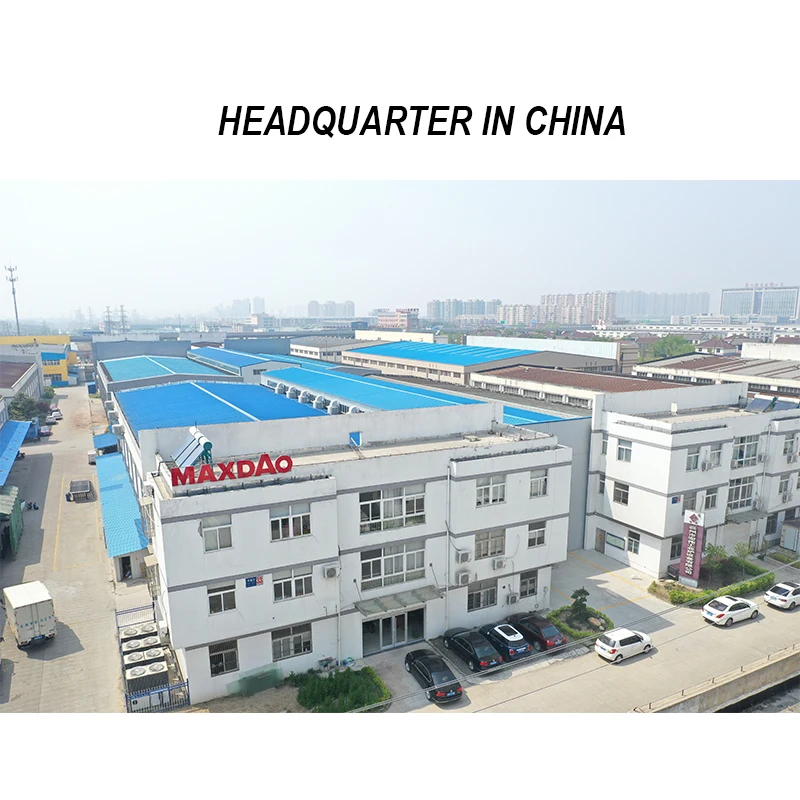

HEADQUARTER IN CHINA
33 Hailing Industrial Zone, Taizhou, Jiangsu 225300, China

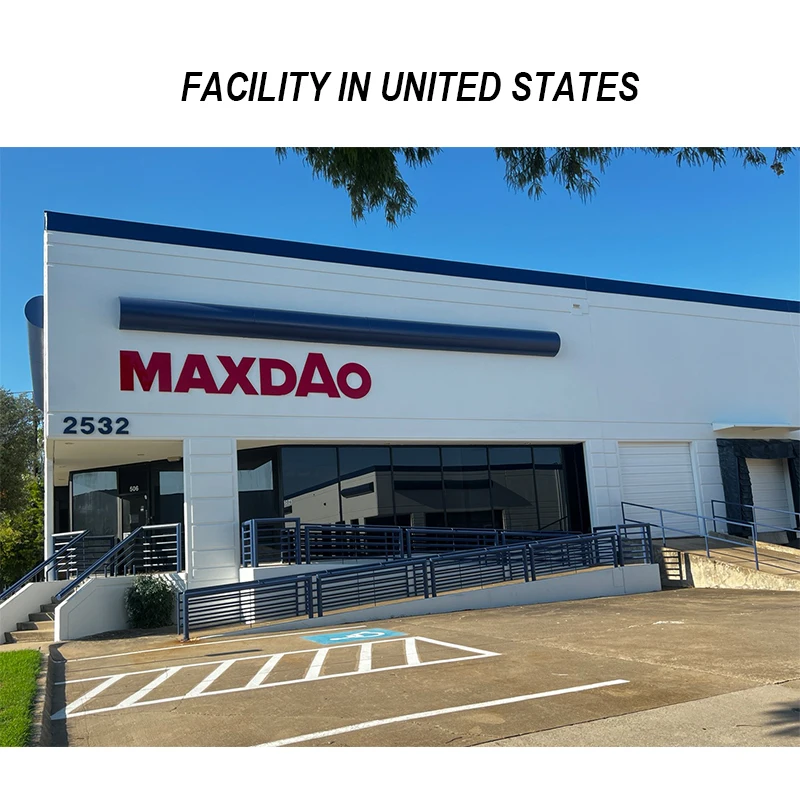

FACILITY IN UNITED STATES
2532 Summit Ave #506, Plano, TX 75074, USA
Workshop & Production Equipments
Maxdao design, manufacture, test the product in our self-owned 6000 square meters workshop.
100+ employees focus on their respective positions. 50+ sets of professional production equipment.

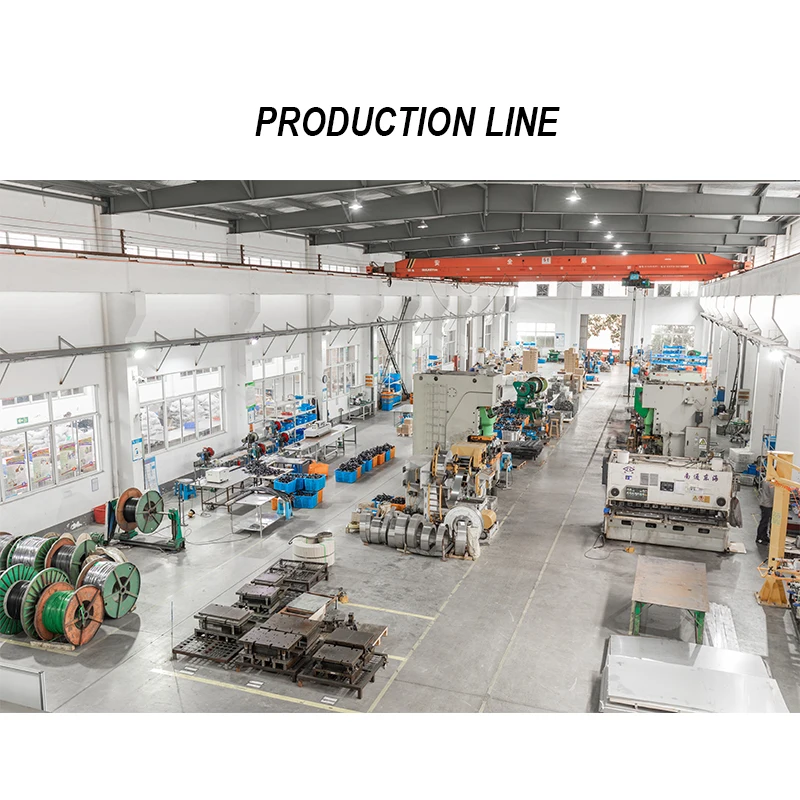

Production Line

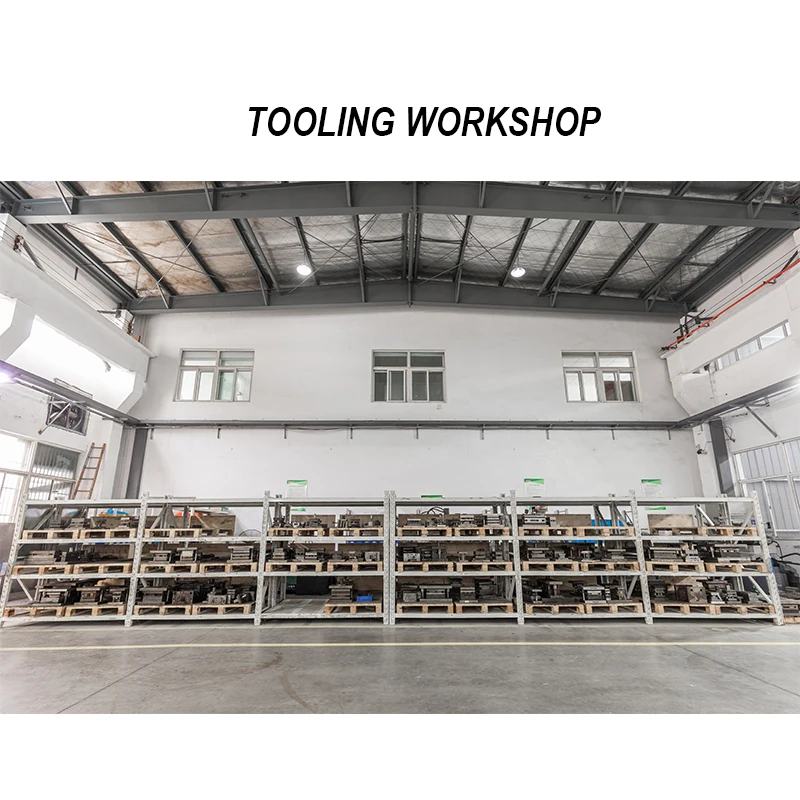

Tooling Workshop
Temperature & Humility Controlled Warehouse
R&D Offifice
Automatic Pressing Machine
Automatic Wire Cutting Machine
CNC
Automatic Cable Cutting & Stripping Machine
Testing Equipments
10+ Testing Equipments. 100+ Test Reports.
3D Printer
Salt Spray Test
Pulling Test
UV Test
High/Low-Temprature Test
Vibration Test
Certifications
13+ Patents. 6+ UL & CE Certificates. 3+ ISO Certificates.
Patents
ISO9001/ISO14001/ISO45001
UL/CE/RoHS/SGS
