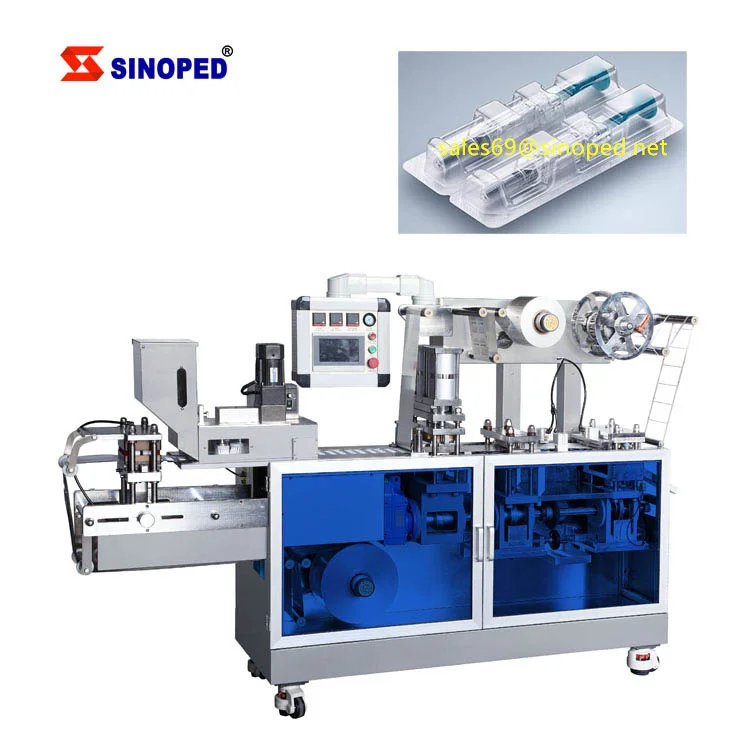

Automatic Alu Pvc Alu Alu Blister packaging machine that can pack Medical syringes
- Category: Pharmaceutical Machinery >>>
- Supplier: SINOPED (BEIJING) BIOTECH CO. LTD
Share on (1600615215915):
Product Overview
Description

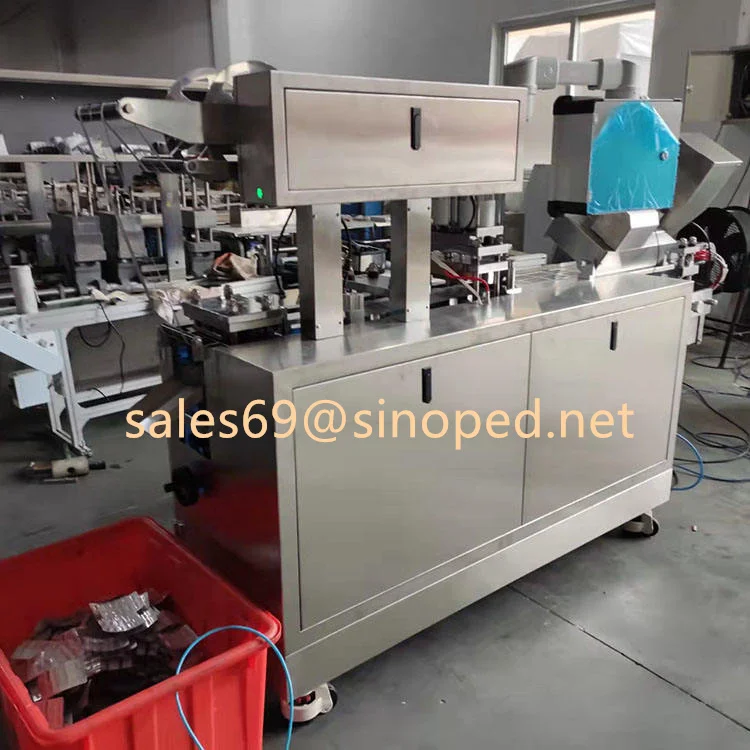

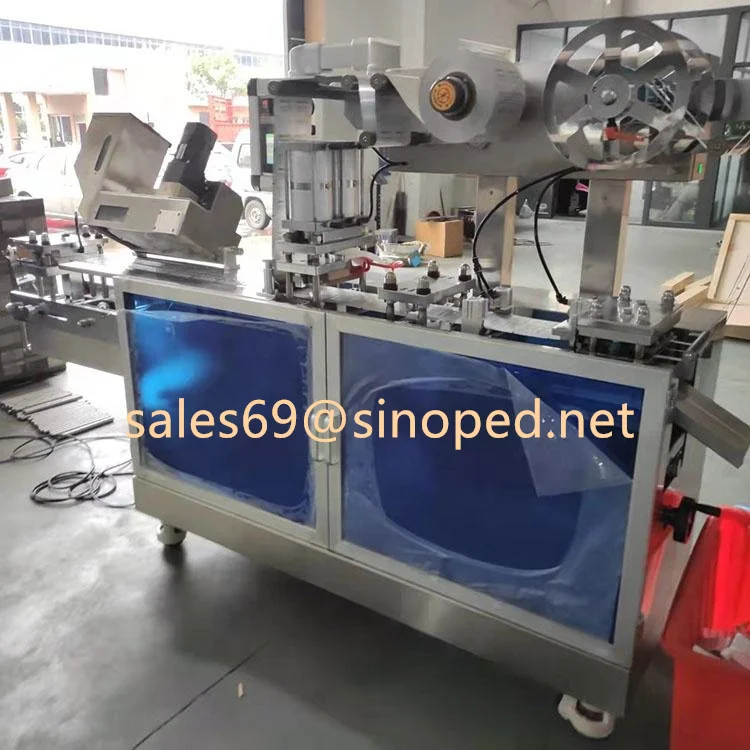

Automatic Alu Pvc Alu Alu Blister packaging machine that can pack Medical syringes
Product description
Automatic Alu Pvc Alu Alu Blister packaging machine that can pack Medical syringes is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to
Al-Al, Al-PVC, Al-plastic packaging for
capsule, table, candy, healthcare, small hardware etc.
It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
production process

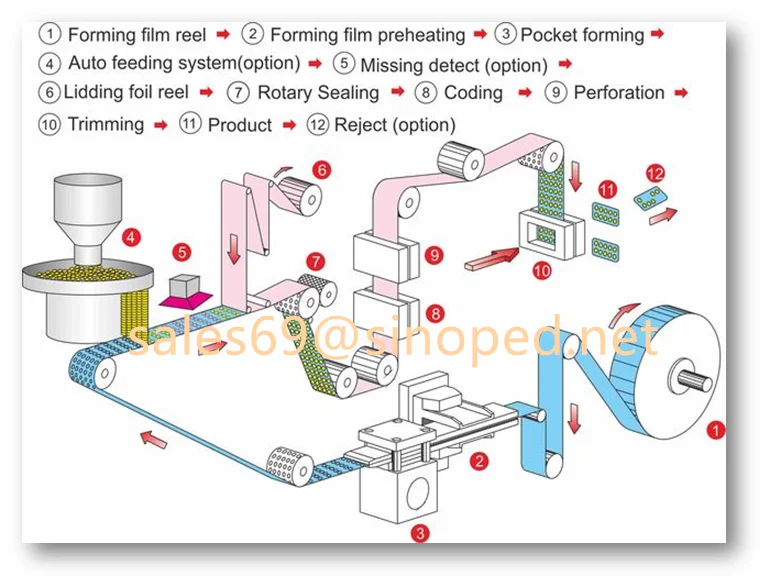

Production Process: Forming (up and down heating)--heat sealing (upper heating)--code printing number--indentation (micro-heating)--punching cutter--forming output product
Multi-purpose machine The machine integrates kinetic energy such as coil uncoiling, aluminum-plastic feeding, blister forming, waste recycling, heat sealing, batch number printing, mesh indentation, and plate punching.
Technical Parameters
Cutting Time(t/min) | Al-AL 6-25 Al-plastic 6-50 Paper-plastic 6-50 |
Max. Production Capacity（pcs/h） | Al-Al ≤45000 Al-plastic ≤110000 |
Max Forming Area And Depth(mm) | Al-Al 130*130*14 Al-plastic 130*130*26 |
Travel Range (mm) | 40-140 (Can be manufactured as user's requirements) |
Standard Plate (mm) | 80*57(Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Air Supply | ≥0.2m3/min |
Total Power | 380V/220V 50Hz 3.6kw |
Main Motor Power (kw) | 0.75 |
Forming Aluminum (mm) | 0.1-0.15*160 |
PVC Sheet (mm) | 0.15-0.5*160 |
PTP Aluminum Foil (mm) | 0.02-0.035*160 |
Dialysis Paper (mm) | 50-100g*160 |
Detailed Images

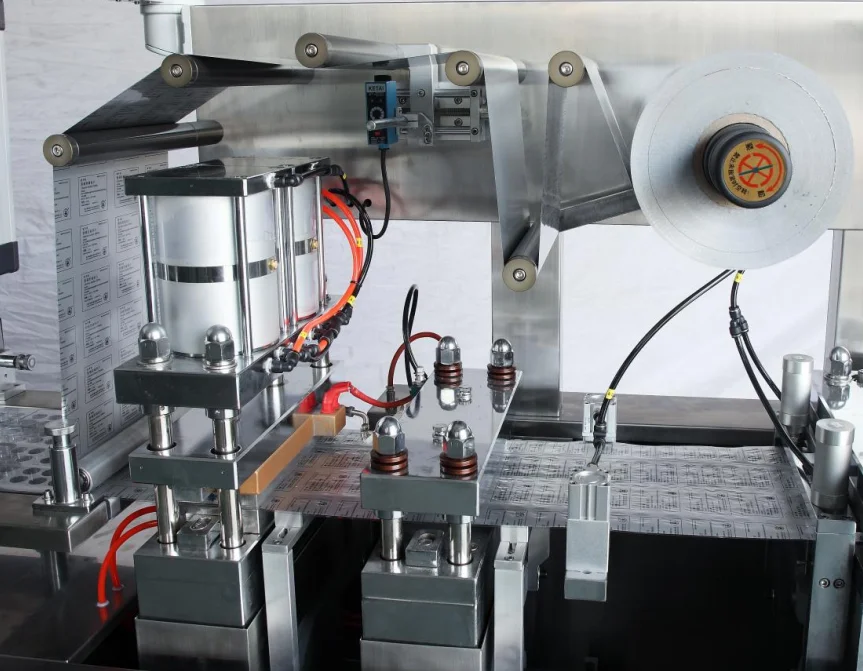

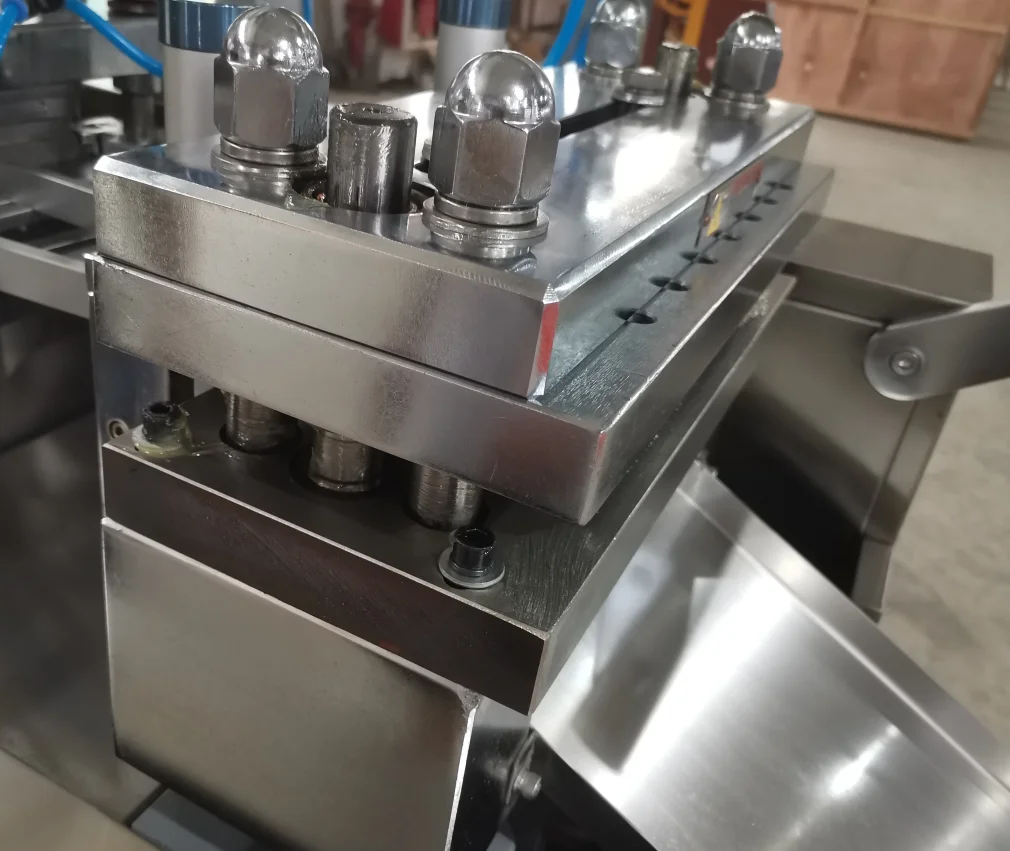

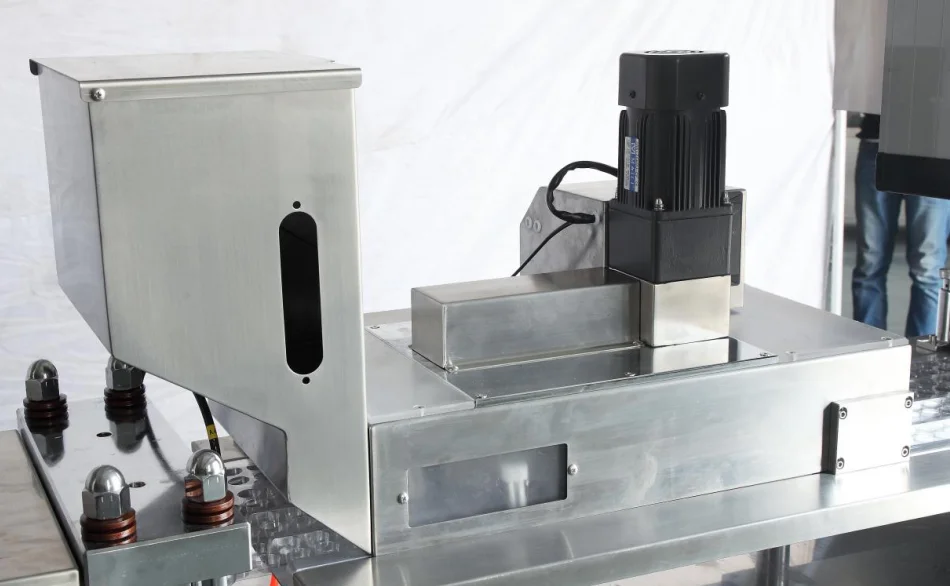

heating and forming station universal feeder

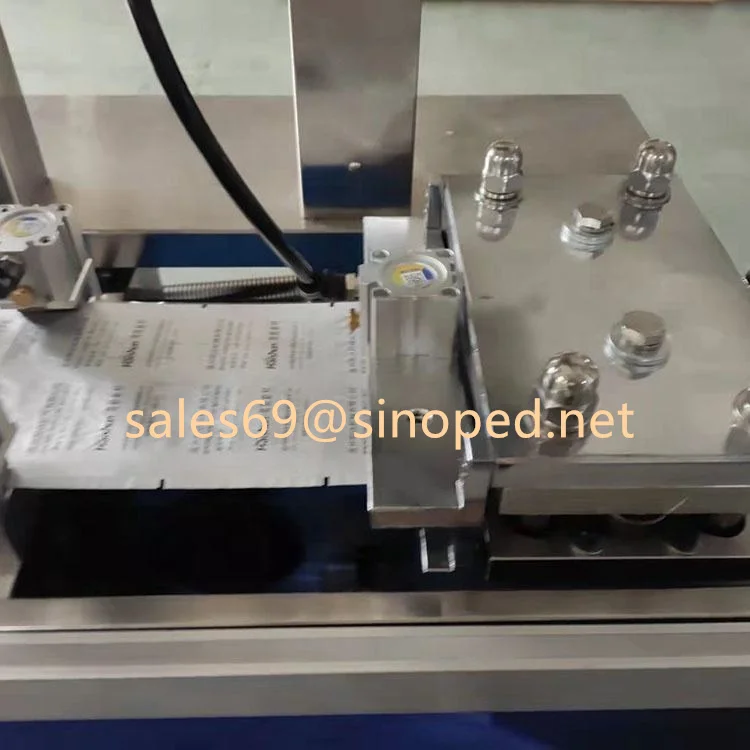

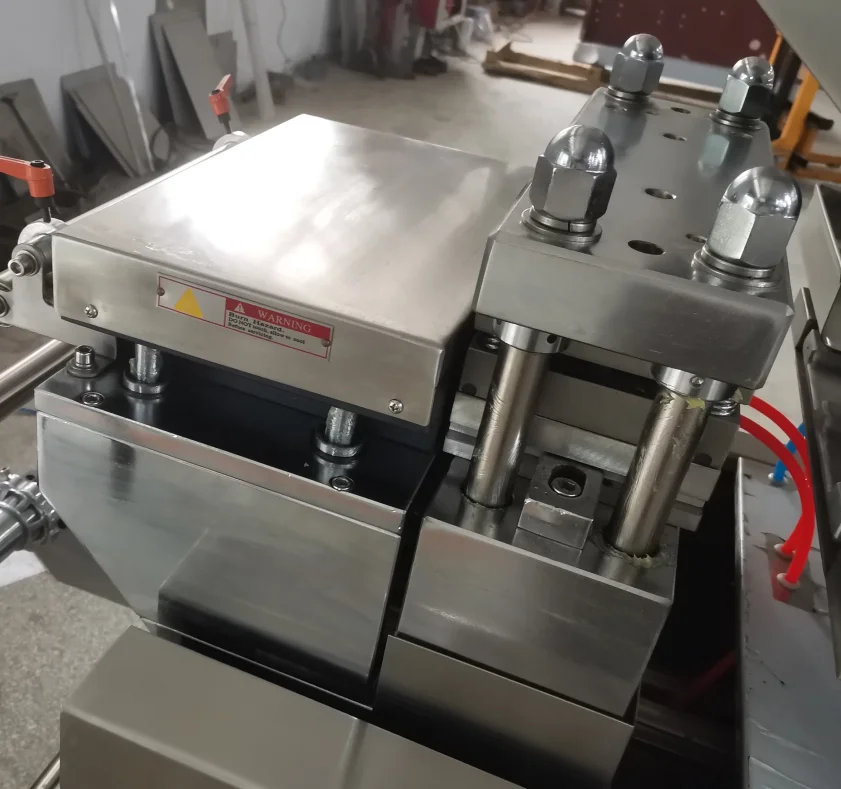

heat-sealing perforation traction cutting station

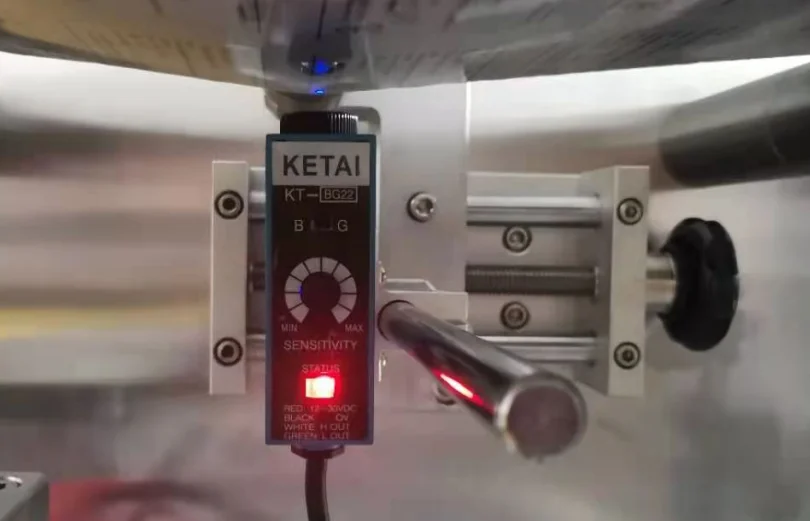

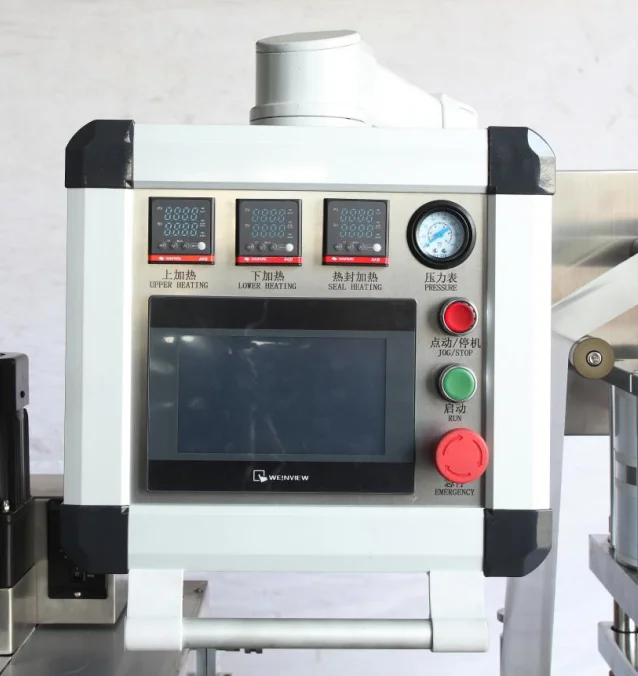

touch screen operation eye marking sensor (optional)
Application
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Company Profile
Certificate

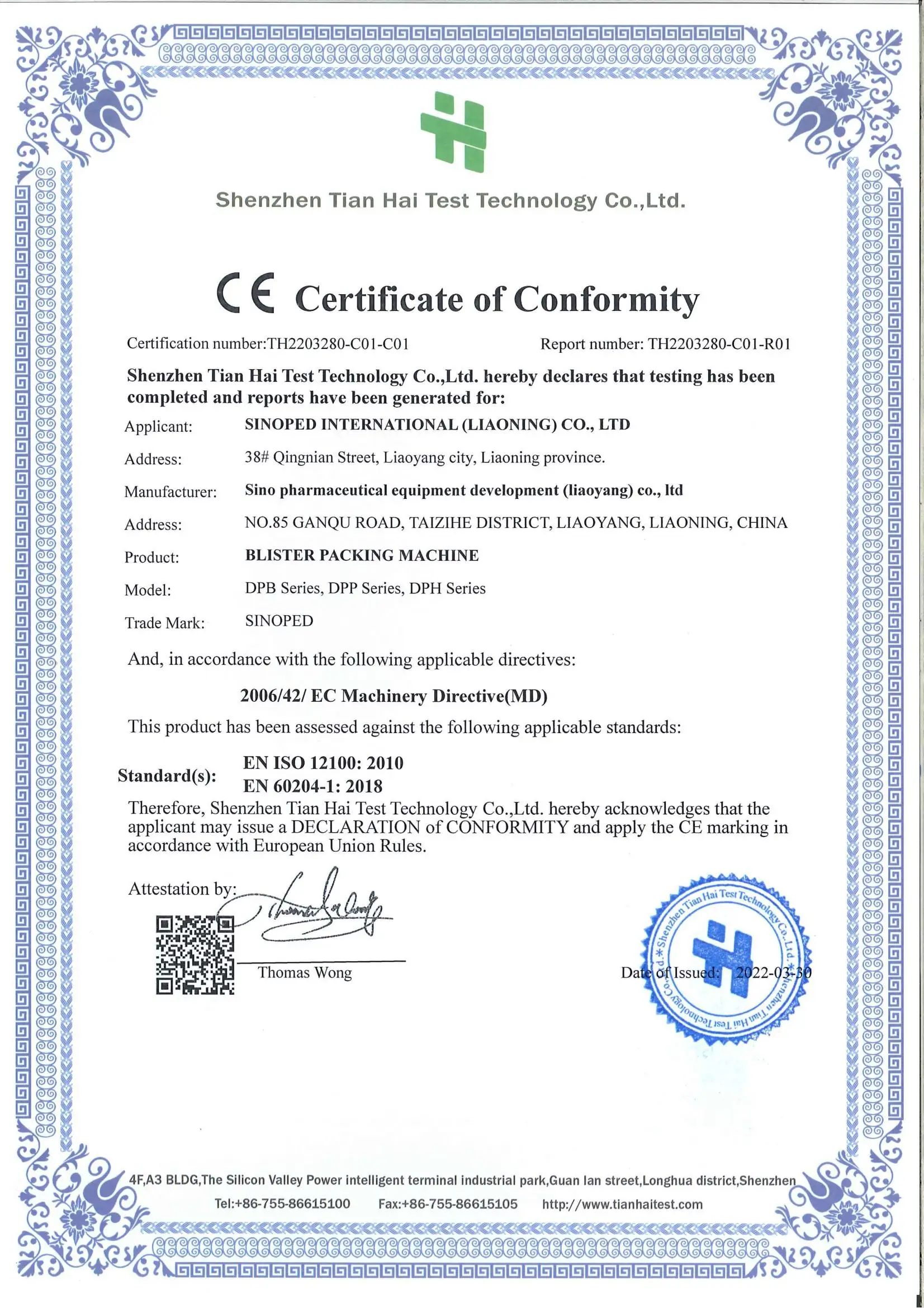

This is the CE certificate for DPB Series, DPP Series, DPH Series blister packing machine
Our service& FAQ
1. Can your machine meet our need well? We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company? We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way? T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order? Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company? We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
