Product Overview
Description
Products Description

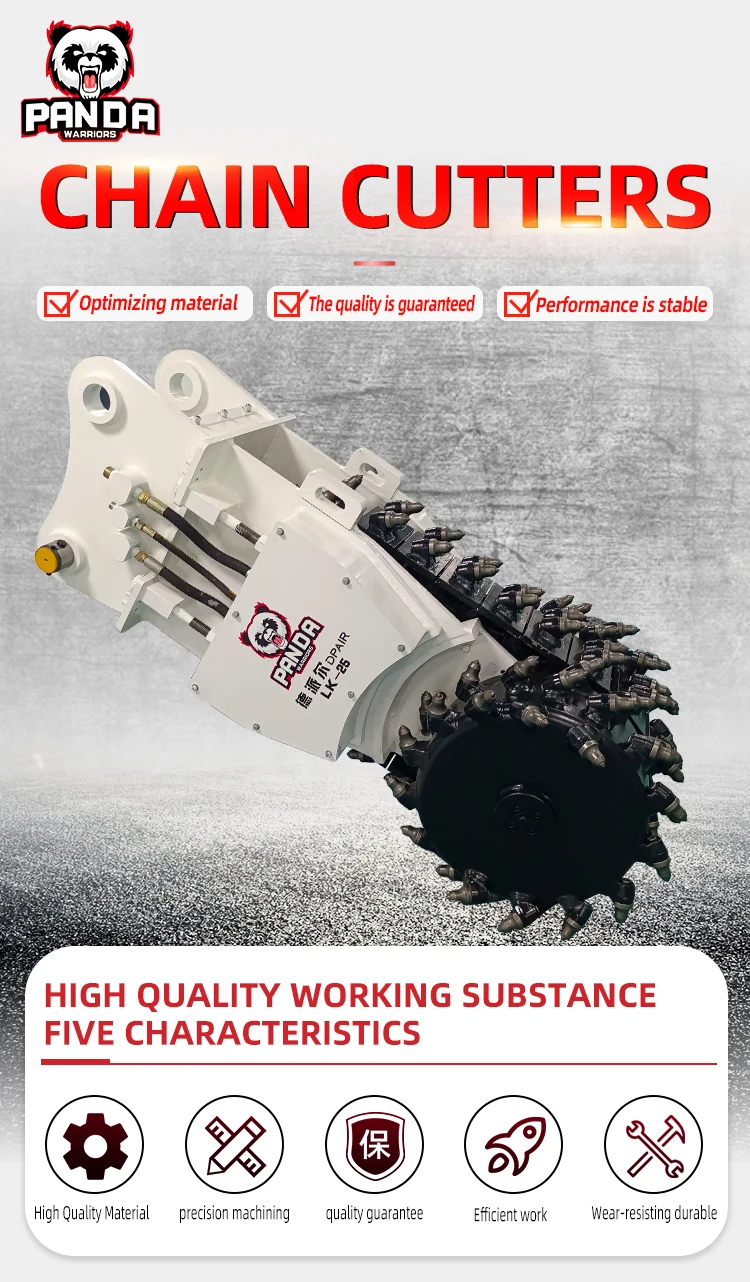

Excavator CHAIN CUTTERS
Excavator CHAIN CUTTERS FOR USE ON EXCAVATORS FROM 1.5 TO 70 TONS AND THEY ARE IDEAL trench profile.CUTTING ROCK WITH A UNIAXIAL COMPRESSIVE STRENGTH UP TO 140MPa.
Excavator CHAIN CUTTERS for the excavation of deep narrow trenches with the Another application is mining of medium hard minerals with compressive strength from 15 to 60 MPa, where drill and blast is not possible.
Excavator CHAIN CUTTERS reduce wear and tear on the excavator swing gear. In addition, they give a 40% energy saving for equivalent production rates compared to conventional rotary drum cutters without the central chain.
Chose from a range of cutting chain widths, each fitted with wear resistant picks. When starting the trench, the Excavator CHAIN CUTTERS is supported while sumping down to the desired cutting depth. When the trencher has reached the required depth, the excavator is driven backwards or the trencher is pulled forward with the excavator arm. The housing has a spoil discharger to deposit spoil to the side of the trench.

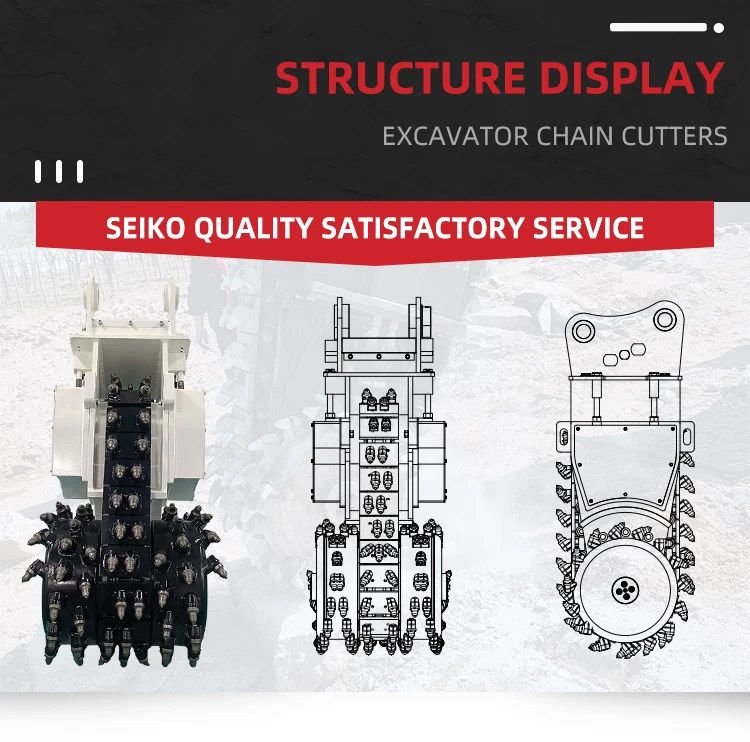

Chain cutters have a chain fitted with tungsten carbide tipped picks running between two cutter drums. This allows trenches to be excavated as wide as necessary and as narrow as possible; without costly overcutting which can result from having to swing traditional drum cutters sideways during operation. At the same time, chain cutters are powerful enough to penetrate solid rock.The process for completion of the project was to excavate a length of trench, lay the pipework, then backfill and compact before repeating the process for the next section of trench.
data | unit | LK-20 | LK-40 | LK-60 | LK-100 | LK-110 | LK-140 | LK-150 | LK-160 |
Recommended excavator weight | t | 2–4 | 5–10 | 10-17 | 18 – 30 | 25-32 | 30-45 | 30-50 | 30 – 50 |
Rated power | kw | 22 | 44 | 60 | 100 | 110 | 140 | 150 | 150 |
drum cutter length | mm | 700 | 1500 | 1,900 | 1,900 | 1,900 | 2,050 | 2,050 | 2,050 |
Cutter head width | mm | 480 | 500 | 500, 600, 700 | 600, 700, 800 | 600, 700, 800 | 800, 900, 1000 | 800, 900, 1000 | 800, 900, 1000 |
Standard cutter drum diameter | mm | 260 | 600 | 800 | 800 | 800 | 850 | 850 | 850 |
Width of gearbox | mm | 480 | 450 | 450 | 550 | 550 | 700 | 700 | 700 |
Recommended rotation speed | rpm | 140 | 90 | 70 | 70 | 70 | 70 | 70 | 60 |
Recommended oil flow at 150 bar | l/min | 20-40 | 50–90 | 130 – 200 | 180 – 250 | 240 – 300 | 250 – 400 | 280 – 420 | 290 – 330 |
Maximum oil flow | l/min | 50 | 120 | 220 | 260 | 300 | 420 | 450 | 450 |
Maximum operating hydraulic pressure | bar | 300 | 380 | 380 | 380 | 380 | 380 | 380 | 400 |
Torque at 380 bar | Nm | 1000 | 3700 | 11000 | 18,300 | 24,500 | 26,000 | 30,000 | 34,000 |
Cutting force at 380 bar | N | 7692 | 12,333 | 27500 | 45,700 | 61,250 | 62,000 | 70,600 | 80,000 |
Maximum uniaxial compressive strength | MPa | 25 | 30 | 50 | 80 | 80 | 100 | 100 | 120 |
Weight | kg | 170 | 900 | 1300 | 2,400 – 2,600 | 2400- 2600 | 3,600–3,800 | 3,150 | 3,600 – 3,800 |
Number of picks in cutter drums | pcs | 44 | 56 | 56 | 28|44| 52 | 28|44| 52 | 44|48|56 | 44 | 44 | 48 | 56 |
Number of picks in the cutter chain | pcs | 27 | 55 | 55 | 56 | 54 | 63 | 63 | 63 |

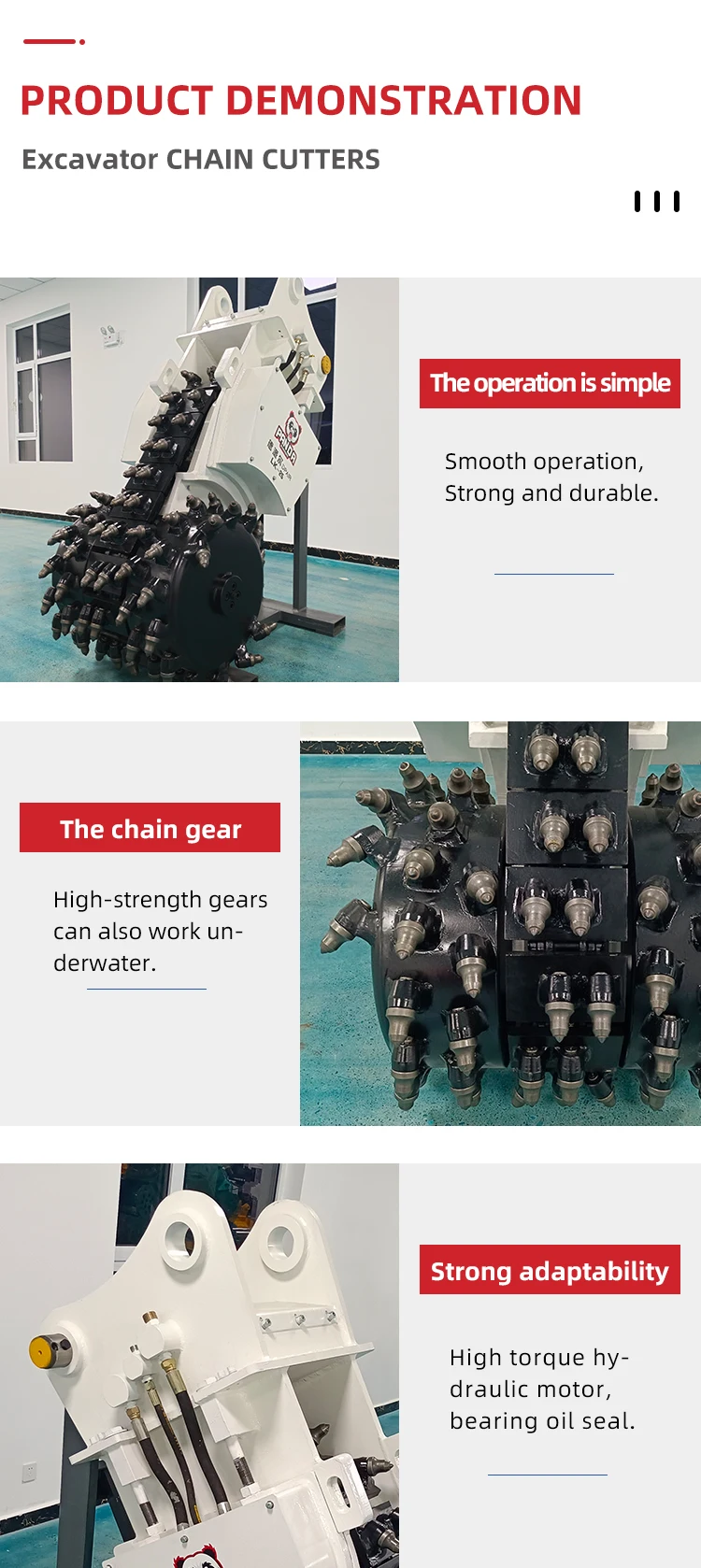

Product feature
Fine grained cut material
Low noise and vibration levels
Works underwater without any modification
Spoil is piled neatly to the side of the trench by the integral auger
Depth control skid – facility to set trench depths to 800-1200mm
Cutter chain fitted with wear resistant picks to achieve maximum performance with minimum wear costs
Driven by two high torque hydraulic motors to obtain maximum cutting force
Housing with spoil discharger and sumping aid
Heavy duty chain guides
Maintenance free cutter chain with high operating life
Adjustable length chain saw cutter
Fine grained cut material
Low noise and vibration levels
Works underwater without any modification
Spoil is piled neatly to the side of the trench by the integral auger
Depth control skid – facility to set trench depths to 800-1200mm
Cutter chain fitted with wear resistant picks to achieve maximum performance with minimum wear costs
Driven by two high torque hydraulic motors to obtain maximum cutting force
Housing with spoil discharger and sumping aid
Heavy duty chain guides
Maintenance free cutter chain with high operating life
Adjustable length chain saw cutter
Product discount sales activities
We have a history of 8 years from the generation of Excavator CHAIN CUTTERS and have many customers in China and Asia. In order to expand our worldwide sales business, we are now holding product discount promotion activities, now ordering can enjoy 20% discount.
We have a history of 8 years from the generation of Excavator CHAIN CUTTERS and have many customers in China and Asia. In order to expand our worldwide sales business, we are now holding product discount promotion activities, now ordering can enjoy 20% discount.
Post-sales service
First of all, the probability of failure of our equipment is very low. According to the customer's feedback, there will be no failure within 2 years under normal working conditions.
Our company has professional translators, can communicate with customers in multiple languages, in order to facilitate the installation and commissioning of products.
When the equipment is delivered, we will give enough worn parts to meet the future maintenance work and daily maintenance work
If the equipment is damaged within 2 years and needs to be repaired, we will send the required accessories by express delivery, which is free of charge.
If our engineers determine that the after-sales service must be on-site, our maintenance engineers will carry out on-site maintenance services within 72 hours.
First of all, the probability of failure of our equipment is very low. According to the customer's feedback, there will be no failure within 2 years under normal working conditions.
Our company has professional translators, can communicate with customers in multiple languages, in order to facilitate the installation and commissioning of products.
When the equipment is delivered, we will give enough worn parts to meet the future maintenance work and daily maintenance work
If the equipment is damaged within 2 years and needs to be repaired, we will send the required accessories by express delivery, which is free of charge.
If our engineers determine that the after-sales service must be on-site, our maintenance engineers will carry out on-site maintenance services within 72 hours.
PUTTING YOUR NEEDS FIRST
No matter the industry in which you work, we know that your needs are unique. Whether you run a small family business or are a large nationwide company, we make it our mission to understand your requirements and add value to your business. By choosing to only work with the best attachment manufacturers in the world, we can provide you with a range of quality and innovative products that will meet your demands. We underst and that the customer experience doesn’t end when you walk out the door and our team will continue to look after you with regular servicing of your equipment to avoid any operational downtime. Every sale, hire or repair we undertake is backed by many years of combined industry experience and dedication to providing good old-fashioned family service.
We are committed to:
• Supplying the highest quality equipment and maintenance services
• Understanding your needs to provide knowledgeable and practical technical advice
• Keeping costs down without compromising your requirements
• Carrying out full quality control checks and testing of equipment
• Attending to breakdown call outs promptly and efficiently
• Maintaining an honest, reliable and transparent approach across everything we do

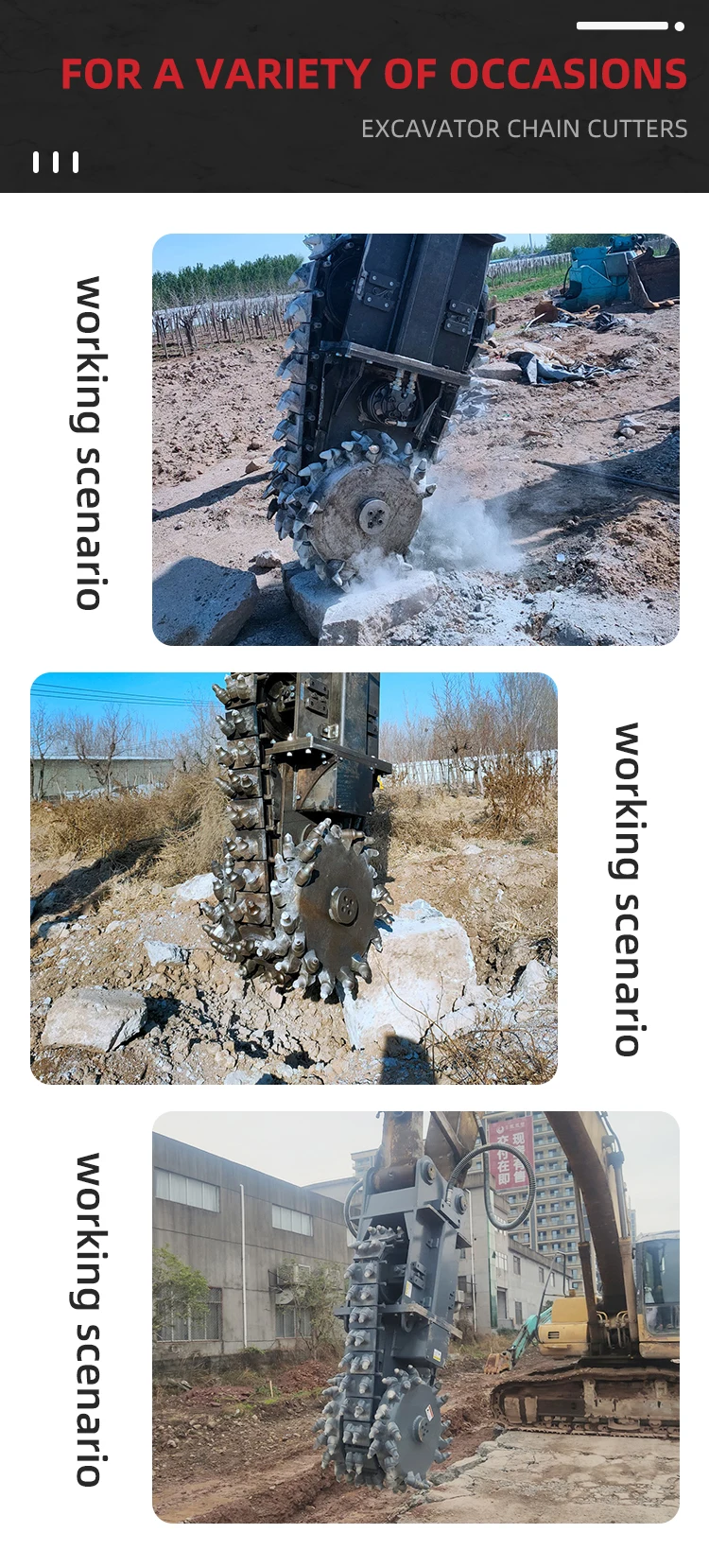

Real product application
In the Chinese market, our Excavator CHAIN CUTTERS account for 65% of the market share. The following pictures are from the customer's field construction scene. We can provide customers with the most suitable equipment according to the customer's excavator type and project situation, so as to save the most money for customers.
No matter the industry in which you work, we know that your needs are unique. Whether you run a small family business or are a large nationwide company, we make it our mission to understand your requirements and add value to your business. By choosing to only work with the best attachment manufacturers in the world, we can provide you with a range of quality and innovative products that will meet your demands. We underst and that the customer experience doesn’t end when you walk out the door and our team will continue to look after you with regular servicing of your equipment to avoid any operational downtime. Every sale, hire or repair we undertake is backed by many years of combined industry experience and dedication to providing good old-fashioned family service.
We are committed to:
• Supplying the highest quality equipment and maintenance services
• Understanding your needs to provide knowledgeable and practical technical advice
• Keeping costs down without compromising your requirements
• Carrying out full quality control checks and testing of equipment
• Attending to breakdown call outs promptly and efficiently
• Maintaining an honest, reliable and transparent approach across everything we do
Real product application
In the Chinese market, our Excavator CHAIN CUTTERS account for 65% of the market share. The following pictures are from the customer's field construction scene. We can provide customers with the most suitable equipment according to the customer's excavator type and project situation, so as to save the most money for customers.
Real product application
In the Chinese market, our Excavator CHAIN CUTTERS account for 53% of the market share. The following pictures are from the customer's field construction scene. We can provide customers with the most suitable equipment according to the customer's excavator type and project situation, so as to save the most money for customers.
In the Chinese market, our Excavator CHAIN CUTTERS account for 53% of the market share. The following pictures are from the customer's field construction scene. We can provide customers with the most suitable equipment according to the customer's excavator type and project situation, so as to save the most money for customers.
Product packaging
Manufacturing Technique
Certifications
Company Profile
Dpair Hydraulic Engineering Machinery Co., Ltd. was founded in 2010, located in Bazhou city, Hebei Province, 90 kilometers away from Beijing, covers an area of 18,000 square meters, with 152 employees. Self-tuning Regulator with Measurable pressure buckets,concrete crushing bucket,drum cutter, self-tuning Rock Saws,concrete shear for excavator,Eagle Shears,Combi demolition shears. The company has 63 patent certificates. The company has been engaged in overseas sales business since the beginning of its inception, and now its products are sold in more than 90 countries, and has agents in Australia, Russia, Dubai, Saudi Arabia, India.
We can produce auxiliary tools for more than 50 different brands of excavators and have received good comments from our customers.
We have advanced production technology and production equipment, can develop or customize products for customers according to their needs.
Sincerely look forward to every customer or friend to visit our company or business negotiations!
I am looking forward to cooperating with you and sending you my best wishes.
We can produce auxiliary tools for more than 50 different brands of excavators and have received good comments from our customers.
We have advanced production technology and production equipment, can develop or customize products for customers according to their needs.
Sincerely look forward to every customer or friend to visit our company or business negotiations!
I am looking forward to cooperating with you and sending you my best wishes.
Exhibition
sales manager
FAQ
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.Also we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
A: Yes,our factory was established in 2010 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.Also we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
Now through our online shop consulting products can enjoy 20% discount price, and can enjoy 3 years of free warranty service.
If you want to know the detailed product information, we can provide you with more detailed product information or video data, we have lots of actual scene construction product information, we are very willing to provide customers with product selection scheme and construction scheme, whether you want to buy or want to further understand the equipment, we are very willing to answer for you.
We will ensure that each product sold will have excellent performance in use, and ensure that the price of our products in the same product quality situation, give the biggest discount.Please do not hesitate to contact us at any time if you are looking for or want to know about this device.
At present, we will give 8 discount to those who consult products through this shop, and we will give gifts with Chinese style. If you have the opportunity to travel in China, we can provide free guide service for you!
