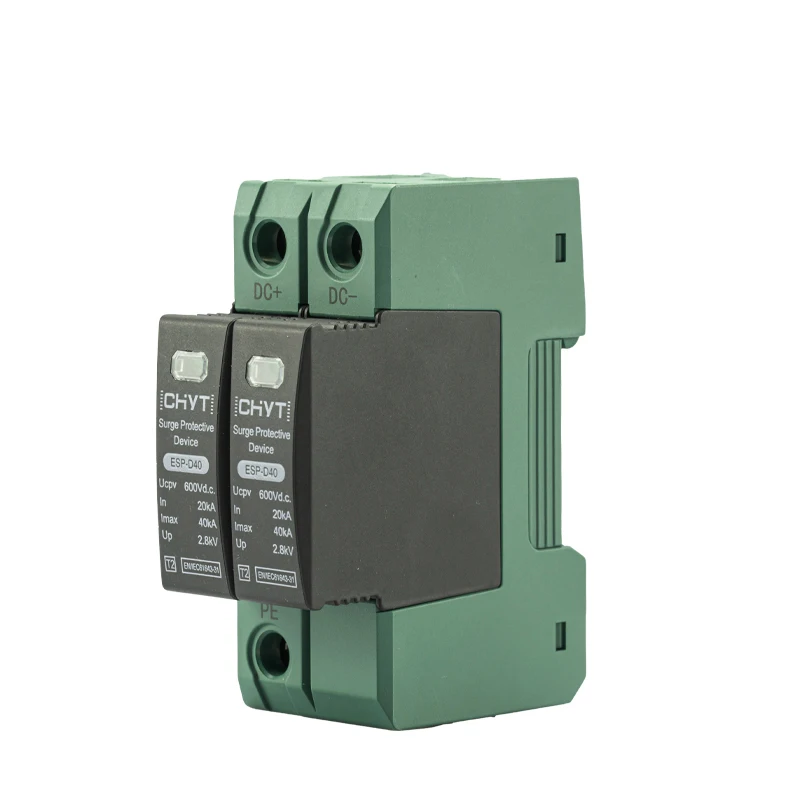

CHYT ESP D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection
CHYT ESP-D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection

CHYT ESP D40 DC SPD 2 Pole 600V Surge Arrester three phase 40ka surge protection

Share on (1600617847198):


Price:

Quantity:


Product Overview

Description



Product Description


Product introduction
Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system). These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the dc power supply line (solar panel side and inverter/converter side), especially
if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators.


Product features
1.Type 2 surge protective device for Photovoltaic.
2.Module design, convenient installation, could be replaced.
3.Time of response <25ns.
4.The color of visible window shows operating status, green means normal, red means abnormal.
5.No leakage, no operating currents.
6.Remote Signaling (option).


Specification


Product Model
ESP-D40
Pole
2P
3P
Rated Frequency
One port
SPD Category
Combined type
Test Category
Class II test
Colour
Green



Maximum Continuous Operating Voltage Uc
600VDC
1000VDC
1000VDC
1500VDC
Voltage Protection Level Up(8/20μs)
≤2.8kV
≤3.5kV
Nominal Discharge Current ln(8/20μs)
20kA
20kA
Maximum Discharge Current lmax(8/20μs)
40kA
40kA
Response Time tA
≤25ns
Size
36x90x66
54x90x66
Failure Indication
Green: Normal Red: Failure
Sectional Area Of Wires
6~25mm2
Installation Method
35mm standard rail
Working Environment Temperature
-40℃ ~+85℃
Sheathing Material
Plastic
Protection Level
IP20
Executive Standard
IEC 61643-31

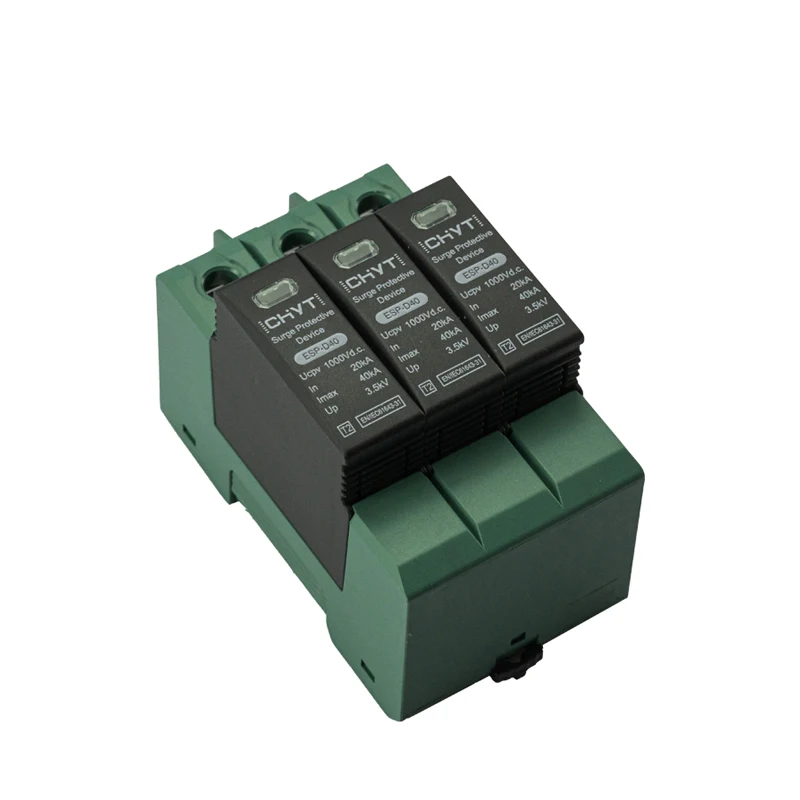

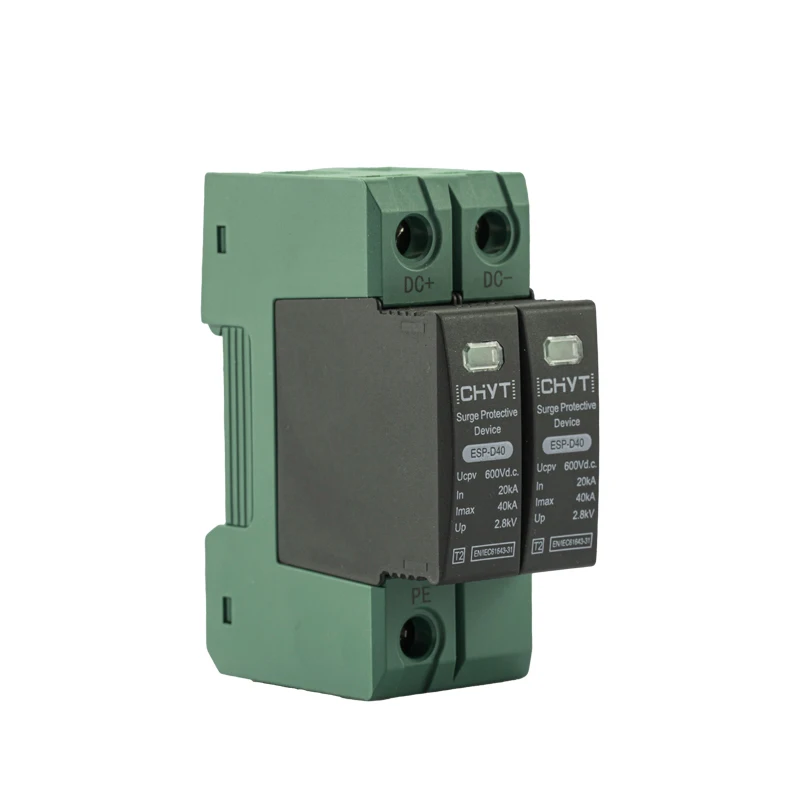

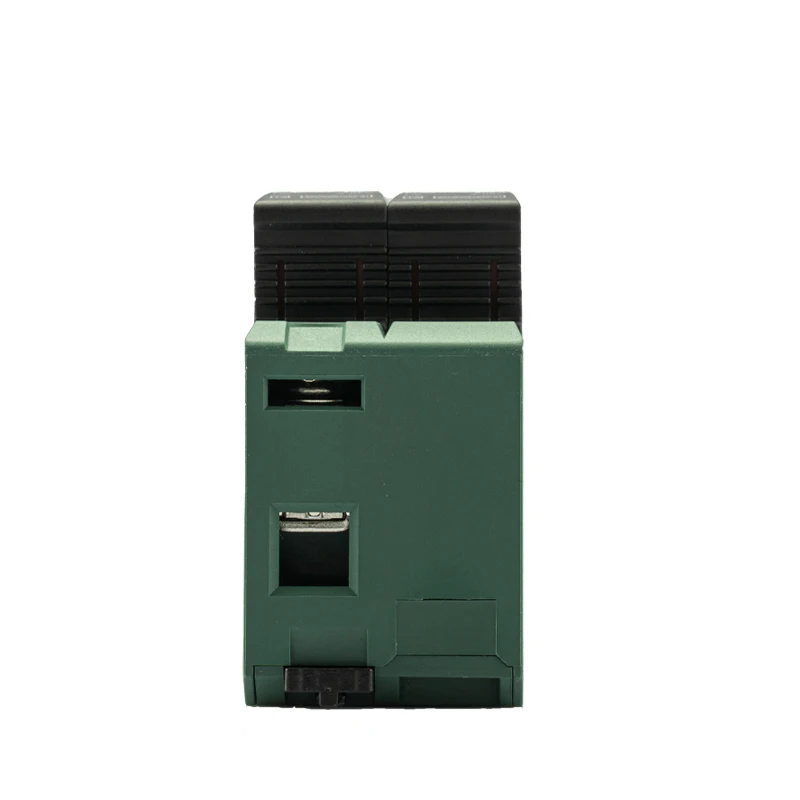

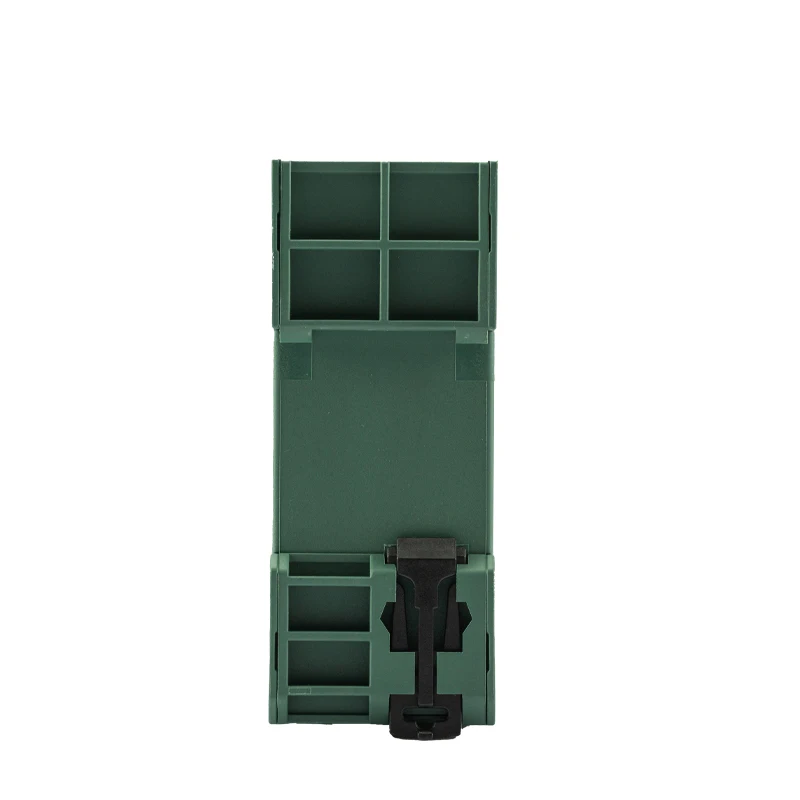

Details Images
