Mechanical Seal Manufacturers Tungsten Carbide Rings
- Category: Cemented Carbide >>>
- Supplier: Zhuzhou Jinxin Cemented Carbide Group Co. Ltd.
Share on (1600618073010):
Product Overview
Description
Product Description

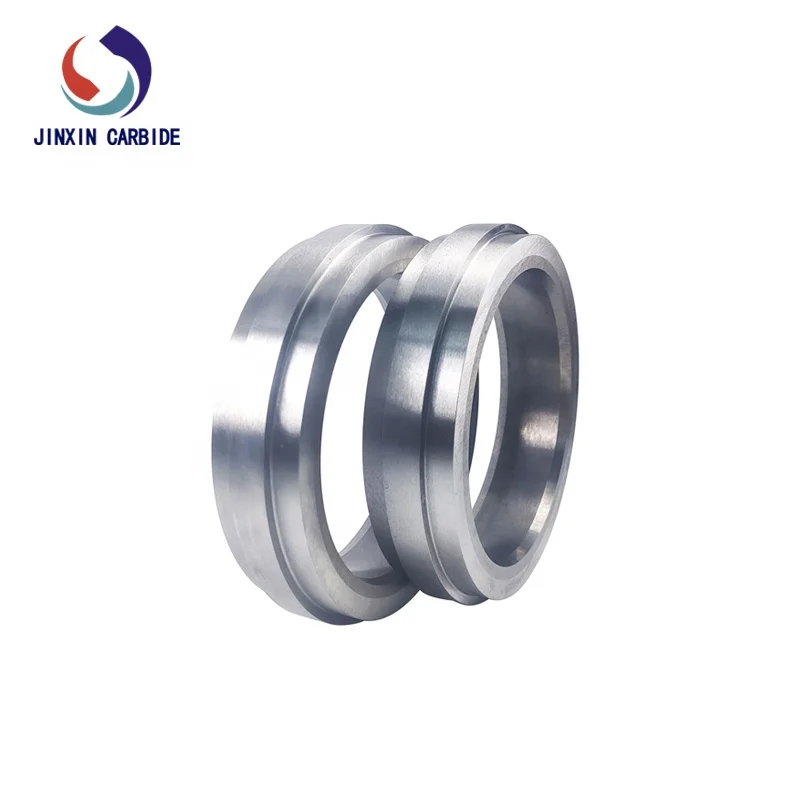

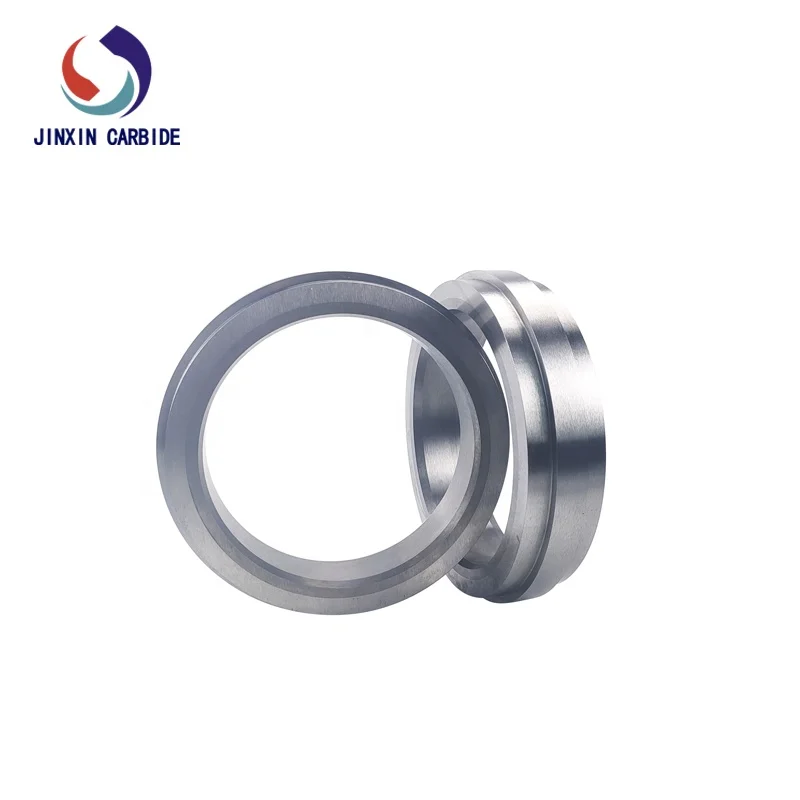

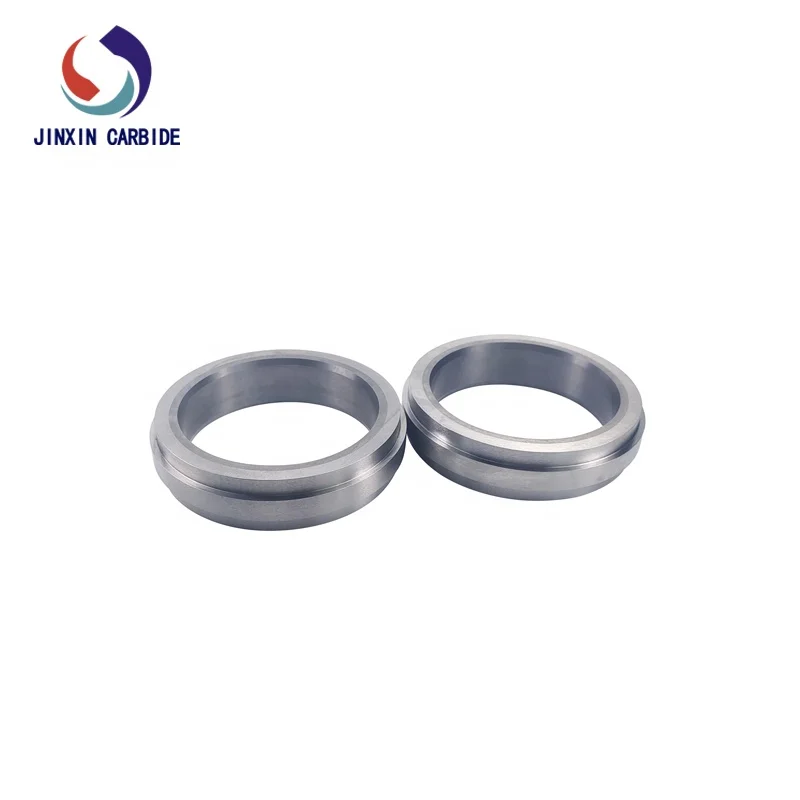

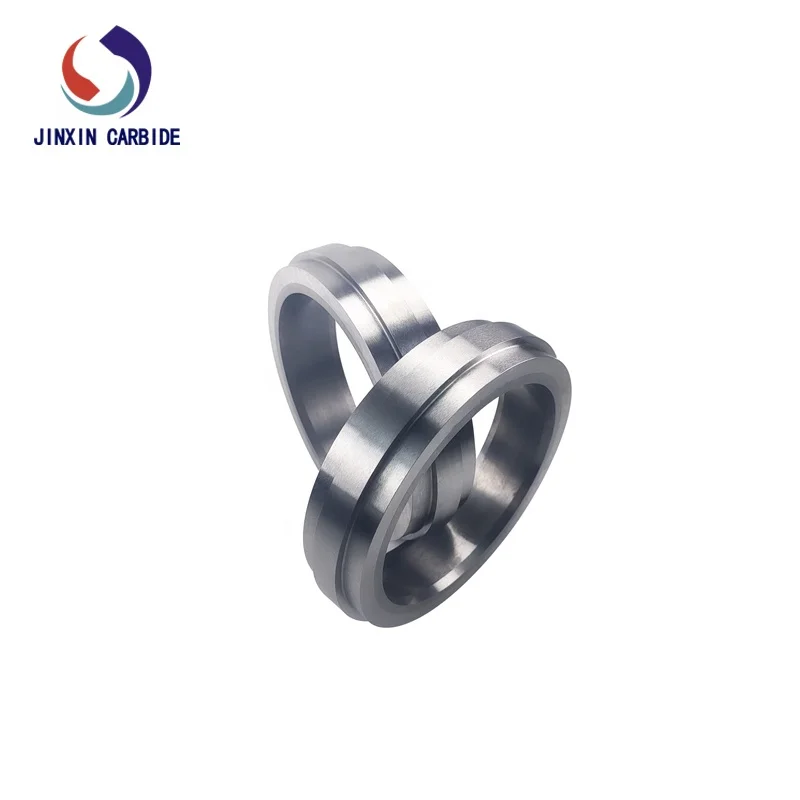

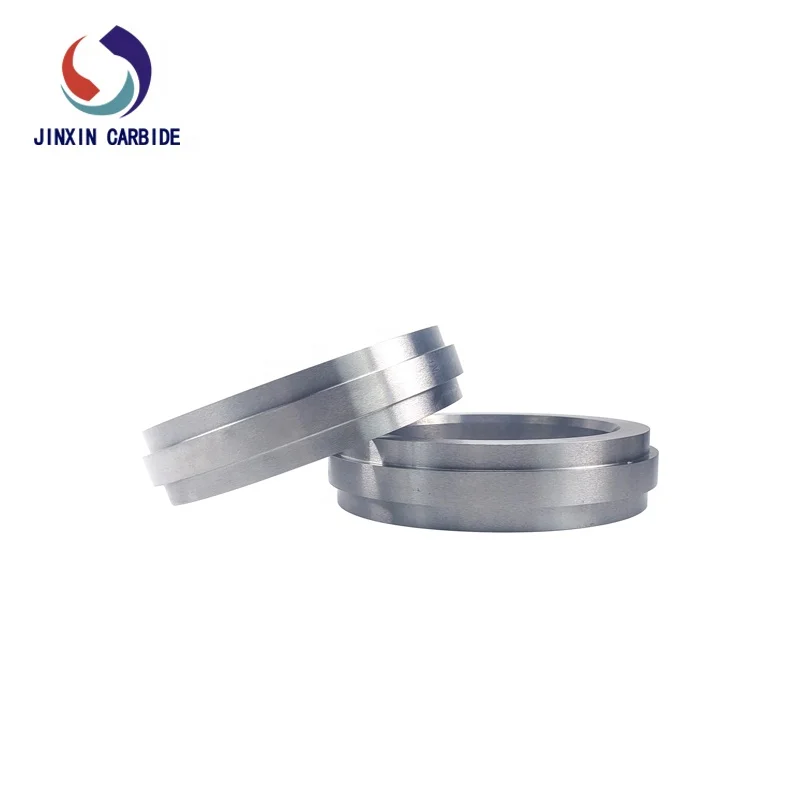

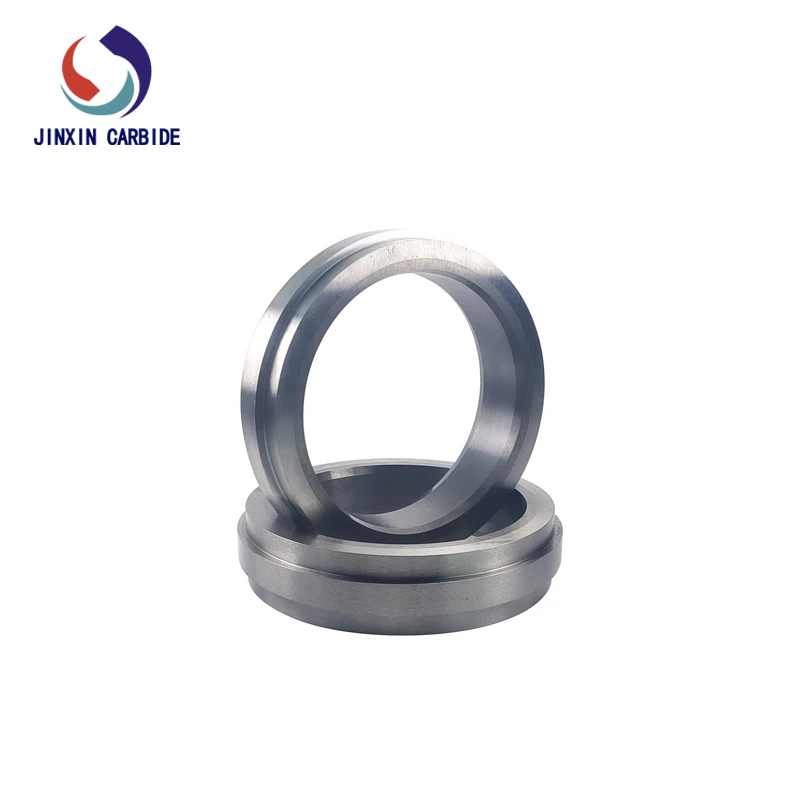

Mechanical Seal Manufacturers Tungsten Carbide Rings
Seal Rings
Tungsten carbide represents a versatile mechanical seal ring material that is widely applied in all(from PH12 to PH4) but the most acidic environments. Tungsten carbide seals possess a unique combination of high fracture strength and high hardness that minimizes or eliminates the distortion problems under the high pressures or rapid wear in abrasive environments.
Rotating shafts of bead mill and other machines require sealing systems to separate pressurized fluids, minimize the entry of debris into the working medium, and prevent the loss of lubricants. A common solution to these problems is the mechanical face seal in which a rotating seal face and a stationary seal face comprise the seal.
Tungsten carbide represents a versatile mechanical seal ring material that is widely applied in all(from PH12 to PH4) but the most acidic environments. Tungsten carbide seals possess a unique combination of high fracture strength and high hardness that minimizes or eliminates the distortion problems under the high pressures or rapid wear in abrasive environments.
Grade details
Grade | Binder(Co%) | Density(g/cm3) | Hardnness(HRA) | TRS(>N/mm2) |
YG6 | 6 | 14.8 | 90.0 | 1520 |
YG6X | 6 | 14.9 | 91.0 | 1450 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88.0 | 1810 |
YG15 | 15 | 14.0 | 87.0 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
Specification
Name | Tungsten carbide rings |
Material | 100% Tungsten carbide |
Composition | Tungsten carbide with cobalt |
Density | 12.6 to 14.8 g/cm3 based on different grade |
Hardness | HRA79 to HRA 91.5 based on different grade |
Features,advantages | Wear resistant, corrosion resistant, impact resistant ， high fracture strength ， high hardness |
Size ranges | OD ≤ 800mm X ID ≤ 700 mm X H ≤ 400mm |
Finish | As Sintered / Polished , OEM as request. |
Applications | For Chemical Processing,Dairy Products |
Beverage Processing ,Marine Services,Oil and Gas Production | |
Energy Exploration,Environmental Services | |
Applications(Use for ) | The environments required high wear resistance, good toughness, and excellent corrosion resistance. |
-Other tungsten carbide wear rings
* Thrust Washers
* Carbide Wear Cutting Rings
* Precision Ground Cylinders
* Rod Mill Rings
* Cemented Carbide Circular Cutters
* Thrust Washers
* Carbide Wear Cutting Rings
* Precision Ground Cylinders
* Rod Mill Rings
* Cemented Carbide Circular Cutters
