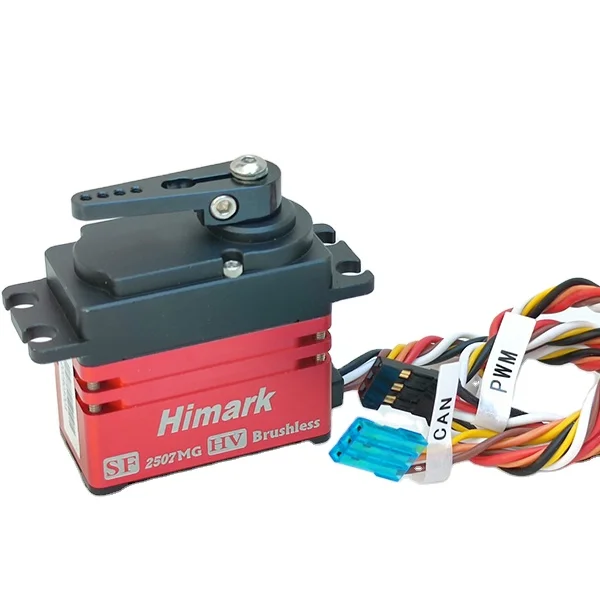

DMOND SF2507MG PWM CAN UART RS485 RS422 8.4V Magnetic 12kg digital full mental aluminium case for UAV Helicopters VTOL

Share on (1600618270532):


Price:$180.00 - $200.00

Quantity:


Product Overview

Description





Product Description













































Control Mode



PWM/UART/CAN/RS485/RS422(Optional)



No-load Current



0.2A



Operating Voltage Range



4.8-8.4V (2S)



Stall Current



2.5A



No-load Operating Speed



0.07s/60°

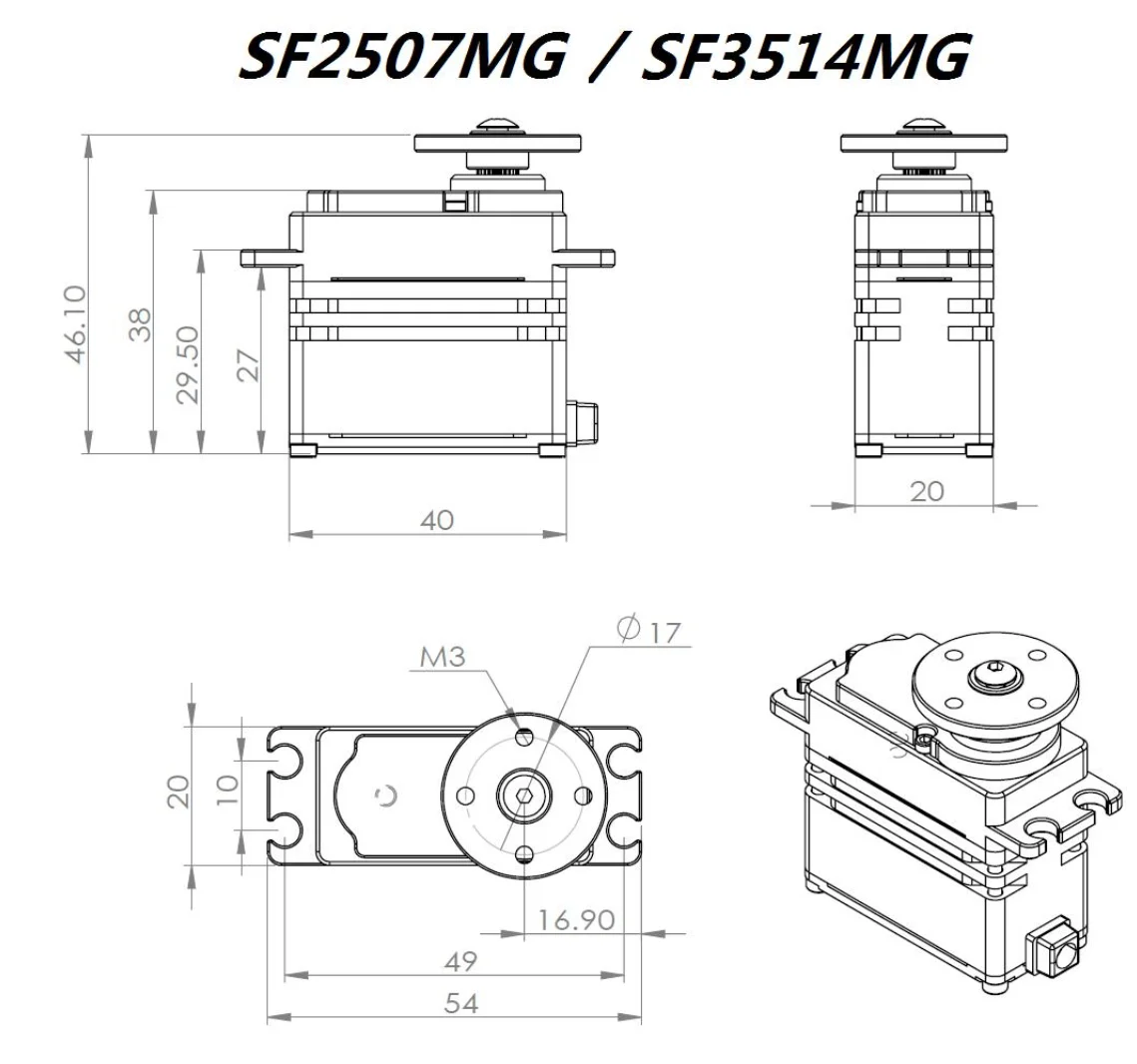

Dimension



40*20*43mm



Stall Torque



25kg.cm



Motor Type



Brushless



Standing Torque



12kg.cm (7.4V)



Potentiometer Type



Magnetic coding



Weight



83g



Waterproof level



IP64










Company Information


    Superior Hobby was founded in 2008,  specializes in research, design and development of electronic model products. We have been highly successful in inventing new high technology methods of designing and manufacturing Remote Control Servos, Micro-servos, Gyros, Head-locked Gyros, Mixers, Electronic Speed Controls, Receivers, Brushless motors plus other digital electronic model products.
    By constantly absorbing, innovating and developing the advanced technology, now our servos are widely applied to the following scopes:  Robot industry, RC model, Industrial production equipment, Medical appliances.


      We are committed to the research and development in electronic industry, and always strive perfection for product performance, quality and customer service to meet the market demand. Now we have our own professional technician and years of experience in production. We welcome OEM orders and exclusively produced for your special requirements. Meanwhile, we are hunting for distributors and retailers as well. Our products have been successfully exported to over 20 areas and countries all over the world and received great reputations by the customers.


      In future development, “JX servo” will continue adhering to the business philosophy "innovative, superior, outstanding" for our customers, to offer perfect products and service, and strive to making company industries deeper, stronger and bigger.





FAQ


1. Can you accept OEM& ODM?


Yes, we can.








2. How long can we receive the quotation?


1-3 working days.








3. What is your delivery time?


1-2 weeks. It may take more days if the quantity is huge.





4. Can you send us samples first before we order?


Yes, we can, but we do not offer free samples.





5. How long is warranty?


A year.











Production Flow


Assemble



Warehouse








Certifications


CE



RoHS



FCC
