T Motor MN4116 340KV Brushless DC Motor For Multi rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings
T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings

T Motor MN4116 340KV Brushless DC Motor For Multi rotors VTOL and Fixed Wings

Share on (1600916416228):


Price:$69.66-79.85

Quantity:


Product Overview

Description



Features


T-Motor MN4116 340KV Brushless DC Motor For Multi-rotors VTOL and Fixed Wings


Product Detail


KV: 340
Idle Current (10V):1.2A
Peak Current (180S): 40A
Max Power (180S): 910W
Internal Resistance: 59mΩ
Rated Voltage (Lipo): 6S
Propeller Recommendation: P16-18"/T16 * 8"
Motor Weight (Incl.Cable): 212g
Package Weight: 315g
Motor Size: Φ47.4 * 42.7mm
Stator: Imported silicon steel sheet ; Anti-rust treatment;180° Chigh temperature-resisting coatings
Configuration: 12N14P
Shaft Diameter: IN:6mm OUT:4
Bearing: 686ZZ / 696ZZ
Magnet Level: N45SH
Lead Cable: 16AWG*150mm
Copper Wire: 220°C high temperature resistance:Level C
Coil Insulation Test: 500V/5s
Centrifugal Cooling Design: YES
Rotor Dynamic Balance Standard: ≤5Mg
IP: IP45


Item Packing


MN4116 340KV Motor x 1
Parts Bag x 1

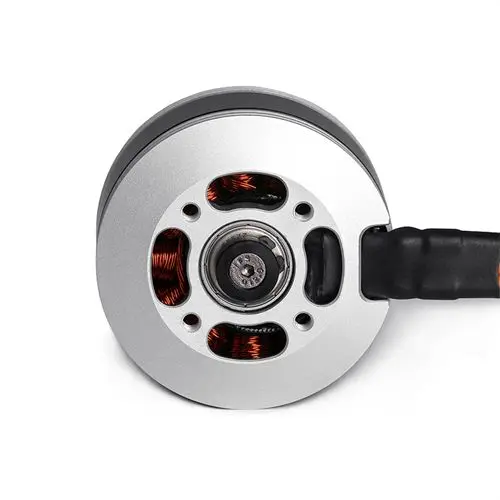

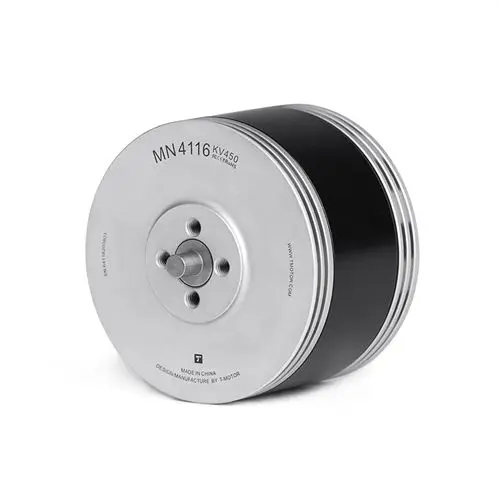

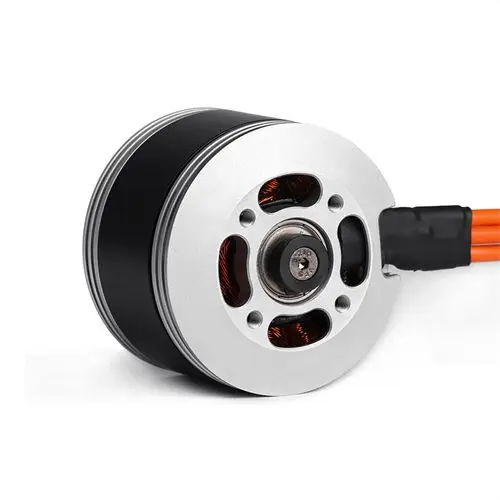

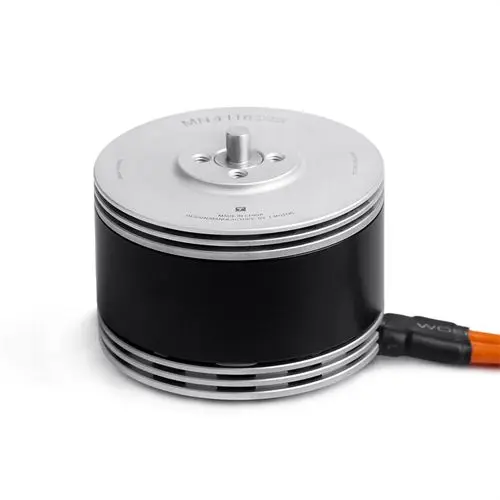

Detailed Images
