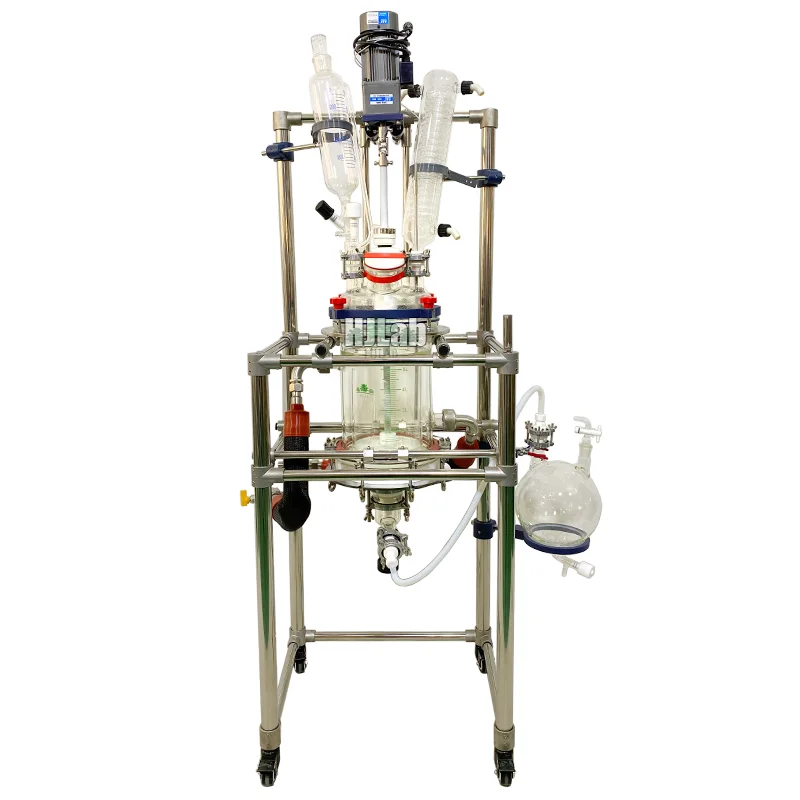

Химический синтез фильтра на 1 л, 2 л, 3 л, 5 л, стеклянный реактор с двигателем постоянного тока и кольцевыми перегородками
- Category: Reactors >>>
- Supplier: Shanghai Hjlab Instruments Co. Ltd.
Share on (1600619115331):
Product Overview
Description
Products Description

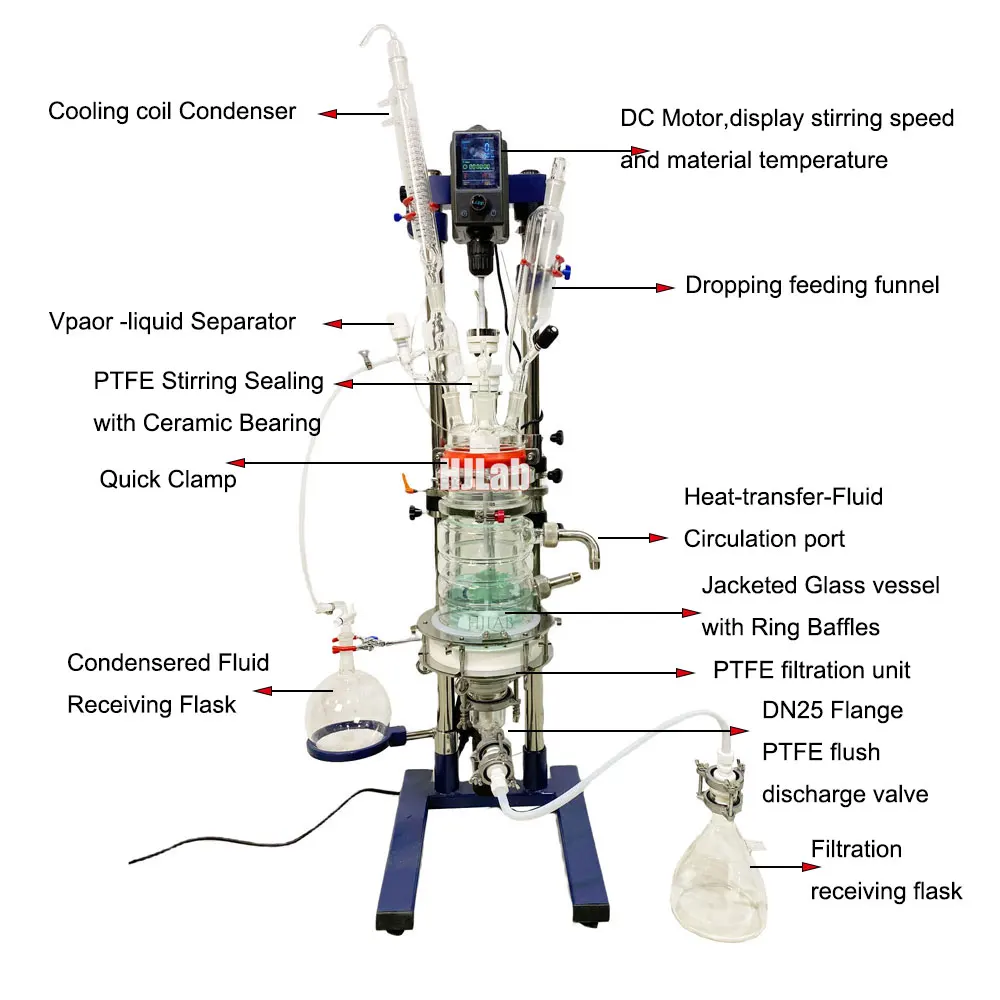

Chemical Synthesis 1L 2L 3L 5L
Filter Jacketed Glass Reactor with DC motor and Ring Baffles

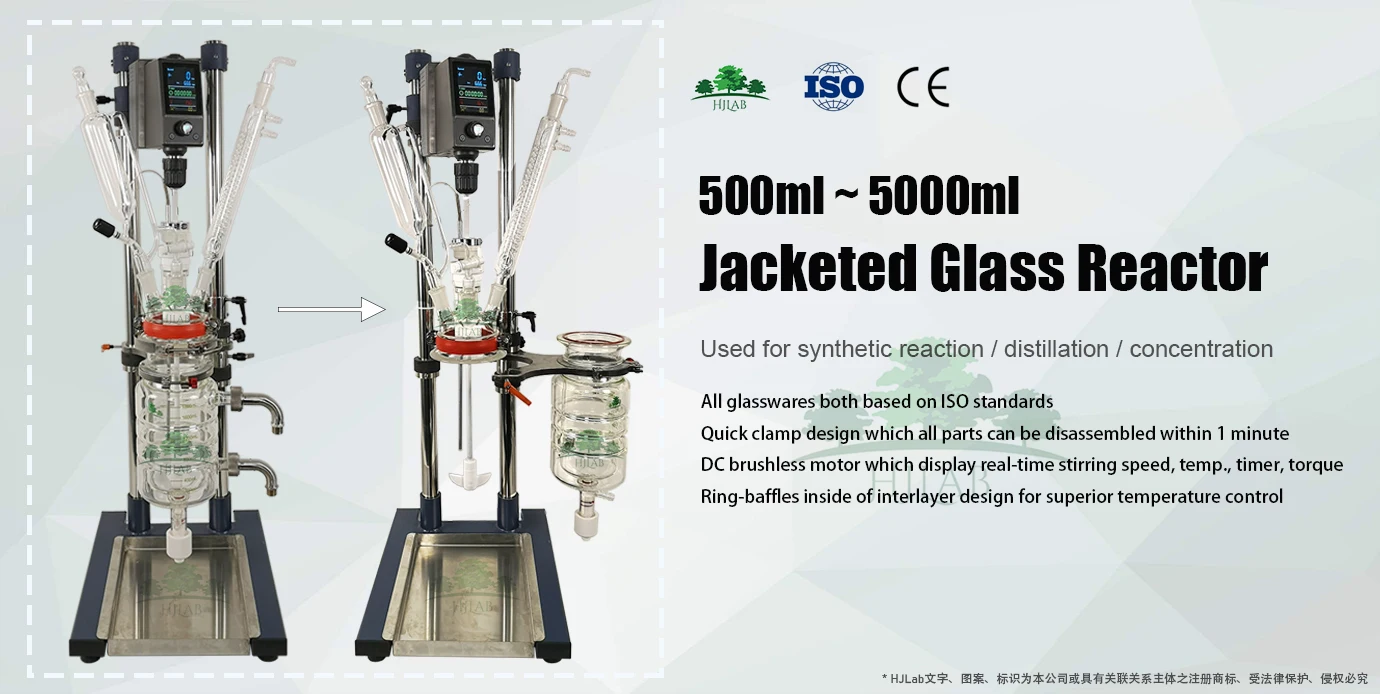

HJLab Benchtop jacketed glass reactor is built for top performance at lab-scale and has been engineered to provide a great user experience.
The superior reaction performance is delivered via the Ring Baffle Design located in the reactors' thermal jacket.
This provides a quick and efficient thermal exchange between the process and thermal source.
Other notable performance factors are a wide process temperature range, high thermal shock resistance and vessel geometry similar to industrial vessels.
Our Benchtop Reactor is a compact system with interchangeable vessels (300ml to 5L) and is suitable for placing in a fume hood.
Various vessel options and accessories allow you to choose exactly what you need for your process.
The superior reaction performance is delivered via the Ring Baffle Design located in the reactors' thermal jacket.
This provides a quick and efficient thermal exchange between the process and thermal source.
Other notable performance factors are a wide process temperature range, high thermal shock resistance and vessel geometry similar to industrial vessels.
Our Benchtop Reactor is a compact system with interchangeable vessels (300ml to 5L) and is suitable for placing in a fume hood.
Various vessel options and accessories allow you to choose exactly what you need for your process.
Specification
Items | Details | |
Glass Materials | High Borosilicate Glass 3.3 | |
Wetted Parts | Glass and PTFE | |
Reaction Vessel Capacity | 300ml, 500ml, 1L, 2L, 3L and 5L | |
Thermal Jacket | Ring Baffles within the Thermal Jacket | |

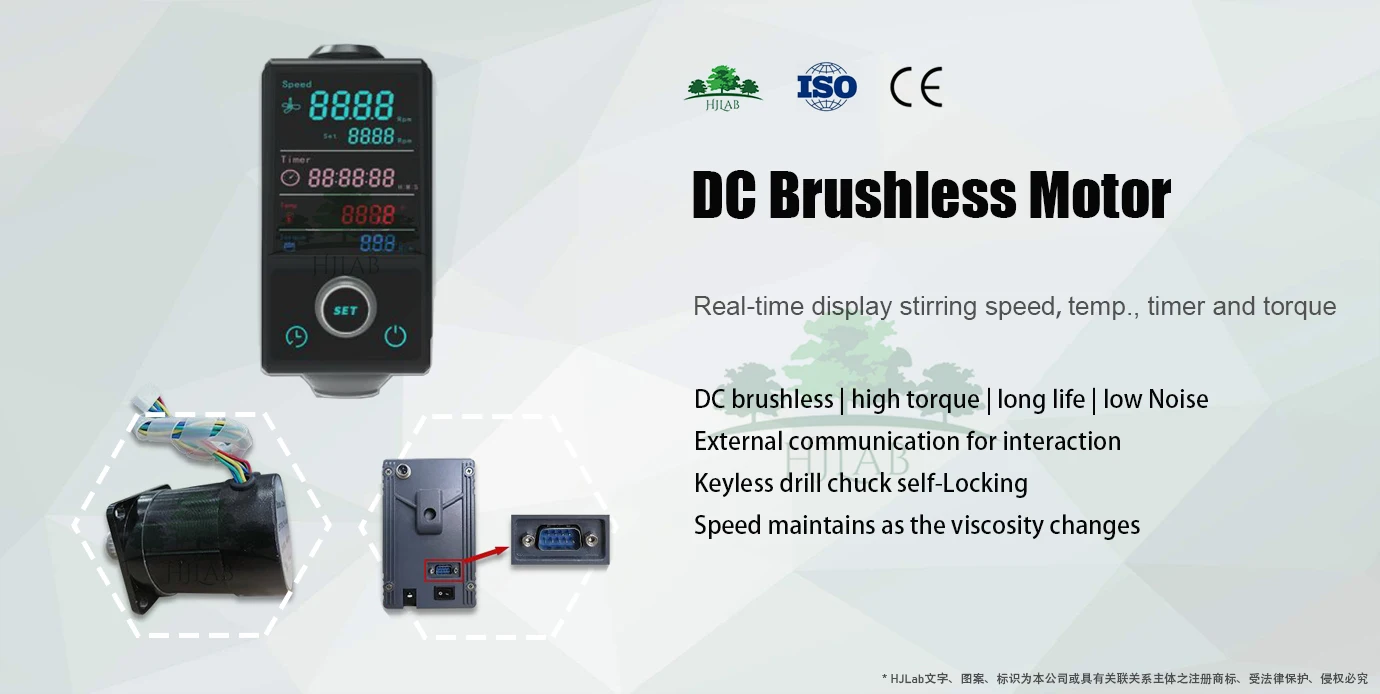

Stirring Motor | DC Brushless Motor, 50W, 100W, 150W Stirring Range: 50 ~ 2200 RPM Realtime Display: 1) Current Stirring Speed 2) Set Stirring Speed 3) Timer 3) Materials Temperature 4) Torque RS485 Communication | |
Mixing Sealing | PTFE + Mechanical | |
Condenser | Cooling Coil Condenser | |

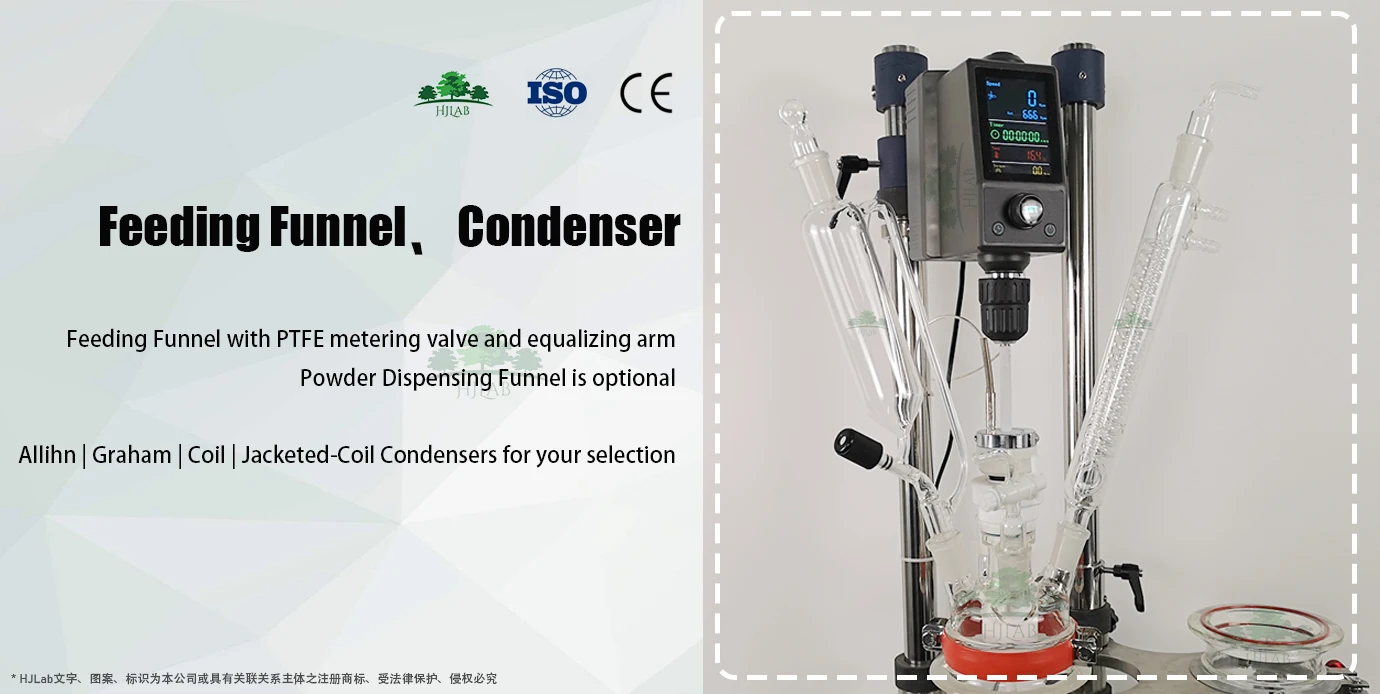

Dropping Feeding Funnel | Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm | |

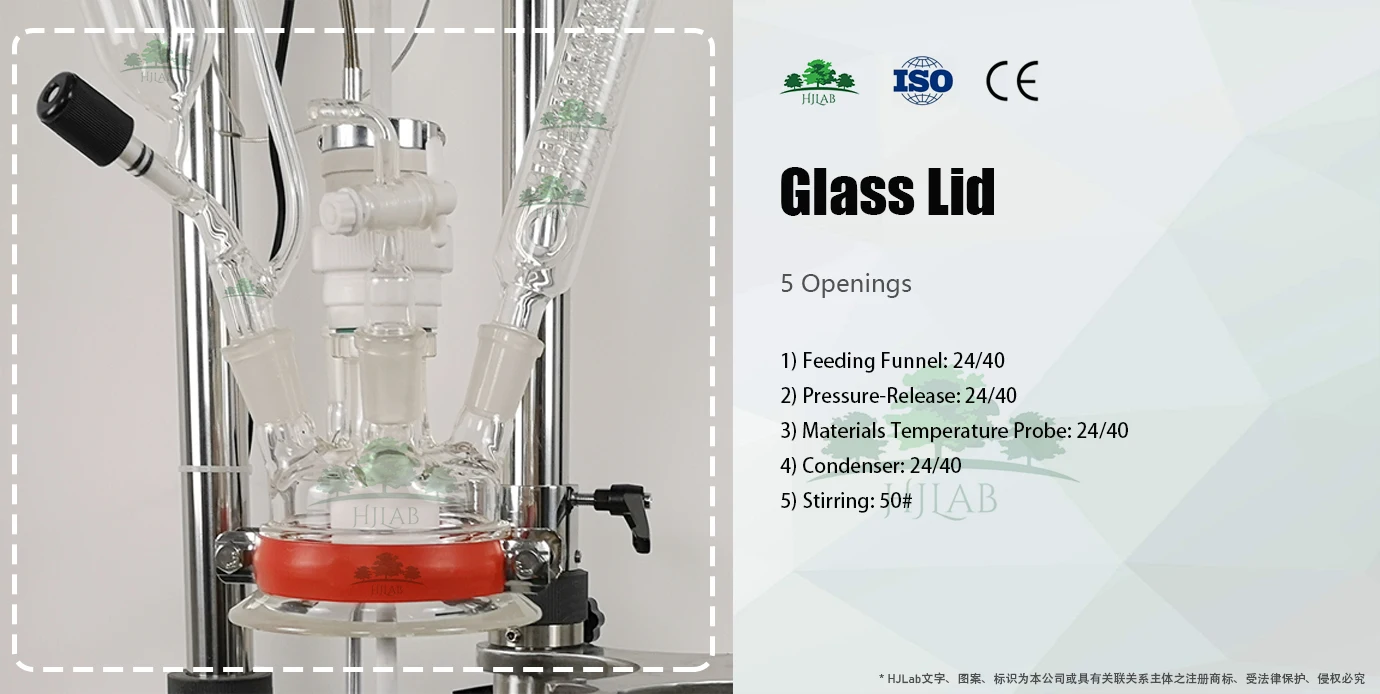

Glass Lid | 5 Openings: 1) Dropping Feeding Funnel: 24/40 2) Pressure Release(or Round-Top Funnel): 24/40 3) Materials Temperature Probe: 24/40 4) Condenser: 24/40 5) Stirring: 50# (Flange) | |
Stirring Impeller | PTFE Anchor Type PTFE Pitched Paddle Type PTFE Retreat Curve Type | |
Operating Temperature | -90℃ to +230℃ | |
ΔT - Thermal Shock Resistance | 90℃ (Double Wall), 60℃ (Triple Wall) | |
Operating Pressure | Full Vacuum to Atmospheric Pressure | |
Operating Jacket Pressure | Up to +0.5 bar (0.05 MPa) | |
Power Supply | 100V ~ 240V, 50Hz/60Hz | |
Dimension | 40L * 50D * 110H cm | |

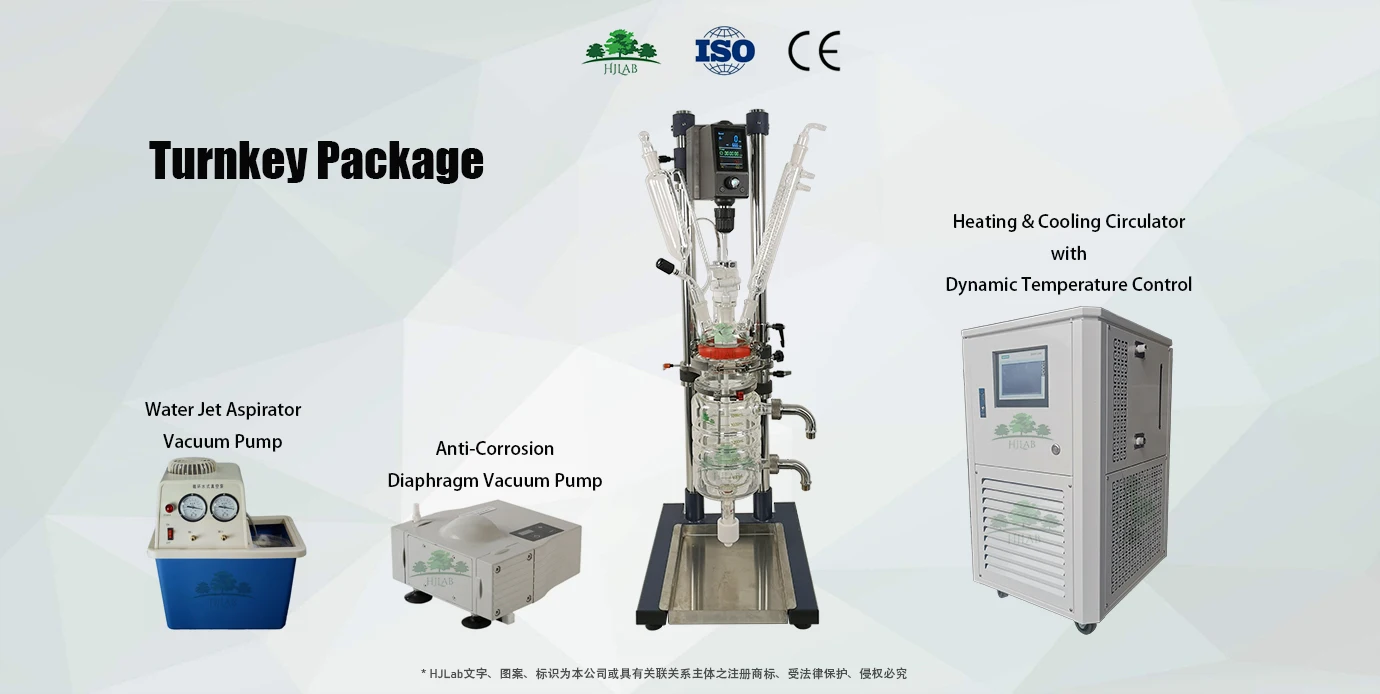

Turnkey Solution
At HJLab, we can help to find the best solution for you. If you have additional requirements or a design already in mind, feel free to send us a message or drawing so that we can understand your process better and provide you with a customized product that meets your exact needs
Detailed Images
Our Service
Pre-Sales Services
1) Online video meeting to visit our factory
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
Delivery Services
1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
1) Third-party for in-depth post-production product inspection
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
Payment Service
1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
Packing & Delivery
1) Wooden packing
2) Fumigation certification, certification of original
3) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
4) Also you can specify your own forwarder.
5) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Our Company
Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
With 10+ years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.
We work during out of our regular working hours (9AM to 6PM Beijing Time).
"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.
Please feel free to give us a call or drop us a message, and you will be our next story of success.
