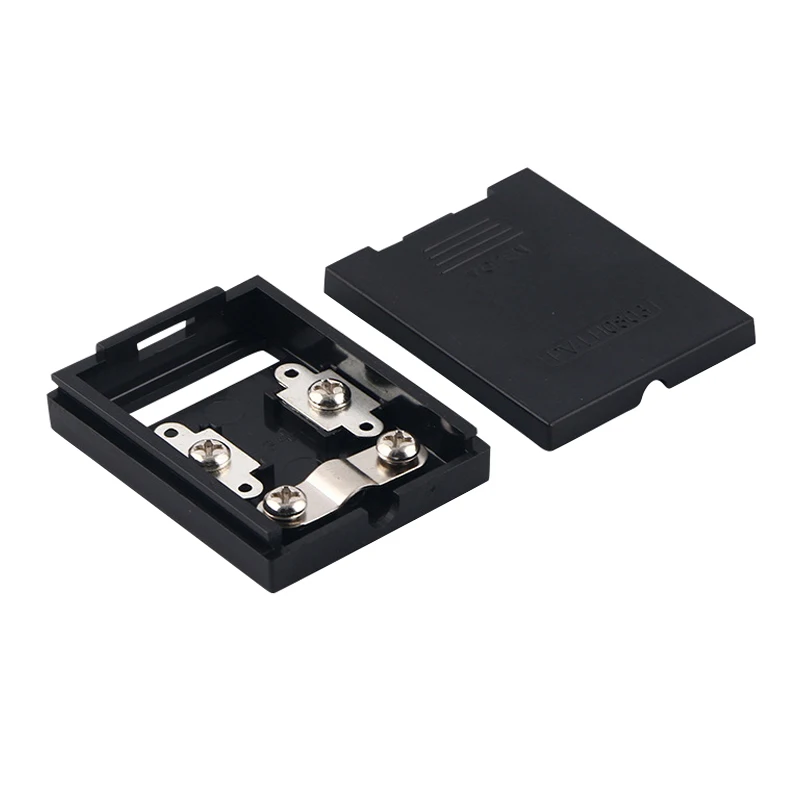

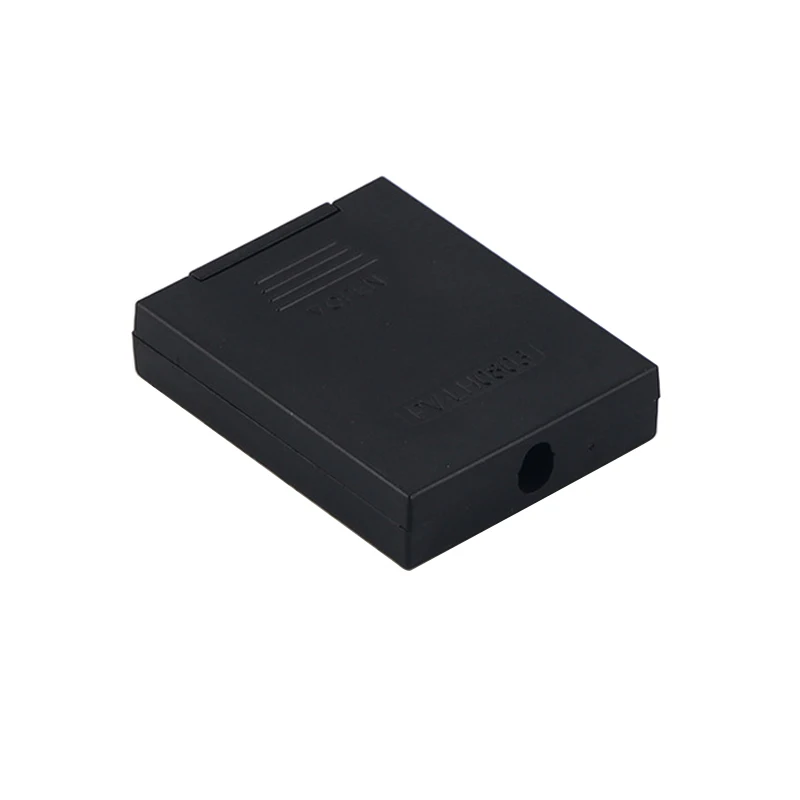

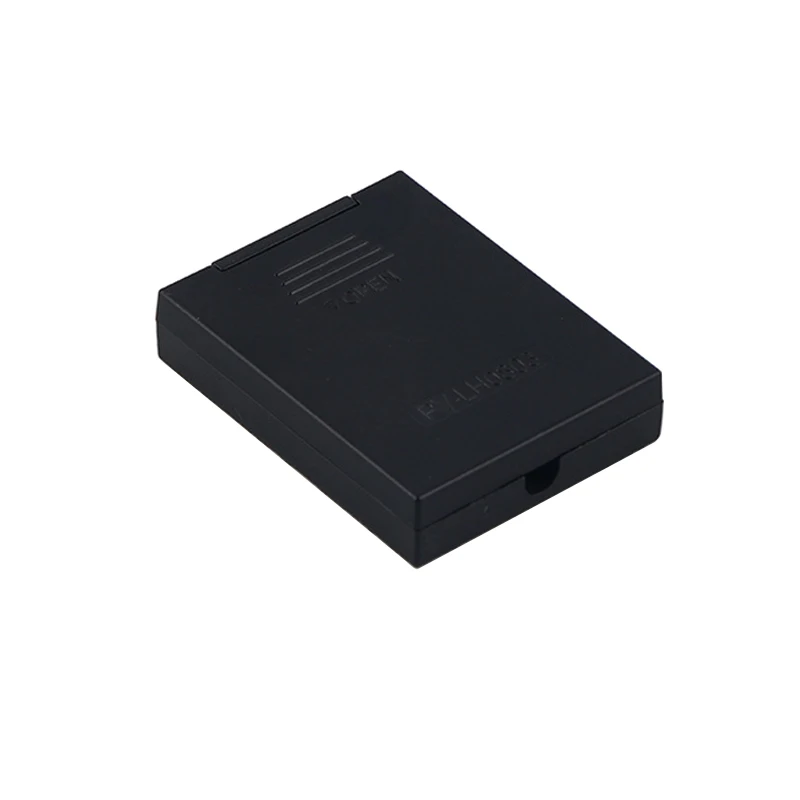

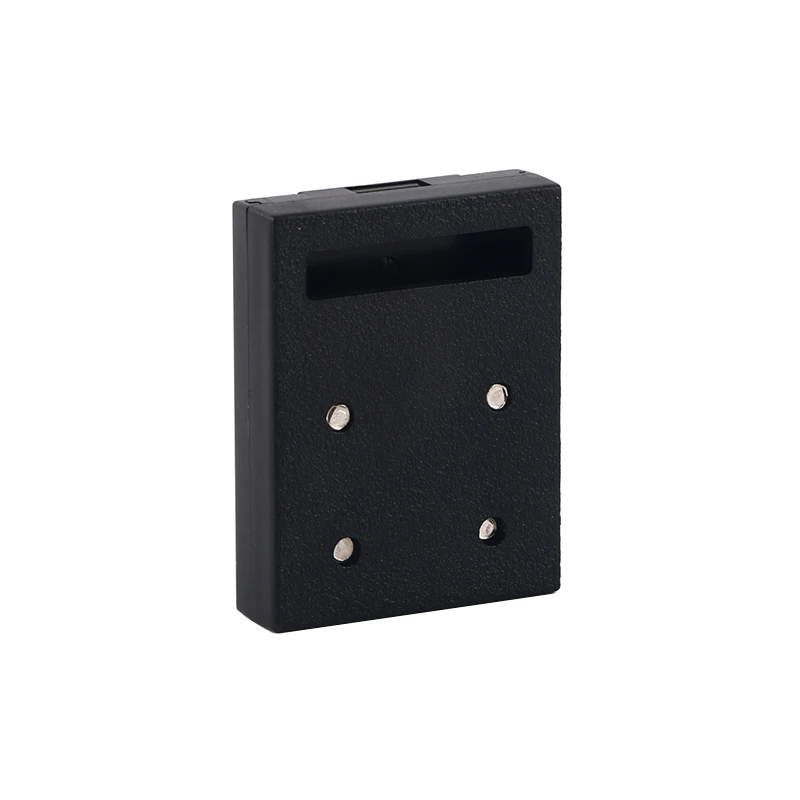

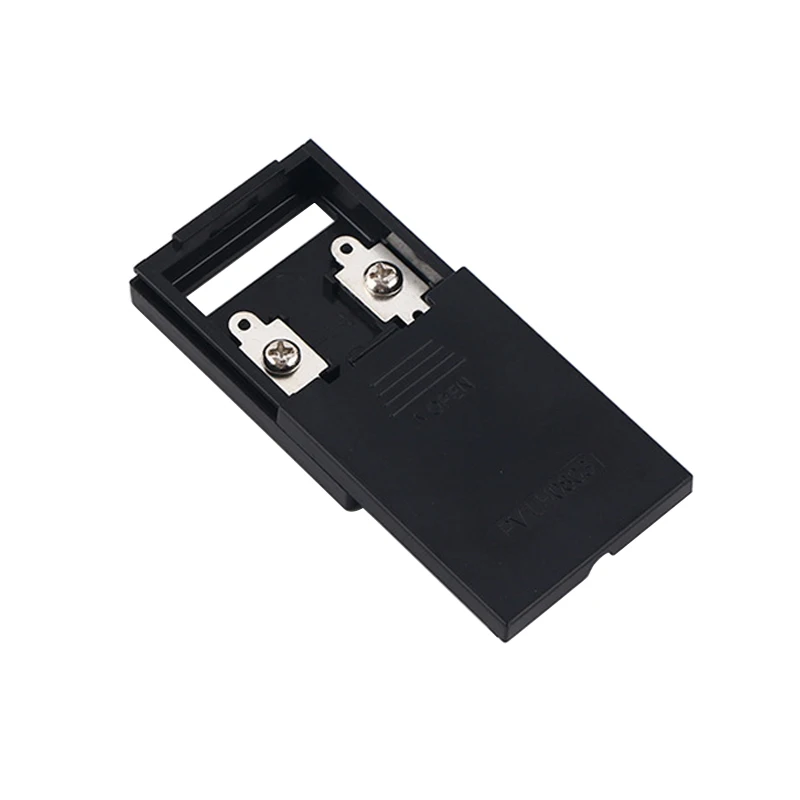

Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box
Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box

Low Power Low Current PV Module Junction Box Waterproof Drawer Type Solar Junction Box

Share on (1600619907943):


Price:

Quantity:


Product Overview

Description



OEM&ODM Services






Specification

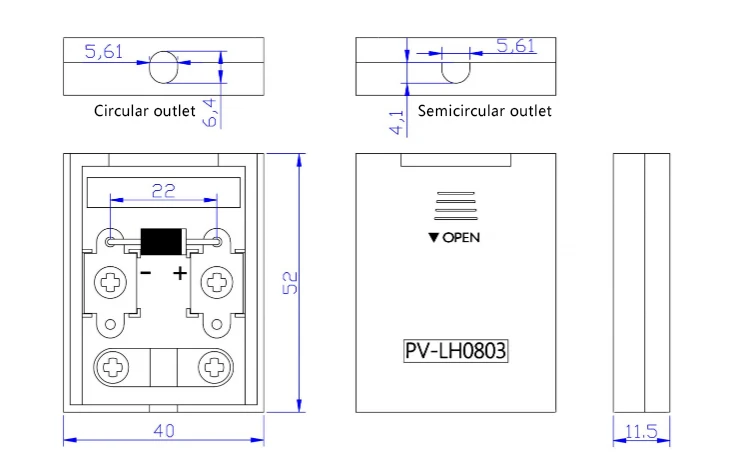

Overall Dimension
52*40*11.5mm
Rated Voltage
1000VDC
Rated Current
3~5.5A
Power
10-30W
Working Temperature Range
-40℃～+85℃
Safety Class
Class II
IP Grade
IP64
Cable Range
2*0.5-0.75mm²
Contact Material
Copper Tin-plated or Iron Tin-plated
Ribbon Connection Method
Soldering
Insulation Material
PPO or ABS
Flame class
UL94-V0 (ABS)
Diode Model
IN5408, 6A10, 10A10, 12SQ045, 15SQ045(D0-27)
Selection by customer
Optional Connector
MC 4 compatible
The rated current will be changed when the box is fixed with different types of diode.

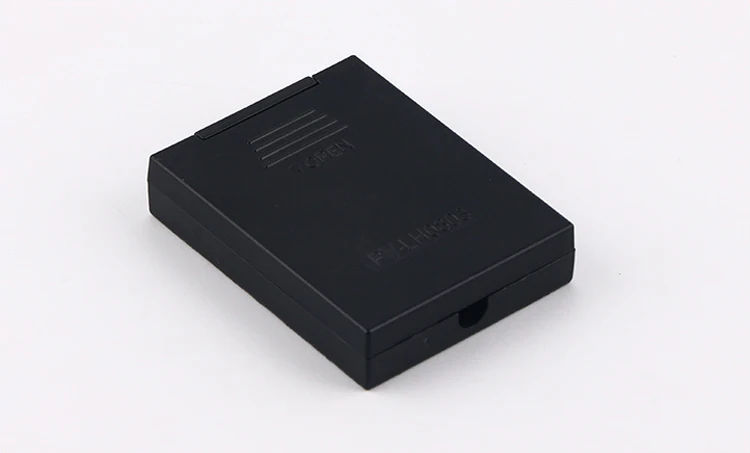

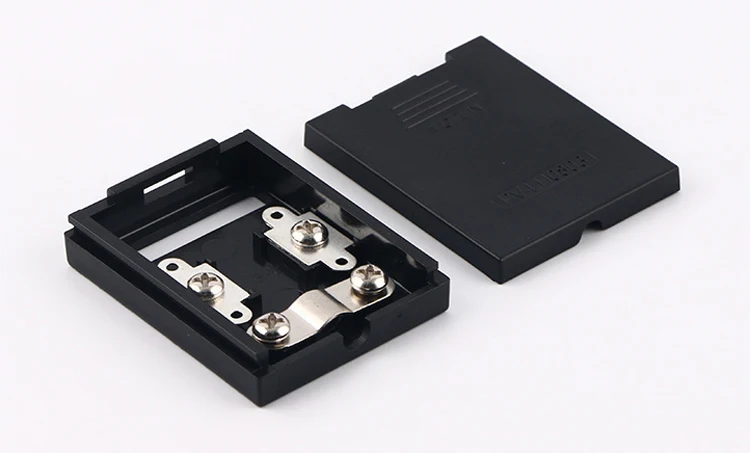

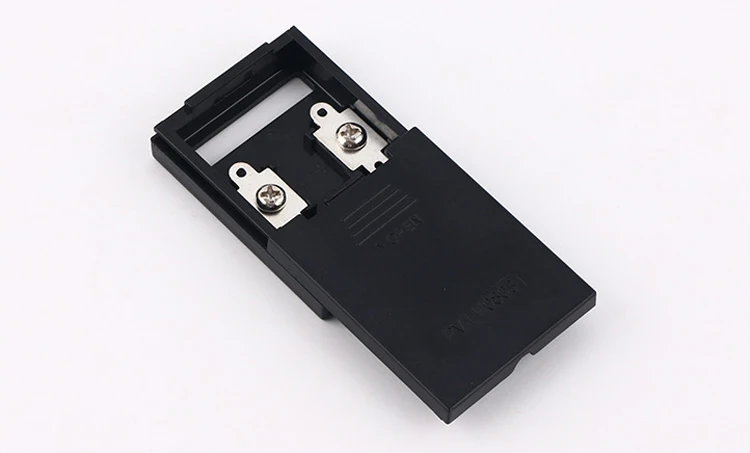

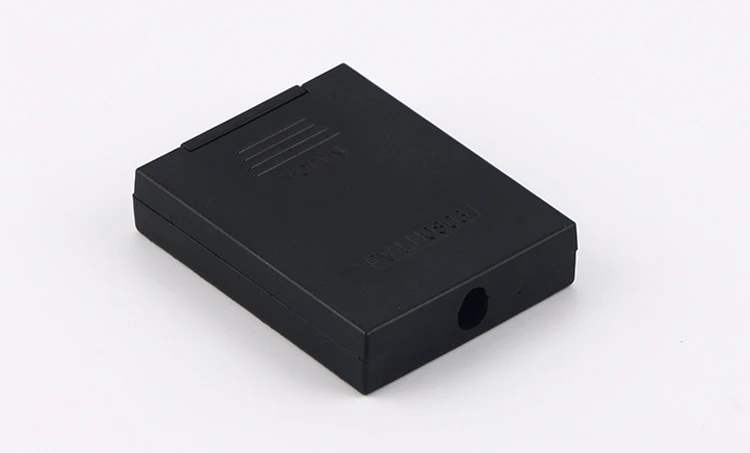

Products Description

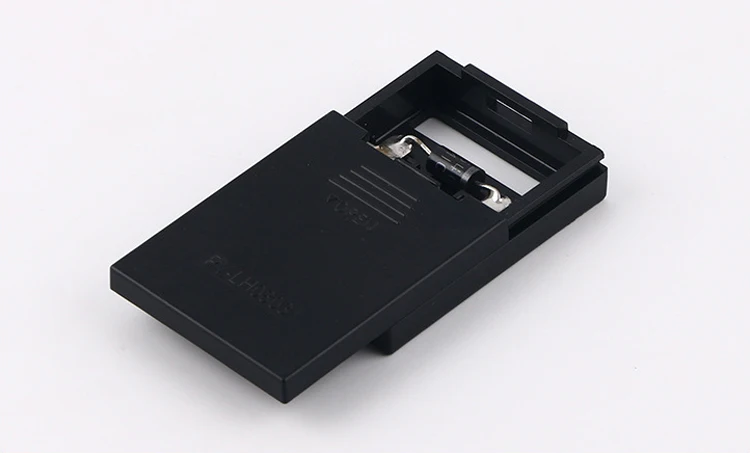

LH0803 Main characteristic
● Insulating materials have anti-aging capability.
● The cable is connected by welding.
● The ribbon bands are connected by welding.
● The rated current will be changed when the box is fixed with different types of diode.
● Installation and maintenance are more convenient.


















More Products












Company Information






Exhibition




Packaging&Shipping




FAQ


1) Are you a factory or trading company?
We have our own factories.

2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.

6) How to guarantee the quality of your products?
Our products have U L, TUV, IEC, RoHs, SGS and other certifications.
