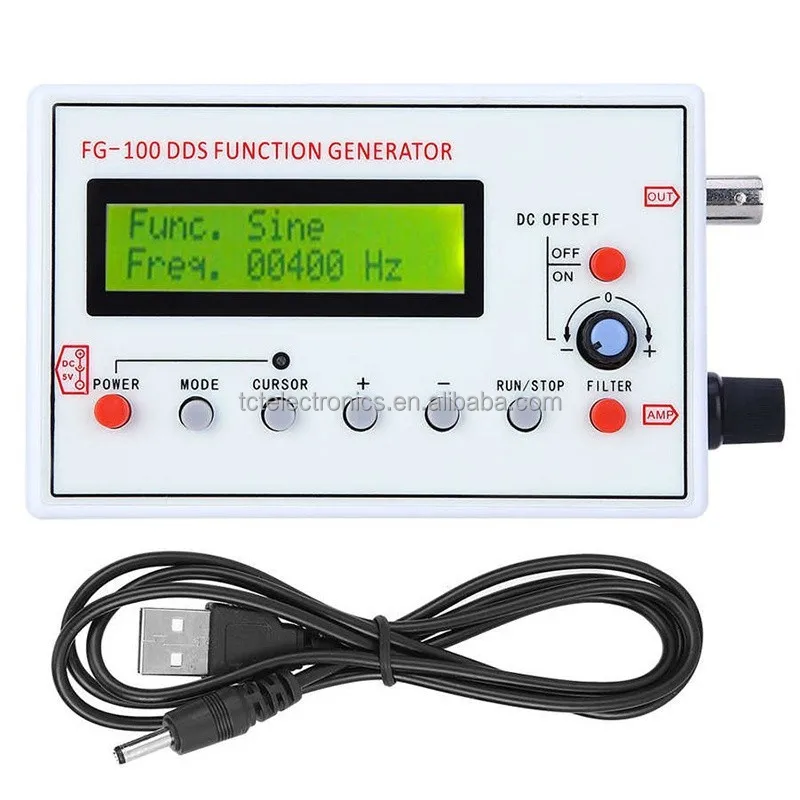

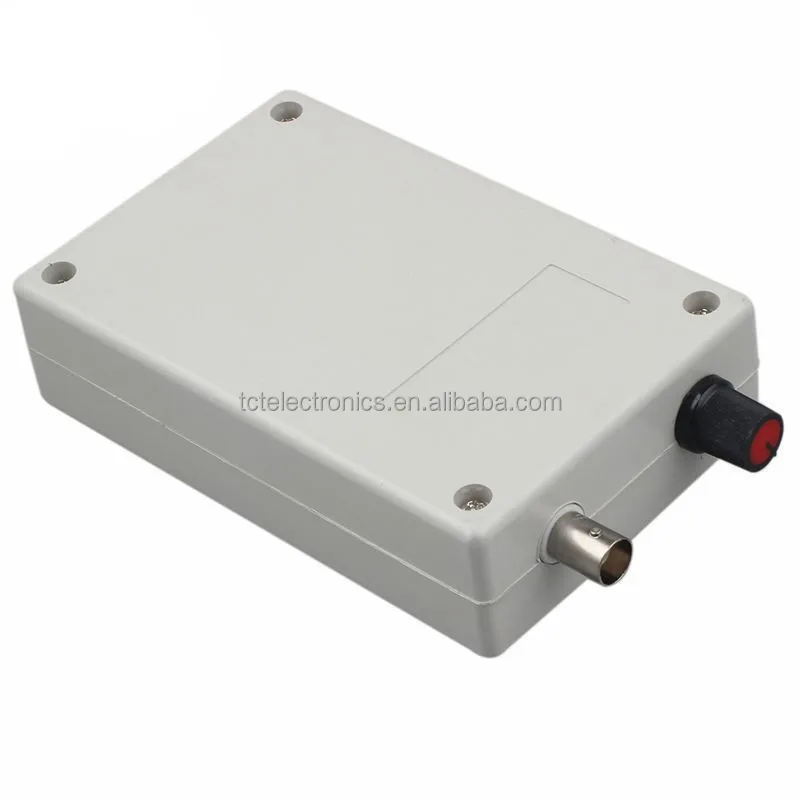

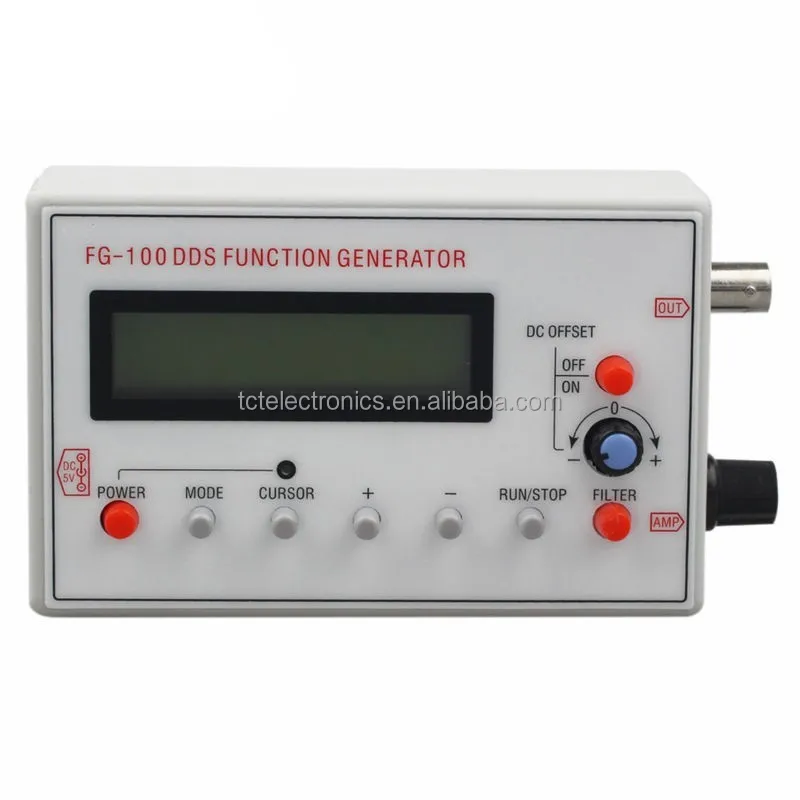

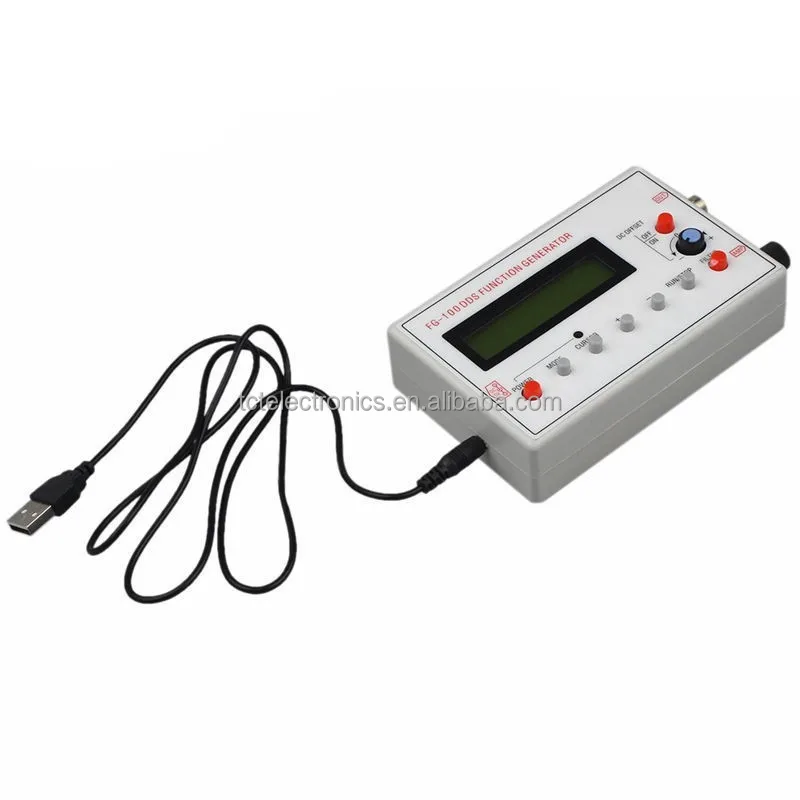

DDS Signal Generator FG 100 DDS Function Generator Function Signal Generator
- Category: Signal Generators >>>
- Supplier: Shenzhen TCT Electronics Co. Ltd.
Share on (1600620143095):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | / |
Type | Signal Generator |
Customized support | OEM |
Place of Origin | China |
Guangdong | |
Brand Name | TCT Electronics |
Model Number | FG-100 DDS |
Product name | FG-100 DDS |
Application | Signal Generator |
Function | high quality |
Usage | Signal Generator |
Keyword | Generator |
Name | FG-100 DDS |
PAYMENT | Paypal\\TT\\Western Union\\ Trade Assurance |
MOQ | 10pcs |
Brand | TCT ELECTRONICS |
Feature | Easy Operation |
Packing & Delivery
one. main feature:
Small size, complete functions, simple operation, easy to carry. It can be powered by an adapter or a lithium battery. Together with the oscilloscope, it can be used for testing and debugging of electronic circuits, testing and measuring the frequency characteristics and impulse response of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. Square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment, etc.
2. Main technical indicators:
1. Frequency range: sine wave 1Hz-500kHz (the output amplitude is flat to 200 kHz, and the output amplitude will decrease as the frequency further increases), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency is not limited, if The requirements for distortion and shaking are not high, and the frequency of use can be further increased).
2. Resolution: 1Hz.
3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave.
4. Sine wave distortion: <1% below 1kHz, <0.5% at 1kHz and above.
5. Output amplitude: maximum ±10V (P-P).
6. Output impedance: 50 ohms.
7. DC offset: maximum ±10V, with shutdown function.
8. There are filters that can be turned on and off, which can be well adapted to the output of sine and pulse waveforms.
8. Power supply: DC3.5-10V. It is recommended to select DC5V when using the adapter, and use 3.7V lithium battery when the battery is powered.
9. Dimensions: 125x80x32.
10. Weight (including accessories): about 0.2kg
Small size, complete functions, simple operation, easy to carry. It can be powered by an adapter or a lithium battery. Together with the oscilloscope, it can be used for testing and debugging of electronic circuits, testing and measuring the frequency characteristics and impulse response of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. Square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment, etc.
2. Main technical indicators:
1. Frequency range: sine wave 1Hz-500kHz (the output amplitude is flat to 200 kHz, and the output amplitude will decrease as the frequency further increases), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency is not limited, if The requirements for distortion and shaking are not high, and the frequency of use can be further increased).
2. Resolution: 1Hz.
3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave.
4. Sine wave distortion: <1% below 1kHz, <0.5% at 1kHz and above.
5. Output amplitude: maximum ±10V (P-P).
6. Output impedance: 50 ohms.
7. DC offset: maximum ±10V, with shutdown function.
8. There are filters that can be turned on and off, which can be well adapted to the output of sine and pulse waveforms.
8. Power supply: DC3.5-10V. It is recommended to select DC5V when using the adapter, and use 3.7V lithium battery when the battery is powered.
9. Dimensions: 125x80x32.
10. Weight (including accessories): about 0.2kg
