Good Quality Asphalt Concrete Road Paver RP952 With Cheap Price
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1600620176866):
Product Overview
Description
Product Overview
Chinese Manufacturer Asphalt Concrete Paver RP952 Road Construction Paver Machine
Feeding technology: reliable and endurable
Large range of the clearance adjusting of the separate rod (330-480mm) meets the requirements of different paving conditions and
reduces the segregation along the height direction.
It adopts Φ420X360 large diameter and coarse pitch blade, reducing the rpm and segregation.
Two reverse blades in material separate box reduce the medium segregation area.
Center cooling technology: advanced and unique
With the optimized configuration and optimal cooling performance, the combined cooling water tank is 50% large than the standard water tank of the diesel engine, which could ensure the machine working constantly in high temperature.
The diesel engine and the cooling system adopt the unique closing structure.
The heat of the machine is discharged forcefully.
Screed technology: mature and reliable
The most mature and reliable screed
The screed devices are of many kinds and multiple functions, and the optimal screed is selected according to the requirement of the user.
Dual-vibrating mechanisms could get the excellent compaction on the stabilized material.
The stepless and adjustable vibrating frequency could meet the requirements of various conditions.
Electric heating or gas heating is selected according to the requirement of the user.
Precise allocation
The key parts adopt the high strength materials: the bottom plate and protective devices adopt the imported high endurance steel
plate from Germany.
High reliable power and transmission.
RP951A/RP902 is equipped with BF6M1013E engine, 137KW; RP952 is equipped with Shangchai D6114 diesel engine, 140kW; and the optimal is162kW. They could meet the requirements of different users.
Advanced technology
Triune travel and drive device features high reliability and convenient service.
One machine, multiple applications. It can pave the asphalt mixture, lime-flyash soil and stabilizing soil.
Simple operation
The control system adopts micro-computer controlling, featuring simplicity and convenience.
All control components are installed on the instrument box, easy to access.
The seat could be moved to outside featuring excellent visibility.
Large range of the clearance adjusting of the separate rod (330-480mm) meets the requirements of different paving conditions and
reduces the segregation along the height direction.
It adopts Φ420X360 large diameter and coarse pitch blade, reducing the rpm and segregation.
Two reverse blades in material separate box reduce the medium segregation area.
Center cooling technology: advanced and unique
With the optimized configuration and optimal cooling performance, the combined cooling water tank is 50% large than the standard water tank of the diesel engine, which could ensure the machine working constantly in high temperature.
The diesel engine and the cooling system adopt the unique closing structure.
The heat of the machine is discharged forcefully.
Screed technology: mature and reliable
The most mature and reliable screed
The screed devices are of many kinds and multiple functions, and the optimal screed is selected according to the requirement of the user.
Dual-vibrating mechanisms could get the excellent compaction on the stabilized material.
The stepless and adjustable vibrating frequency could meet the requirements of various conditions.
Electric heating or gas heating is selected according to the requirement of the user.
Precise allocation
The key parts adopt the high strength materials: the bottom plate and protective devices adopt the imported high endurance steel
plate from Germany.
High reliable power and transmission.
RP951A/RP902 is equipped with BF6M1013E engine, 137KW; RP952 is equipped with Shangchai D6114 diesel engine, 140kW; and the optimal is162kW. They could meet the requirements of different users.
Advanced technology
Triune travel and drive device features high reliability and convenient service.
One machine, multiple applications. It can pave the asphalt mixture, lime-flyash soil and stabilizing soil.
Simple operation
The control system adopts micro-computer controlling, featuring simplicity and convenience.
All control components are installed on the instrument box, easy to access.
The seat could be moved to outside featuring excellent visibility.

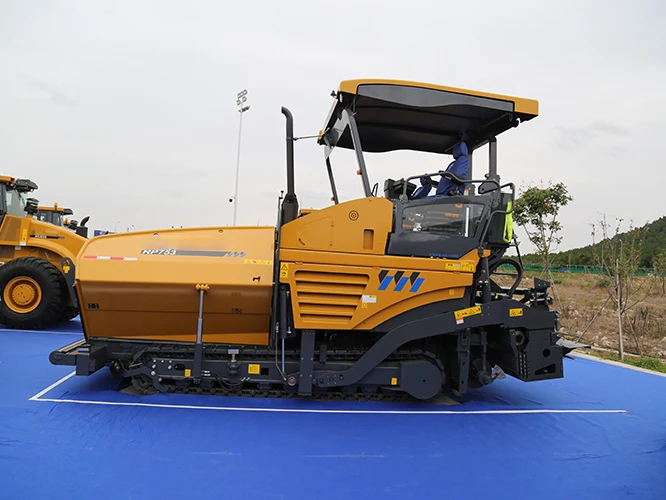

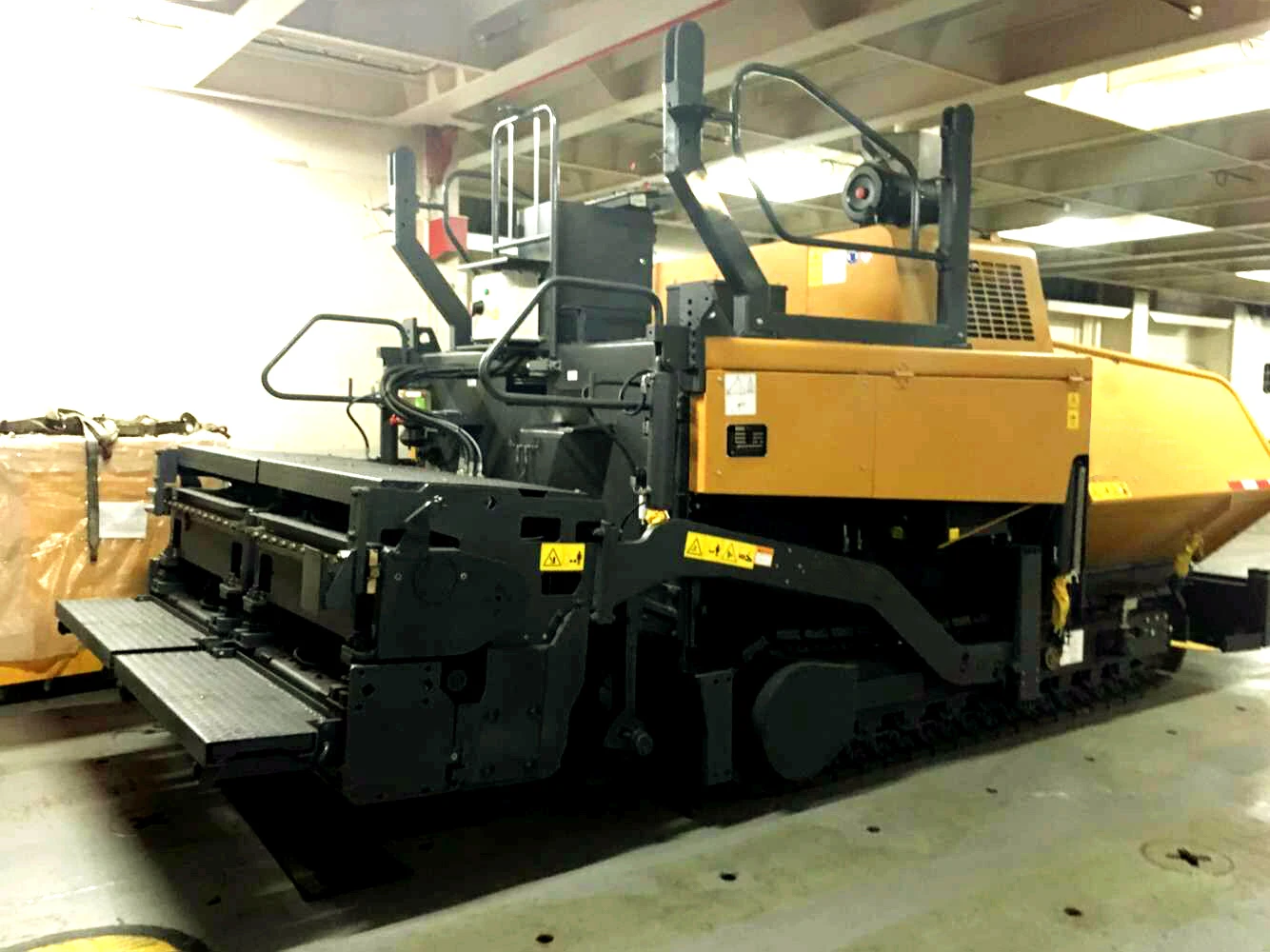

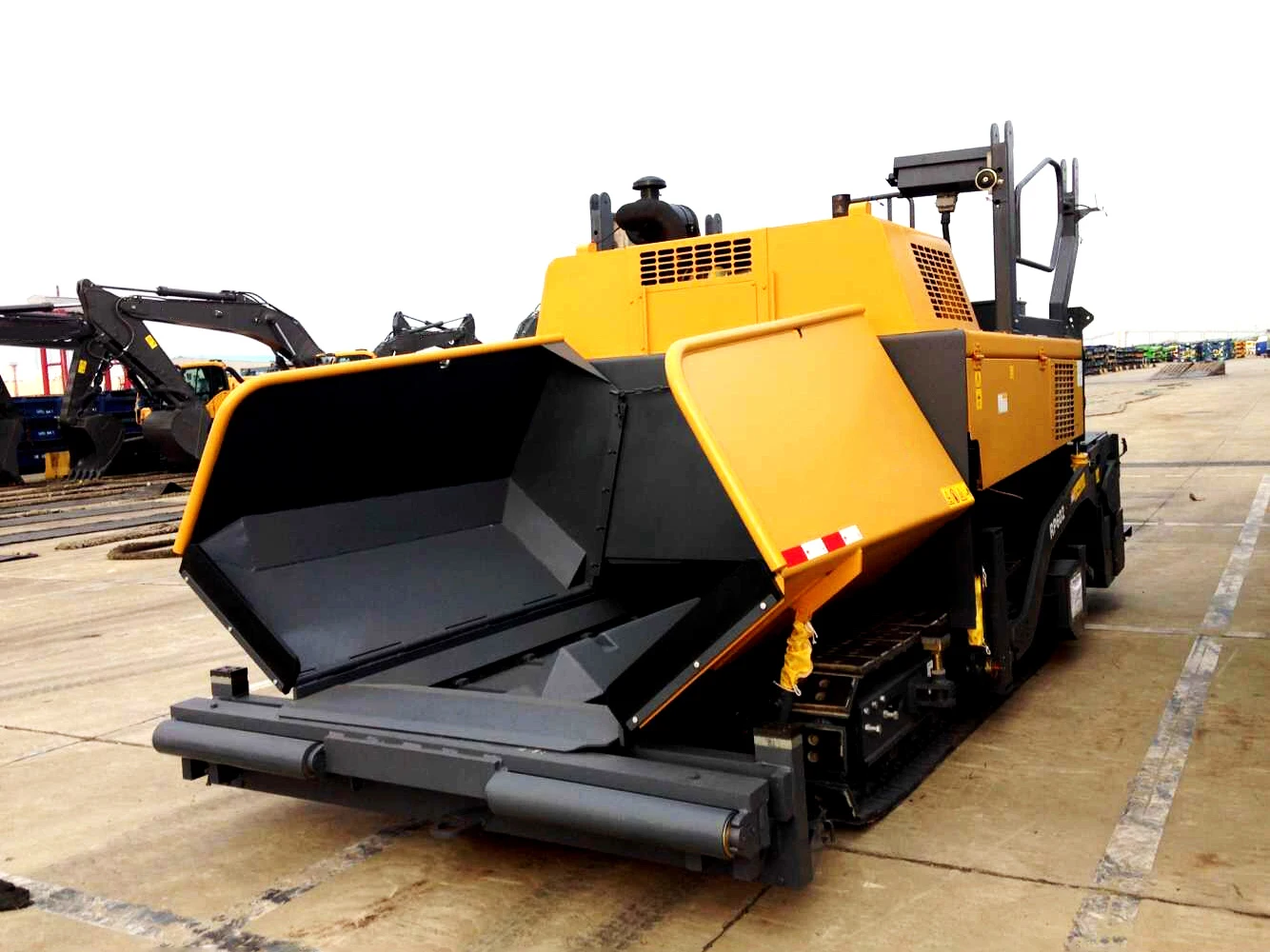

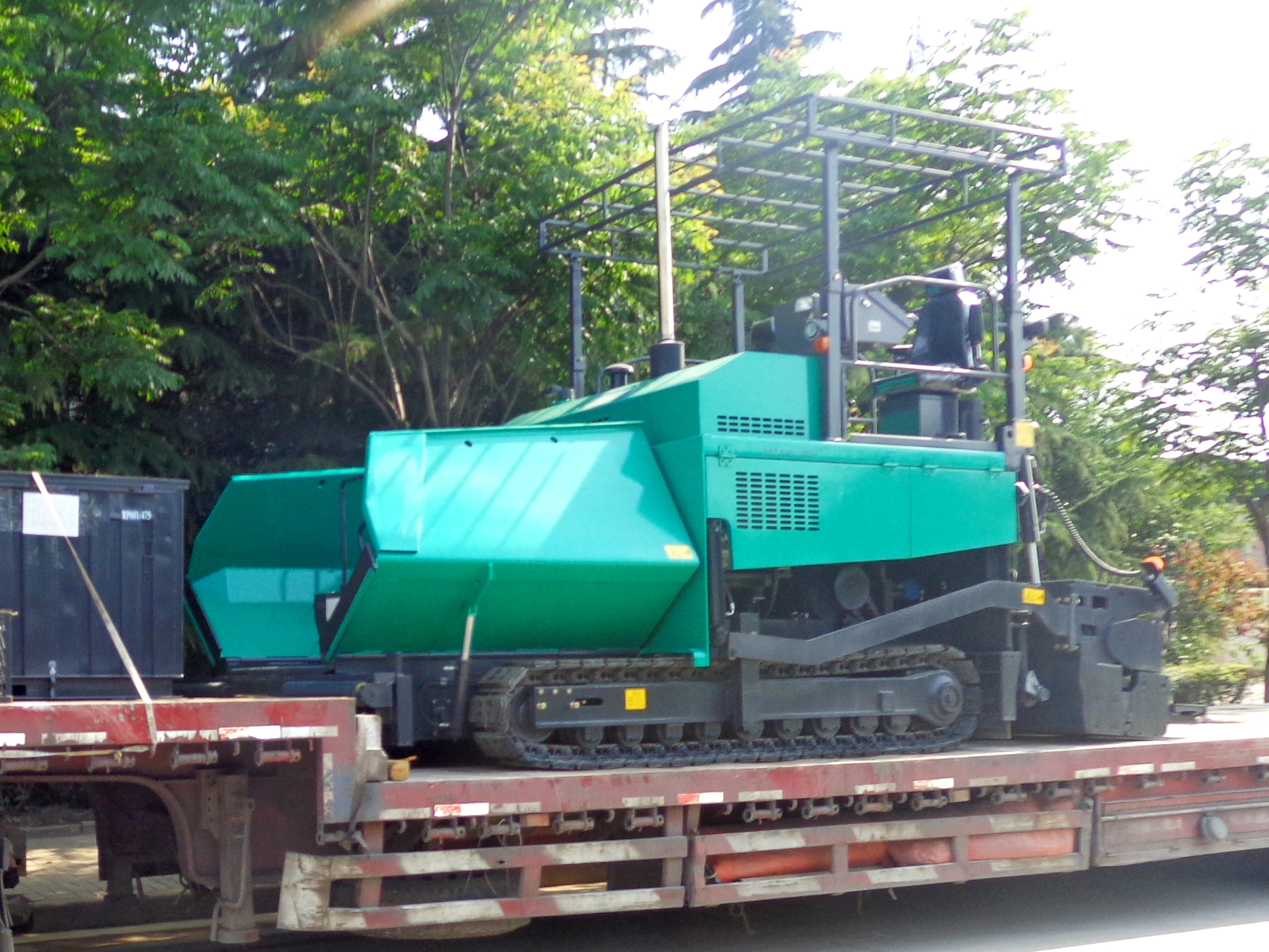

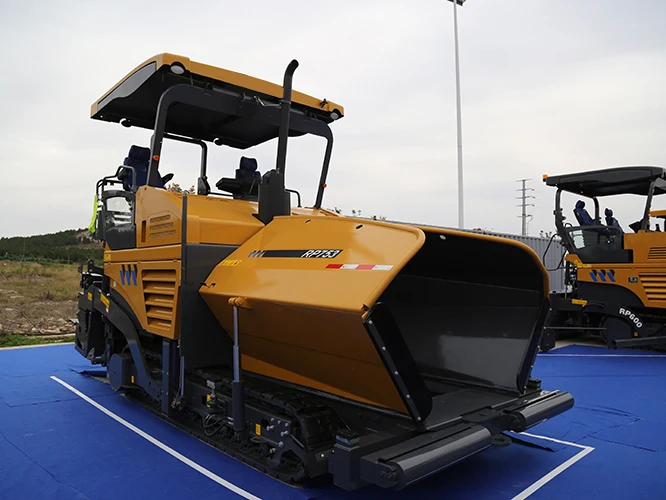

Product Show
PRODUCT CONFIGURATION
Chinese high power engine
Imported control valve
Japan imported hydraulic motor
PRODUCT SPECIFICATIONS
Item | unit | parameter |
Operating performance parameters | ||
Theoretical productivity | t/h | 700 |
Maximum paving width | m | 9.5 |
Maximum paving thickness | mm | 350 |
Maximum paving speed | m/min | 16.5 |
Flatness | mm | 3 |
Density | % | ≥90 |
Density unevenness | % | <5 |
Driving performance parameters | ||
Maximum travel speed | km/h | 2 |
Drive type | Crawler | |
Gradeability | % | 20 |
Minimum turning diameter (tire type) | m | / |
Service brake | Hydrostatic | |
Parking brake | Multi-disc brake, hydraulic release | |
Crawler tension (crawler type) | Hydraulic tensioning | |
Braking distance (tire type) | m | / |
Tire size (tire type) | / | |
Feeding performance parameters | ||
structure type | Independent feeding and distribution | |
Drive way | Independent hydraulic drive for left and right | |
Scraper conveying speed | m/min | Linde ≥ 25 Sauer ≥ 28 |
Spiral feeding speed | r/min | 0~83 |
Spiral diameter | mm | 420/360 |
Lubrication method | Automatic centralized lubrication | |
Screed performance parameters | ||
Assembled form | Mechanical assembly | |
Basic width | m | 3 |
Compaction device | Double vibration + eccentric vibration (optional) | |
heating method | Gas heating | |
Vibration stroke | mm | 5/0, 3, 6, 9, 12 |
Vibration speed | r/min | 0~1470 |
Vibration frequency | Hz | 0~42 (optional) |
Arch adjustment range | % | -1~+4 |
Quality parameter | ||
Host quality (including basic screed) | kg | 21300 |
Maximum quality (working state) | kg | 28800 |
Structural parameters | ||
Dimensions (L×W×H) | mm | 6820×3000×3850 |
Grounding area | mm | 3218×300 |
Hopper density | t | 14 |
Hopper width | mm | 3798 |
Hopper length | mm | 2300 |
engine | ||
model | Shang--chai SC8D190G2B1 | |
Power/speed | kW/r/min | 140/2300 |
emission | Non-road, country Ⅱ | |
Fuel tank capacity | L | 270 |
Successful Project
Project in Chile
Project in Nigeria
Project in Zimbabwe
