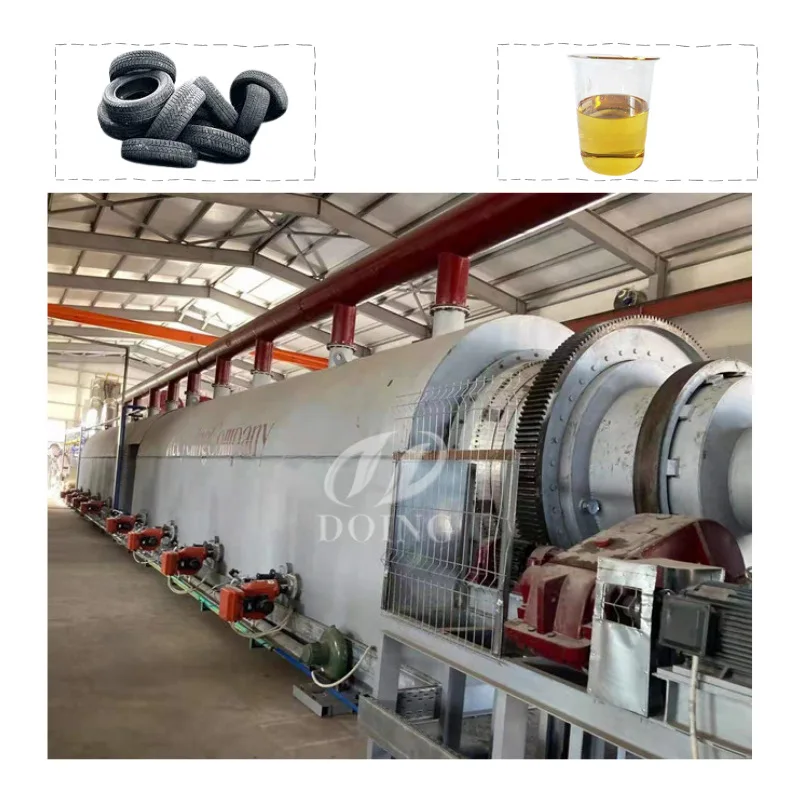

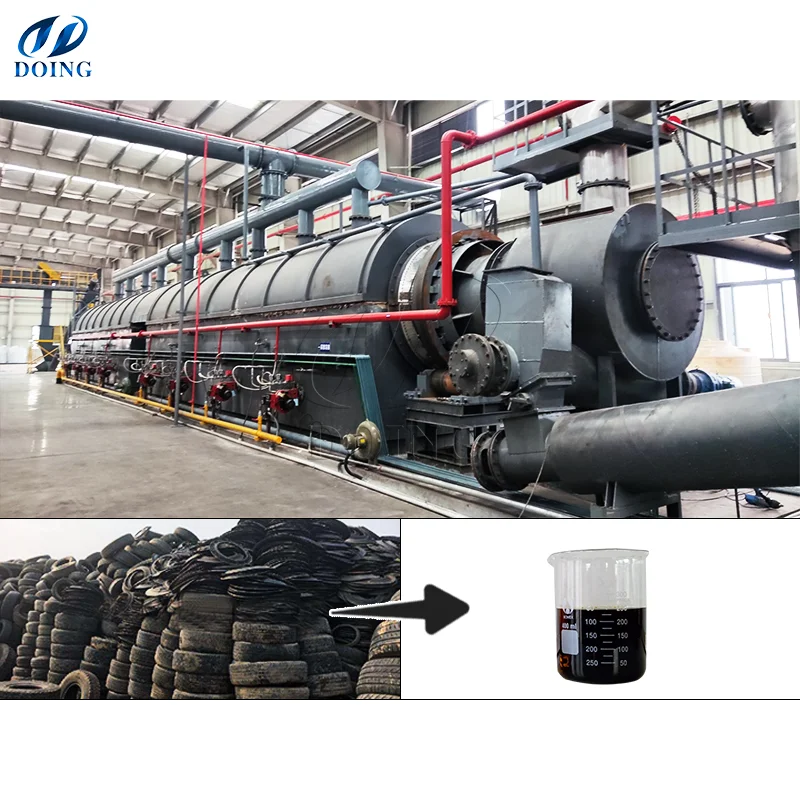

DOING Municipal high quality new design 100kg/d 50tpd solid waste pyrolysis plant recycling machinery
- Category: Rubber Recycling Machinery >>>
- Supplier: Xinxiang Doing Renewable Energy Equipment Co. Ltd.
Share on (1600620179998):
Product Overview
Description
Product Paramenters

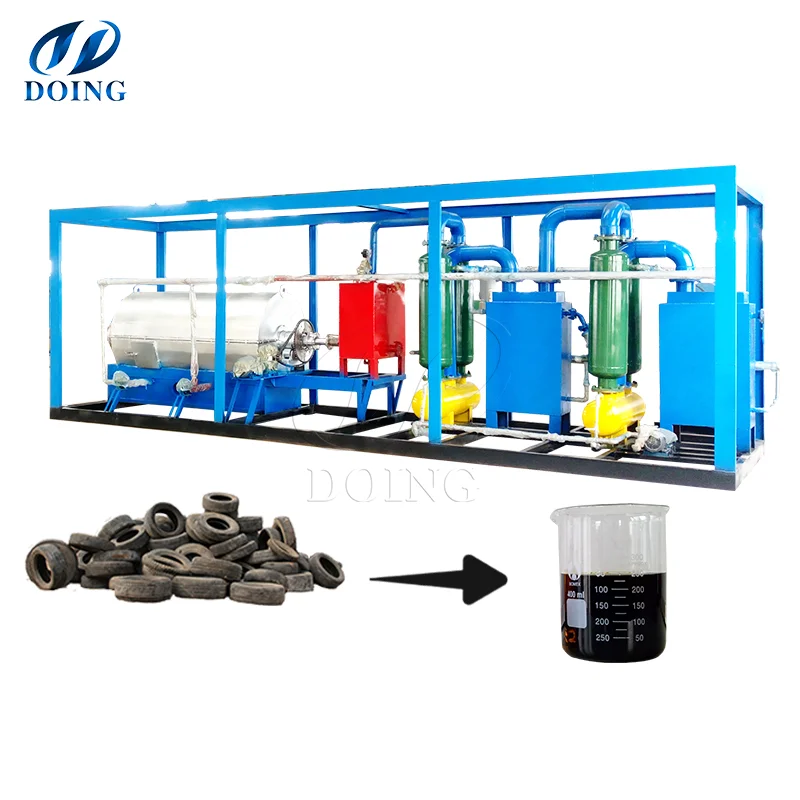

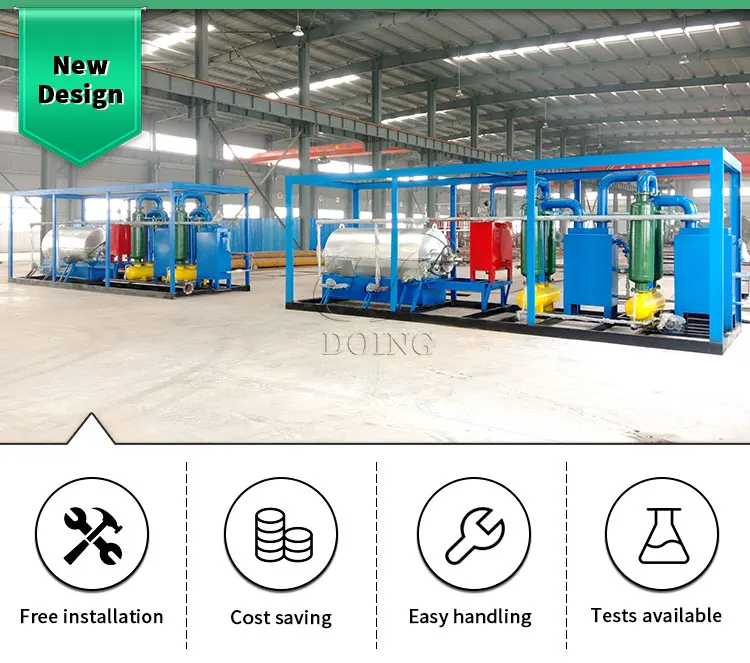

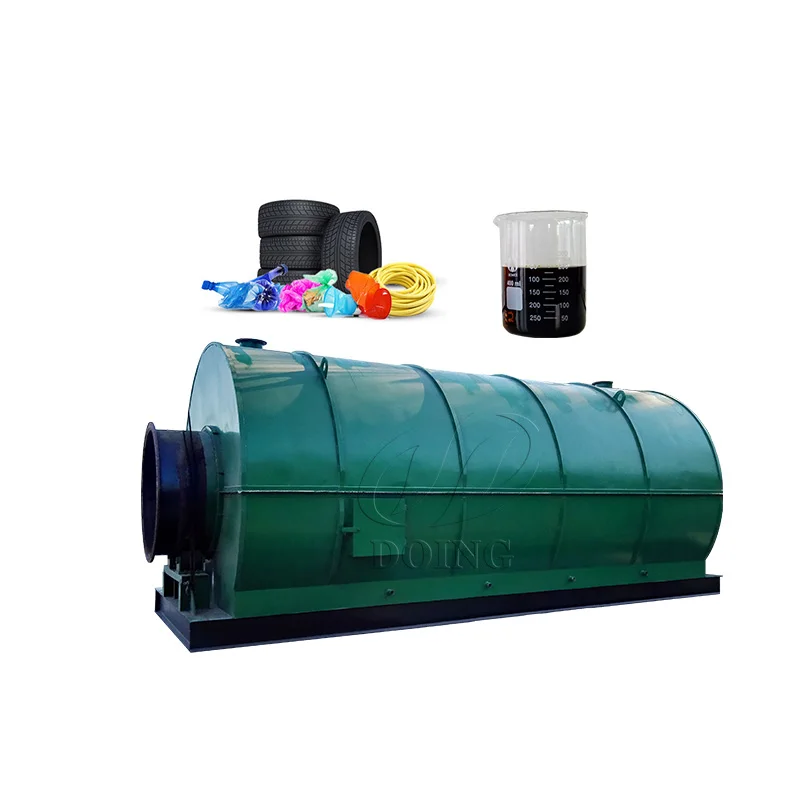

Scheme 1: Free installation small scale pyrolysis plant unit

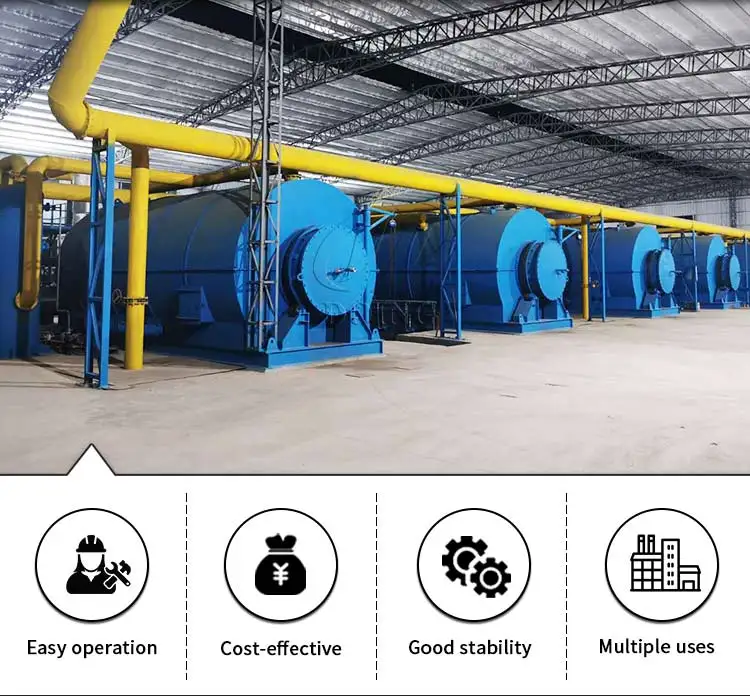

Scheme 2: Favorable Cost batch type pyrolysis plant
Items | Batch Pyrolysis Plant | ||||
Equipment type | DY-1-6 | DY-1-10 | DY-1-12 | ||
Raw material | Waste plastics, tyres | Waste plastics, tyres | Waste plastics, tyres | ||
Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation | ||
24-hour Capacity | 6 ton | 10 ton | 12 ton | ||
Oil yield | 2.7-3.3ton | 4.5 -5.5ton | 4.8 -6.6ton | ||
Operating pressure | Normal | Normal | Normal | ||

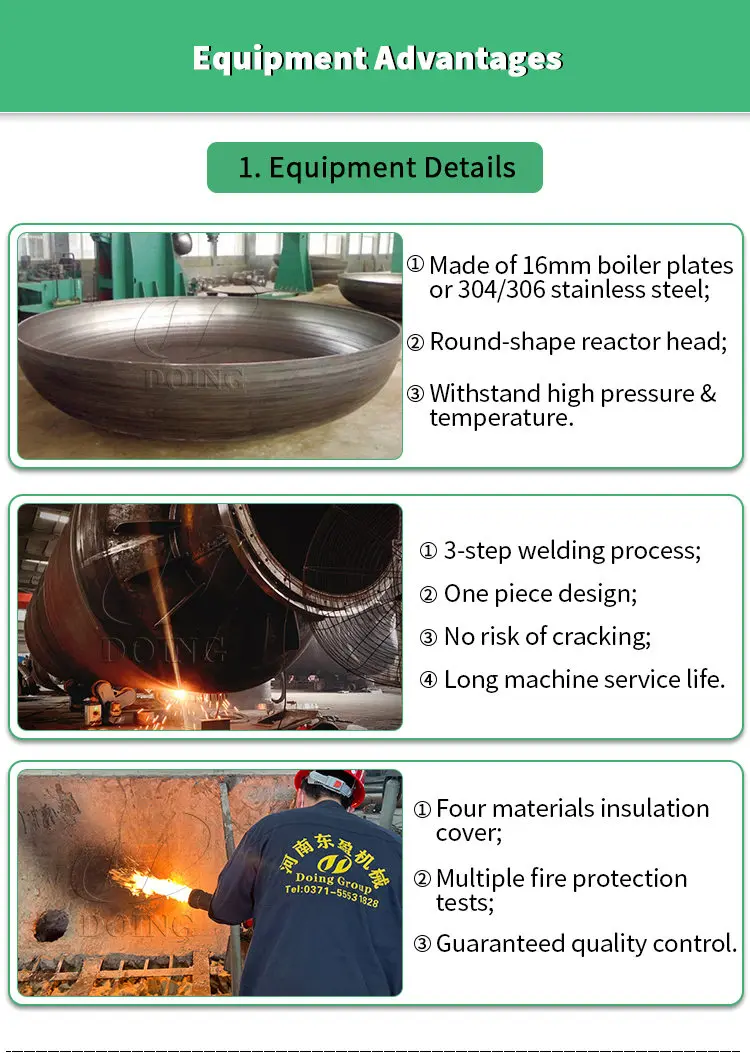

Material of pyrolysis Reactor | Q245R | Q245R | Q245R | ||
Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm | ||
Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute | ||
Total power | 15KW | 15KW | 15KW | ||
Mode of cooling | Water cooling | Water cooling | Water cooling | ||
Cooling area of condenser | 100sqm | 100sqm | 100sqm | ||
Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive | ||
Noise dB(A) | ≤85 | ≤85 | ≤85 | ||
Size of Reactor(D×L) | 2200×6000 | 2600×6600 | 2800×6600 | ||
Working form | Intermittent operation | Intermittent operation | Intermittent operation | ||
Delivery time | 20days | 20days | 20days | ||
Weight | 27T | 32T | 35T | ||

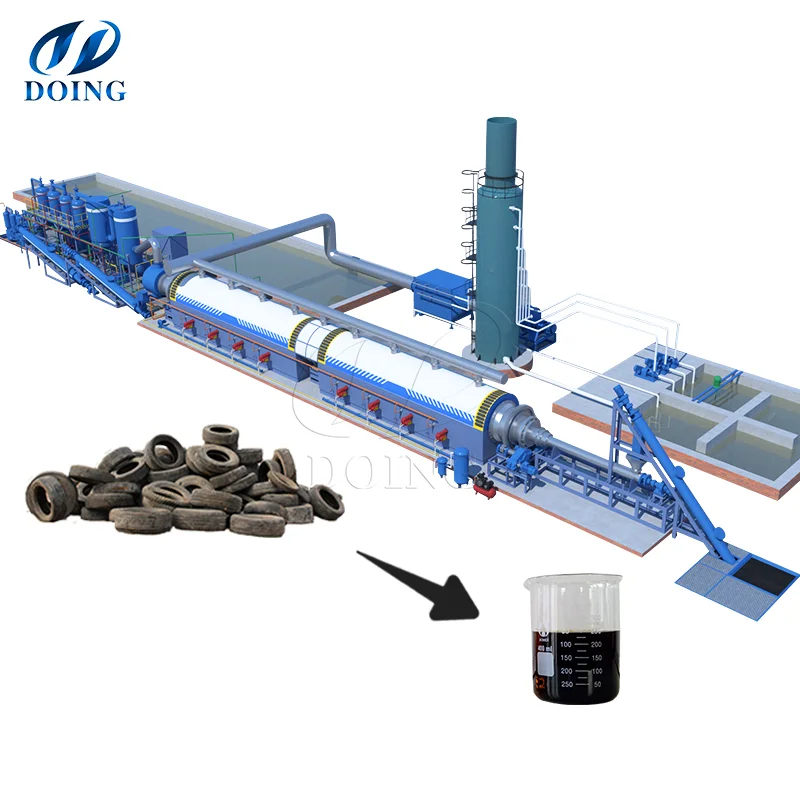

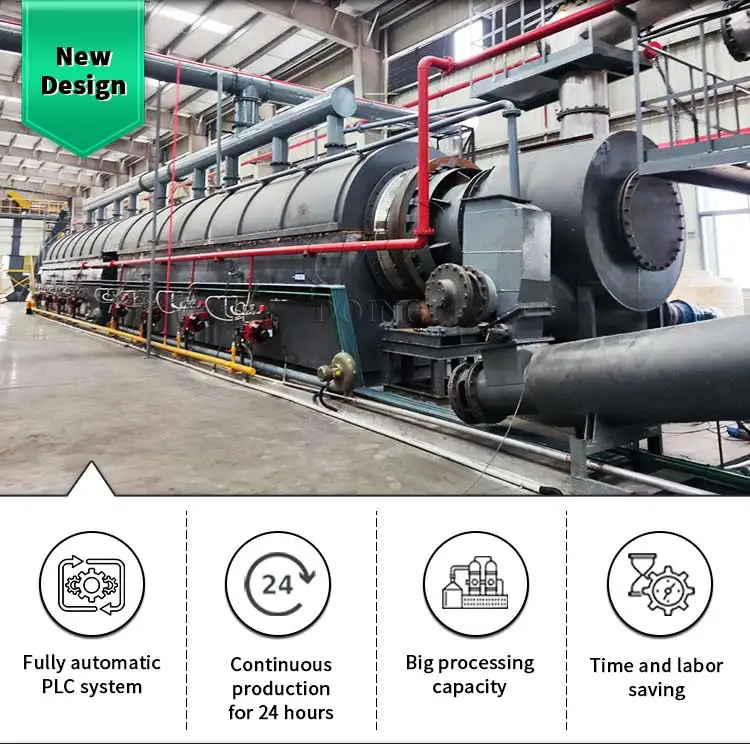

Scheme 3: New design continuous type pyrolysis plant
Item | Continuous Pyrolysis Plant | ||||
Model | DY-C-30 | DY-C-50 | DY-C-100 | ||
Cpacity | 30T/D | 50T/D | 100T/D | ||
Power | 65Kw | 80Kw | 120Kw | ||
Working type | Continuous | ||||
Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||
Rotating | Internal rotating | ||||
Cooling system | Recycled waster cooling | ||||
Reactor material | Q245R/Q345R boiler plate | ||||
Heating method | Indireact hot air heating | ||||
Heating fuel | Fuel oil/gas | ||||
Feedstock | Waste tire/plastic/rubber | ||||
Output | Fuel oil, carbon black | ||||

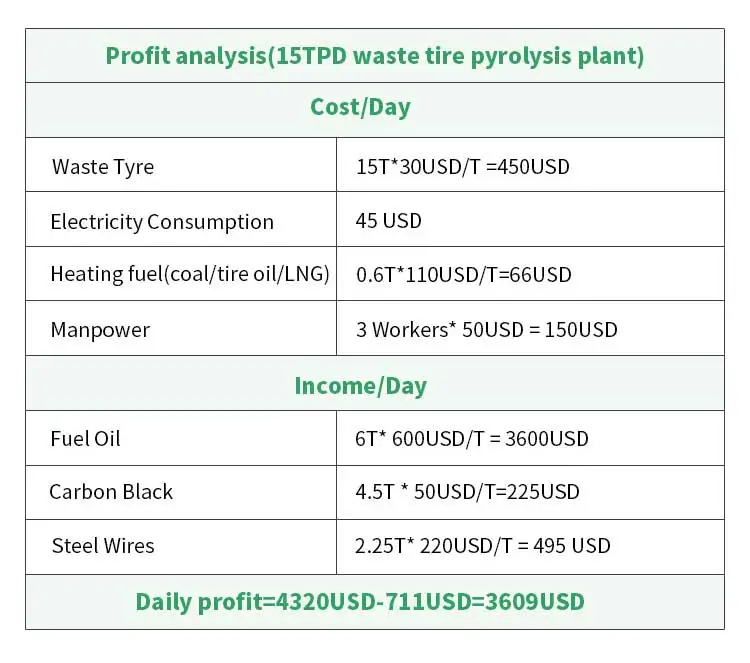

Waste Tire Pyrolysis Plant Profit Analysis
Note: The data is based on the Internet&Feedback of our customers. You can contact us to make the detailed latest analysis and customize waste tire pyrolysis plant.

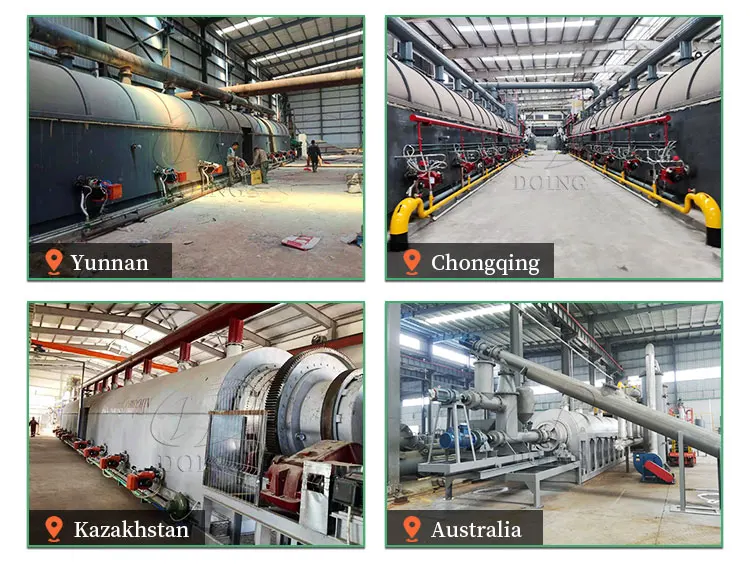

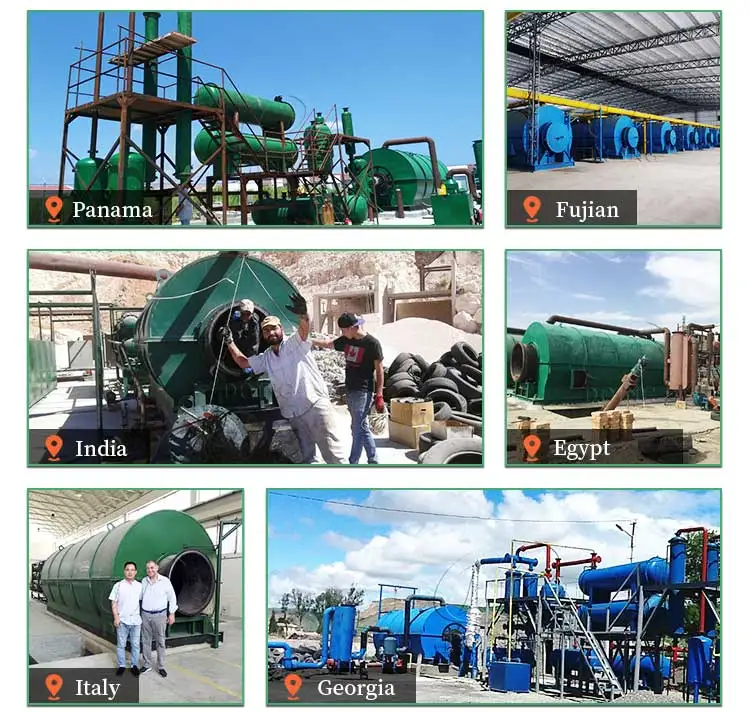

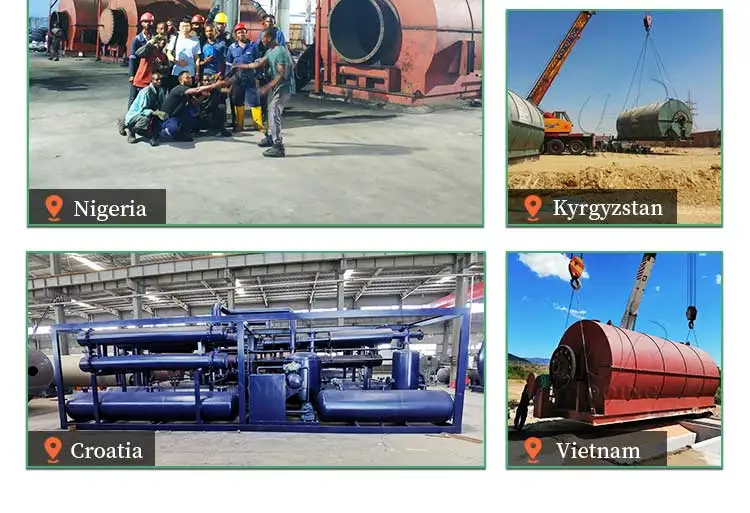

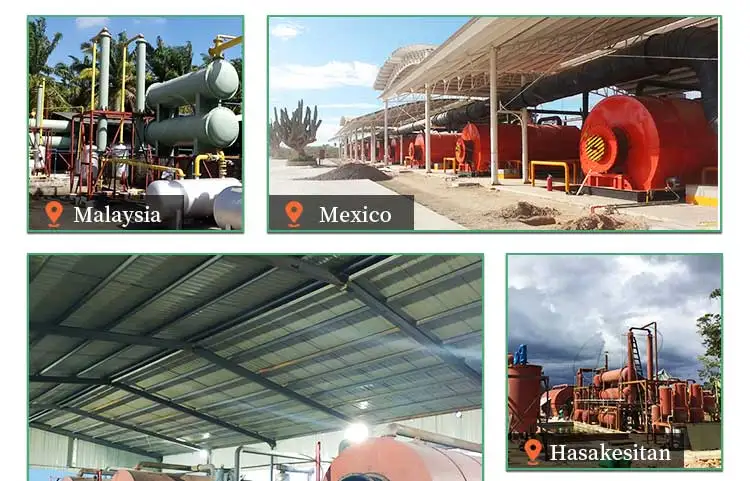

Project Case

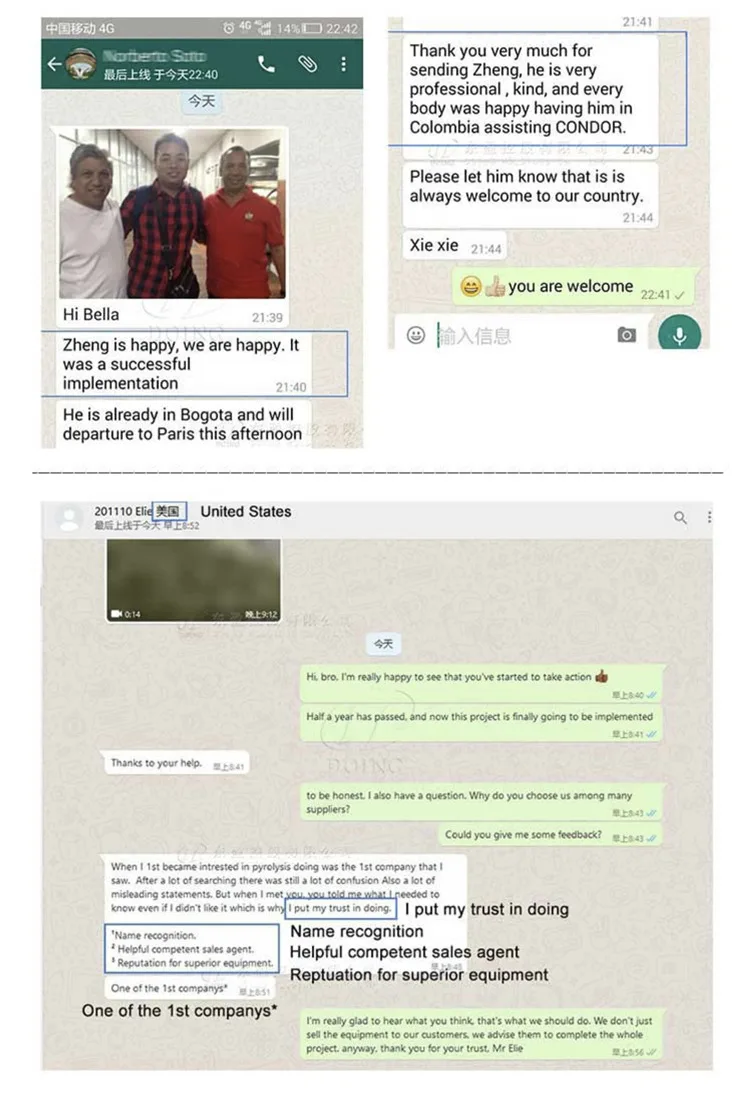

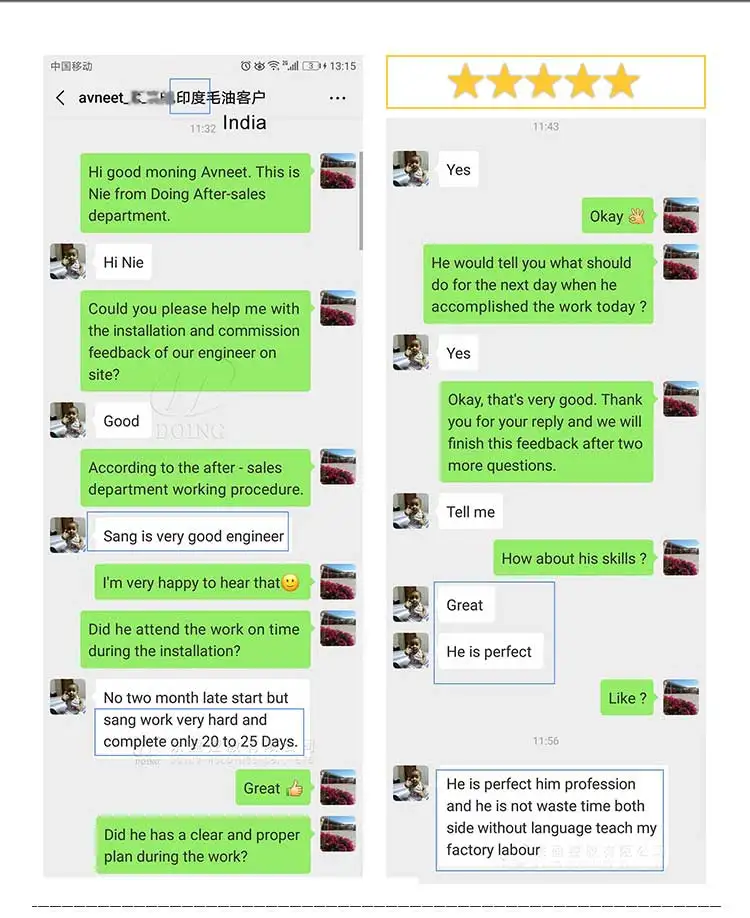

Customer Feedback
Our services
Company Profile
DOING HOLDINGS CO., Ltd
Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.
Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.
FAQ
Q: How much a waste pyrolysis plant?
A: Different capacity of tyre pyrolysis plants have different cost. And also different desgins of tyre pyrolysis plants have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.
Q: How can I sell the tyre pyrolysis oil and plastic oil?
A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.
Q: How many countries your machine have been exported and installed?
A: Our machinery have been sold to more than 70 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.
Q: Can we visit your factory of pyrolysis plant ? And where is your factory?
A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
A: Different capacity of tyre pyrolysis plants have different cost. And also different desgins of tyre pyrolysis plants have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.
Q: How can I sell the tyre pyrolysis oil and plastic oil?
A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.
Q: How many countries your machine have been exported and installed?
A: Our machinery have been sold to more than 70 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.
Q: Can we visit your factory of pyrolysis plant ? And where is your factory?
A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
