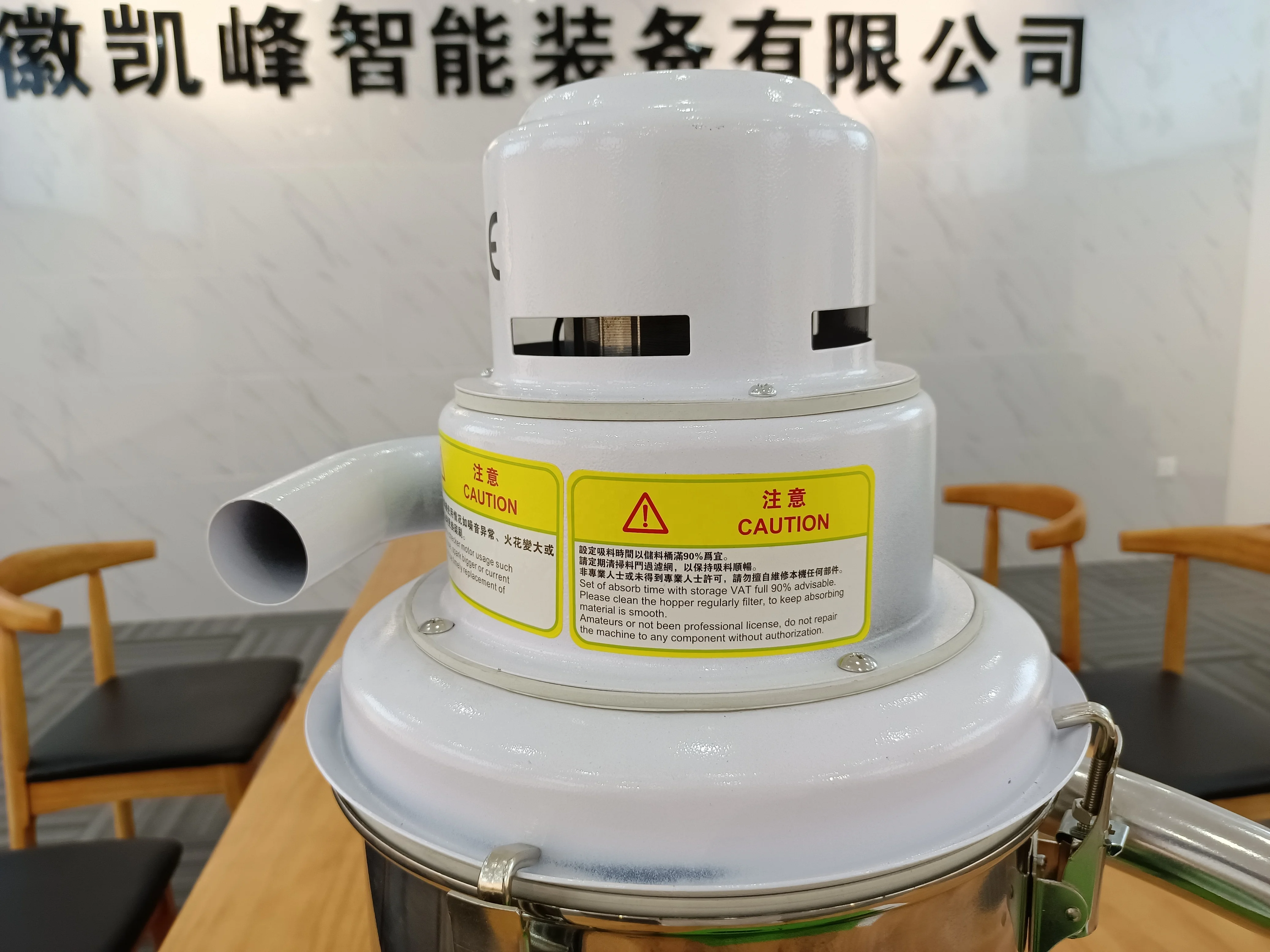

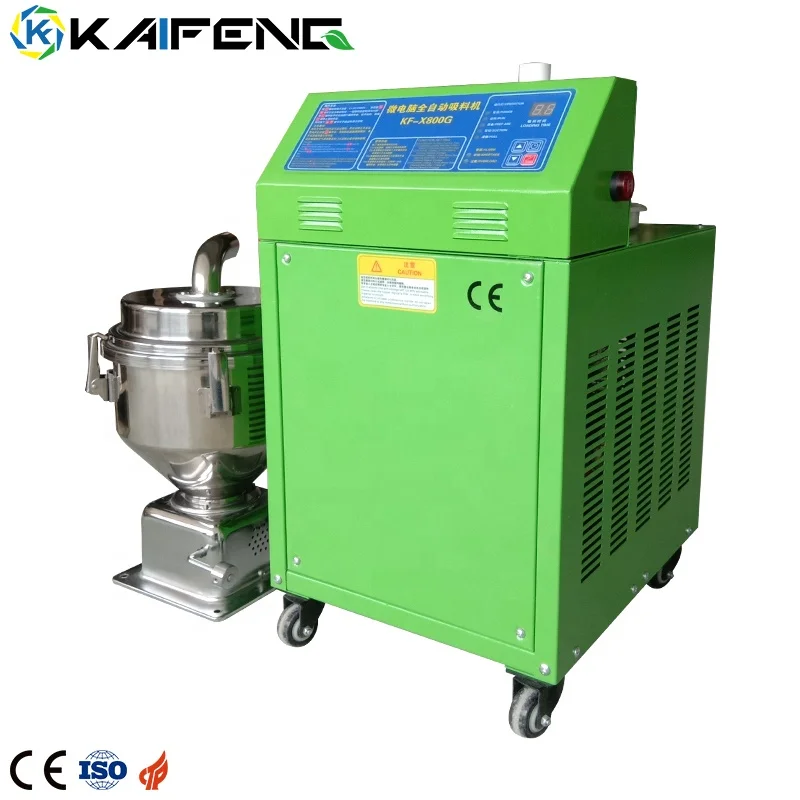

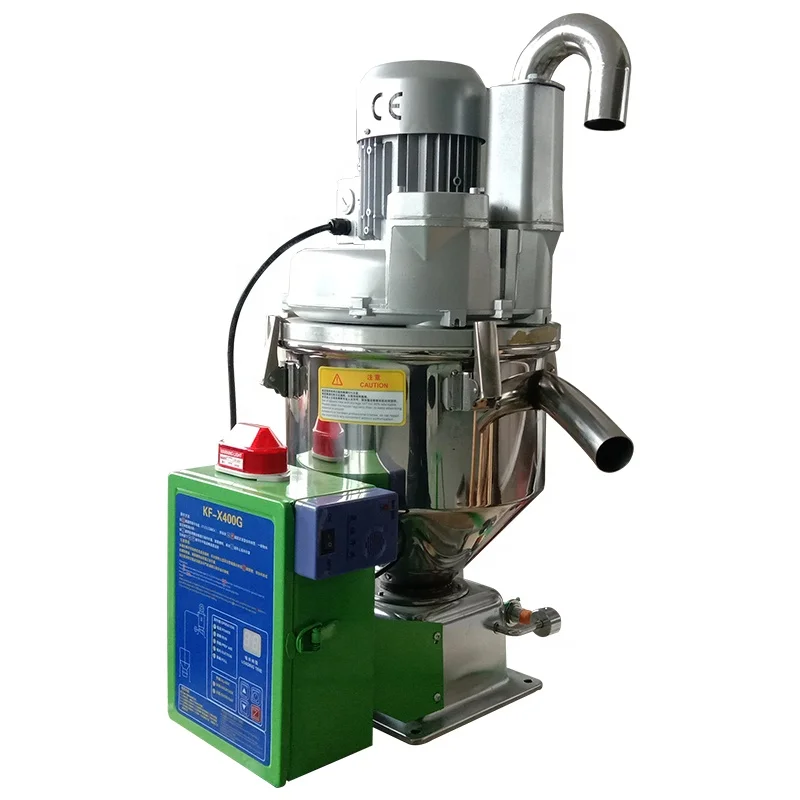

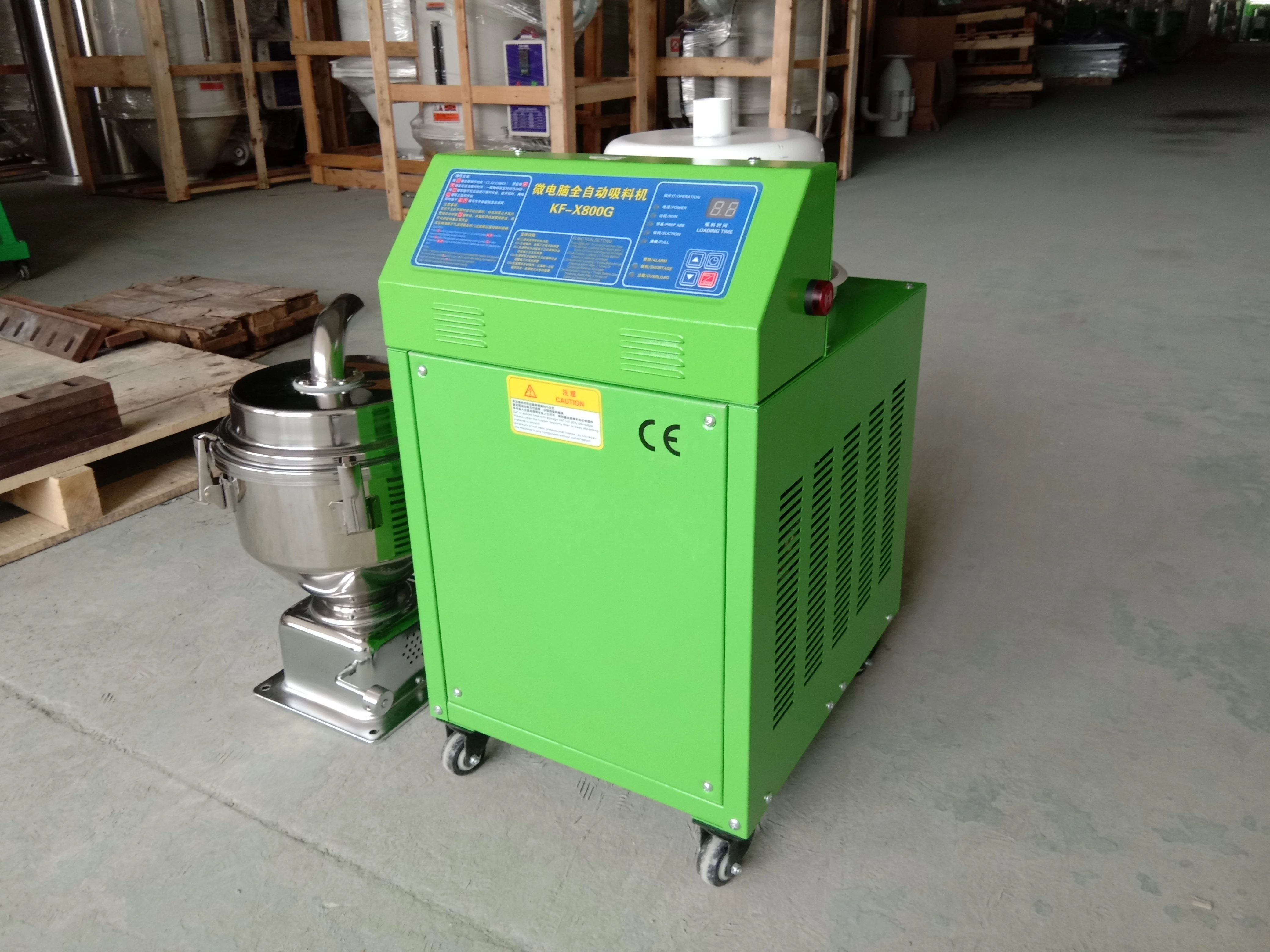

Coffee Bean Powder Auto Loader Plastic Pellets Vacuum Hopper Loader
- Category: Plastic Raw Material Machinery >>>
- Supplier: Anhui Kaifeng Intelligent Equipment Co. Ltd.
Share on (1600620295016):
Product Overview
Description
Products Description
The hopper loader is appropriate for the raw material conveying industry of injection molding machines, extruders and other equipment. It is not difficult to install, easy to use and operate, long-distance conveying capacity, stable production, reliable operation and operation. It is an auxiliary equipment to realize fully automated production.

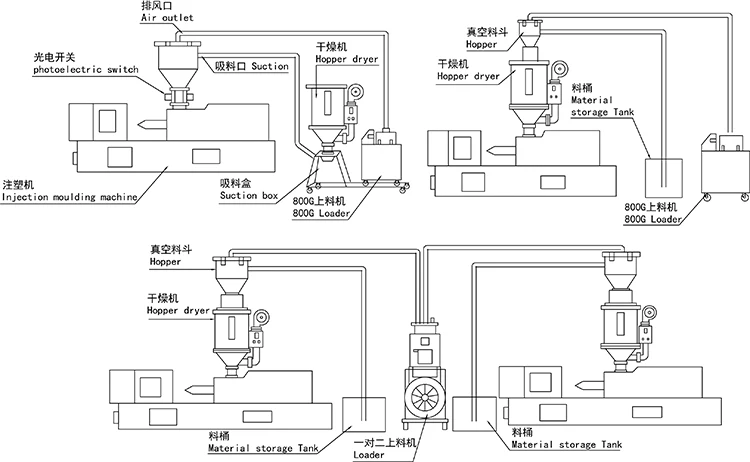

Connection Schematic & Technology Data

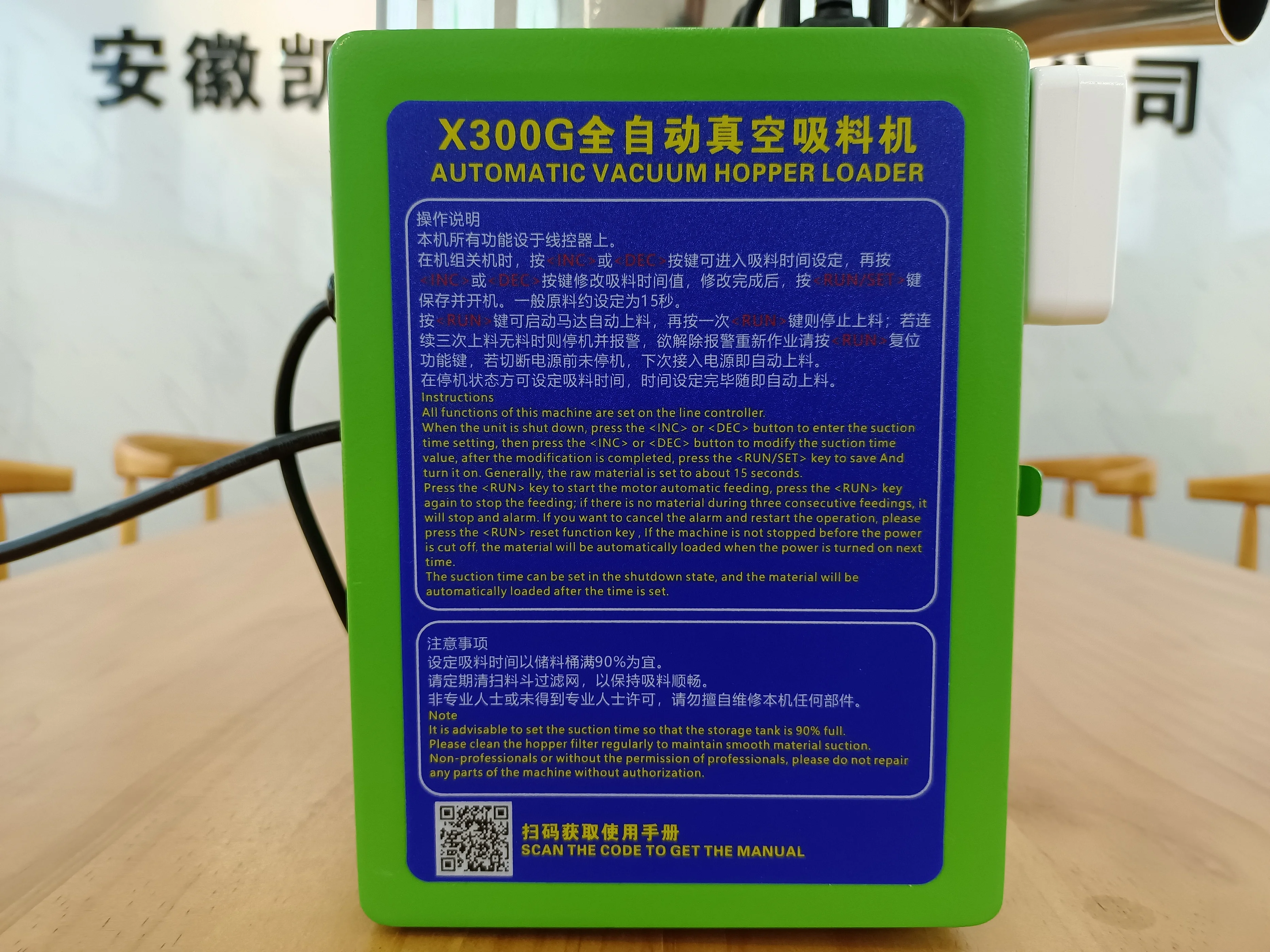

Model | X300G | X400G | X700G | X800G | X800G2 | X900G2 | X900G3 | |||
Motor Type | Brushes | Induction | Brushes | Induction | ||||||
Power(kW) | 1.5 | 0.75 | 1.5 | 1.1 | 1.5 | 1.5 | 2.2 | |||
Power(HP) | 2 | 1 | 2 | 1.5 | 2 | 2 | 3 | |||
Conveying Capacity(Kg/h) | 300 | 330 | 310 | 450 | 590 | 500 | 590 | |||
Loading Height(m) | 3.5 | 4 | 4 | 4 | 5 | 4 | 5 | |||
Hopper Capacity(L) | 7.5 | 12 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |||
Pipe Diameter & Length | φ38 & 4m | φ38 & 4m | φ38 & 8m | φ38 & 8m | φ38 & 8m | φ38 & 8m | φ38 & 10m | |||
Dimension(L*W*H cm) | 39*39*59 | 45*37*66 | 40*48*70 | 42*46*70 | 50*40*72 | 51*37*67 | 54*56*123 | |||
Weight(Kg) | 12 | 27 | 20 | 57 | 76 | 58 | 66 | |||
Model | X900G4 | X900G5 | X900G7 | X900G10 | X900G2-2 | X900G3-2 | X900G5-4 | ||||
Motor Type | Induction | Two in one | Four in one | ||||||||
Power(kW) | 3 | 4 | 5.5 | 7.5 | 1.5 | 2.2 | 4 | ||||
Power(HP) | 4 | 5 | 7 | 10 | 2 | 3 | 5 | ||||
Conveying Capacity(Kg/h) | 590 | 820 | 960 | 1300 | 500 | 590 | 590 | ||||
Loading Height(m) | 5 | 5 | 5 | 5 | 4 | 5 | 5 | ||||
Hopper Capacity(L) | 7.5 | 25 | 25 | 50 | 7.5*2 | 7.5*2 | 7.5*4 | ||||
Pipe Diameter & Length | φ38 & 10m | φ50 & 10m | φ50 & 10m | φ50 & 20m | φ38 & 8m | φ38 & 10m | φ38 & 10m | ||||
Dimension(L*W*H cm) | 54*56*123 | 54*62*123 | 58*60*160 | 58*60*160 | 51*37*67 | 54*56*123 | 54*62*123 | ||||
Weight(Kg) | 72 | 89 | 93 | 101 | 61 | 68 | 110 | ||||
Welcome To KAIFENG
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
FAQ
Q: How many years have your factory been established?
A:Our factory established from 2010, but most of our engineers are working in this industry over 15 year.
Q:How to control the products quality?
A:We have always placed great emphasis on quality level is matintained. Moreover, the principle we always maintain is "to provide customers better quality, better price and better service".
Q: What is your standard delivery time?
A: For standard units with 380V/50Hz/3Phase, it's about 3~7 working days. Other voltages may take up to 15~20 working days. For customize unit may take up to 20~30 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is ShangHai China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
