Product Overview
Description

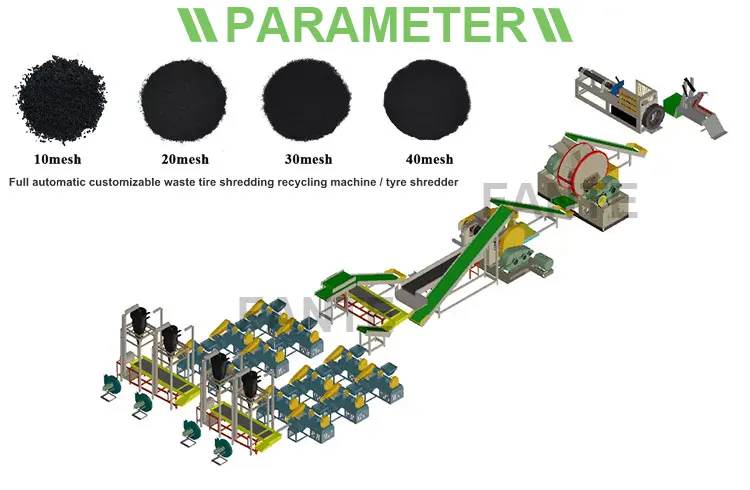

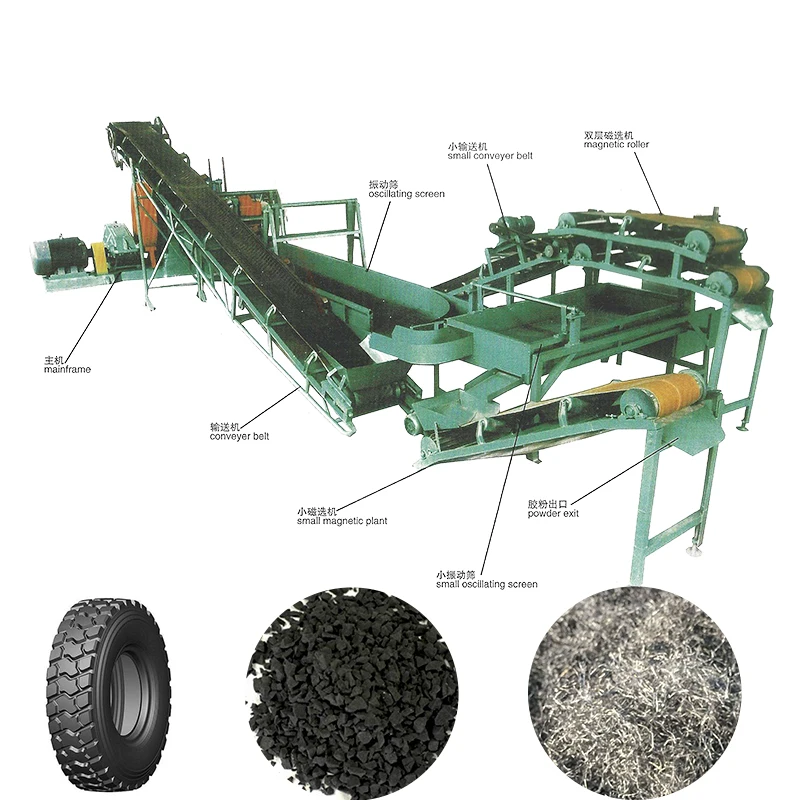

The waste rubber (tire) rubber powder production equipment is a new environmentally-friendly and energy-saving 800 alloy roller mill developed by Fante Machinery. The glue or steel tire block (wire steel tire block needs to be equipped with magnetic wire equipment) can be directly placed. The roller mill is automatically ground into 15-200 mesh rubber powder. After the screening, the rubber powder can be sold in bags. The rubber powder on the sieve can not be meshed and can be sent to the mill for grinding. The required number of meshes, one-stop production of complete equipment, combined with roller compaction, effectively control the pulverization temperature to ensure the quality of the pulverized material.
Core equipment .
No. | Machine Name | Purpose | ||
Steel Wire Removal Process | ||||

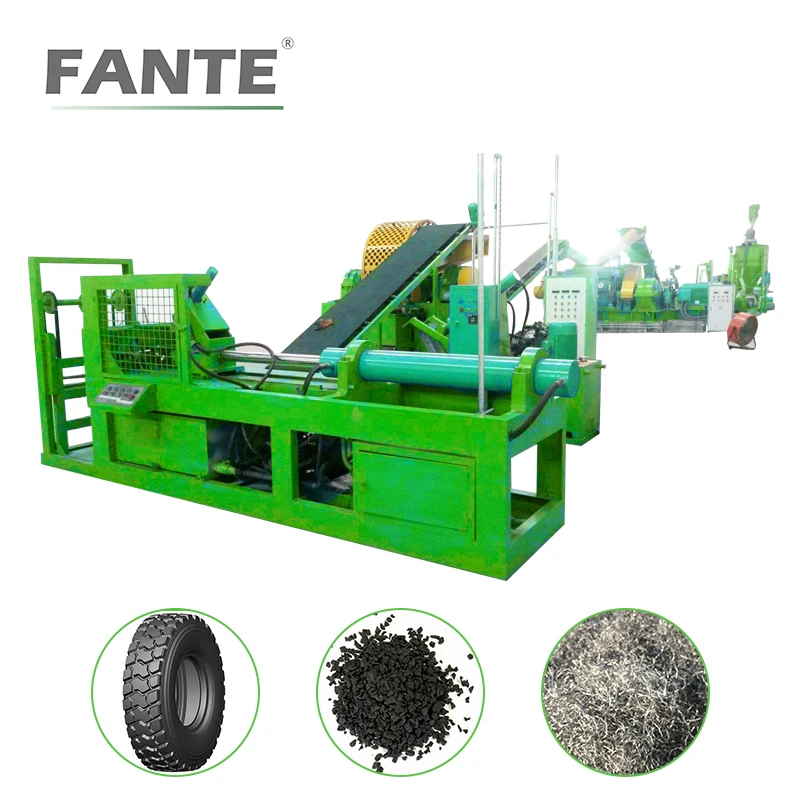

1 | Tire Steel Wire Drawing Machine | Remove the tire bead wire | ||
Rubber Block Process | ||||
2 | Shredder with rolling screen | Shredding the tire into ≤50mm rubber pieces | ||
Wire separation | ||||
3 | Rubber Grinder | Peel the capillary wire in the tire and obtain 1-5mm rubber particles | ||
Rubber Grinding Process | ||||
4 | Rubber Milling Machine | Grind the rubber to 15-200 mesh as required | ||
Dust Removal Process | ||||
5 | Magnetic Separator | Remove wire from rubber particles | ||
6 | Fiber separator | Separation of fibers from tire particles | ||
7 | Dust removal equipment | Dust removal | ||
