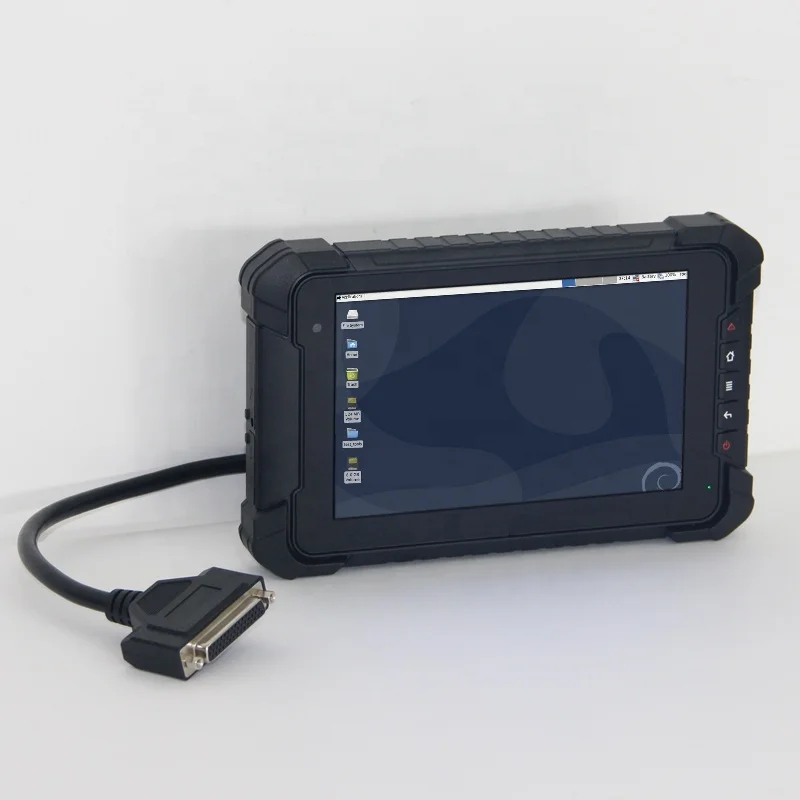

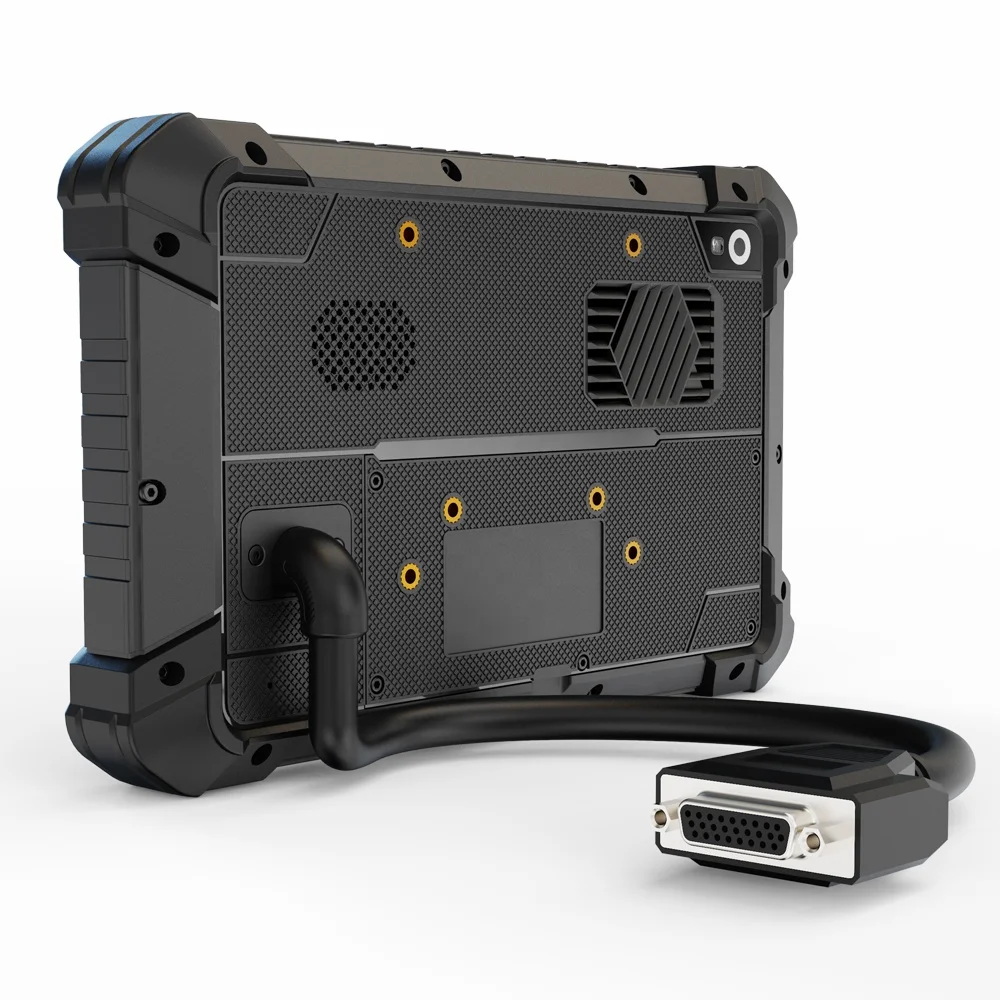

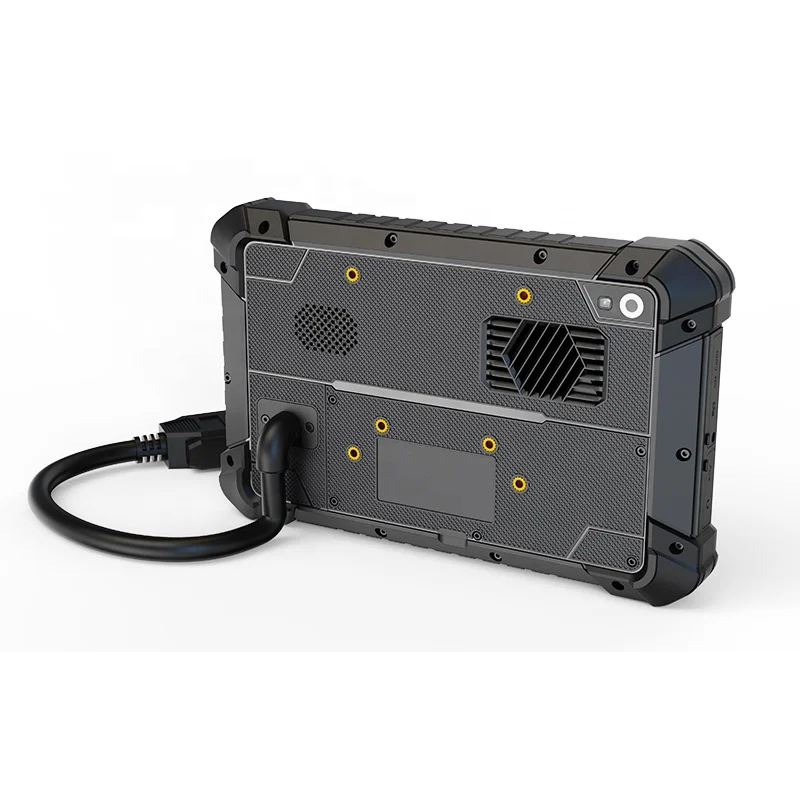

7 inch Rugged Tablet PC for Vehicle Driver Heads up Display With Linux Operating System
- Category: Tablet PC >>>
- Supplier: Shenzhen Sunny Island Lilliput Electronic Co. Ltd.
Share on (1600621965722):
Product Overview
Description
LILLIPUT PC-7108 IP67 7 inch Rugged Tablet Android Vehicle Computer
This rugged Tablet combine advanced computing power with 7” hardened displays to provide a modular solution that enables easy customization and simplified upgrading while reducing maintenance costs. It is designed for use in monitoring and controlling processes in industries or fleeting obligated to meet high stability standards.
Model: PC-7108
Resolution : 1280×800
OS : Linux Debian 10
RAM/ROM: 2G+16G / 4G+32G (optional)
Interface: Micro SD card slot, SIM card slot, USB OTG ×1, Earphone jack, DC power input, RS232×2, CAN BUS
CPU: NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz processor
Product Description
Specification
Display | value | |
Model No. | PC-7108 | |
Touch Panel | Capacitive | |
Display | 7″IPS | |
Resolution | 1280*800 | |
Brightness | 800cd/m2 | |
Power / Other | usb | |
Power Supply | DC 9-36V (ISO 7637-II compliant) / DC 11-36V with built-in battery | |
Power Consumption | ≤ 10W (≤ 18W with built-in battery) | |
Battery (optional) | Built-in 3500mAh, working time 2~3h | |
Dimension | 221 x 139.7 x 29.5 mm | |
Weight | 910g | |
System | 1.6 GHz | |
CPU | NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz processor | |
RAM | 2G LPDDR4 / 4G LPDDR4 (optional) | |
ROM | 16G Flash / 32G Flash (optional) | |
GPU | 3D GPU (1x shader,OpenGL ES 2.0),2D GPU | |
OS | Linux Debian 10 | |
Interface | ||
LAN | 1000M | |
GPIO | x8 (Software Freely define input and output) | |
RS232 × 4; | ||
or RS232 × 3 + RS485/RS422 × 1; | ||
The optional BT and external GPS will each occupy an RS232 port. | ||
Nano SIM Card Slot | × 1 | |
MicroSD Card Slot | × 1 | |
USB | USB Type-C OTG × 1, USB2.0 Host × 1 | |
Earphone Jack | 3.5mm | |
CAN | × 2 (Integrated CAN × 1 by default, CAN × 2 are optional) | |
Microphone | Built-in | |
Function | ||
3G/4G | Optional | |
WIFI | Optional | |
BT | Optional | |
GNSS | Optional | |
NFC | Optional | |
ACC | Optional | |
Camera | Optional, 5.0MP (Front) | |
Sensors | Light sensor; Proximity sensor; Gyroscope & accelerometer; Compass. | |
Packing & Delivery
Standard BOX
Company Profile
ABOUT LILLIPUT
LILLIPUT is a globalized ODM (Original Design Manufacturer) and EMS (Electronic Manufacturing Service) service provider
specialized in research and application of electronic, optoelectronic and computer-related technology. It is an ISO 9001:2008 certified research institute and manufacturer involved in design, manufacturing, marketing and delivery of electronic products across the world since 1993. The company has been producing and delivering both standardized and customized products in the field of Optoelectronic Display, Embedded Computer Control System and Electronic Testing & Measurement inthe past two decades offering a variety of solutions in satisfying a wide range of industries.
