Моющаяся теплообменная сердцевина, умная система вентиляции воздуха с отверстием для одного помещения
- Category: HVAC Systems & Parts >>>
- Supplier: Chengdu Guigu Environment Technology Co. Ltd.
Share on (1600623296971):
Product Overview
Description
Specification
Item | Energy recovery ventilation |
Warranty | 1 Year |
After-sale Service | Online technical support, Free spare parts |
Project Solution Capability | Provide overall solution |
Application | Hotel/School/Commercial building/Real estate project |
Design Style | Modern |
Place of Origin | China |
Model Number | TFKC-025~100 |
Air Flow(m³/h) | 250~1000 |
Install type | Ceiling |
Maintenance | Side door |
Heat Recovery Type | Enthalpy exchanger |
Efficiency(%) | 75% |
Power Voltage(V)/Frequency(HZ) | 110-240/50-60HZ |
OEM/ODM | yes |
Product Description

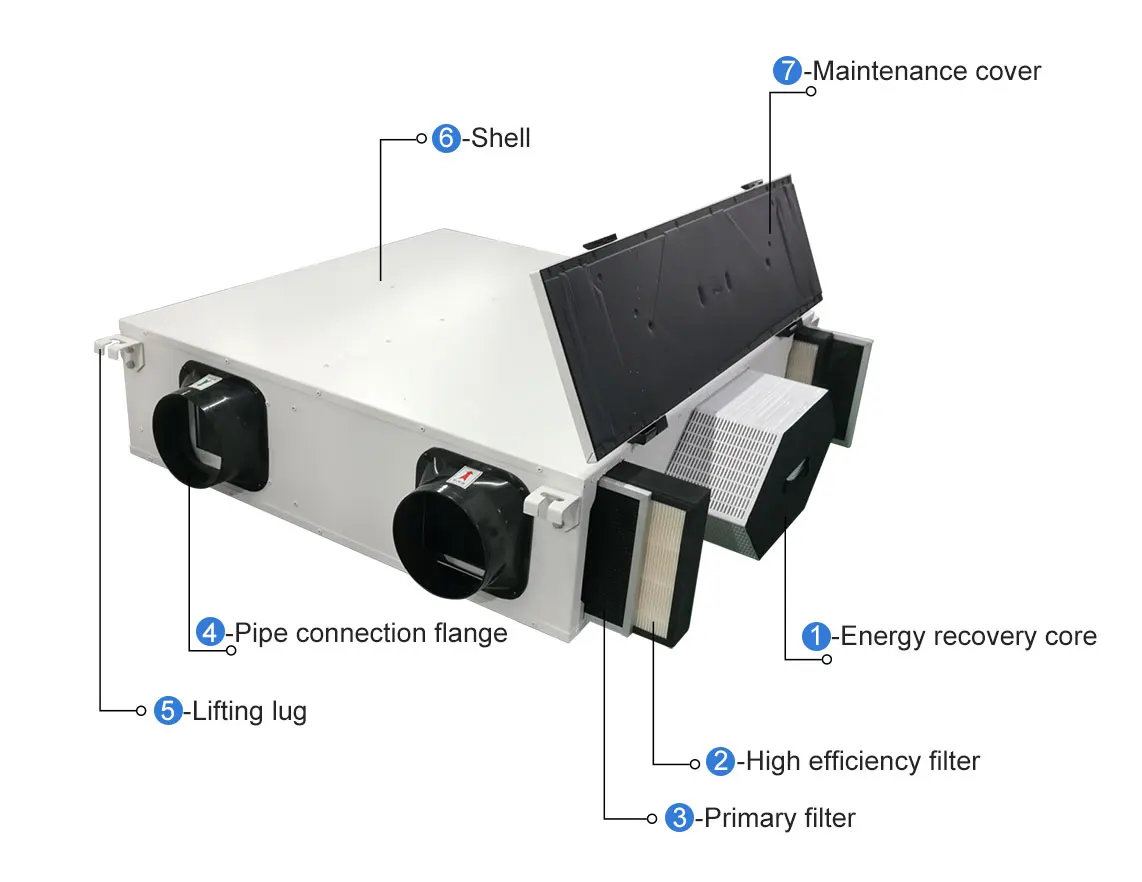

1- Energy recovery core
2- High efficiency filter
3- Primary filter
4- Pipe connection flange
5- Lifting lug
6- shell
7- Maintenance cover
2- High efficiency filter
3- Primary filter
4- Pipe connection flange
5- Lifting lug
6- shell
7- Maintenance cover
1. Energy/heat recovery ventilation technology
Energy recovery ventilation (ERV) is the process of energy recovery in residential and commercial HVAC systems, by exchanging energy from the exhausted air of a building or space, to process ventilated air entering the room. In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.
The benefits of using energy recovery are the ability to meet ASHRAE ventilation and energy standards while improving indoor air quality and reducing the total capacity of HVAC units.
The benefits of using energy recovery are the ability to meet ASHRAE ventilation and energy standards while improving indoor air quality and reducing the total capacity of HVAC units.

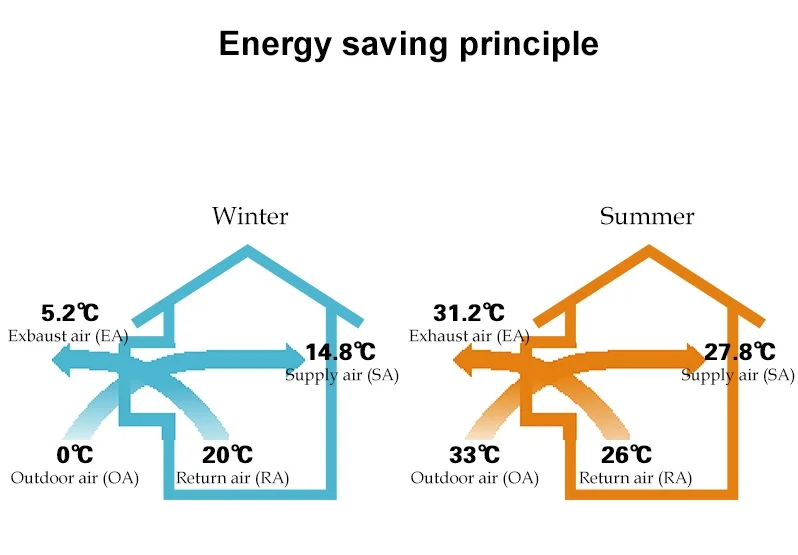

Heat recovery calculating equation：
SA temp.＝（RA temp.−OA temp.）×temp. recovery effciency + OA temp.
Example：14.8℃=（20℃−0℃）×74%+0℃
Heat recovery calculating equation
SA temp.＝（RA temp.−OA temp.）×temp. recovery effciency + OA temp.
Example：27.8℃=（33℃−26℃）×74%
Air flow (m³/h) | Energy recovery efficiency (%) | Electricity saving in summer (kW·h) | Electricity saving in winter(kW·h) | Electricity saving in a year(kW·h) | Running costs saving(USD) |
250 | 60-76 | 1002.6 | 2341.3 | 3343.9 | 267.5 |
Calculation Conditions:
Air flow: 250m³/h
Running time of air conditioning system
Summer: 24h/day X 122days=2928(Jun. to Sep.)
Winter: 24h/day X 120days=2880(Nov. to Mar.)
Electric charge: 0.08USD/kW·h
Indoor conditions: Cooling 26℃(RH 50%), Heating 20C(RH50%)
Outdoor conditions: Cooling 33.2℃(RH 59%), Heating-10C(RH45%)
Running time of air conditioning system
Summer: 24h/day X 122days=2928(Jun. to Sep.)
Winter: 24h/day X 120days=2880(Nov. to Mar.)
Electric charge: 0.08USD/kW·h
Indoor conditions: Cooling 26℃(RH 50%), Heating 20C(RH50%)
Outdoor conditions: Cooling 33.2℃(RH 59%), Heating-10C(RH45%)

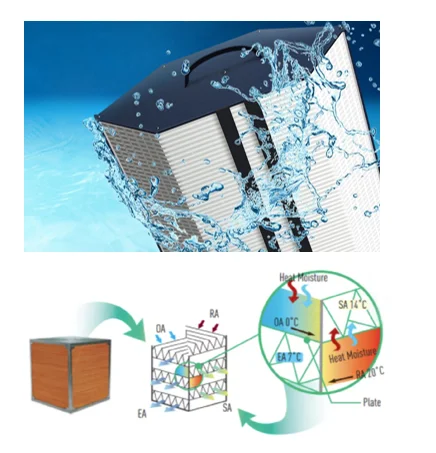

2 . Energy/heat exchange core
The energy/heat recovery core (enthalpy exchanger) is made of ER paper, featuring high moisture permeability, good air tightness,good tear resistance and aging resistance. The gaps between the fibers are so small that only water molecules with small diameters can pass through, not odor molecules with large diameters. In this way, temperature and humidity can be recovered smoothly,
preventing pollutants from seeping into the fresh air.
preventing pollutants from seeping into the fresh air.
Main Feature:
The heat recovery efficiency is up to 85%
Enthalpy efficiency is up to 76%
Effective air exchange rate above 98%
Selective molecular osmosis
Flame retardant, antibacterial and mildew resistance.
Working principle:
The flat plates and the corrugated plates form channels for suction or exhaust air stream. the energy is recovered when the two air steams passing through the exchanger crossly with temperature difference.
The heat recovery efficiency is up to 85%
Enthalpy efficiency is up to 76%
Effective air exchange rate above 98%
Selective molecular osmosis
Flame retardant, antibacterial and mildew resistance.
Working principle:
The flat plates and the corrugated plates form channels for suction or exhaust air stream. the energy is recovered when the two air steams passing through the exchanger crossly with temperature difference.

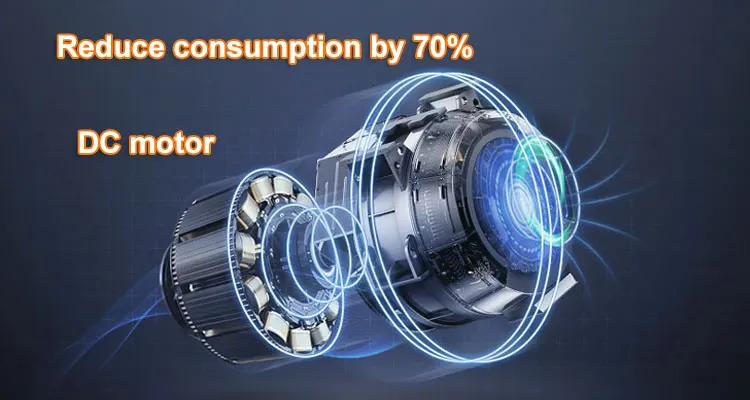

3. More energy saving by using DC motor
The high-efficiency brushless DC motor is built into the Smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements.

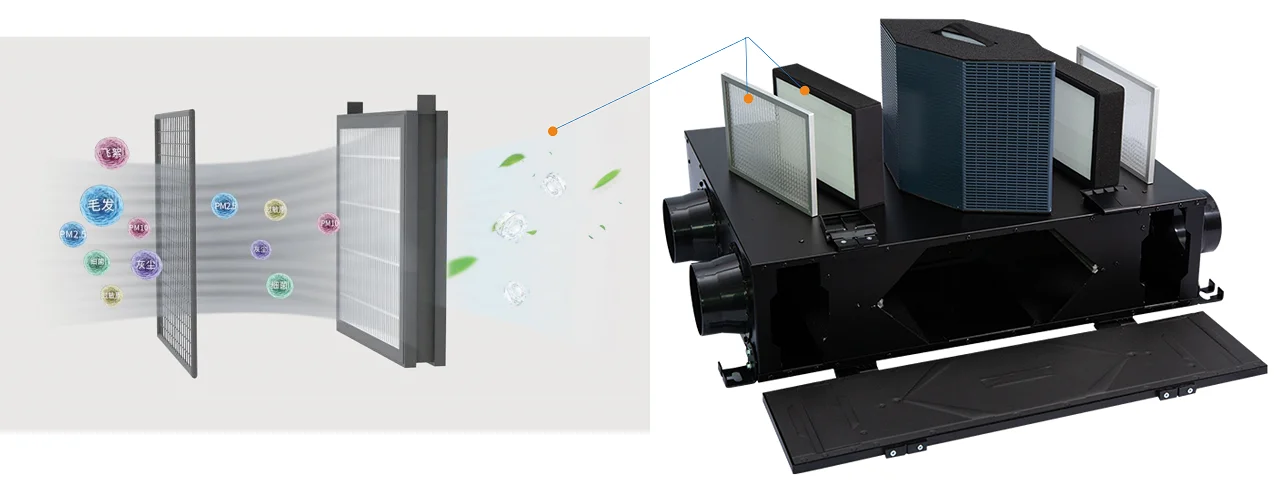

4. Multiple purification technology
A：Primary purification:
The primary filter is suitable for the primary filtration of ventilation system, mainly used for filtering dust particles above.5μm; the primary filter can be reused after washing.
B：High efficiency purification
Effectively purify PM2.5 Particulate, for 0.1 micron and 0.3 micron particles, the purification efficiency reaches 99.998%. It traps 99.9% of bacteria and viruses and causes them to die from dehydration within 72 hours.
The primary filter is suitable for the primary filtration of ventilation system, mainly used for filtering dust particles above.5μm; the primary filter can be reused after washing.
B：High efficiency purification
Effectively purify PM2.5 Particulate, for 0.1 micron and 0.3 micron particles, the purification efficiency reaches 99.998%. It traps 99.9% of bacteria and viruses and causes them to die from dehydration within 72 hours.

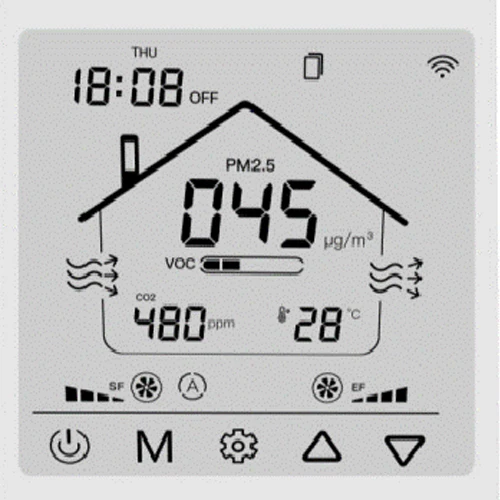

The functions of intelligent controller are suitable for various project requirements.
- Various fan speed control to offer different supply air volume and ESP
- Temperature display to monitor indoor and outdoor temperature constantly
- Power to auto restart allow ventilator recover automatically from power cut down
- CO2 concentration control
- Humidity sensor to control indoor humidity
- RS485 connectors available for BMS central control
- External control and on/error signal output to allow administrator monitor and control the ventilator easily
- Filter alarm to remind user cleaning the filter in time
- Working status and fault display
- Various fan speed control to offer different supply air volume and ESP
- Temperature display to monitor indoor and outdoor temperature constantly
- Power to auto restart allow ventilator recover automatically from power cut down
- CO2 concentration control
- Humidity sensor to control indoor humidity
- RS485 connectors available for BMS central control
- External control and on/error signal output to allow administrator monitor and control the ventilator easily
- Filter alarm to remind user cleaning the filter in time
- Working status and fault display

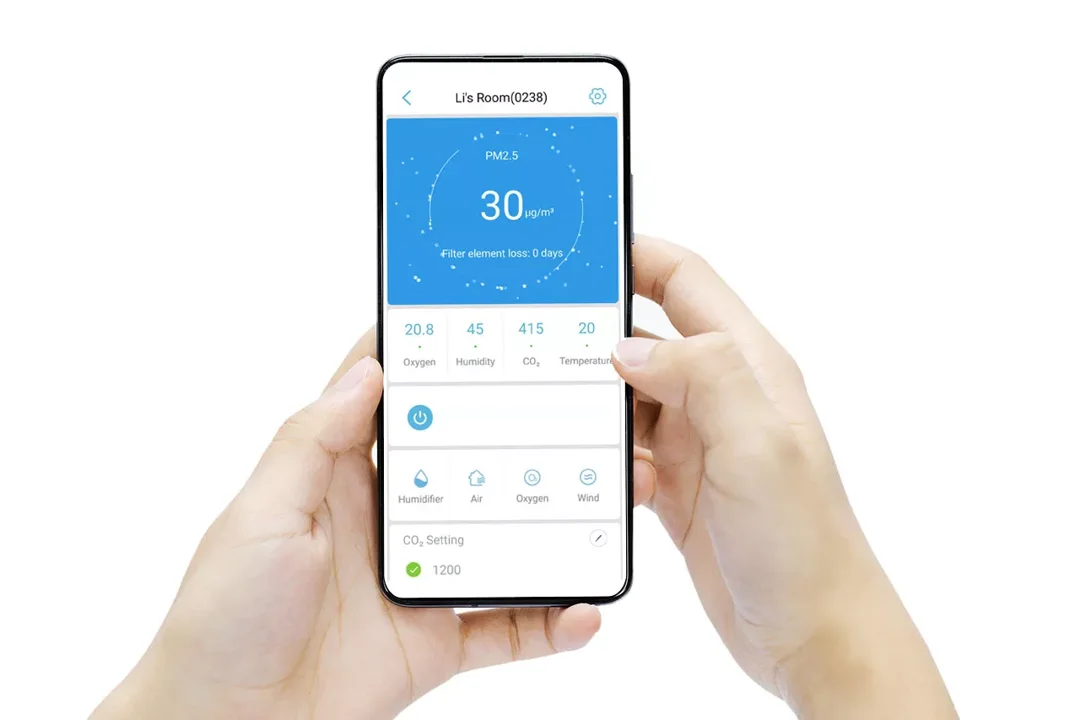

-Tuya APP control
Model | Rated Airflow | Rated E.S.P | Enthalpy Efficiency(%) | Temp.Eff. | Noise | Volt. (V/Hz) | Power input (W) | N.W (Kg) | ||
Cooling | Heating | |||||||||
m³/h | Pa | % | % | (%) | dB(A) | |||||
TFKC-025 | 250 | 100 | 63 | 70 | 75 | 26 | 220/50 | 81 | 35 | |
TFKC-030 | 300 | 60 | 66 | 69 | 75 | 26 | 220/50 | 112 | 33 | |
TFKC-035 | 350 | 120 | 62 | 67 | 75 | 27 | 220/50 | 143 | 42 | |
TFKC-050 | 500 | 60 | 62 | 68 | 75 | 28 | 220/50 | 205 | 60 | |
TFKC-080 | 800 | 100 | 65 | 71 | 75 | 50 | 220/50 | 290 | 80 | |
TFKC-100 | 1000 | 100 | 62 | 68 | 72 | 52 | 220/50 | 550 | 95 | |
Applicable Scenario
Commercial building
Hotel & Resorts
School & Public place
Real estate project
Product packaging

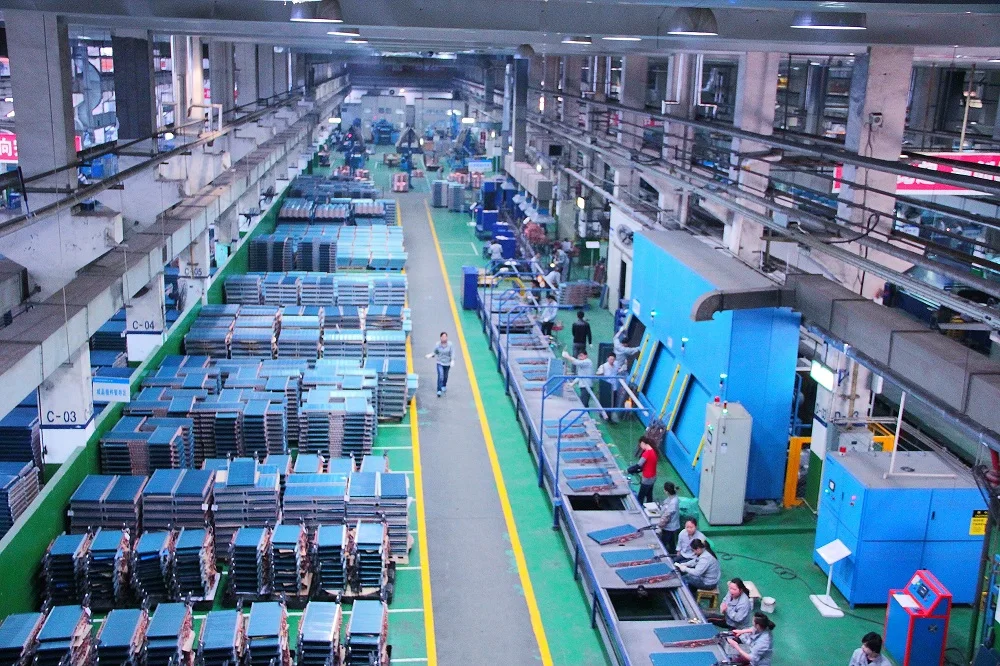

Company Profile

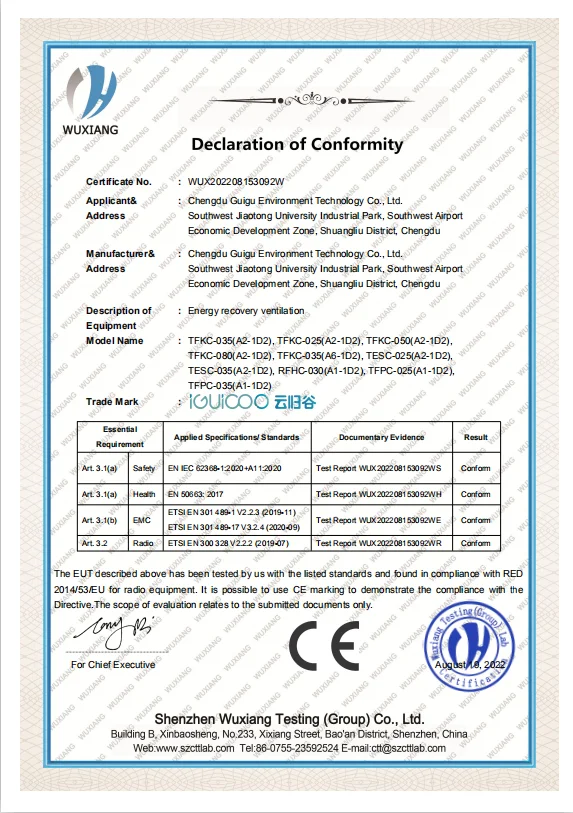

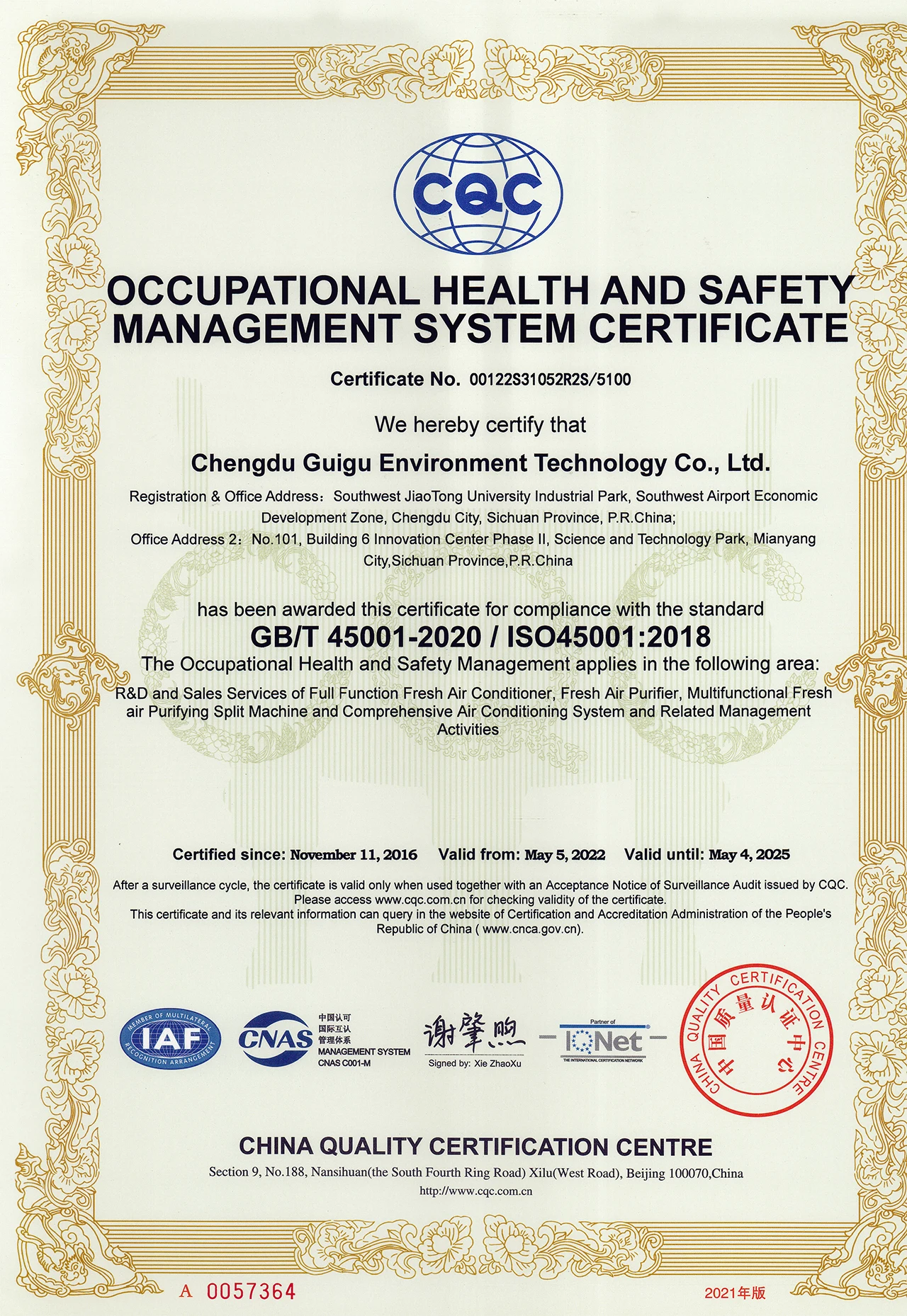

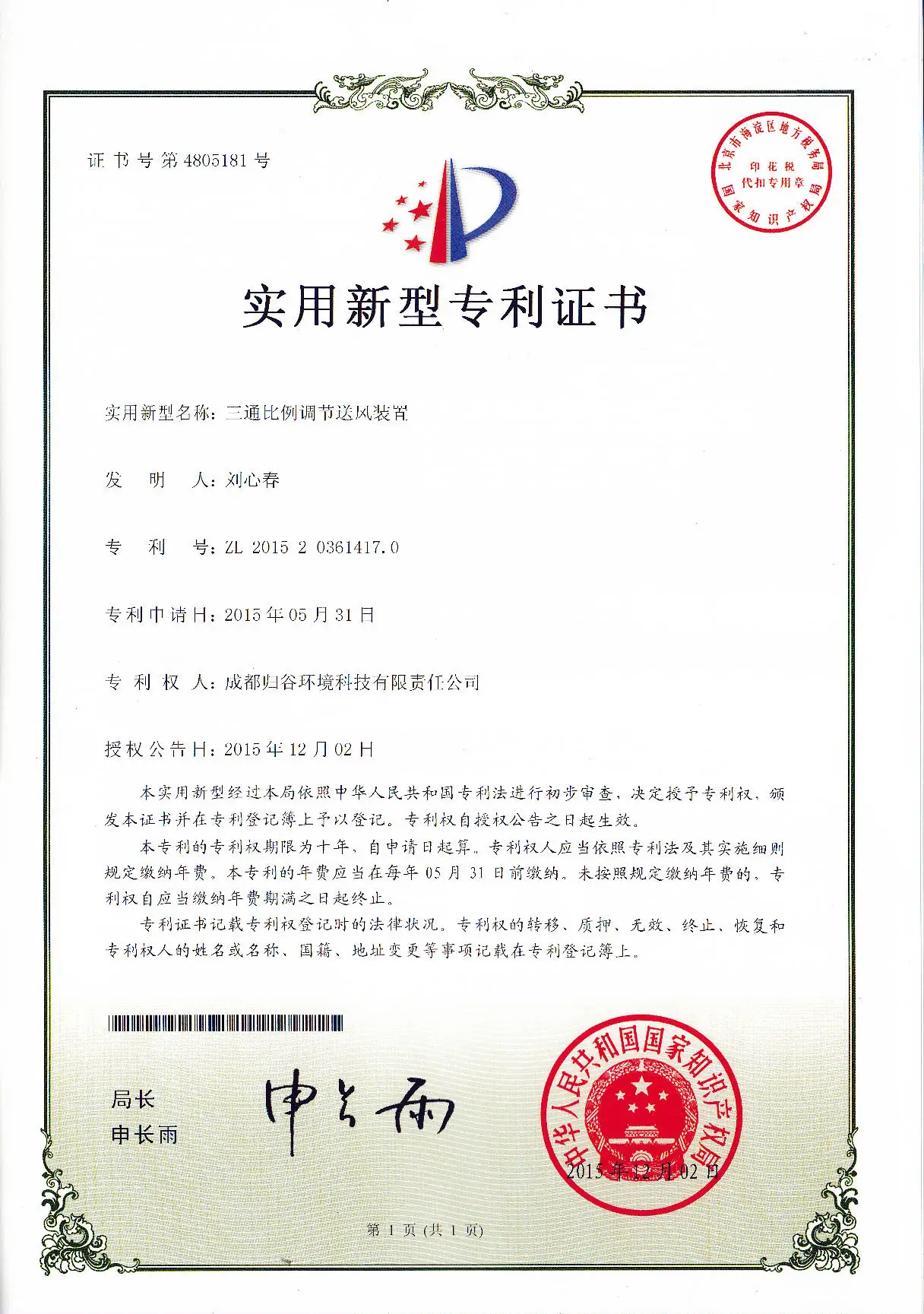

Certifications
Company Profile
Our company is a professional engaged in the research, development, sale and service of ventilation system、air conditioning system、HVAC、oxygenerator、Humidity regulating equipment. Our products are widely used in Refined decoration Real Estate、school、hotel、Commercial building in China. Selling well in all cities and provinces around China and cities all over the country. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to me.

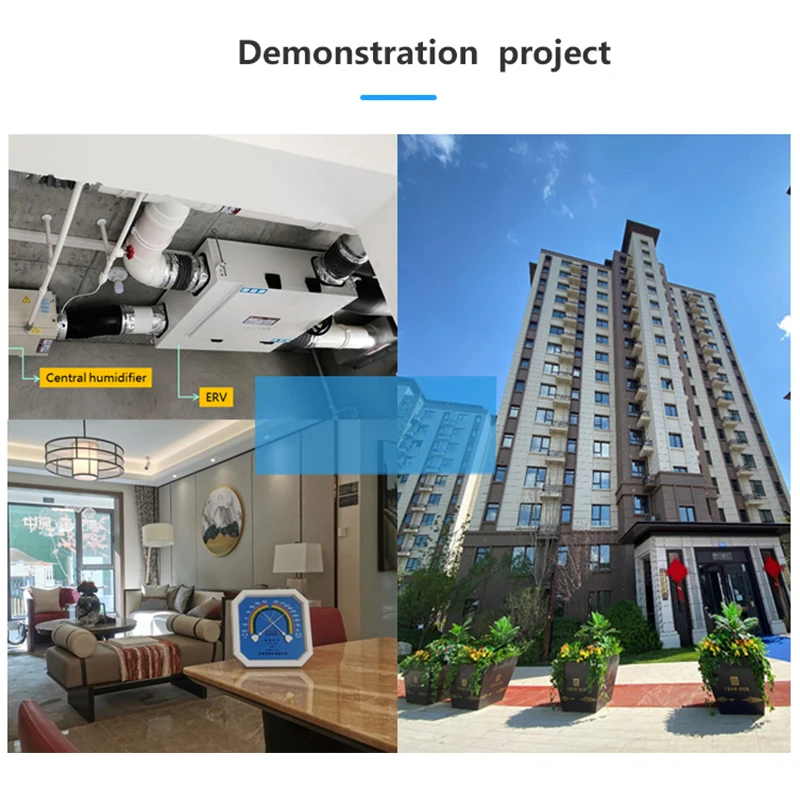

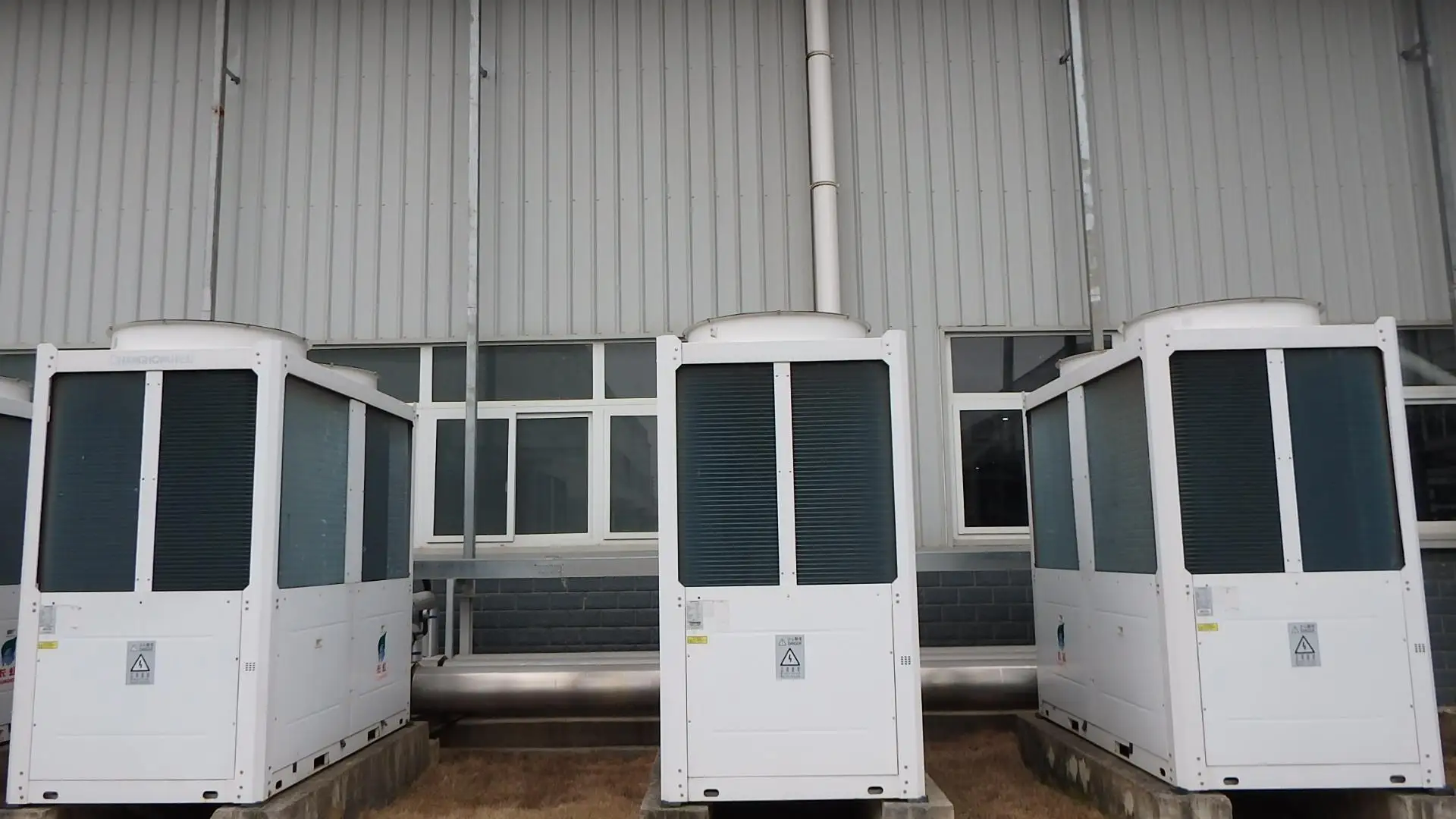

Project Case
"Jiachen International Center" project
Hotel
China hardbound house project
School Project
FAQ
A) How could I get a sample?
B) Sample time?
We do not provide free sample, if you are interested in our products, please contact our customer service, she can tell you the details of the sample.
B) Sample time?
Depends on sample custom properties;
C) Whether you could make our brand on your products?
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
