Description

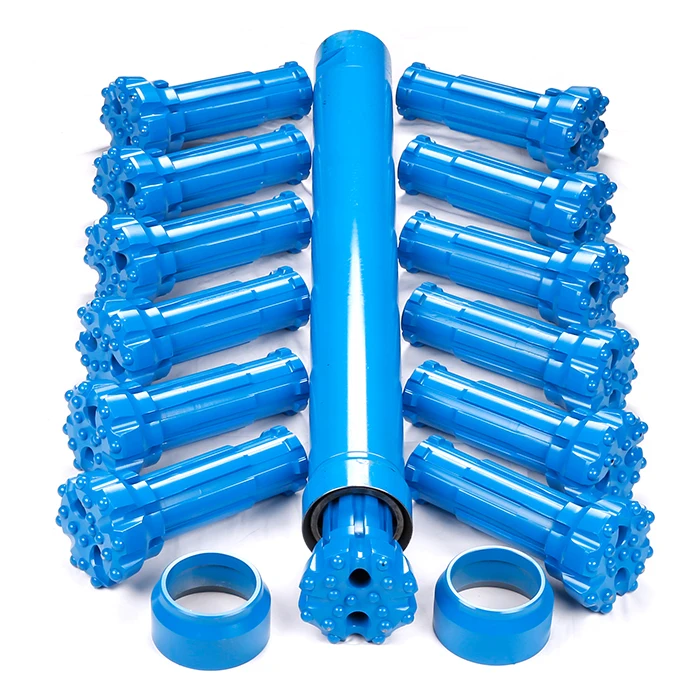

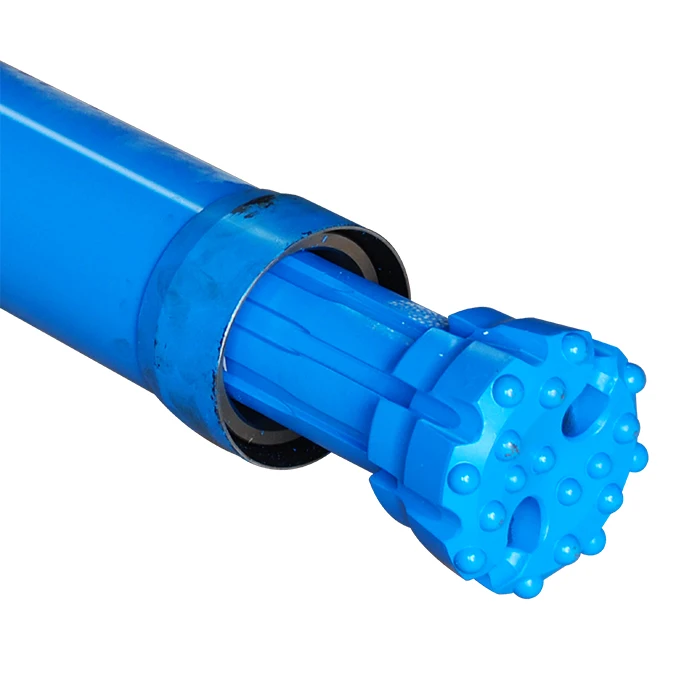

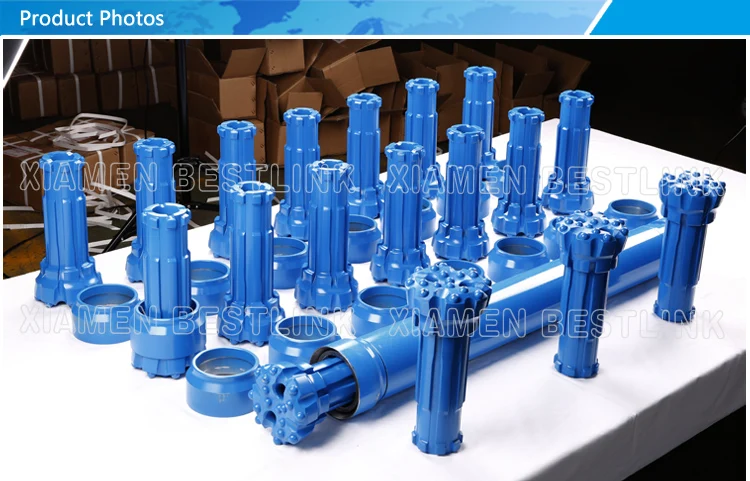

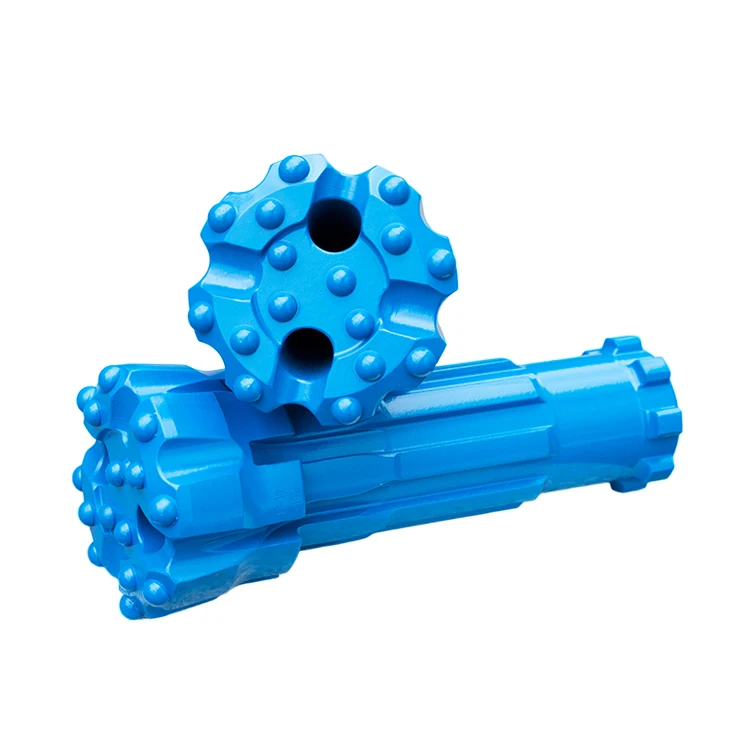

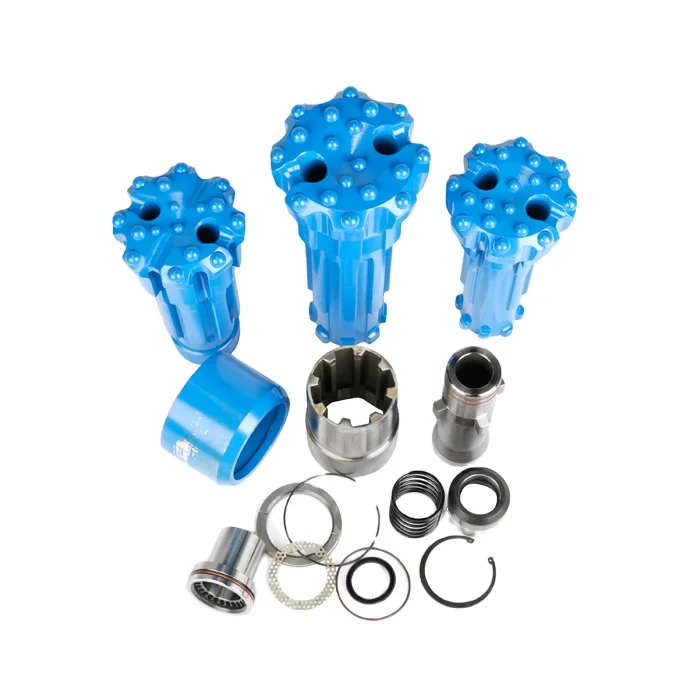

RE035 RE040 RE531 RE542 Reverse Circulation RC DTH Hammers

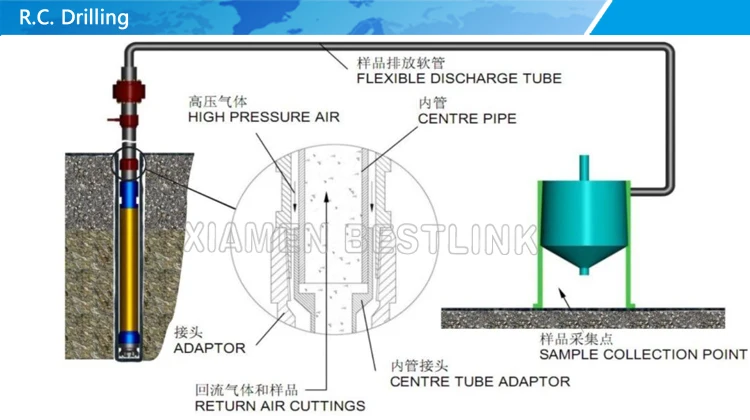

RC drilling refers to Dual Wall or Dual Tube Drilling. RC drilling applies two rods with inner and outer tubes.Air is blew down the annulus of the rod and enter into hammer and bit.Rock formation fragments crushed by bit are collected into the inter tube via air hole on the bit head. And then returned to the ground and enter into sampling system.Itshammers and bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring

hole drilling, geothermal engineering, Subway excavation, another civil engineering.

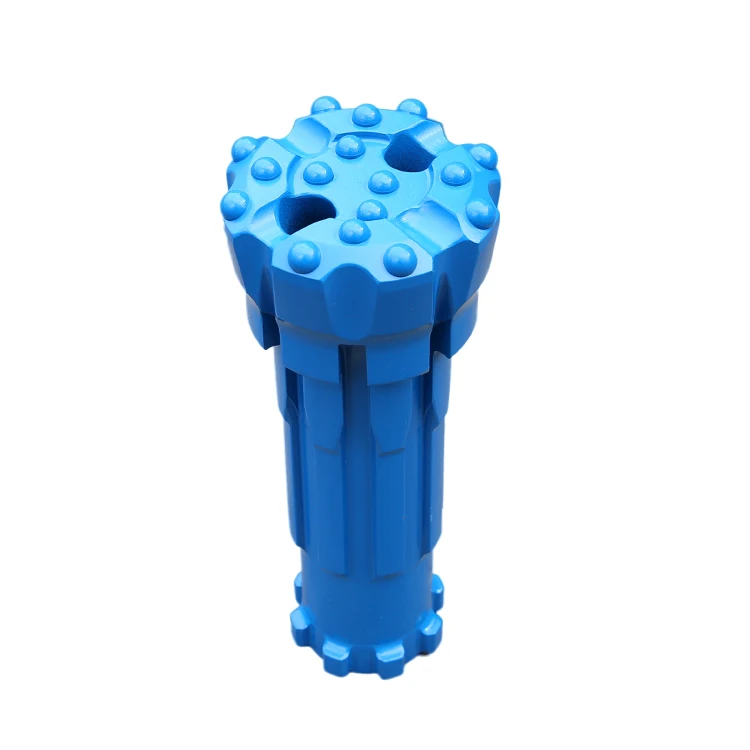

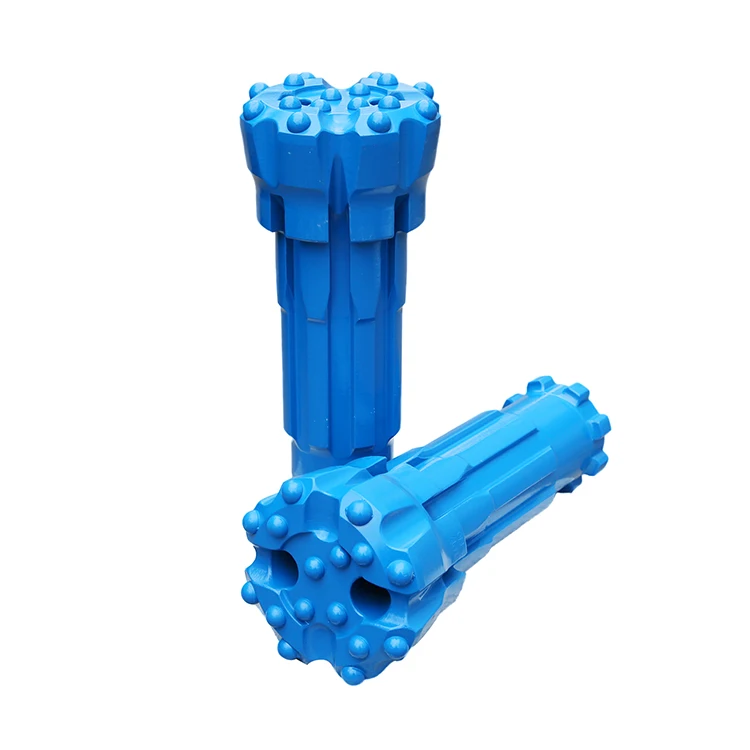

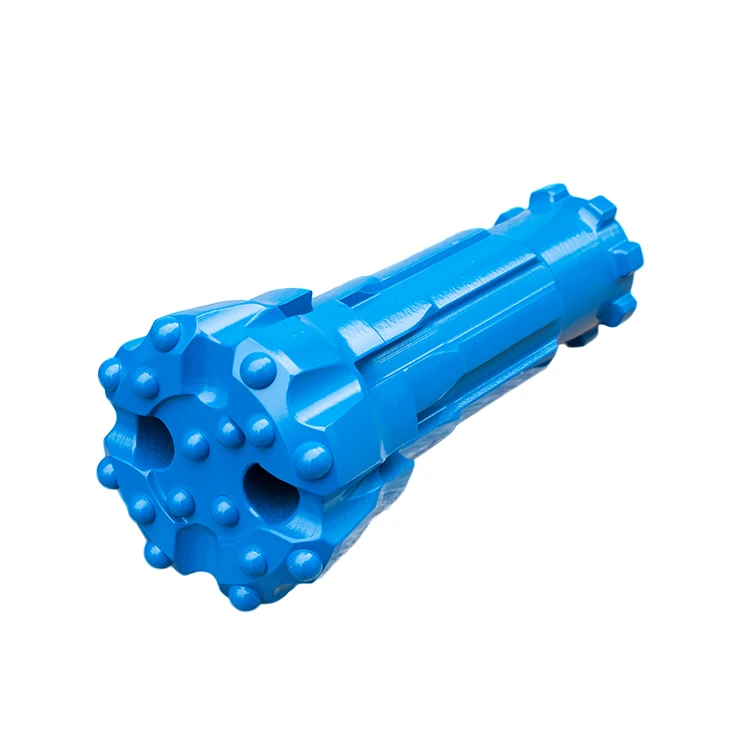

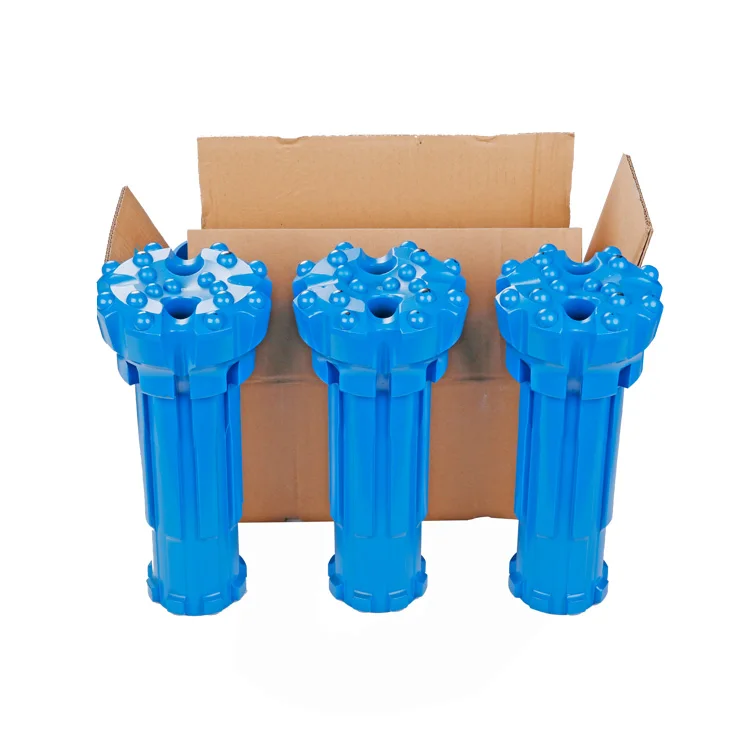

5  inch Drill bit

Bit Dia(mm)	Bit Dia(inch)	Weight(kg)	Length	Working pressure	Hole range
120.5mm	5"	80.5kg	1362mm	1.5-3.5Mpa	124-142



Pictures:
