Factory Price DTH HAMMER BREAKOUT BENCH/ DOWN HOLE HAMMER BENCH

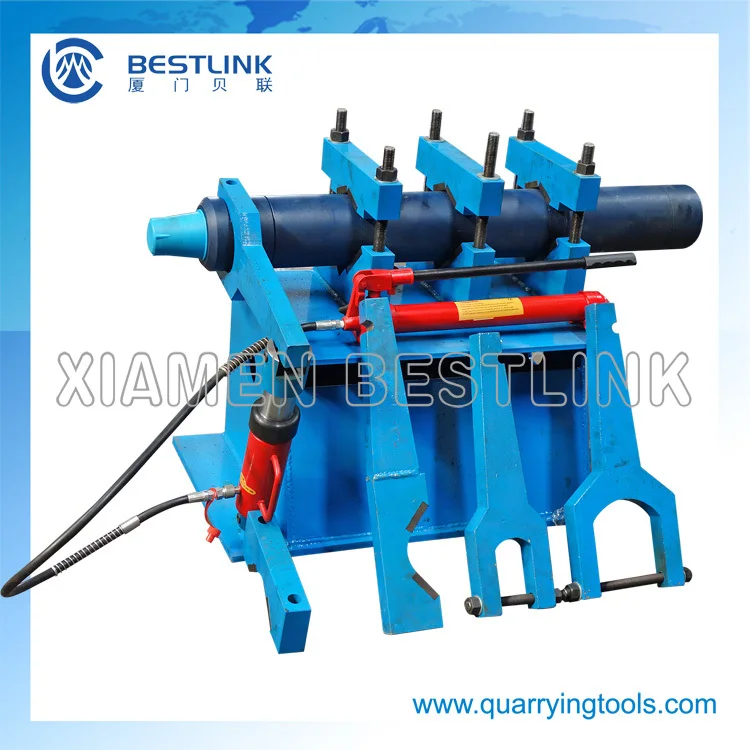

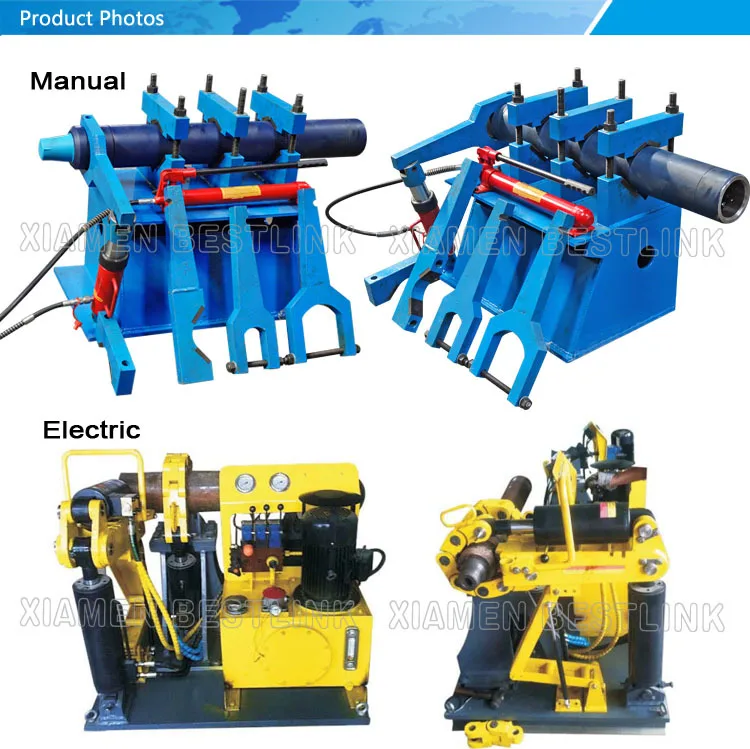

Breakout Bench for DTH Hammer Top Sub Removal

1. for disassembling the dth hammer
2. easy operation
3. low cost
4. for 3" to 8" hammers

Products Feature
Manual:

The operation method as below:

1). Put hammer on the bench.

2). Adjust the position of the hammer and wrench; use wrench to block the top sub side of hammer; let wrench and jack in the same face.

3). Fix K-shaped base with nut.

4). Fix wrench with nuts.

5). Shake handle of jack slowly till top sub away from hammer.

6). After top sub dismantled, grease the jack, release nuts, discharge the K-shaped base and turn around the hammer.

7). Adjust the position of hammer and wrench; use wrench to block the drive chuck of hammer; let wrench and jack in the same face.

8). Fix hammer

9). Fix K-shaped base and the wrench with nut.

10). Shake handle of jack slowly till drive chuck away from hammer.

Main Technical Data

Detaisl pictures:

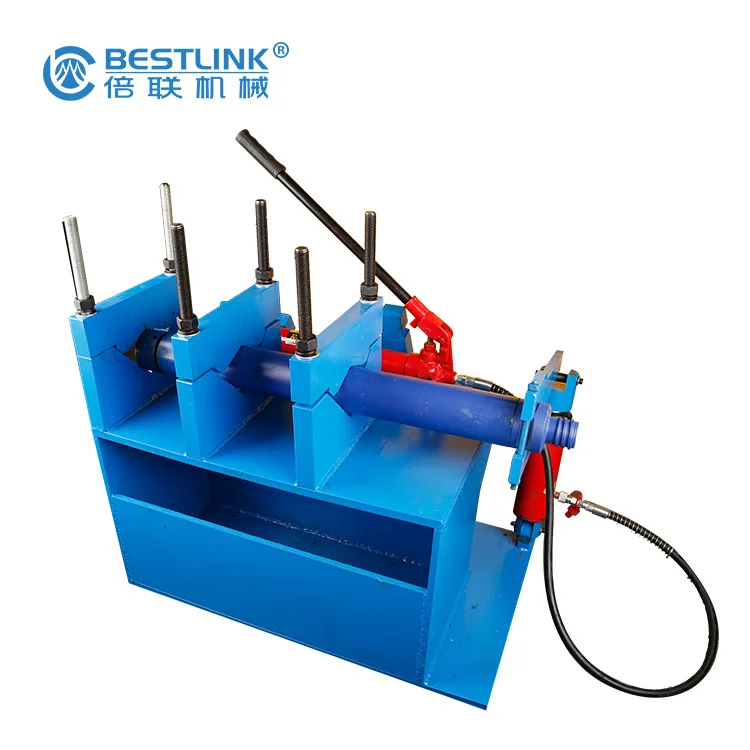

Complete pictures:

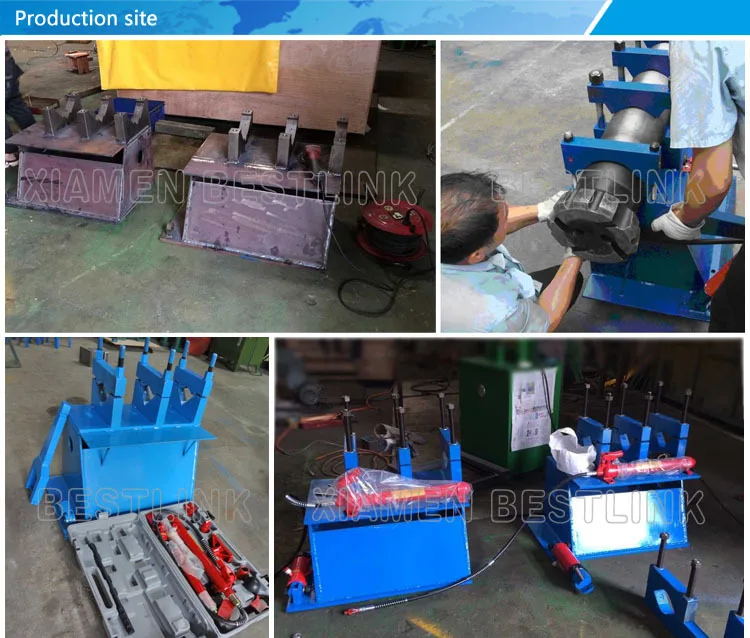

The process of flowsheet:

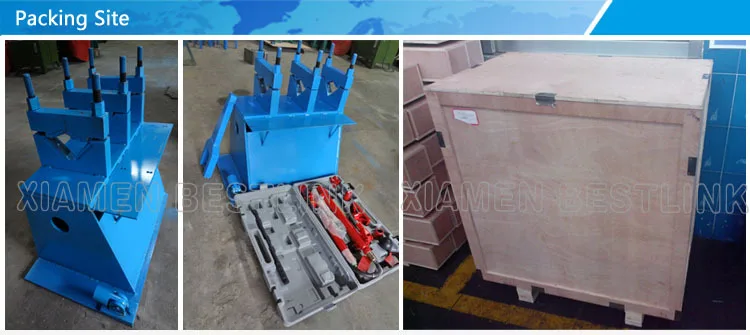

Packing Pictures:

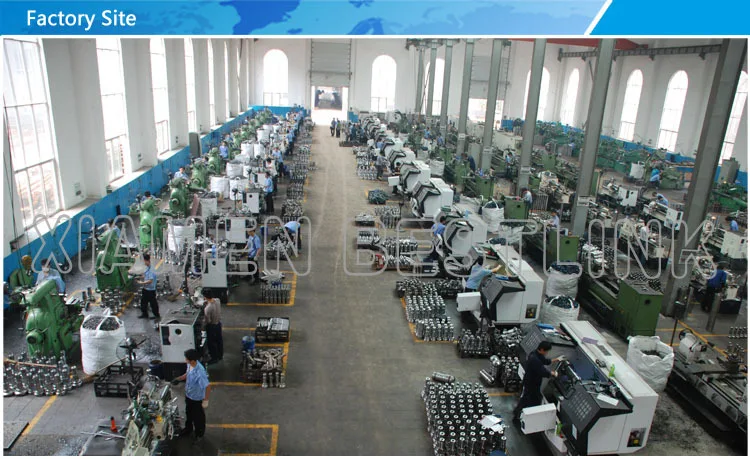

 Factory site:
