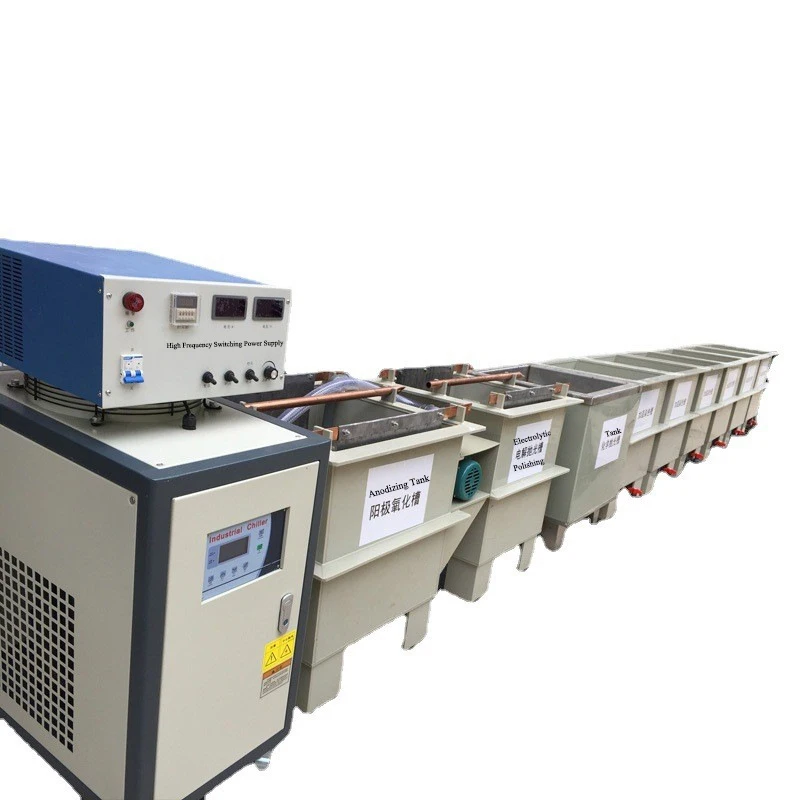

PP Oxidative Electrolytic Polishing Anti Corrosion Plating Tank Stainless Steel Electropolishing Machine for Chrome Effect
- Category: Metal Electroplating Machinery >>>
- Supplier: Sino Gookii Tech Co. Ltd.
Share on (1600624307626):
Product Overview
Description
Products Description

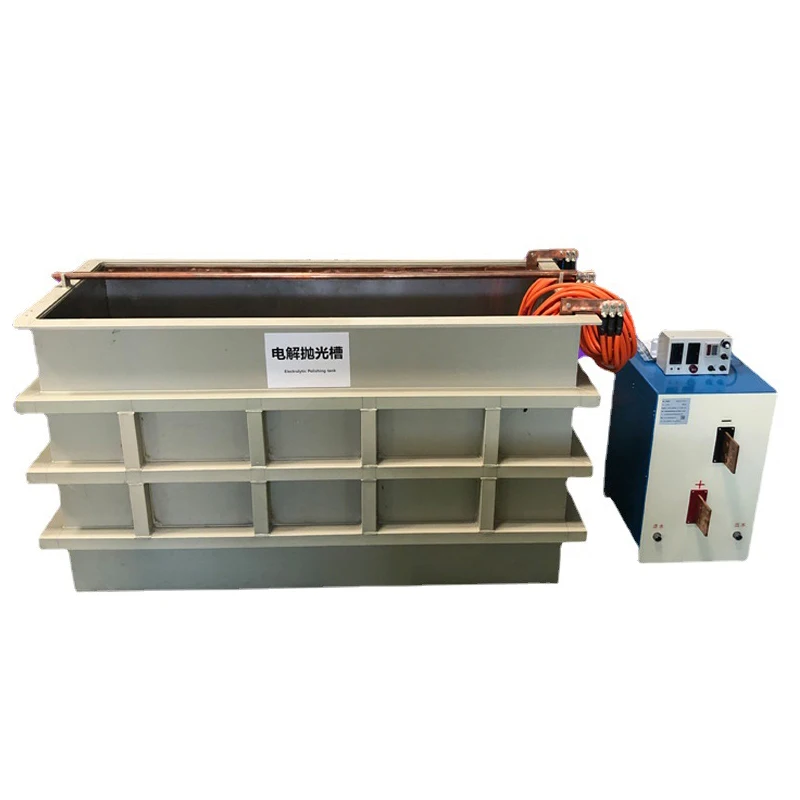

Products Name | Electrolytic Polishing Bath / Electroplating Tanks | ||
Material | Tank: 10mm PP (Polypropylene) | ||
Tank Inner Size | 1500*800*1000mm | ||
Chemical Capacity | 1100 Liters/ 290 US Gallons | ||
Weight of Chemical | 1100 Kg/ 2425 Pounds | ||
Power Configurations | 1500A, 12V | ||
Warranty | 12 Months | ||
Other Parameter | 1. IGBT imported chip, original packaging, and the overall iron shell is baked with outdoor paint. 2. Cooling method: air-cooled. 3. The efficiency is 90%. 4. Working hours: long-term operation. 5. Protection mode: over-current, over-voltage. overheat. 6. Current and voltage accuracy: 1%. One heating system thermostat and one heating tube. Conductive copper is 1 meter each. The hanger is not included, the hanger needs to be customized according to the work-piece. | ||

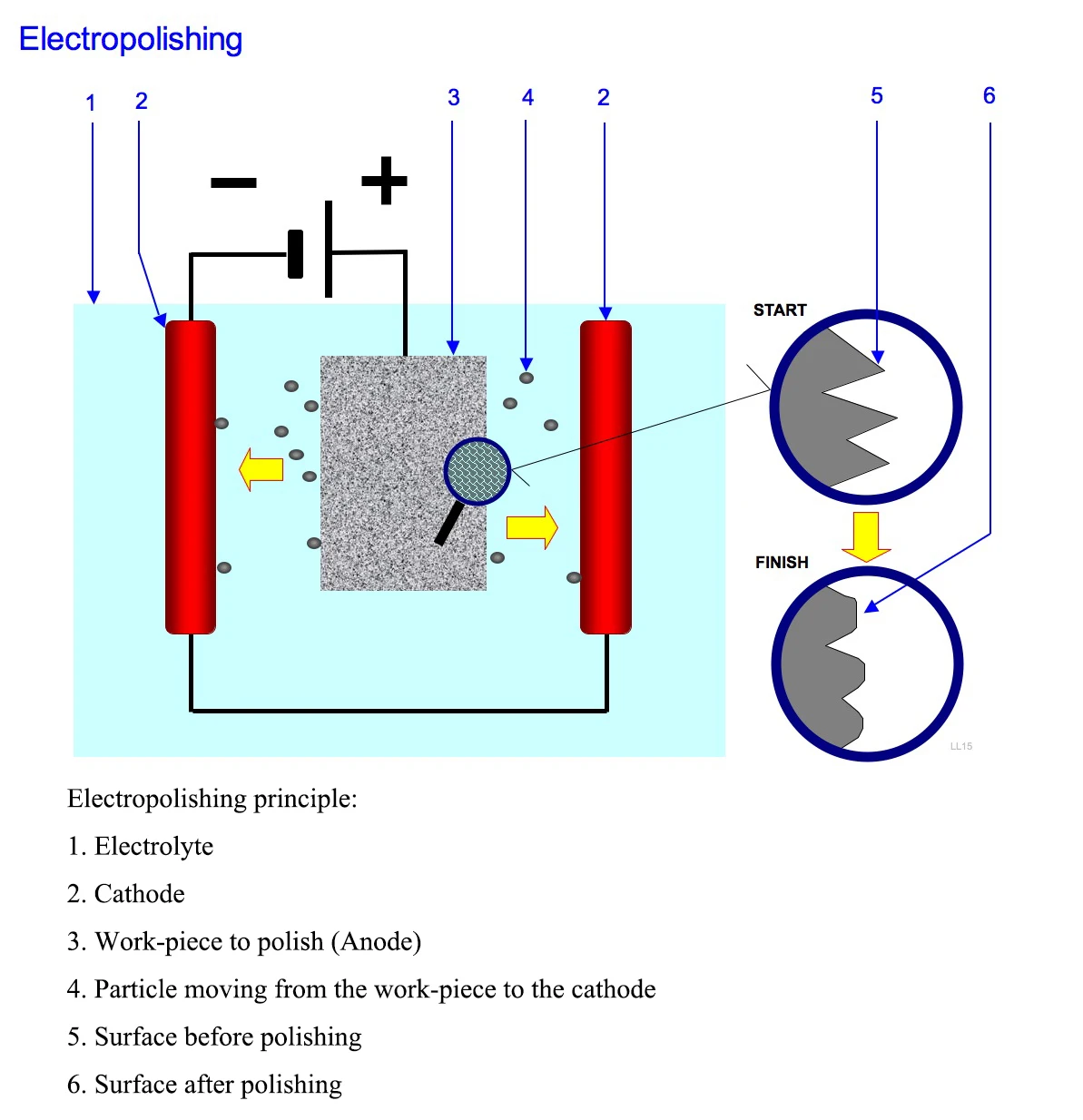

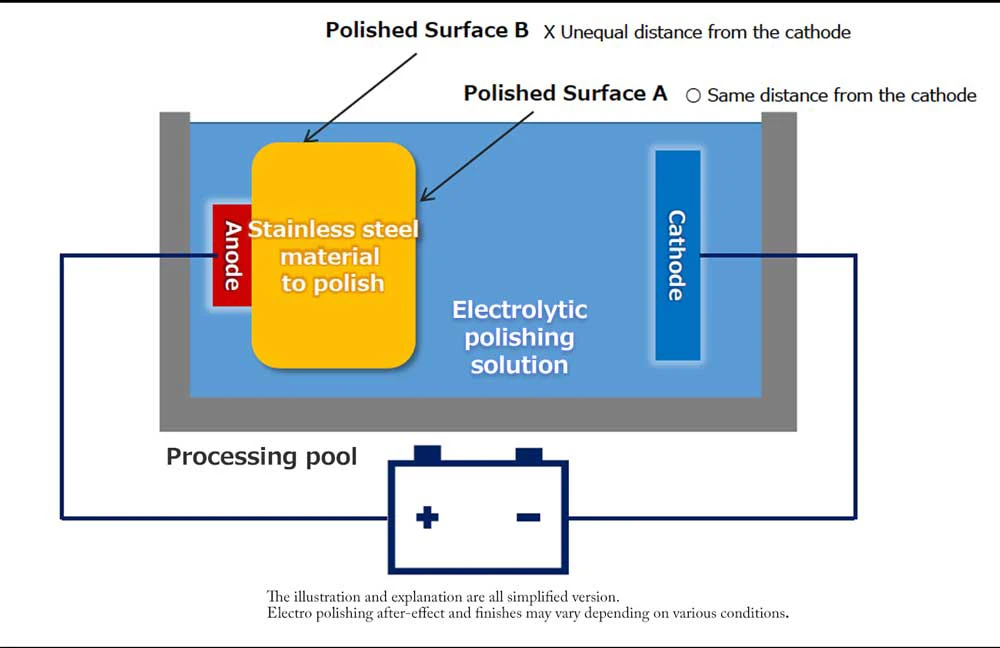

What is electropolishing?
Electropolishing, also known as electrochemical polishing, anodic polishing, or electrolytic polishing (especially in the metallography field), is an electrochemical process that removes material from a metallic workpiece, reducing the surface roughness by levelling micro-peaks and valleys, improving the surface finish. Electropolishing is often compared to, but distinctly different from, electrochemical machining. It is used to polish, passivate, and deburr metal parts. It is often described as the reverse of electroplating. It may be used in lieu of abrasive fine polishing in microstructural preparation.
Performance characteristics
1) Electrolytic polishing can achieve dead corners that cannot be touched by mechanical polishing, such as pits, complex parts, filaments, films, wire meshes, etc.

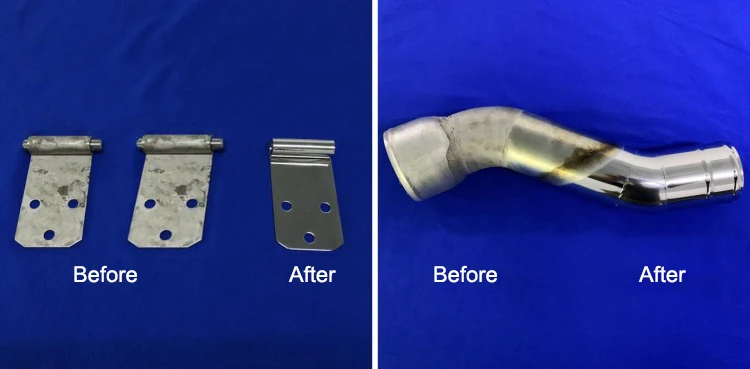

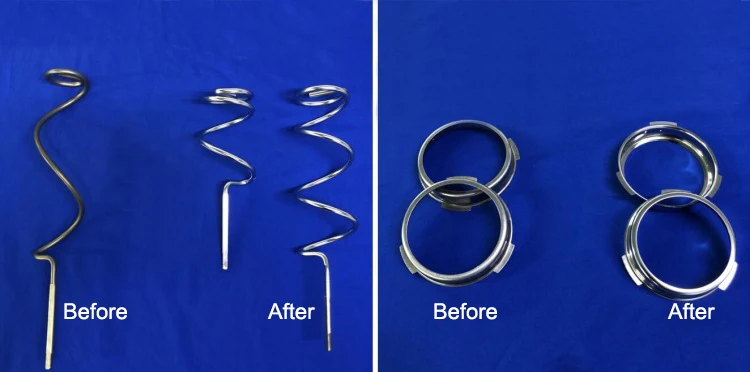

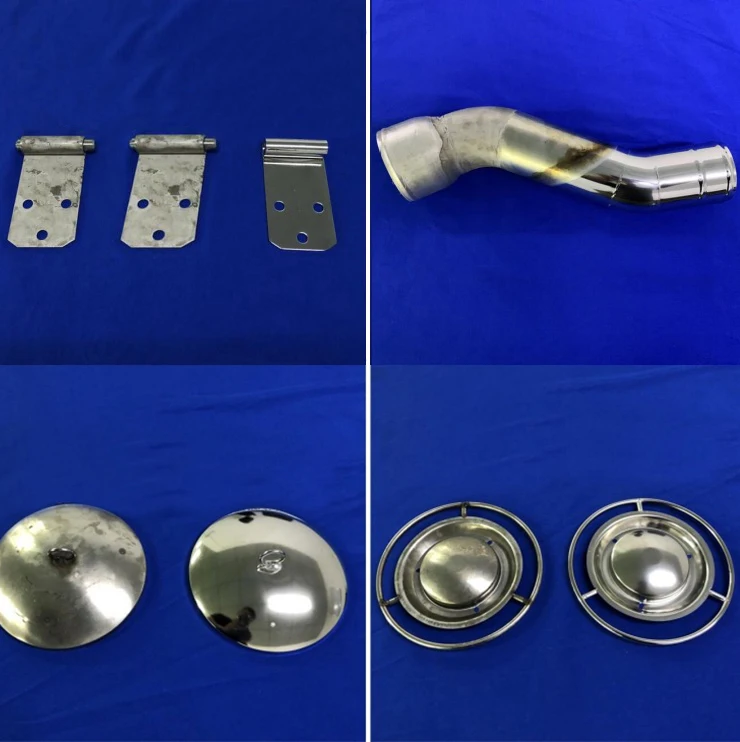

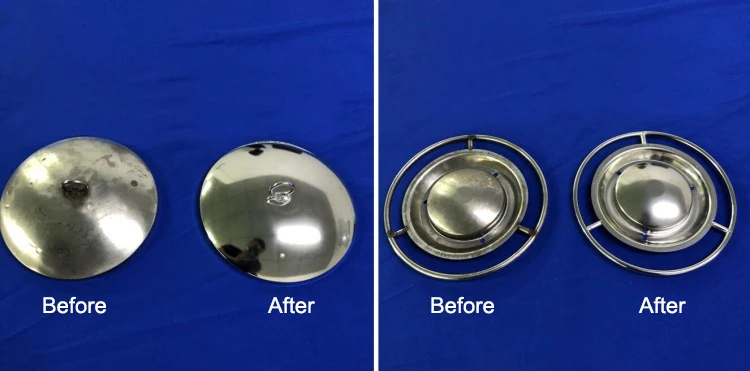

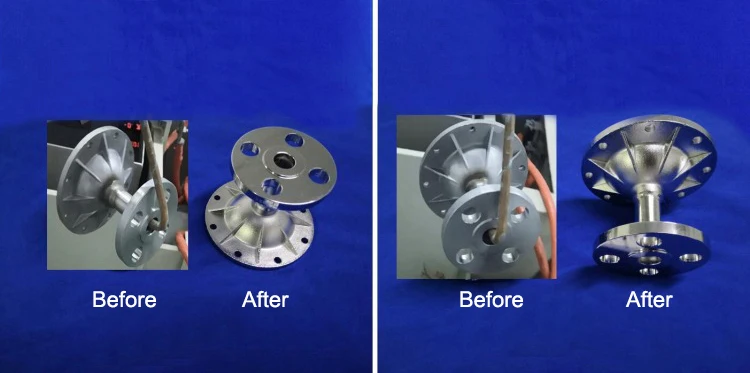

2) The polishing efficiency is high and the quality is good, and the surface of the product can be made into a mirror bright effect within a few minutes. In addition, the polishing equipment has a long service life, high-frequency pulses, and practical power saving.
3) Electrolytic polishing can preferentially dissolve the deformed layer dislocations, hole accumulation and isopotential structure on the metal surface, thereby obtaining an equipotential surface and greatly improving the corrosion resistance of stainless steel.
Main Feature
1) High reliability, resistant to harsh voltage environment and harsh humid environment.
2) Small size and light weight.
3) High efficiency, high precision, high stability, low ripple.
4) It can operate in two modes of steady current and voltage regulation, and the output current and voltage can be adjusted separately.
1) Electrolytic polishing can achieve dead corners that cannot be touched by mechanical polishing, such as pits, complex parts, filaments, films, wire meshes, etc.
2) The polishing efficiency is high and the quality is good, and the surface of the product can be made into a mirror bright effect within a few minutes. In addition, the polishing equipment has a long service life, high-frequency pulses, and practical power saving.
3) Electrolytic polishing can preferentially dissolve the deformed layer dislocations, hole accumulation and isopotential structure on the metal surface, thereby obtaining an equipotential surface and greatly improving the corrosion resistance of stainless steel.
Main Feature
1) High reliability, resistant to harsh voltage environment and harsh humid environment.
2) Small size and light weight.
3) High efficiency, high precision, high stability, low ripple.
4) It can operate in two modes of steady current and voltage regulation, and the output current and voltage can be adjusted separately.
Spare Parts
1: Electropolishing Dipping Tank 1500x800x1000mm------------1 set
2: Ballast Resistor (Timer with Alarm &Temperature Controller) -----1 set
3: Anode Copper Pipe --------------------------------------------------------1 pc
4: Cathode Copper Plate ---------------------------------------------------2 pcs
5: Cathode Lead Plate --------------------------------------------------------8 pcs
6: Quartz Heater ----------------------------------------------------------------3 pcs
7: Copper Wire 1500A ---------------------------------------------------------4 pcs
8: Fixture tool ( Electrolytic hanger) ----------------------------------1 pc
2: Ballast Resistor (Timer with Alarm &Temperature Controller) -----1 set
3: Anode Copper Pipe --------------------------------------------------------1 pc
4: Cathode Copper Plate ---------------------------------------------------2 pcs
5: Cathode Lead Plate --------------------------------------------------------8 pcs
6: Quartz Heater ----------------------------------------------------------------3 pcs
7: Copper Wire 1500A ---------------------------------------------------------4 pcs
8: Fixture tool ( Electrolytic hanger) ----------------------------------1 pc
Recommend Products
Company Profile
Sino Gookii Tech Co.,Ltd.
Sino Gookii Tech is committed to providing customers with one-stop machinery customization, processing and services. We focus on surface treatment, welding and smart factory related materials and equipments. With 12 years of industry experience, we have provided full range of equipment and technical support to large international companies.
Sino Gookii Tech has 2 self-operated factories to ensure that each equipment and each material are fully developed, tested, and produced before being delivered to customers.
Certifications
Customer Reviews
FAQ
Q1. Do you have all these materials and machines available in your factory?
- A1: We have most of the products in stock, but some customized materials and machines have no stock, we can finish production in 10 to 15 days once you confirmed the order.
Q2. What if I want to have my own size and requirements of the products?
- A1: Absolutely we can produce for you. Just send us your designs, quantity and other requirements.
Q3. How to place the order?
- A1: Please choose the type you like, and send us your address and contact information, we will check the shipping price and quote everything to you immediately. If you agree the terms, then you can start paying, you can pay by T/T, visa credit card, western union, paypal etc. We will start the production and then arrange the shipping.
Q4. I am new in this industry or it's the first time to use your products, what kind of technical support do you have?
- A1: We guarantee to provide customers with technical services from beginning to end. We provide video instructions, remote video and audio technical guidance, free formula etc.
Q5. How many days I can receive my products?
- A1: For the machine and chemicals, normally we will use sea shipping, about one months to all countries of the world.
Q6. Do you have more products to choose?
- A1: Yes, please contact us for the catalog, we have many different types of machines.
