Product Overview
Description

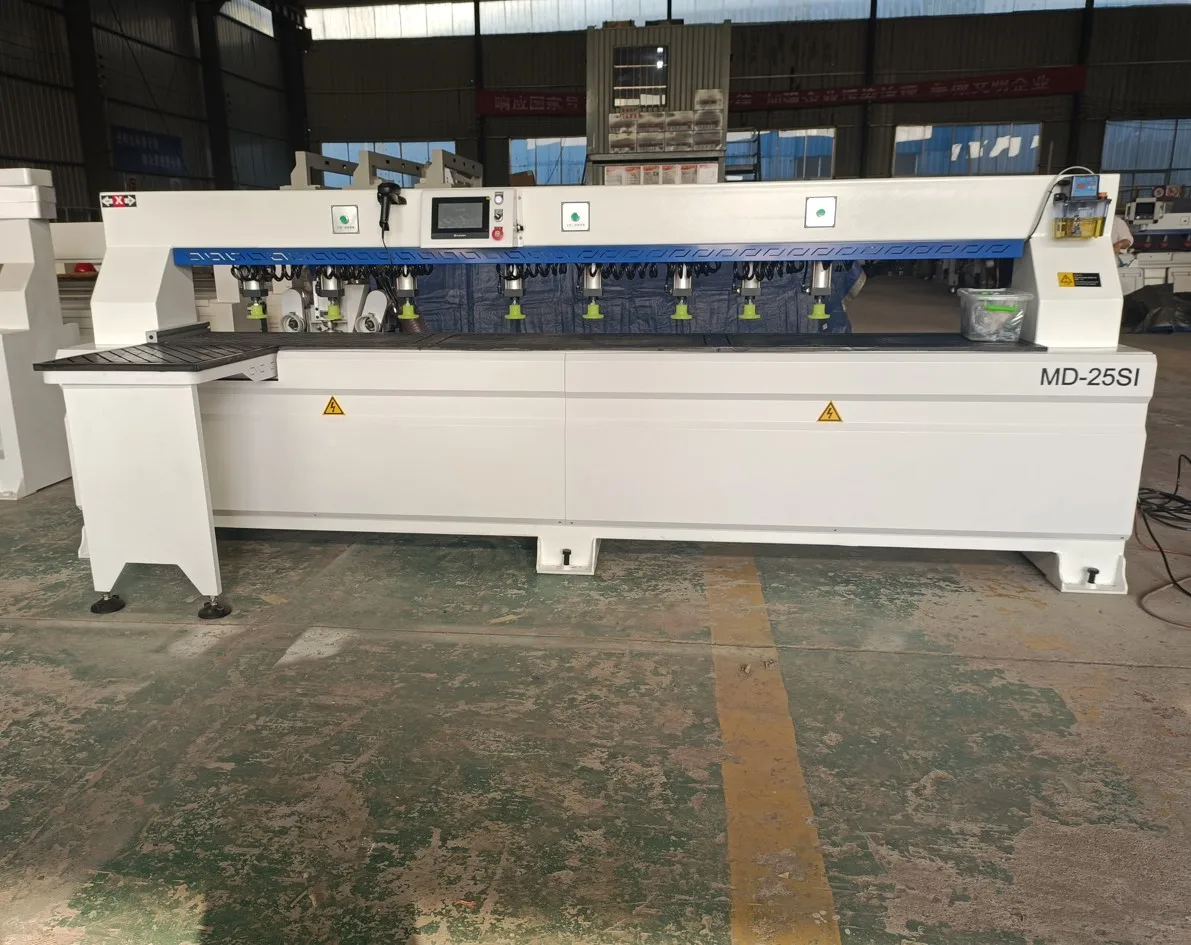

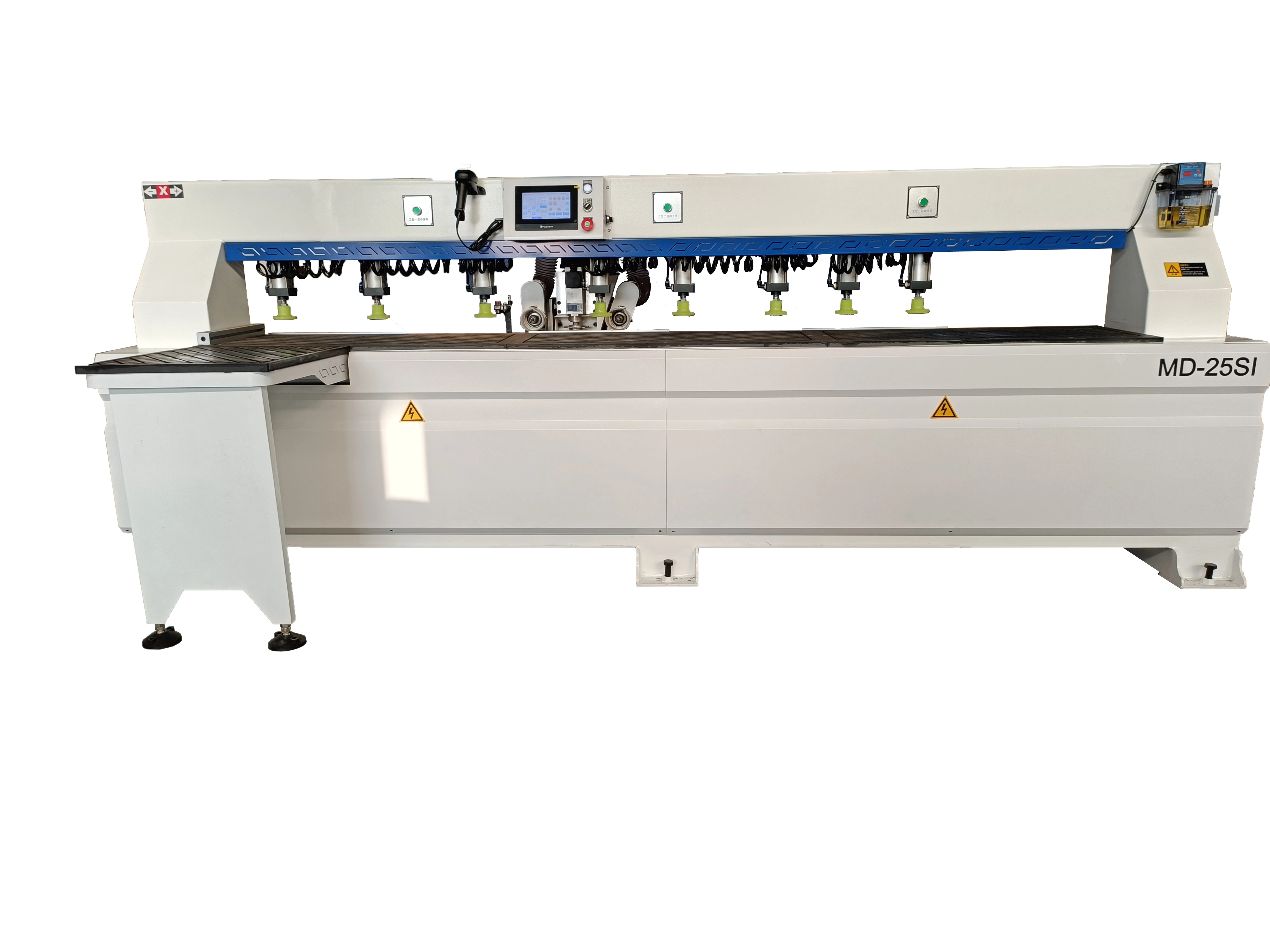

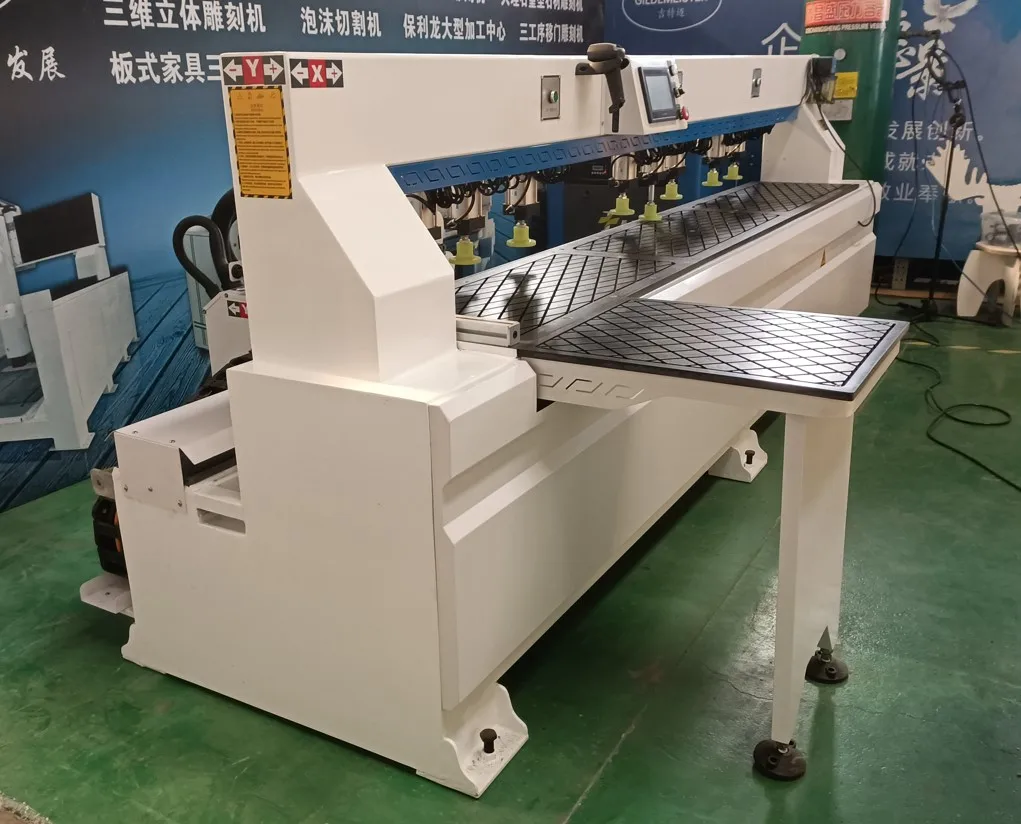

CNC mortising machine

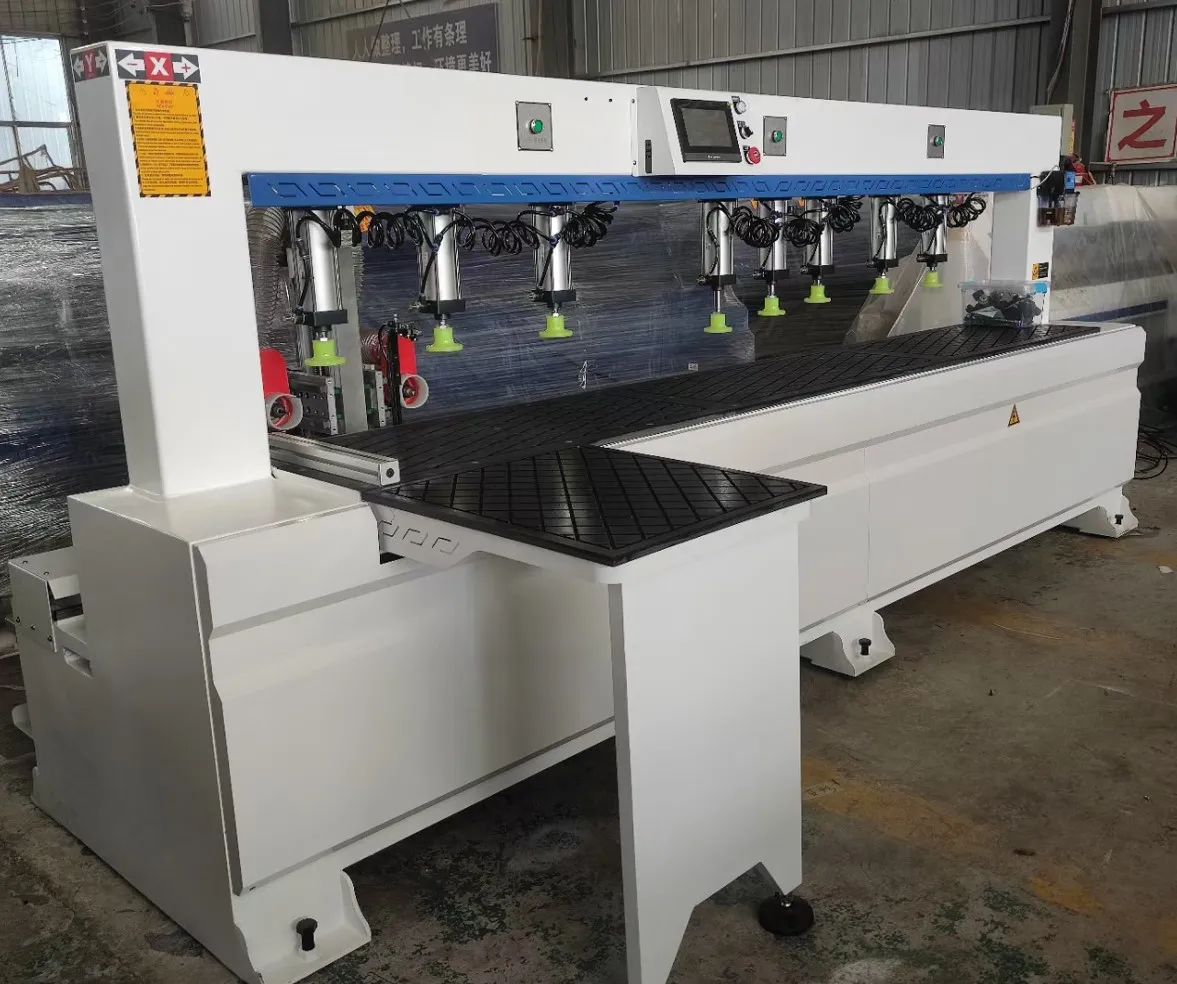

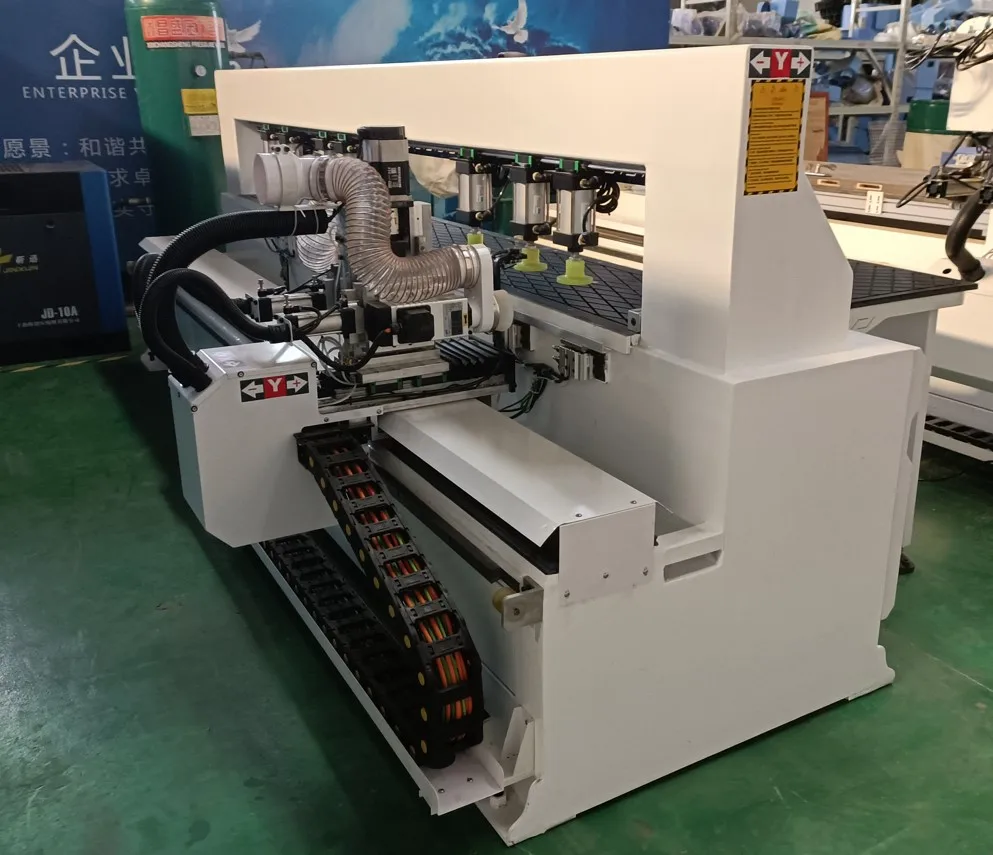

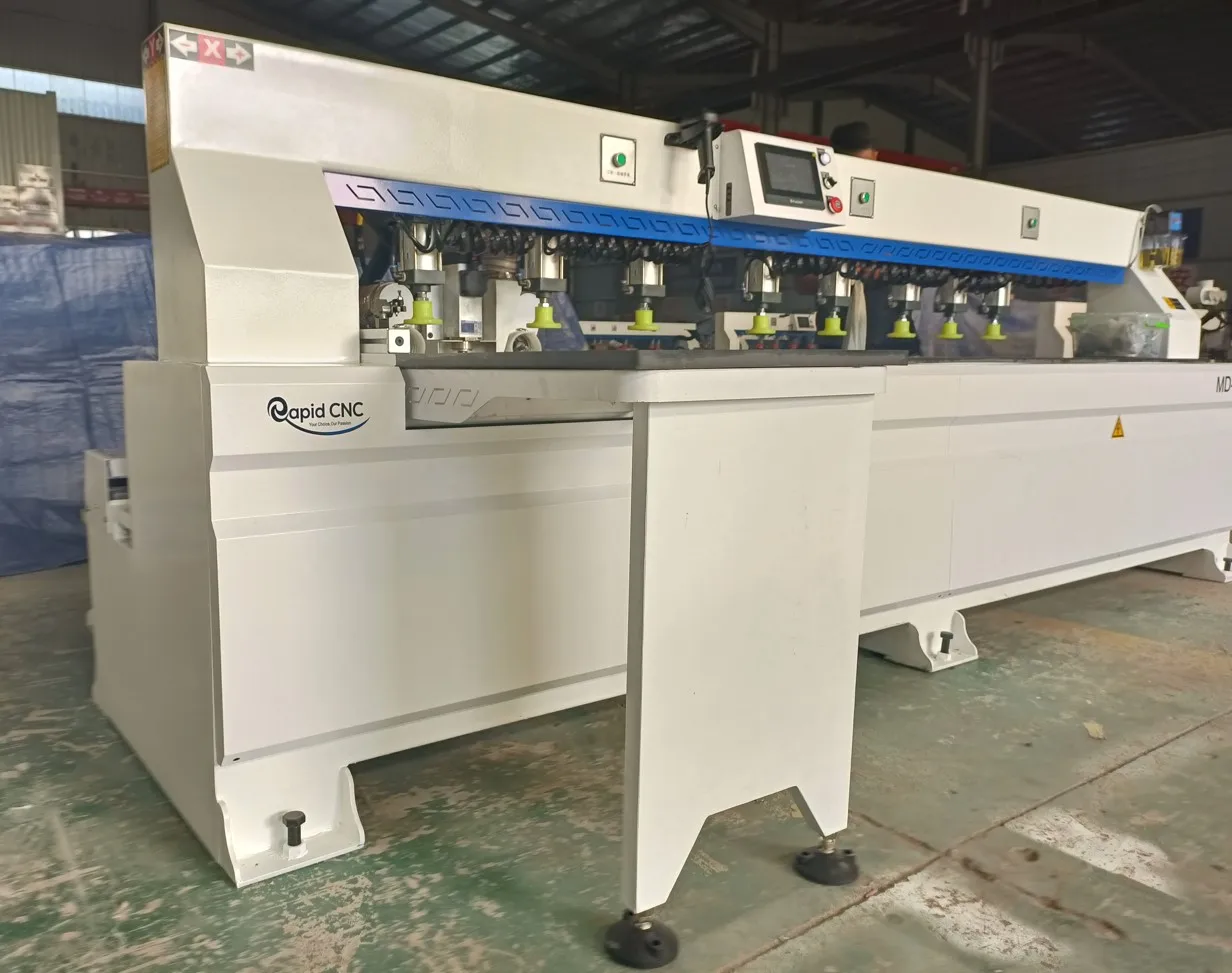

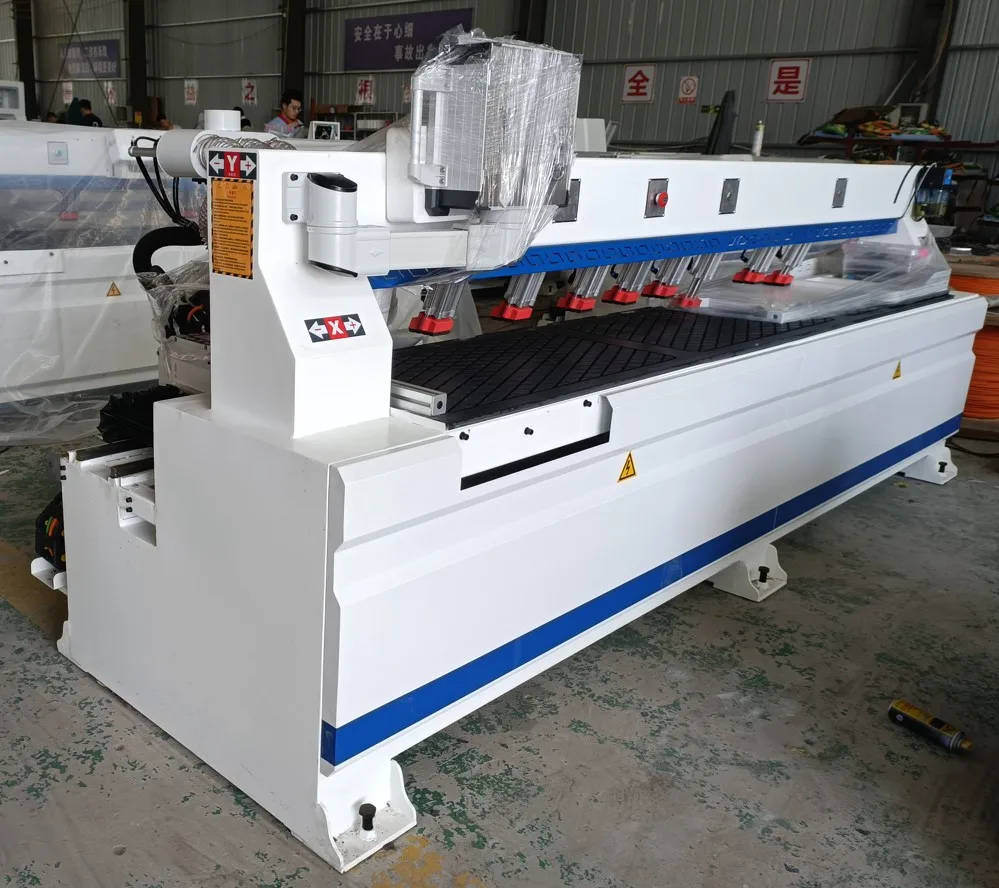

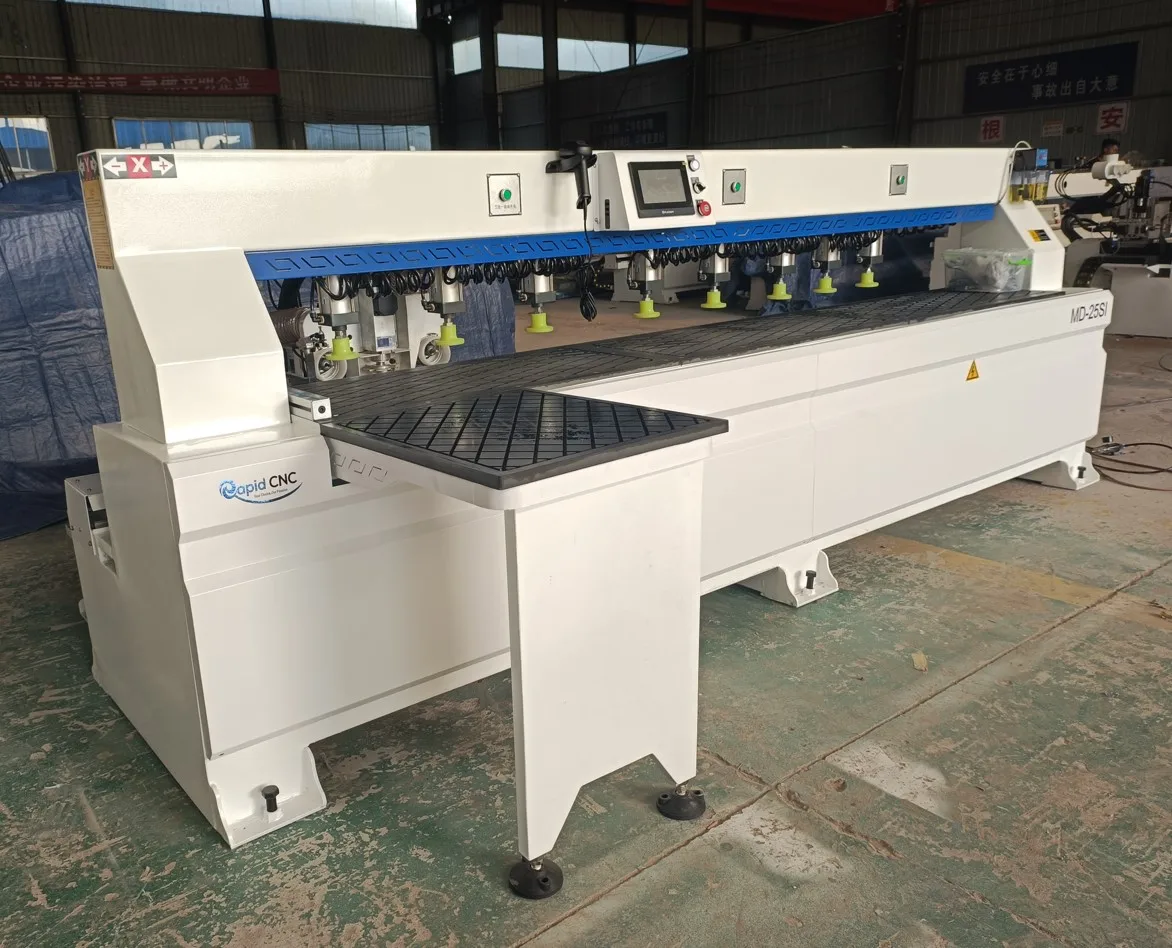

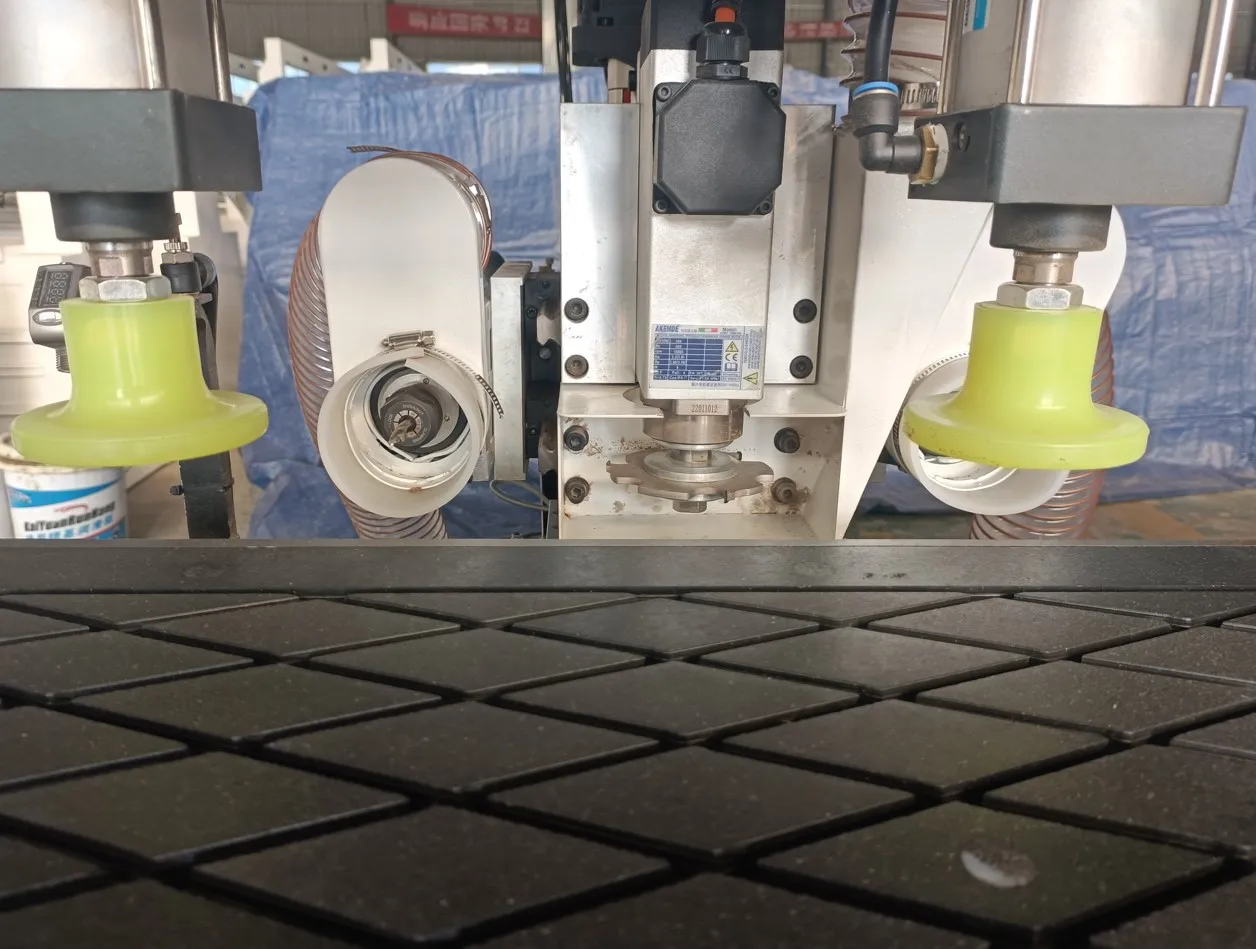

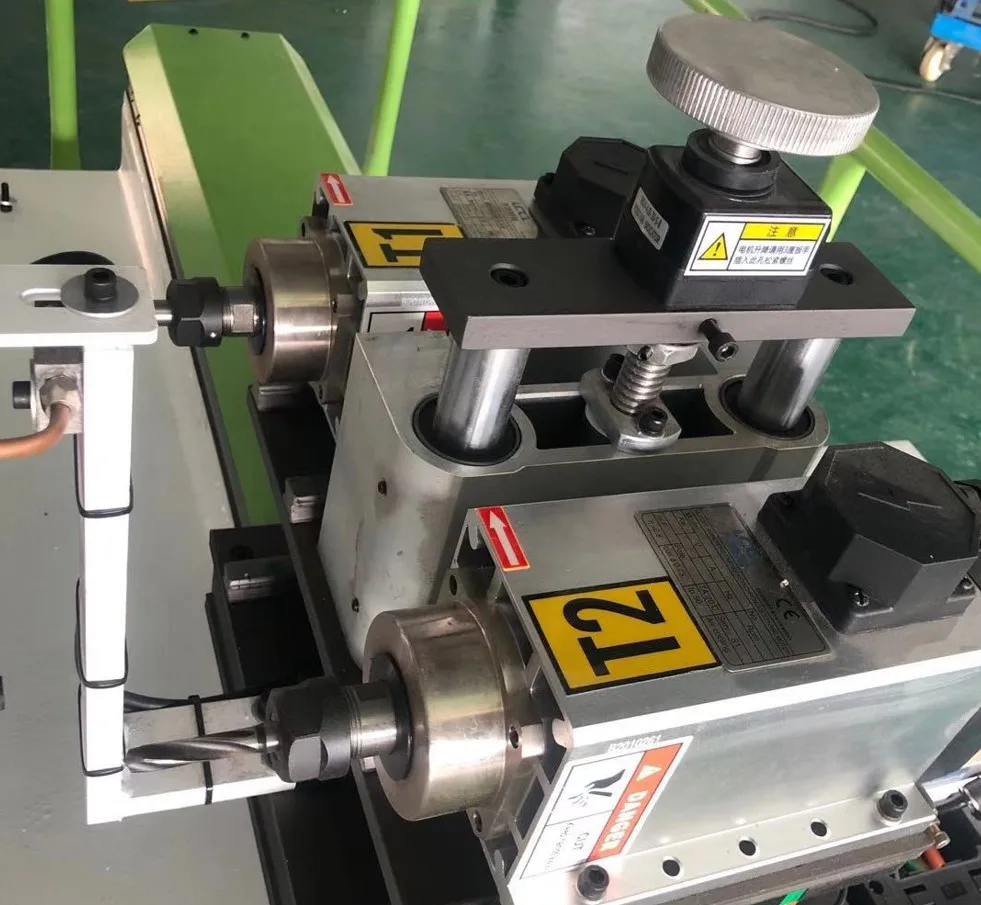

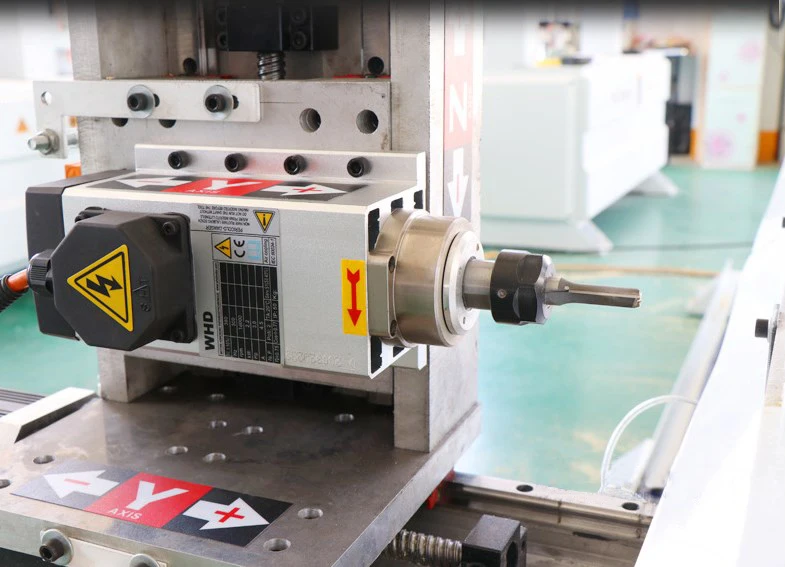

MD Motion machinery CNC wood cnc mortising machine, CNC mortise machine is a well developed CNC woodworking machine used for making mortise, tenon, dovetail on wood doors,cabinet door,chair legs and other woodworking furniture joints.This model of MD-25S1 could process 1300X2500mm size wood panel which could meet most of work size requirment. There are 6-8 pcs air cylinders placed in lines for fast speed holding for work. There are 24000rpm spindles mounted horizontally at table size droven by CNC control system for a fast and accurate drilling and milling work.
Product name | cnc mortising machine |

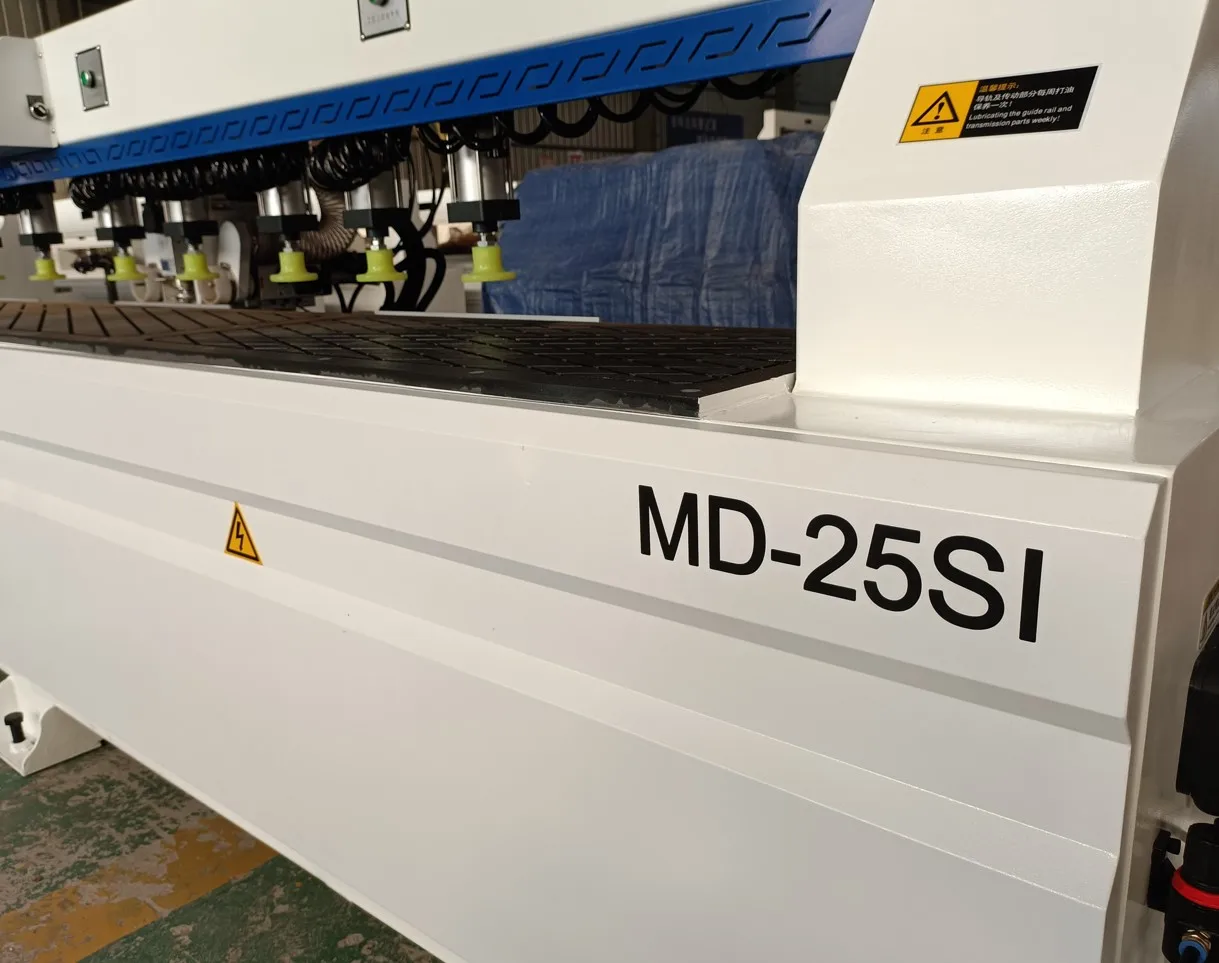

Model | MD-25S1 |
Loading size | 1300X2500mm |
Working size | 1300X50X30mm |
Mortising size | 0-50mm |
Spindle power | 2.2Kw/3.5KW |
Spindle speed | 18000RPM |
Inverter | Chinese Best |
Driver and motors | Chinese Servo |
Guiding rails | Taiwan Hiwin |
Travelling speed | 0-30000mm/min |
Working speed | 0-15000mm/min |
Axis quantity | 2 axis/ 3 axis |
Voltage | AC 220V/50HZ |
Weight | 1050Kg |
Package | Plywood pallet |
Warranty | 12 months |
CNC mortising machine
system coordinates to work. The development of CNC mortise and tenoning machine has sloved the problem that normaly CNC Router
machine could not work on the wooden board side, become a very useful CNC woodworking equipment for furniture industry.
Application of Machine:
1.0 Machine is mainly used to do mortise and tenon and trenching work on wood.
2.0 Mortise and tenon could be quickly made through scanning the bar code with infrared sensor.
3.0 It could drill multiple holes fast and accurate, no need to repeatedly adjustment.
4.0 Control system adopts with PLC touch screen, easy to operate.
1.0 Machine is mainly used to do mortise and tenon and trenching work on wood.
2.0 Mortise and tenon could be quickly made through scanning the bar code with infrared sensor.
3.0 It could drill multiple holes fast and accurate, no need to repeatedly adjustment.
4.0 Control system adopts with PLC touch screen, easy to operate.
Features of Machine:

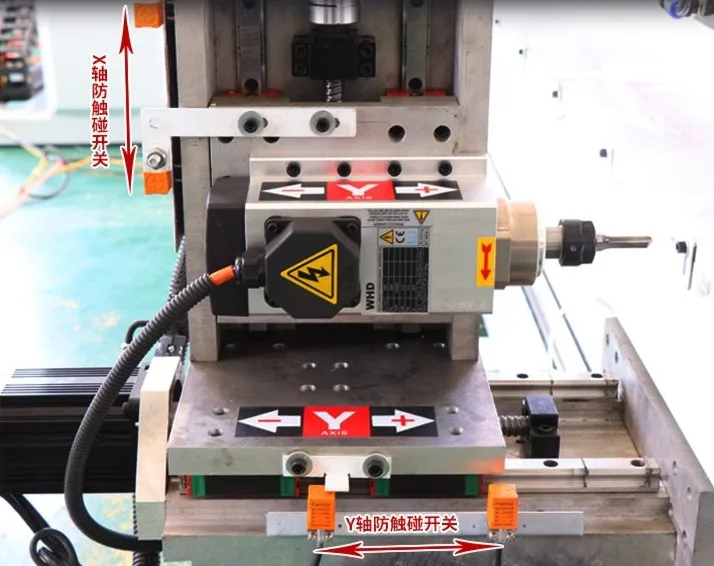

1.0 Adopts with servo motors, Taiwan ball screw and guide rails for accurate movement.
2.0 Sensative touch screen PLC, easy to operate and fast to learn.
3.0 Touch screen modify tenon height and length, no need individual make drawings and programing
4.0 Laser scanner for bar code identify, fast working speed.
1.0 Adopts with servo motors, Taiwan ball screw and guide rails for accurate movement.
2.0 Sensative touch screen PLC, easy to operate and fast to learn.
3.0 Touch screen modify tenon height and length, no need individual make drawings and programing
4.0 Laser scanner for bar code identify, fast working speed.
